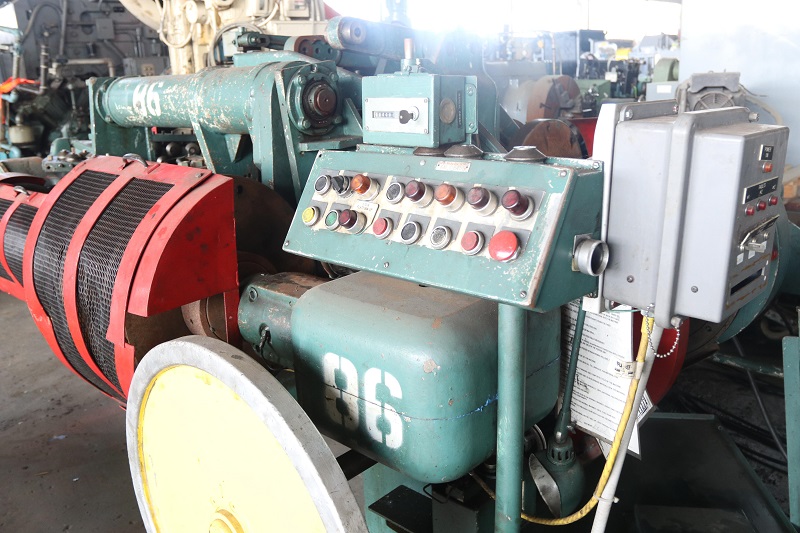

1/4" x 36" US Baird # 4-36 Four Slide Wire Machine

Stock #: 0508819

Equipped With

SPECIFICATIONS:

Machine Specifications

SERIAL ....................... 5707-18
MODEL ........................ 4-36
MAXIMUM WIRE DIAMETER ........ .250" (1/4")
WIDTH RIBBON METAL ........... 1-1/4"
MAXIMUM FEED WITH STOPS ...... 36"

EQUIPPED WITH:
- SPLIT CAMS
- AIR CLUTCH
- 2 SIDED (DOUBLE) SLIDE GIBS
- 14 ROLL 2-PLANE STRAIGHTENER
- VERTICAL FORMING POST
- FRONT, REAR, LEFT AND RIGHT SLIDES
- POSITIVE STOCK CHECK
- AUTOMATIC LUBE SYSTEM
- ENCLOSED GEARING
- SINGLE / INCH / AUTOMATIC
- HAND JOG MODE
- TOP STOP
- E-STOP BUTTON
- MAX PAC VARIABLE SPEED DRIVE
- PUSH BUTTON ELECTRIC STATION
- 5 HP MOTOR



1/4" x 36" US Baird # 4-36 Four Slide Wire Machine

STOCK # 0508819

Specifications

View All Details
Machine Type
Wire Machinery (Other)
Manufacturer
U.S. BAIRD
Model
4-36
Year
N/A
Condition
Used
Equipped With
SPECIFICATIONS:

Machine Specifications

SERIAL ....................... 5707-18
MODEL ........................ 4-36
MAXIMUM WIRE DIAMETER ........ .250" (1/4")
WIDTH RIBBON METAL ........... 1-1/4"
MAXIMUM FEED WITH STOPS ...... 36"

EQUIPPED WITH:
- SPLIT CAMS
- AIR CLUTCH
- 2 SIDED (DOUBLE) SLIDE GIBS
- 14 ROLL 2-PLANE STRAIGHTENER
- VERTICAL FORMING POST
- FRONT, REAR, LEFT AND RIGHT SLIDES
- POSITIVE STOCK CHECK
- AUTOMATIC LUBE SYSTEM
- ENCLOSED GEARING
- SINGLE / INCH / AUTOMATIC
- HAND JOG MODE
- TOP STOP
- E-STOP BUTTON
- MAX PAC VARIABLE SPEED DRIVE
- PUSH BUTTON ELECTRIC STATION
- 5 HP MOTOR
