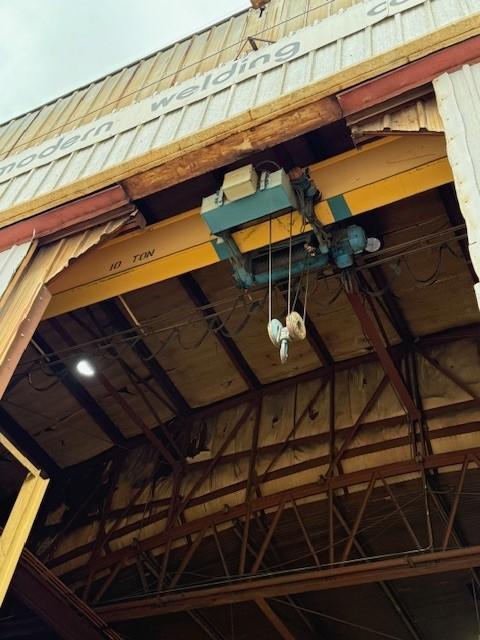

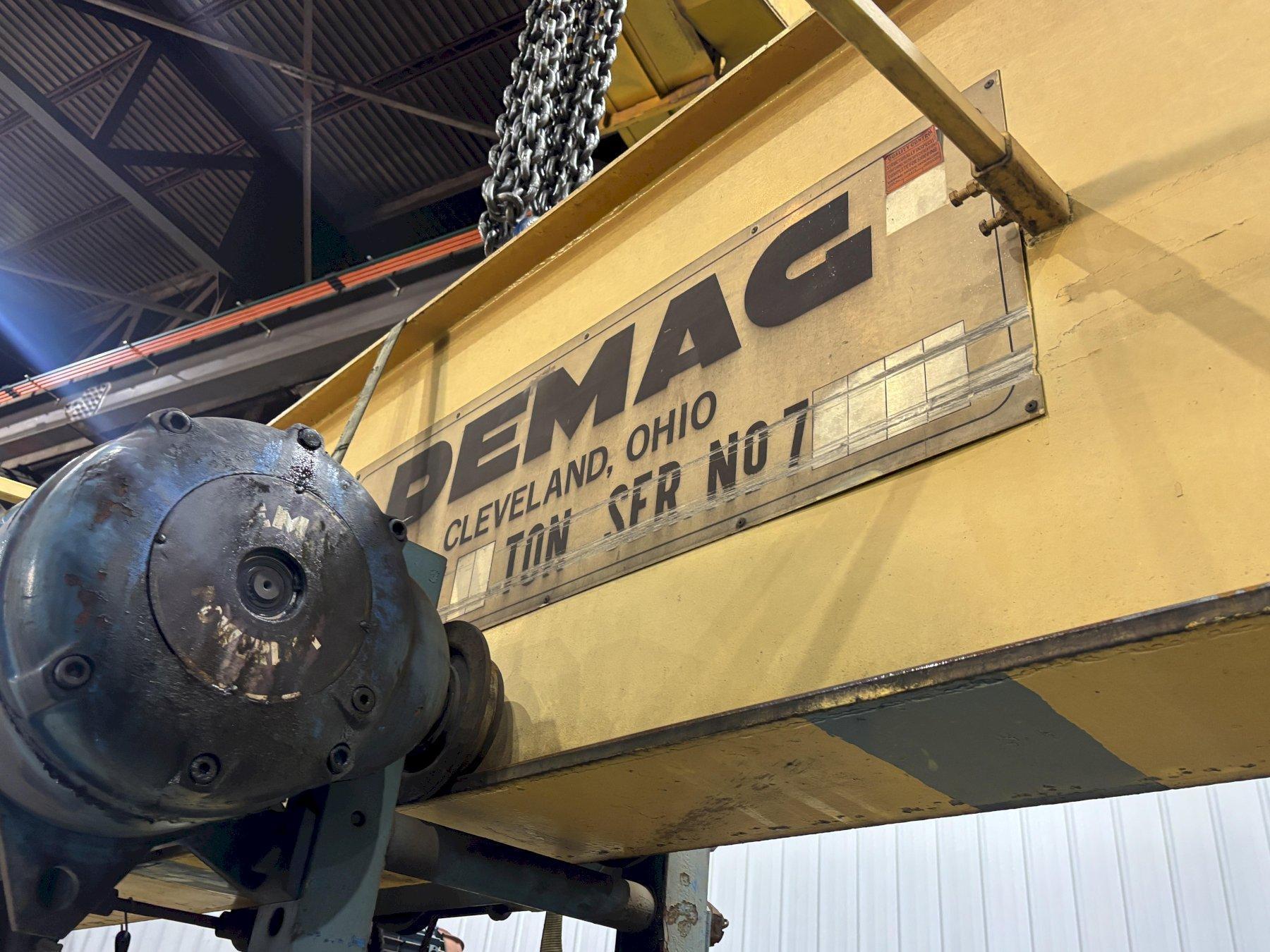

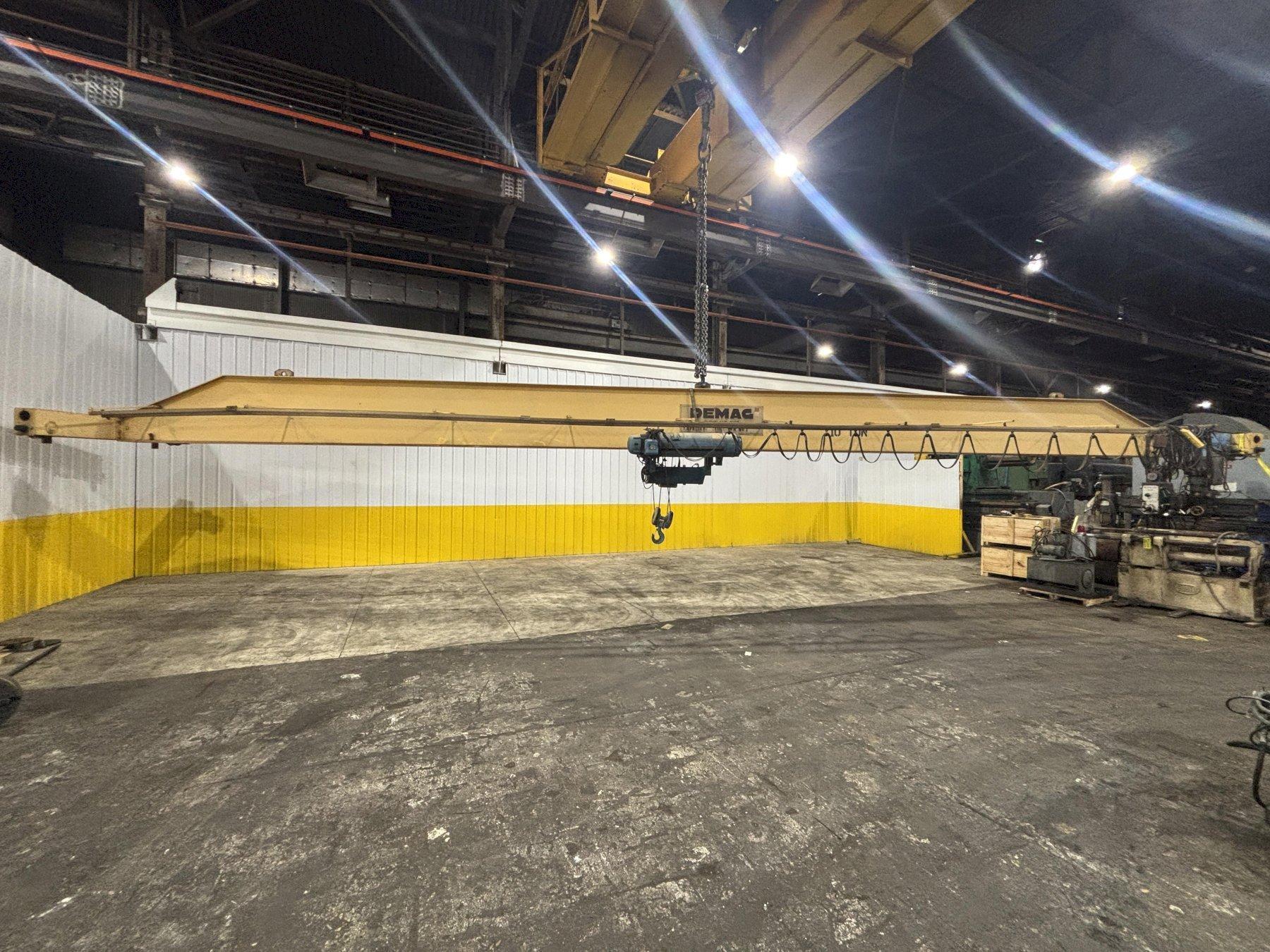

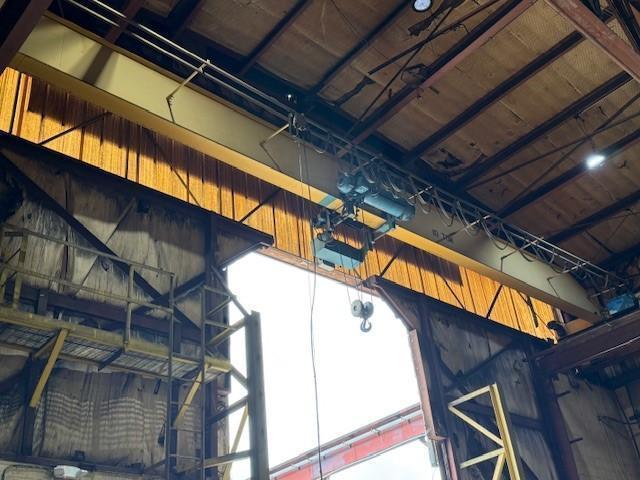

10 TON X 55' DEMAG SINGLE GIRDER TOP RUNNING BRIDGE CRANE. STOCK # 0113726

Stock #: 0113726

Equipped With

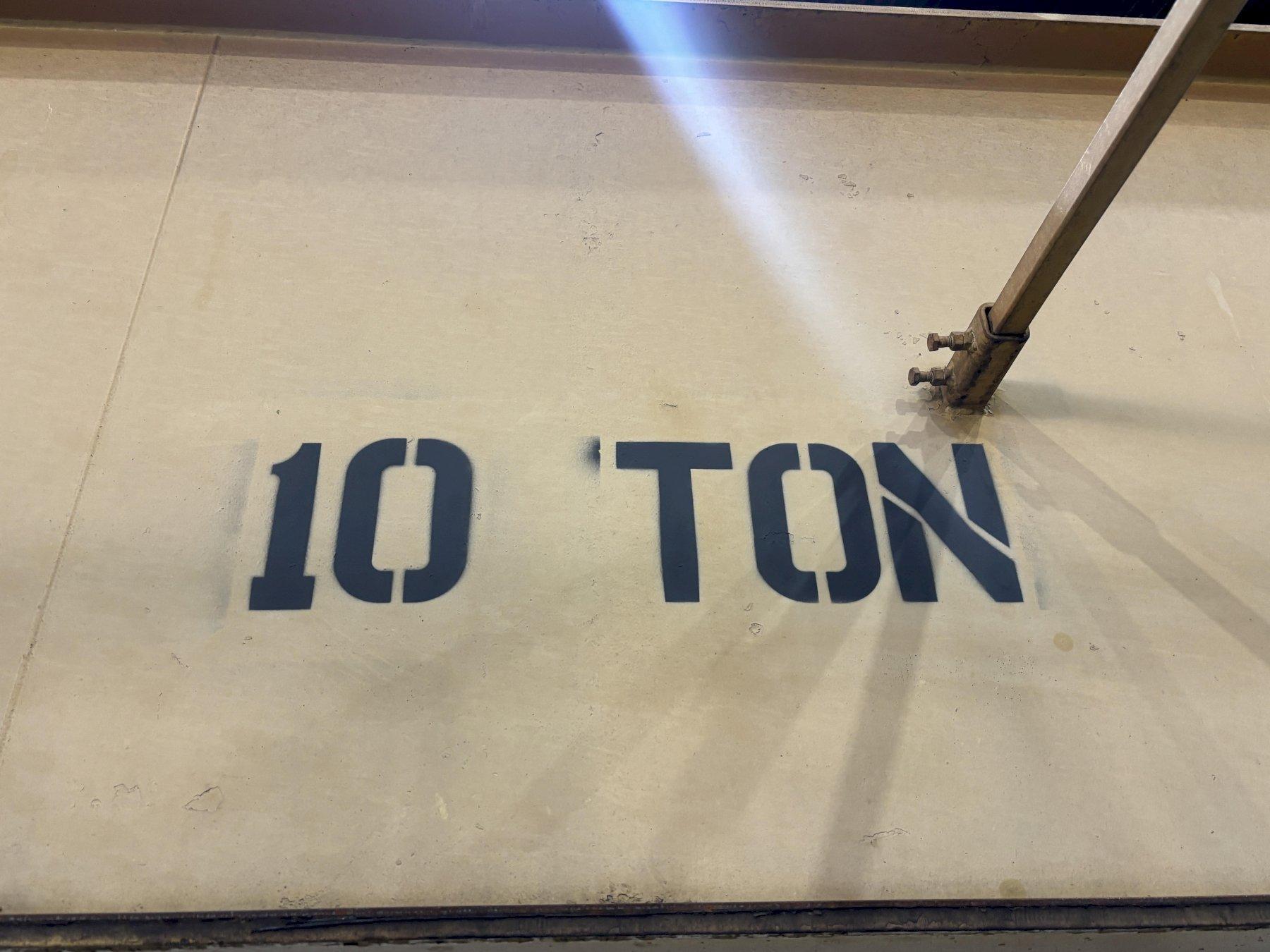

CAPACITY ............ 10 TON
SPAN ................ 54'10"
SINGLE GIRDER ....... TOP RUNNING
DRIVEN END TRUCKS ... YES

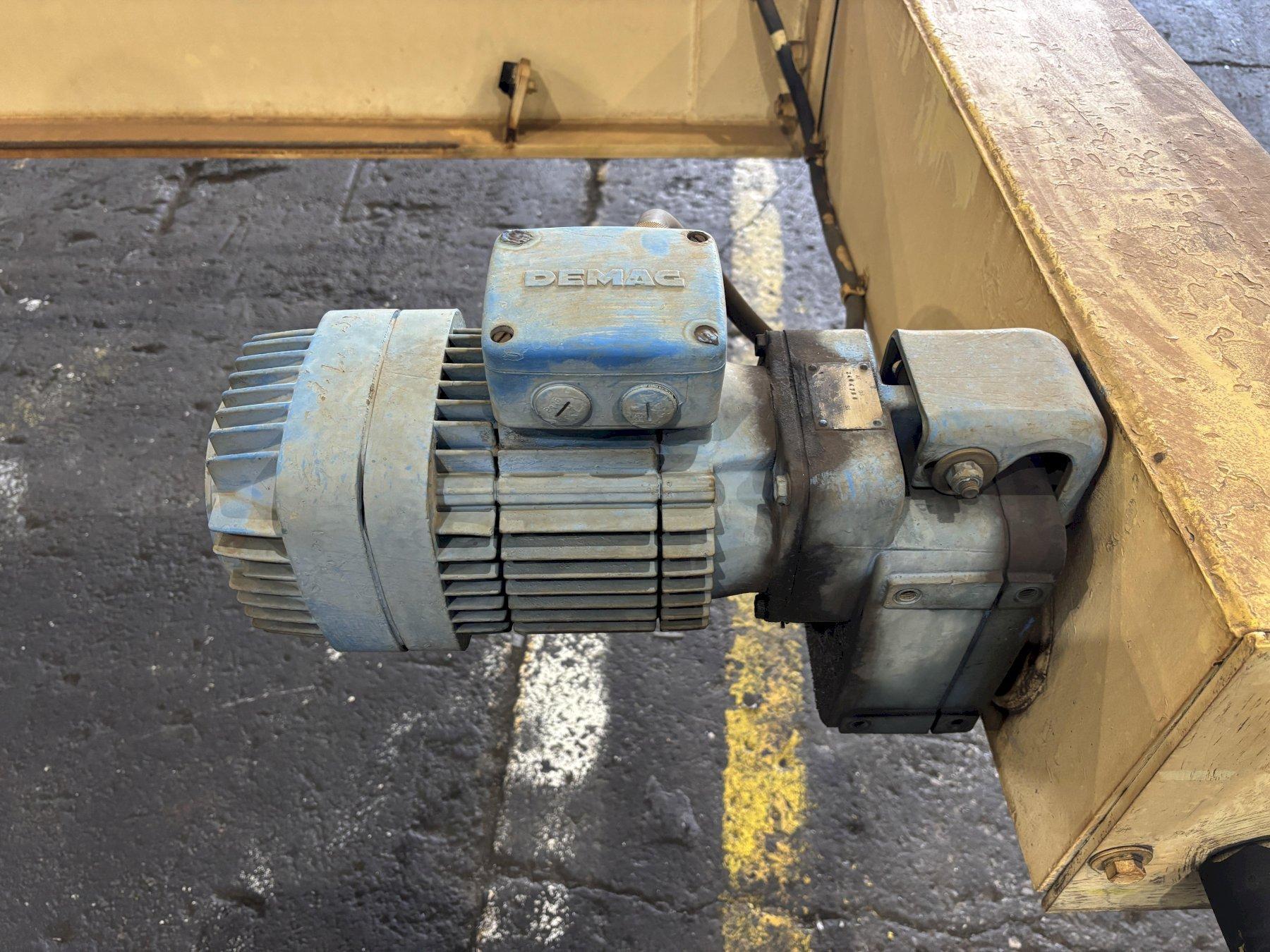

END TRUCK MOTORS .... 3 HP EACH

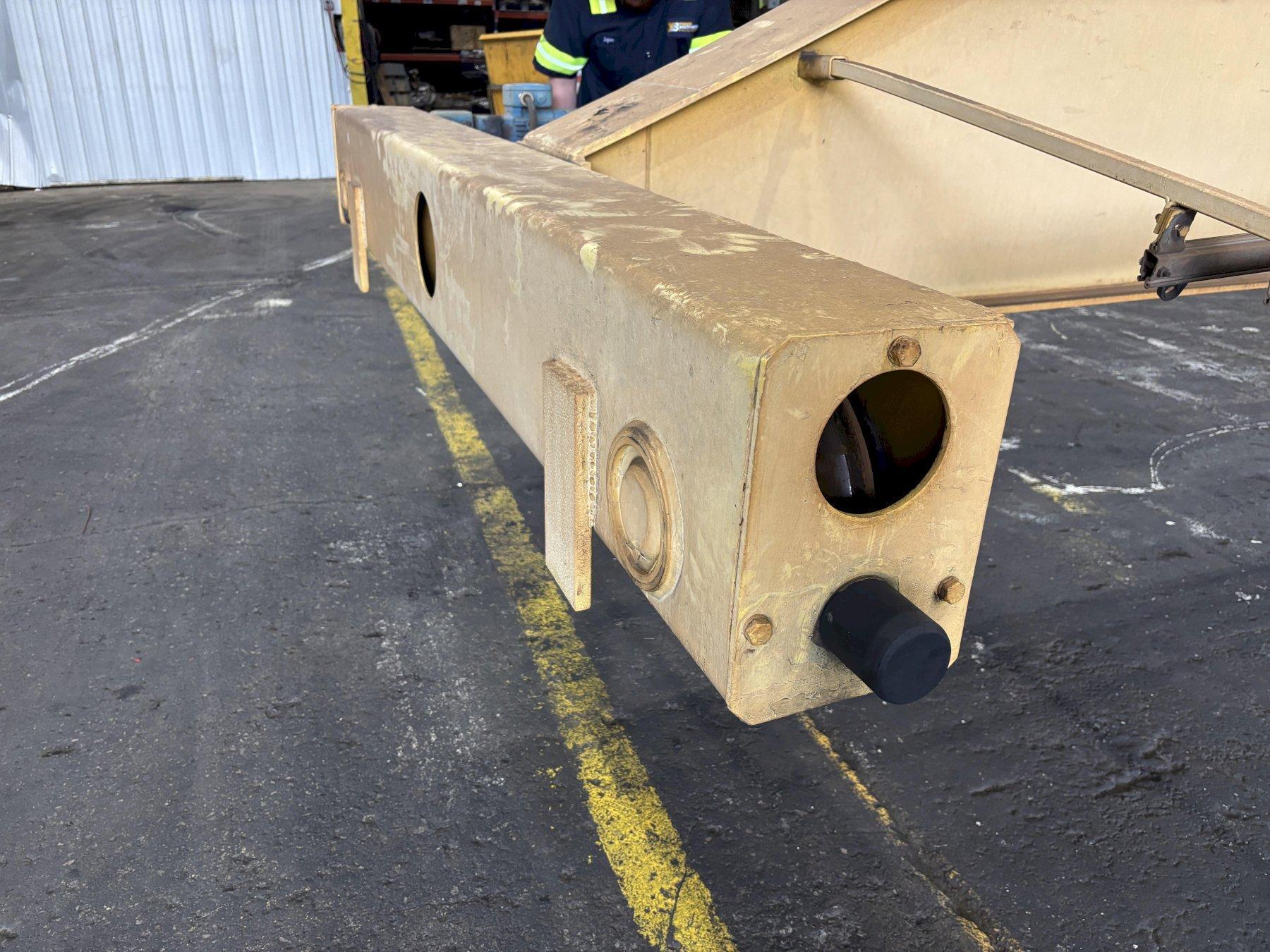

END TRUCK LENGTH .... 8'4"
CONTROL ............. 6 WAY PENDANT
MAIN BEAM ........... 37.25" X 12"
HEAD ROOM ........... 44"
END TRUCK LENGTH .... 96"
WHEEL CENTERS ....... 78"

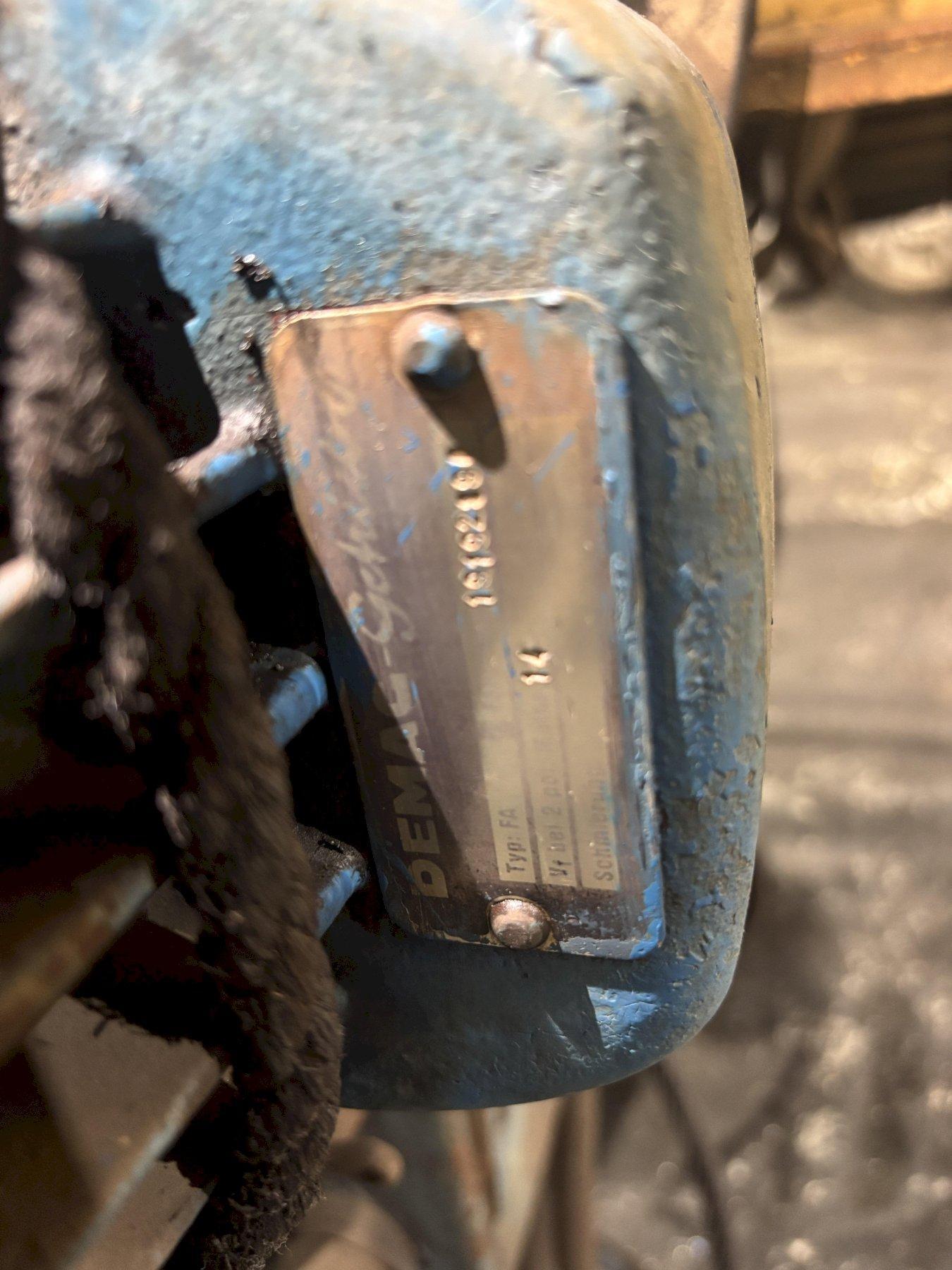

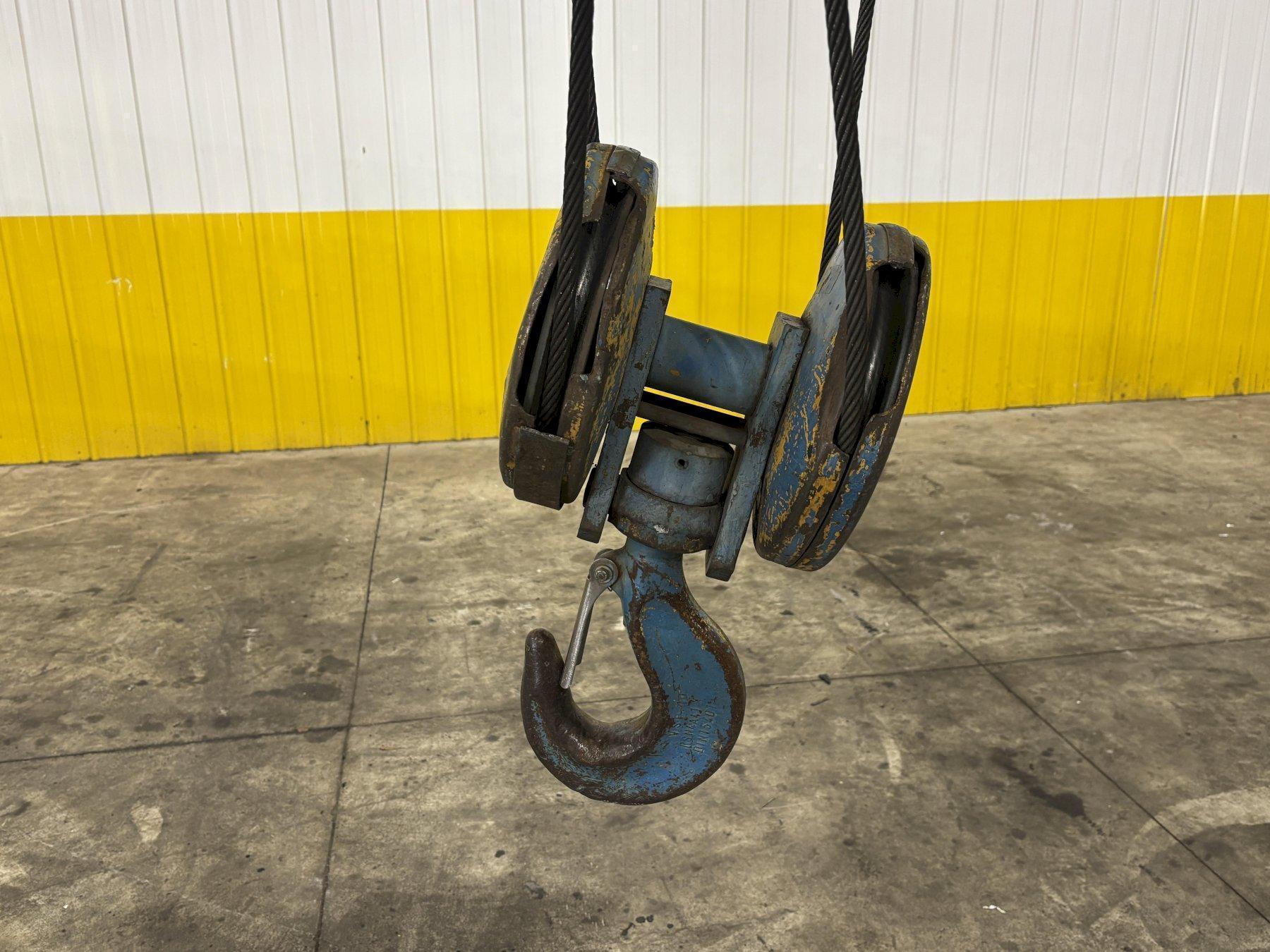

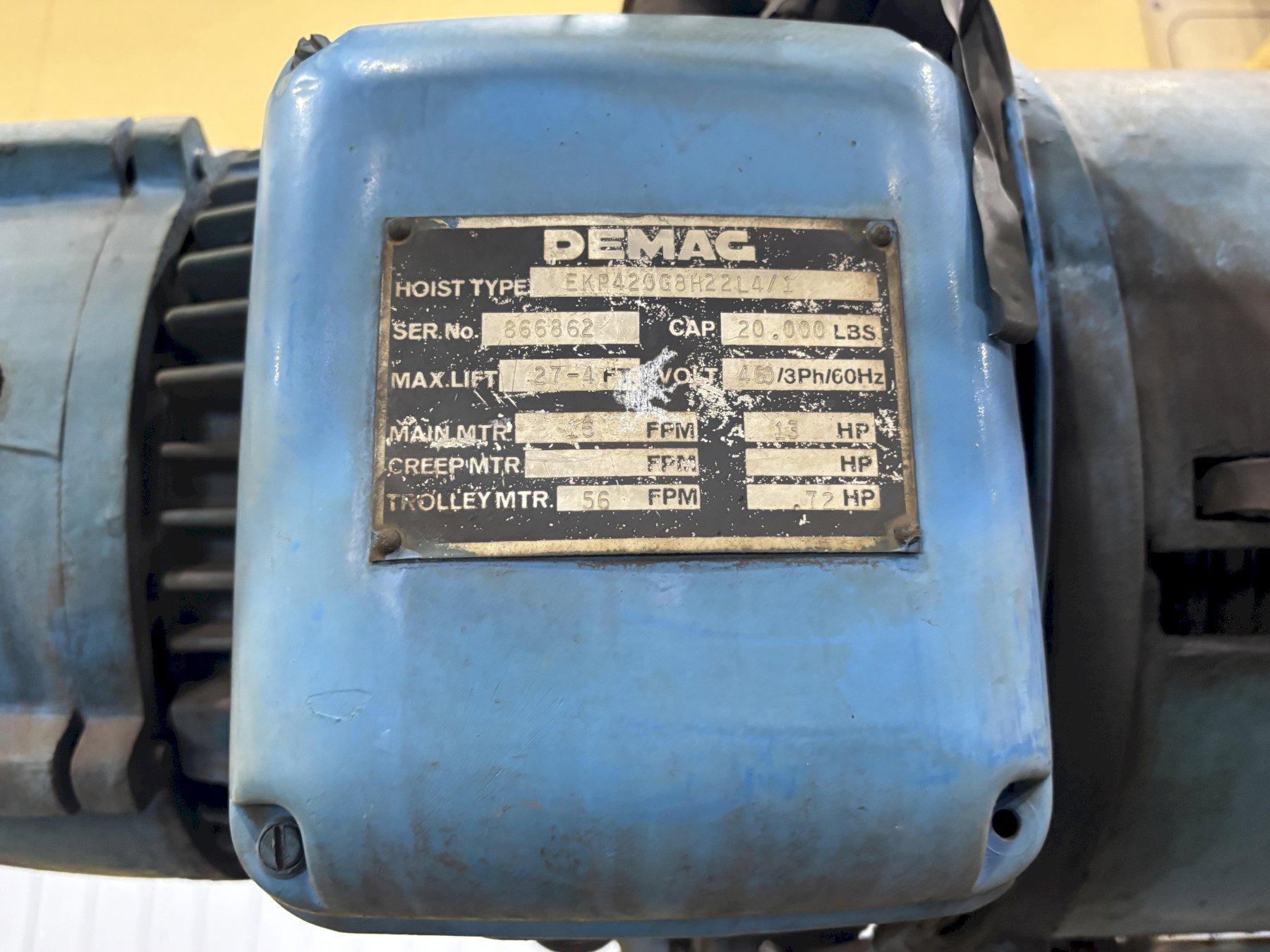

DEMAG HOIST
SERIAL .............. 866862
HOIST TYPE .......... EKP420G8H22L4/1
CAPACITY ............ 20,000 LBS
LIFT ................ 27'4"
LIFT SPEED .......... 16 FPM
LIFT MOTOR .......... 13 HP
TROLLEY SPEED ....... 56 FPM
TROLLEY MOTOR ....... .72 HP
