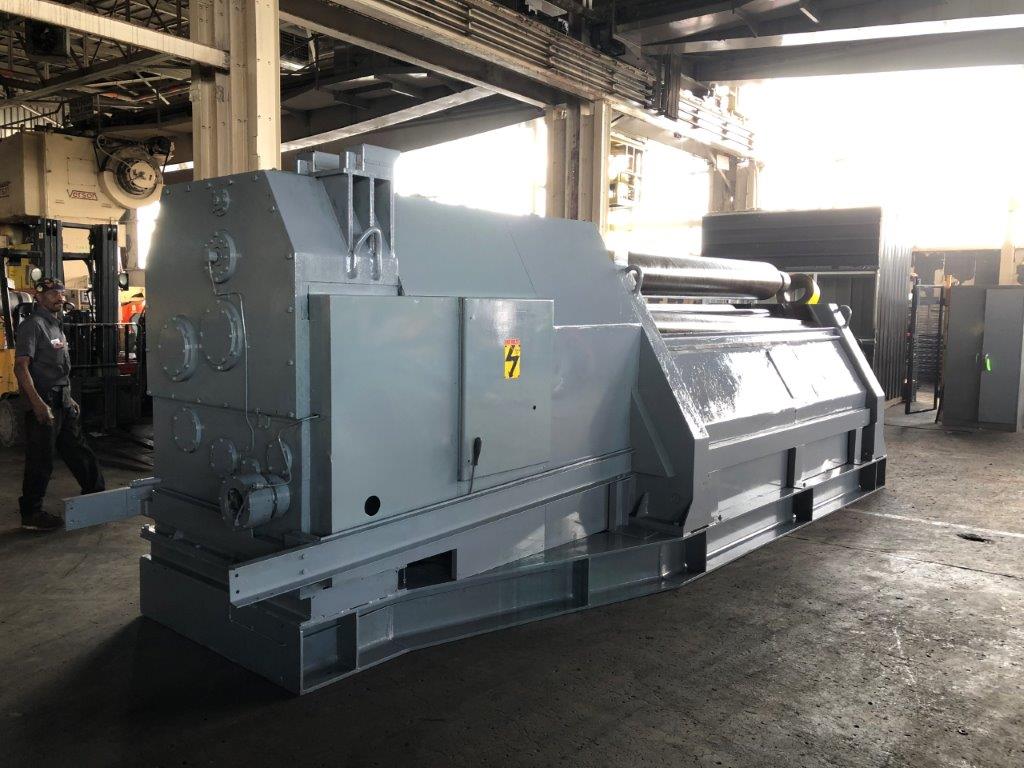

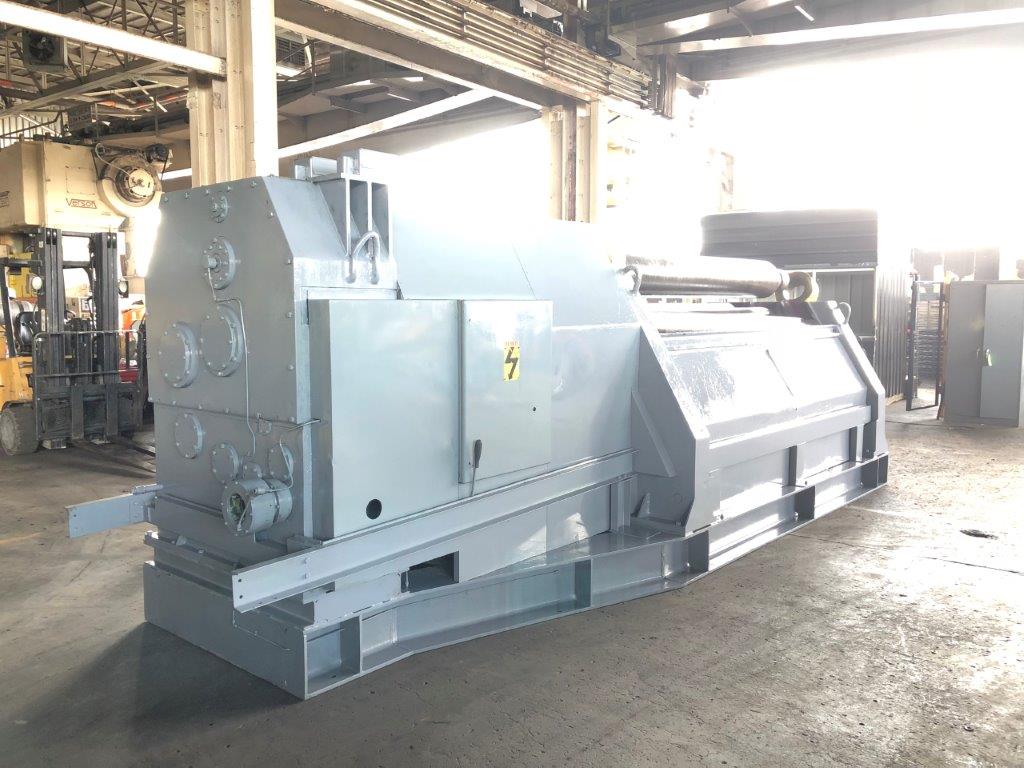

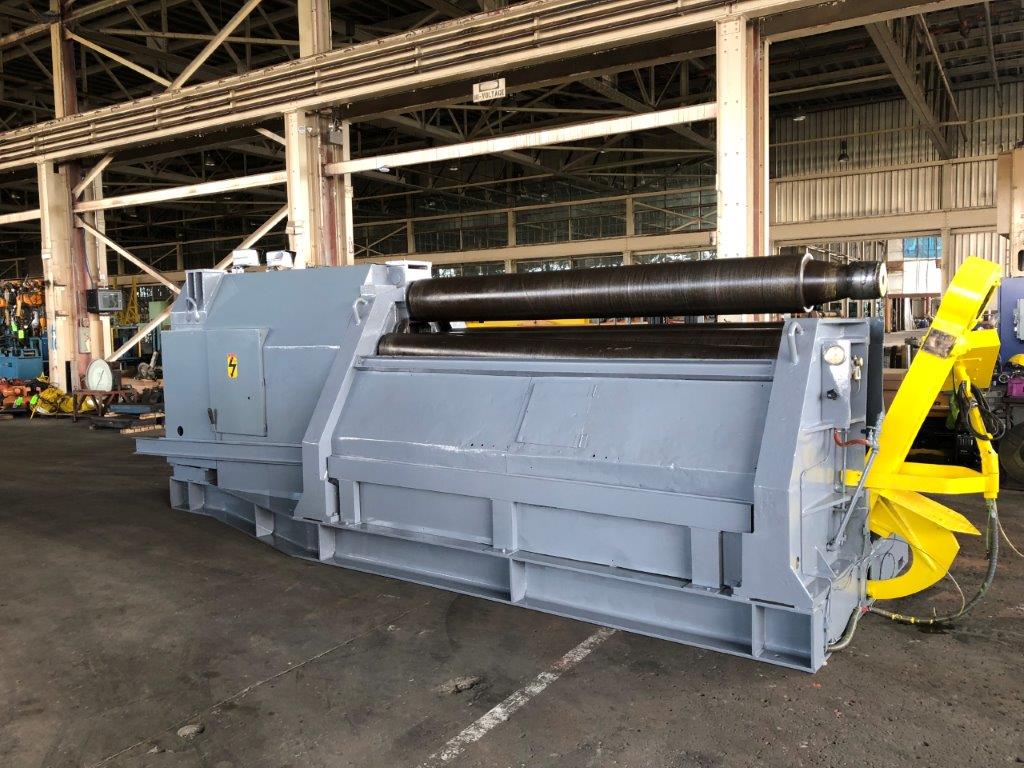

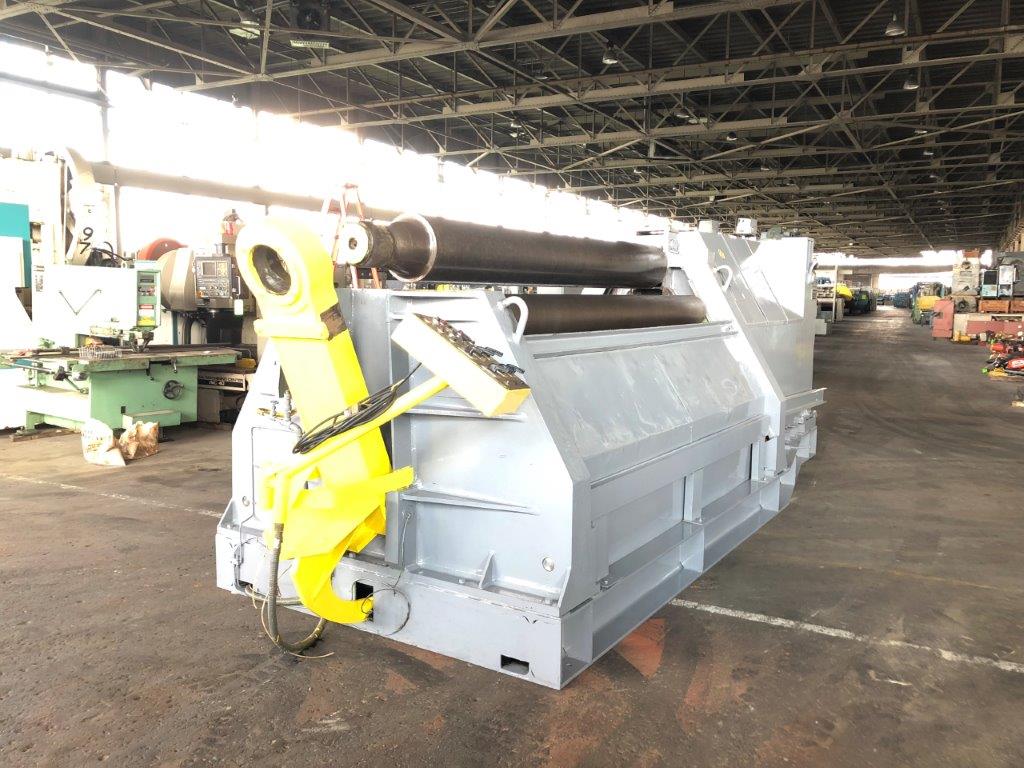

10' x 1/2" Haeusler Initial Double Pinch Plate Bending Roll

Stock #: 0302618

Equipped With

SPECIFICATIONS:

10' x 1/2" Haeusler Initial Double Pinch Plate Bending Roll

S/N............................................... 1223
Model............................................. VRM-HY-3000x12
Year.............................................. 1968

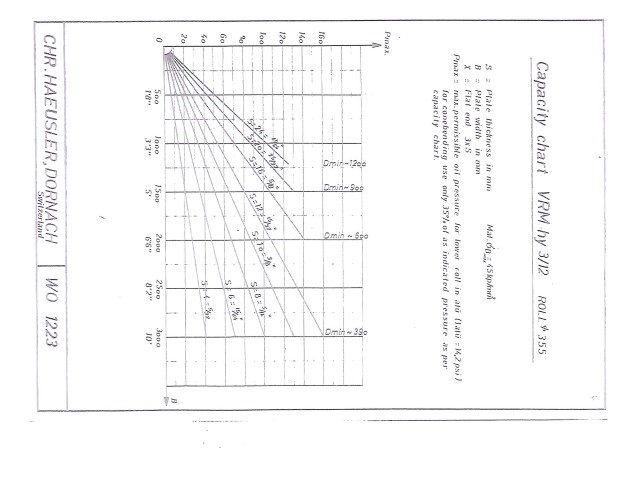

Capacity.......................................... 120" x 1/2"
Length of Rolls................................... 120"

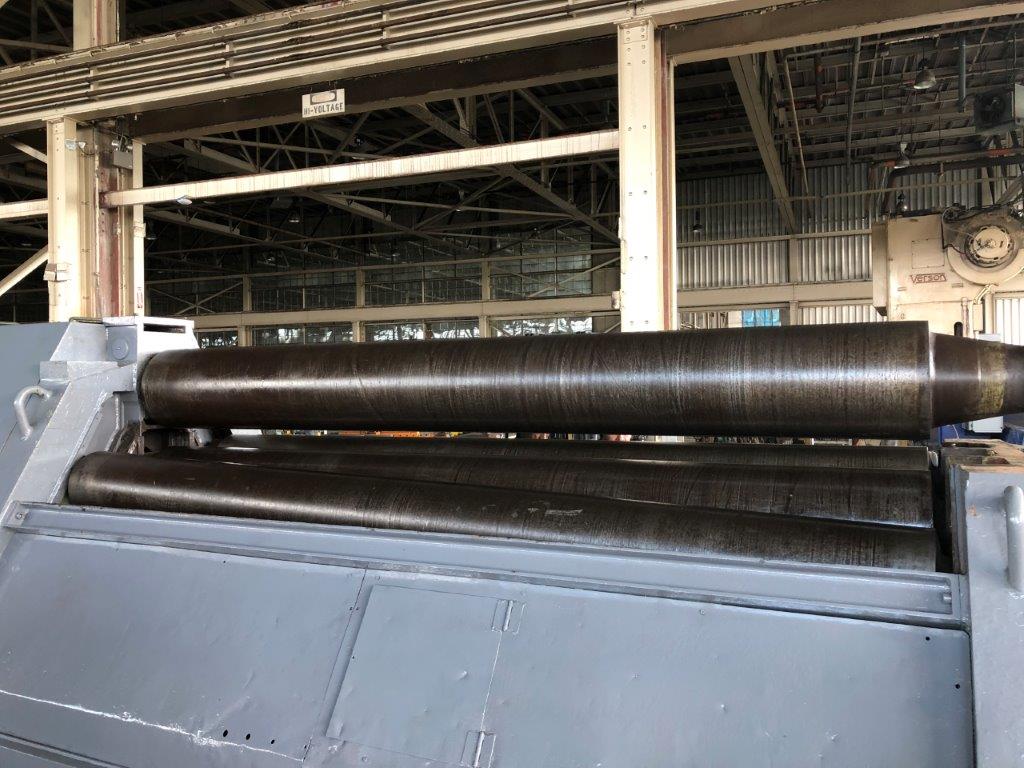

Diameter of Top and Bottom Rolls.................. 14"
Diameter of Side Rolls............................ 11"
Motor............................................. 40HP, 440 Volt, 60
Hertz, 3 Phase.
Hydraulic Drop End
Front & Rear Pressure Gauges
E-Stop
Controller Stationary
Overall Dimensions: 272" Long x 88" Wide x 96" Tall.

Stock #: 0302618




10' x 1/2" Haeusler Initial Double Pinch Plate Bending Roll

STOCK # 0302618

Specifications

View All Details
Machine Type
Rolls, Plate Bending (incld Pinch)
Manufacturer
HAEUSLER
Model
VRM-HY 3000 x 12
Year
1968
Condition
Used
Equipped With
SPECIFICATIONS:

10' x 1/2" Haeusler Initial Double Pinch Plate Bending Roll

S/N............................................... 1223
Model............................................. VRM-HY-3000x12
Year.............................................. 1968
Capacity.......................................... 120" x 1/2"
Length of Rolls................................... 120"
Diameter of Top and Bottom Rolls.................. 14"
Diameter of Side Rolls............................ 11"
Motor............................................. 40HP, 440 Volt, 60
Hertz, 3 Phase.
Hydraulic Drop End
Front & Rear Pressure Gauges
E-Stop
Controller Stationary
Overall Dimensions: 272" Long x 88" Wide x 96" Tall.

Stock #: 0302618
