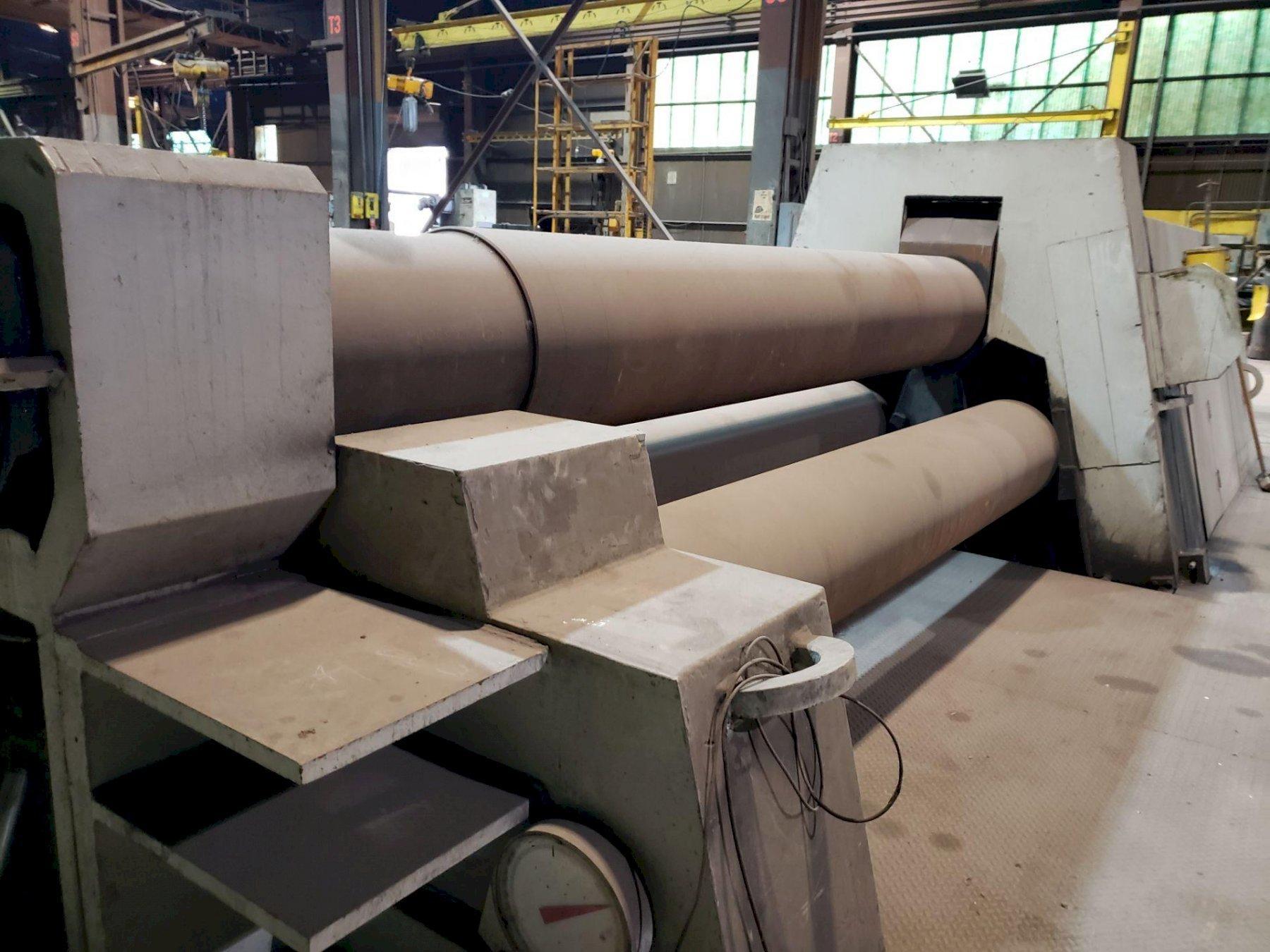

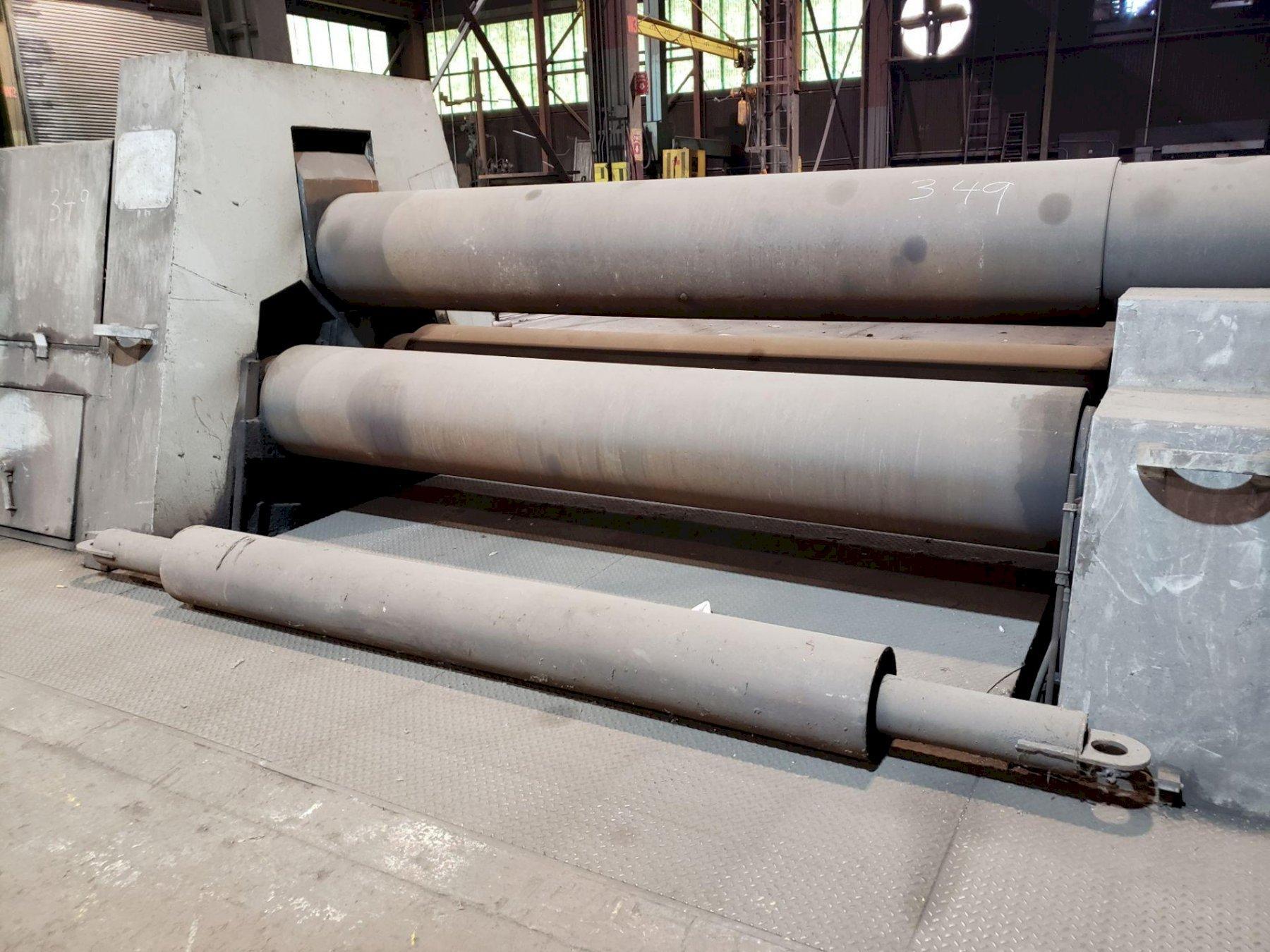

10' X 1.5" SERTOM RIMI 3016 3 ROLL HYDRAULIC DOUBLE INITIAL PINCH PLATE ROLL. STOCK # 1058920

Stock #: 1058920

Equipped With

MAX WIDTH OF SHEET..................... 120"
MAX PRE BEND THICKNESS................. 1-3/8"
MAX BENDING THICKNESS.................. 1.575"
TOP ROLL DIAMETER...................... 20"
BOTTOM ROLL DIAMETER................... 19"
MIN BEND DIAMETER...................... 34"
TRAVERSE SPEED BOTTOM ROLLS............ 200 MM/MIN
ROTATION SPEED TOP ROLL................ MM/MIN 3000
WEIGHT................................. 112,655 LBS
DIMENSIONS:
WIDTH:120"
LENGTH: 359"
HEIGHT: 141"
DIMENSIONS ARE MACHINE ASSEMBLED
MANUAL AVAILABLE.

10' X 1.5" SERTOM RIMI 3016 3 ROLL HYDRAULIC DOUBLE INITIAL PINCH PLATE ROLL. STOCK # 1058920

STOCK # 1058920

Specifications

View All Details
Machine Type
Rolls, Plate Bending (incld Pinch)
Manufacturer
SERTOM
Model
N/A
Year
N/A
Condition
Excellent
Equipped With
MAX WIDTH OF SHEET..................... 120"
MAX PRE BEND THICKNESS................. 1-3/8"
MAX BENDING THICKNESS.................. 1.575"
TOP ROLL DIAMETER...................... 20"
BOTTOM ROLL DIAMETER................... 19"
MIN BEND DIAMETER...................... 34"
TRAVERSE SPEED BOTTOM ROLLS............ 200 MM/MIN
ROTATION SPEED TOP ROLL................ MM/MIN 3000
WEIGHT................................. 112,655 LBS
DIMENSIONS:
WIDTH:120"
LENGTH: 359"
HEIGHT: 141"
DIMENSIONS ARE MACHINE ASSEMBLED
MANUAL AVAILABLE.
