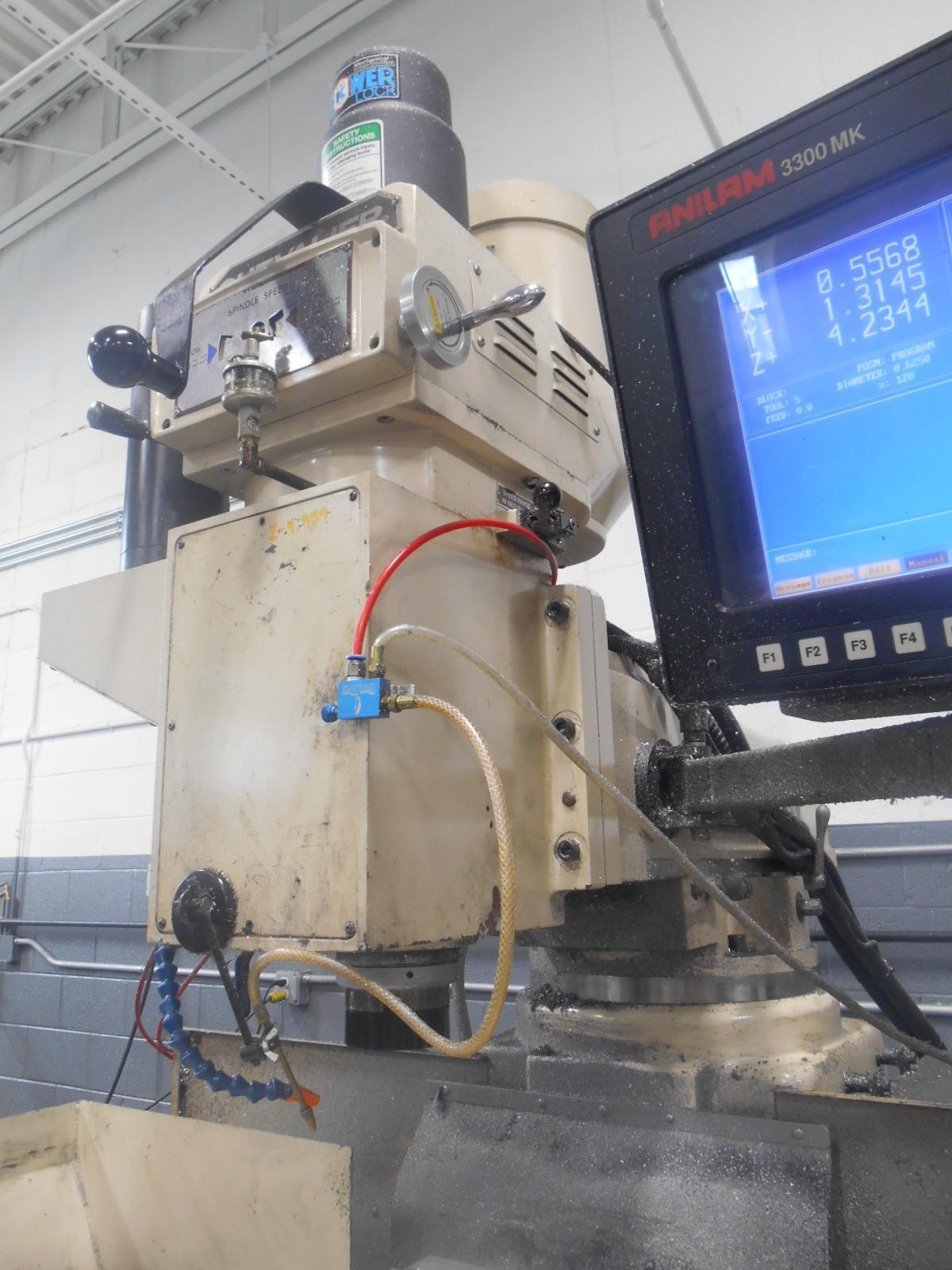

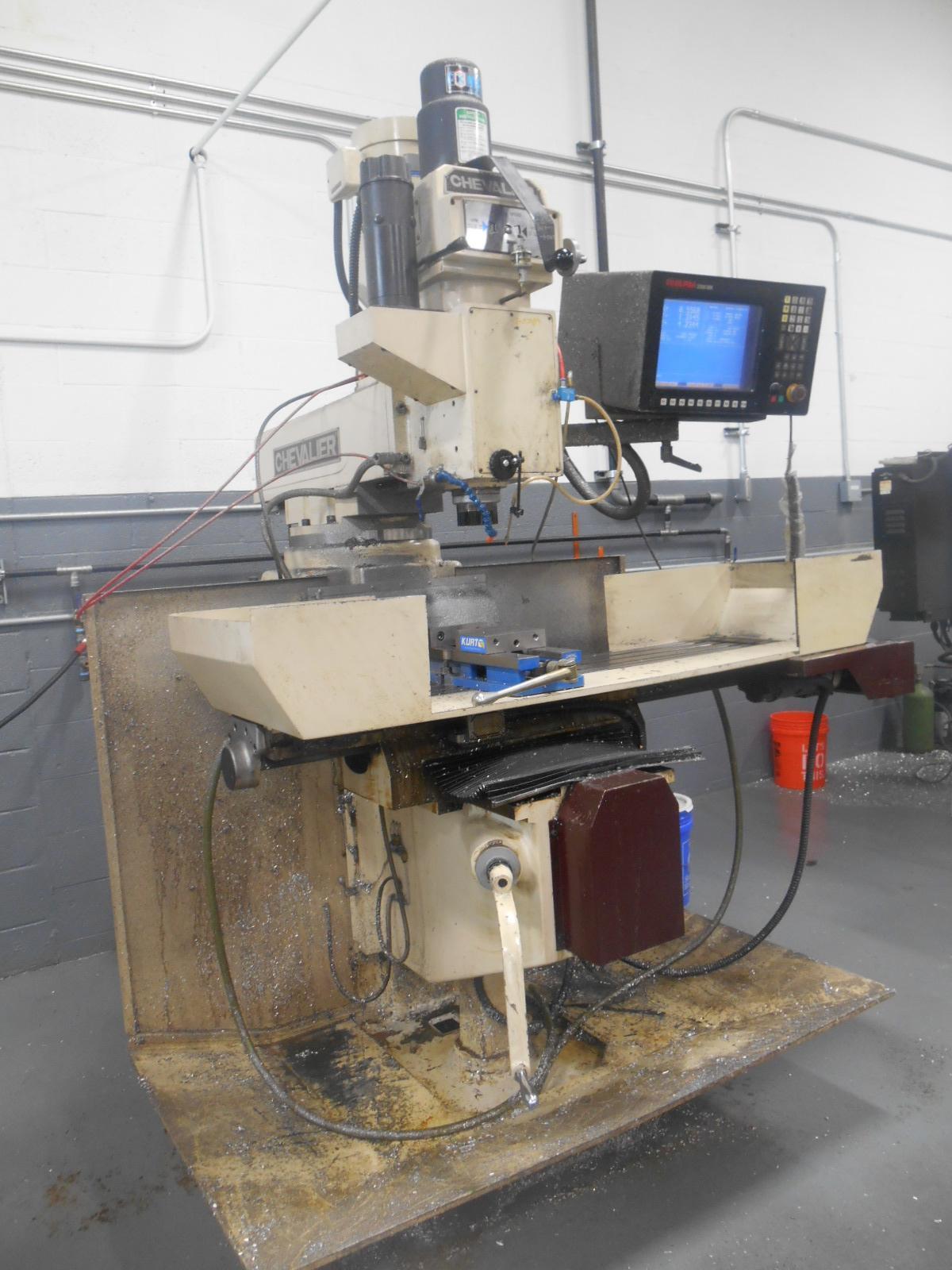

10" x 54" Chevalier FM-43H CNC-3 Axis Vertical Machining Center

Stock #: 1704920

Equipped With

Table size:  10” x 54”

Knee adjustment (manual) up/down:  18-1/2” adjustment

CAT 40 Spindle taper with power draw bar

3,600 RPM Maximum Spindle Speed

5 HP Main Motor on Spindle

X Axis programmable travel:  34”

Y Axis programmable travel:  15”

Z Axis programmable travel quill travel:  5”

Full 3-axis contouring capability

USB Port for downloads

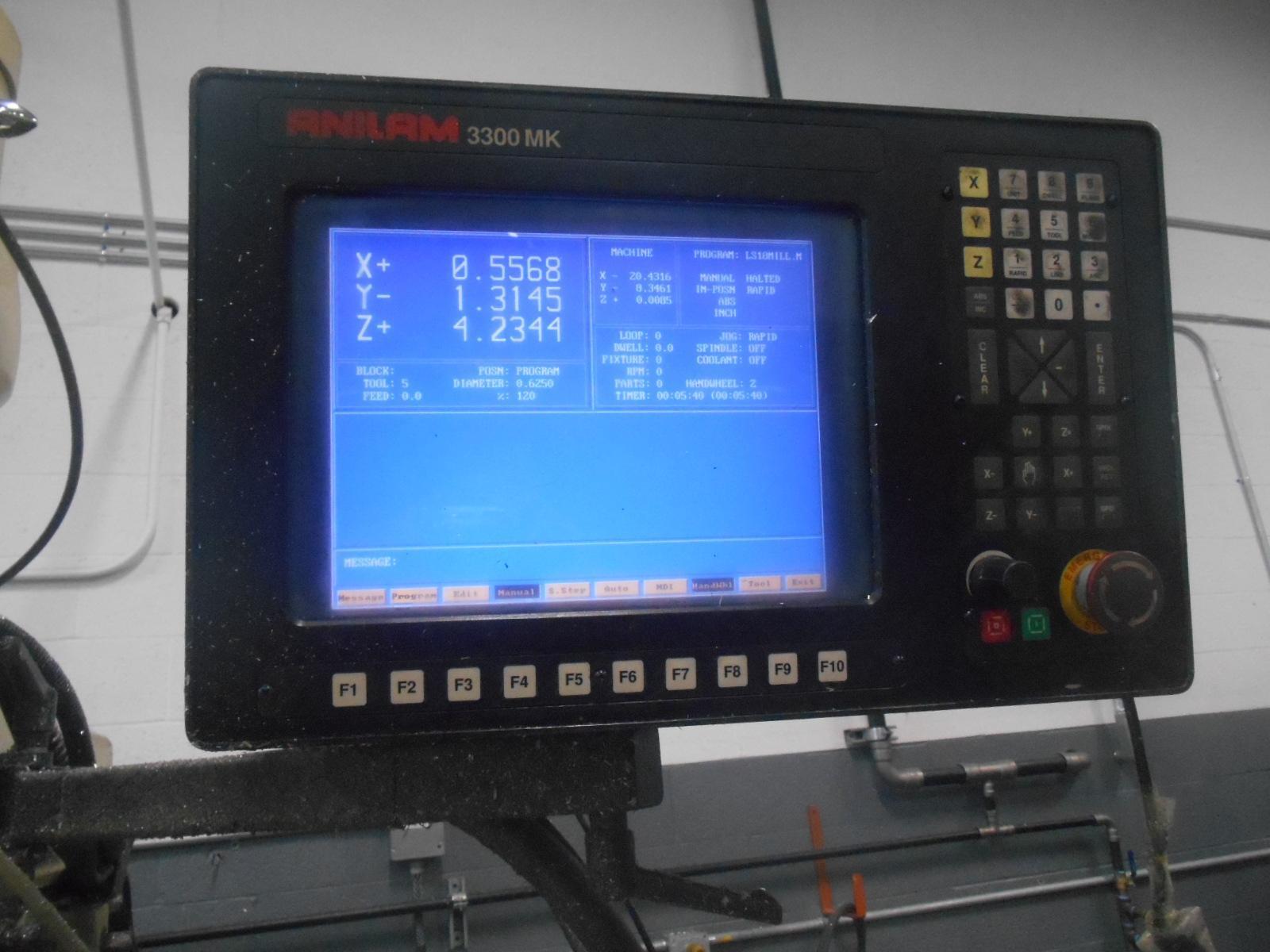

Anilam 3300MK CNC Control with color monitor.


(Note:  These specs are subject to verification by purchaser)

10" x 54" Chevalier FM-43H CNC-3 Axis Vertical Machining Center

STOCK # 1704920

Specifications

View All Details
Machine Type
Millers, Vertical
Manufacturer
CHEVALIER
Model
FM--43H
Year
N/A
Condition
Excellent
Equipped With

Table size:  10” x 54”

Knee adjustment (manual) up/down:  18-1/2” adjustment

CAT 40 Spindle taper with power draw bar

3,600 RPM Maximum Spindle Speed

5 HP Main Motor on Spindle

X Axis programmable travel:  34”

Y Axis programmable travel:  15”

Z Axis programmable travel quill travel:  5”

Full 3-axis contouring capability

USB Port for downloads

Anilam 3300MK CNC Control with color monitor.


(Note:  These specs are subject to verification by purchaser)
