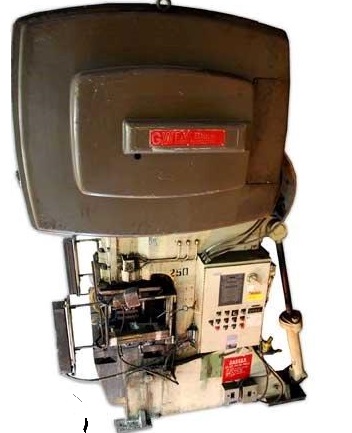

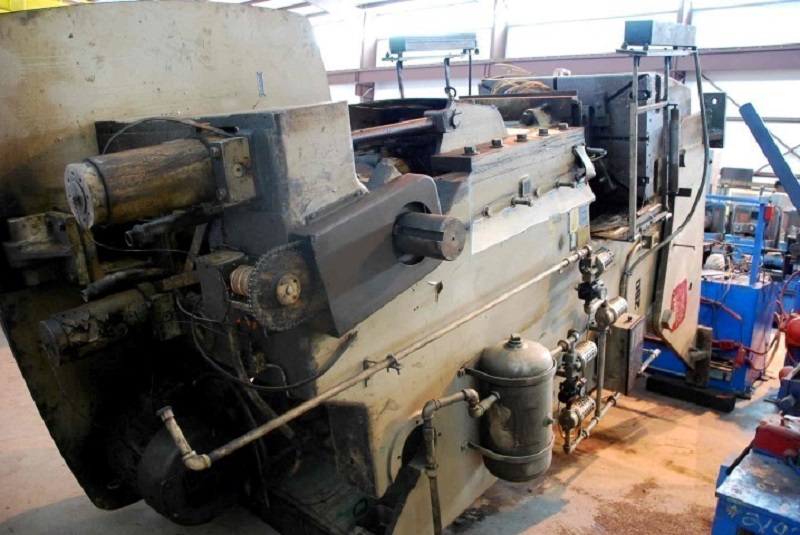

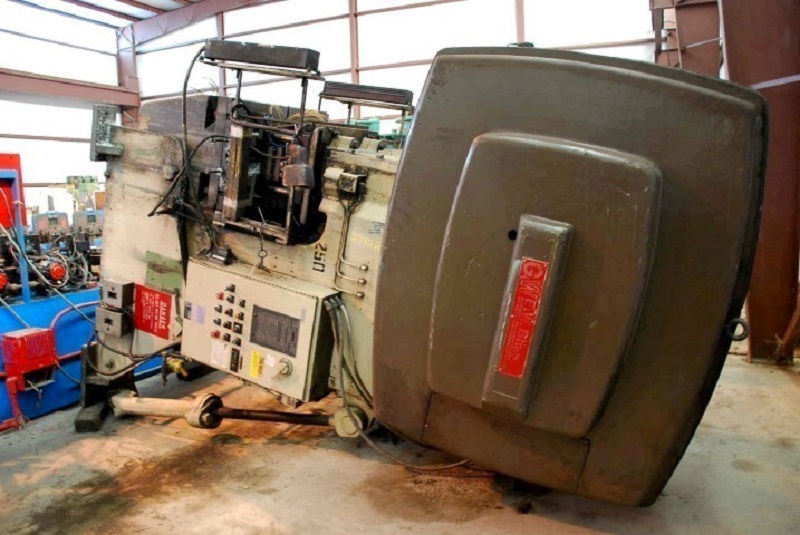

100 Ton BLISS O.B.I Press

Stock #: 2231114

Equipped With

SPECIFICATIONS:



Tonnage Capacity:                100 Ton

Stroke:                          4"

Shut Height:                     16-1/2"

Slide Adjustment:                4"

Bed Size:                        27" F-B x 42" L-R x 2-5/8" Thick

Maximum Air Pressure for Press:  100 PSI

Maximum Air Pressure for Clutch: 40 PSI

Strokes per Minute:              85 SPM



EQUIPPED WITH:

 Motor, 220/440/3/60

 Die Set

 Coolant Tank w/Pump



Approximate Weight:  7' x 7' x 12'8"

Overall Dimensions:  20,000 Lbs.



LOCATION: OHIO
