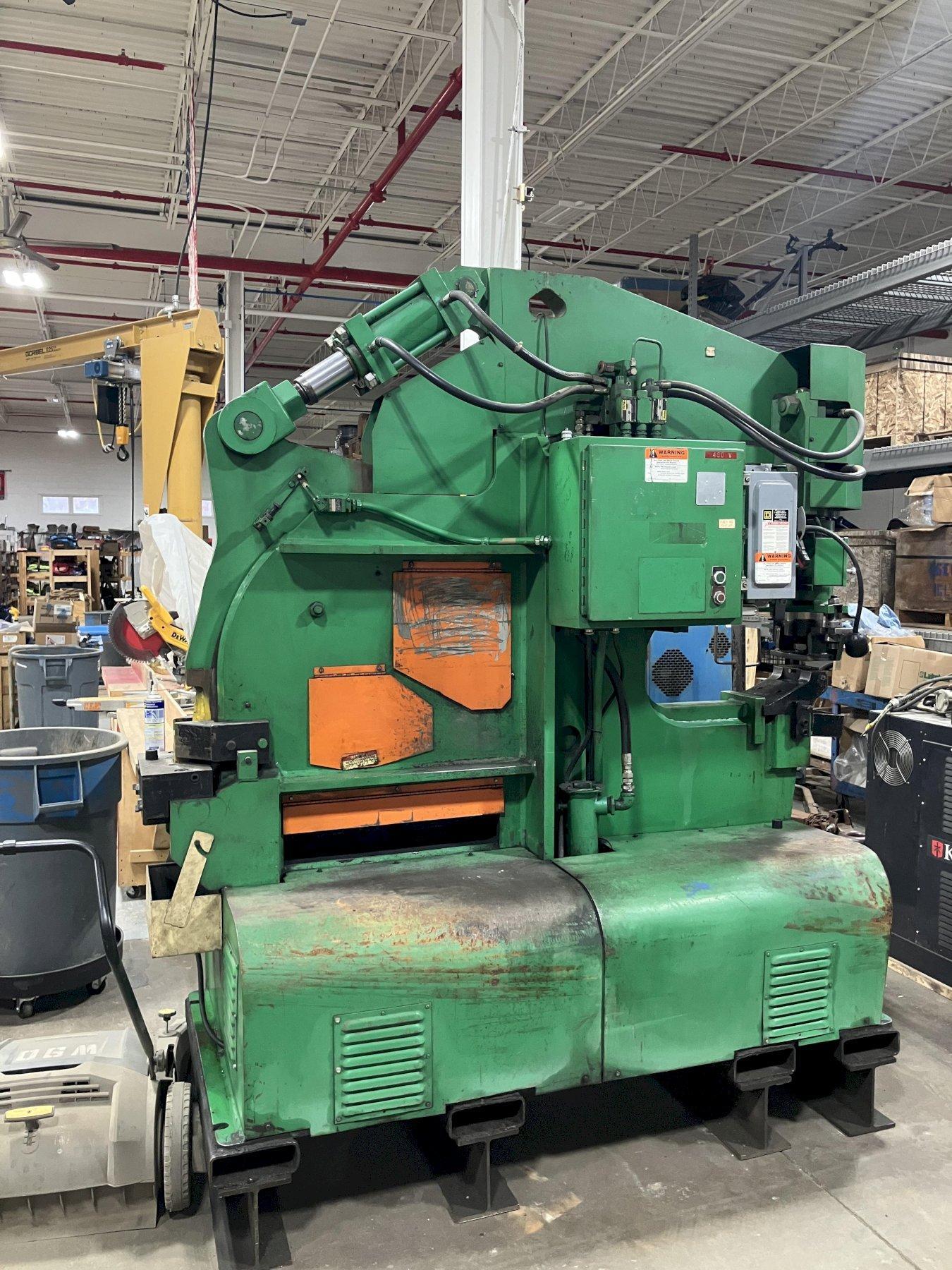

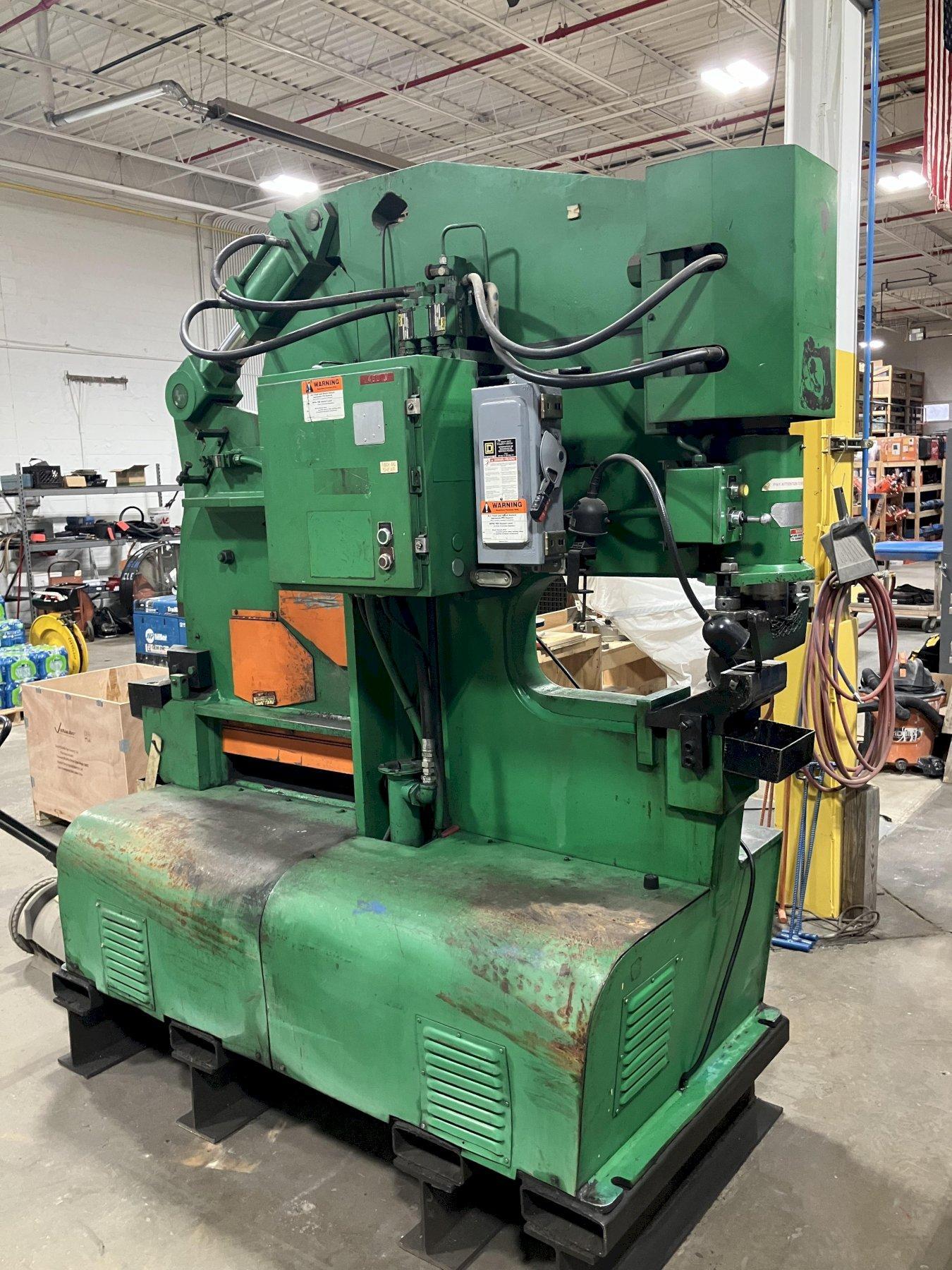

105 TON HILL-ACME MODEL 6A HYDRAULIC IRONWORKER. STOCK # 1121024

Stock #: 1121024

Equipped With

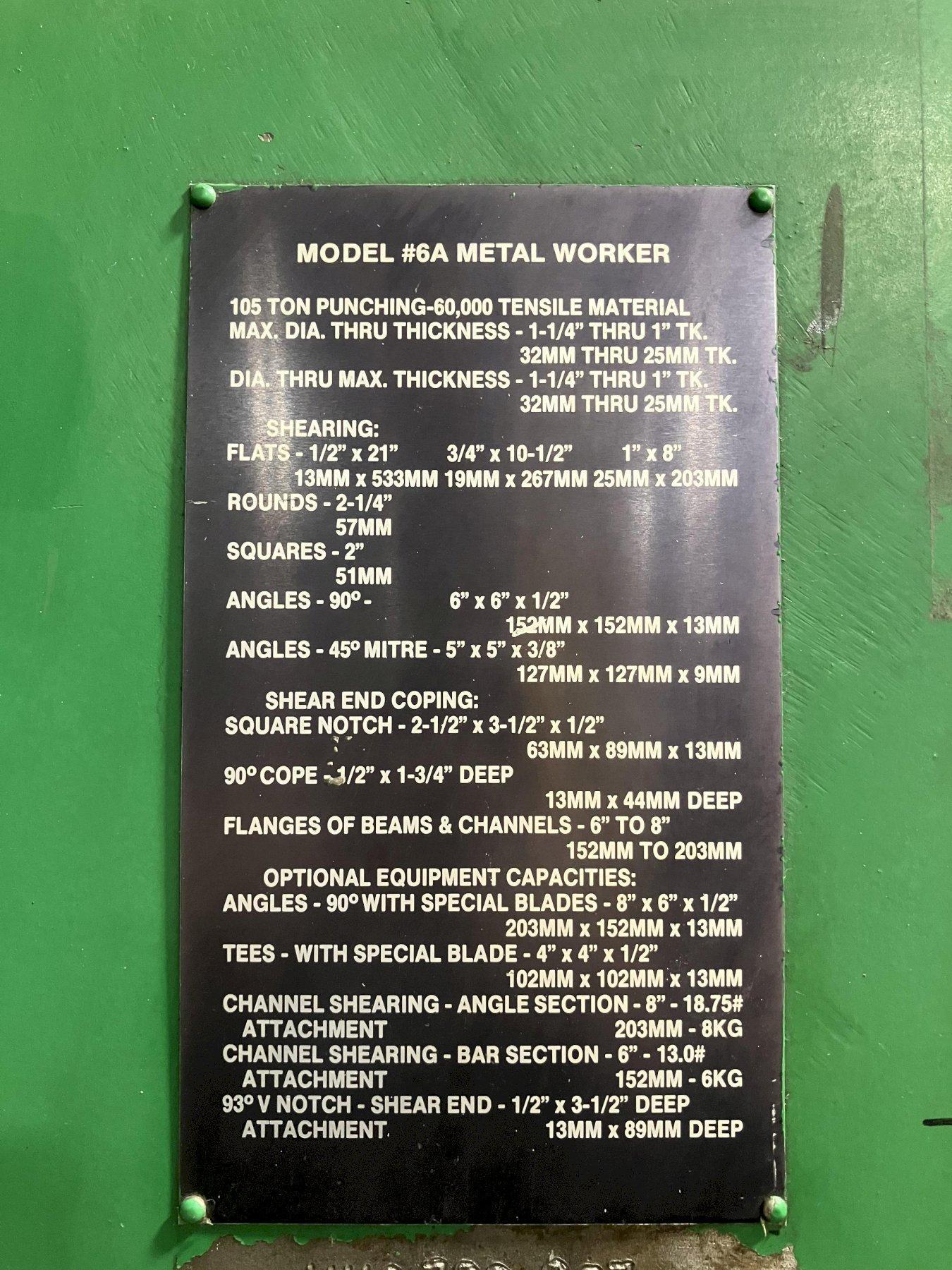

MODEL...........................: 6A
TONNAGE.........................: 105 TON-60,000 TENSILE MATERIAL
MAX DIA. THRU THICKNESS.........: 1-5/16" - 1" THICK
PUNCH THROAT DEPTH..............: 25"
SHEARING:
FLATS...........................: 1/2" X 21", 3/4" X 10-1/2"
ROUNDS..........................: 2-1/4"
SQUARES.........................: 2"
ANGLES..........................: 90 DEGREE, 6" X 6" X 1/2"
ANGLES..........................: 45 DEGREE, 5" X 5" X 3/8"
SHEAR END COPING:
SQUARE NOTCH....................: 2-1/2" X 3-1/2" X 1/2"
90 DEGREE COPE..................: 1/2" X 1-3/4" DEEP
FLANGES OF BEAM & CHANNELS......: 6" TO 8"
