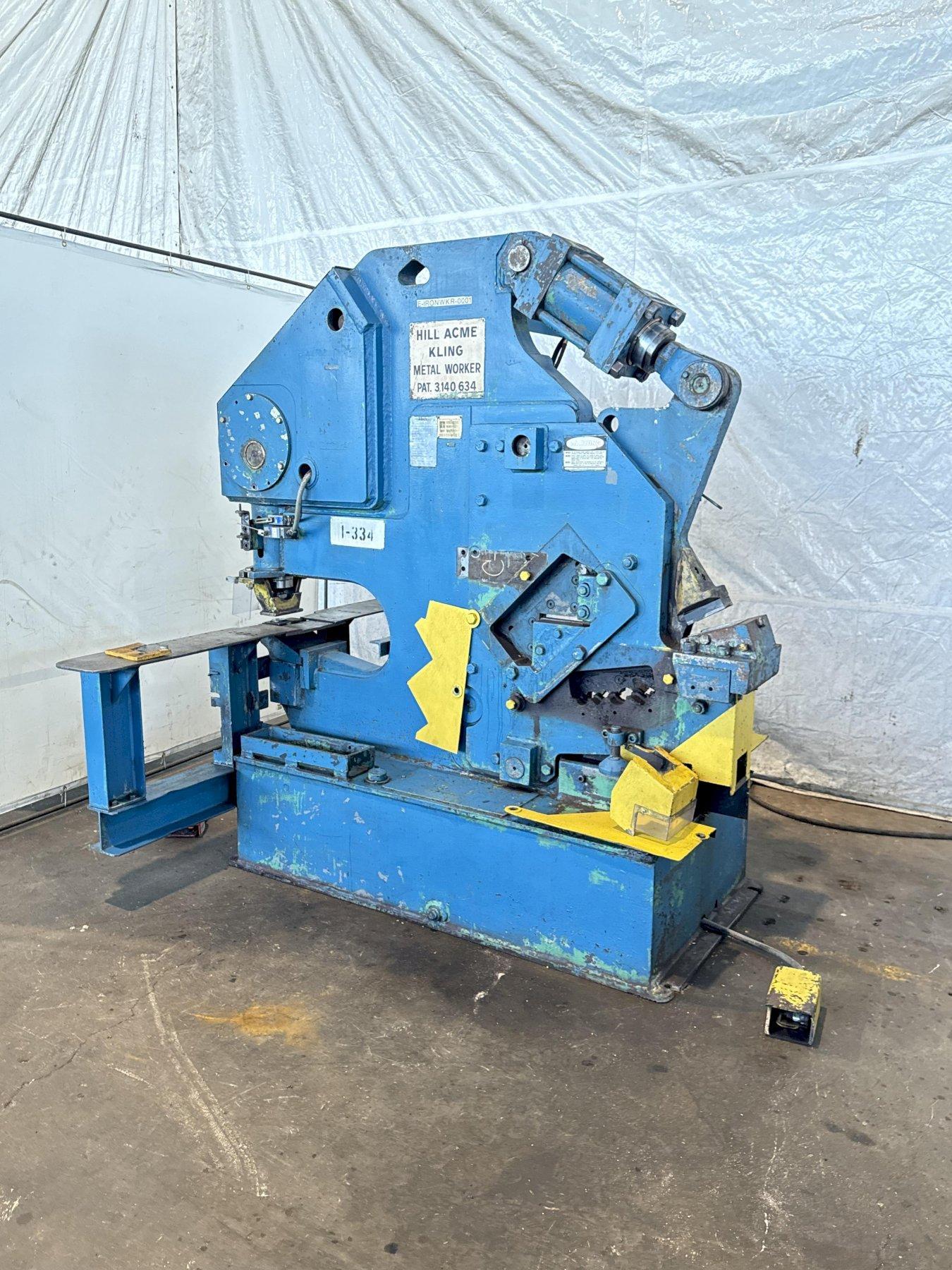

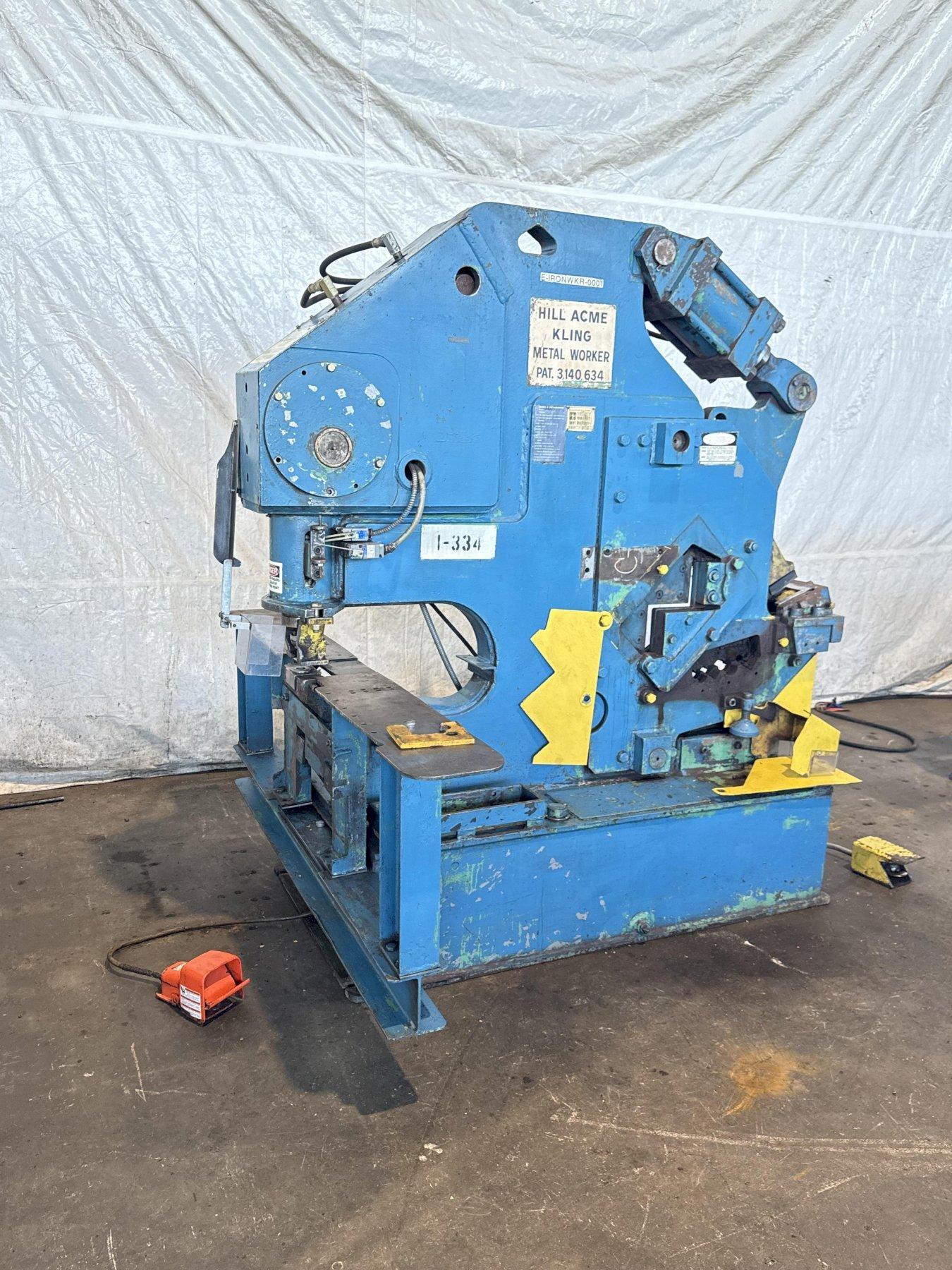

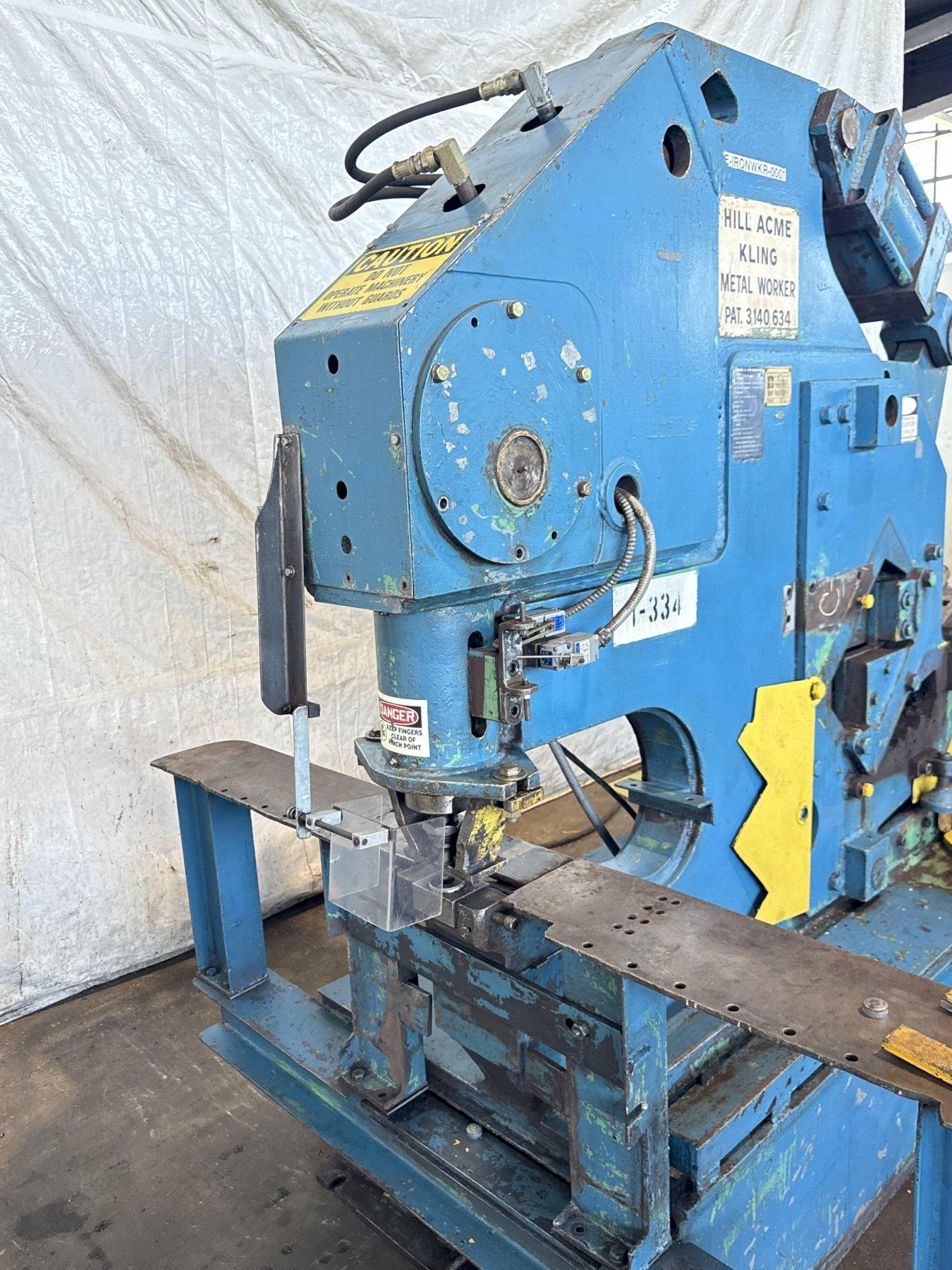

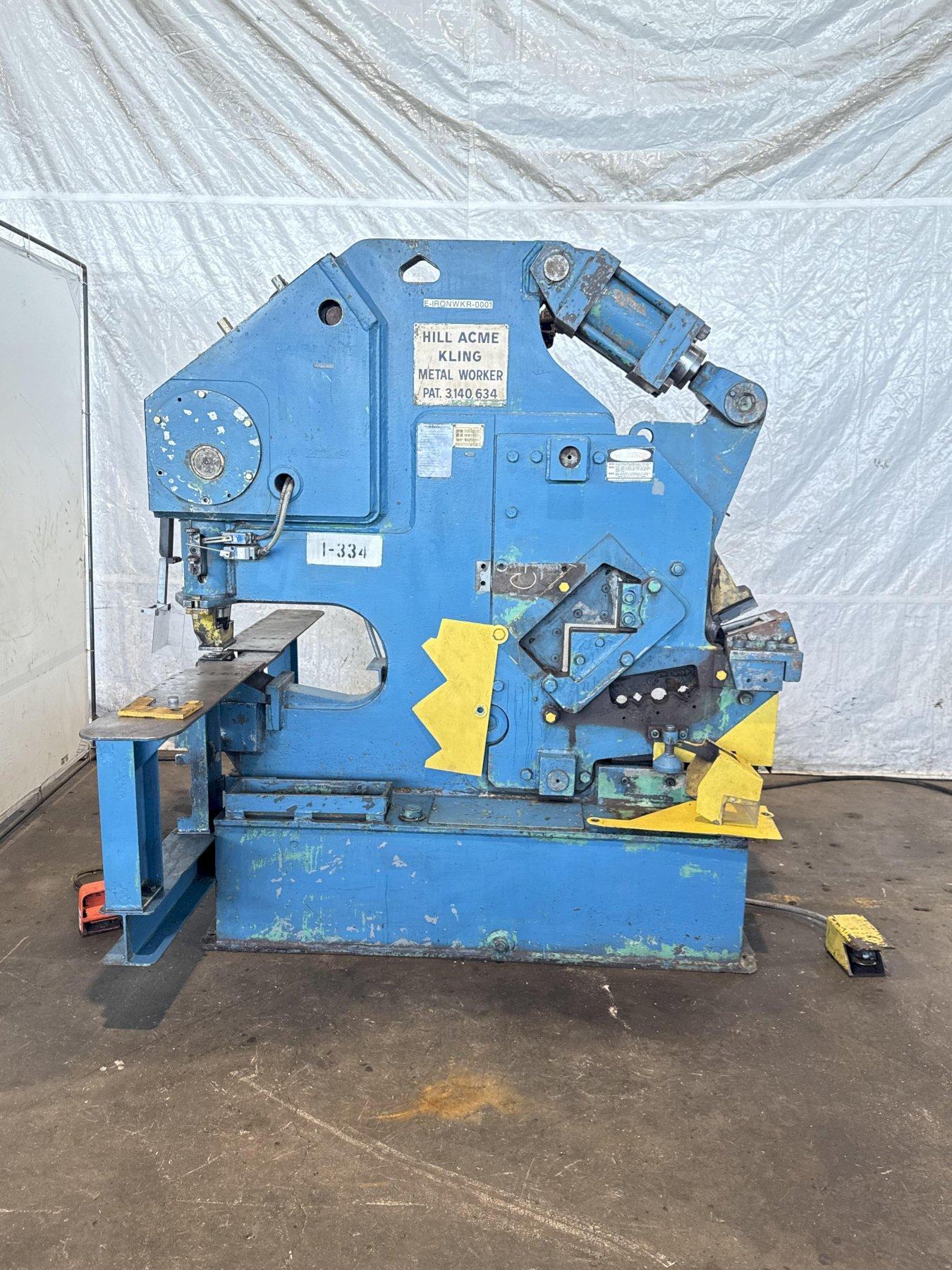

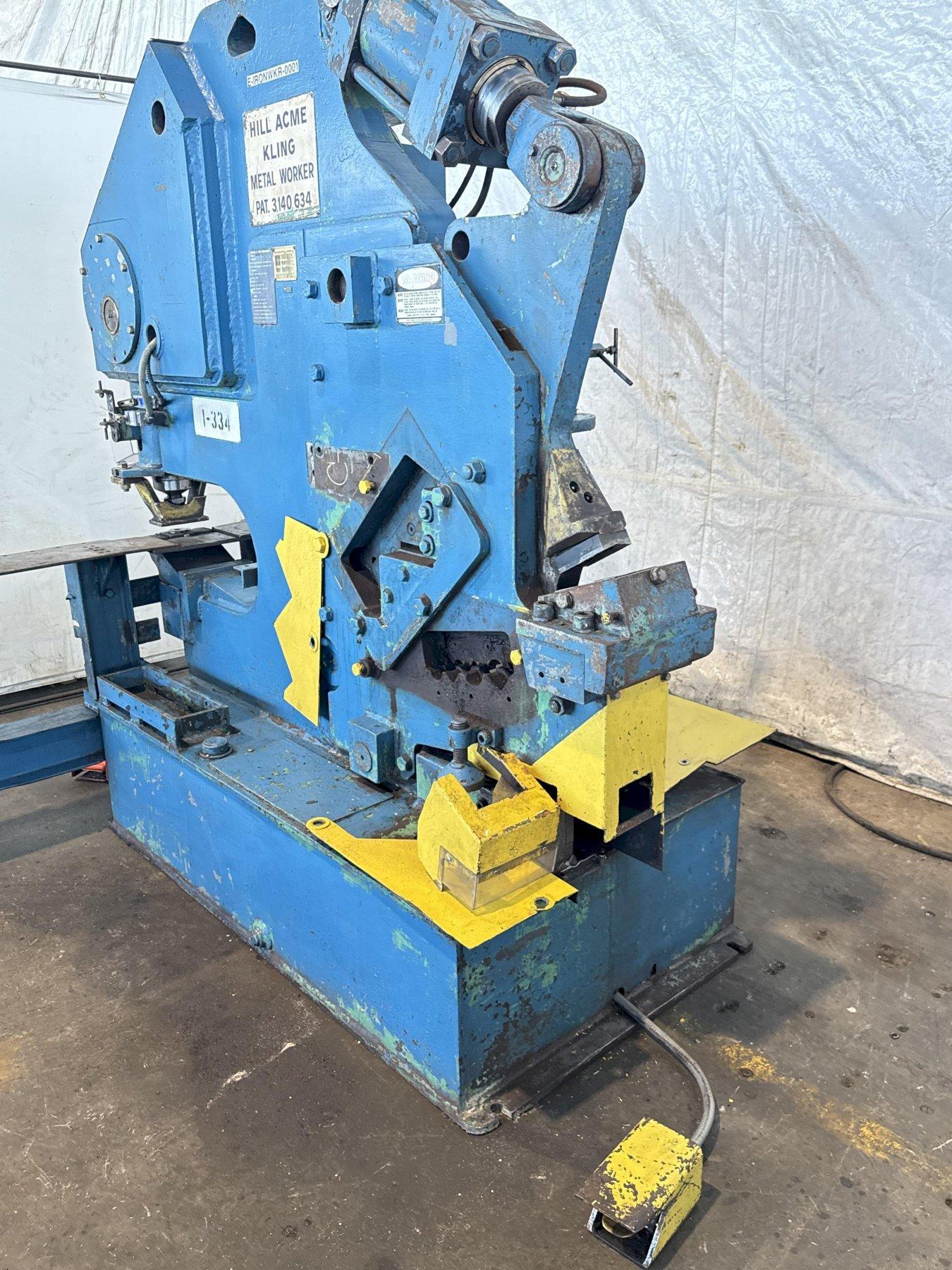

105 TON HILL ACME NO 6 IRONWORKER. STOCK # 0663825

Stock #: 0663825

Equipped With

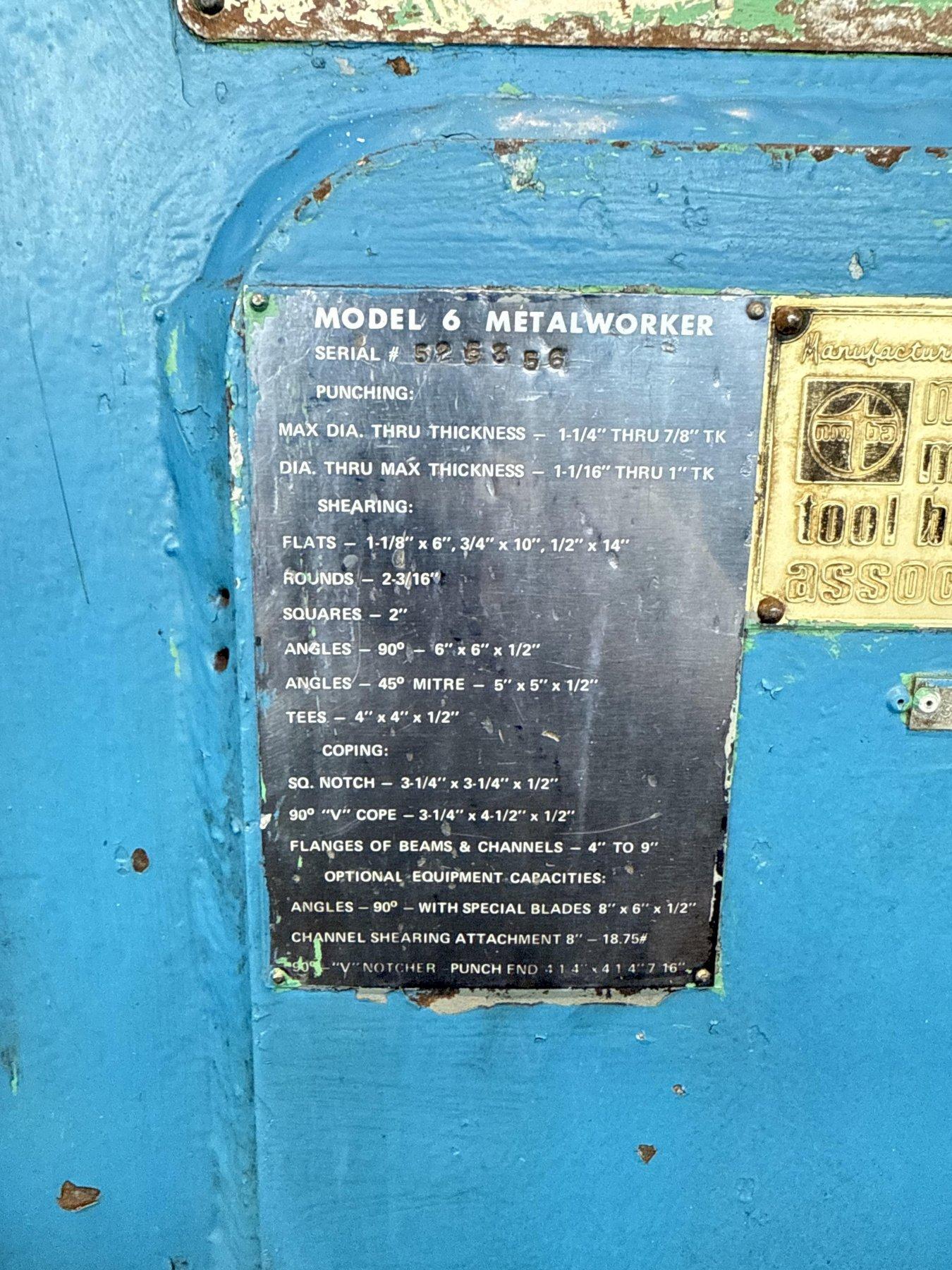

MODEL NUMBER..................:6
SERIAL NUMBER.................:525356

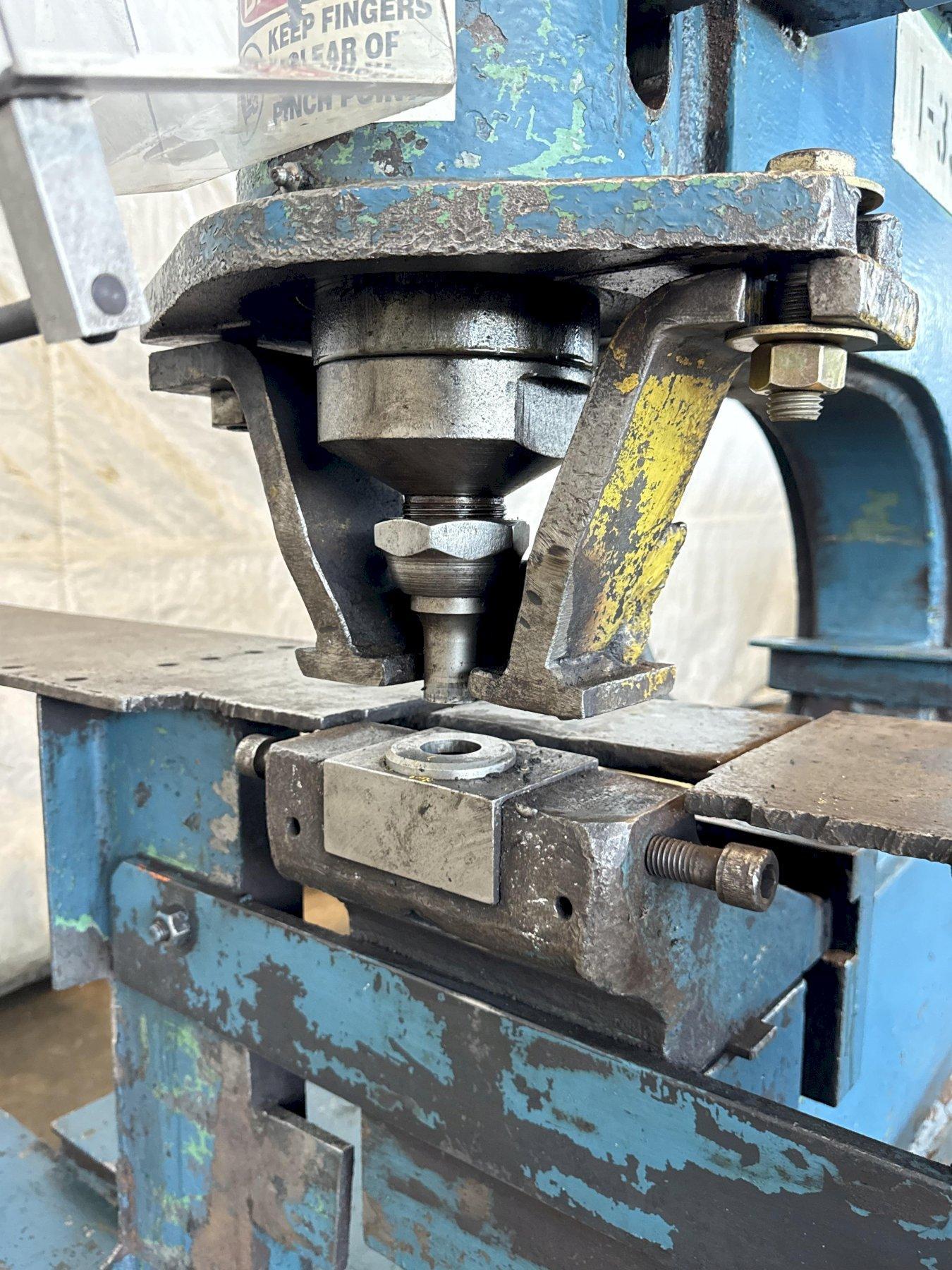

PUNCHING......................:
MAX DIA. THRU THICKNESS.......:1-1/4" THRU 7/8" TK
DIA. THRU MAX THICKNESS.......:1-1/16" THRU 1" TK

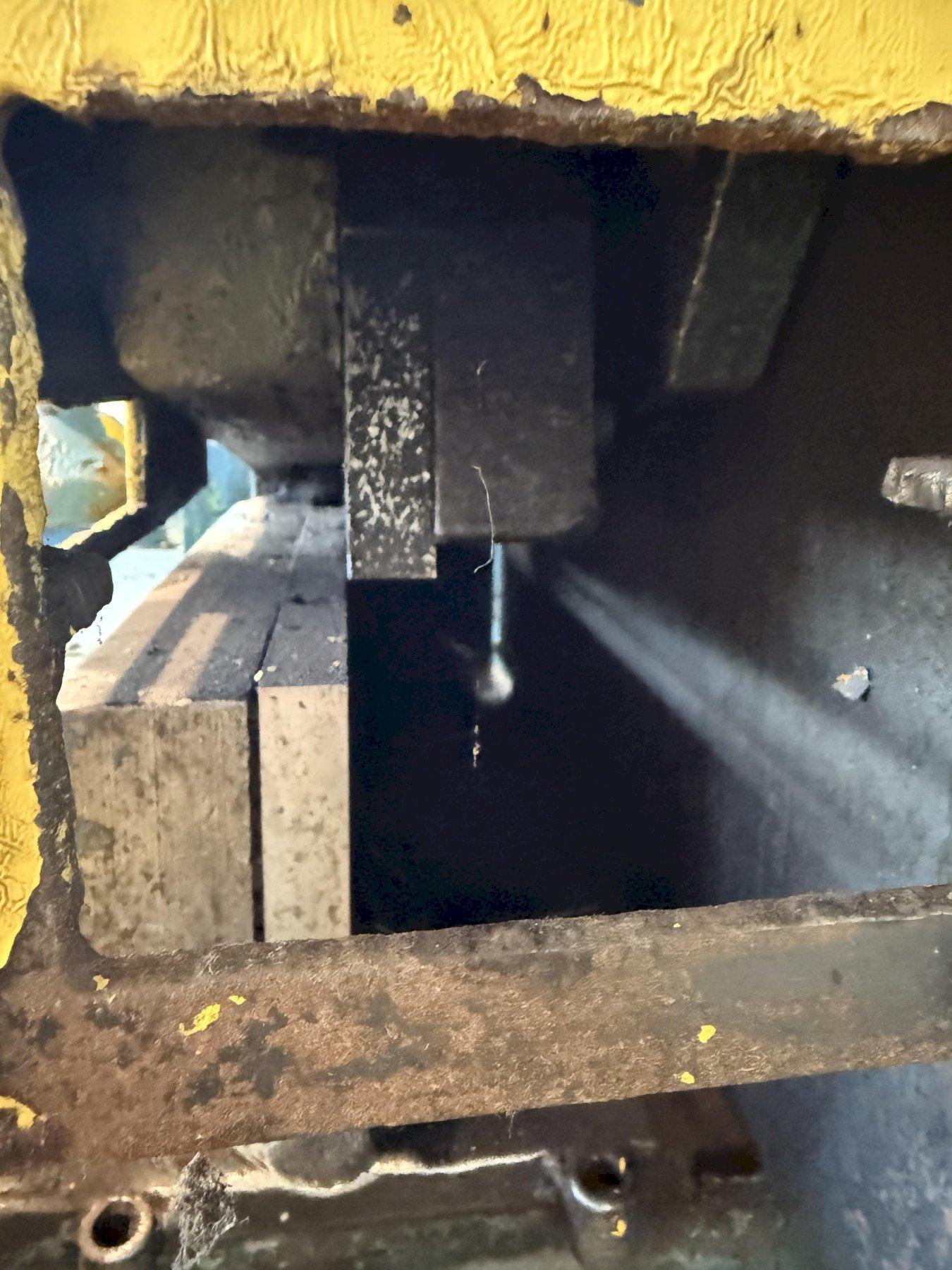

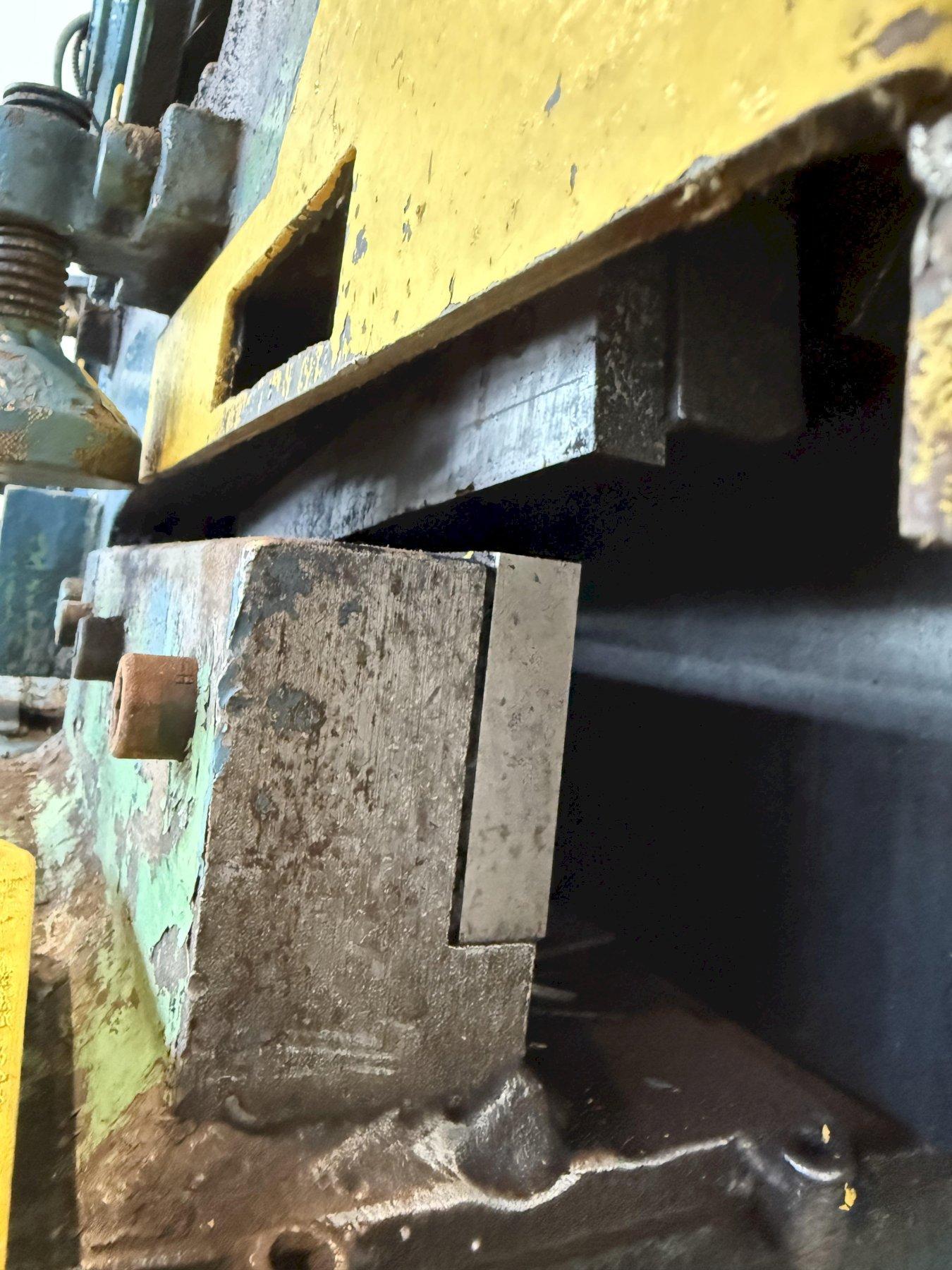

SHEARING......................:
FLATS.........................:1-1/8" X 6", 3/4" X 10", 1/2" X 14"

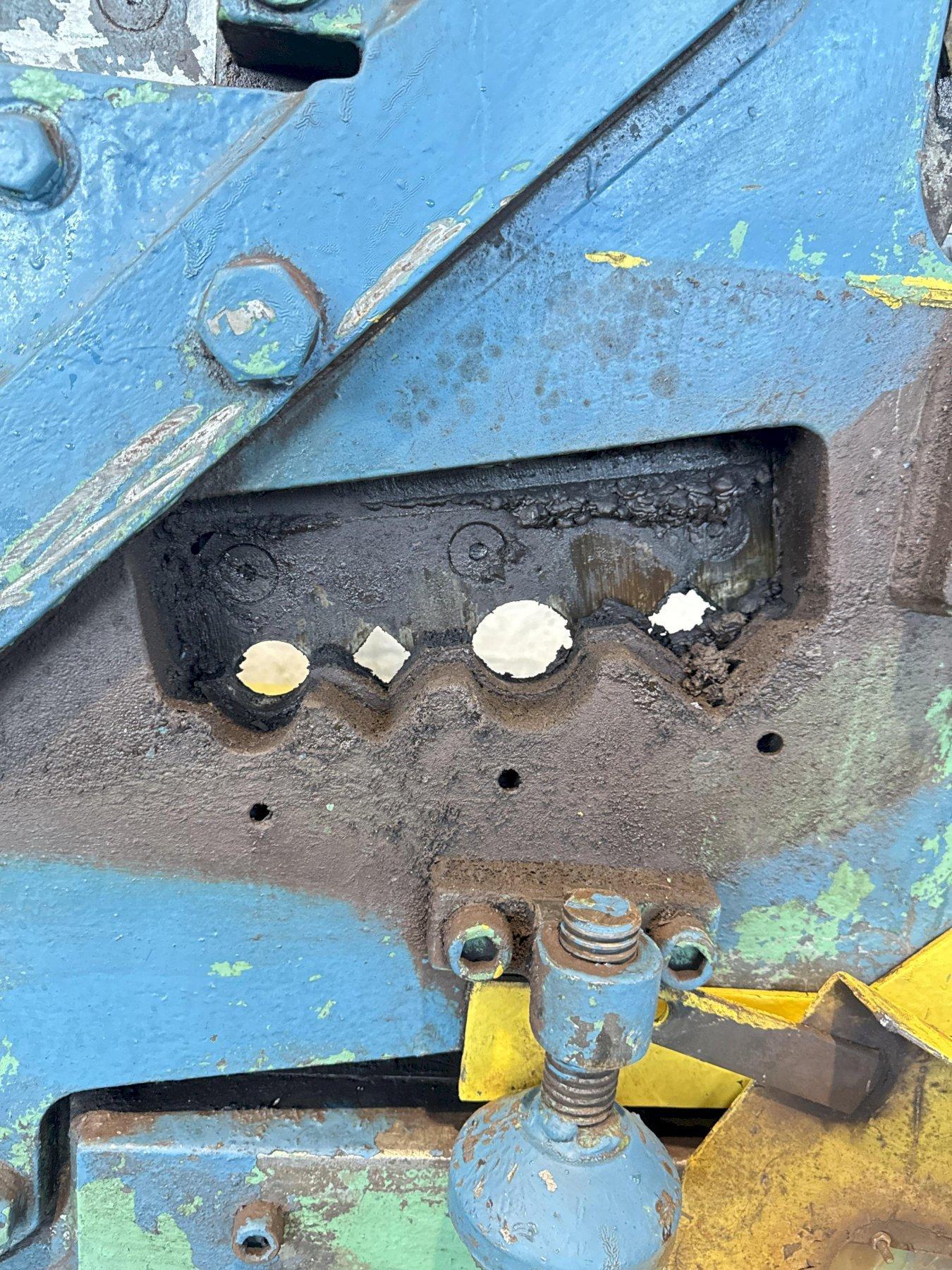

ROUNDS........................:2-3/16"
SQUARES.......................:2"

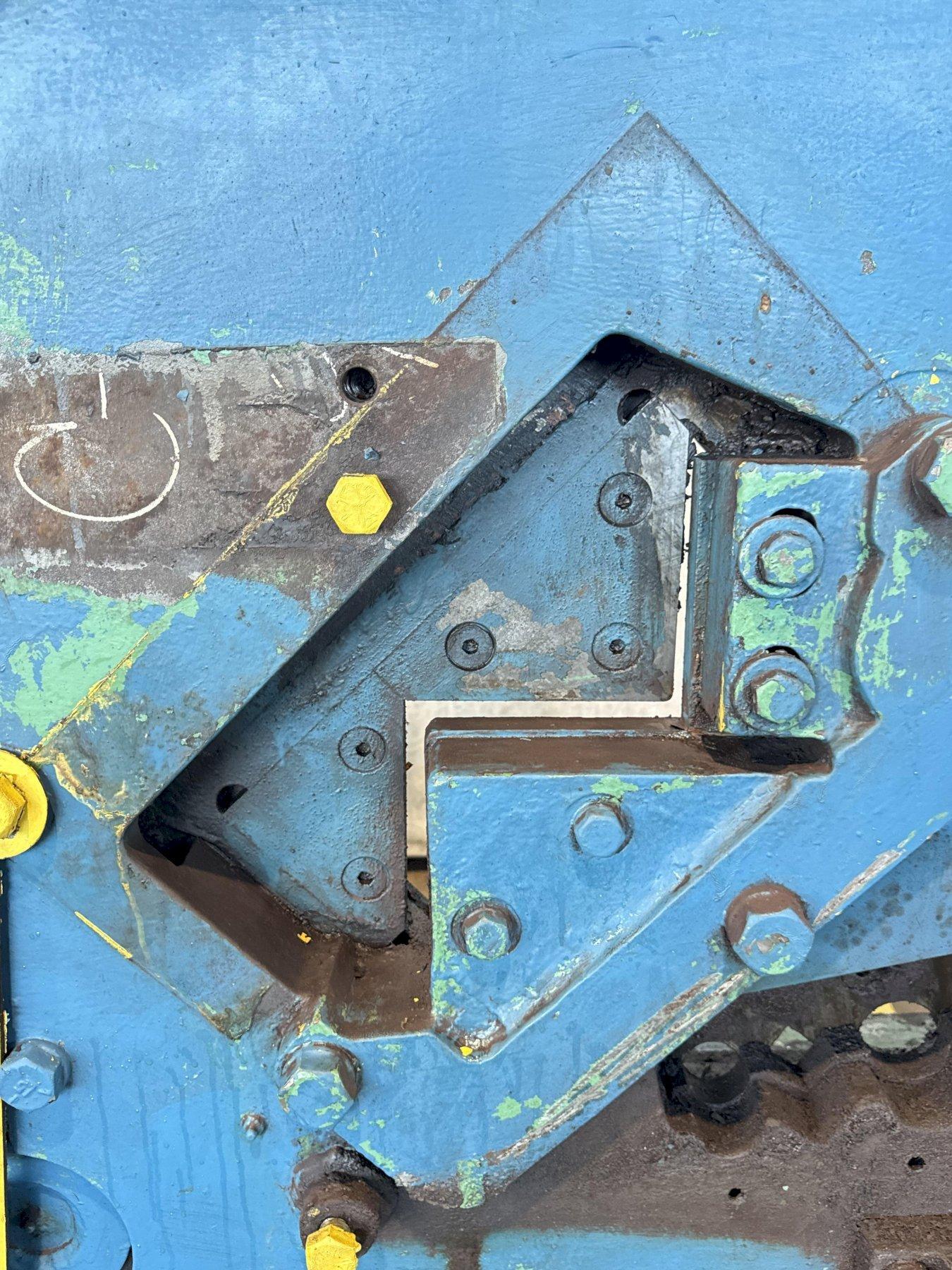

ANGLES........................:90 DEGREES - 6" X 6" X 1/2"
ANGLES........................:45 DEGREE MITRE- 5" X 5" X 1/2"
TEES..........................: 4" X 4" X 1/2"
COPING........................:
SQ. NOTCH.....................:3-1/4" X 4-1/2" X 1/2"
90 DEGREE "V" COPE............:3-1/4" X 4-1/2" X 1/2"
FLANGES OF BEAMS & CHANNELS...............:4" TO 9"
OPTIONAL EQUIPMENT CAPACITIES............:
ANGLES...............:90 DEGREES- WITH SPECIAL BLADES 8" X 6' X 1/2"
CHANNEL SHEARING ATTACHMENT.............:8"- 18.75
