12 STAND X 30" X 3" BRADBURY ZEE PURLIN ROLLFORMING LINE. STOCK # 0423222

Stock #: 0423222

Equipped With

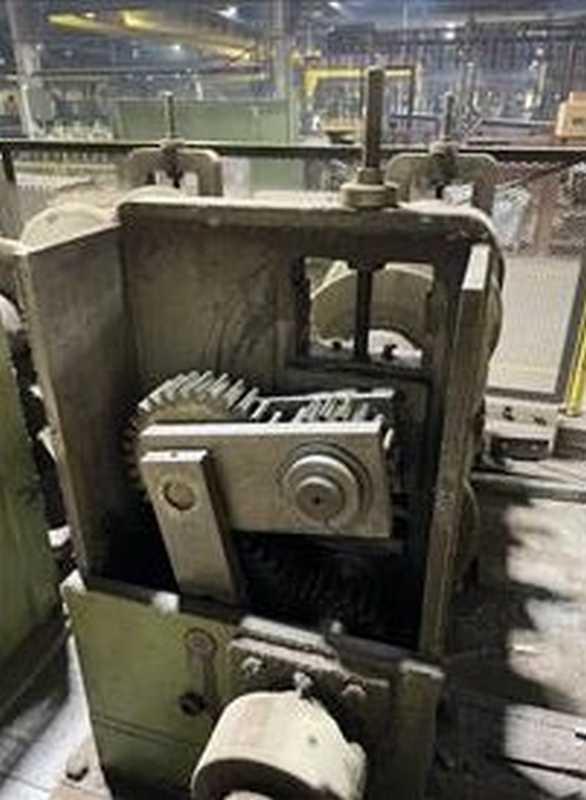

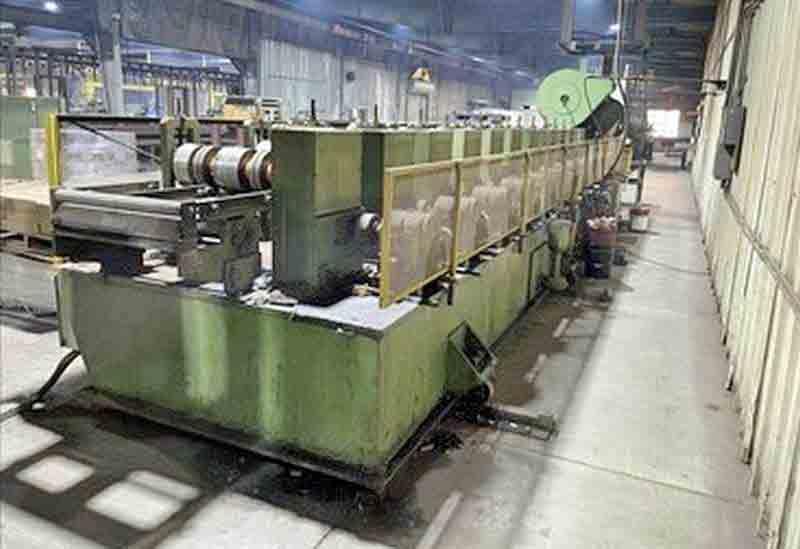

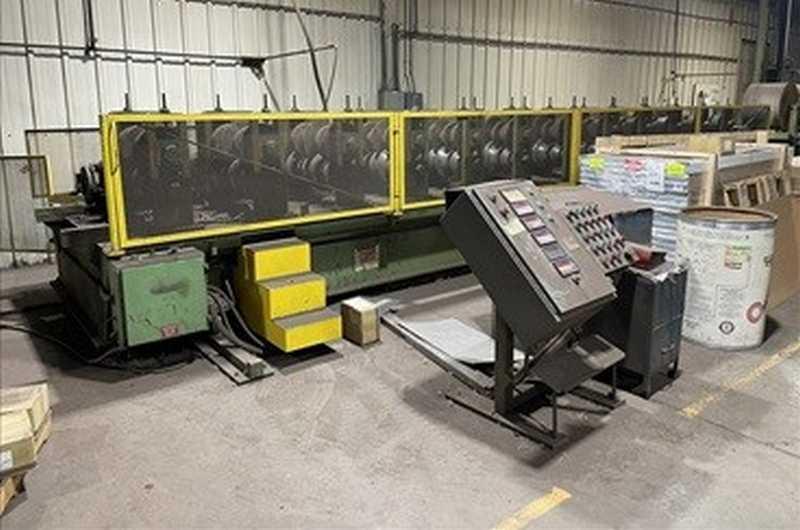

-Zee Purlin Tooled, Gear Drive Rollforming Line

-Model:  D3-30-12

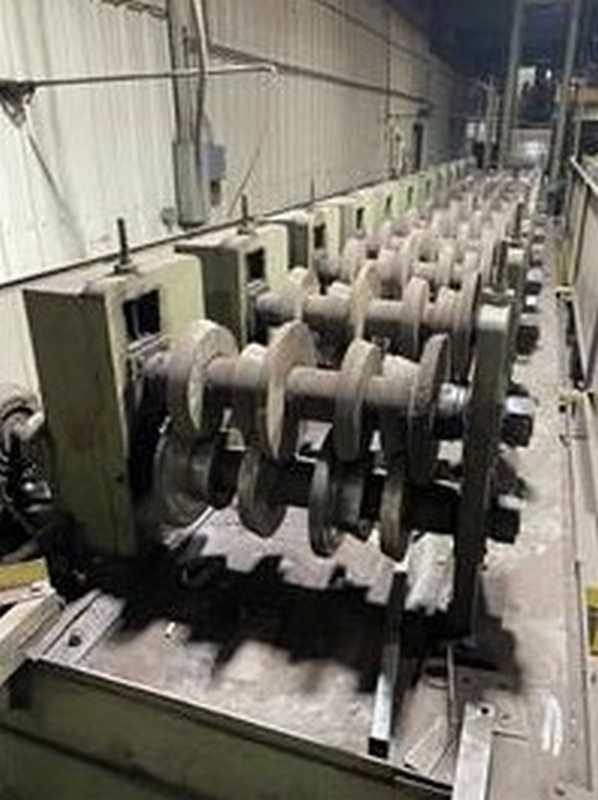

-Number of Stands:  12
-Roll Space:  30"
-Arbor Diameter:  3"
-Arbor Center to Center Distance:  29"
-Upper Arbor Adjustment:  6"
-All Lower Arbors Power Driven
-Upper Arbor Stands 1, 2, 11, 12 Power Driven
-50 HP Main Drive Motor
-9" H x 2.75" Flange "Zee Purlin" Tooling
-6.5" H x 2.50" Flange "Zee Purlin" Tooling

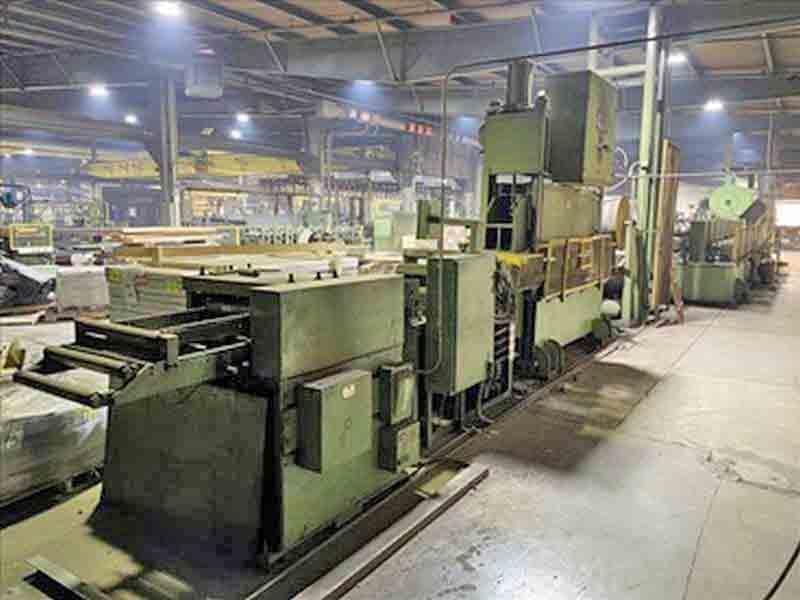

Consisting of the following:

-Bradbury Powered Uncoiler with Coil Car:
  Model:  420-36
  Coil Capacity:  10,000 lbs.
  Coil Width:  36"
  Coil I.D. Range:  17.5" - 25"
  Pneumatic Holddown
  Loop Control
  15 HP Main Drive with Electric Brake

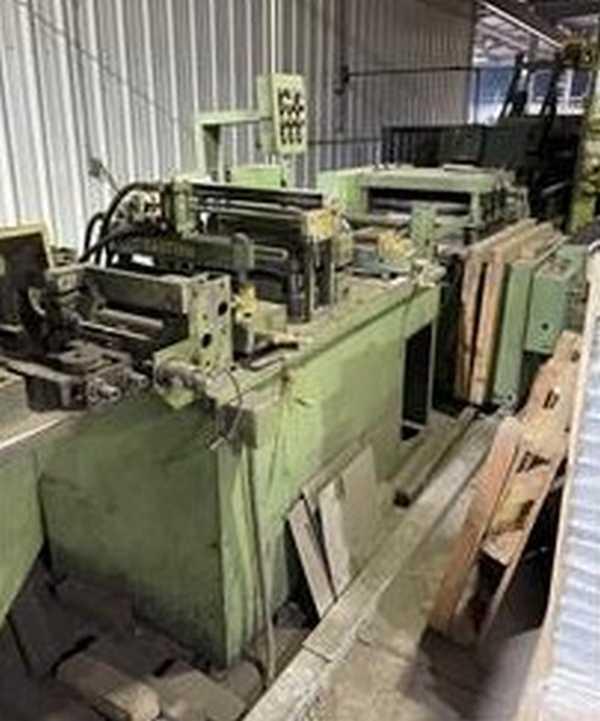

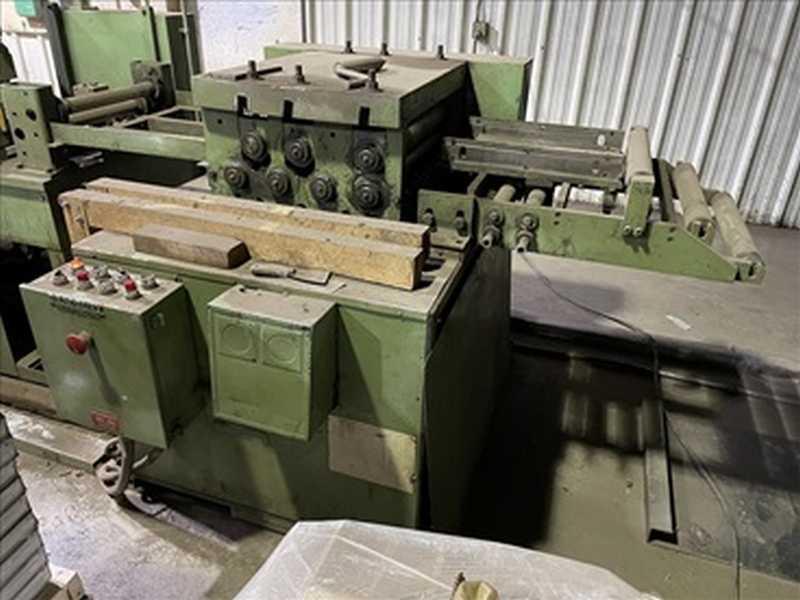

-Bradbury Powered Straightener:
  Model:  RS4-25-5
  Number of Rolls:  5
  Powered Driven Pinch Rolls

-Bradbury Strip Welder

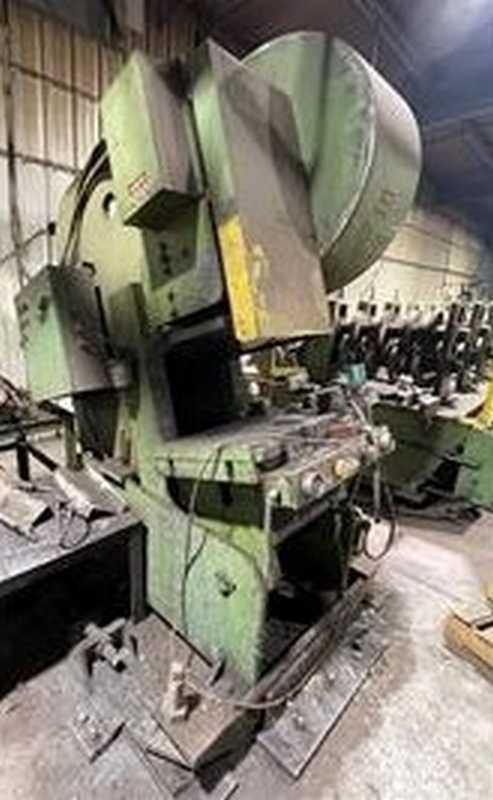

-Heim 7A OBI Cutoff Punch Press:
  Capacity:  70 Tons
  Air Clutch

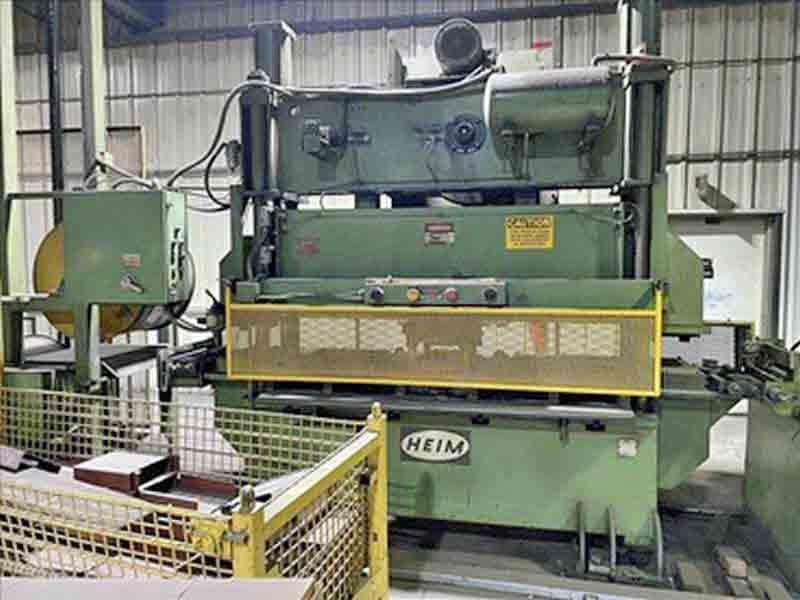

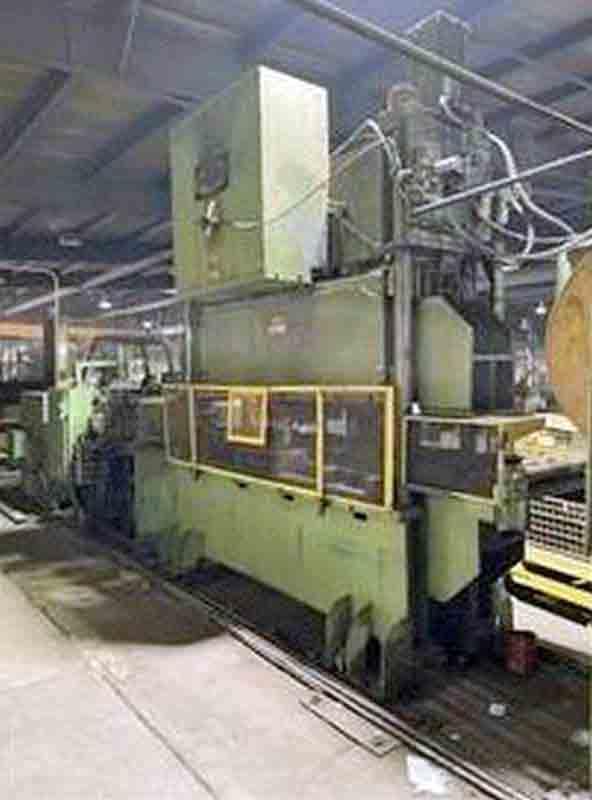

-Heim S100-30-80 Straight Side Cutoff Press:
  Capacity:  100 Tons
  Bed Area:  80" x 30"
  Air Clutch

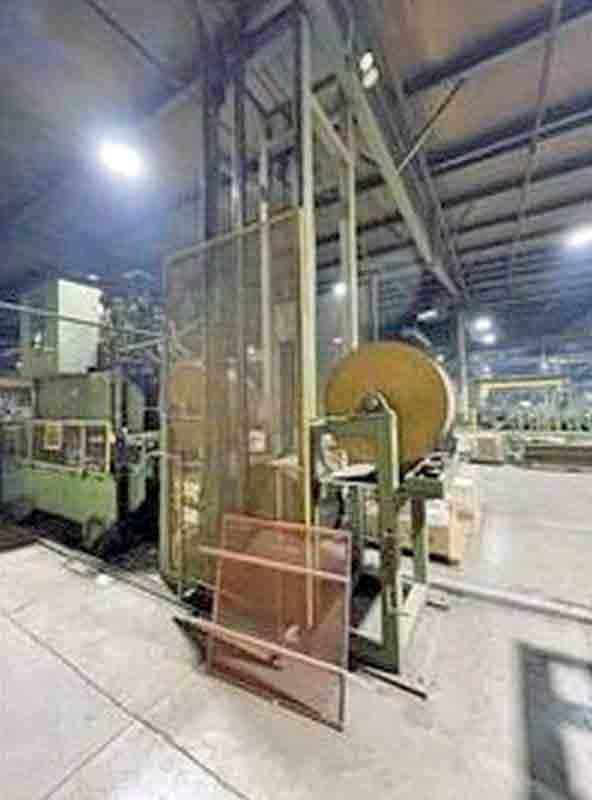

-Coil Loop Accumulator
