12' X 1.5" HAEUSLER 4 ROLL MODEL NO. VRM 12/3 HYDRALIC PLATE BENDING ROLL. STOCK # 2000420

Stock #: 2000420

Equipped With

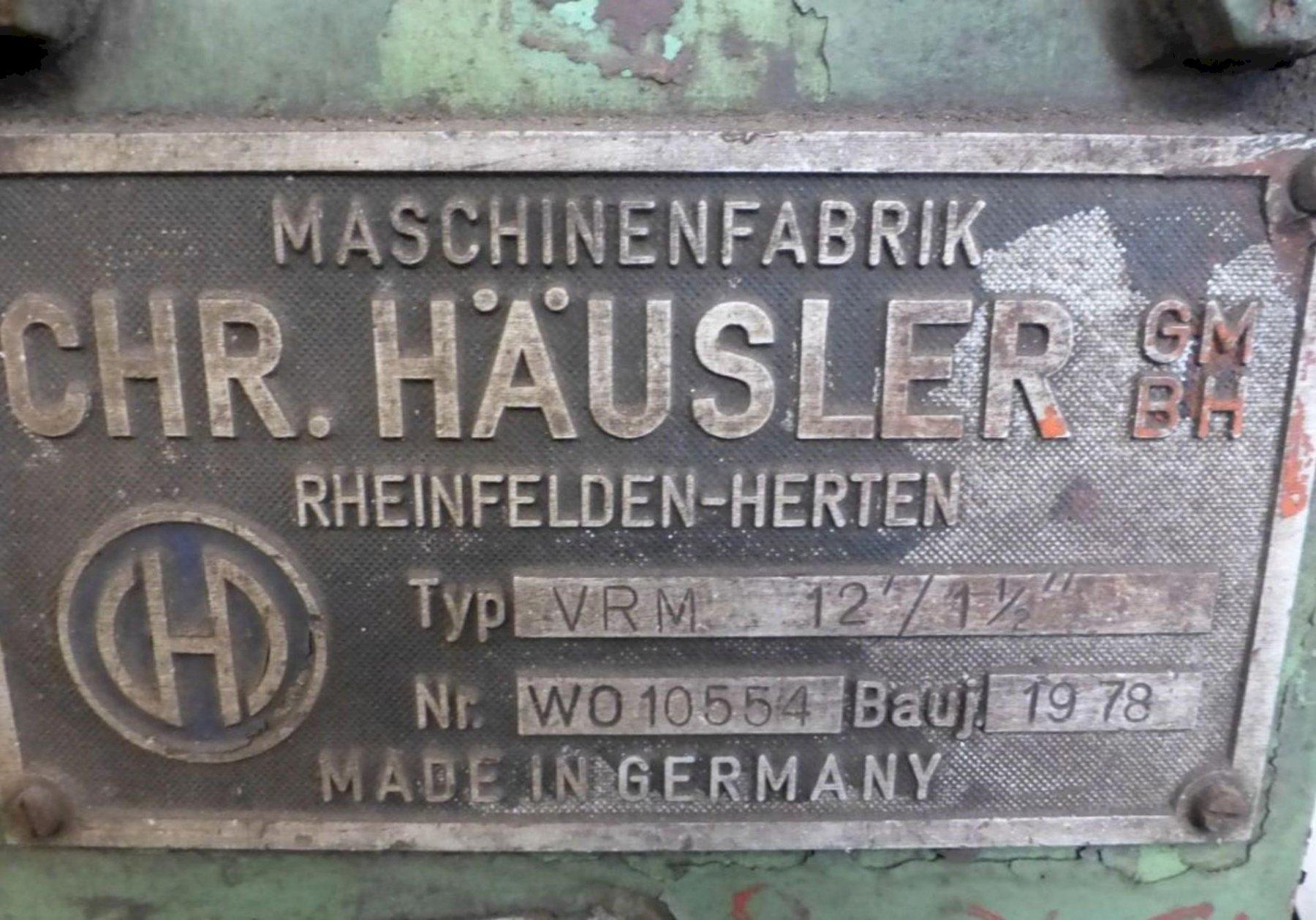

SERIAL ......................... WO10554
MODEL .......................... VRM-HY 12X1.5
NEW ............................ 1978
CAPACITY THICKNESS ............. 1.5"

LENGTH OF ROLLS ................ 144" (12')

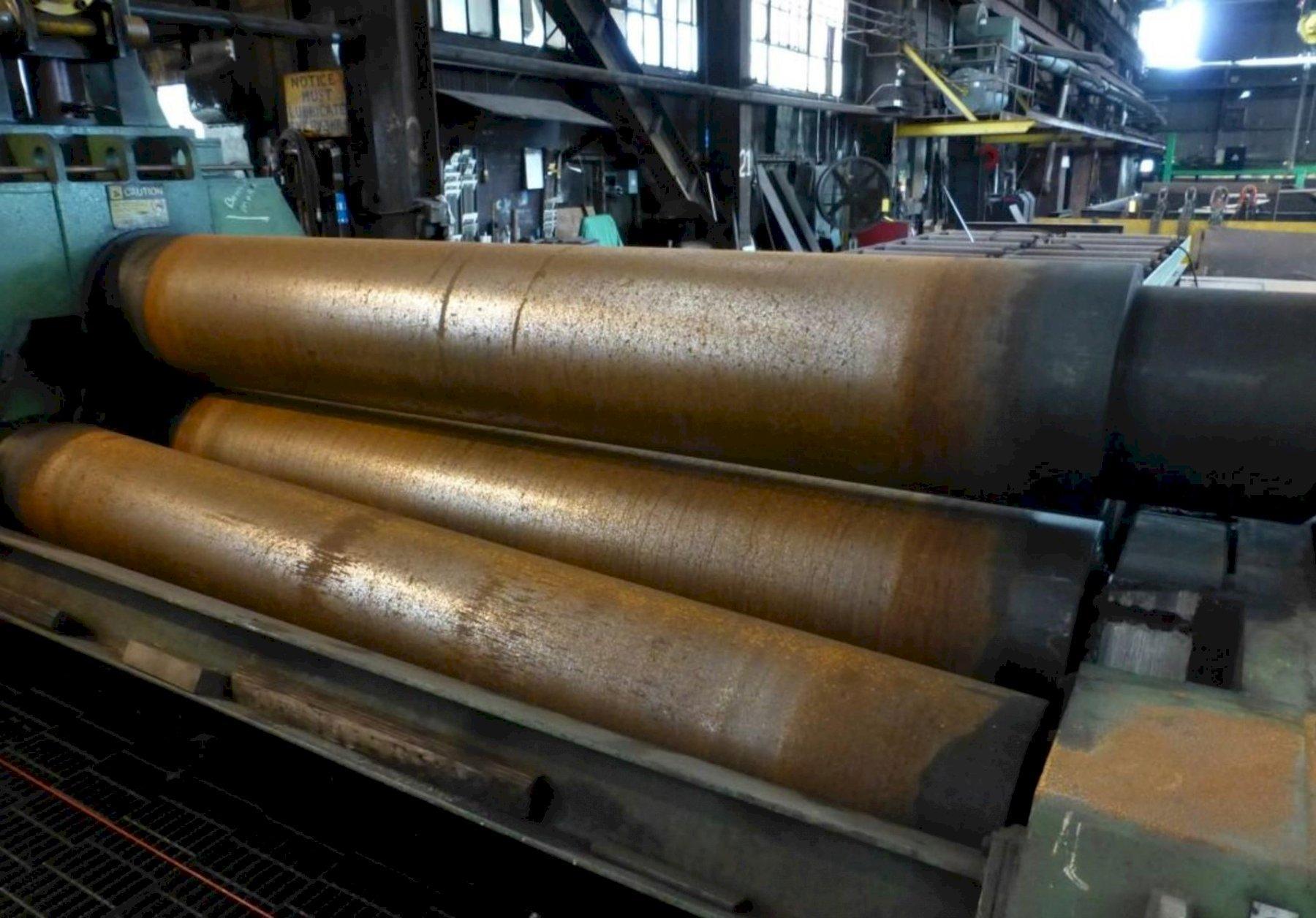

NUMBER OF ROLLS ................ 4
TOP & BOTTOM ROLL DIAMETER ..... 23-1/2" (595 mm)
SIDE ROLLS DIAMETER ............ 19" (480 mm)
PLATE BENDING DIAMETER ......... 28" @ 1-1/4", 36" @ 1-1/2"

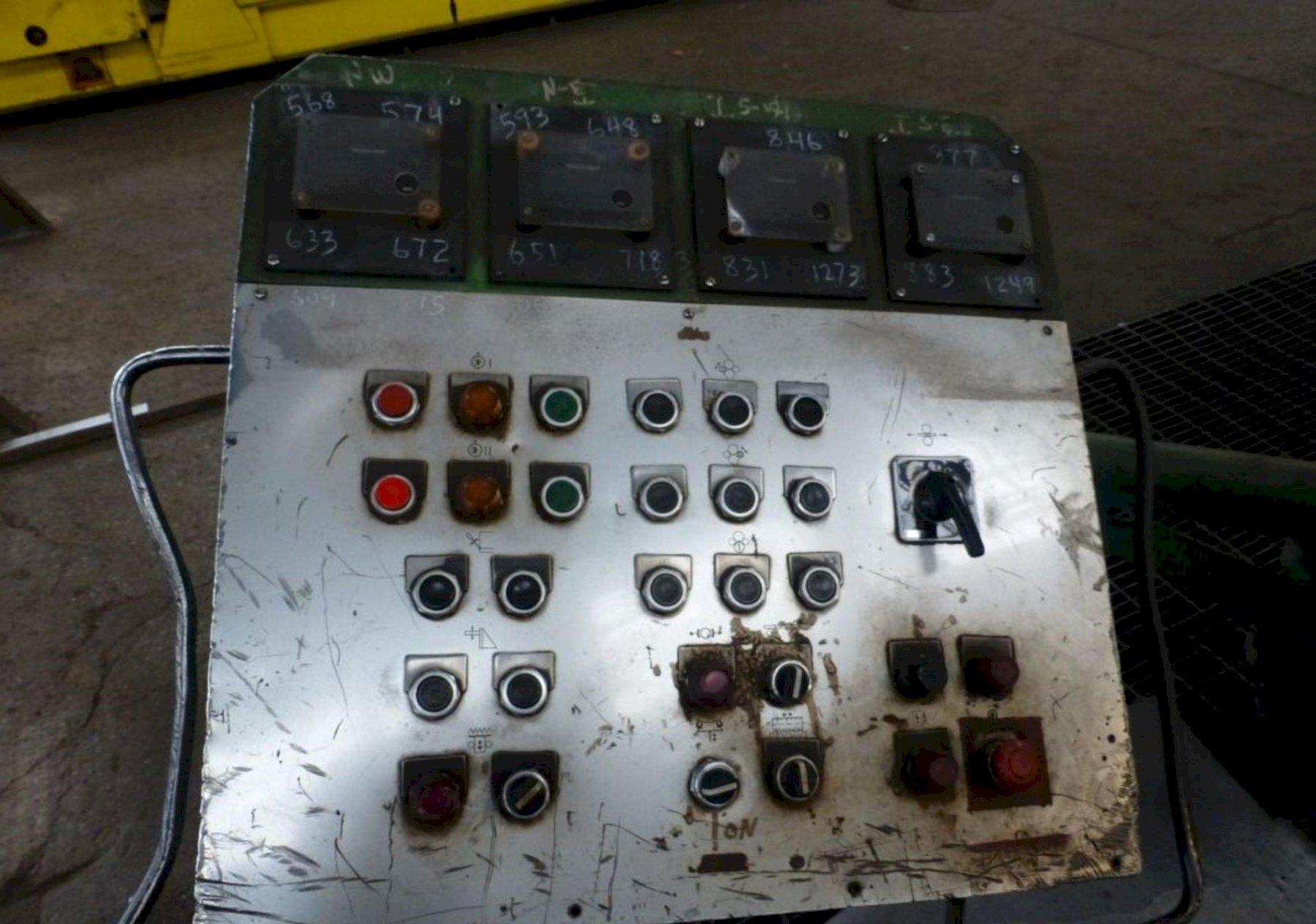

OPERATOR CONTROL STATION ....... YES
DIGITAL READOUT INDICATORS ..... YES
ROLL OPERATING SPEED ........... 158 IPM (4 M/MIN)
POWER ROLL ADJUSTMENT .......... YES, HYDRUALIC
AUTOMATIC SPEED COMPENSATION ... YES
FORWARD / REVERSE .............. YES
AIR DROP END ................... YES
CONE BENDING ATTACHMENT ........ YES
OVERARM SUPPORT DEVICE ......... YES
MOTOR .......................... 150 HP
