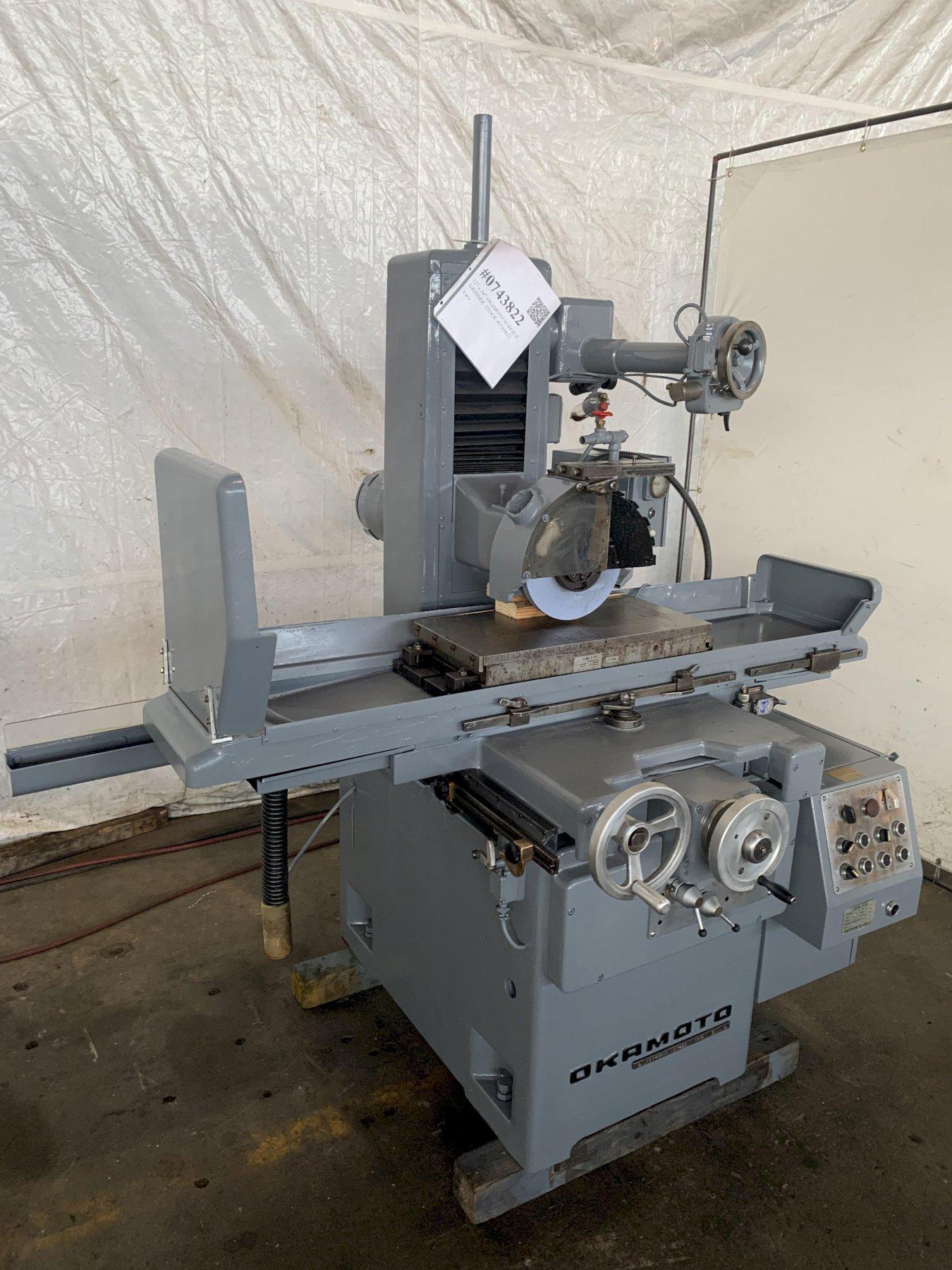

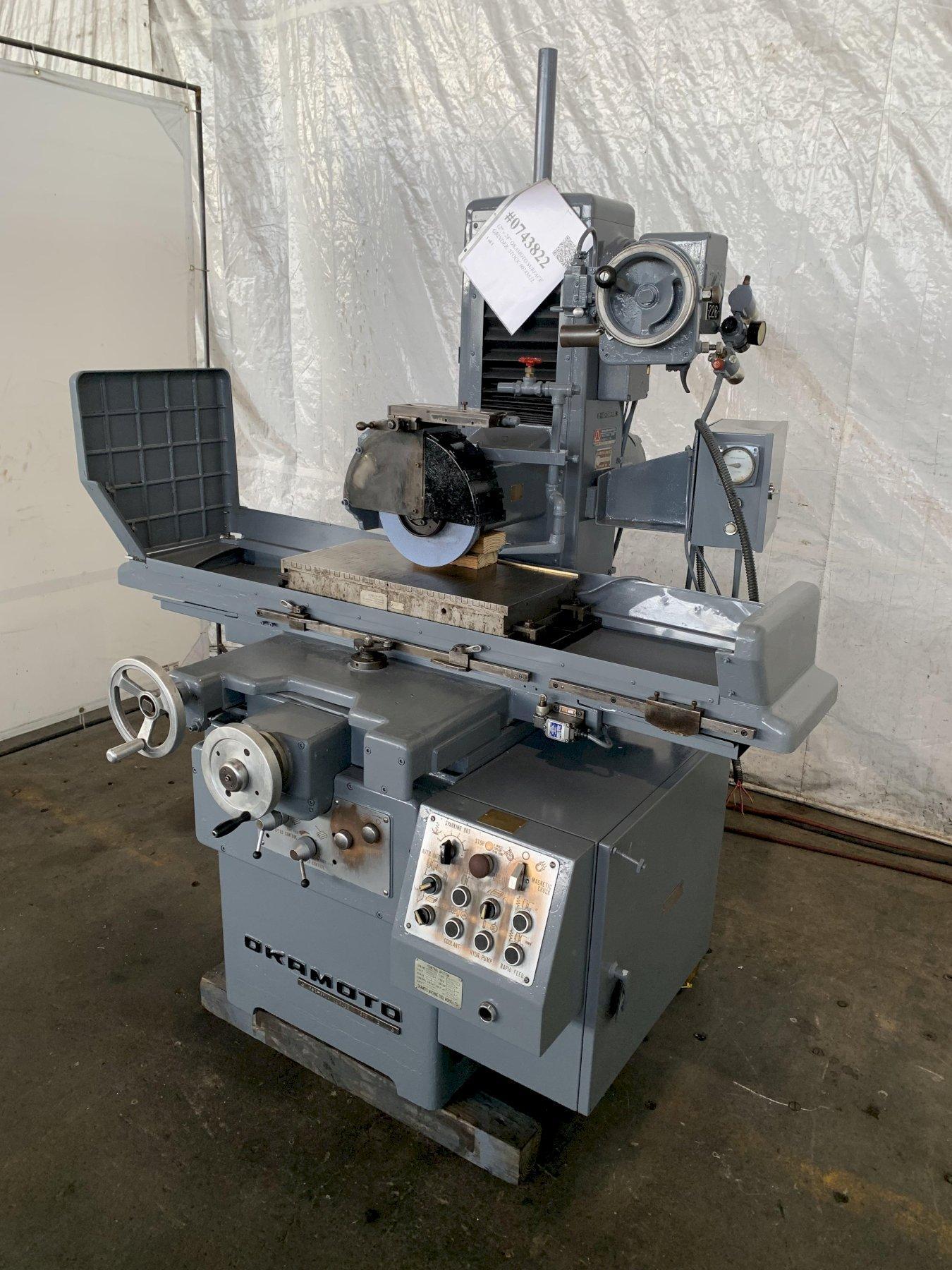

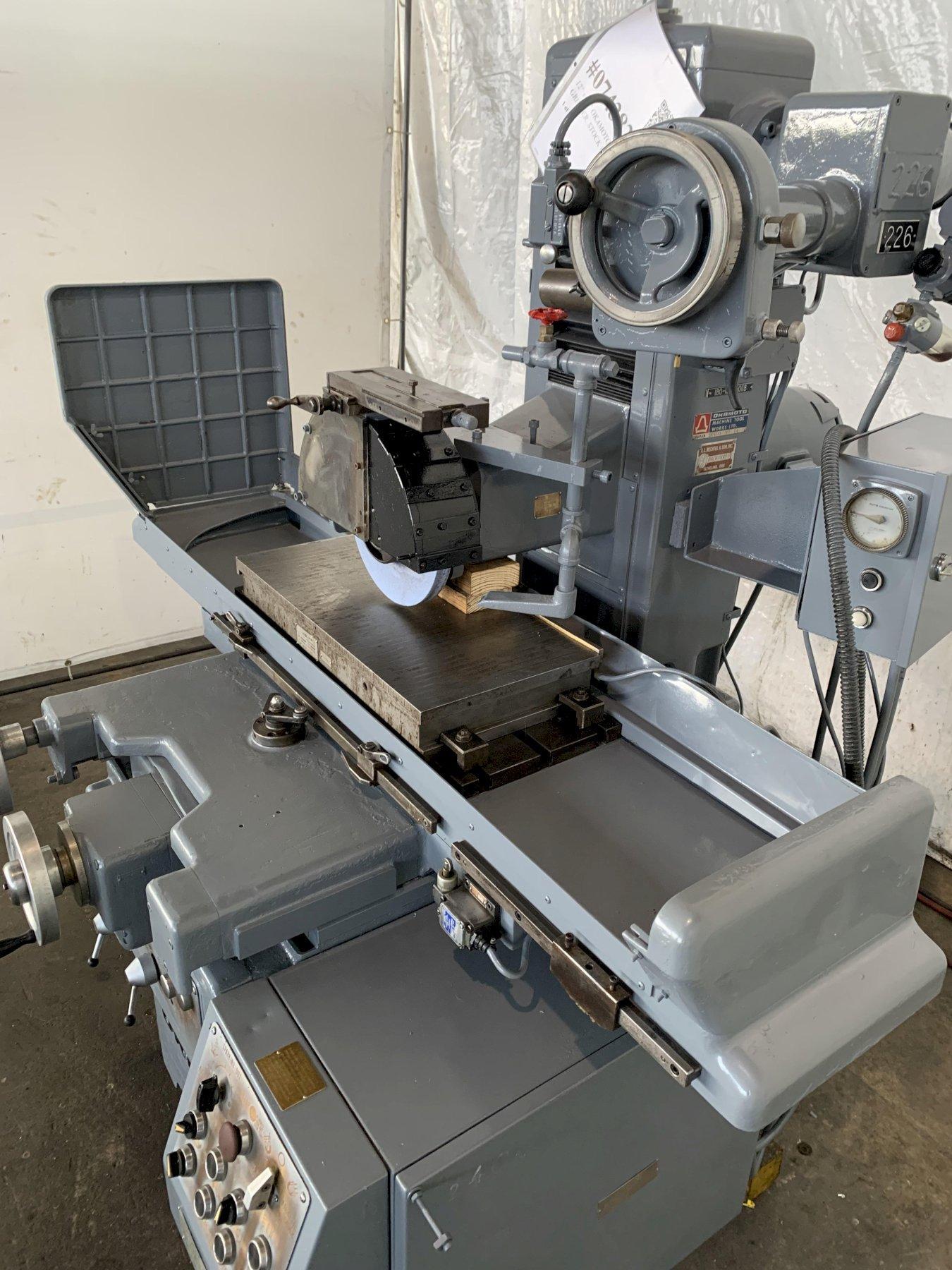

12" X 24" OKAMOTO ACCUGAR 124N HYDRAULIC SURFACE GRINDER. STOCK # 0743822.

Stock #: 0743822

Equipped With

MODEL ............................. 124N ACCUGAR
CAPACITY .......................... 12" X 24"
MAXIMUM UNDER WHEEL ............... 13.7"
HYDRAULIC TABLE FEED .............. 1 TO 100 FPM
LONGITUDINAL TABLE TRAVEL ......... 26"
AUTO CROSS TRAVEL ................. 13.6"
LONGITUDINAL FEEDS INTERMITTENT ... 0.02" TO 0.8"
LONGITUDINAL FEEDS CONTINUOUS ..... 4 TO 40 IPM
CROSS FEED RATE INTERMITTENT ...... 0.02" TO 0.8"
CROSS FEEDS RATE CONTINUOUS ....... 4 TO 40 IPM
INCREMENTAL DOWN FEED OF HEAD ..... YES
AUTO FEED PER TABLE STROKE ........ 0.0015" TO .0001"
AUTO FEED PER SADDLE REVERSE ...... 0.0015" TO .0001"
RAPID FEED RATE ................... 19 IPM

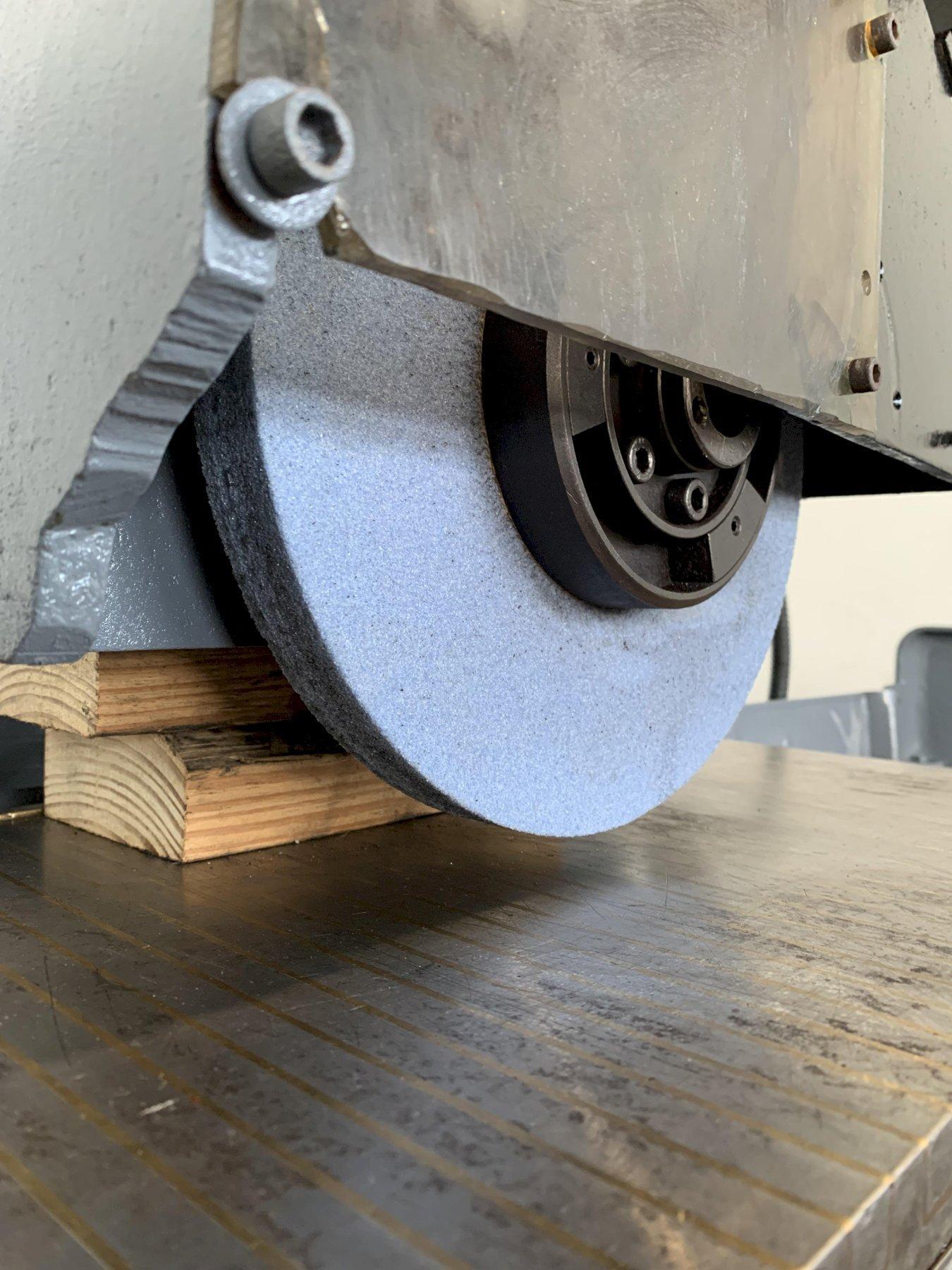

GRINDING WHEEL SIZE ............... 12" X 1-1/2" X 5"

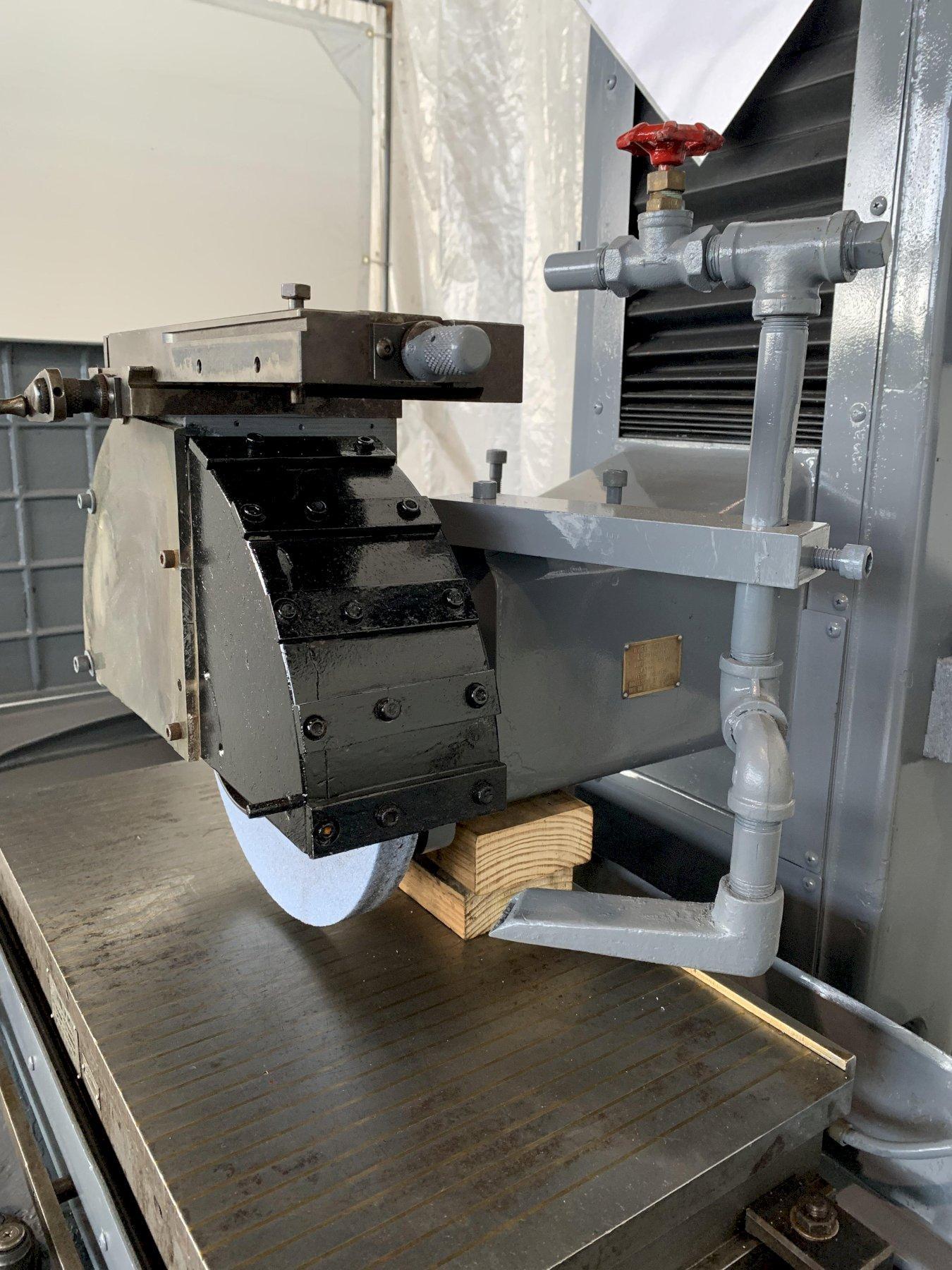

OVER THE WHEEL DRESSER ............ YES

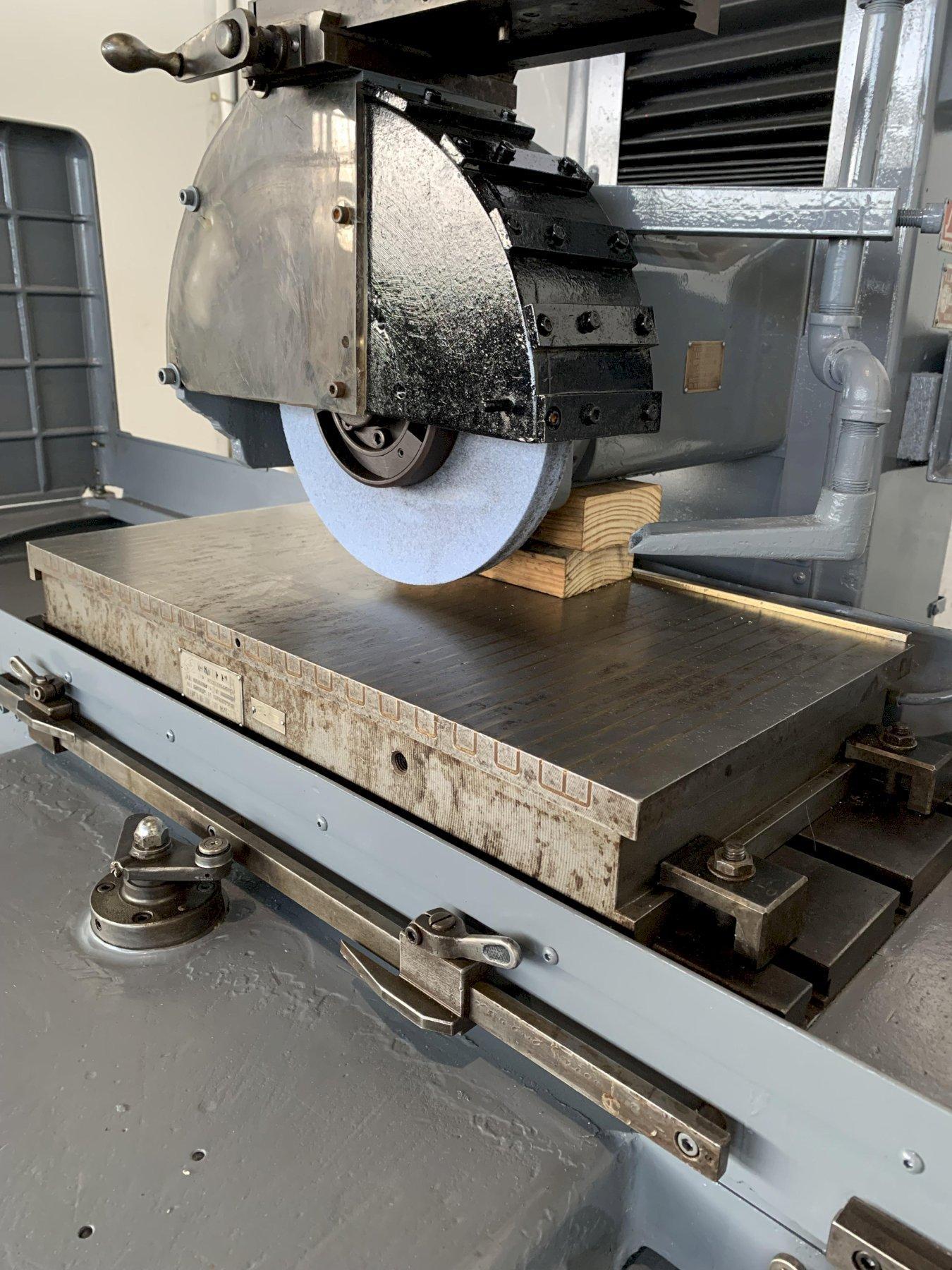

CHUCK VARIABLE HOLD ............... 12" X 24" X 3"

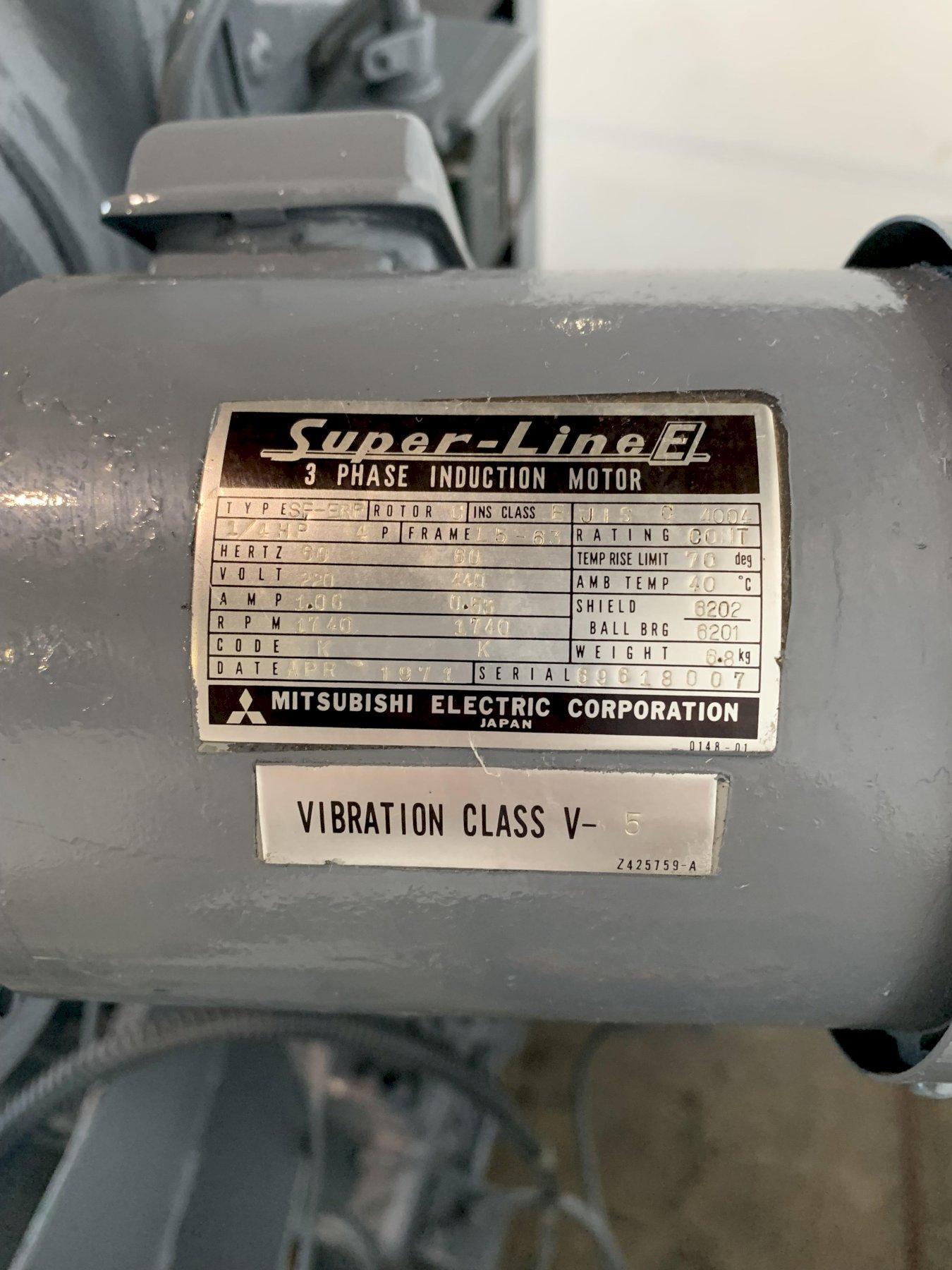

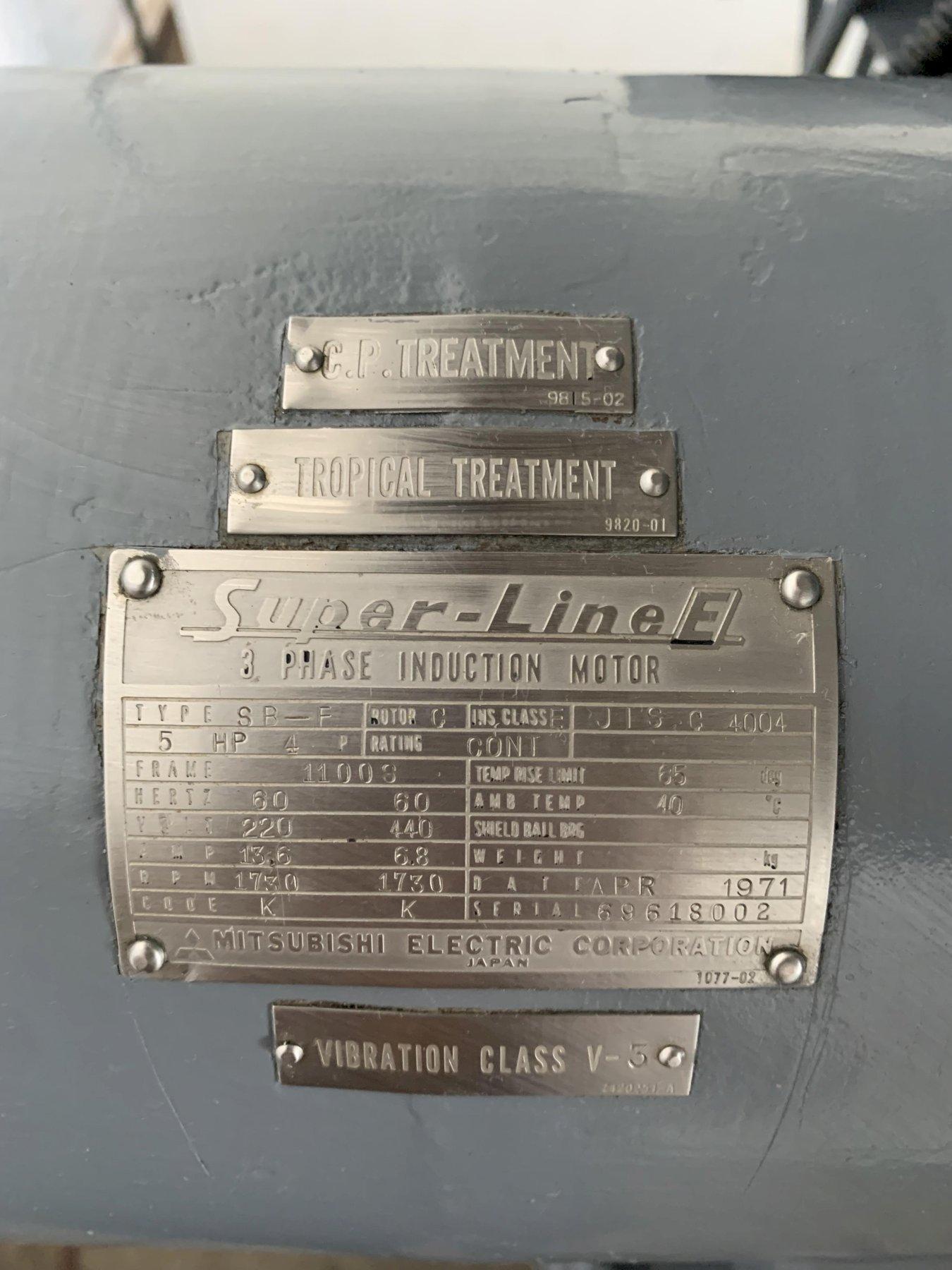

SPINDLE MOTOR ..................... 5 HORSEPOWER

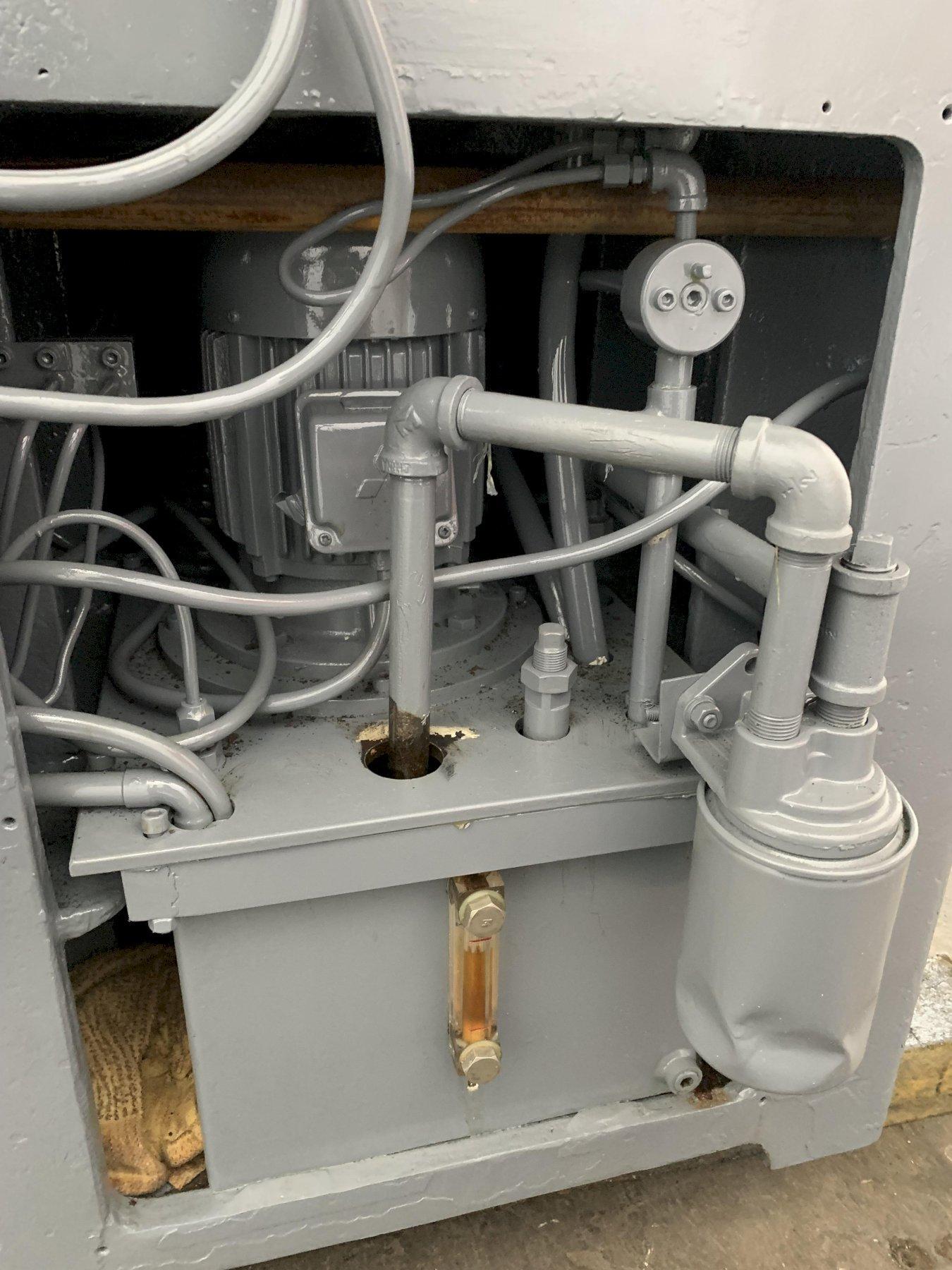

HYDRAULIC MOTOR ................... 2 HORSEPOWER
