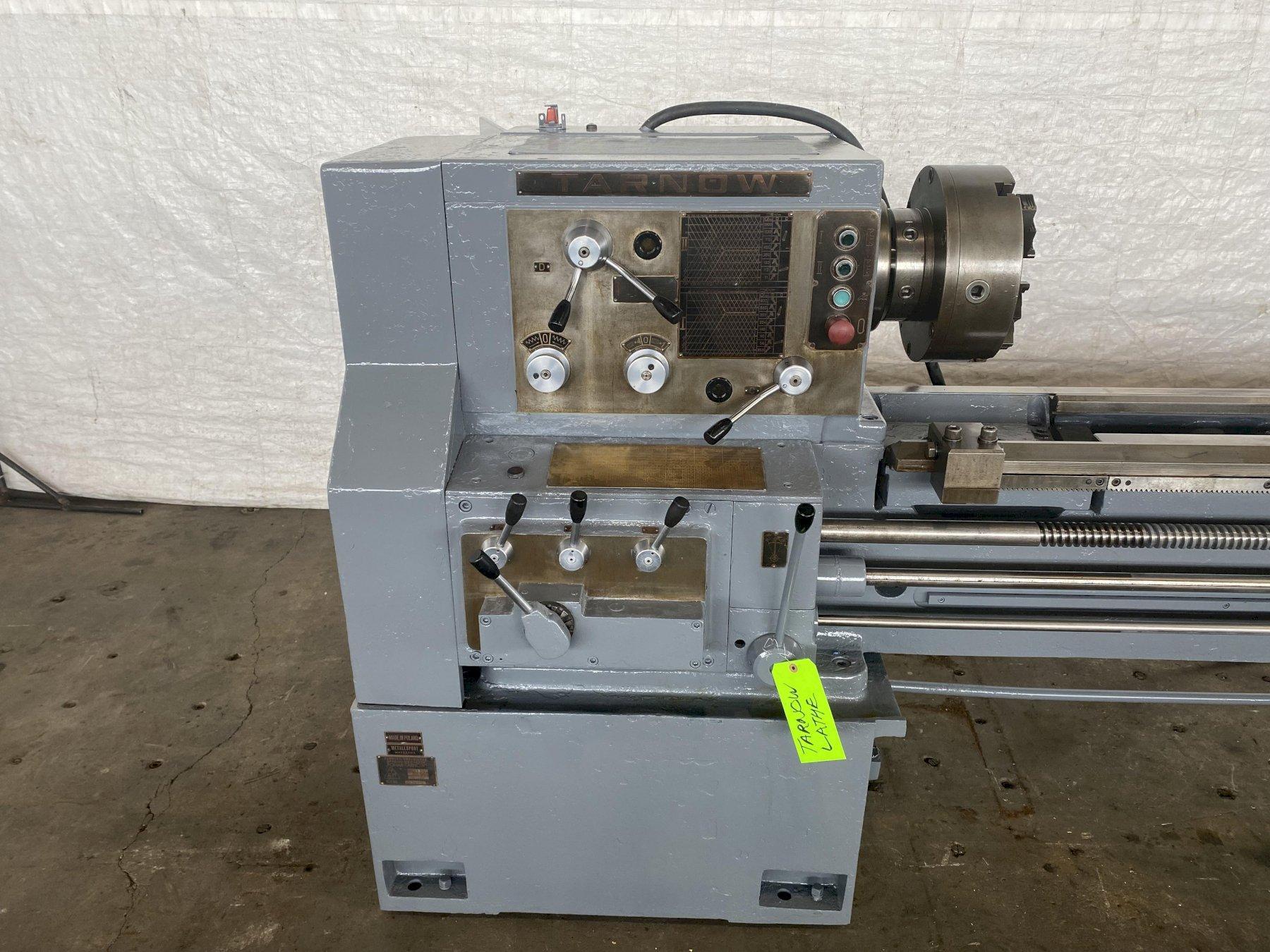

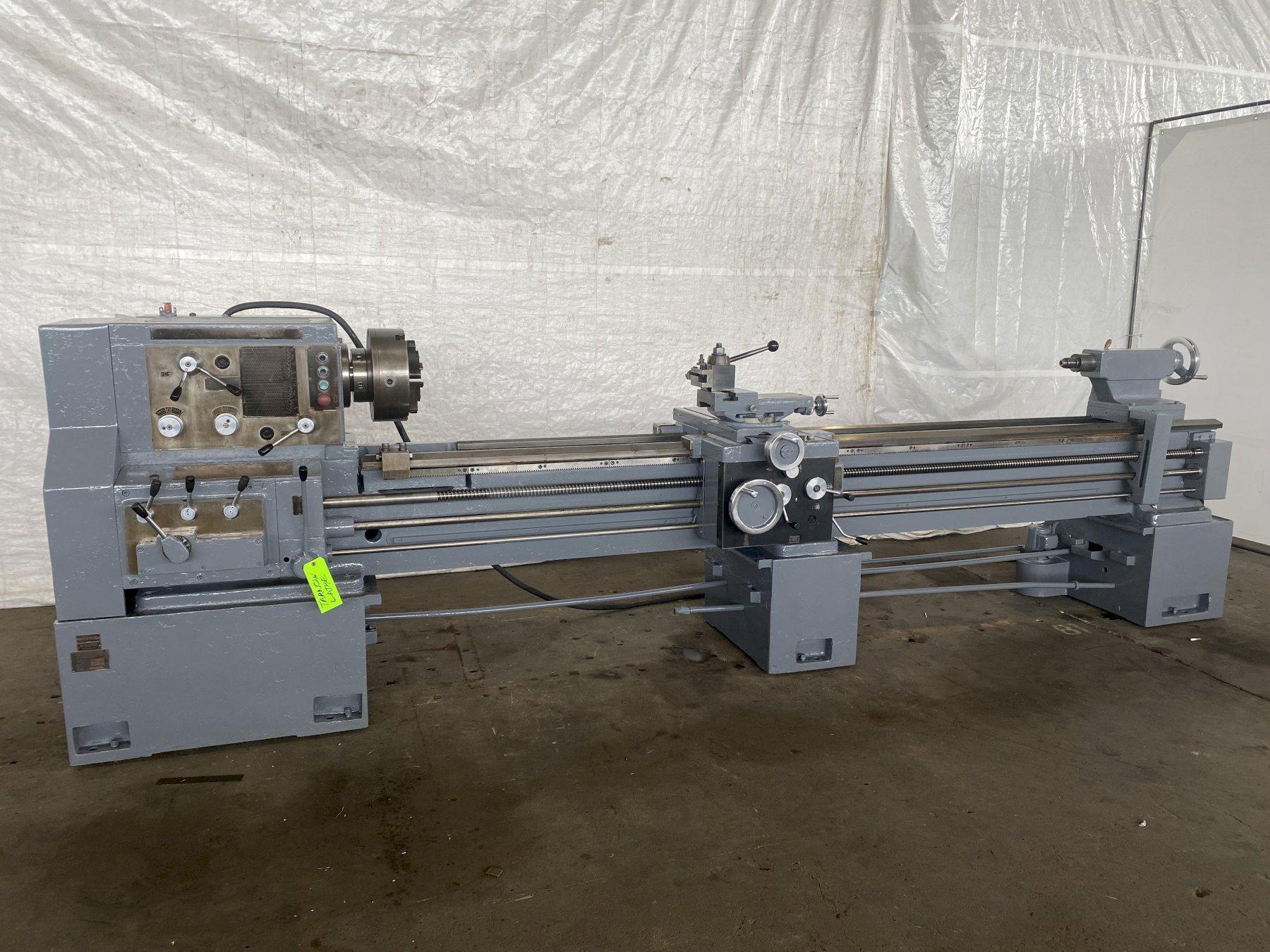

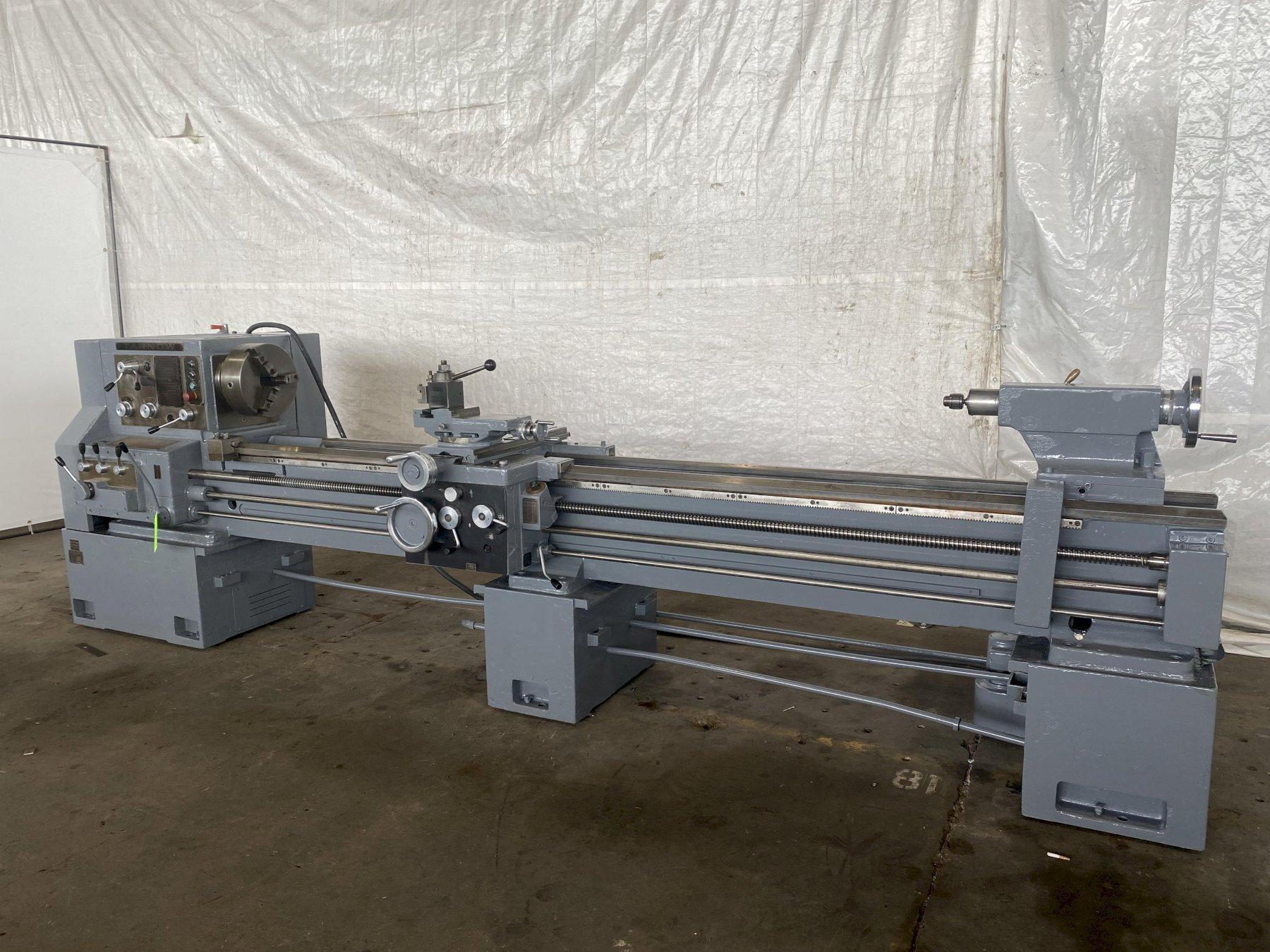

21" x 120" TARNOW TUJ 50X3000 ENGINE LATHE. STOCK #0743222.

Stock #: 0743222

Equipped With

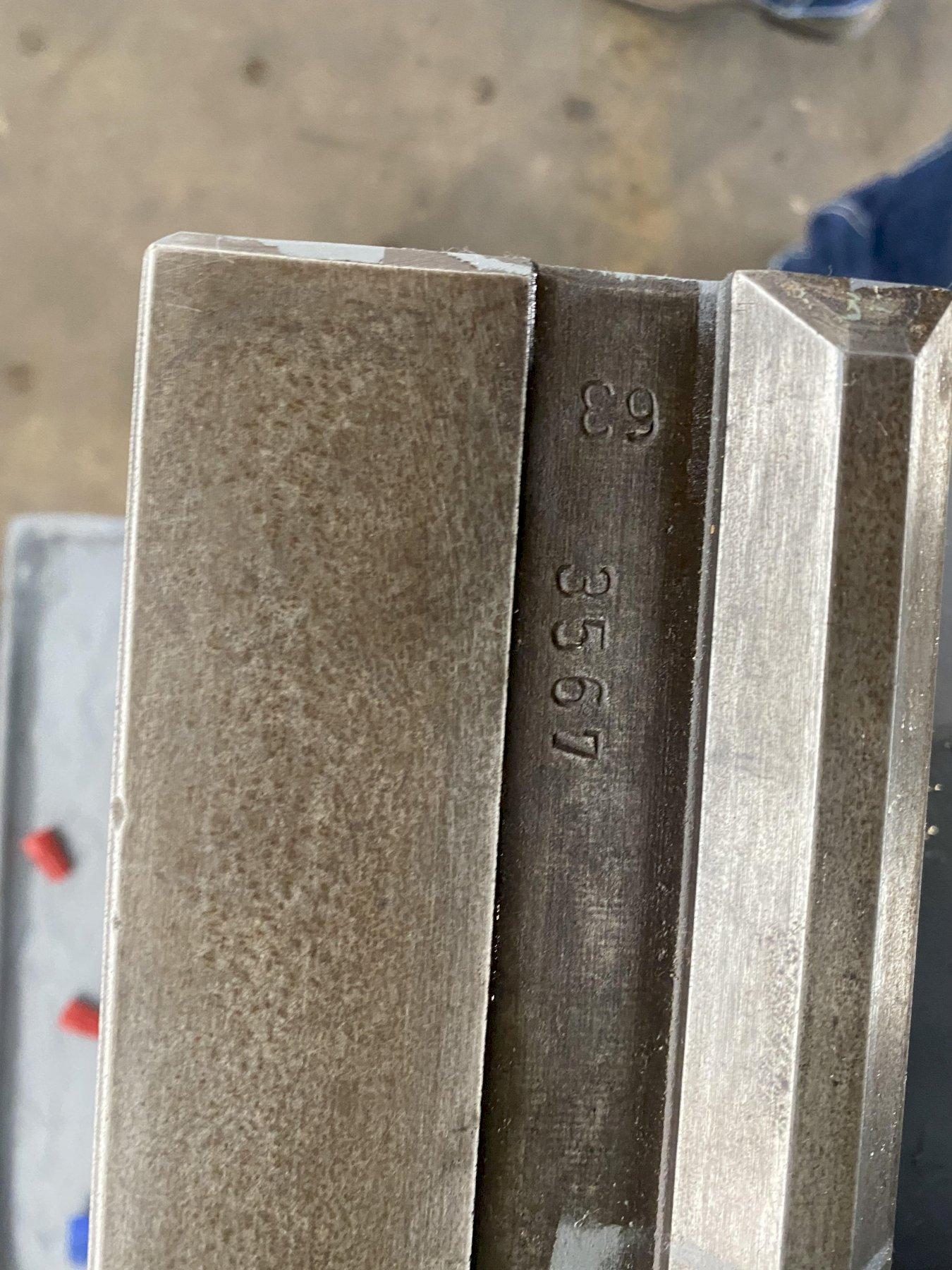

SERIAL..........................: 3567
MODEL...........................: TUJ 50 X 3000
SWING OVER BED..................: 21"
SWING OVER GAP..................: 30"
SWING OVER SLIDE................: 13"
DISTANCE BETWEEN CENTERS........: 120"

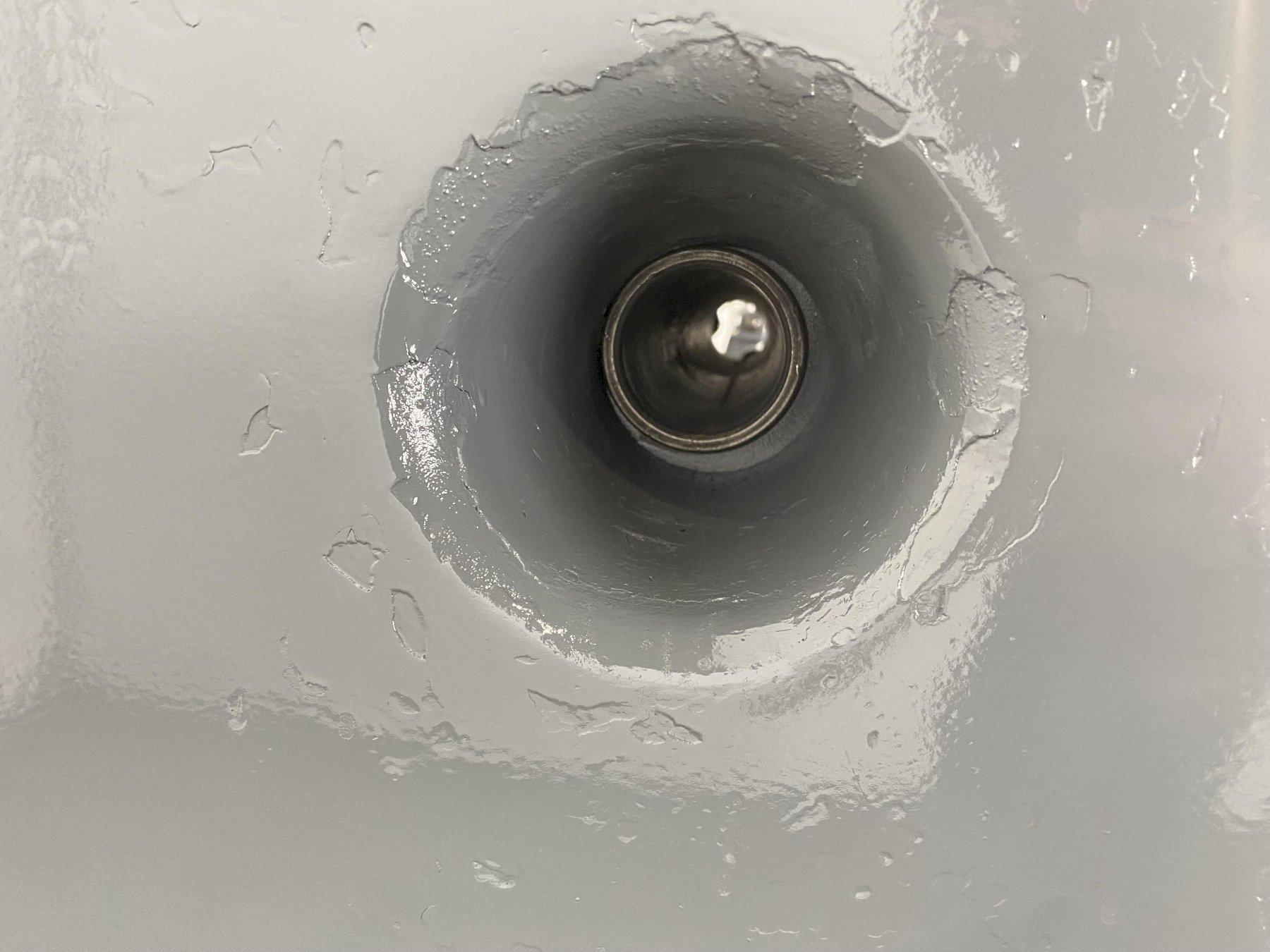

THRU HOLE.......................: 2-1/16"

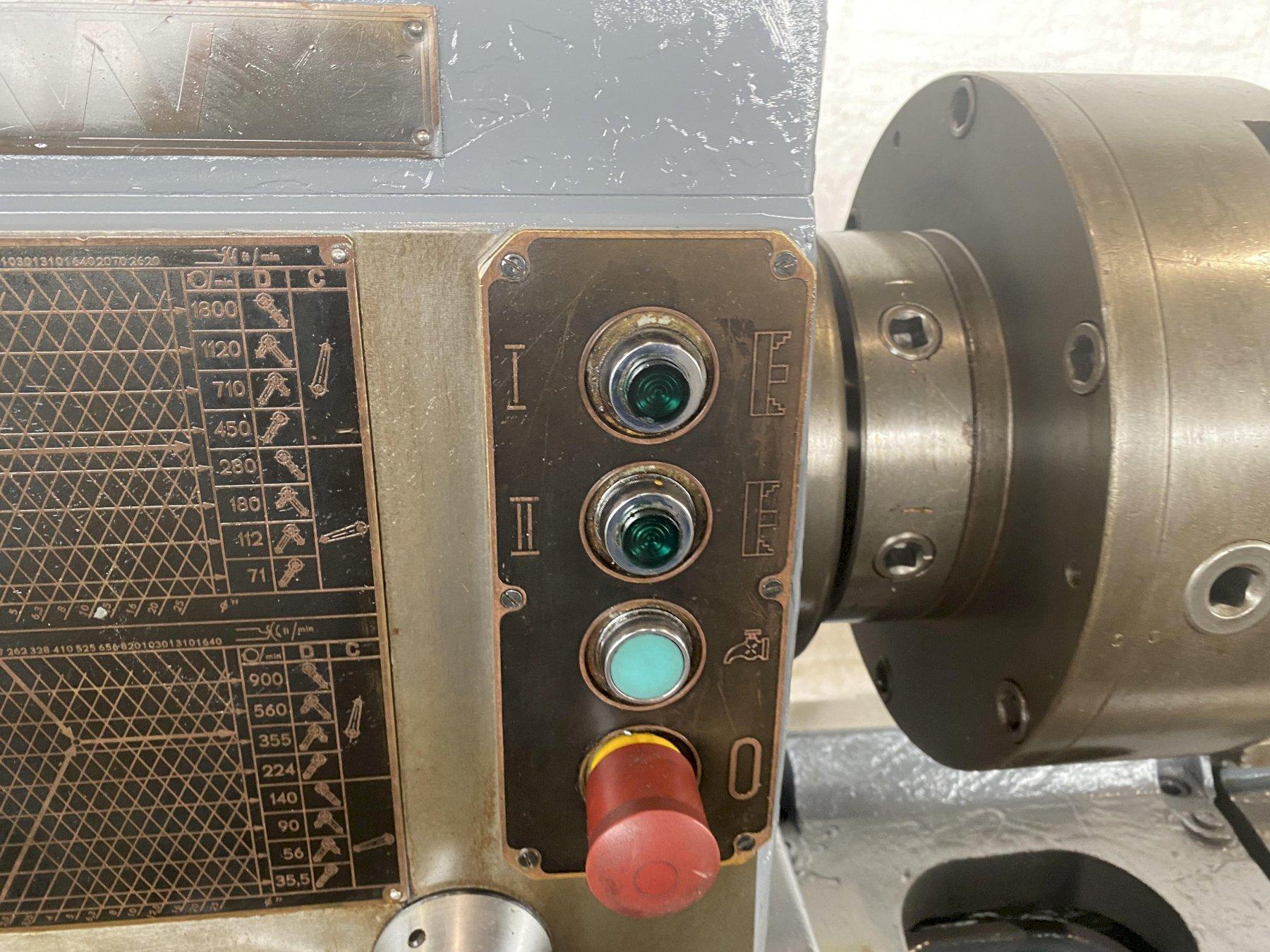

SPINDLE SPEEDS..................: (16) 35.5 - 1800 RPM

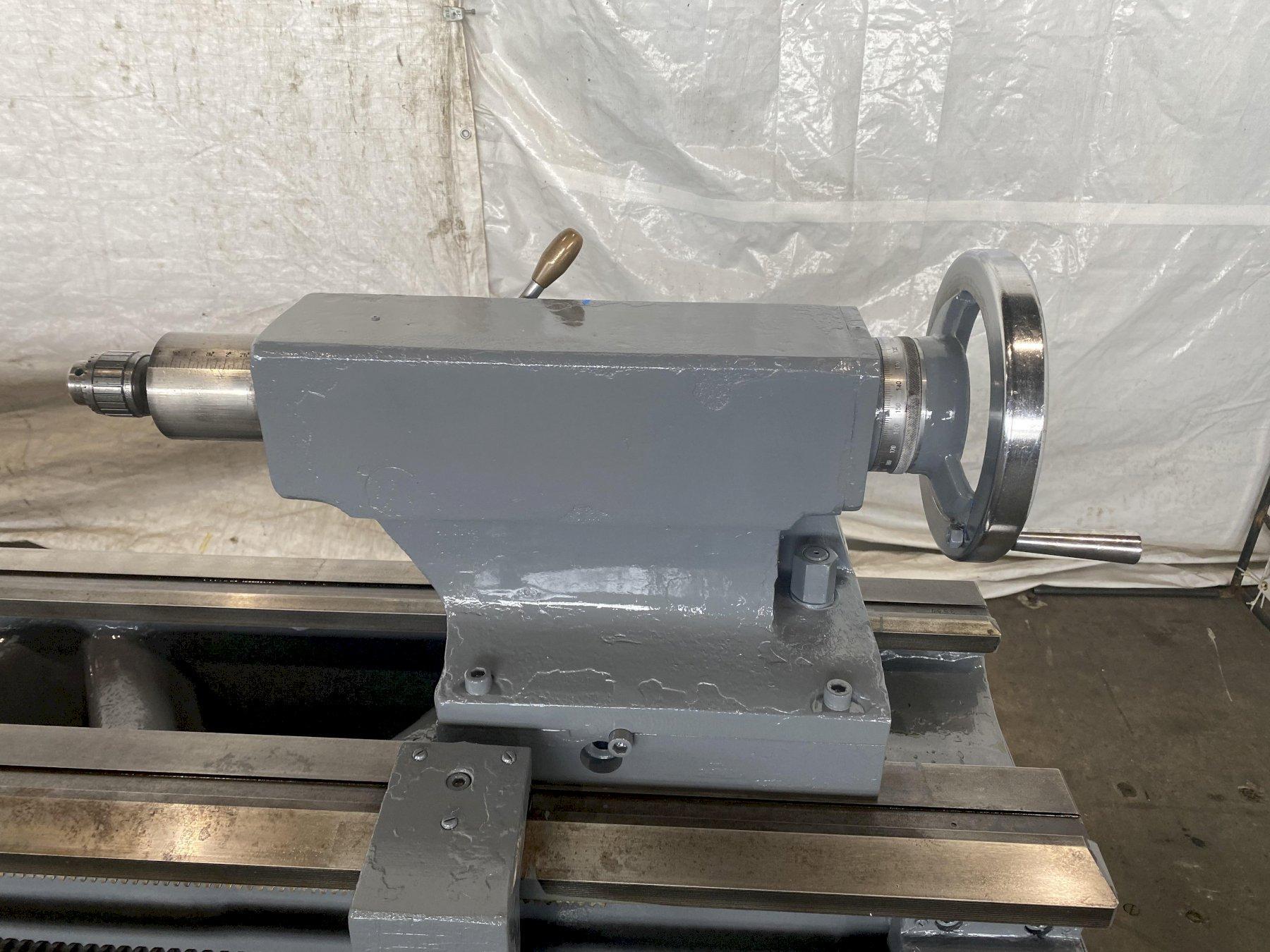

TAILSTOCK SPINDLE TAPER.........: 5 MT
TAILSTOCK SPINDLE TRAVEL........: 6"
TAIL STOCK SPINDLE DIAMETER.....: 3-1/8"
WIDTH OF BED....................: 14-1/2"
FEEDS:
LONGITUDINAL....................: .0036 .18 IPR
CROSS...........................: .0018 - .9 IPR
THREADS:
INCH............................: 1 - 28 TPI
METRIC..........................: .4 - 28 MM
EQUIIPED WITH:

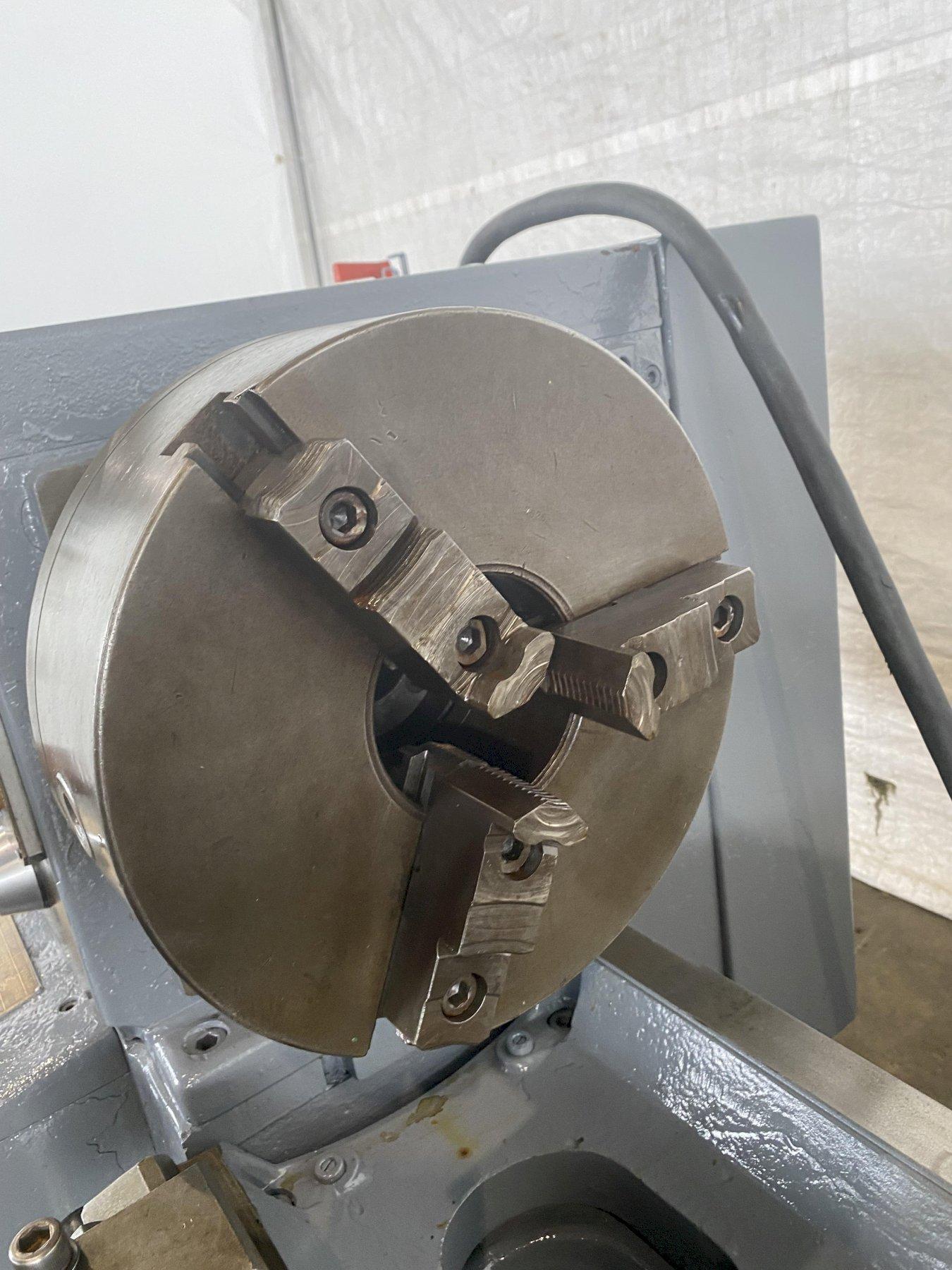

12" 3 JAW CHUCK

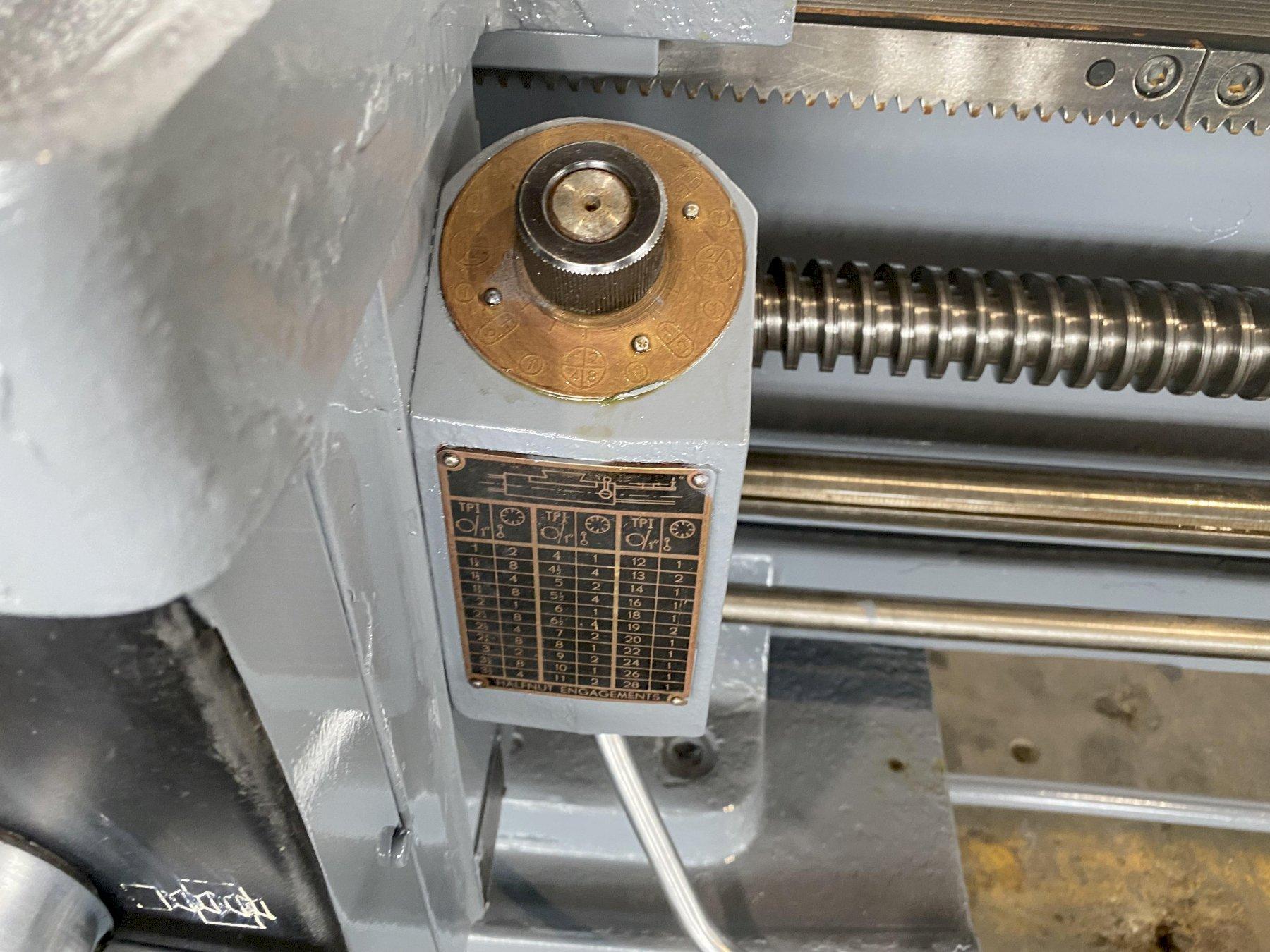

THREADING DIAL

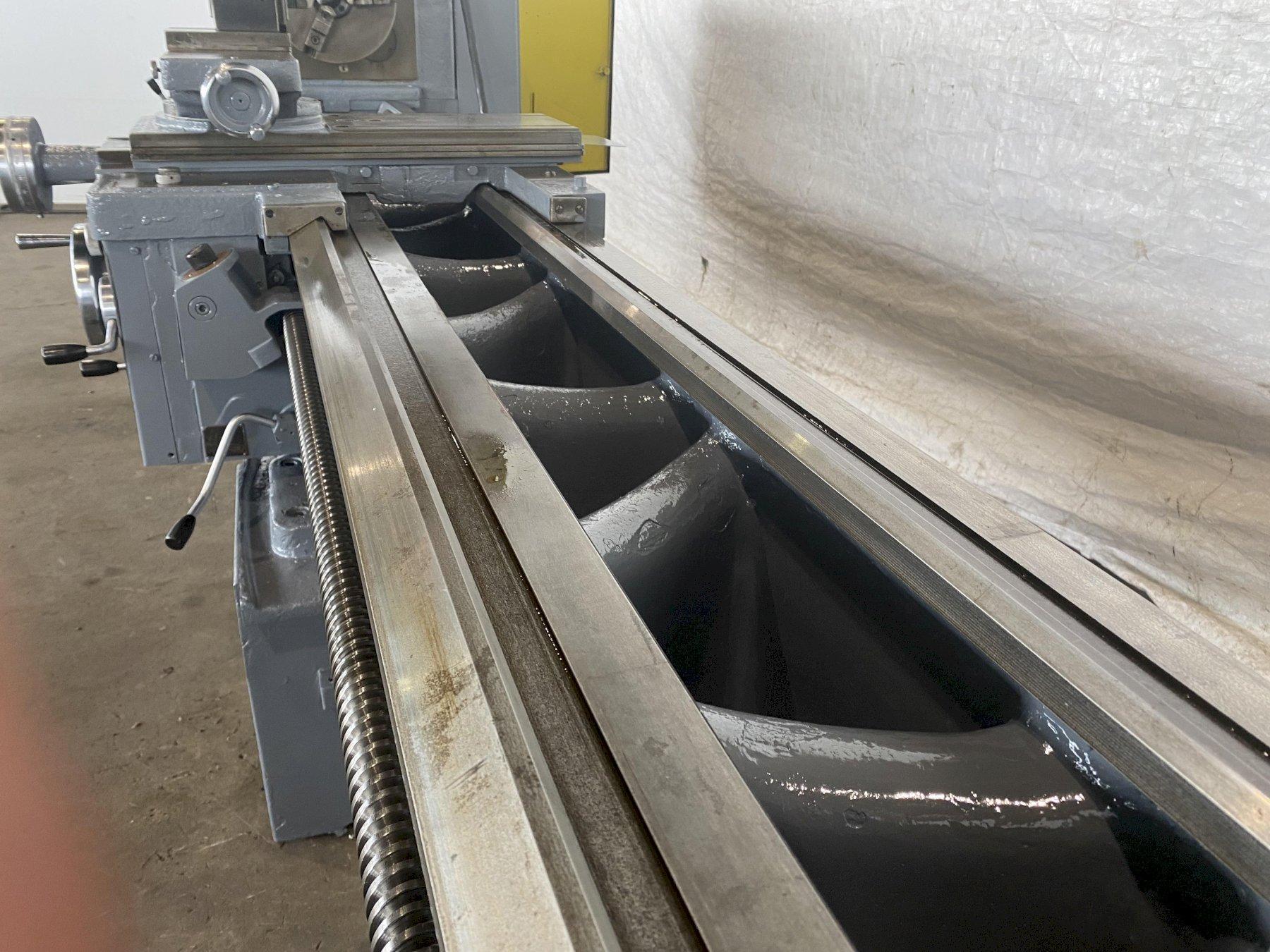

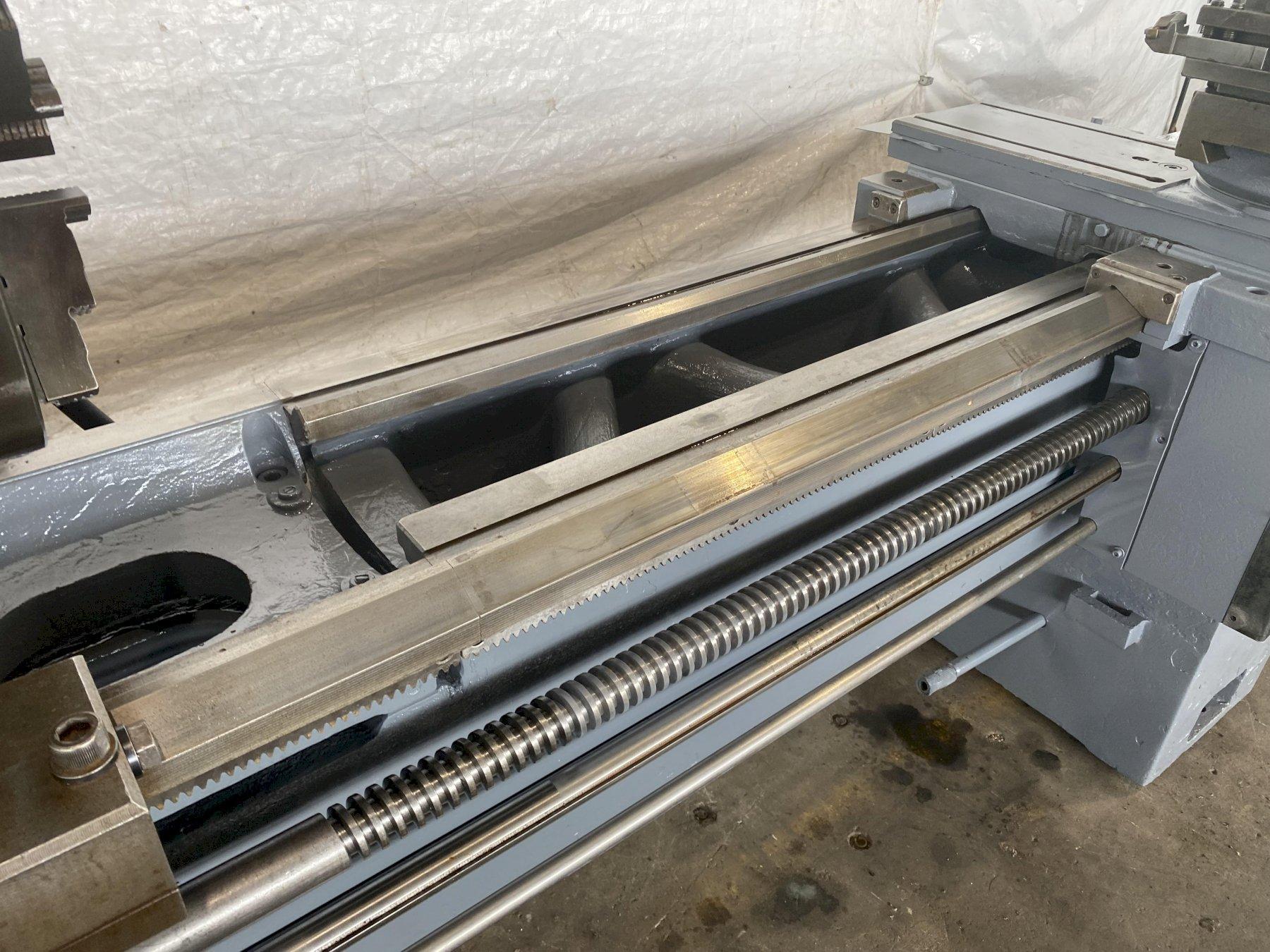

INDUCTION HARDENED BED WAYS

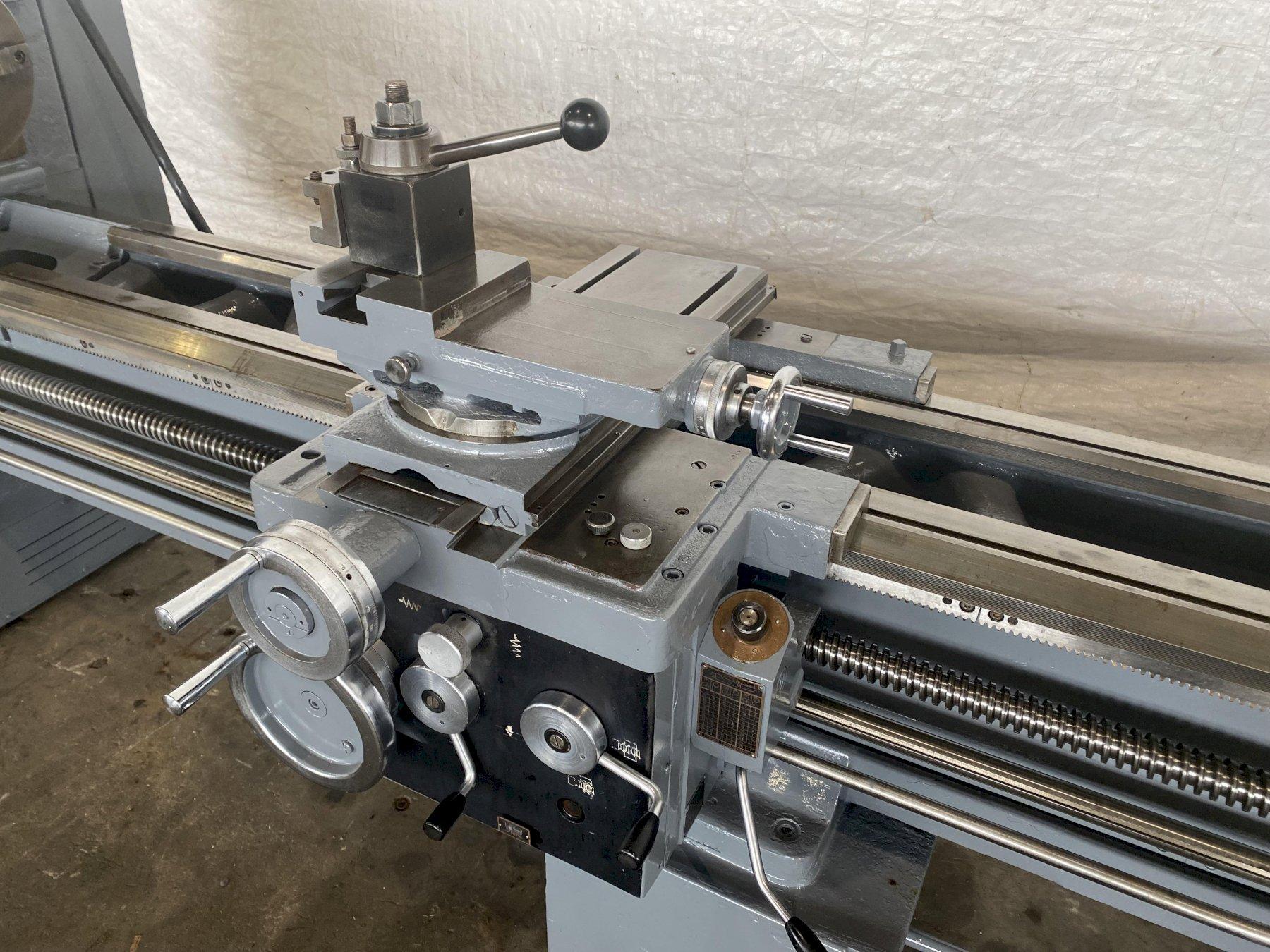

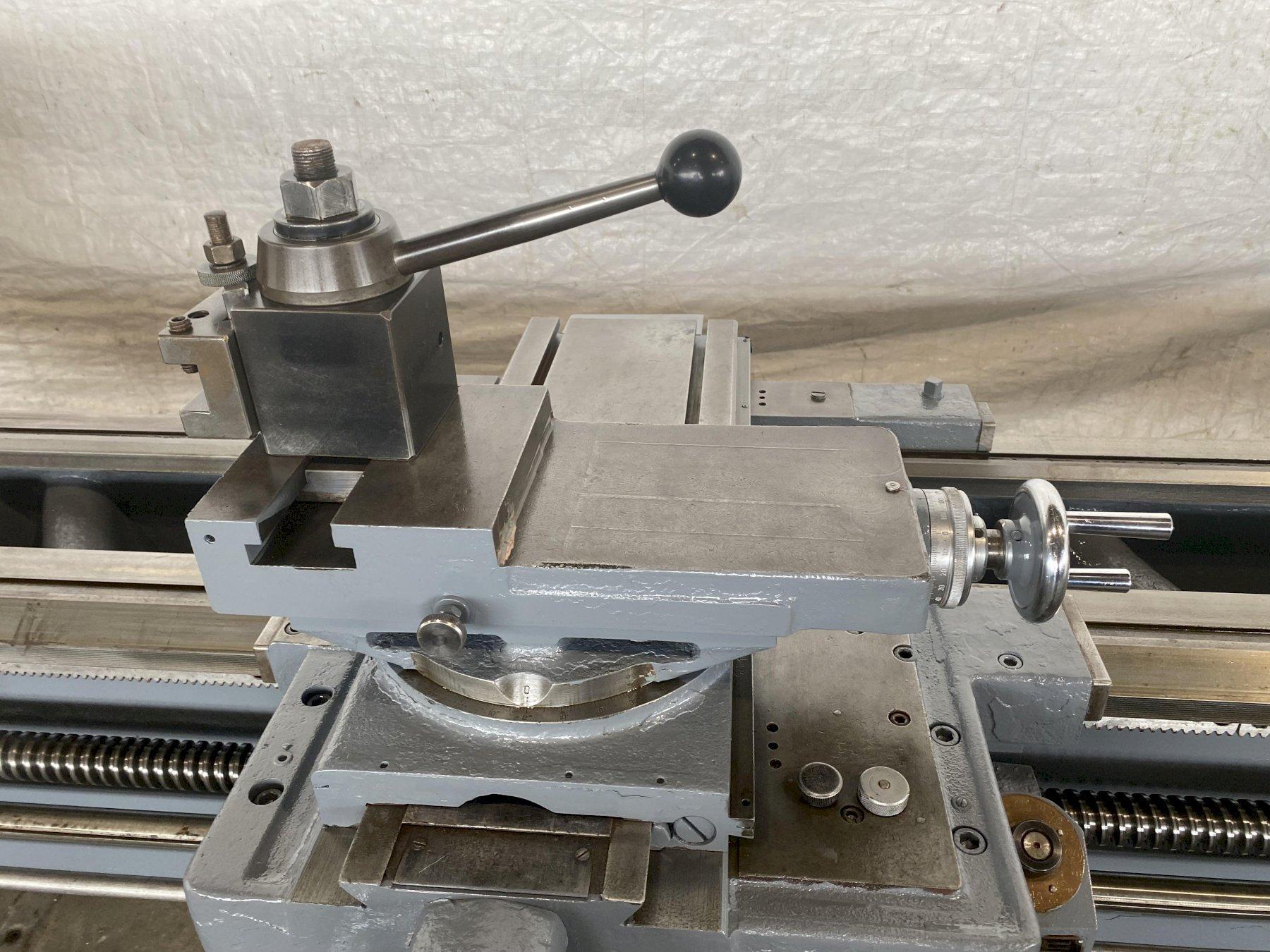

ALORIS TOOL POST.
