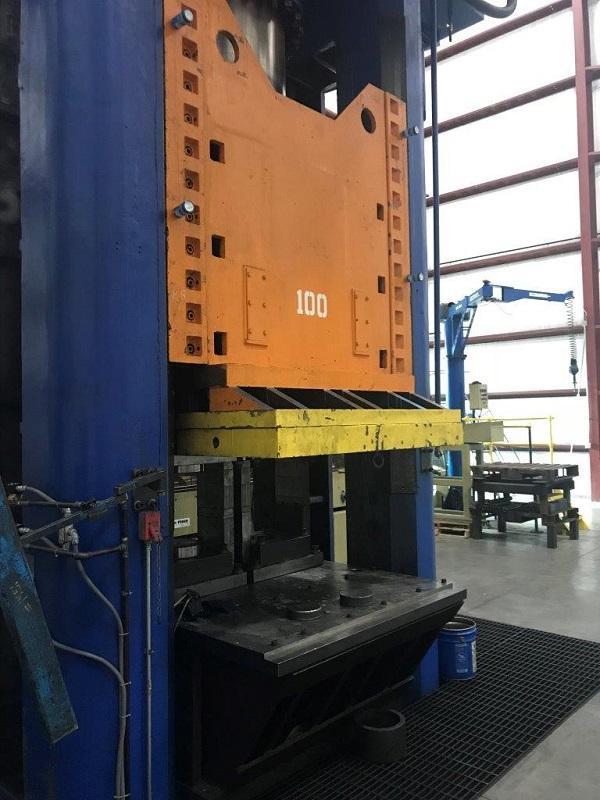

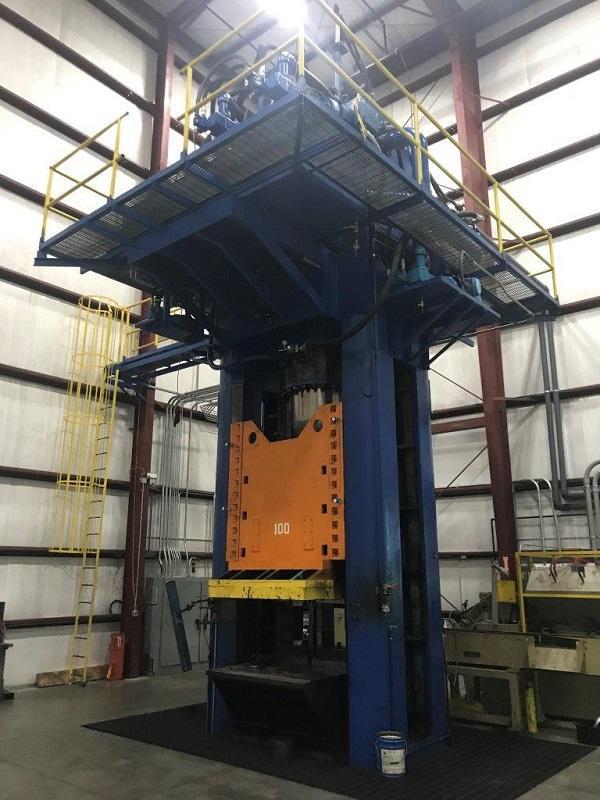

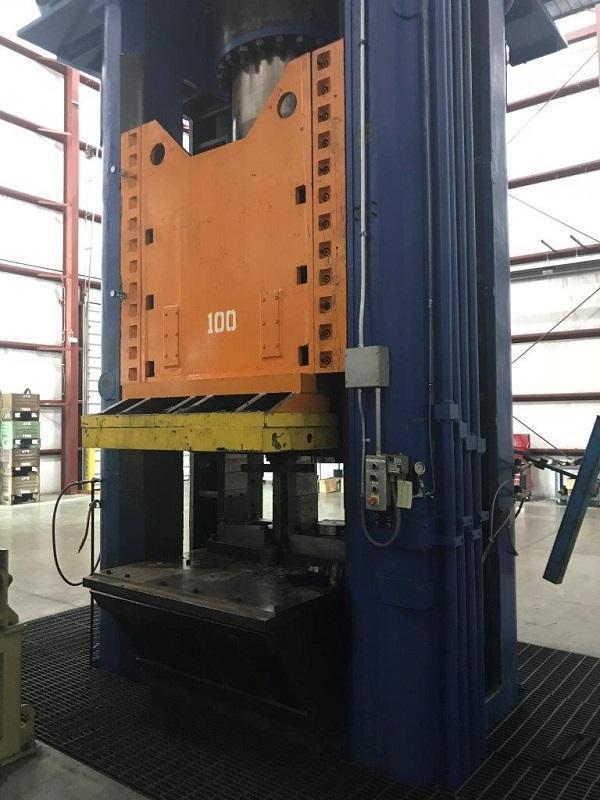

1200 Ton HPM Hydraulic Press

Stock #: 1302320

Equipped With

1200 Ton HPM Hydraulic Press
Serial................................ 5694
Model................................. CU-2D
Capacity.............................. 1200 Ton
Stroke................................ 48"
Daylight.............................. 96"
Bed Size.............................. 84" x 60"
(2) 75-Ton Parker Ejection Cylinders with 48" Stroke
8 Point Gib Guided
Complete Rebuild In 2015
Operating Speeds:
Closing..............................780
Pressing.............................160" IPM
Return...............................780 w/o Ejector Acting
Ejector & Main Slide.................275
Return Main Slide & Ejector..........660 w/ Ejector
New Electrical

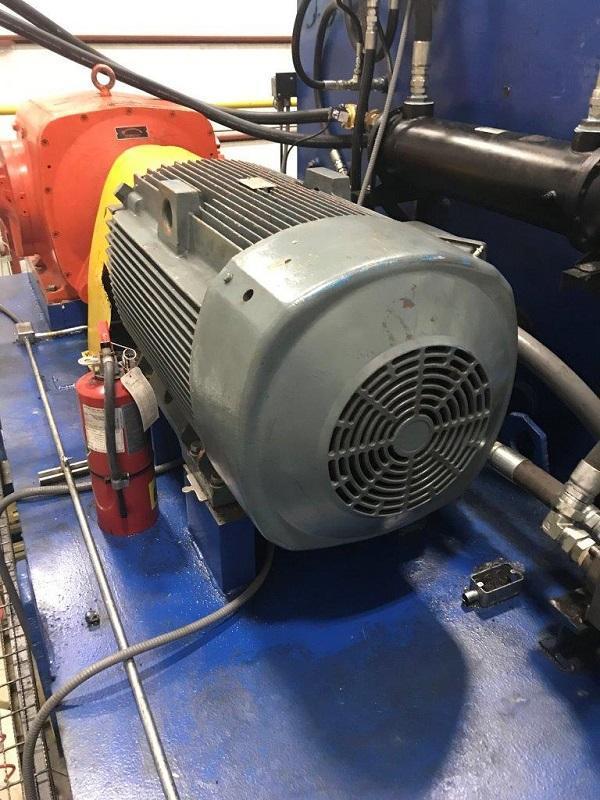

Motor Specs:
Horsepower............................ 125
RPM................................... 885
Volts................................. 460
AMP................................... 150

1200-Ton HPM Hydraulic Fastraverse Press, Vertical, Downward Acting Housing Type with Gib Guides Slide. Gib Guides surfaced with HPM friction reducing laminated phenolic liners. Uprights (Housings). Crown & Bed locked together as one rigid frame by pre-stressed shrunk strain rods and circular ring keys.  Deep Hollow Type Bed, Slide Fitted with an HPM Hydraulic Ejector. Slide and Bed Surfaced with a removable steel bolster plate.  Automatic Slide Lubrication for lubricating the gib guide ways. Minimum Gib Length 72".  Press Designed for full lad concentration on an area 13" in diameter without undue deflection.

1200 Ton HPM Hydraulic Press

STOCK # 1302320

Specifications

View All Details
Machine Type
Presses, Hydraulic
Manufacturer
HPM
Model
CU-2D
Year
1956
Condition
Excellent
Equipped With
1200 Ton HPM Hydraulic Press
Serial................................ 5694
Model................................. CU-2D
Capacity.............................. 1200 Ton
Stroke................................ 48"
Daylight.............................. 96"
Bed Size.............................. 84" x 60"
(2) 75-Ton Parker Ejection Cylinders with 48" Stroke
8 Point Gib Guided
Complete Rebuild In 2015
Operating Speeds:
Closing..............................780
Pressing.............................160" IPM
Return...............................780 w/o Ejector Acting
Ejector & Main Slide.................275
Return Main Slide & Ejector..........660 w/ Ejector
New Electrical
Motor Specs:
Horsepower............................ 125
RPM................................... 885
Volts................................. 460
AMP................................... 150

1200-Ton HPM Hydraulic Fastraverse Press, Vertical, Downward Acting Housing Type with Gib Guides Slide. Gib Guides surfaced with HPM friction reducing laminated phenolic liners. Uprights (Housings). Crown & Bed locked together as one rigid frame by pre-stressed shrunk strain rods and circular ring keys.  Deep Hollow Type Bed, Slide Fitted with an HPM Hydraulic Ejector. Slide and Bed Surfaced with a removable steel bolster plate.  Automatic Slide Lubrication for lubricating the gib guide ways. Minimum Gib Length 72".  Press Designed for full lad concentration on an area 13" in diameter without undue deflection.
