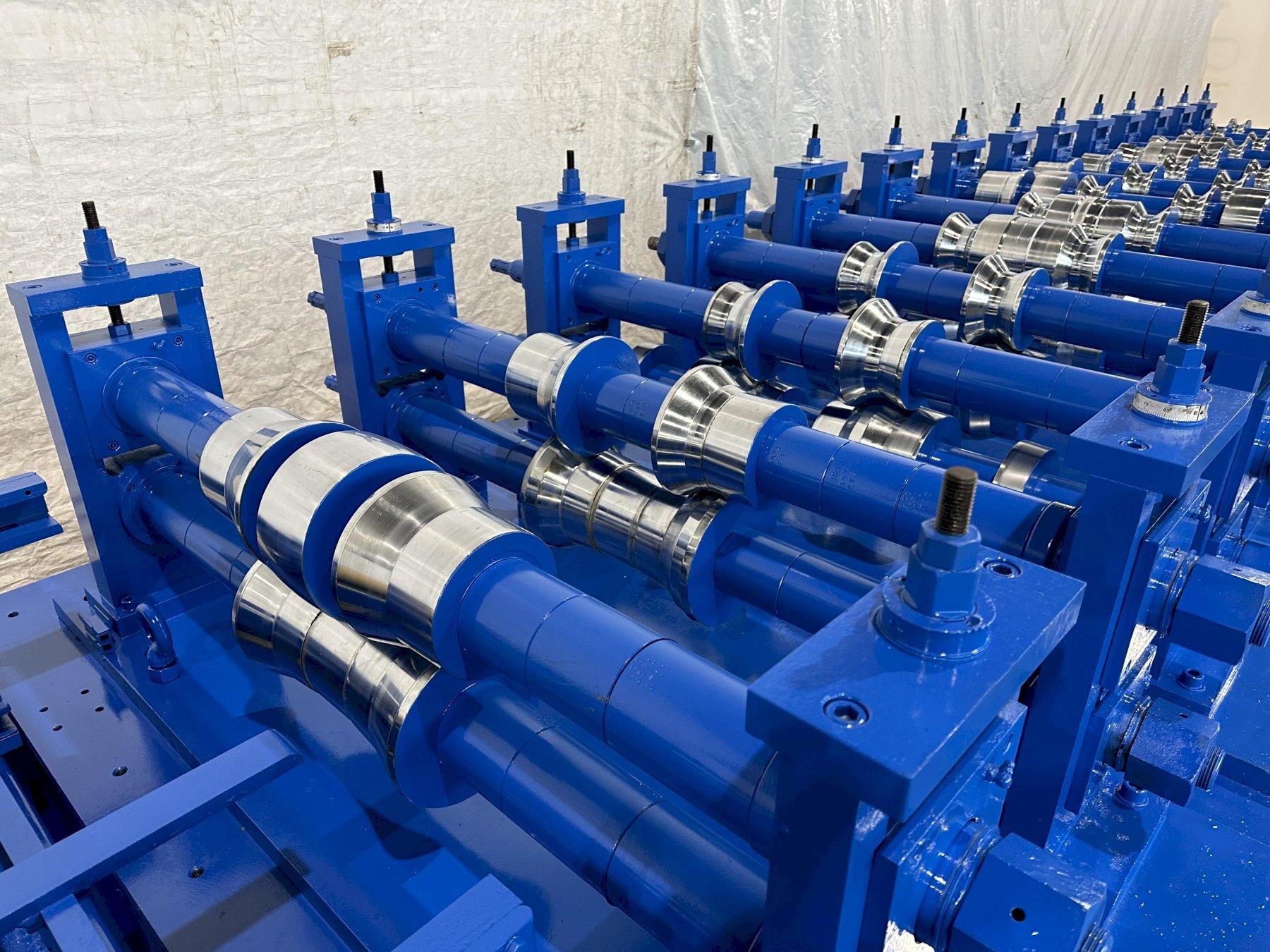

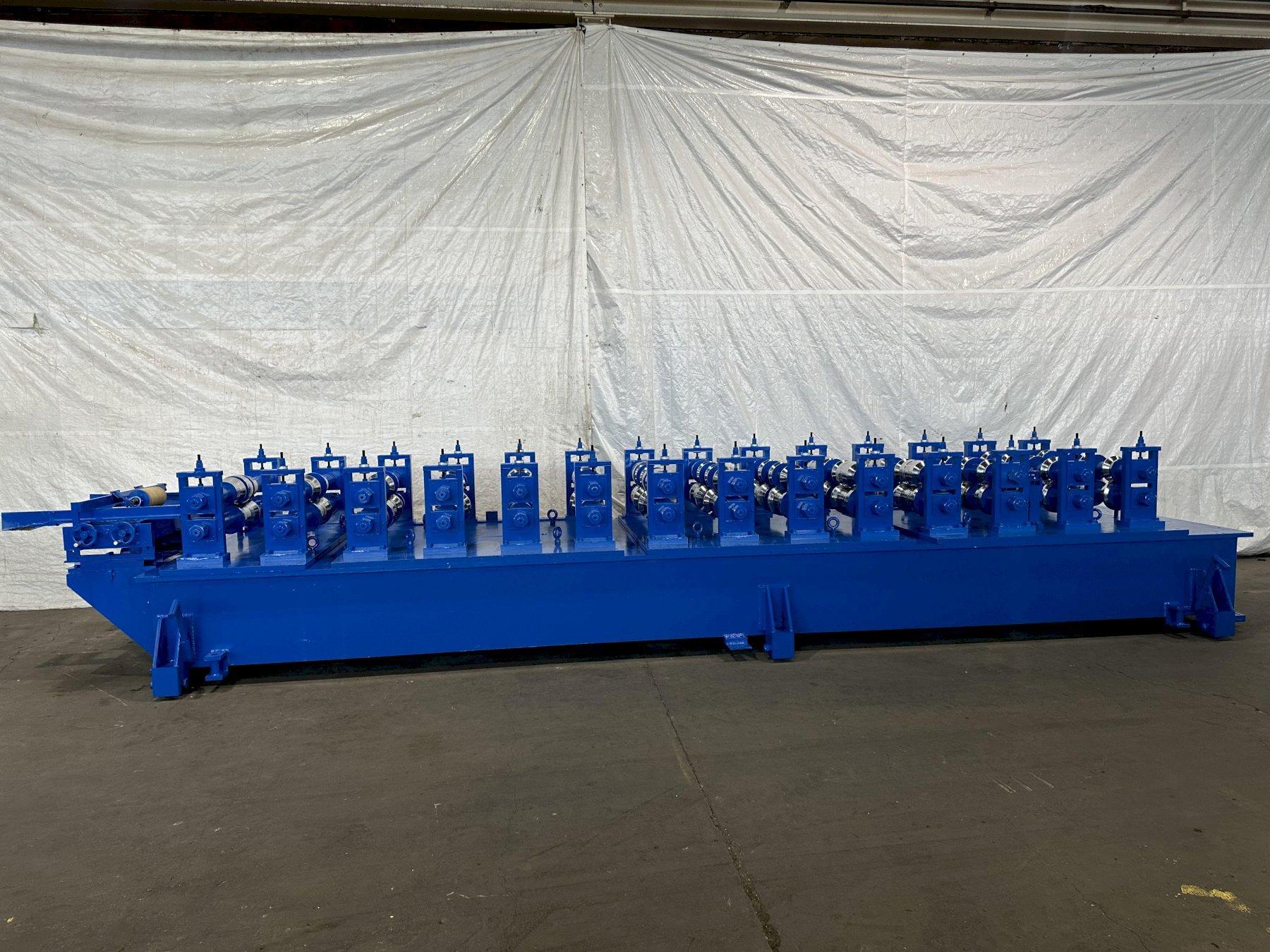

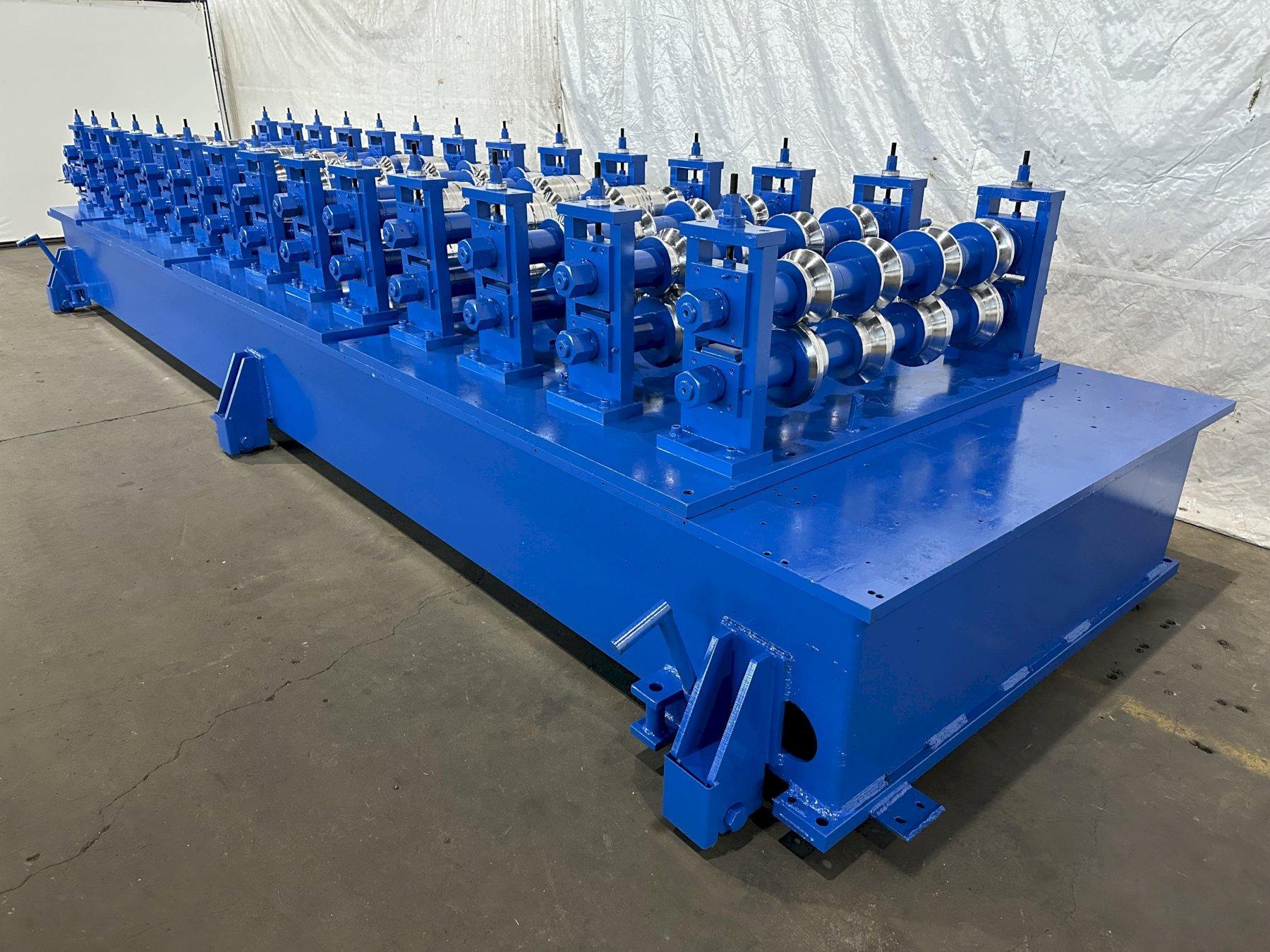

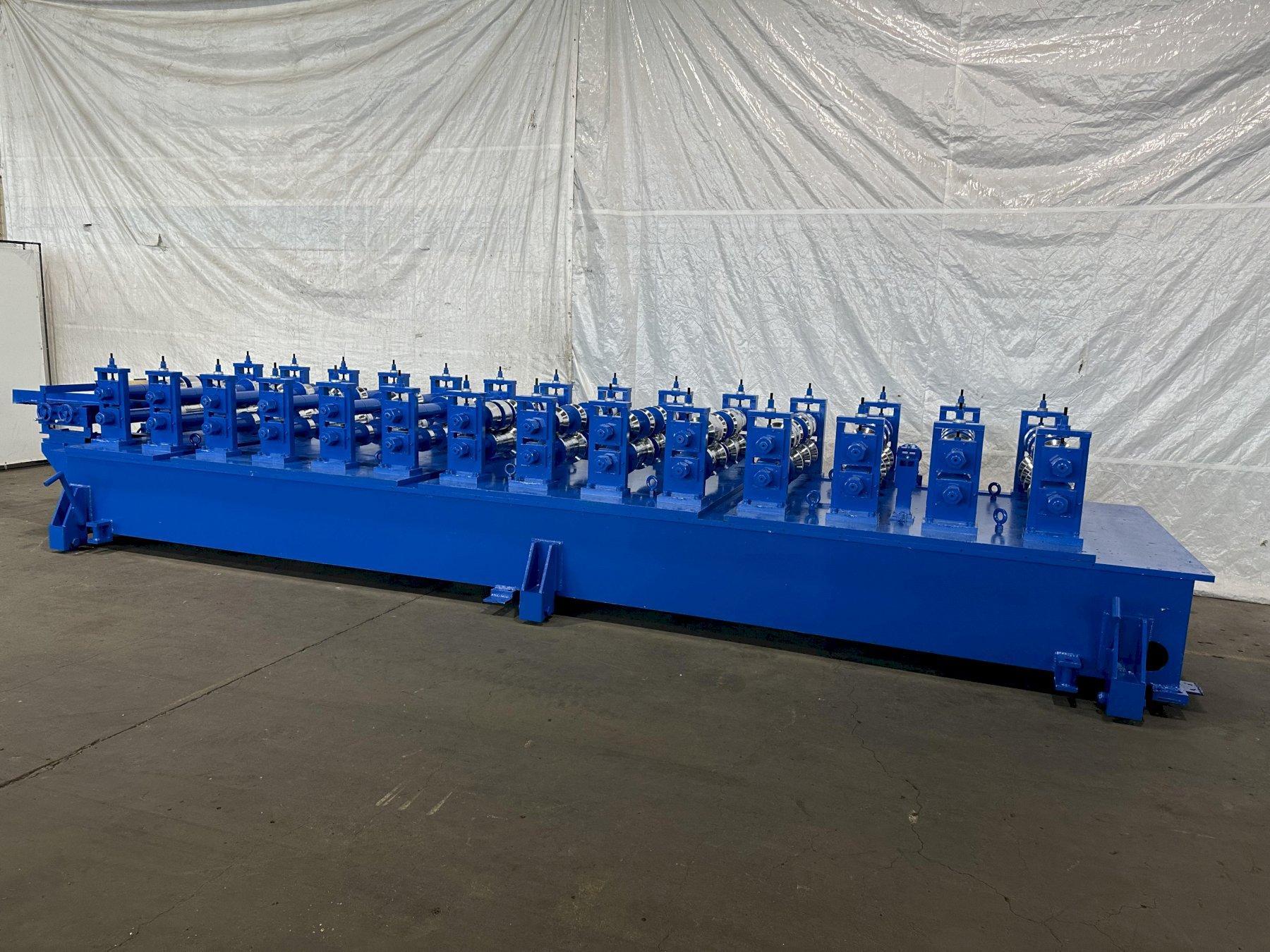

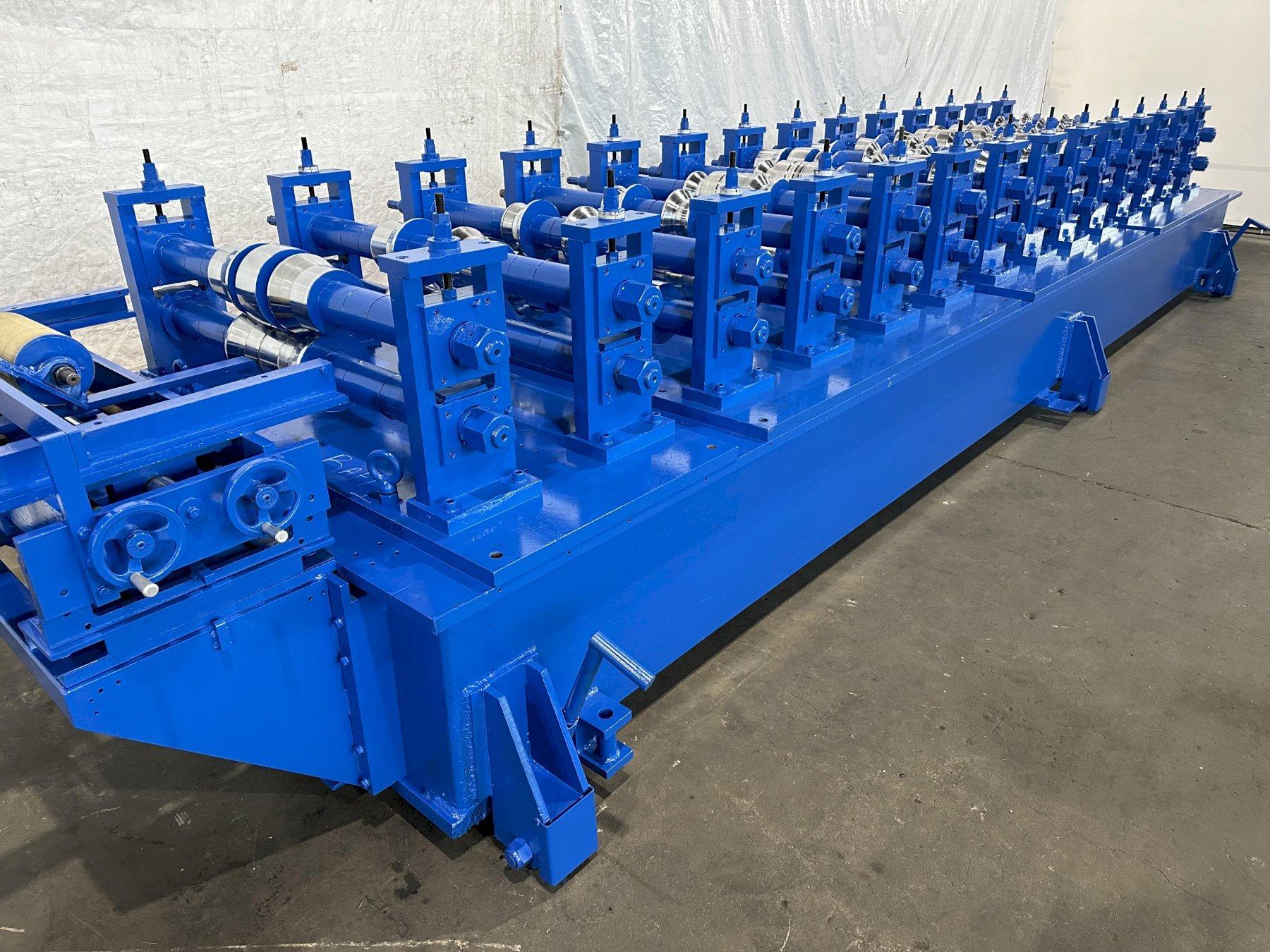

14 STAND X 3-1/2" X 50" BRADBURY SHADOW PANEL RAFTED ROLLFORMING LINE. STOCK # 0205722

Stock #: 0205722

Equipped With

NUMBER OF STANDS ............ 14
NUMBER OF RAFTS ............. 3 RAFTS OF 4, 1 OF 2
ARBOR DIAMETER .............. 3-1/2"
ROLL SPACE .................. 50"
HORIZONTAL CENTERS .......... 20"
VERTICAL ADJUSTMENT ......... 5" - 10"
EQUAL GEARING ............... YES

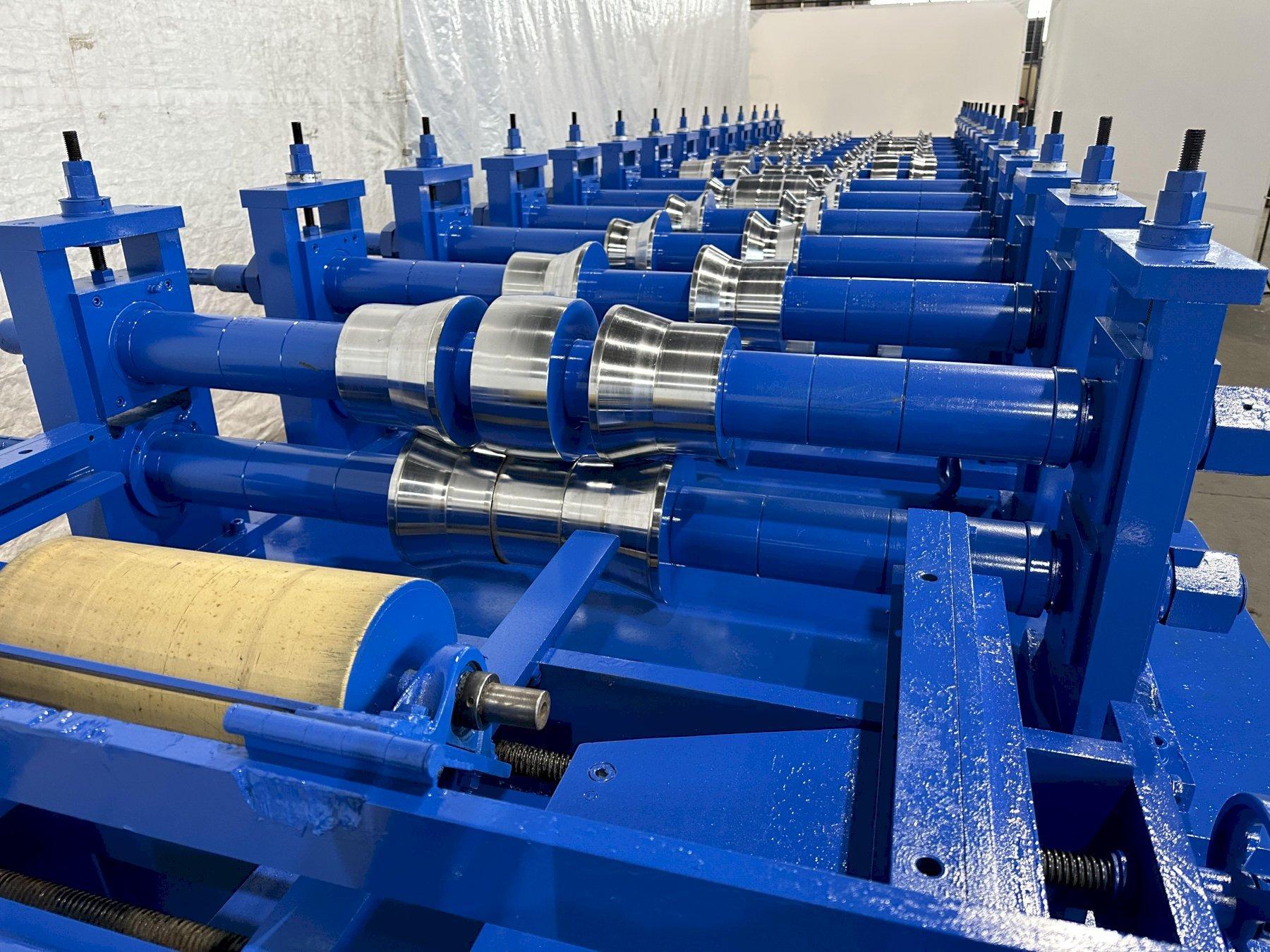

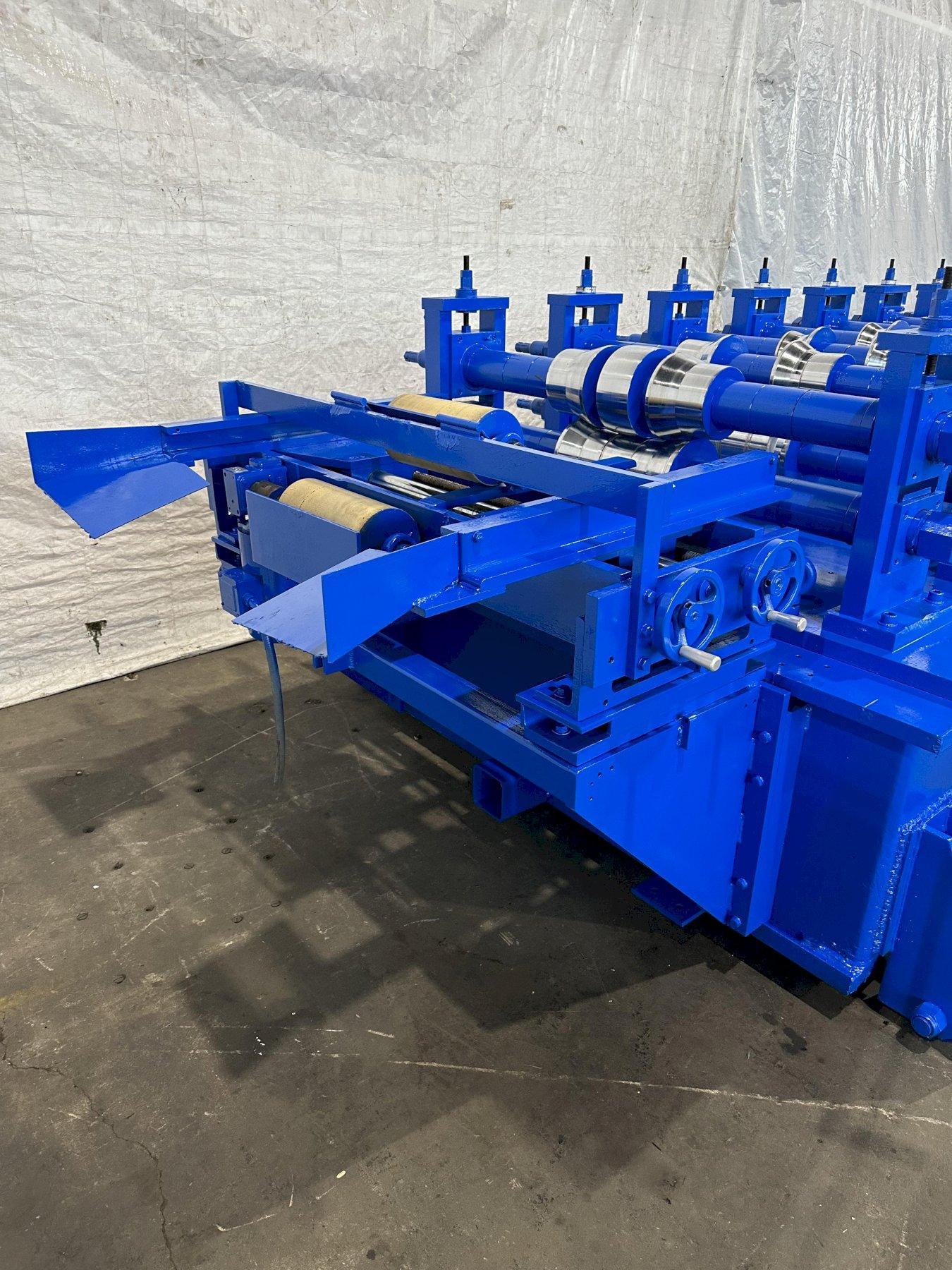

ENTRY GUIDES ................ YES, ADJUSTABLE

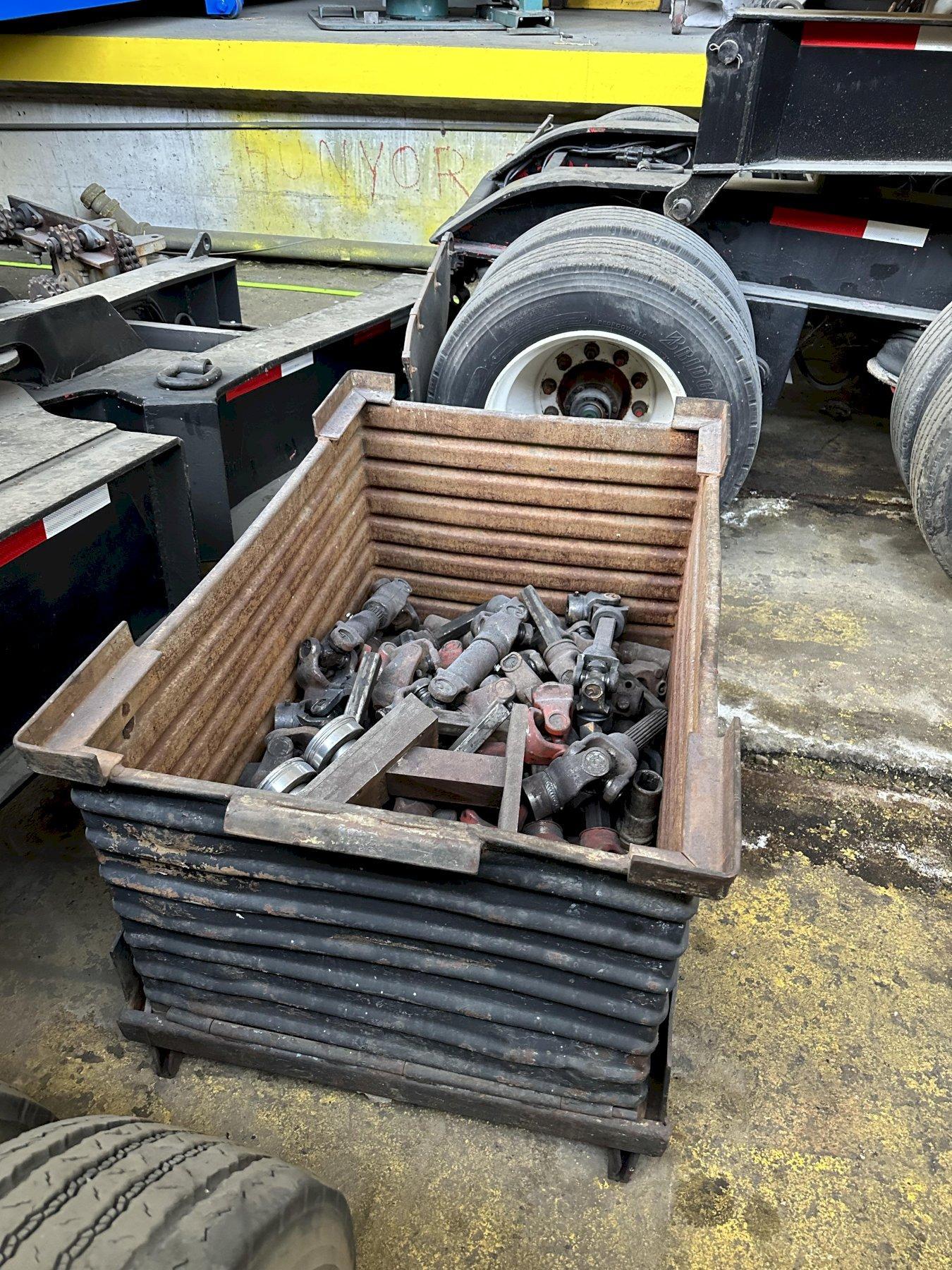

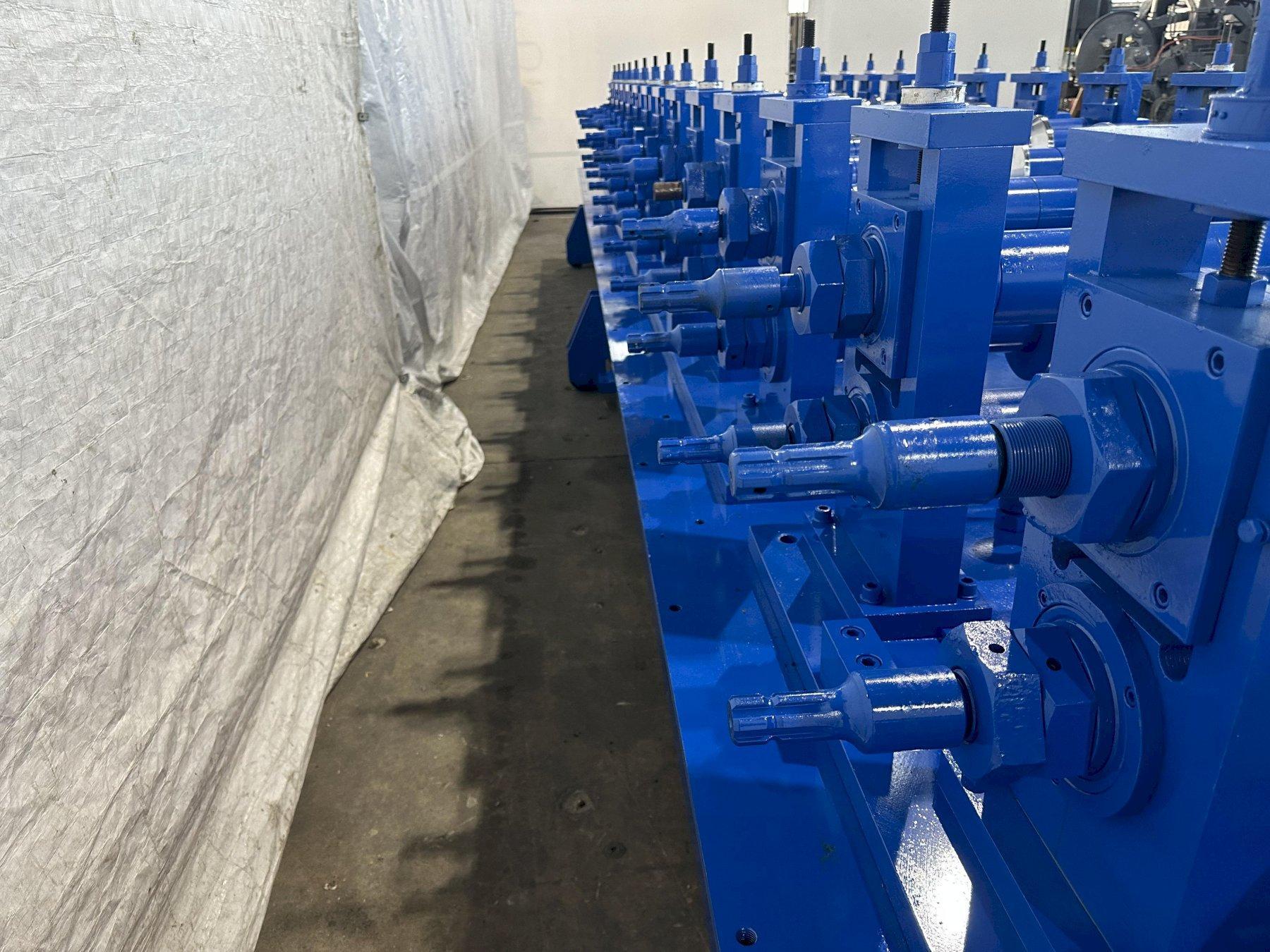

UNIVERSAL U JOINT DRIVE ..... YES
U JOINT DRIVE GEAR BOXES..... YES
MOTOR ....................... 60 HP

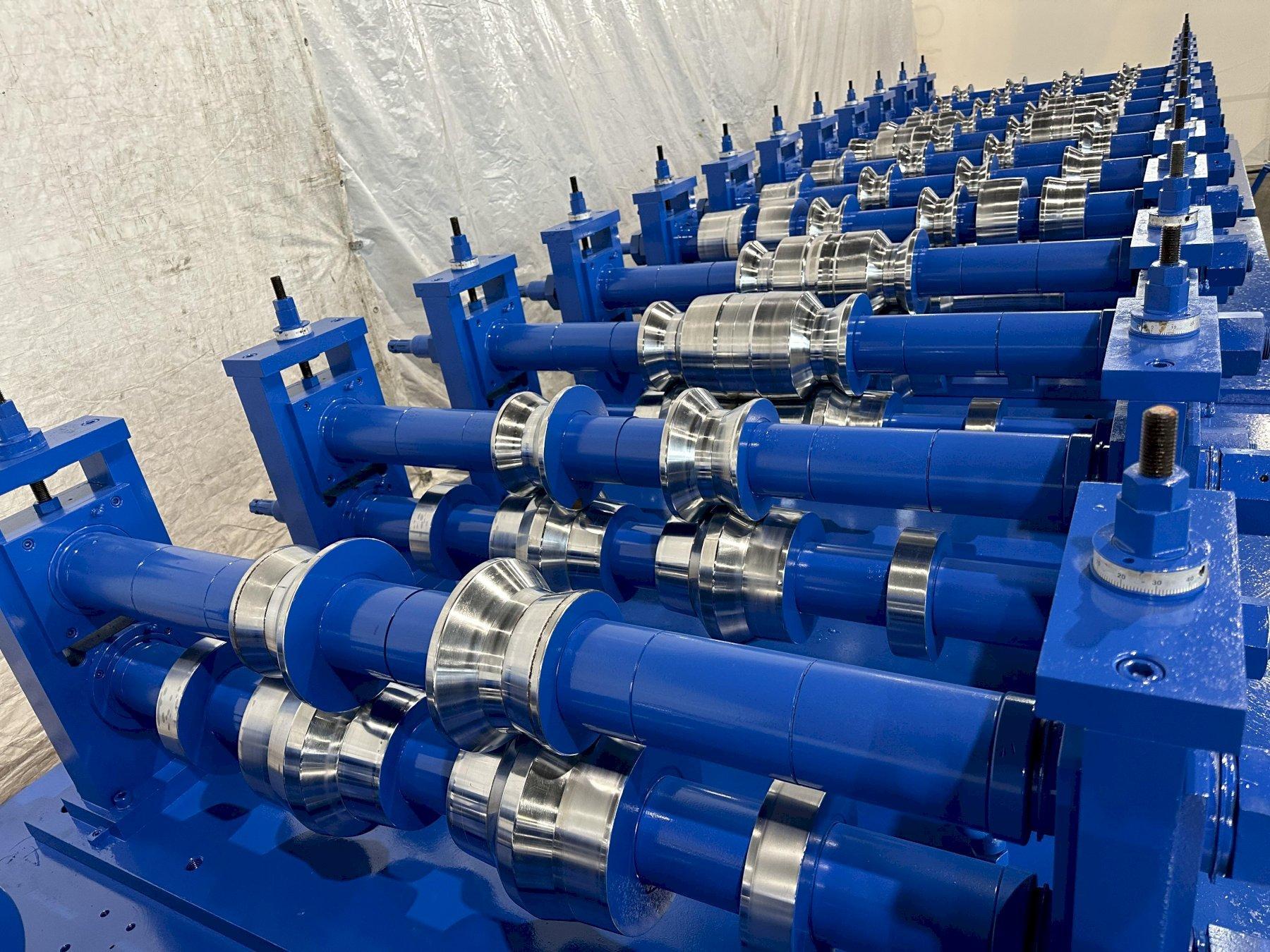

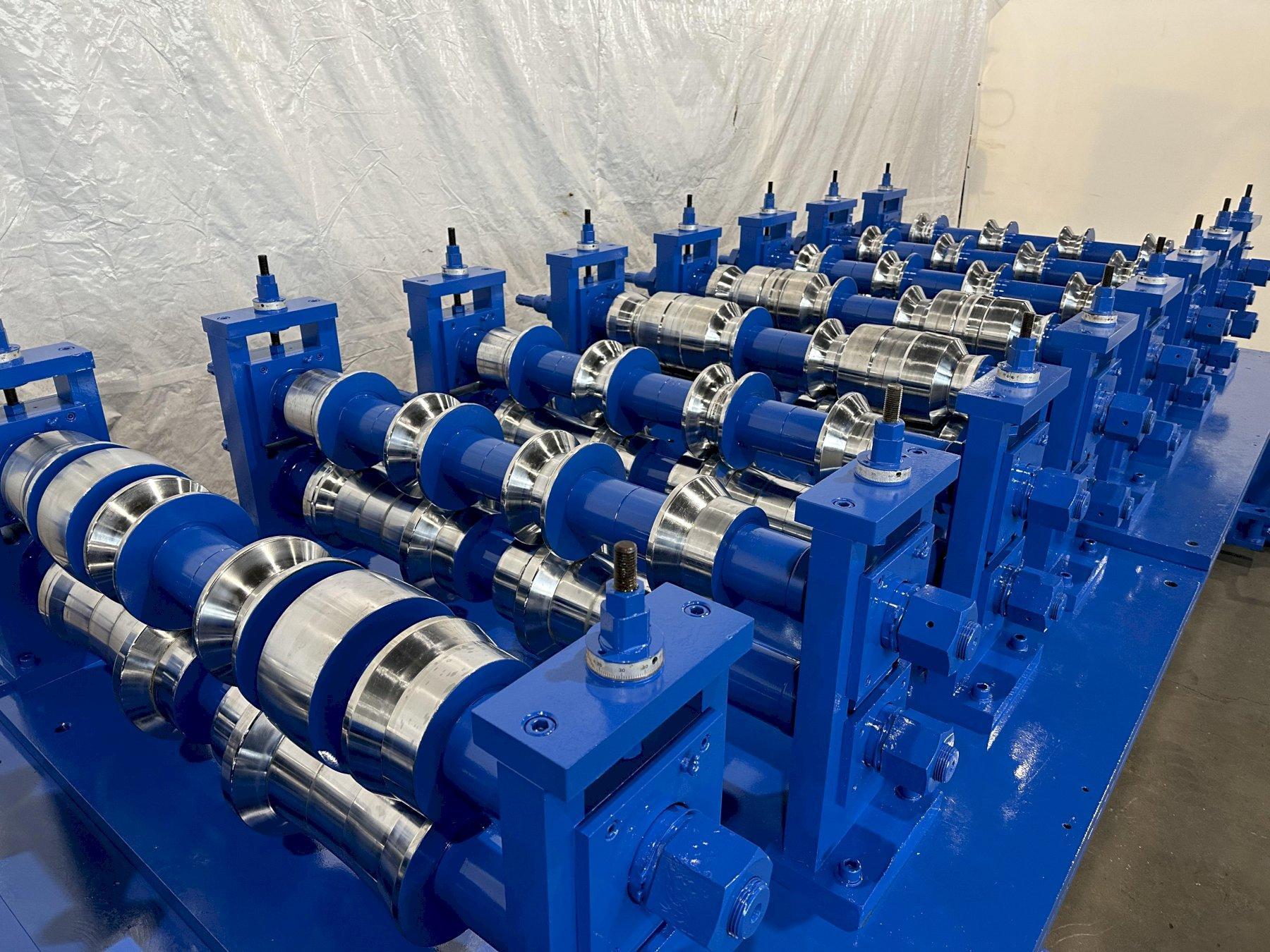

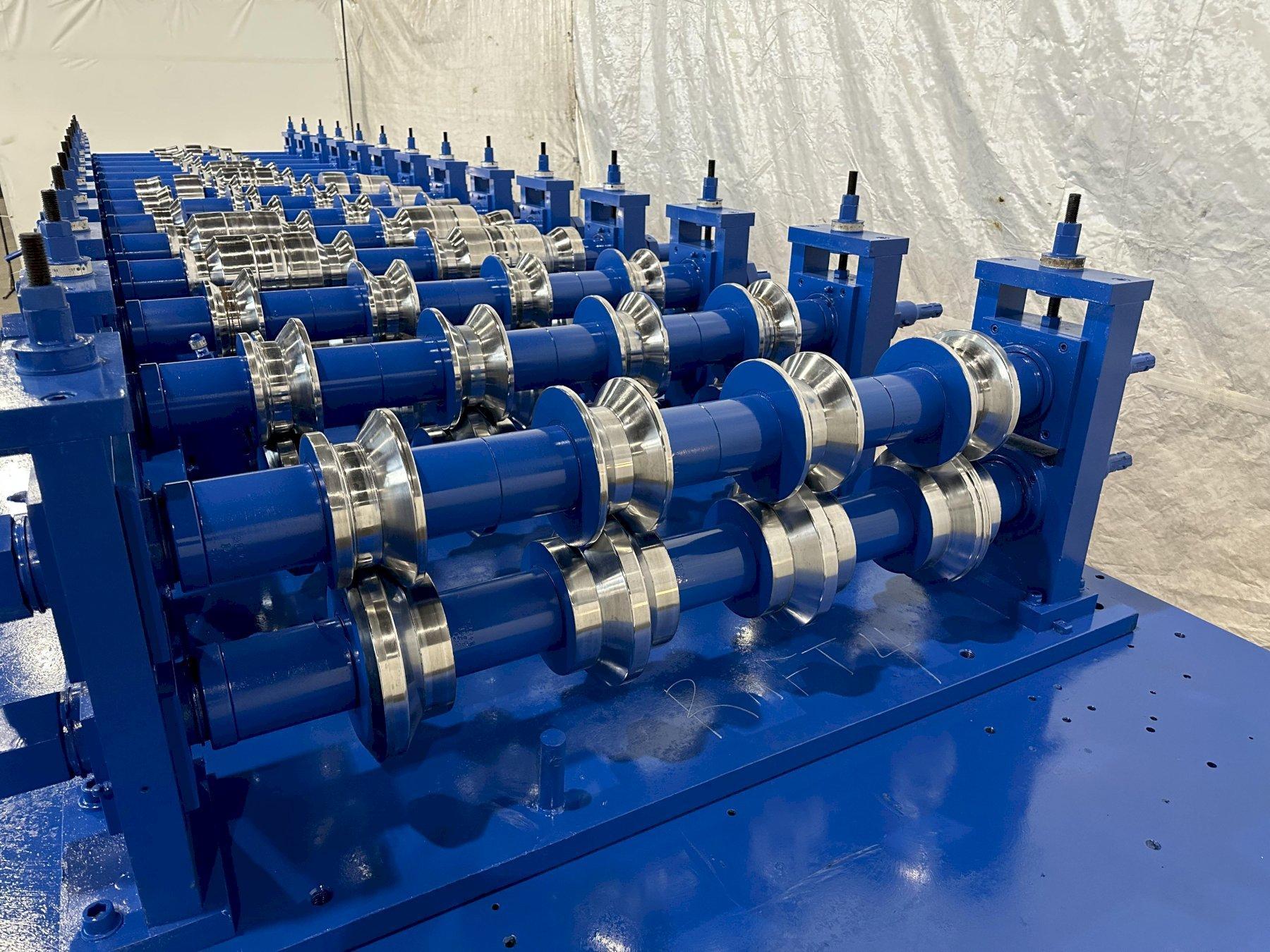

TOOLED FOR SHADOW & CENTENNIAL PANEL

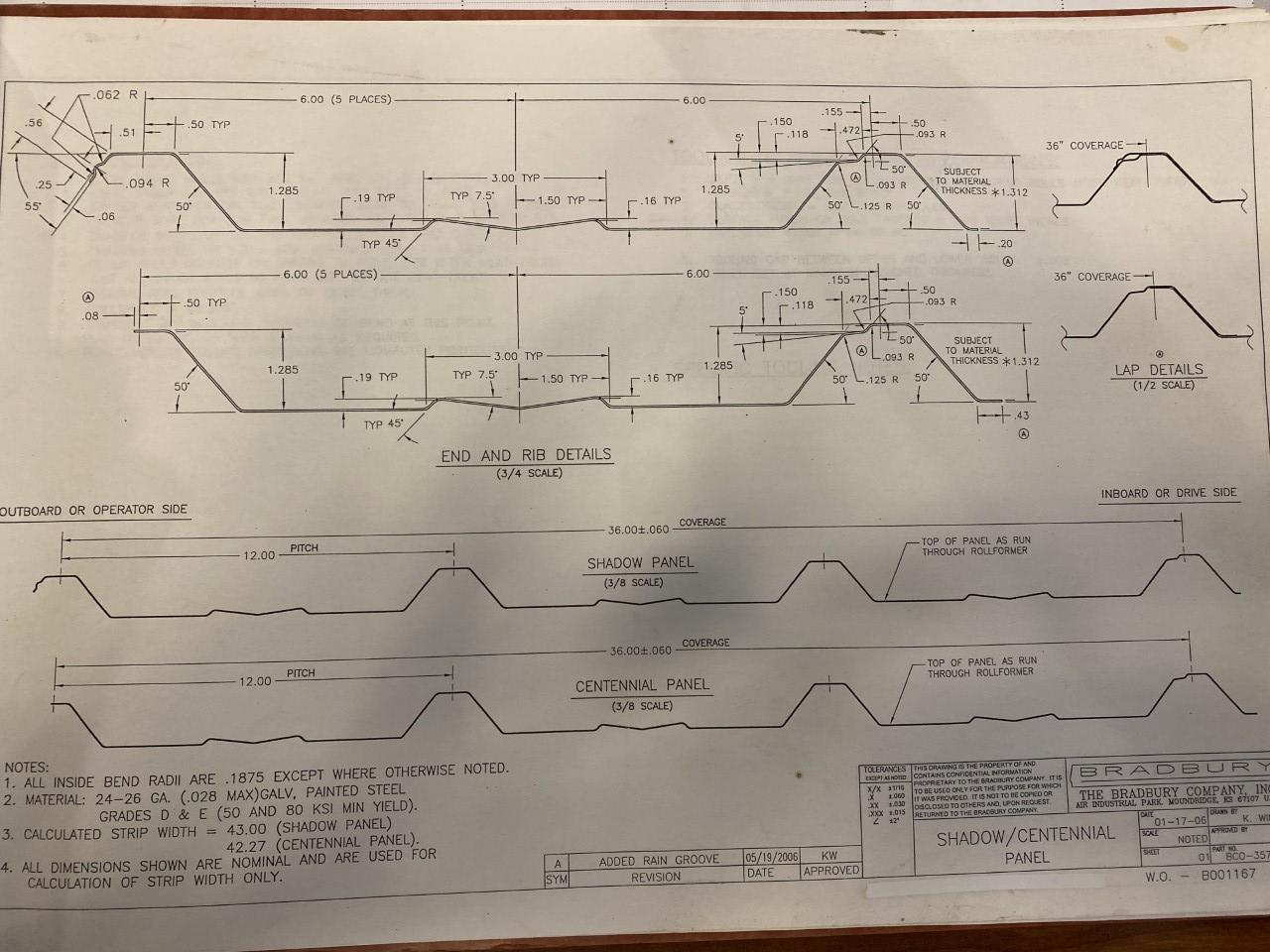

PANEL PROFILE ............... SEE DRAWING
BEGINNING STRIP WIDTH ....... 43"
WIDTH OF PANEL COVERAGE ..... 36"
MATERIAL CAPACITY ........... 24-26 GA
NUMBER OF RIBS .............. 4
DISTANCE BETWEEN RIBS ....... 12"
DEPTH OF RIBS ............... 1.312"
