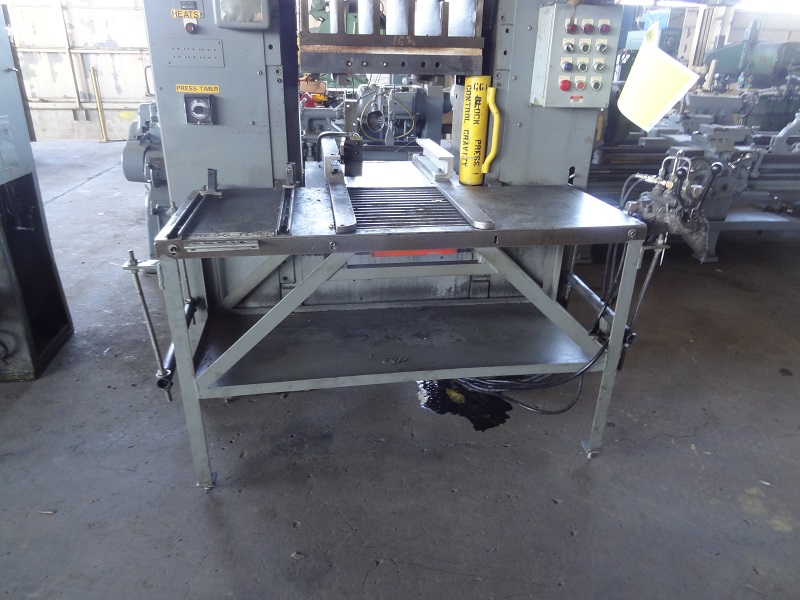

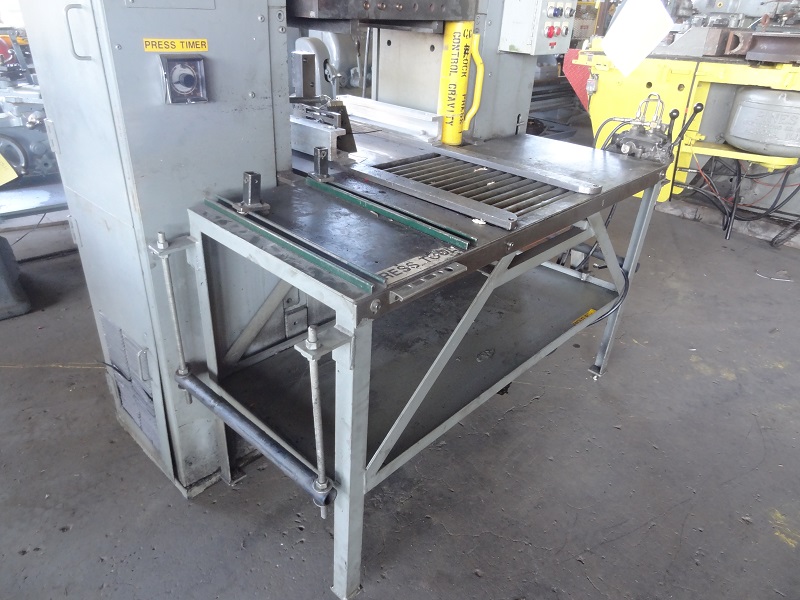

150 TON BIPEL SINGLE POST HYDRAULIC PRESS. STOCK # 0902416

Stock #: 0902416

Equipped With

SPECIFICATIONS:



150-Ton BIPEL Press

Capacity 150-Ton



Max. Table Size Left to Right btwn Stop Plates: 28"

Max. Table Size front to back: 23-1/4"

Std. Heated platen size: 20" x 20"

Daylight between tables: 38-7/16"

Daylight btw. heated platents: 23.4"

Main Ram Stroke:  18"

Hyd. Circuit pressure: 1000 psi

Main Ram Pull back force  - 150 Tons

Main Ram Pull back force at circuit pressure: 4.8 tons

Transfer Stroke: 6"

Max. Pummel Diameter: 2.25"

Approximate Weight of Max. Shot: 10 Ounces

Ejection Force (Top & Bottom) 3.5 Tons

Ejection Return Force 2 Tons

Ejector Stroke Top:  4"

Ejector Stoke Bottom: 8"

Total kVa self contained press: 39"



*24" Platens can be fitted to suitable modifications to heat control

circuits & ejectors









(2) Identical Bipel Presses available and (1) 200 Ton Bipel



Overall Dimensions: 11'-2" H x Deep 42" x Width 72"
