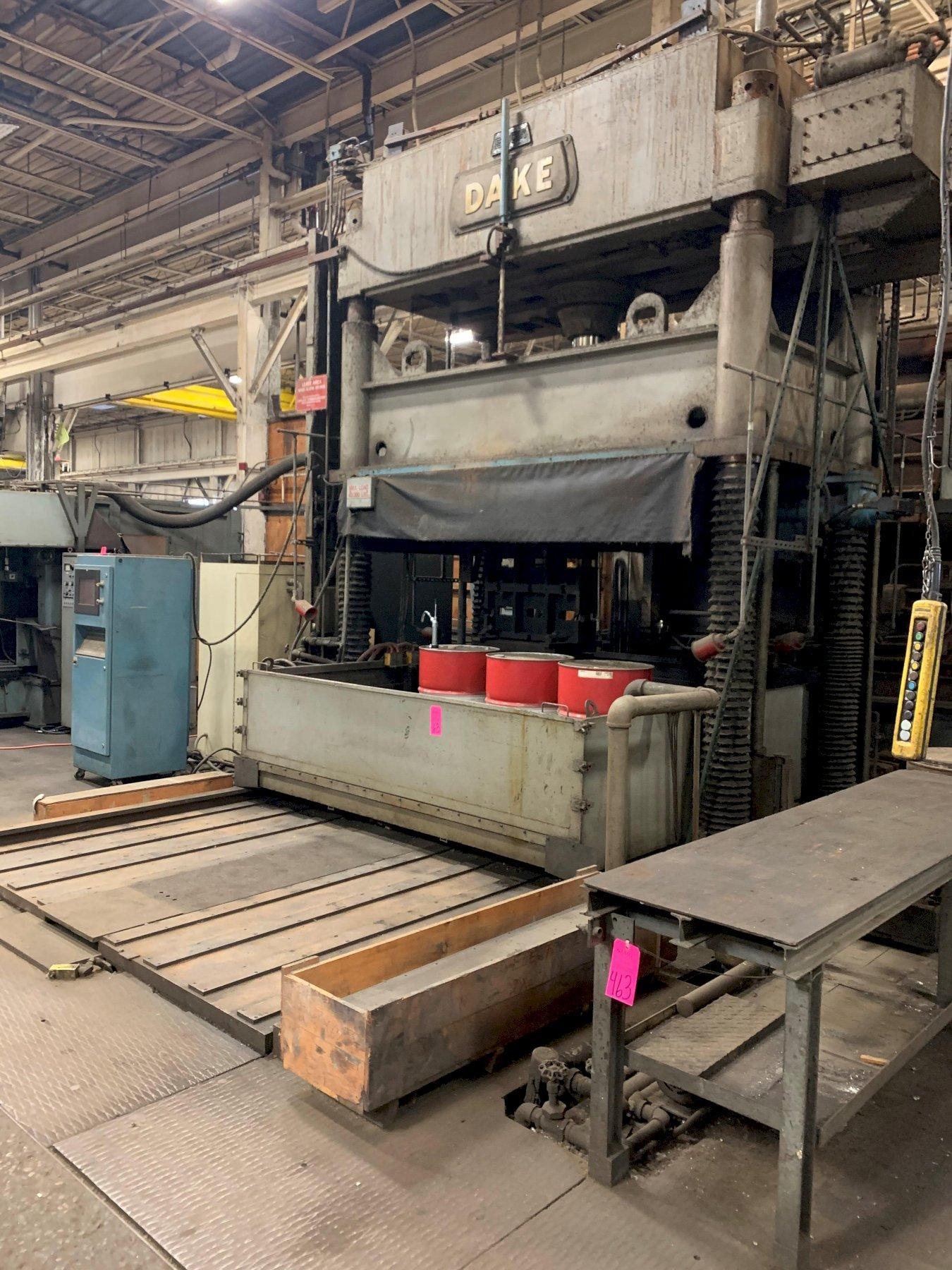

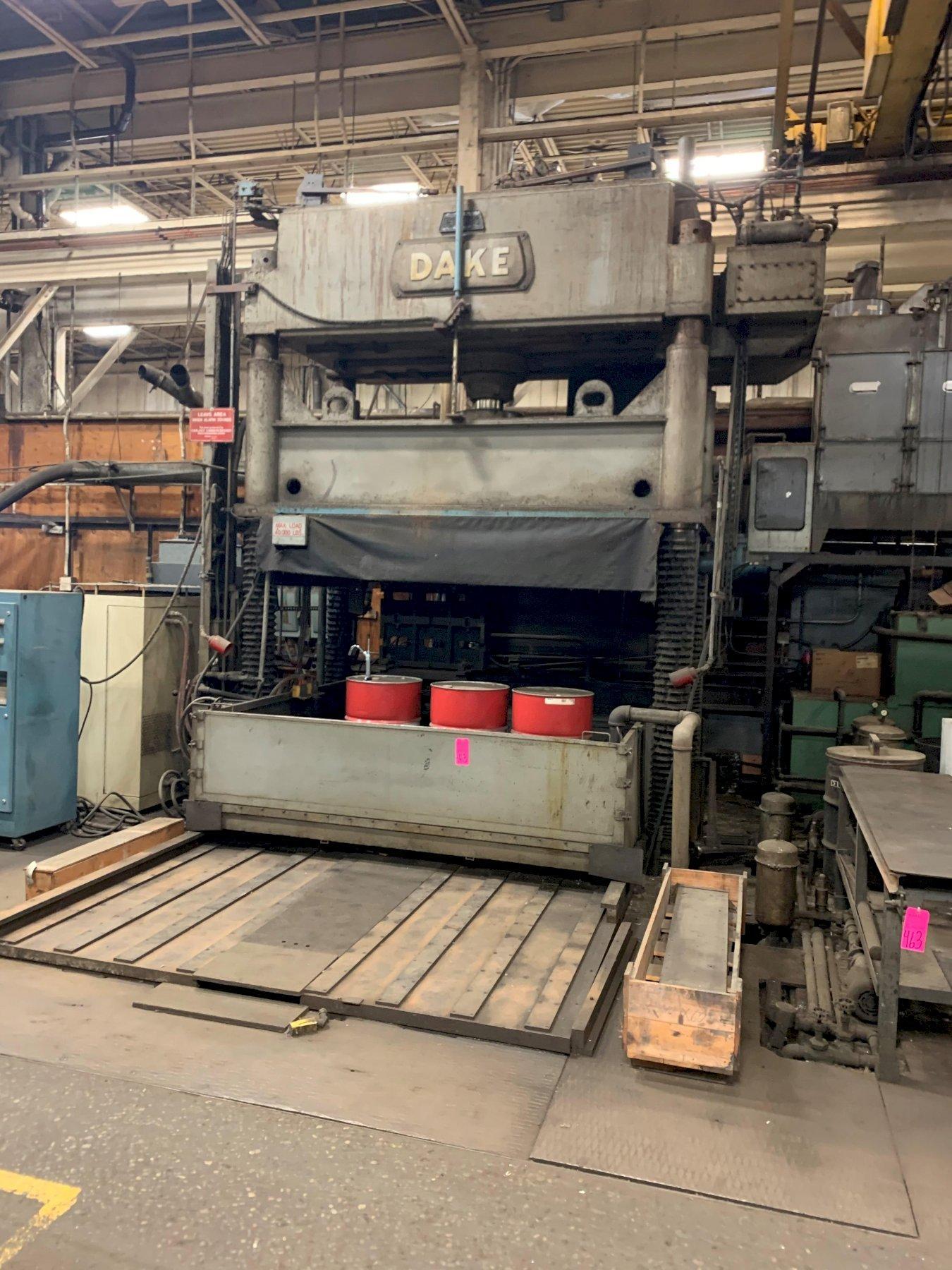

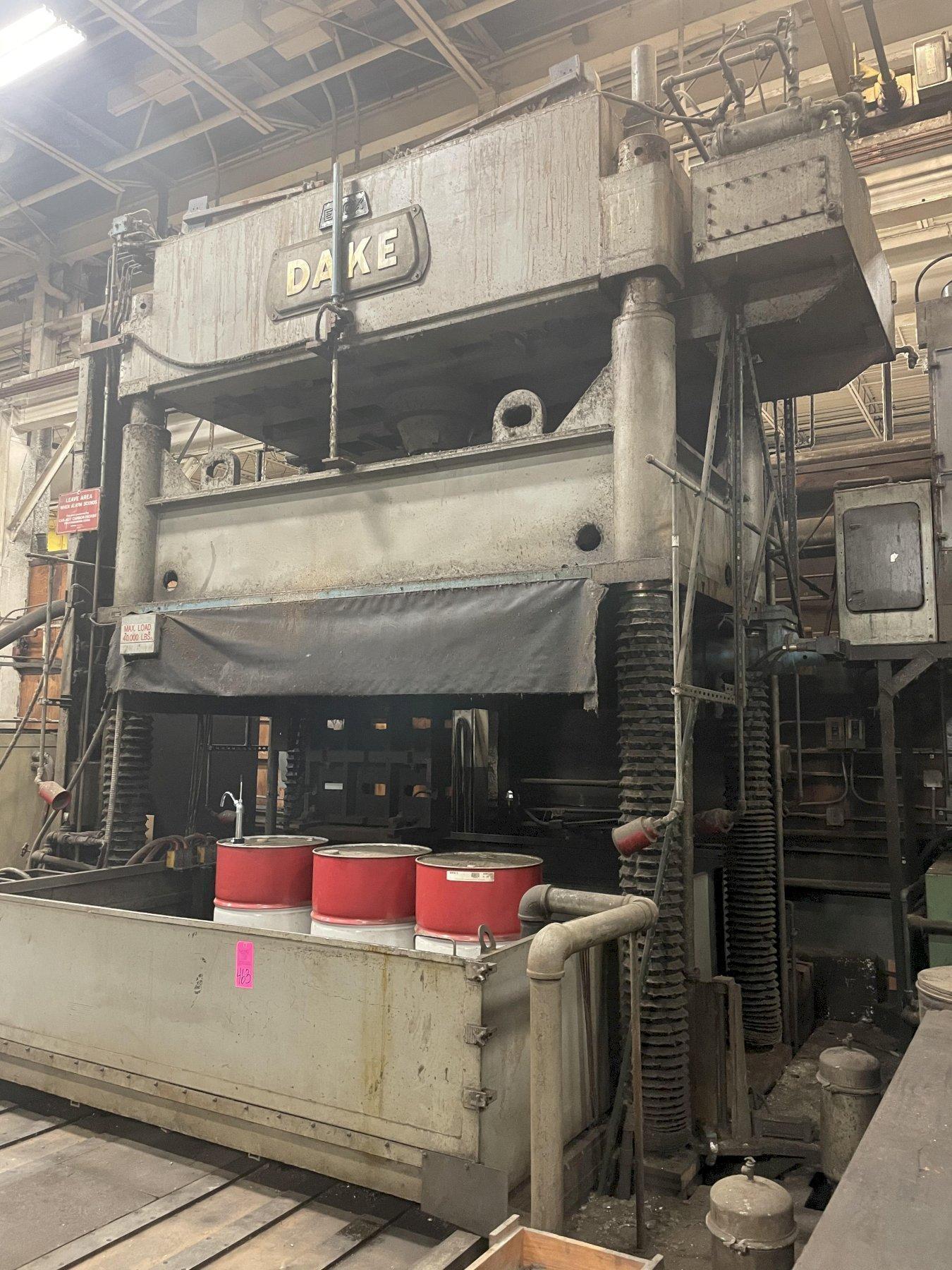

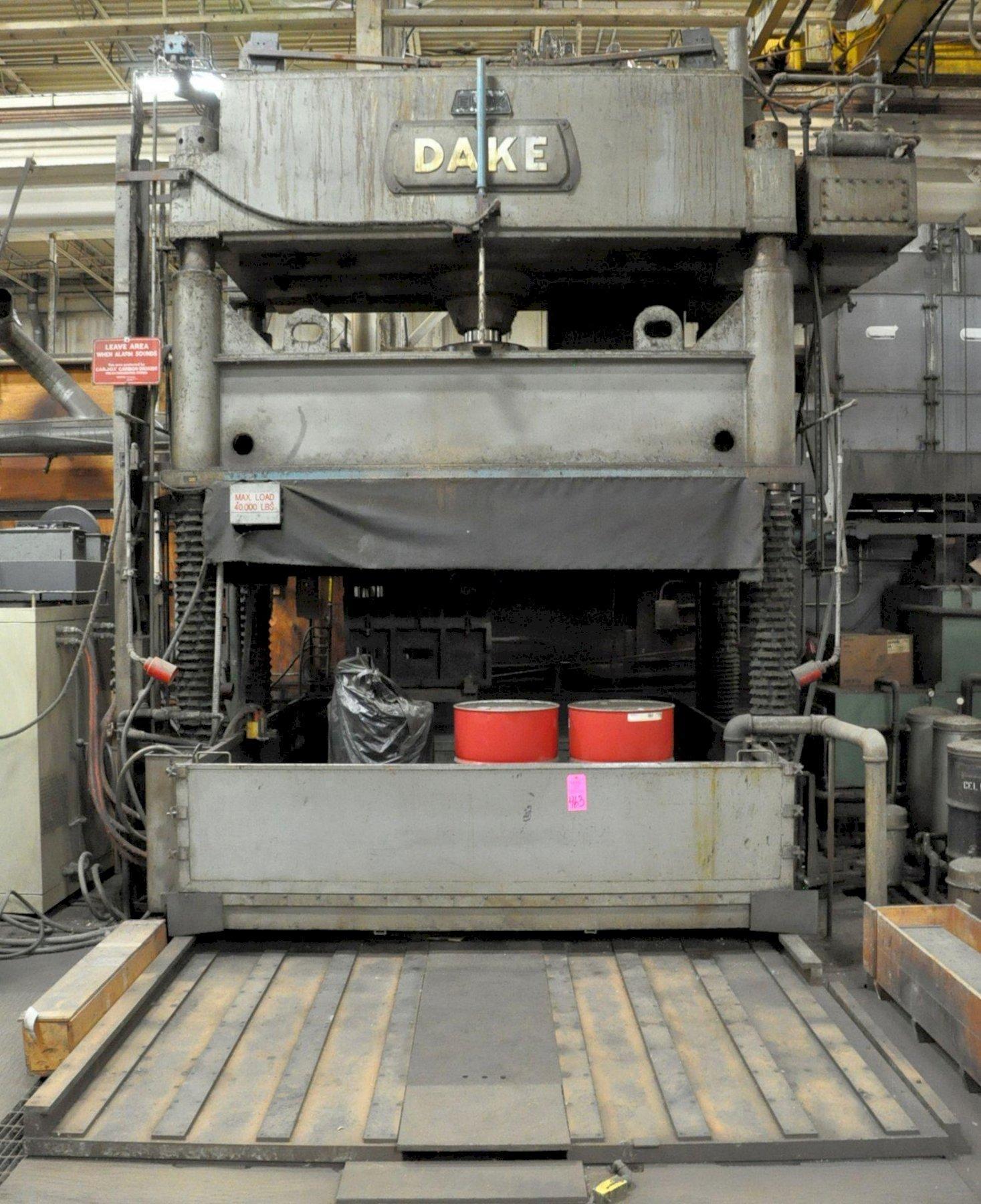

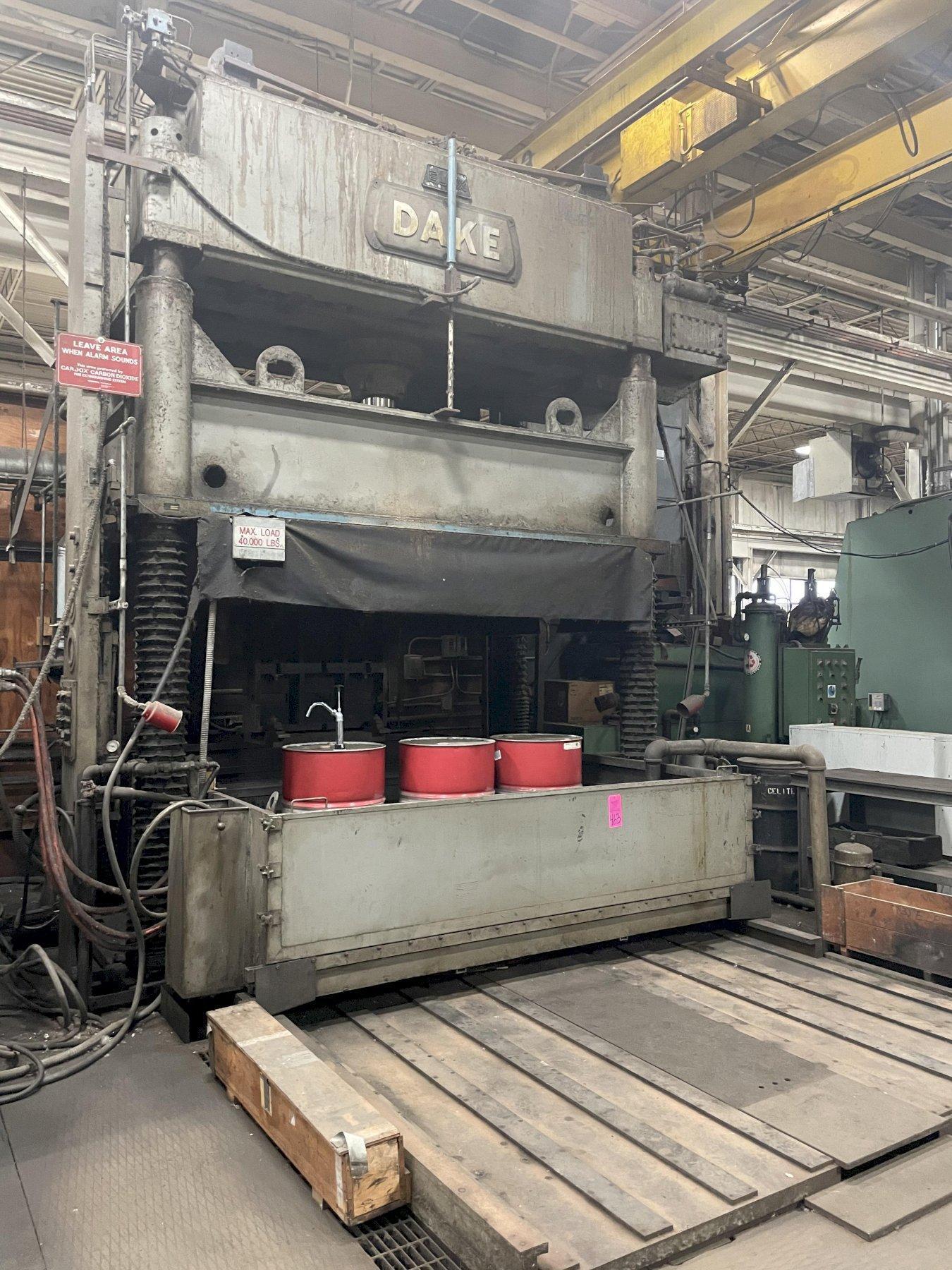

150 TON DAKE MODEL #18-467 4-POST DOWN ACTING HYDRAULIC SPOTTING PRESS. STOCK # 1265220

Stock #: 1265220

Equipped With

SERIAL ....................... 166827
MODEL ........................ 18-467
YEAR ......................... 1973
CAPACITY ..................... 150 TONS
NUMBER OF POSTS .............. 4
RAM SIZE ..................... 116" X 52"
BOLSTER SIZE ................. 116" X 72"

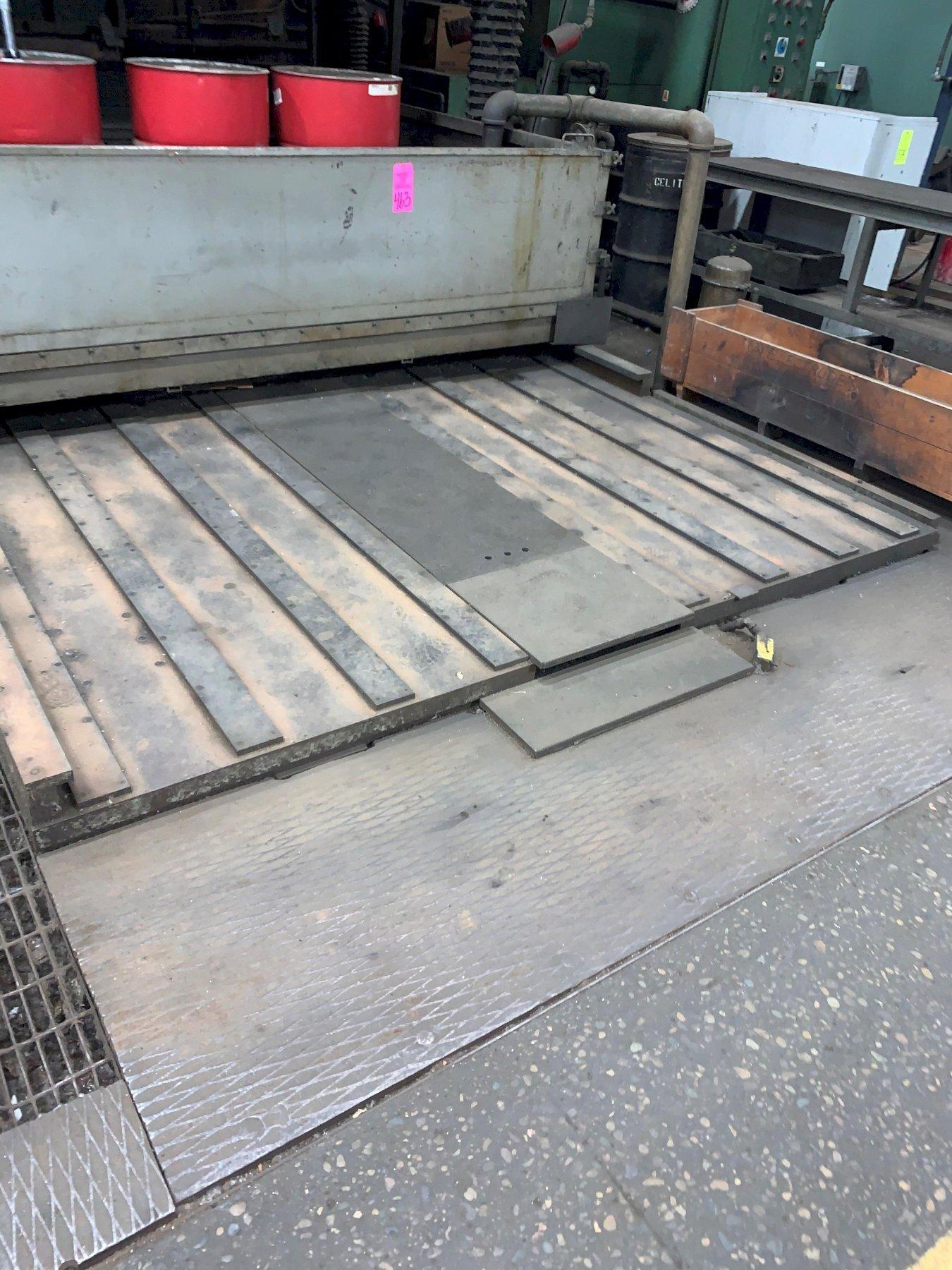

ROLL OUT BOLSTER ............. YES
DISTANCE BETWEEN POSTS ....... 55" X 114"
SHUT HEIGHT .................. 60"
STROKE ....................... 24"
TOP MOUNTED HYDRAULIC UNIT ... YES

150 TON DAKE MODEL #18-467 4-POST DOWN ACTING HYDRAULIC SPOTTING PRESS. STOCK # 1265220

STOCK # 1265220

Specifications

View All Details
Machine Type
Presses, Die Tryout & Spotting
Manufacturer
DAKE
Model
18-467-4
Year
N/A
Condition
Excellent
Equipped With
SERIAL ....................... 166827
MODEL ........................ 18-467
YEAR ......................... 1973
CAPACITY ..................... 150 TONS
NUMBER OF POSTS .............. 4
RAM SIZE ..................... 116" X 52"
BOLSTER SIZE ................. 116" X 72"
ROLL OUT BOLSTER ............. YES
DISTANCE BETWEEN POSTS ....... 55" X 114"
SHUT HEIGHT .................. 60"
STROKE ....................... 24"
TOP MOUNTED HYDRAULIC UNIT ... YES
