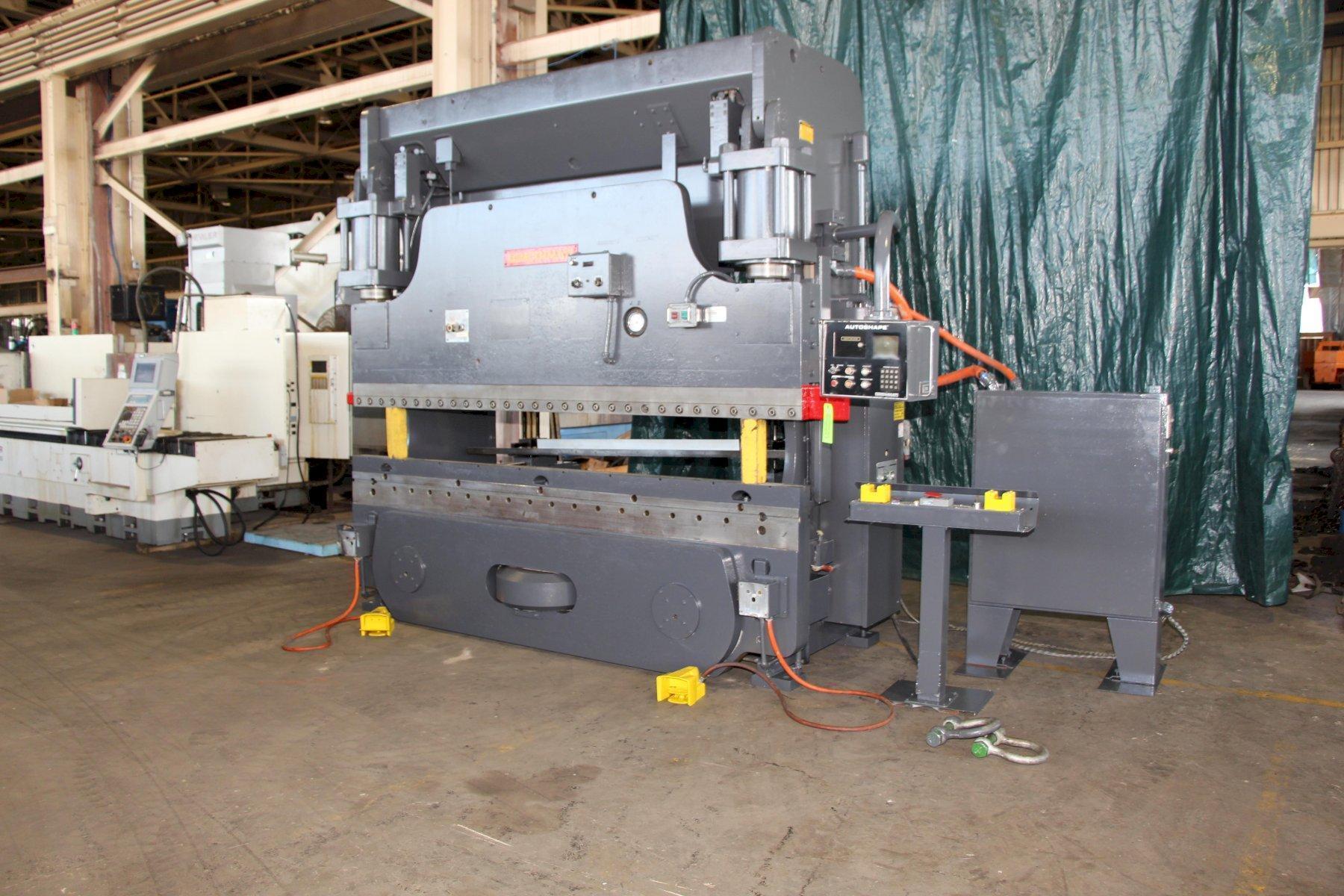

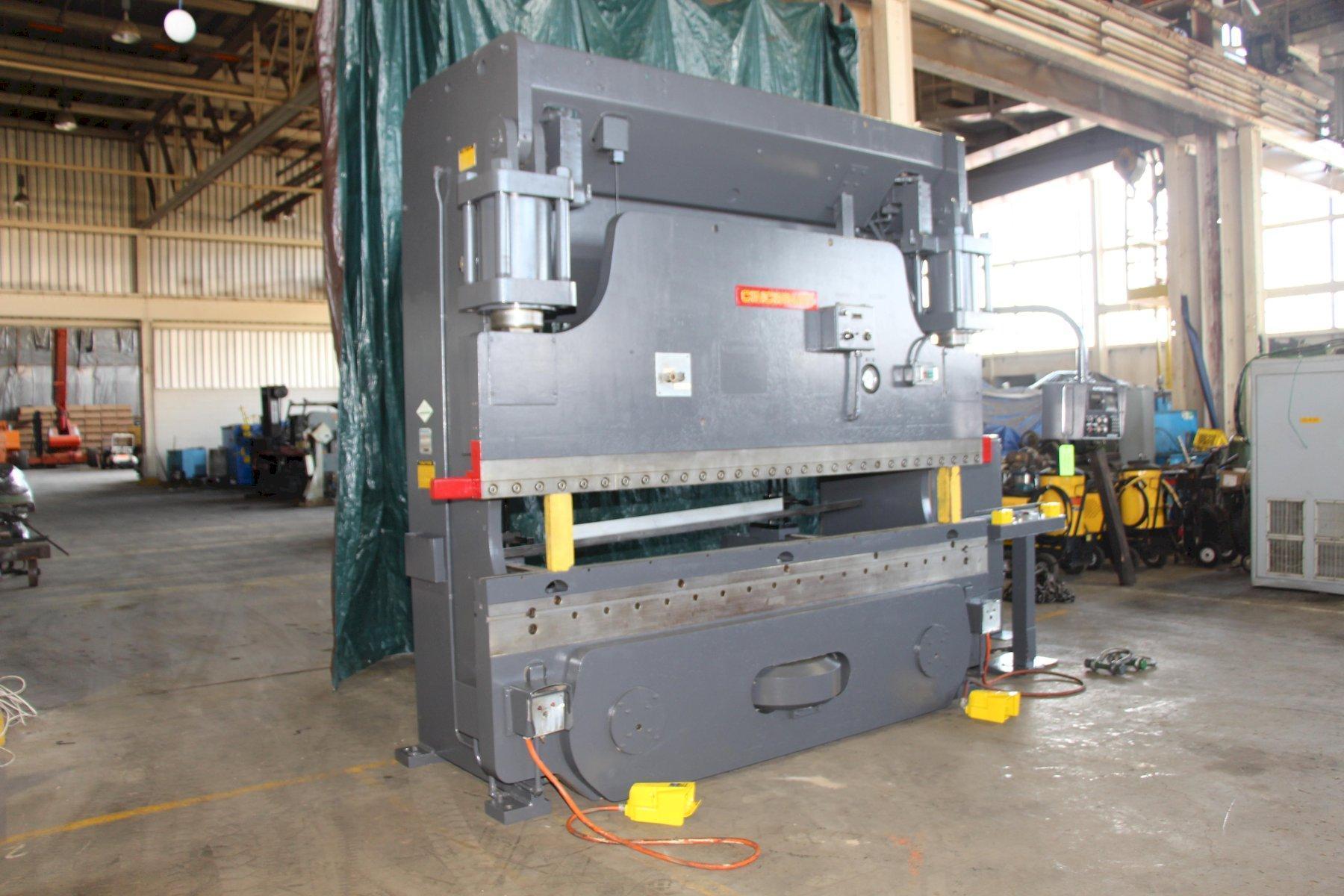

175 Ton x 10' Cincinnati CNC Autoshape AS175-8 Hydraulic Press Brake

Stock #: 1018819

Equipped With

Machine Specifications

Serial ............................. Number 44188
Model .............................. 175 AS Autoshape
New ................................ 1986
Capacity ........................... 175 TONS
Overall Length of Bed & Ram ........ 10’
Distance Between Housings .......... 8’6 3/4”
Stroke ............................. 10”
Open Height ........................ 17”
Closed Height ...................... 7”
Throat Clearance ................... 8”

Speeds:

Approach ........................... 235 INCH PER MINUTE
Form ............................... 60  & 20 INCH PER MINUTE
Return ............................. 79 & 248  INCH PER MINUTE
Back Gage Speeds ................... X- AXIS’, 850 INCH PER MINUTE
Main Motor Horsepower .............. 35

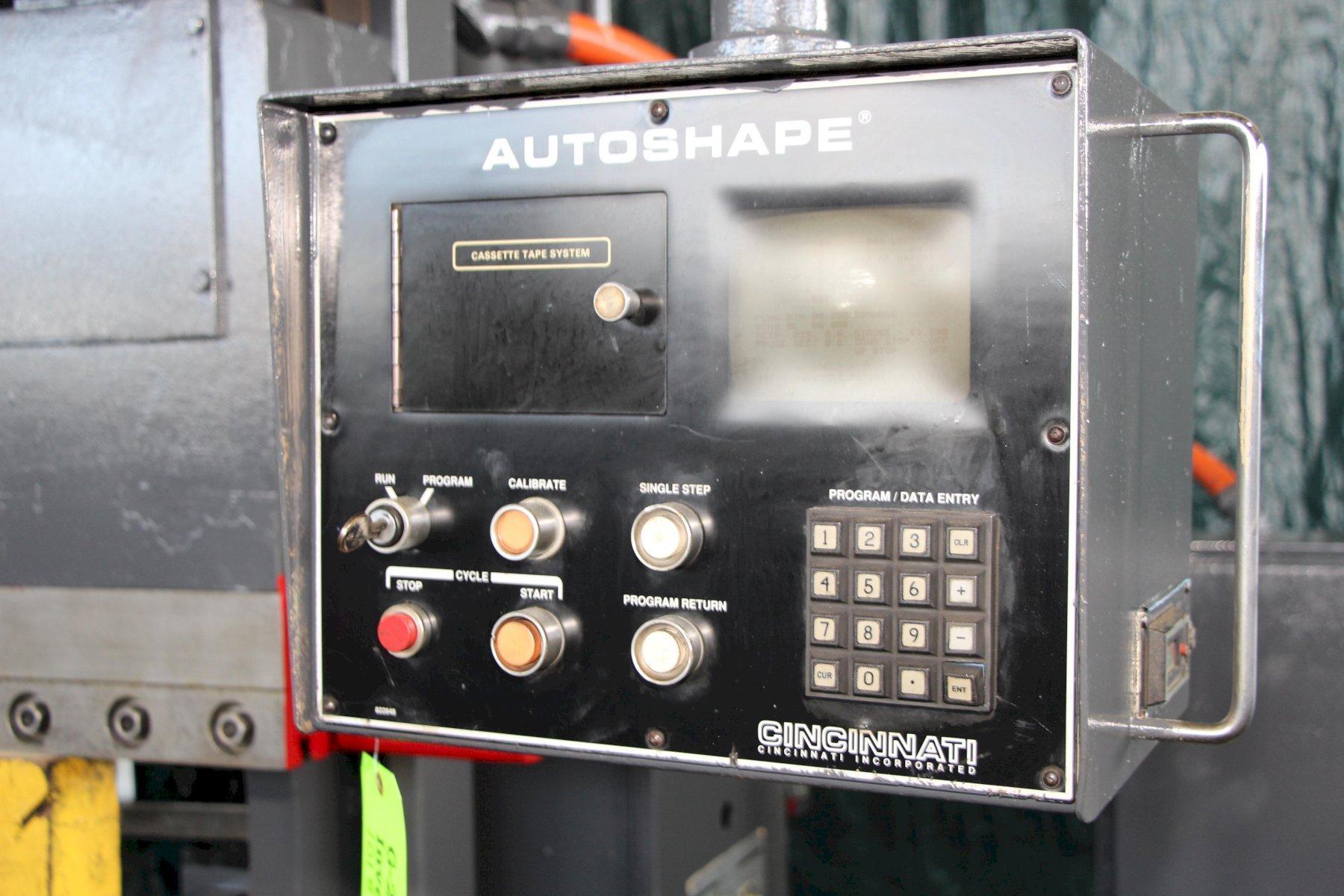

Autoshape CNC Control
24” CNC Programmable Back gage
(X) With Manual R Axis

Off Load Center Compensation
Variable Tonnage
Electric Foot Switch
Pedestal Palm Button Station
Auto Crowning
Top Die Hydraulic Clamping

175 Ton x 10' Cincinnati CNC Autoshape AS175-8 Hydraulic Press Brake

STOCK # 1018819

Specifications

View All Details
Machine Type
Brakes, Hydraulic
Manufacturer
CINCINNATI INC
Model
AS175-8
Year
1986
Condition
Excellent
Equipped With

Machine Specifications

Serial ............................. Number 44188
Model .............................. 175 AS Autoshape
New ................................ 1986
Capacity ........................... 175 TONS
Overall Length of Bed & Ram ........ 10’
Distance Between Housings .......... 8’6 3/4”
Stroke ............................. 10”
Open Height ........................ 17”
Closed Height ...................... 7”
Throat Clearance ................... 8”

Speeds:

Approach ........................... 235 INCH PER MINUTE
Form ............................... 60  & 20 INCH PER MINUTE
Return ............................. 79 & 248  INCH PER MINUTE
Back Gage Speeds ................... X- AXIS’, 850 INCH PER MINUTE
Main Motor Horsepower .............. 35

Autoshape CNC Control
24” CNC Programmable Back gage
(X) With Manual R Axis

Off Load Center Compensation
Variable Tonnage
Electric Foot Switch
Pedestal Palm Button Station
Auto Crowning
Top Die Hydraulic Clamping
