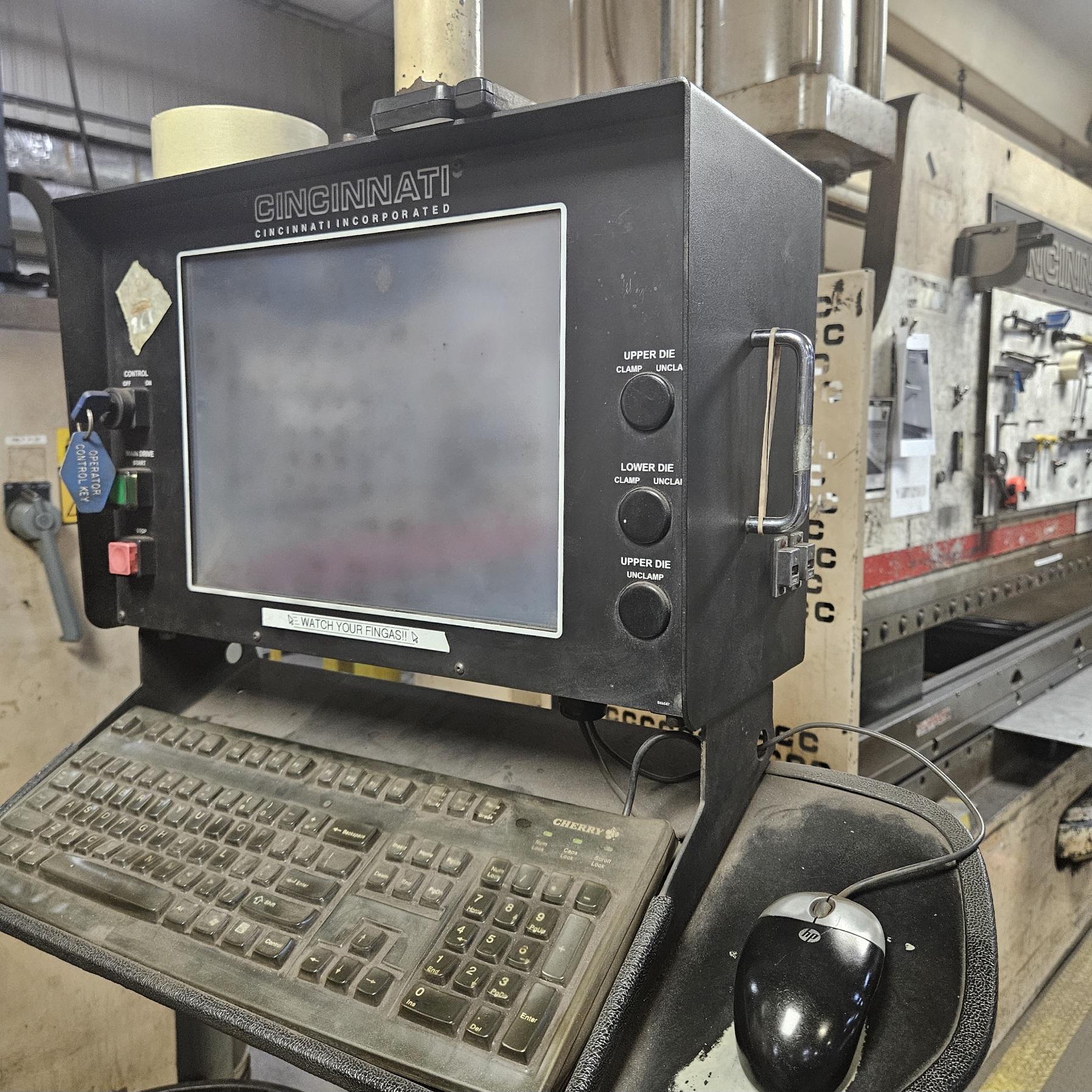

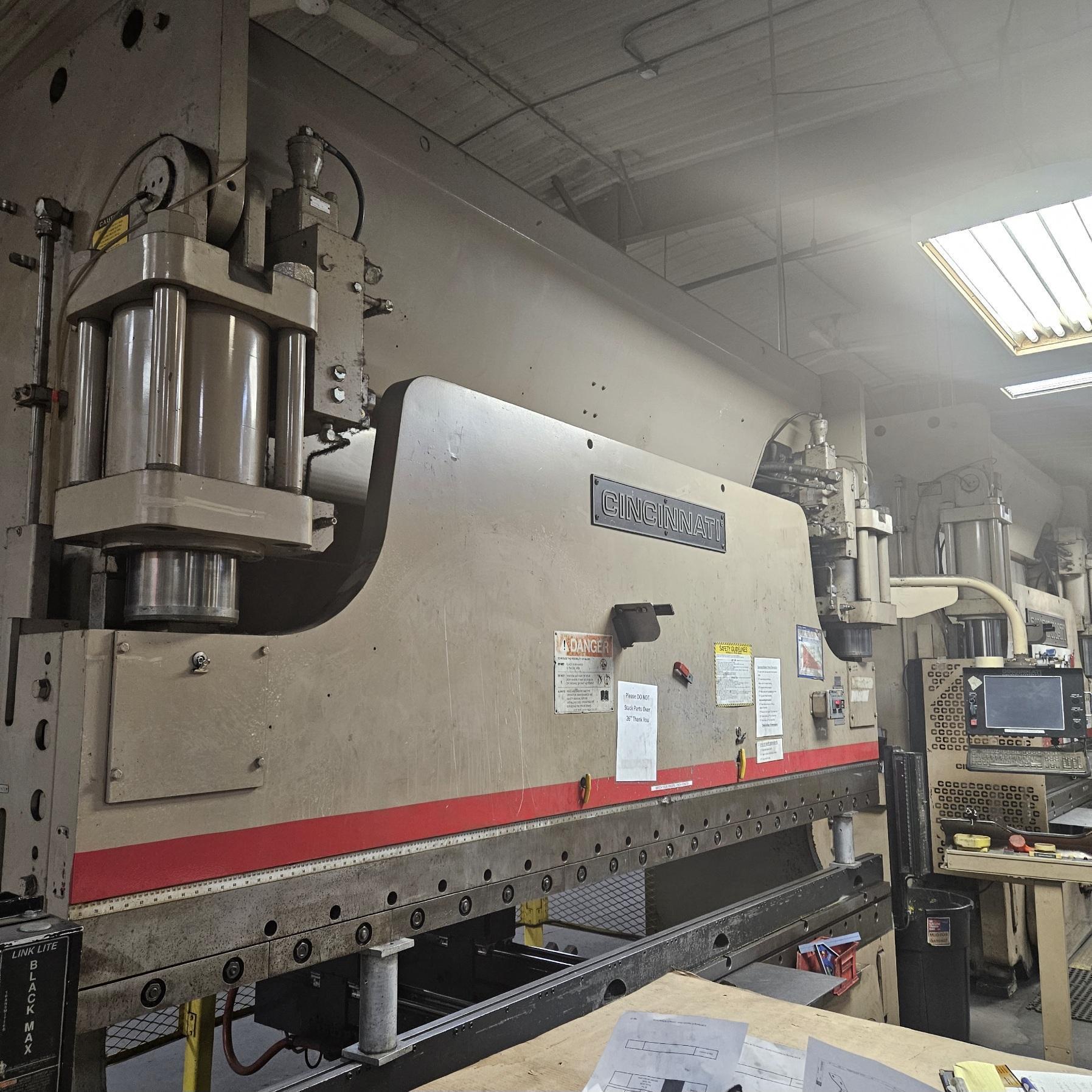

175 TON X 12' CINCINNATI AUTOFORM 175X10AF 6 AXIS CNC HYDRAULIC PRESS BRAKE W/ UPDATED TOUCH SCREEN CONTROL. STOCK # 0149724

Stock #: 0149724

Equipped With

TONNAGE................................ 175 Ton
OVERALL LENGTH OF BED & RAM............ 12'
DISTANC EBETWEEN HOUSINGS.............. 10'6"
OPEN HEIGHT............................ 17"
CLOSED HEIGHT.......................... 7"
STROKE................................. 10"
THROAT................................. 8"

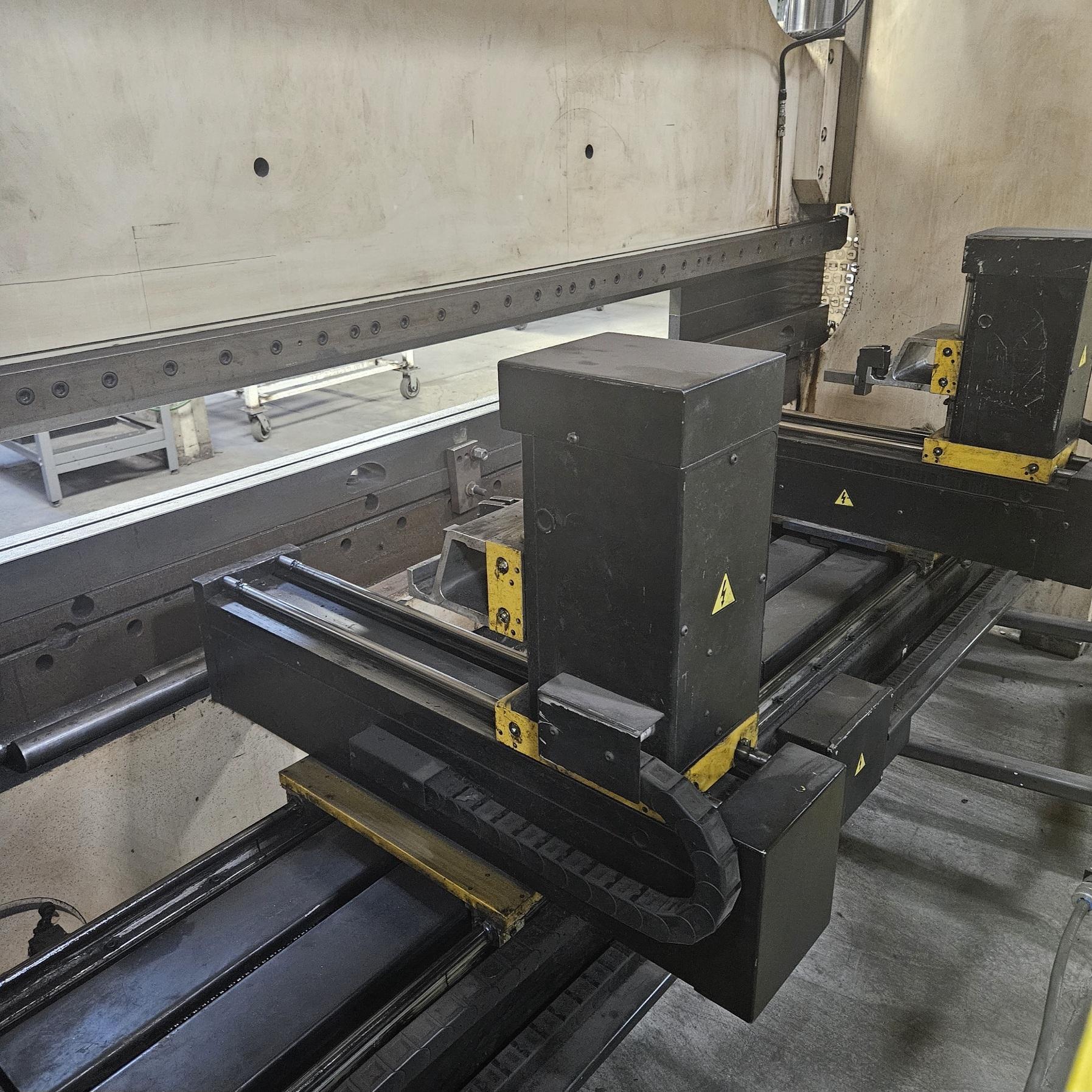

BACK GAUGE RANGE....................... 24"
CLAMP STYLE............................ American
RAM CLAMPS............................. Sectionalized
HIGH APPROACH.......................... 260 IPM
VARIABLE FORMING....................... 1-65 IPM, Variable
VARIABLE RETURN........................ 1-290 IPM, Variable
BED HEIGHT............................. 36"
BED CAP WIDTH.......................... 3.75"
CNC AUTO CROWNING...................... YES
HYDRAULIC CLAMPING..................... YES
MAIN MOTOR............................. 15 HP
APPROXIMATE MACHINE WEIGHT............. 24,100 lbs
