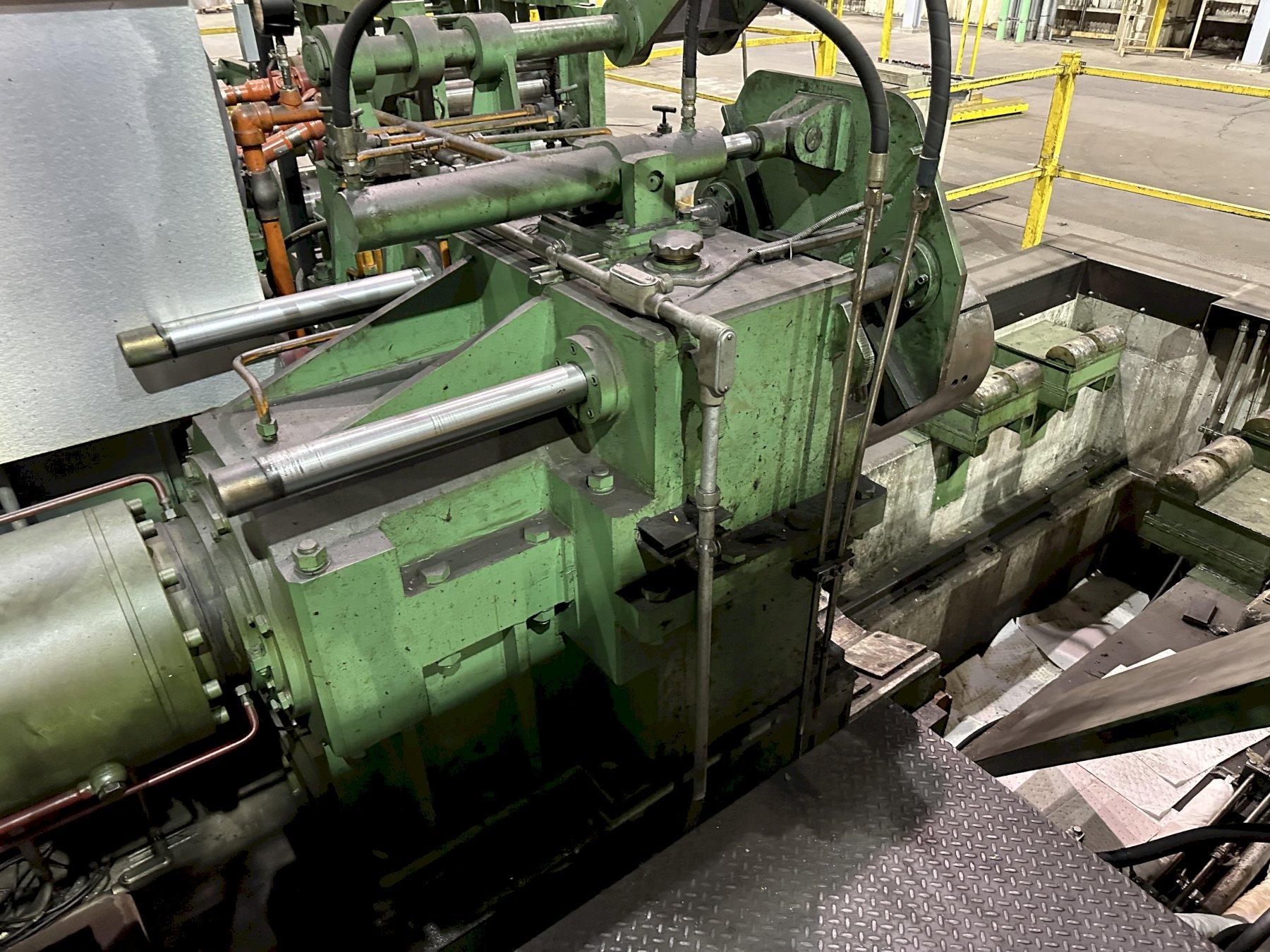

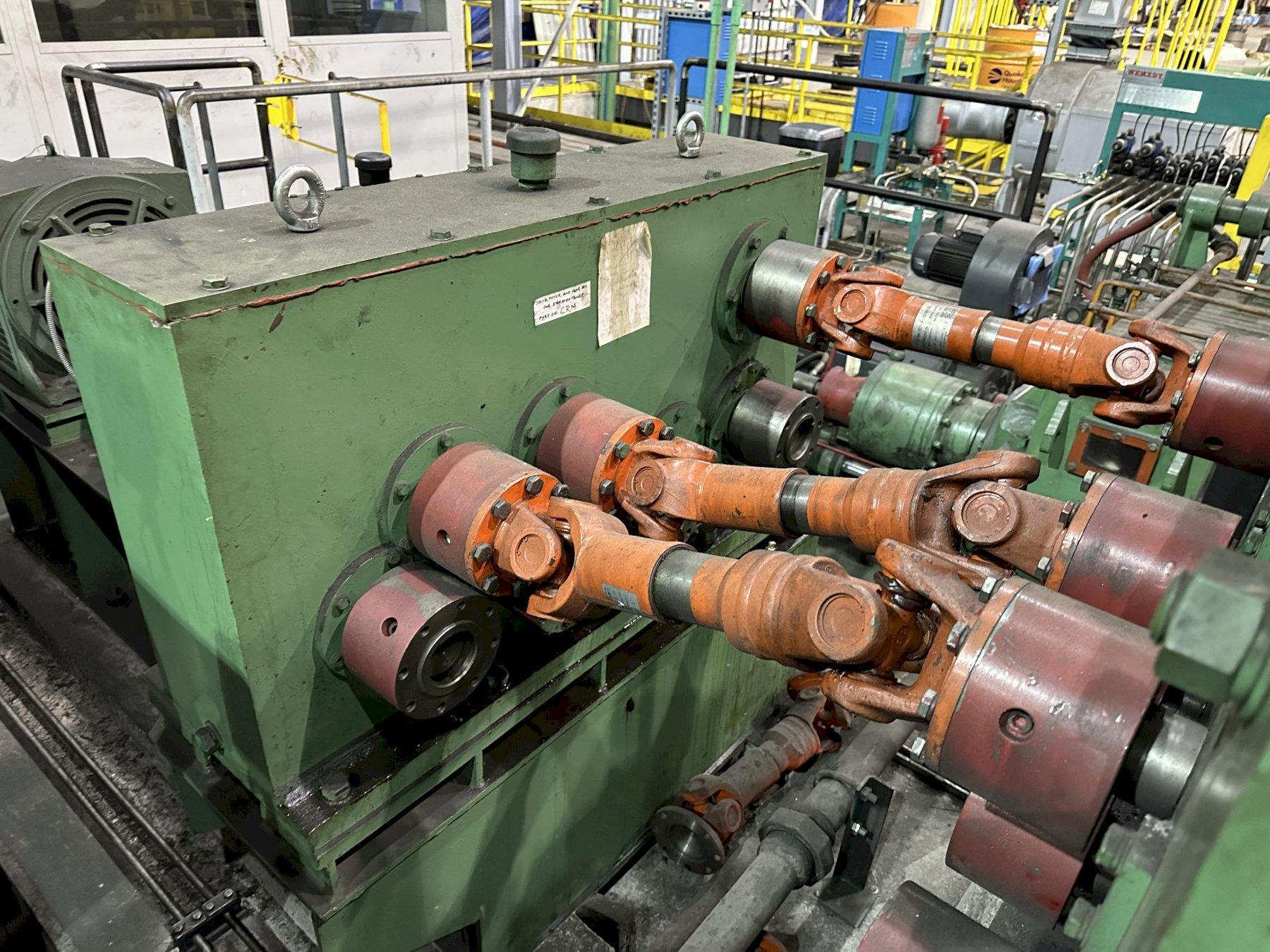

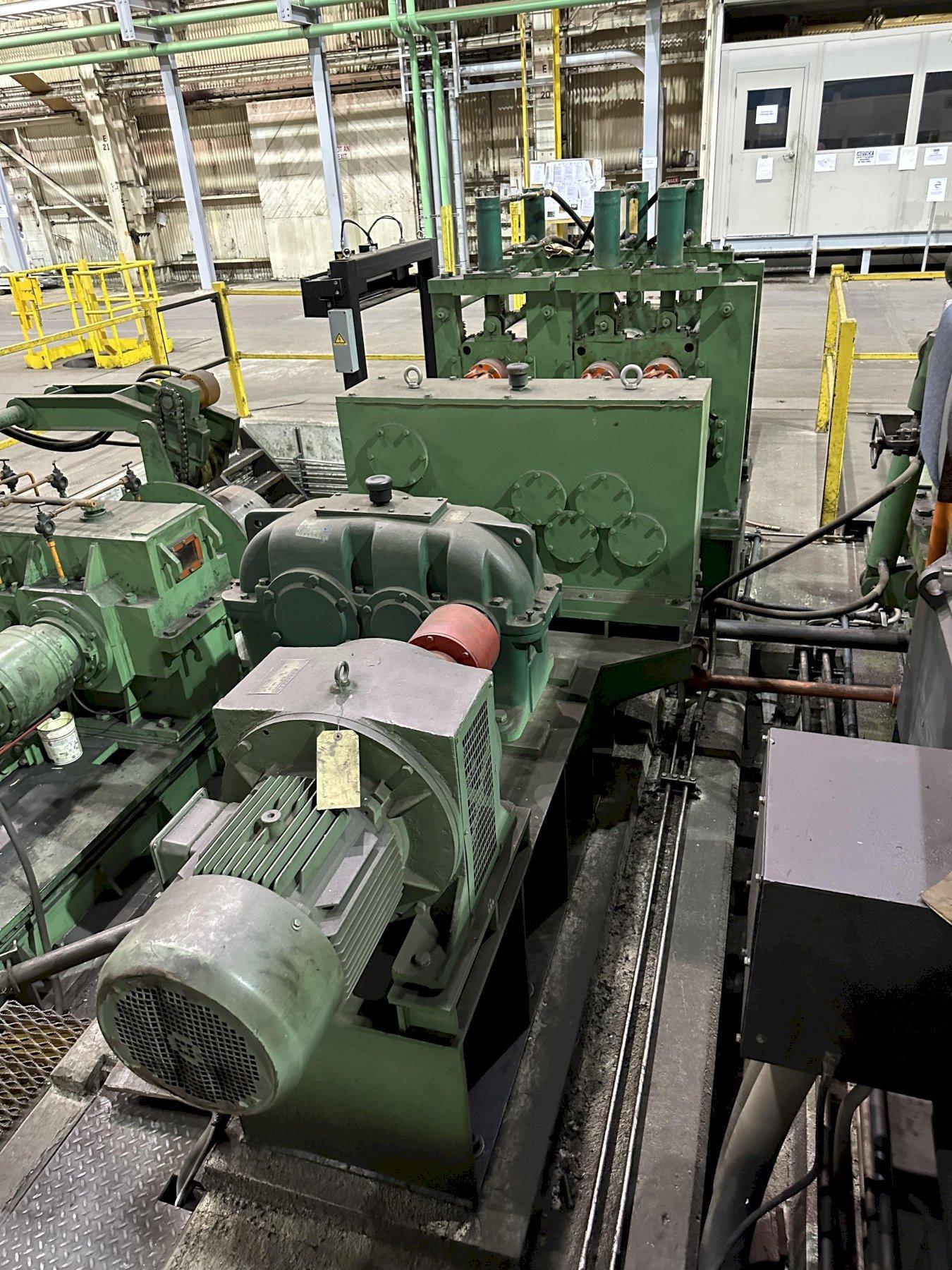

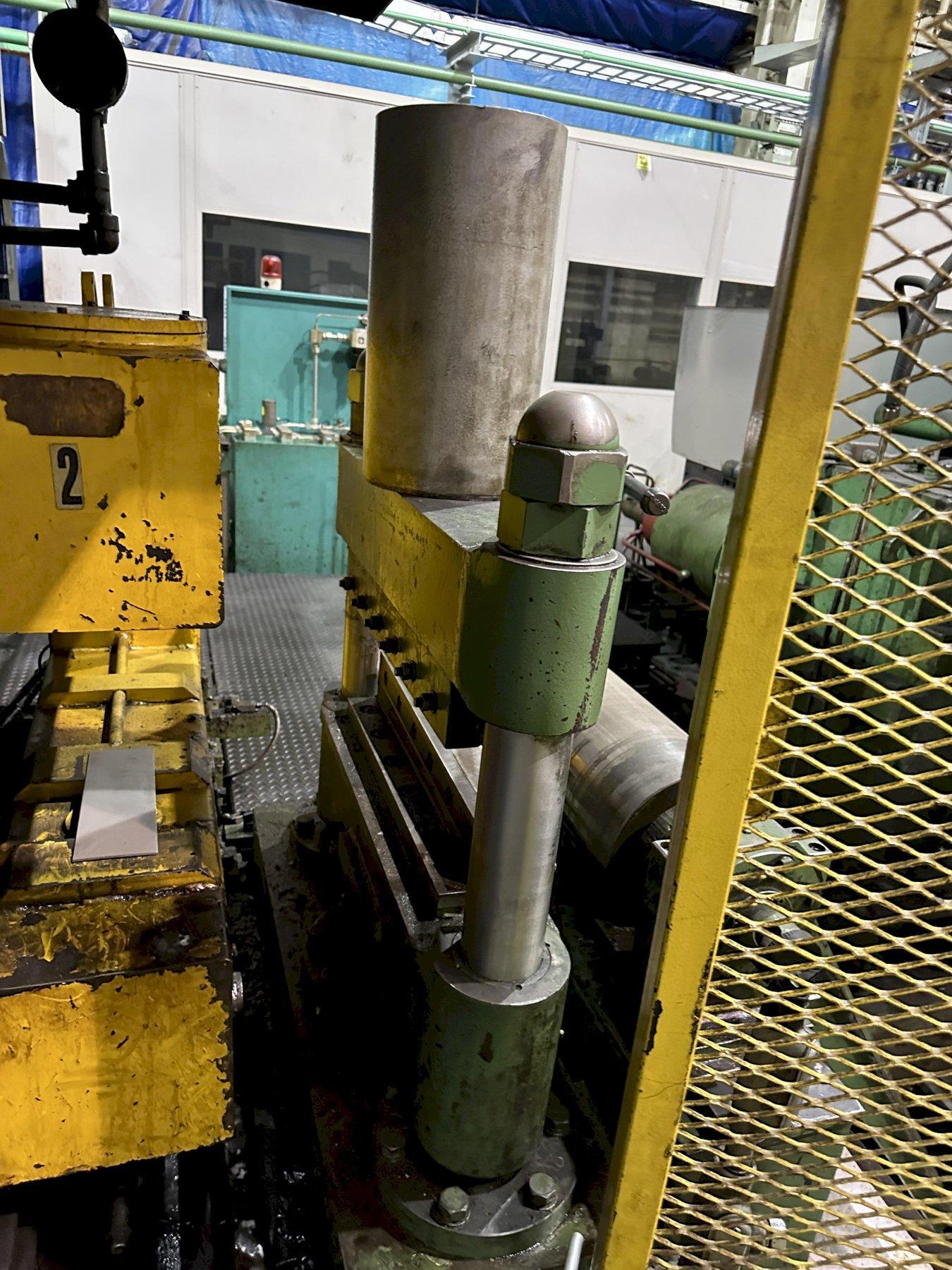

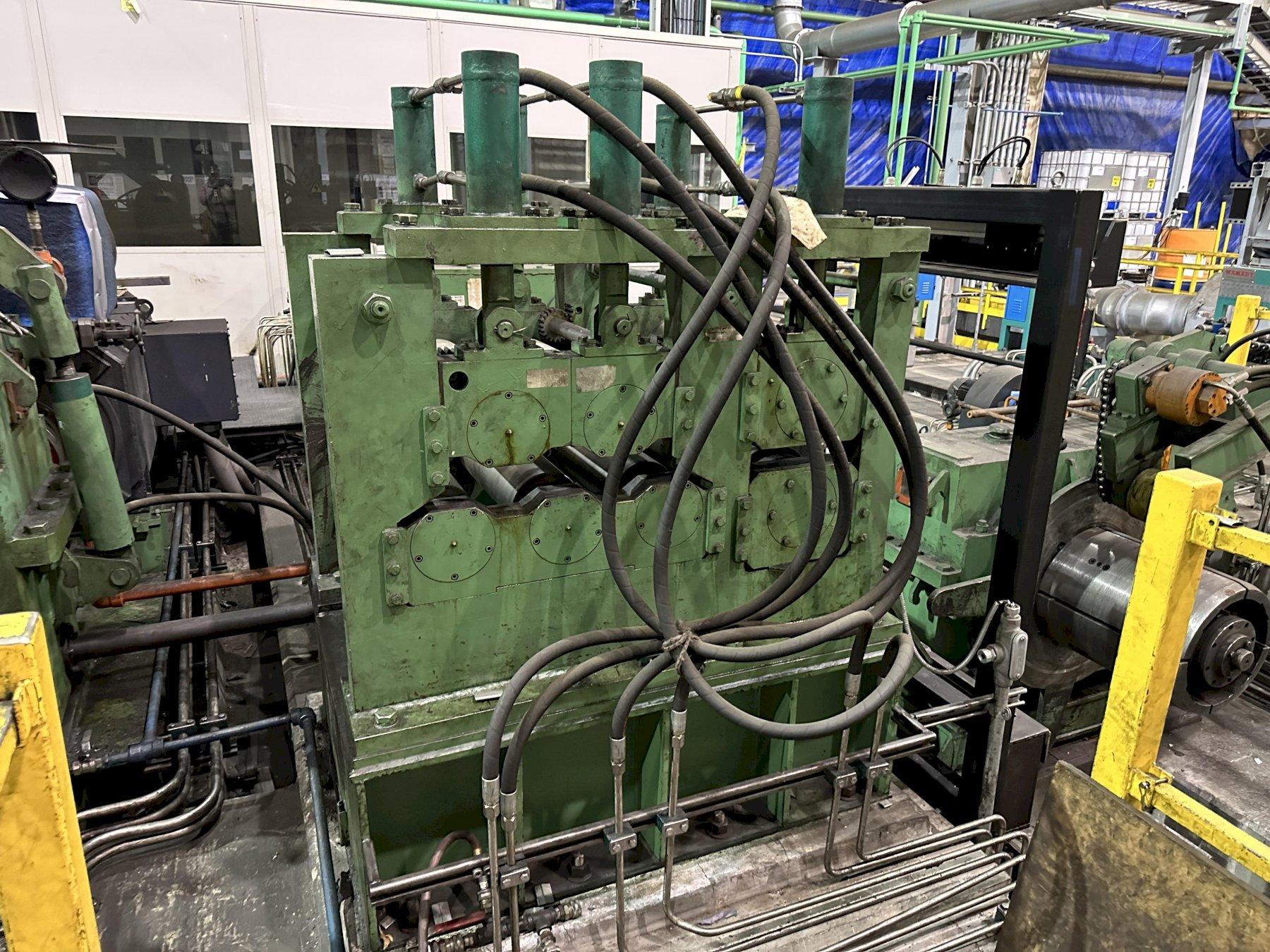

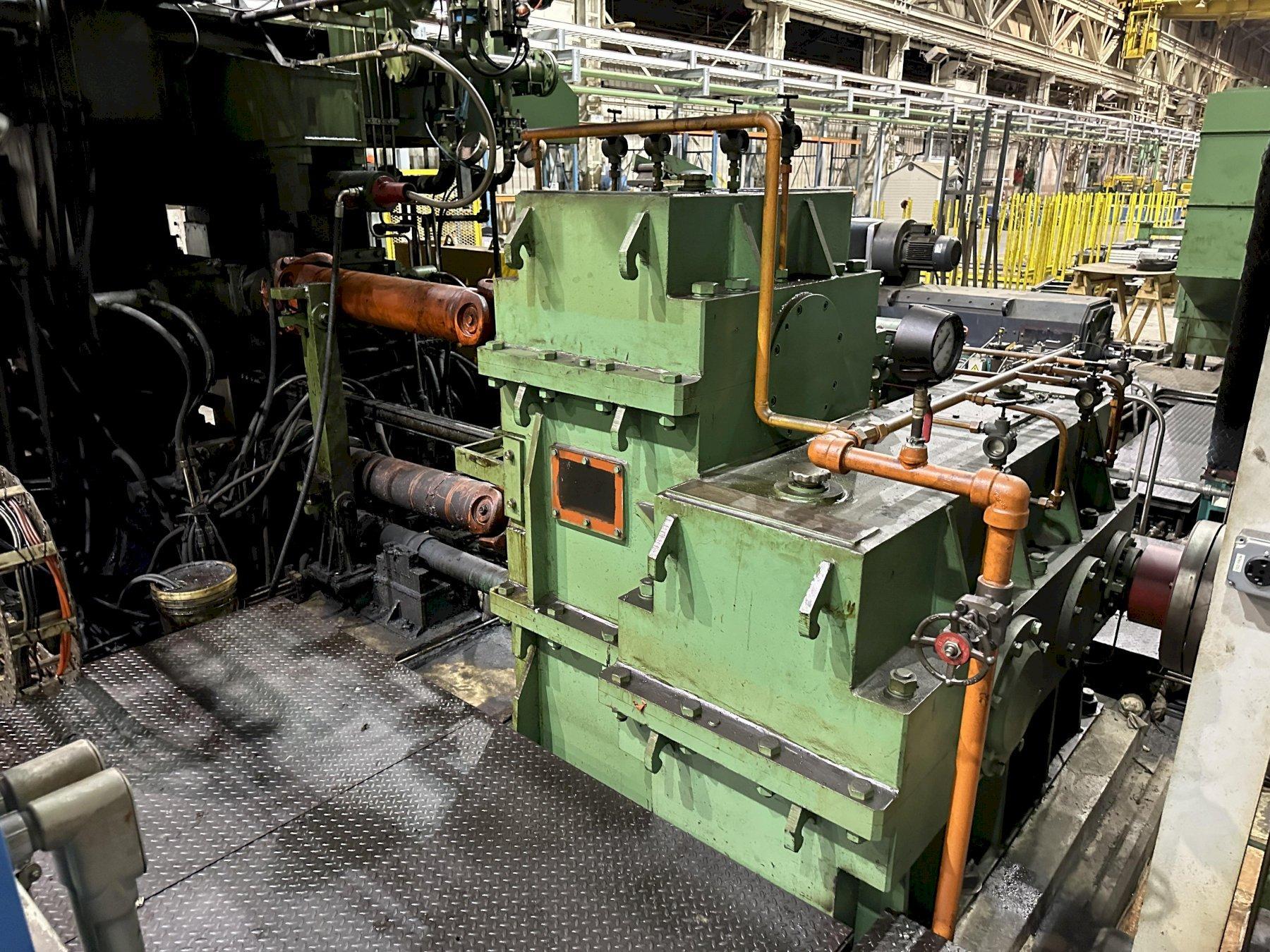

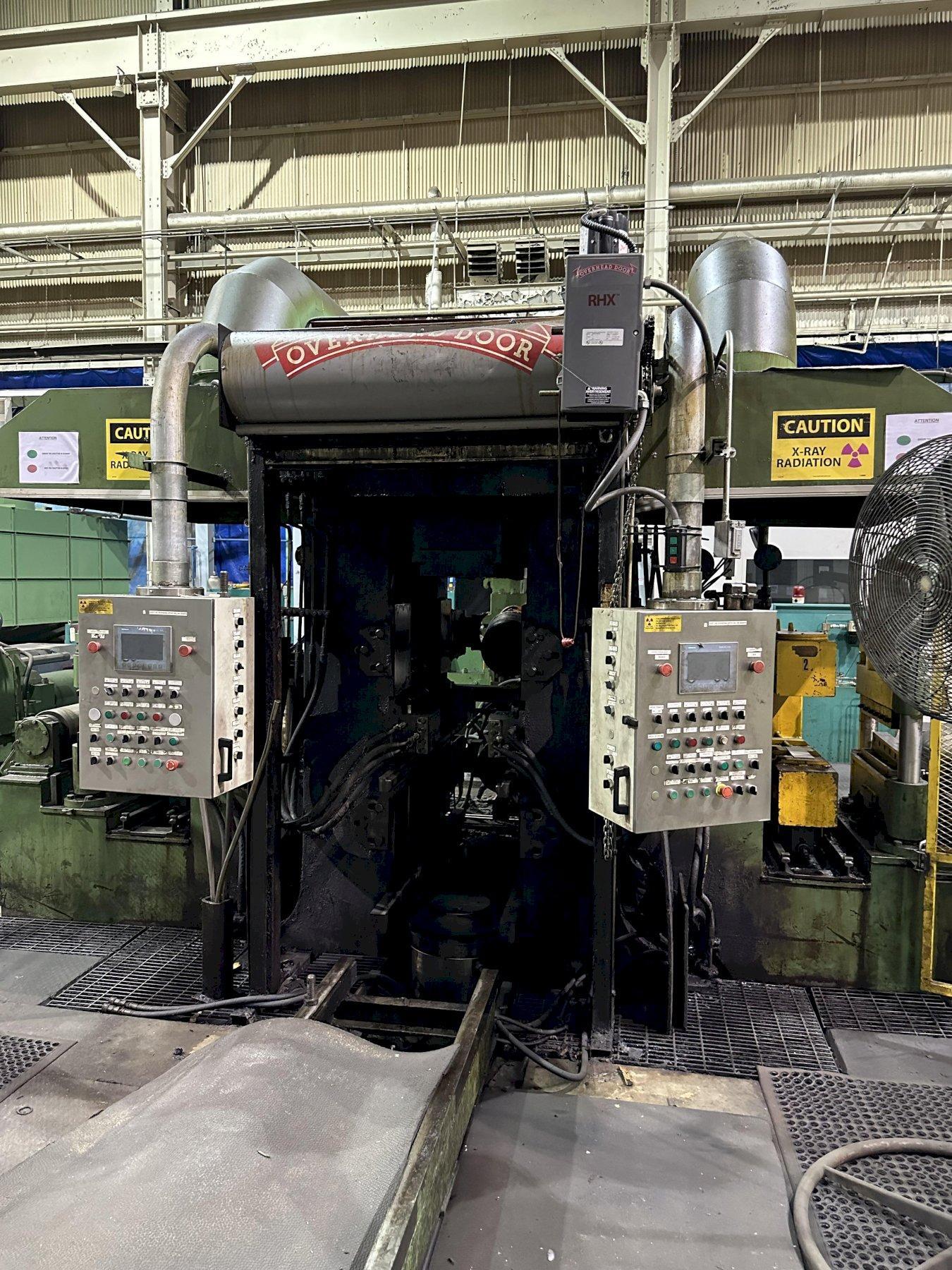

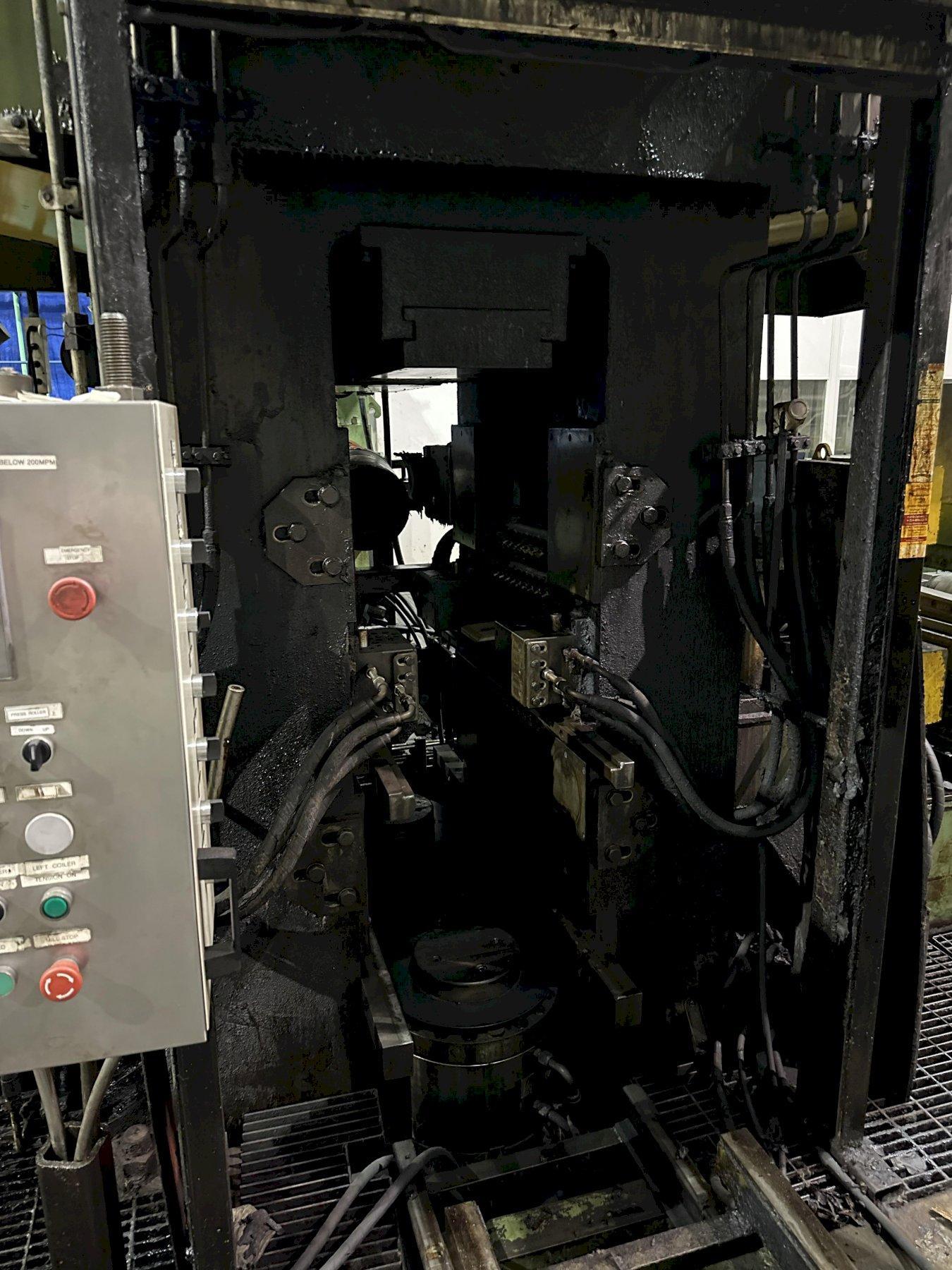

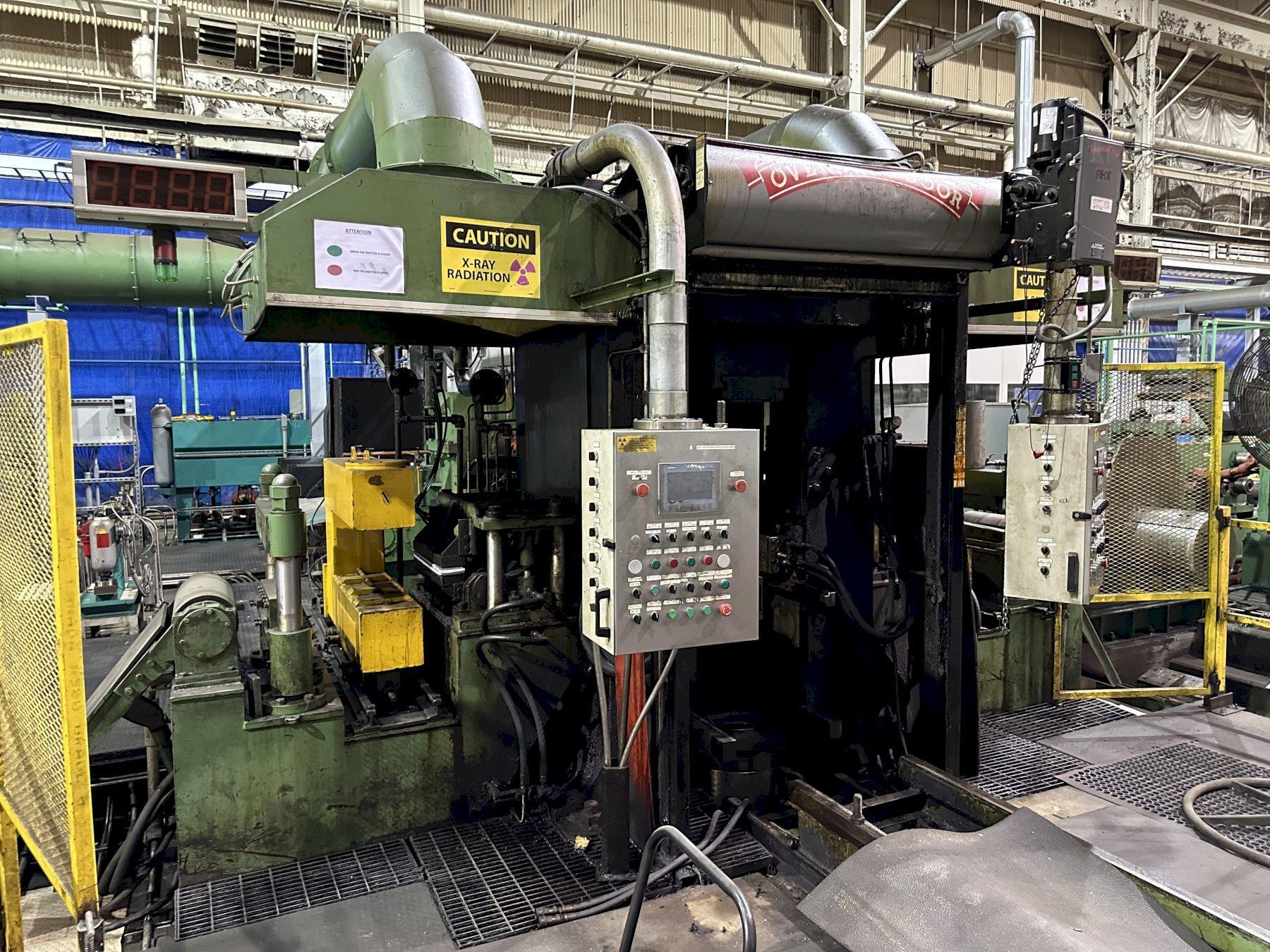

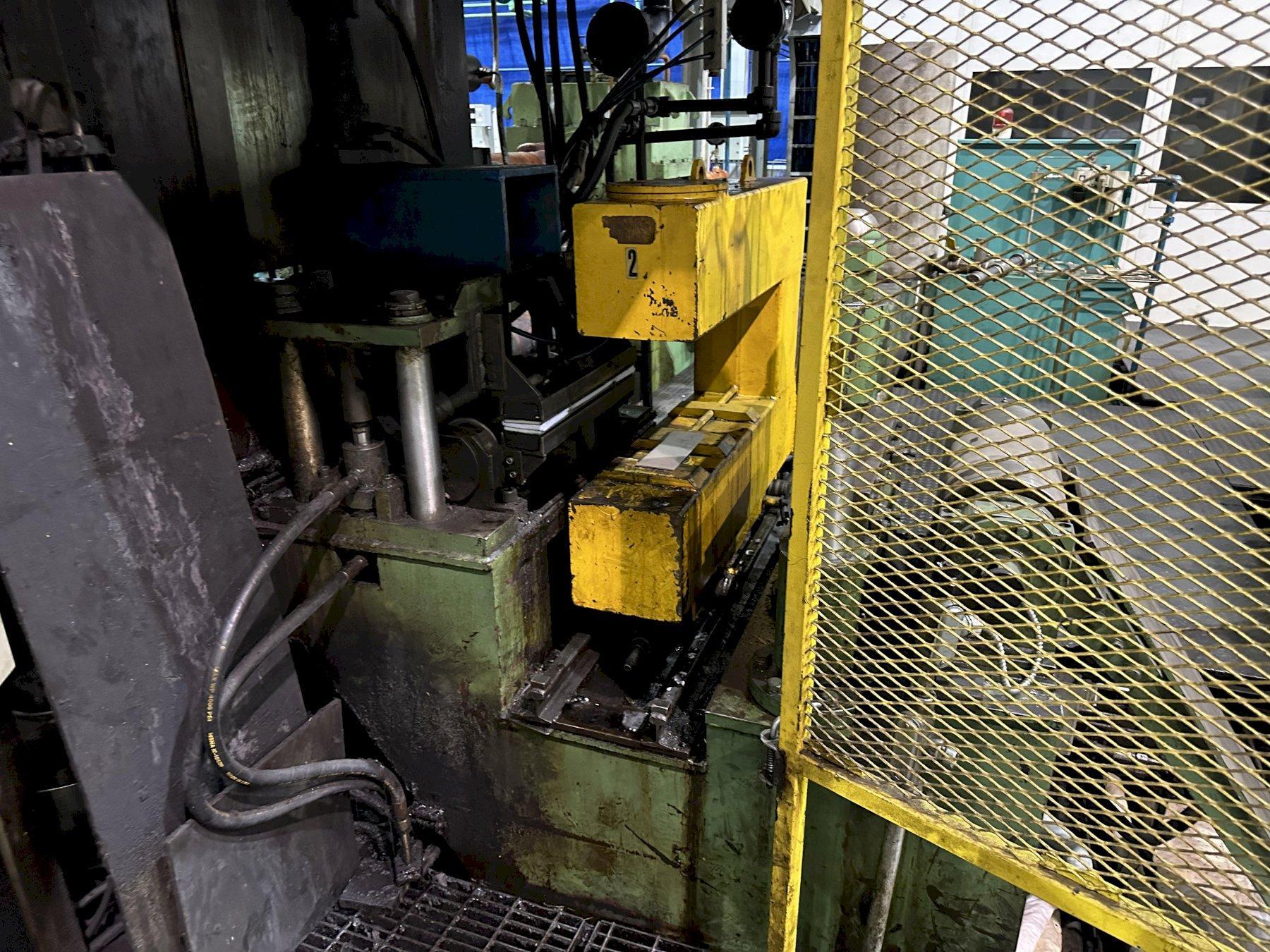

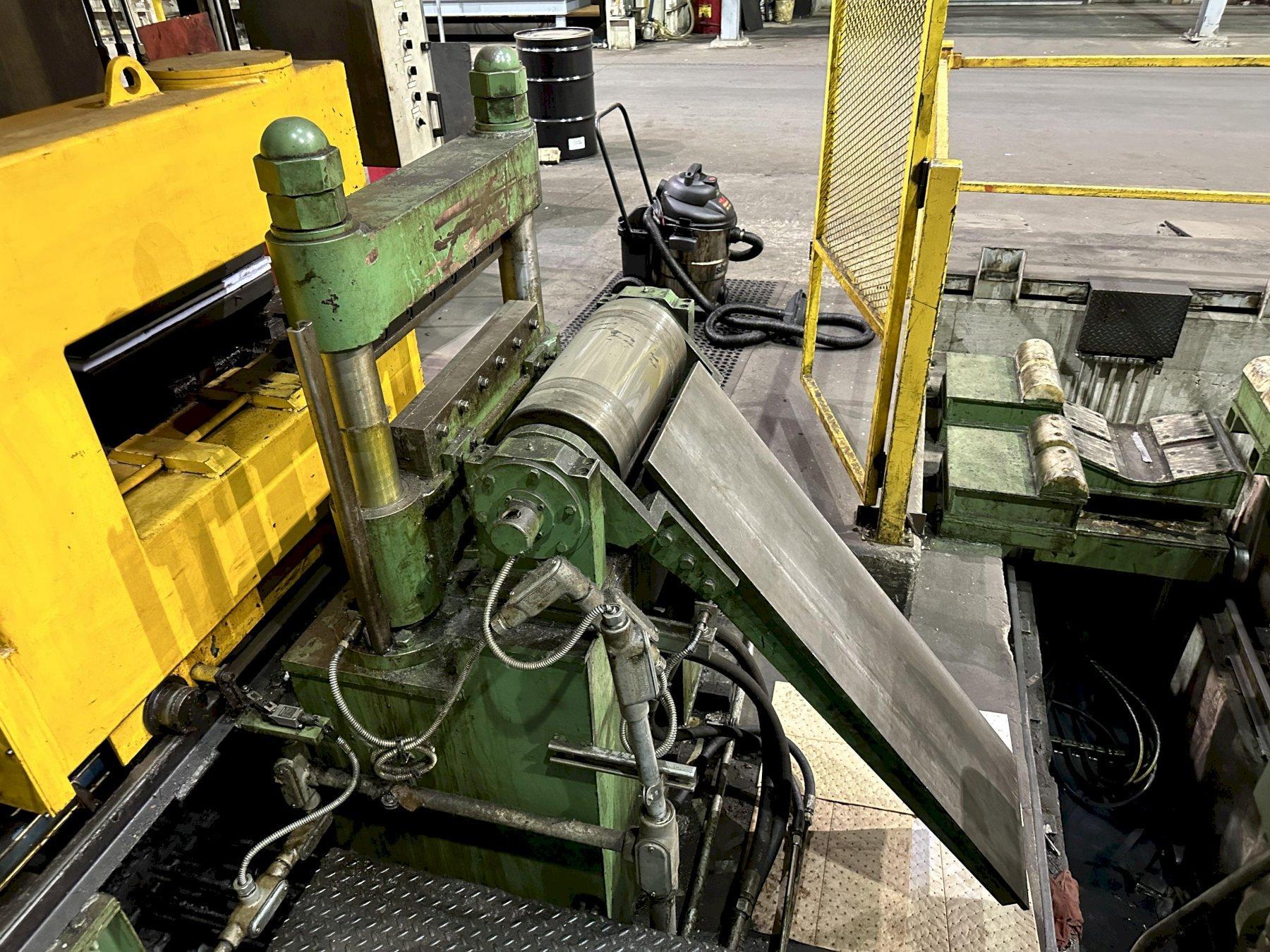

18" JINYE 4-HI COLD ROLLING MILL LINE. STOCK # 0316223

Stock #: 0316223

Equipped With

MILL PARAMETERS:
STEEL GRADE..............................:  1095,1075,1065,1050
YEILD STRENGTH...........................:  385-1080 MPA
THICKNESS................................: .078" - .157"
WIDTH....................................: 7.87" - 15.74"

ROLLING MILL PARAMETERS:
MAX ROLLING FORCE........................: 458.87 TONS
MAX ROLLING TORQUE.......................: 7.13 TONS
ROLLING SPEED............................: 300 M/MIN
RECOILING SPEED..........................: 300 M/MIN
RECOILING TENSIONS.......................: 6.11 TONS

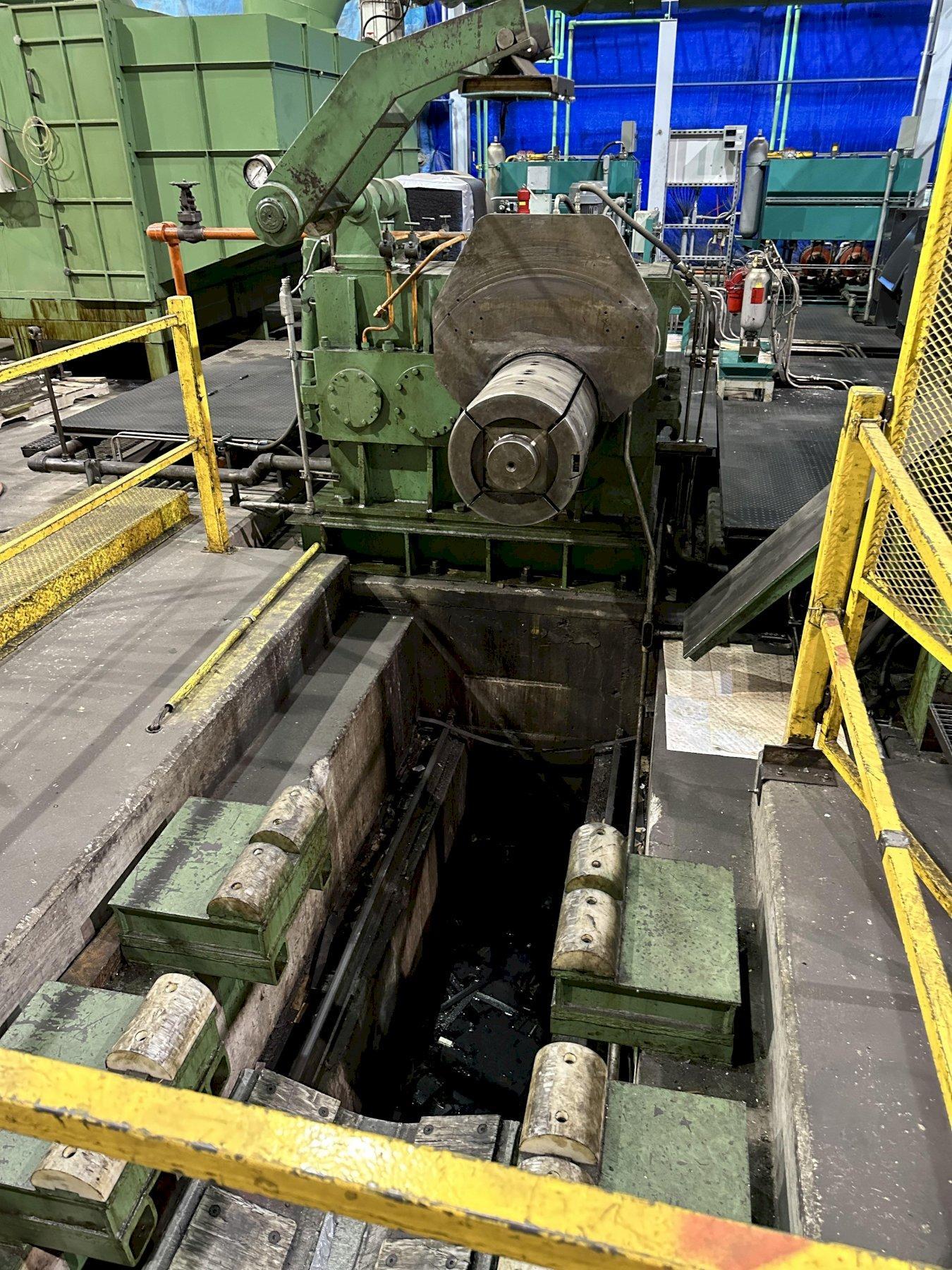

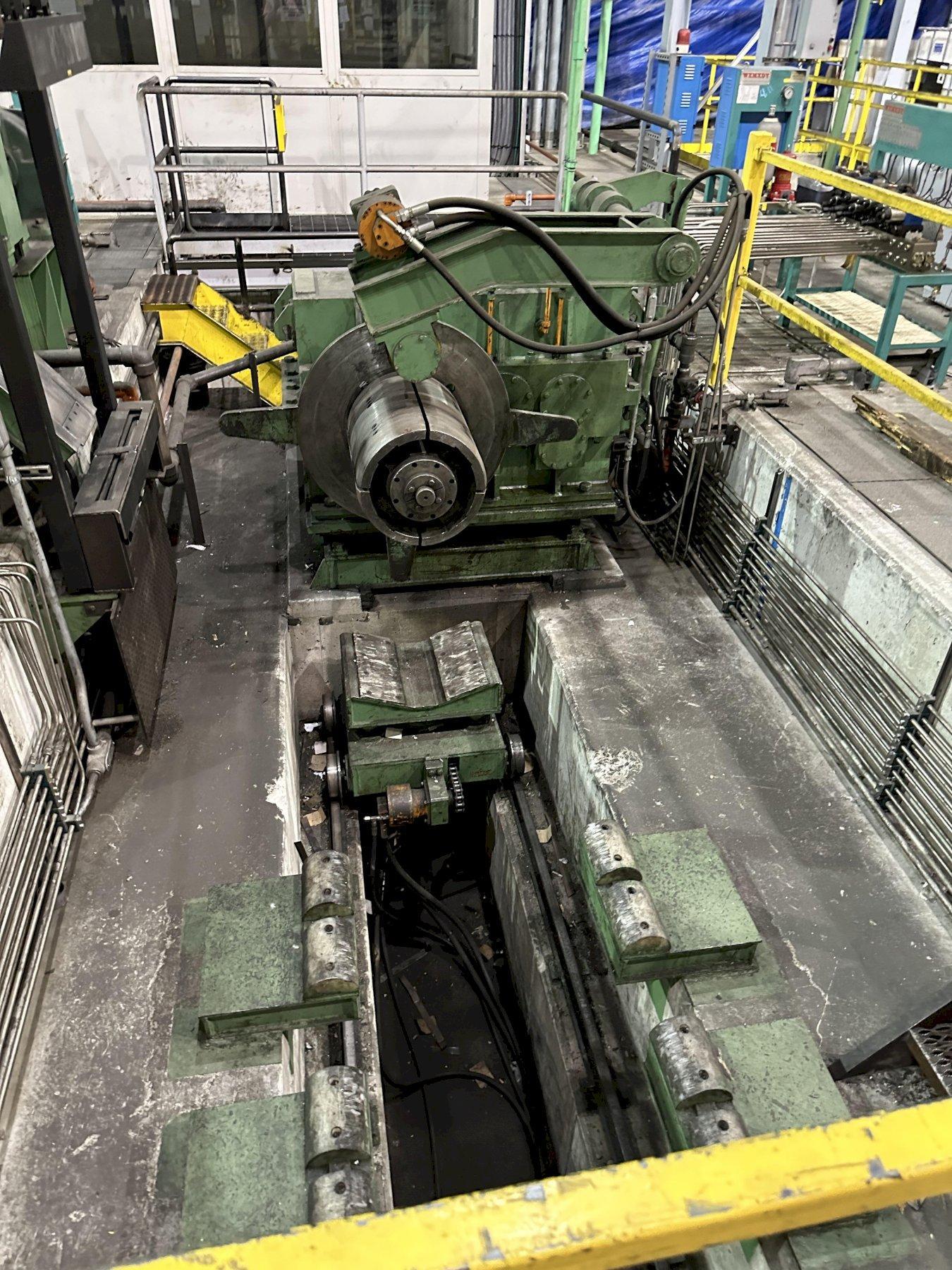

RECOILING MANDREL EXPANSION RANGE........: MIN: 19.21 - MAX: 20"
TOTAL INSTALLATION POWER.................: 1877 HP

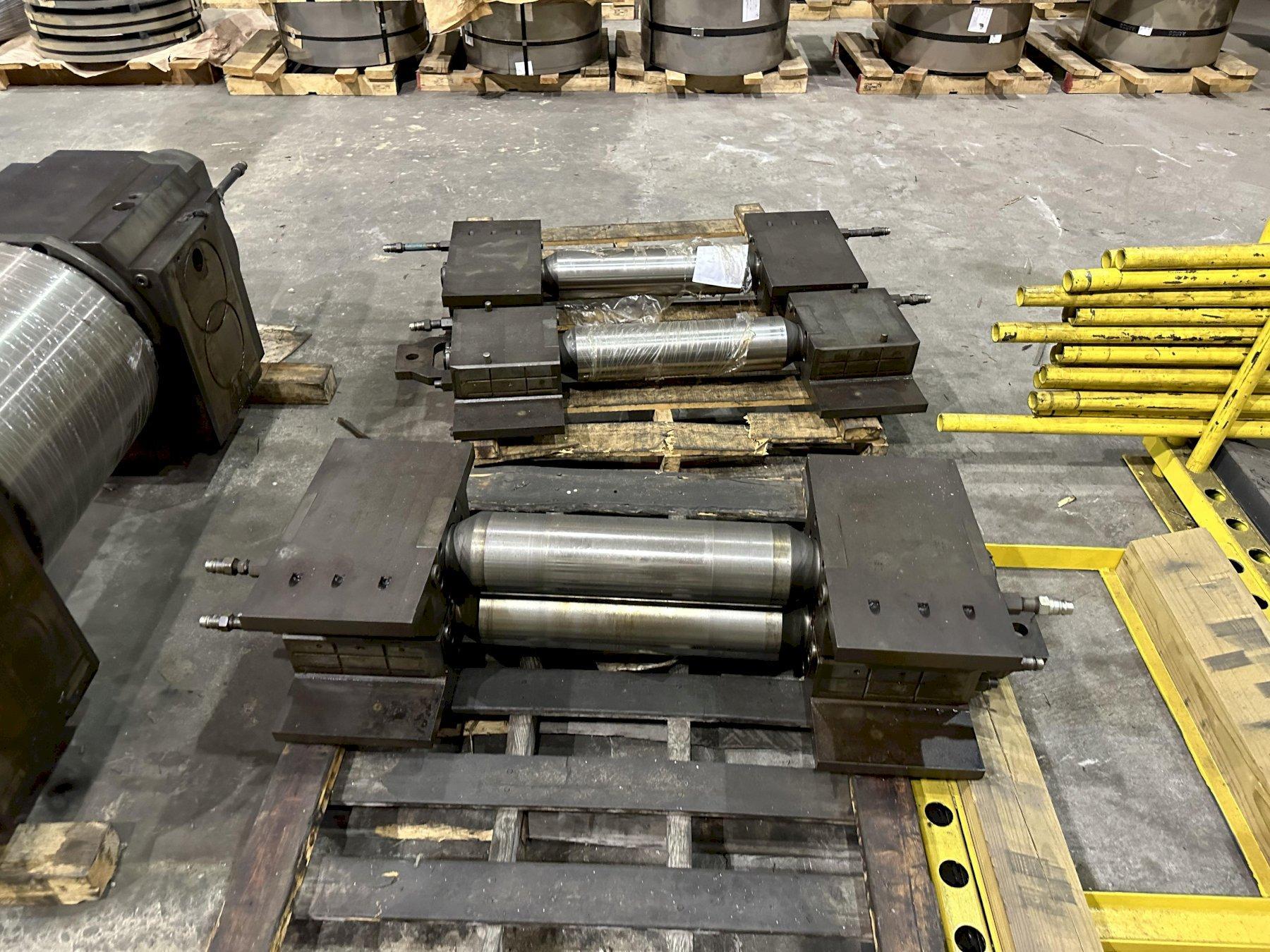

WORK ROLLER 1:
DIAMETER OF ROLL.........................: MIN: 5.11" - MAX: 5.51"
LENGTH OF ROLL...........................: 19.68"
MATERIAL.................................: CR5
HARDNESS.................................: HS97-100
WORK ROLLER 2:
DIAMETER OF ROLL.........................: MIN: 4.11" - MAX: 4.72"
LENGTH OF ROLL...........................: 19.68"
MATERIAL.................................: CR5
HARDNESS.................................: HS97-100

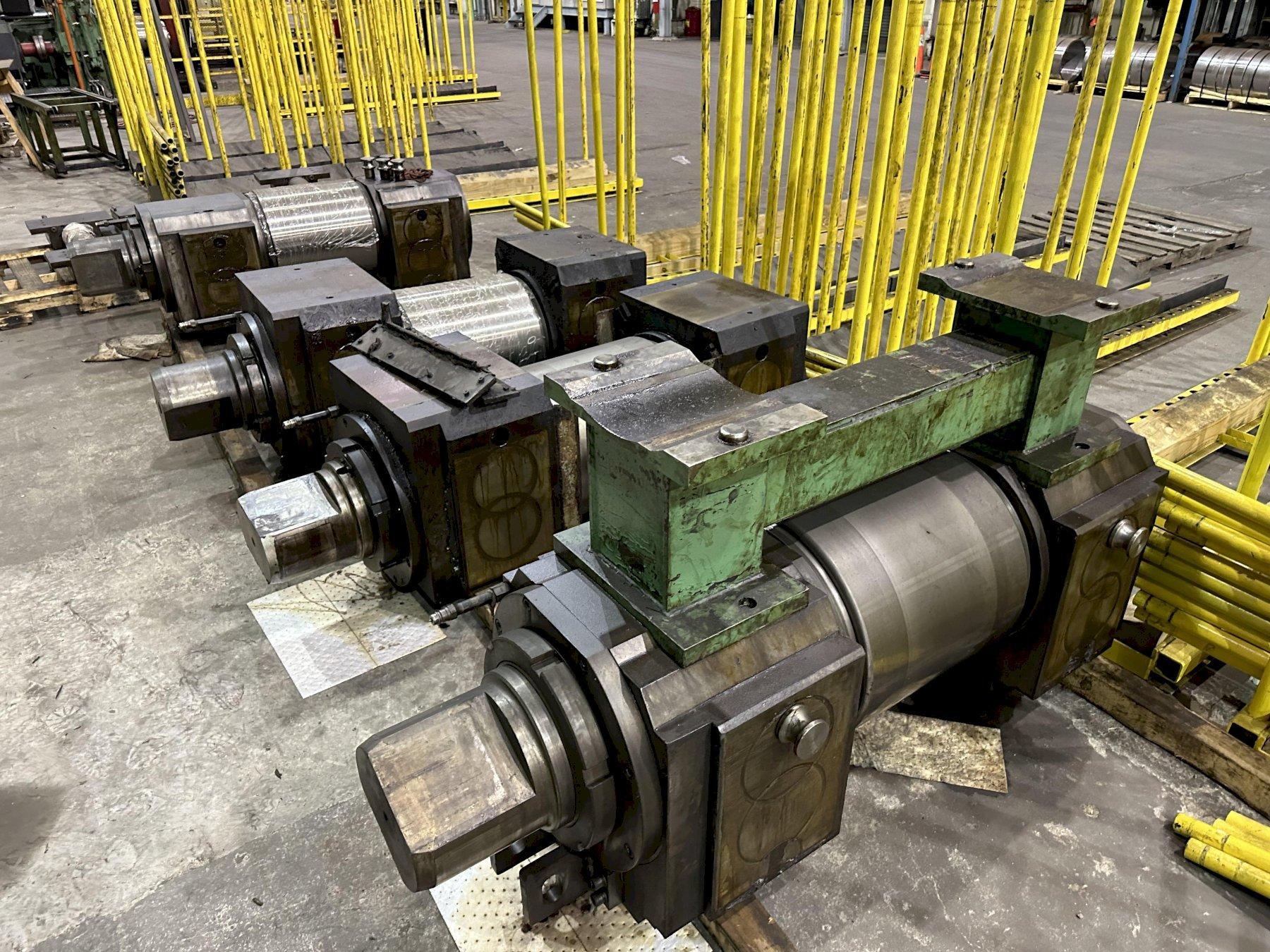

BACKUP ROLLER:
DIAMETER OF ROLL.........................: MIN: 18.50 - MAX: 19.68"
REGRINDING OF ROLL.......................: .59"
LENGTH OF ROLL...........................: 18.89"
MATERIAL.................................: 9CR2MO
HARDNESS.................................: HS75 - 80
ADJUST WEDGE.............................: MIN HEIGHT - 9.84"
STROKE OF HORIZONTAL MOVING..............: 2.95" - 4.92"

18" JINYE 4-HI COLD ROLLING MILL LINE. STOCK # 0316223

STOCK # 0316223

MILL PARAMETERS:
STEEL GRADE..............................:  1095,1075,1065,1050
YEILD STRENGTH...........................:  385-1080 MPA
THICKNESS................................: .078" - .157"
WIDTH....................................: 7.87" - 15.74"

ROLLING MILL PARAMETERS:
MAX ROLLING FORCE........................: 458.87 TONS
MAX ROLLING TORQUE.......................: 7.13 TONS
ROLLING SPEED............................: 300 M/MIN
RECOILING SPEED..........................: 300 M/MIN
RECOILING TENSIONS.......................: 6.11 TONS
RECOILING MANDREL EXPANSION RANGE........: MIN: 19.21 - MAX: 20"
TOTAL INSTALLATION POWER.................: 1877 HP

WORK ROLLER 1:
DIAMETER OF ROLL.........................: MIN: 5.11" - MAX: 5.51"
LENGTH OF ROLL...........................: 19.68"
MATERIAL.................................: CR5
HARDNESS.................................: HS97-100
WORK ROLLER 2:
DIAMETER OF ROLL.........................: MIN: 4.11" - MAX: 4.72"
LENGTH OF ROLL...........................: 19.68"
MATERIAL.................................: CR5
HARDNESS.................................: HS97-100
BACKUP ROLLER:
DIAMETER OF ROLL.........................: MIN: 18.50 - MAX: 19.68"
REGRINDING OF ROLL.......................: .59"
LENGTH OF ROLL...........................: 18.89"
MATERIAL.................................: 9CR2MO
HARDNESS.................................: HS75 - 80
ADJUST WEDGE.............................: MIN HEIGHT - 9.84"
STROKE OF HORIZONTAL MOVING..............: 2.95" - 4.92"

Specifications

Machine Type
Rolling Mills, 4-HI
Manufacturer
N/A
Model
N/A
Year
2018
Condition
Used
