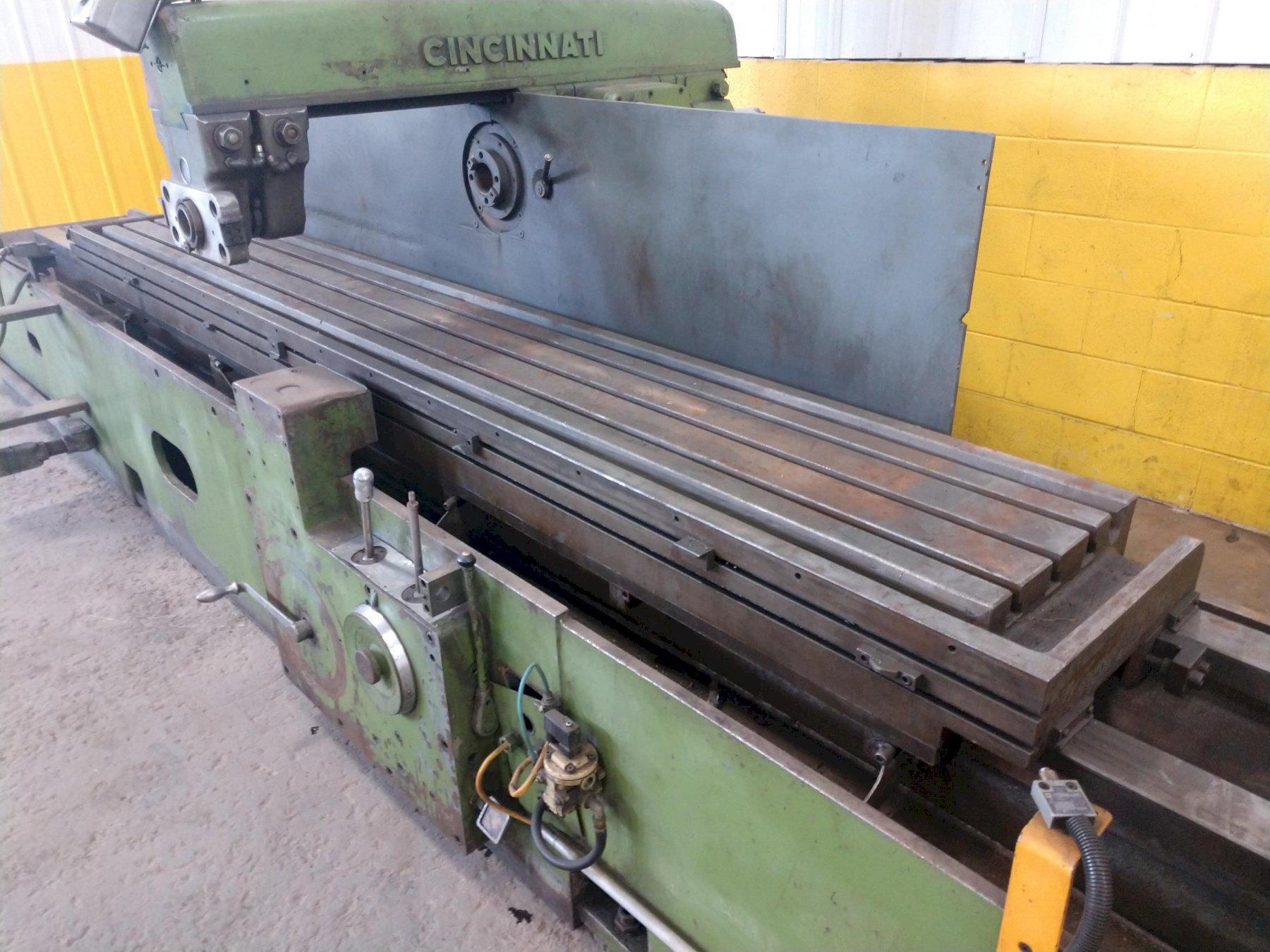

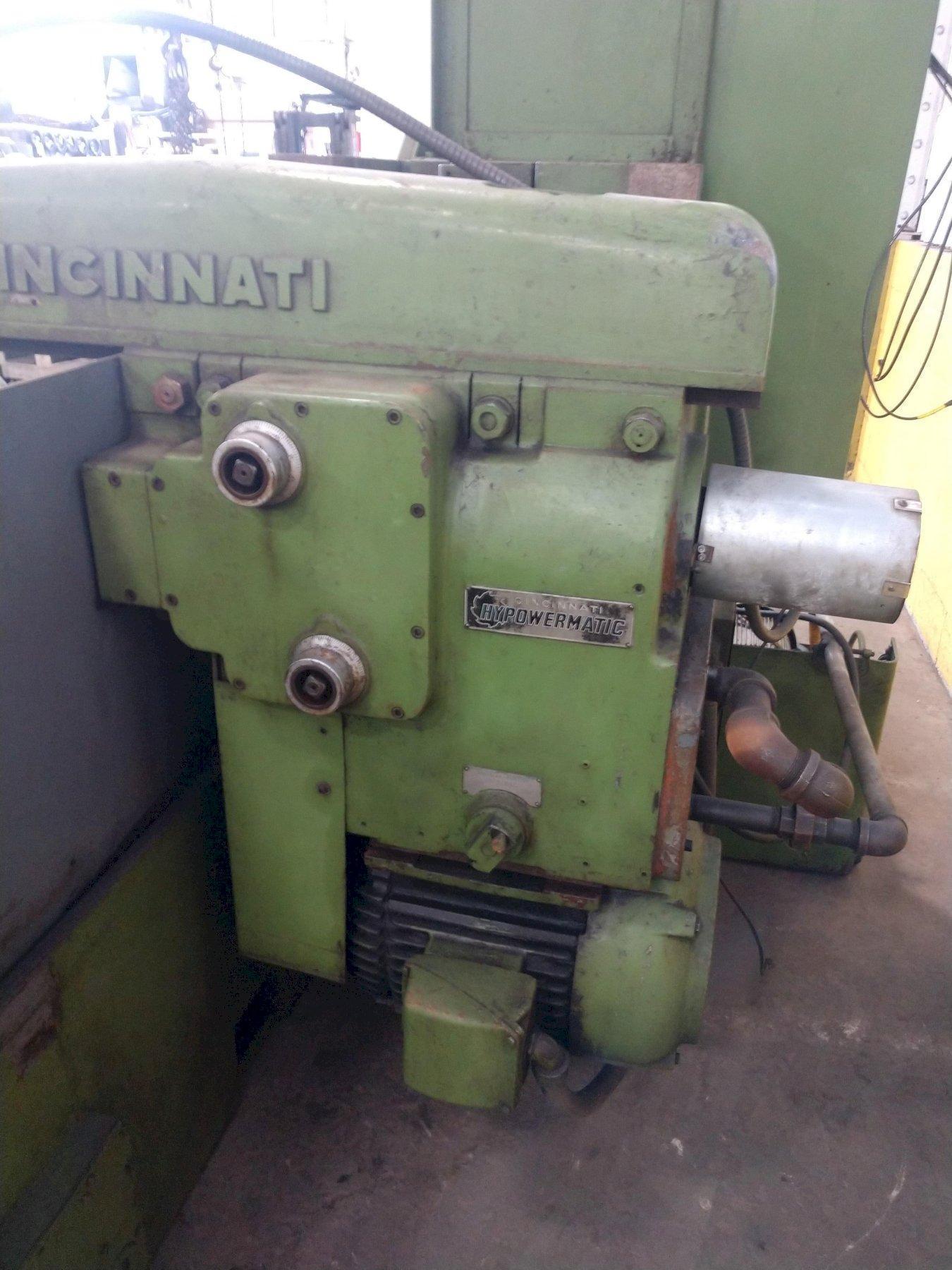

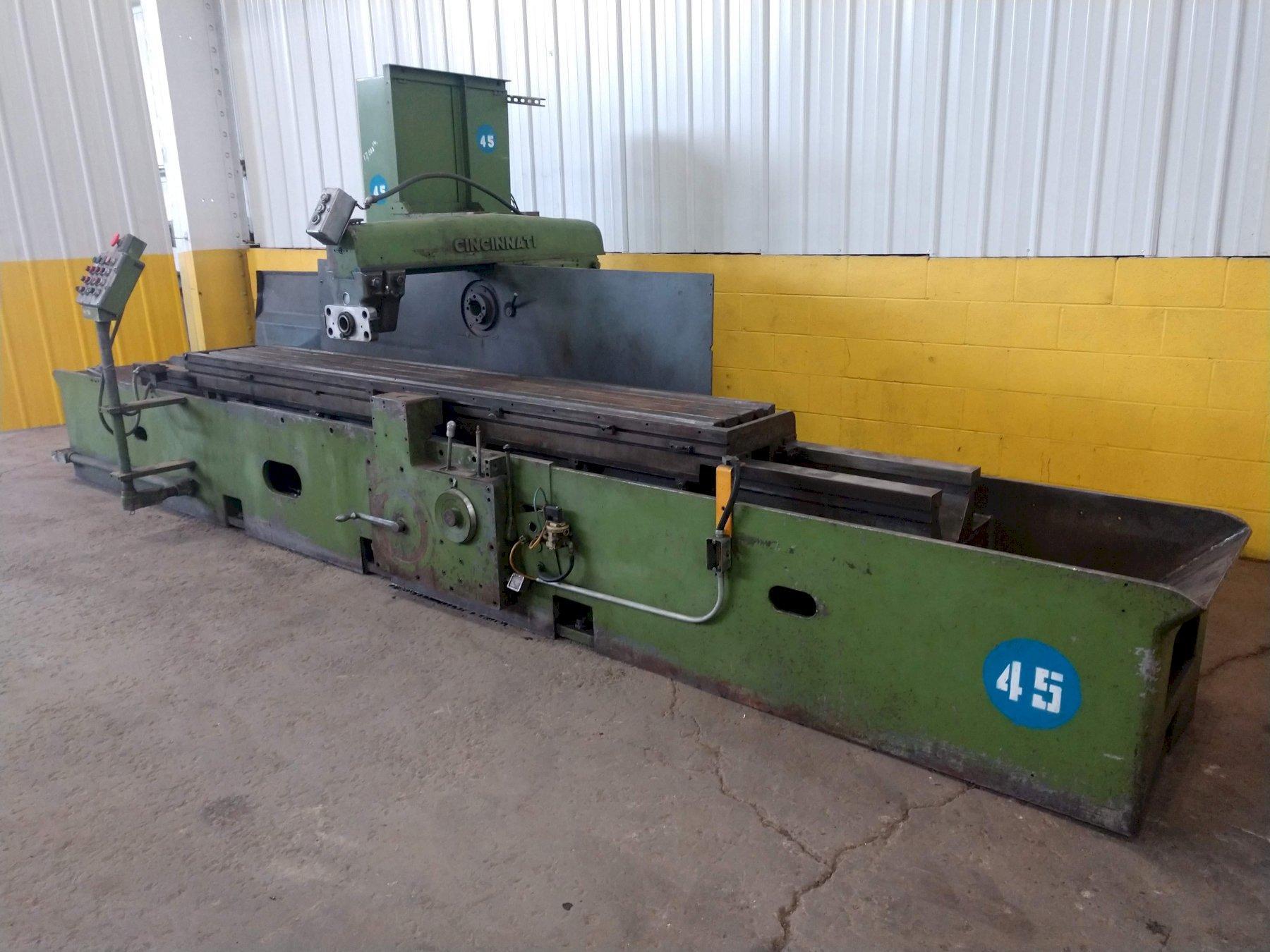

18" X 128" CINCINNATI HYPOWERMATIC HORIZONTAL SIMPLEX PRODUCTION MILL. STOCK # 1162121

Stock #: 1162121

Equipped With

SERIAL ......................... 6B5P5D-4
MODEL .......................... 400-188 HYPOWERMATIC

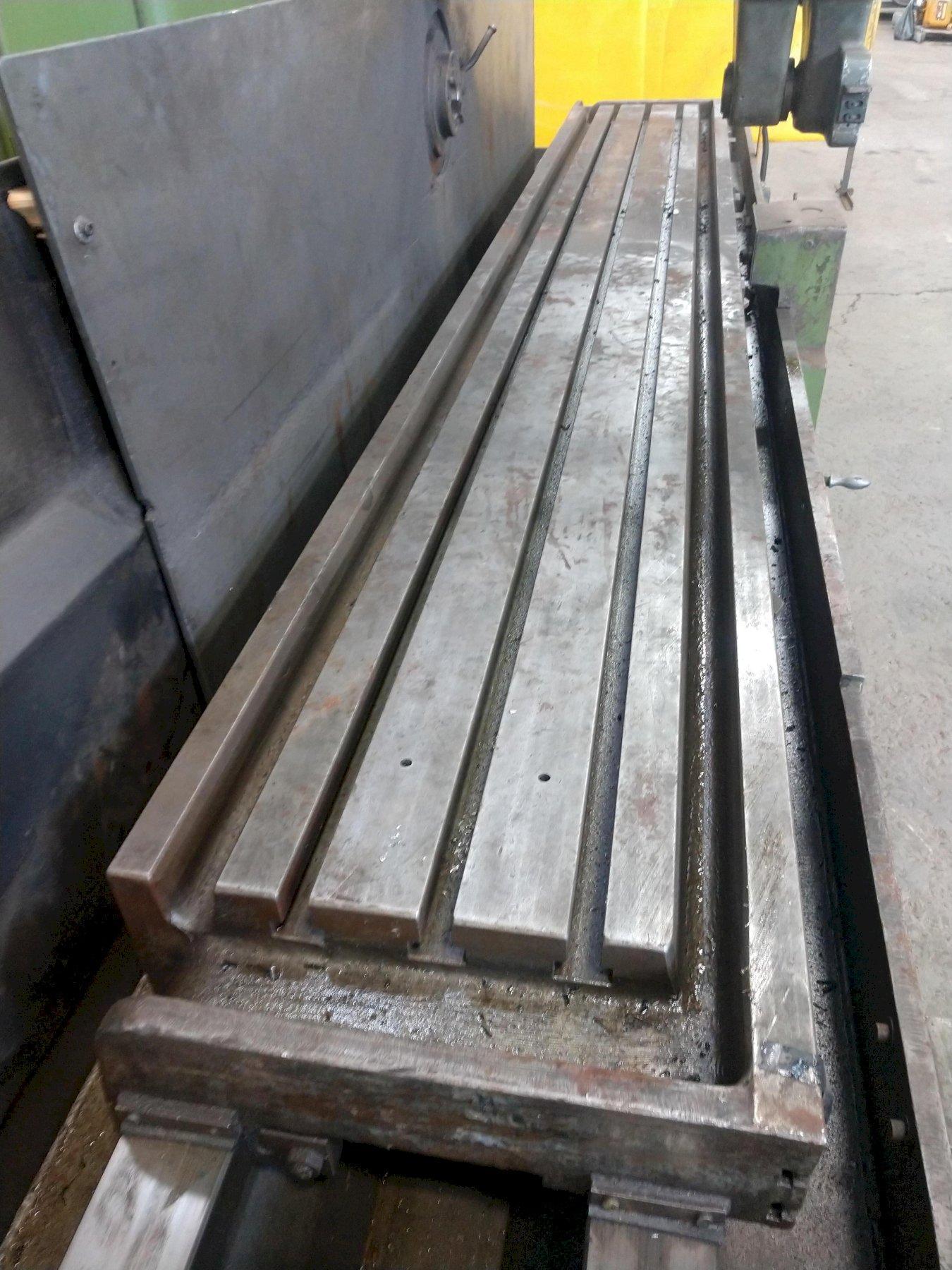

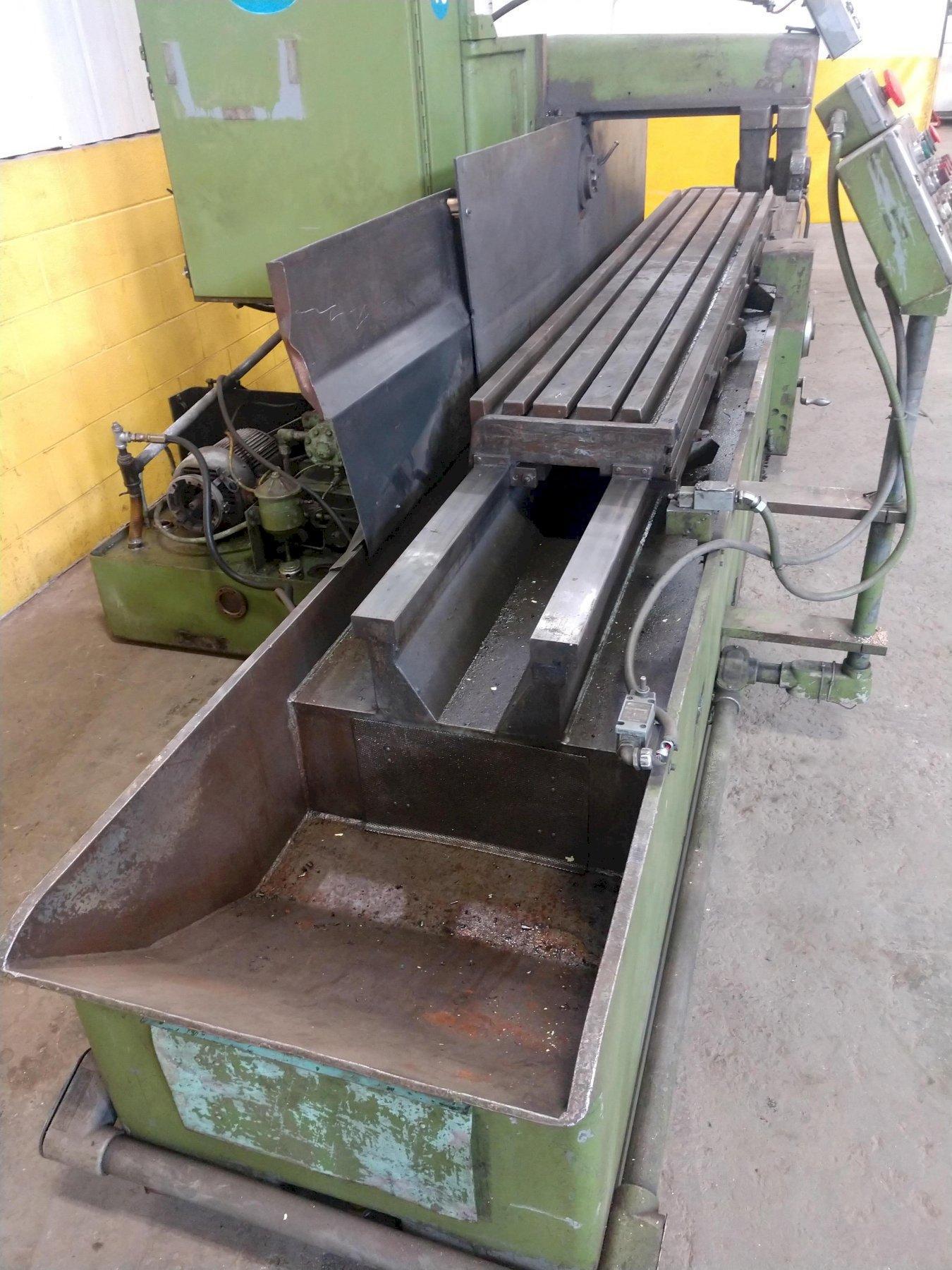

TABLE AREA (T-SLOTTED) ......... 18" X 120"
OVERALL TABLE SIZE ............. 18" X 128"
MAX WORKING WIDTH .............. 23-1/4"
TABLE TRAVEL ................... 96"
TABLE TO SPINDLE DISTANCE ...... 6" TO 16"
HEAD VERTICAL ADJUSTMENT ....... 10"
SPINDLE TAPER .................. #50 NS

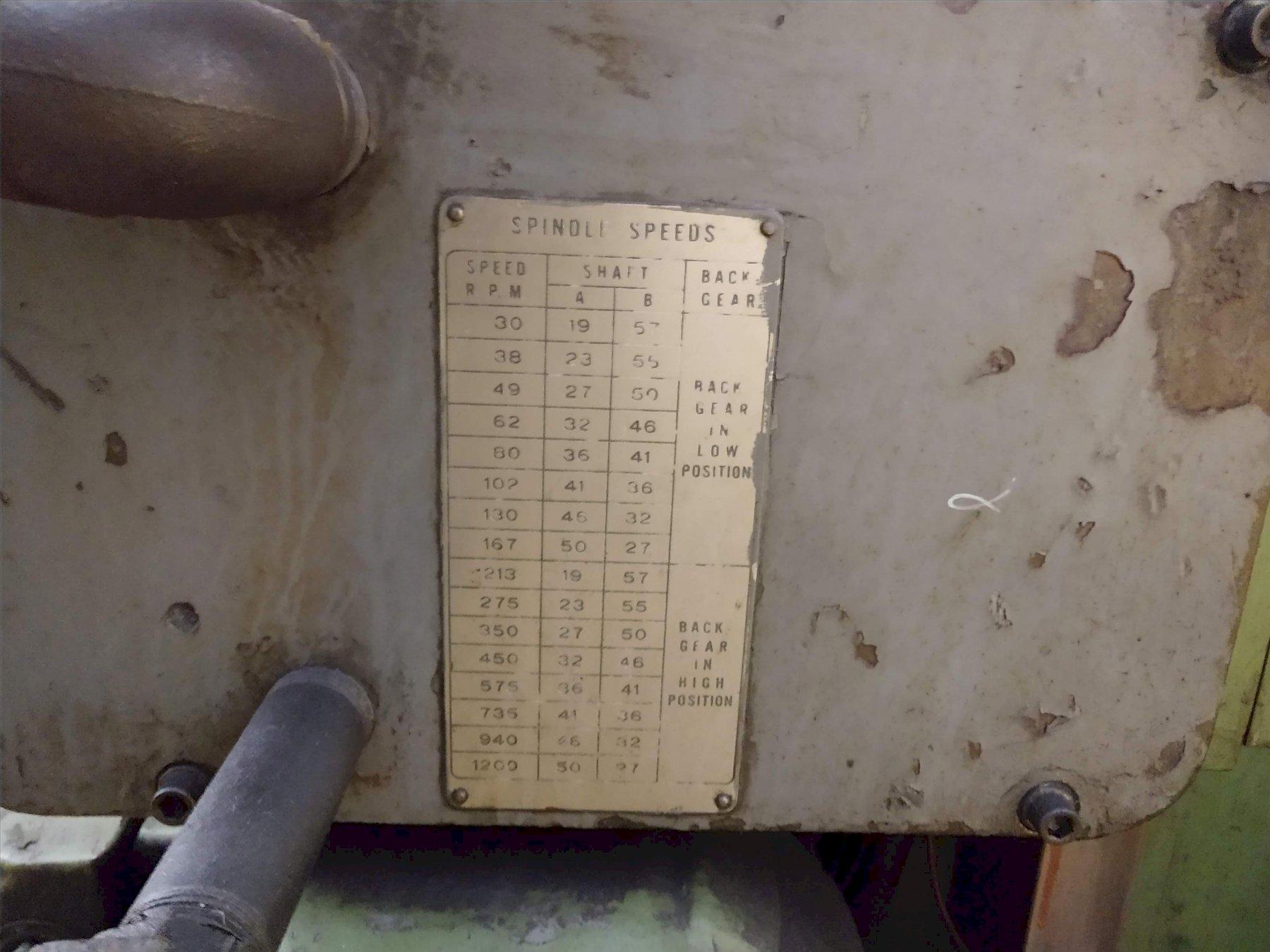

SPINDLE SPEEDS ................. (16) 30 TO 1200 RPM
TABLE FEEDS .................... 1/4 TO 150 IPM
TABLE RAPID TRAVERSE............ 300 IPM
QUILL ADJUSTMENT ............... 6"
DIAMETER OF QUILL .............. 8-1/2"
FLOOR TO TABLE ................. 32"
MANUAL & AUTO CYCLE ............ YES
COOLANT ........................ YES

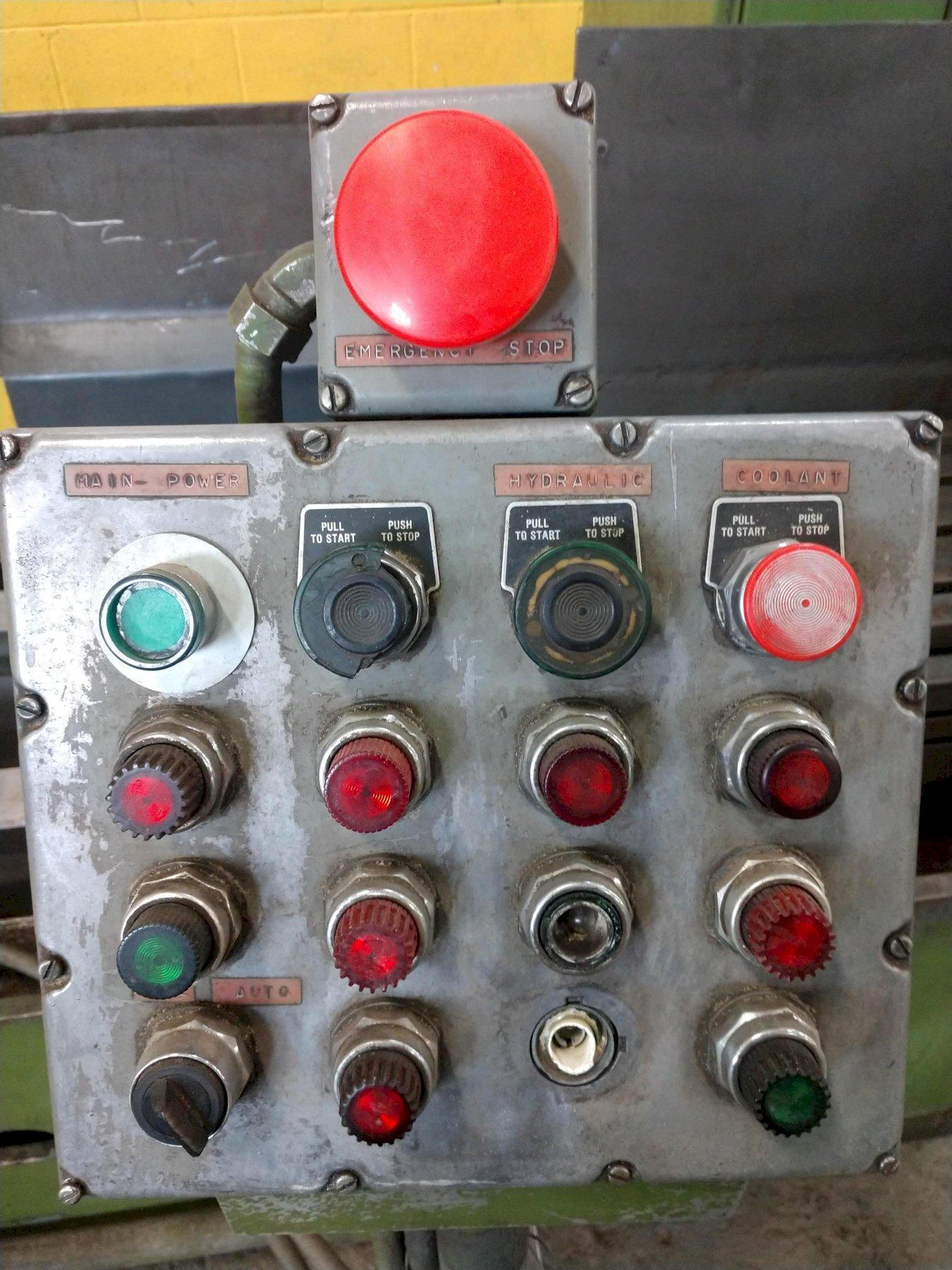

CONTROL CONSOLE STATION ........ YES

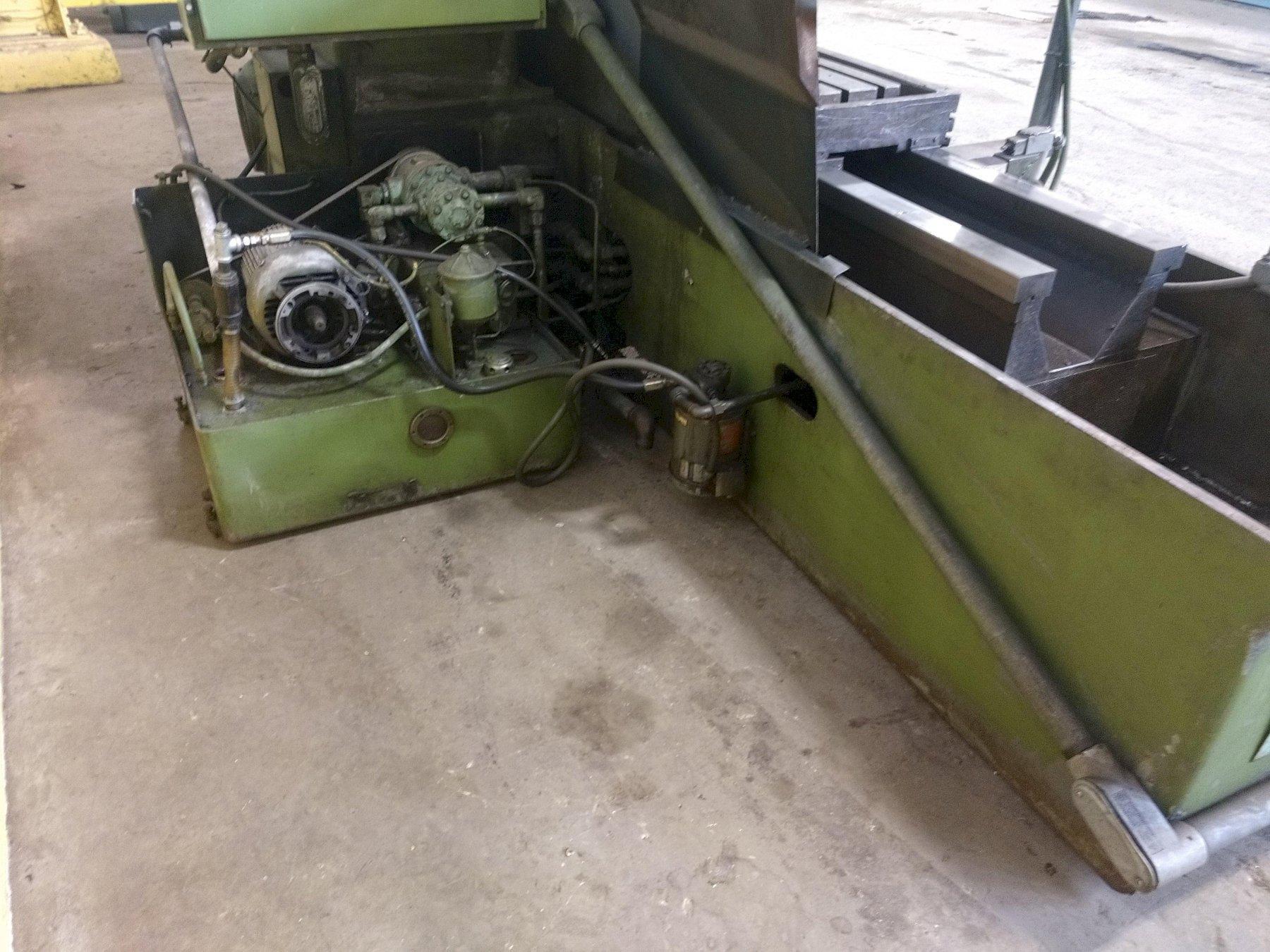

HYDRAULIC MOTOR ................ 5 HP
SPINDLE MOTOR .................. 25 HP
