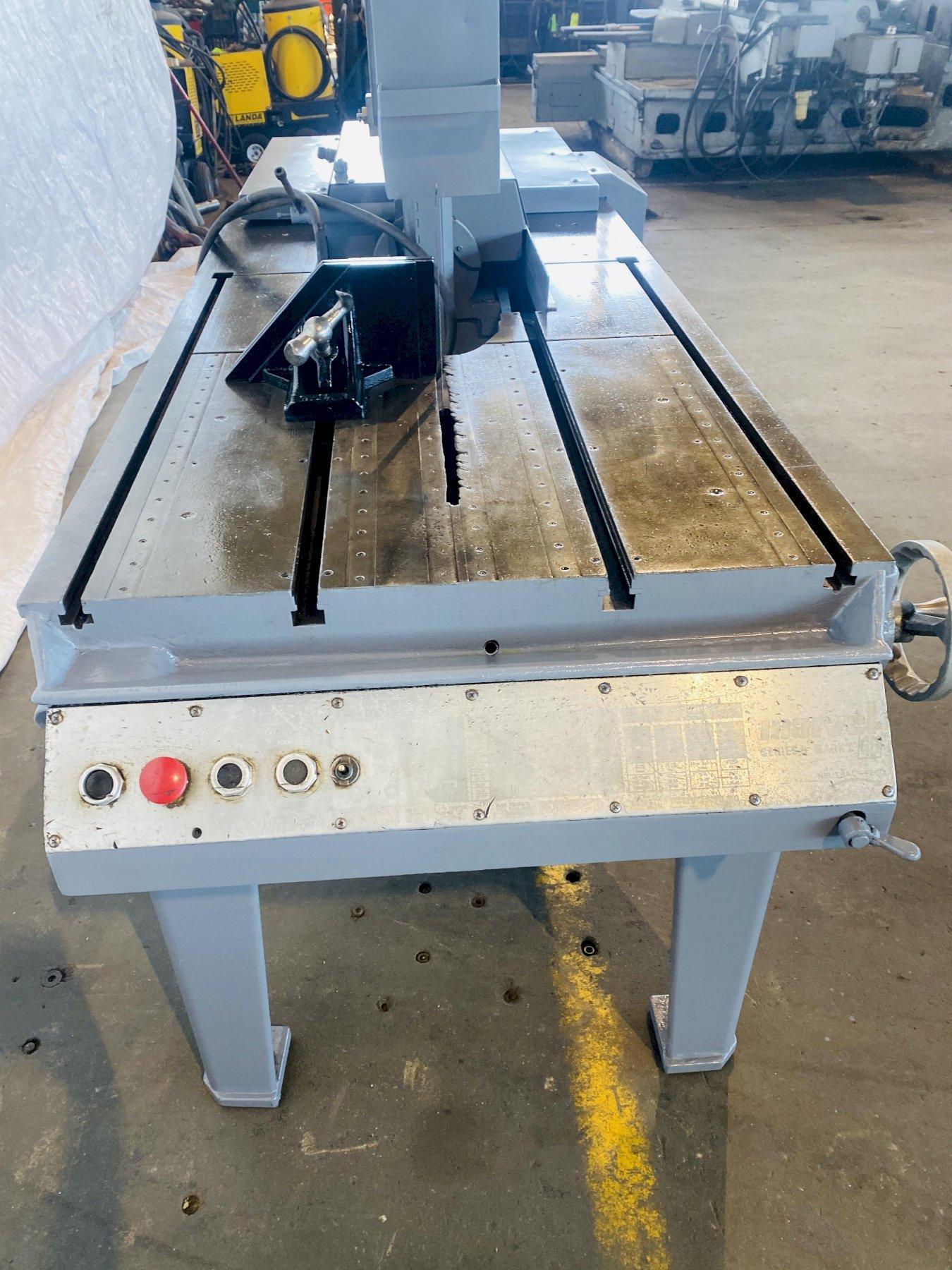

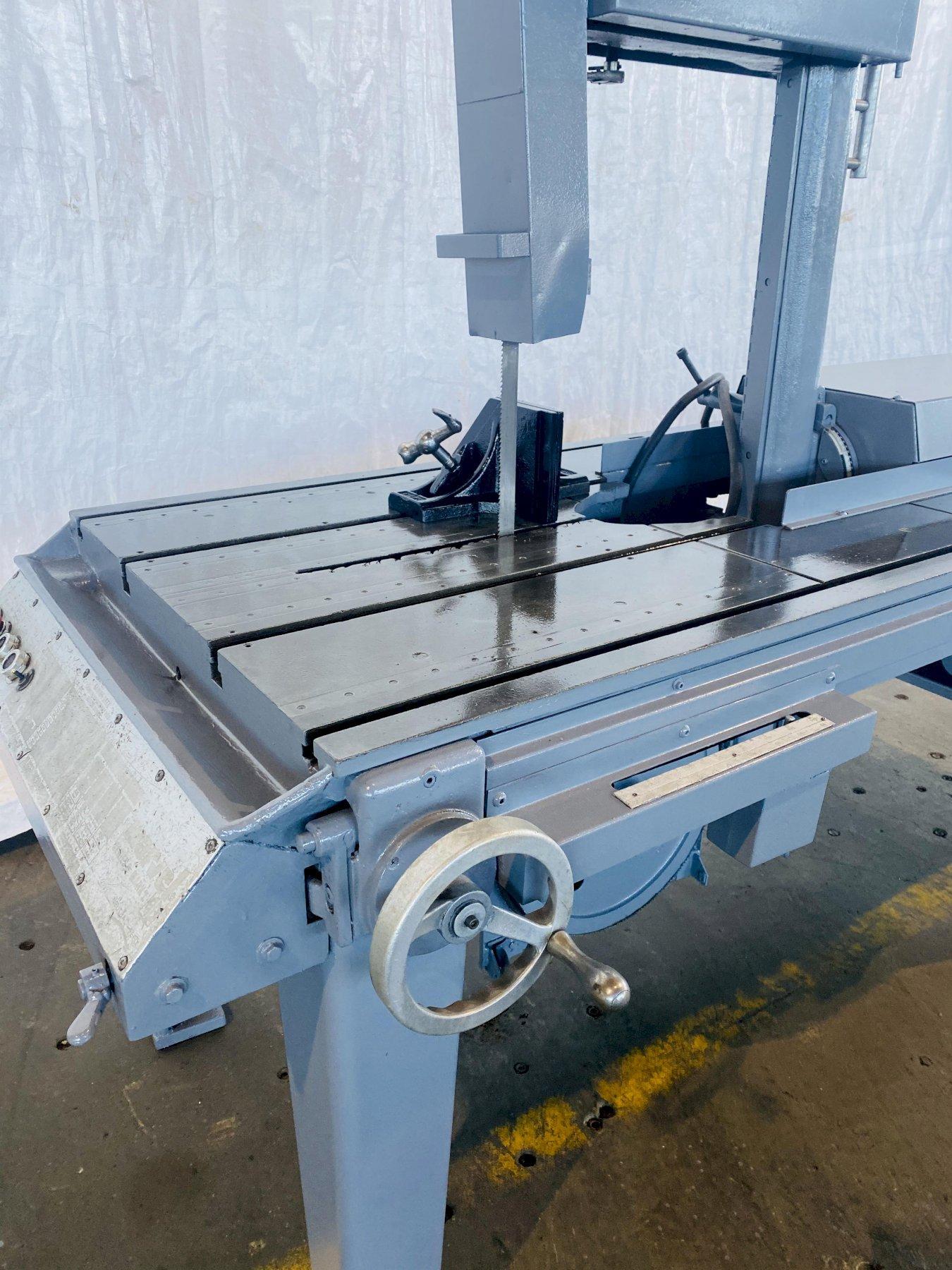

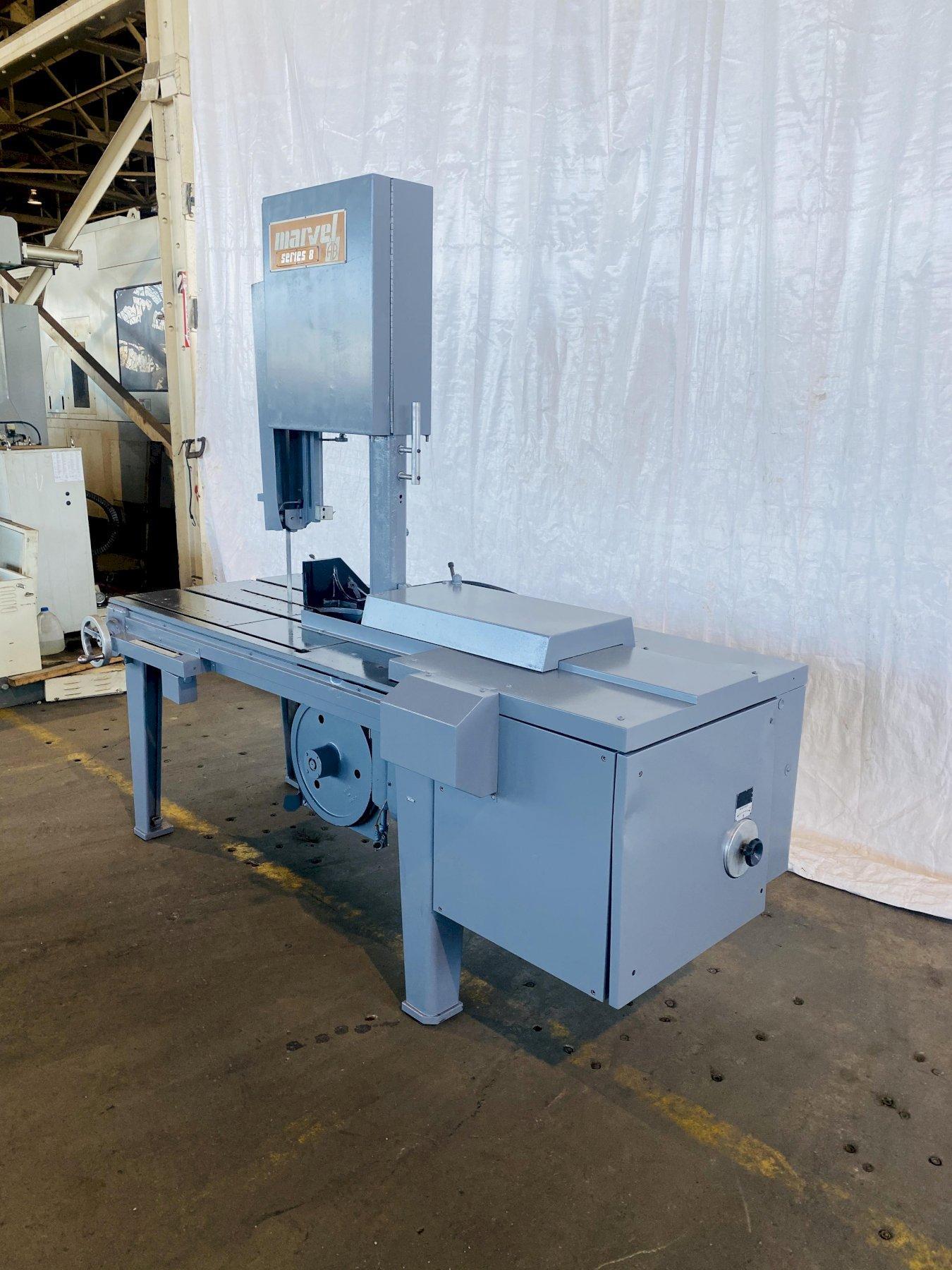

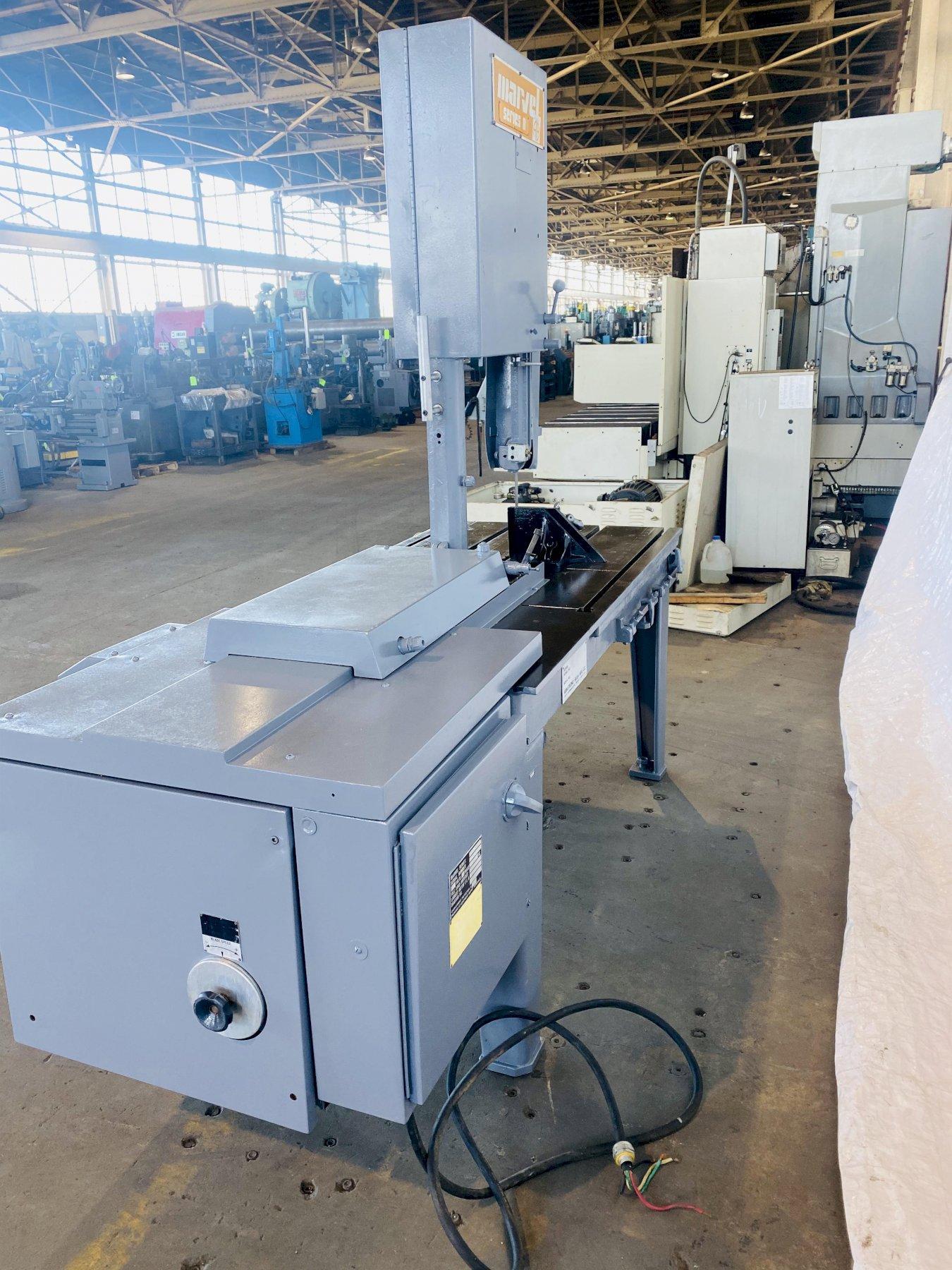

18" X 22" MARVEL SERIES 8 MARK I TILT FRAME VERICAL BANDSAW. STOCK # 0950920

Stock #: 0950920

Equipped With

MODEL........................ SERIES 8 MARK I
SERIAL....................... 820599

NOMINAL ..................... 18" X 20"
MAXIMUM ..................... 18" X 22-1/2"
BLADE @ 45 DEG NOMINAL ...... 18" X 12-1/4"
BLADE @ 45 DEG MAXIMUM ...... 18" X 13"
TABLE WORKING SURFACE ....... 33" X 24-1/4"
TABLE HEIGHT ................ 34-1/2"
NUMBER OF T-SLOTS IN TABLE .. (4) ACCEPTS 5/8" T-BOLTS
BLADE LENGTH ................ 14'6"
BLADE WIDTH/GAUGE ........... 1" X .035
MAXIMUM VISE OPENING ........ 21"
HEIGHT OF VISE JAWS ......... 6"
WIDTH OF VISE JAWS .......... 12"
INF VAR BLADE SPEEDS ........ 50-450 F.P.M.
FEED PRESSURE RANGE, INF VAR. 0-140 LBS.
APPROXIMATE WEIGHT .......... 2,670 LBS.
APPROXIMATE DIMENSIONS ...... 93"X 42"X 87"

18" X 22" MARVEL SERIES 8 MARK I TILT FRAME VERICAL BANDSAW. STOCK # 0950920

STOCK # 0950920

Specifications

View All Details
Machine Type
Saws, Band, Vertical
Manufacturer
MARVEL
Model
SERIES 8 MARK I
Year
1999
Condition
Excellent
Equipped With
MODEL........................ SERIES 8 MARK I
SERIAL....................... 820599

NOMINAL ..................... 18" X 20"
MAXIMUM ..................... 18" X 22-1/2"
BLADE @ 45 DEG NOMINAL ...... 18" X 12-1/4"
BLADE @ 45 DEG MAXIMUM ...... 18" X 13"
TABLE WORKING SURFACE ....... 33" X 24-1/4"
TABLE HEIGHT ................ 34-1/2"
NUMBER OF T-SLOTS IN TABLE .. (4) ACCEPTS 5/8" T-BOLTS
BLADE LENGTH ................ 14'6"
BLADE WIDTH/GAUGE ........... 1" X .035
MAXIMUM VISE OPENING ........ 21"
HEIGHT OF VISE JAWS ......... 6"
WIDTH OF VISE JAWS .......... 12"
INF VAR BLADE SPEEDS ........ 50-450 F.P.M.
FEED PRESSURE RANGE, INF VAR. 0-140 LBS.
APPROXIMATE WEIGHT .......... 2,670 LBS.
APPROXIMATE DIMENSIONS ...... 93"X 42"X 87"
