18" X 5.50" X 20,000 LB PRO ECO SLITTING LINE. STOCK # 0519221

Stock #: 0519221

Equipped With

-UNCOILER:
20" - 24" EXPANSION RANGE
HYDRAULIC EXPANSION
20" FACE MANDREL
4 SEGMENT MANDREL
HOLDOWN ARM
AIR OPERATED DISC BRAKE

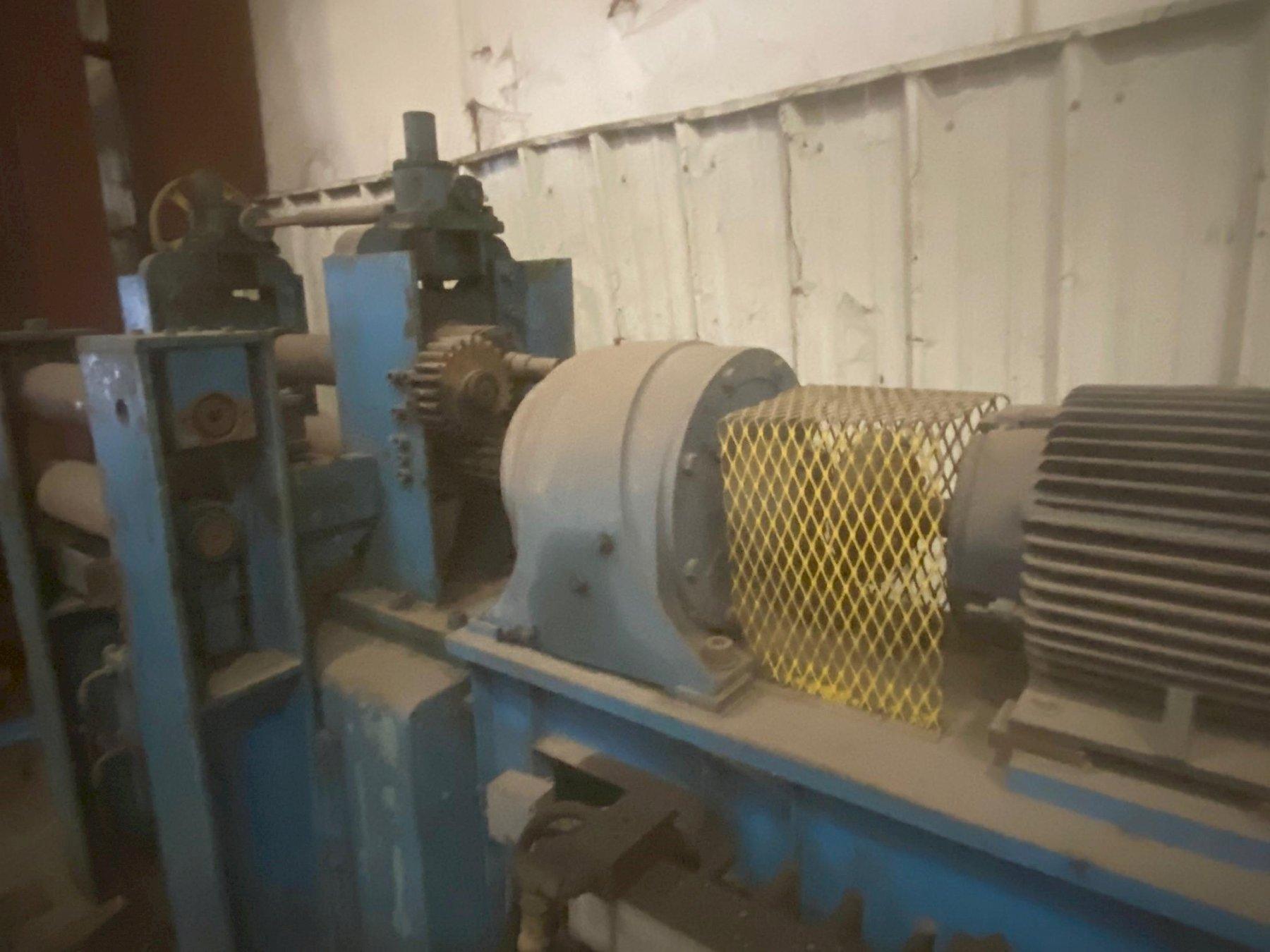

-SLITTER HEAD:
5.5" DIA. X 21.5" FACE ARBORS
6.5" DIA ENTRY PINCH ROLLS
ENTRY SIDE GUIDES
40 HP AC MOTOR, 1770 RPM, 440 VOLT
GEAR REDUCER W/ 11.4:1 RATIO
65" PASSLINE HEIGHT

-SCRAP WINDER:
HYDRAULIC MOTOR DRIVE
OSCILLATE WIND

-TENSION STAND:
DRAG WIPE DESIGN
9' LONG PIT TABLE
ENTRY PASSLINE ROLL
EXIT CROP SHEAR
20" LONG BLADE
HYDRALIC CYLINDER OPERATED
EXIT SEPERATOR TOOLING BAR
EXIT THREADING TABLE TO RECOILER
61" PASSLINE HEIGHT

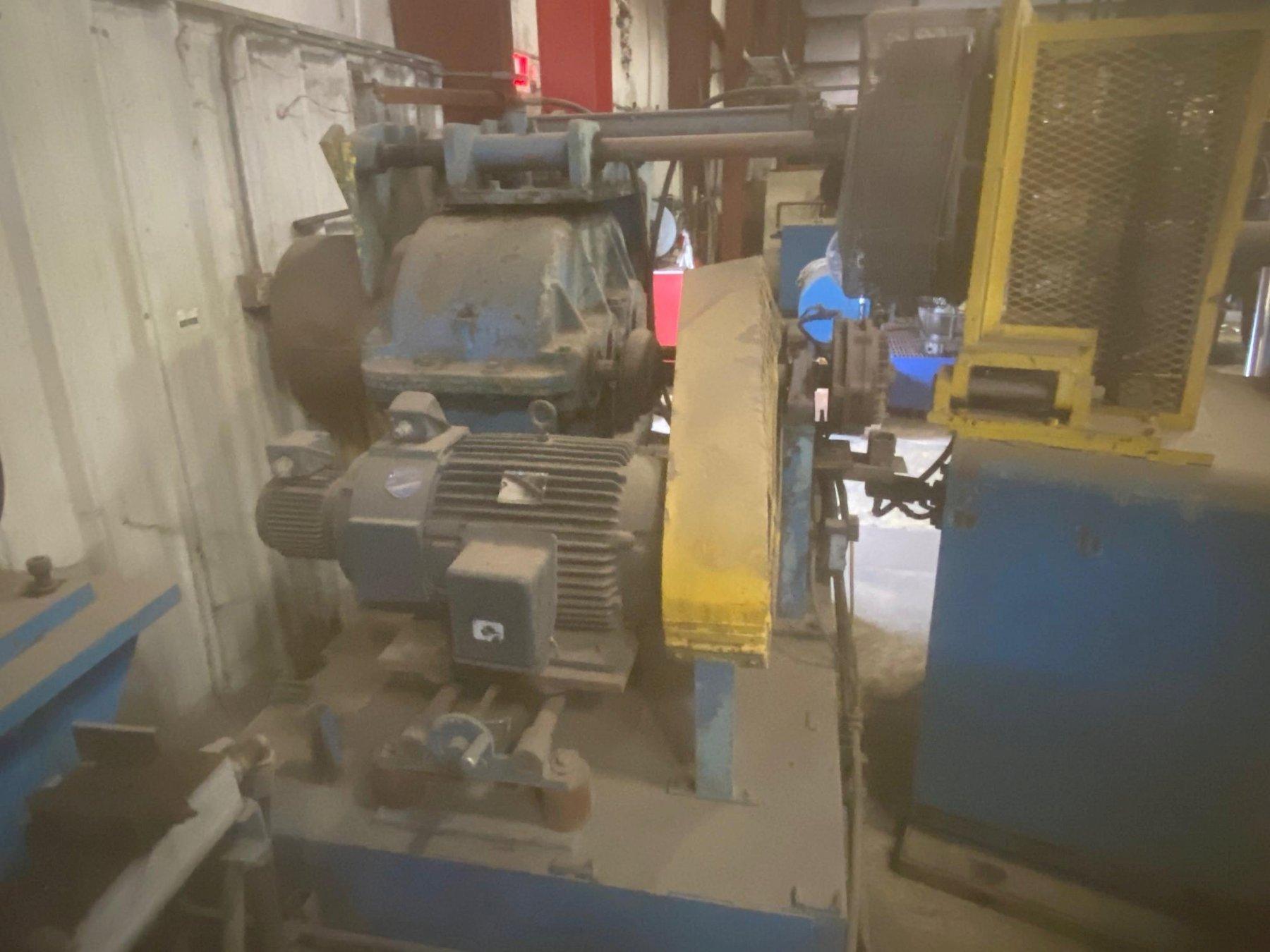

-RECOILER:
16" DIA. X 21.5" FACE DRUM WITH 20" AND 24" DIA. BOLT ON PADS
MANAUL CLAMP AND EXPANSION
HYDRAULIC PUSHOFF
50 HP AC MOTOR, 1765 RPM, 460 V
3 PHASE INVERTER DUTY AC INDUCTION MOTOR
BELT DRIVEN WITH 1.6:11 RATIO APPROX MAIN GEARBOX WITH HORTON AIR HOLDING BRAKE
53" PASSLINE HEIGHT
OVERAL SIZE: 108" L X 82" W X 83" T

2 ARM TURNSTILE
MANUAL ROTATION
FREE STANDING OVERARM SEPERATOR
