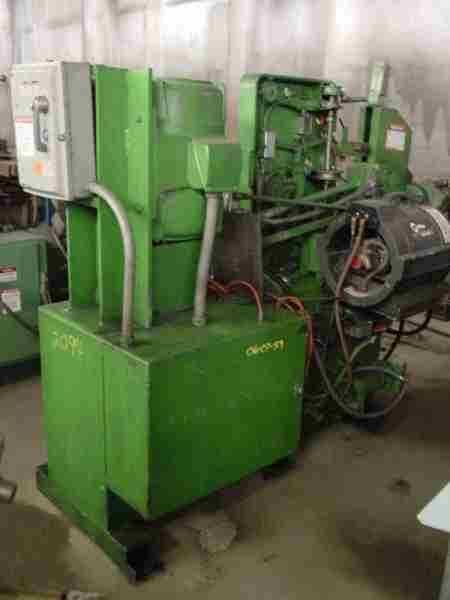

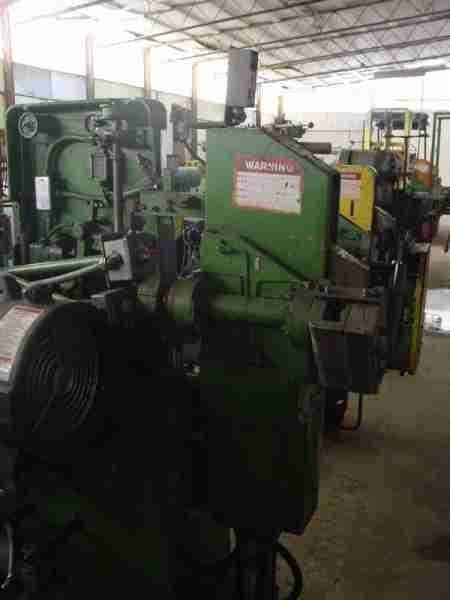

1"x .065" Pines #5T Tube Bender

Stock #: 0105017

Equipped With

SPECIFICATIONS:
Material:
Round Tubing: Non-Ferrous, 25,000 psi (two): 1″ x .072″ (25.4 mm x 1.82 mm)
Mild Steel, Y.P. 40,000 psi (two): 1" x .065" (25.4 mm x 1.65 mm)
Stainless, Y.P. 60,000 psi (two): 1" x .049" (25.4 mm x 1.24 mm)
Square Tube: Mild Steel (two): 7/8" x .035" (22.2 mm x .889 mm)
Round Bar: Mild Steel (two): 5/8" (15.8 mm)
Square Bar: Mild Steel (two): 1/2" (12.7 mm)
Hydraulic Power: 5 Tons
Bends Per Hour: 2 Tubes, 1800/Hour
Maximum Angle: 100 Degrees, Normal Tooling
Maximum C.L.R.: 4-1/2", 90 Degrees Bend or Less
Minimum C.L.R.: Approx. 2 to 3 x Work Diameter
Height Floor to Dies: 40"
Motor Data: 20 HP

OVERALL DIMENSIONS: 3′ 4" x 7′ x 5′ 4" High
APPROXIMATE WEIGHT: 3,100 Lbs.

1"x .065" Pines #5T Tube Bender

STOCK # 0105017

Specifications

View All Details
Machine Type
Benders, Pipe, Tube & Bar
Manufacturer
PINES
Model
N/A
Year
N/A
Condition
Good
Equipped With

SPECIFICATIONS:
Material:
Round Tubing: Non-Ferrous, 25,000 psi (two): 1″ x .072″ (25.4 mm x 1.82 mm)
Mild Steel, Y.P. 40,000 psi (two): 1" x .065" (25.4 mm x 1.65 mm)
Stainless, Y.P. 60,000 psi (two): 1" x .049" (25.4 mm x 1.24 mm)
Square Tube: Mild Steel (two): 7/8" x .035" (22.2 mm x .889 mm)
Round Bar: Mild Steel (two): 5/8" (15.8 mm)
Square Bar: Mild Steel (two): 1/2" (12.7 mm)
Hydraulic Power: 5 Tons
Bends Per Hour: 2 Tubes, 1800/Hour
Maximum Angle: 100 Degrees, Normal Tooling
Maximum C.L.R.: 4-1/2", 90 Degrees Bend or Less
Minimum C.L.R.: Approx. 2 to 3 x Work Diameter
Height Floor to Dies: 40"
Motor Data: 20 HP

OVERALL DIMENSIONS: 3′ 4" x 7′ x 5′ 4" High
APPROXIMATE WEIGHT: 3,100 Lbs.
