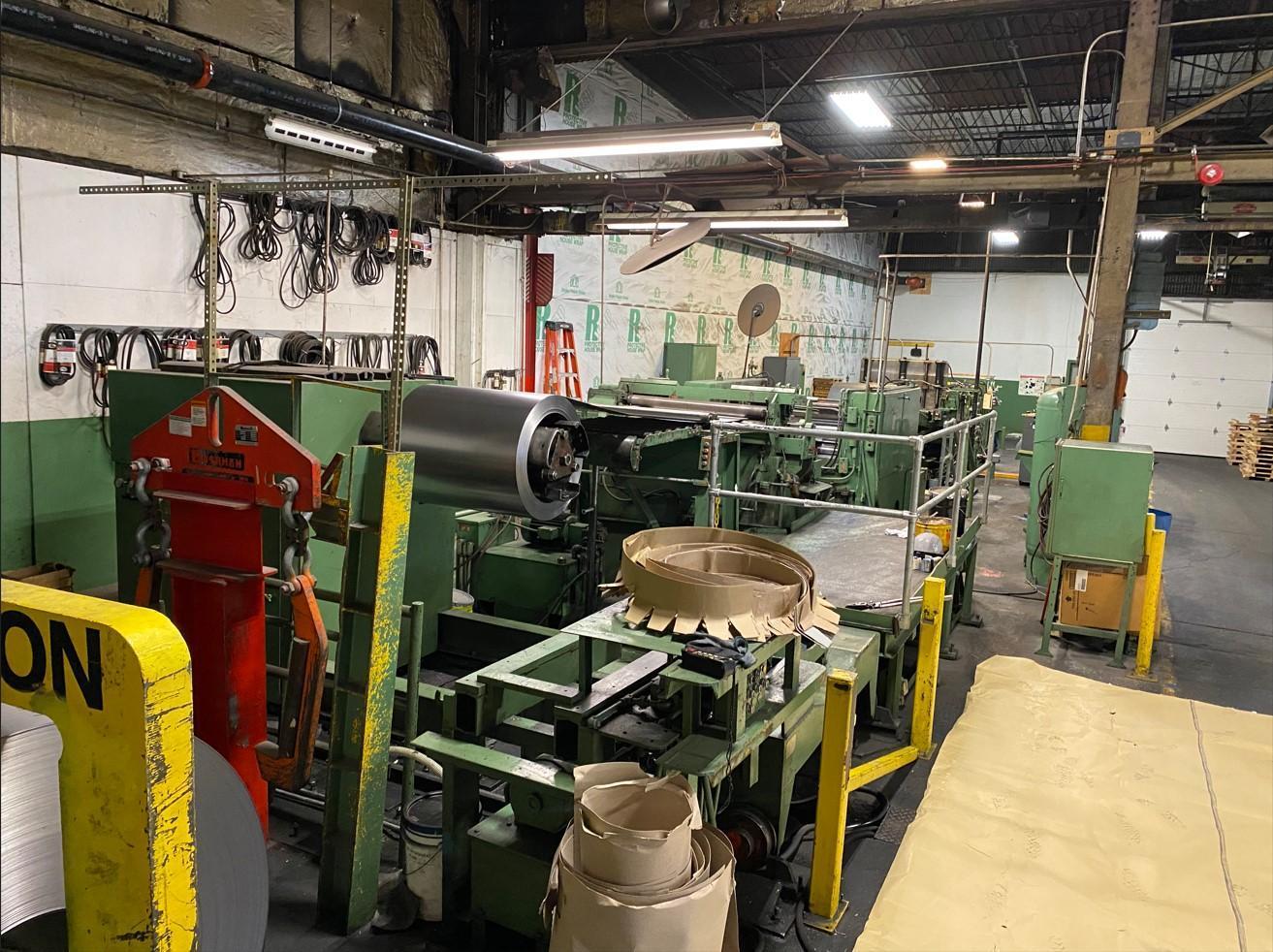

20,000 LB X 48" X .078" DAHLSTROM CUT THE LENGTH LINE. STOCK # 0849522

Stock #:

Equipped With

UNCOILER:
SERIAL..............................: SRF-74939
MODEL...............................: RM48-20S
CAPACITY............................: 20,000 LBS
WIDTH...............................: 48"
COIL I.D. RANGE.....................: 16" - 20", PADDLES FOR 20" - 24"
COIL O.D............................: 72"
EXPAND/RETRACTION...................: YES
FORWARD/REVERSE.....................: YES
COIL CAR............................: YES

EDGE GUIDE PINCH ROLL, EDGE TRIMMER, SCRAP CHOPPER

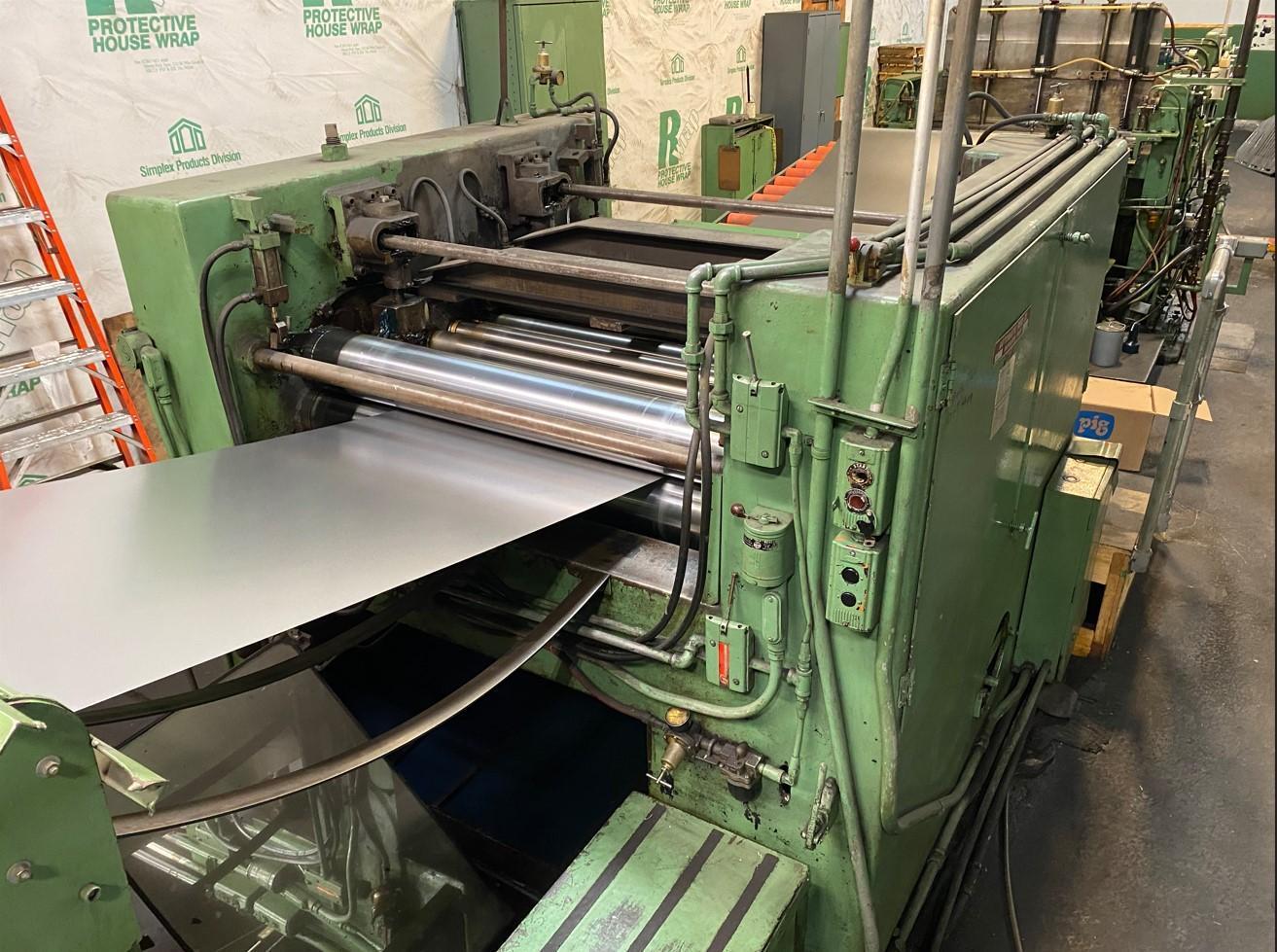

13 ROLL AUTOMATIC FEED CO FLATTENER
SERIAL..............................: 793
MODEL...............................: 13-32-48
CAPACITY............................: 14 GA
WIDTH...............................: 48"
ROLLS...............................: 13, 6 OVER 7
ENTRY PINCH ROLLS...................: YES
EXIT PINCH ROLLS....................: YES
ONE SET OF BACK UP ROLLS............: YES

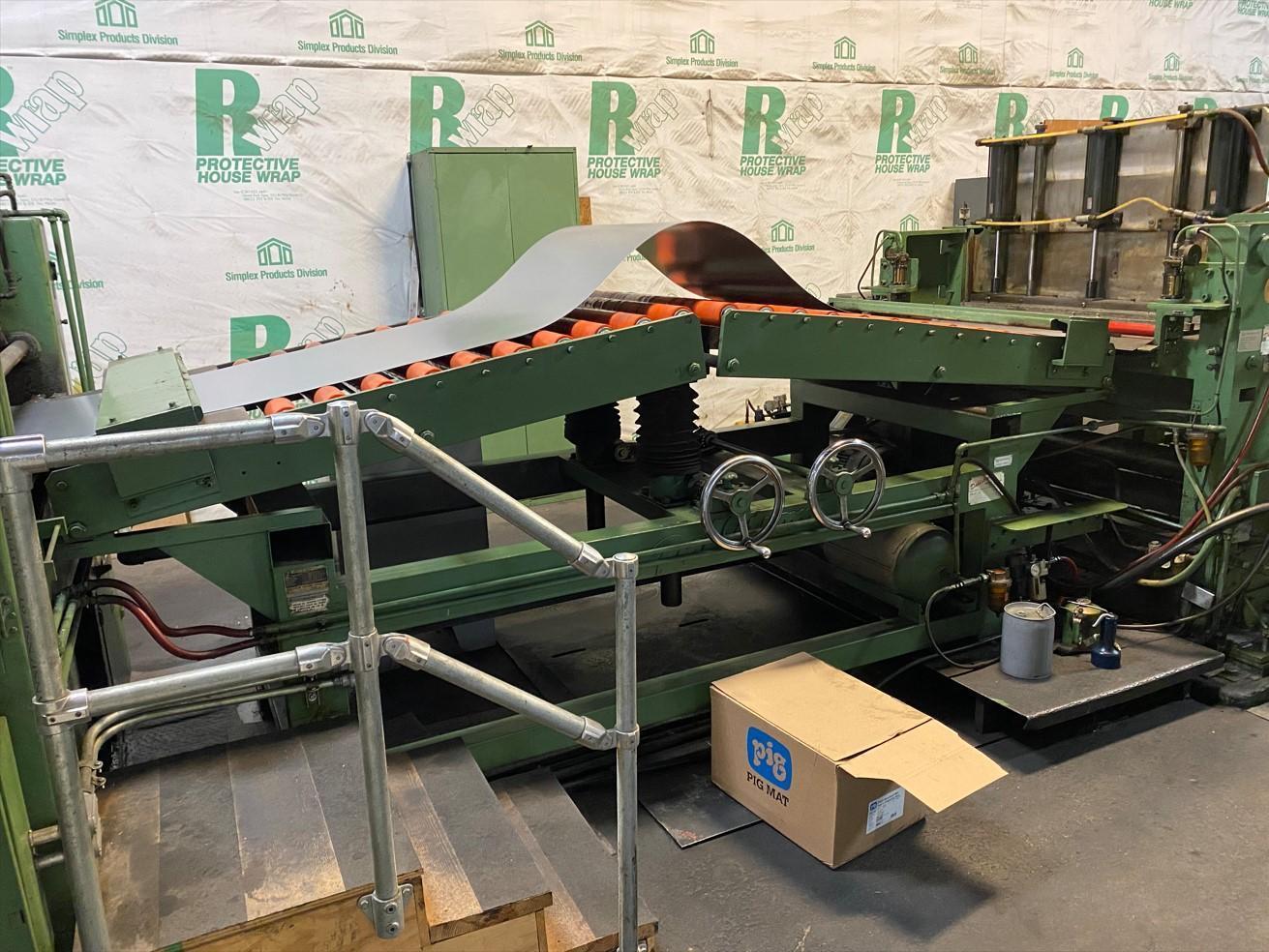

DAHLSTROM PEELER/HUMP TABLE
SERIAL..............................: H-143
MODEL...............................: 16AHT
WIDTH...............................: 48"

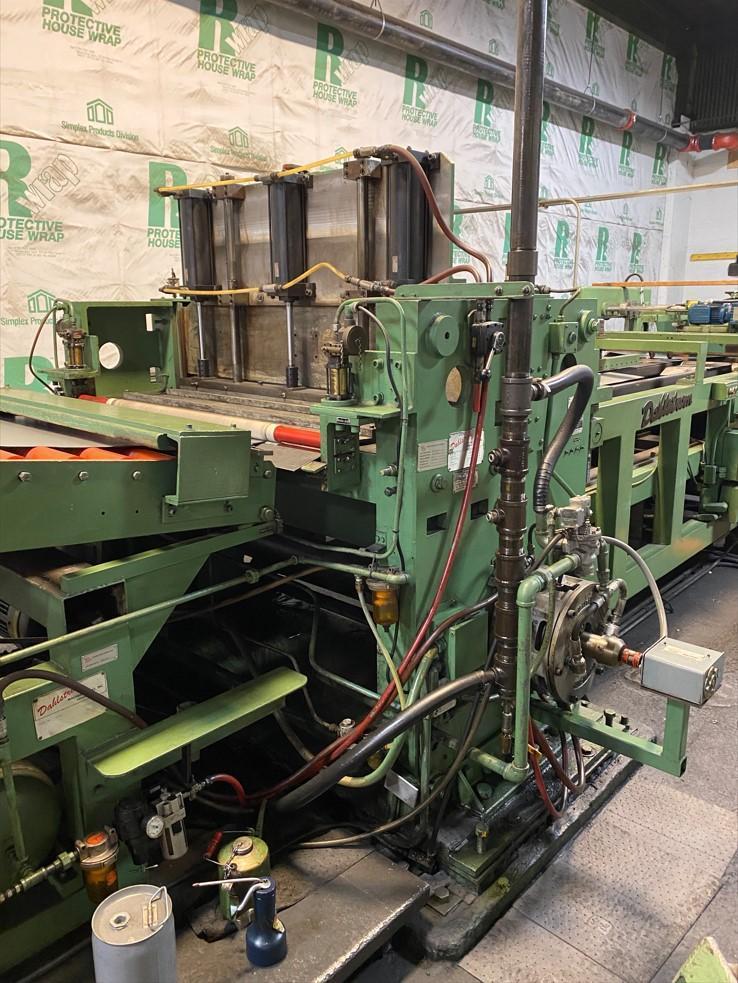

DAHLSTROM SHEAR
SERIAL..............................: SH-146
MODEL...............................: 8SH
CAPACITY............................: 14 GA
COIL WIDTH..........................: 48"
STROKE..............................: 3/4"
FLYWHEEL RPM........................: 375
MOTOR...............................: 10 HP
LINE MOTOR..........................: 440 VOLT
CONTROL.............................: 110 VOLT

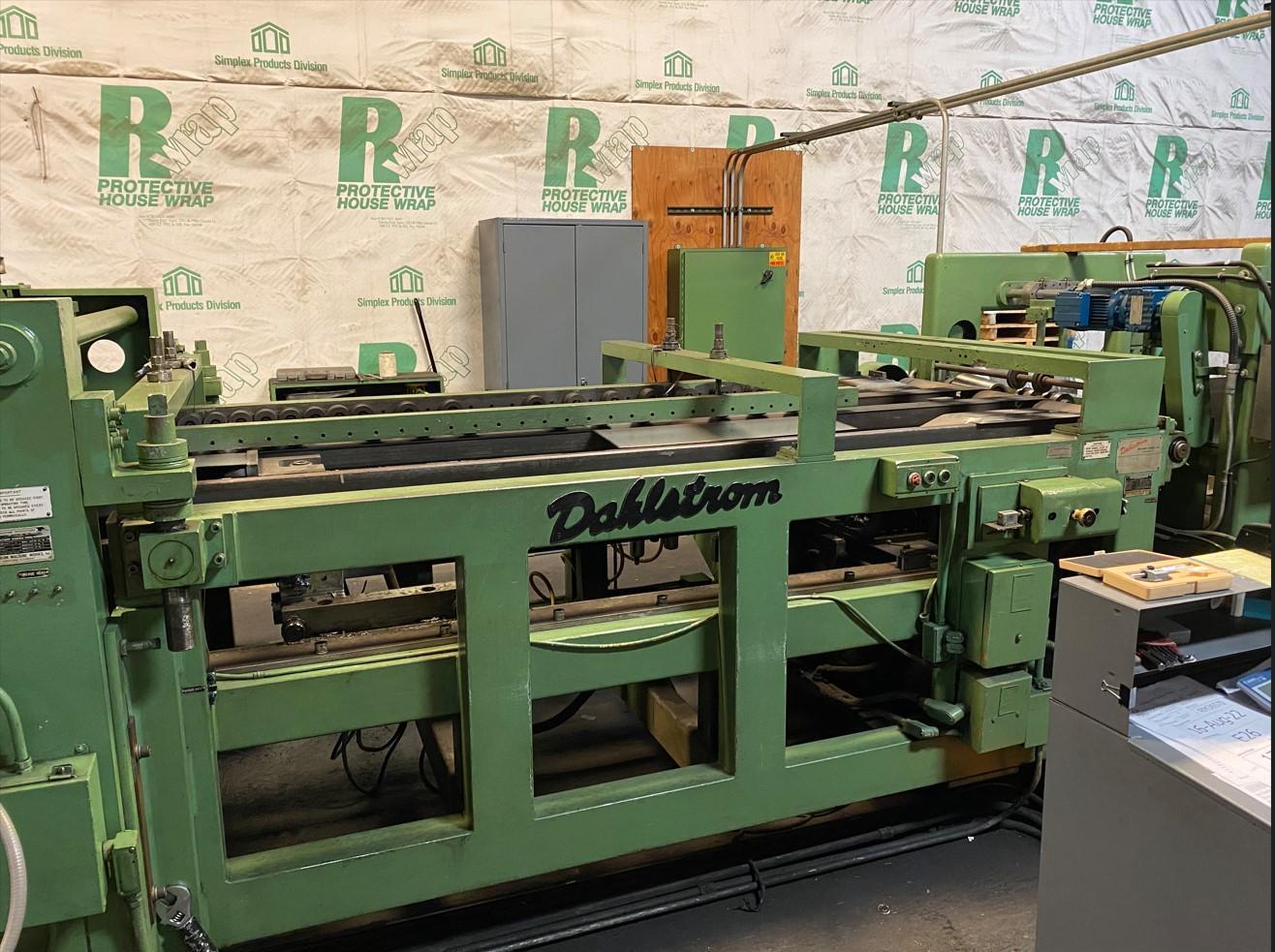

DAHLSTROM RUN OUT:
SERIAL..............................: M-351
MODEL...............................: 2SPS
LENGTH..............................: 12" - 84"
WIDTH...............................: 12" - 48"
SPEED...............................: 50 - 300 FPM

ADDITIONAL PICTURES AVAILABLE UPON REQUEST
