(2015) 10″ X 10″ X .40″ TAURING ALPHA-200CNCI CNC ANGLE BENDING ROLL. STOCK # 0744422

(2015) 10" X 10" X .40" TAURING ALPHA-200CNCI CNC ANGLE BENDING ROLL. STOCK # 0744422

Stock #: 0744422

Equipped With

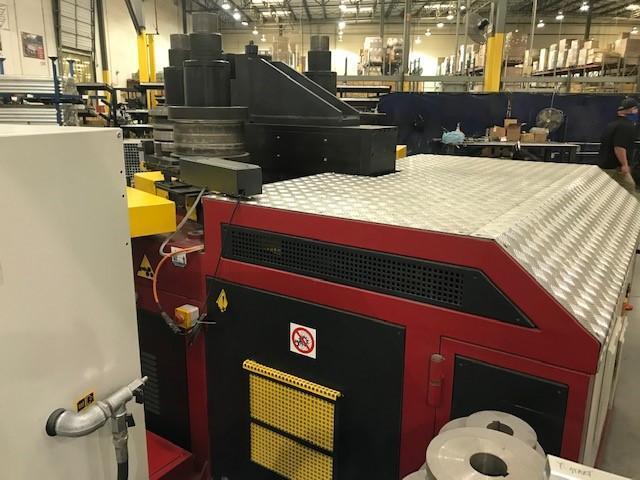

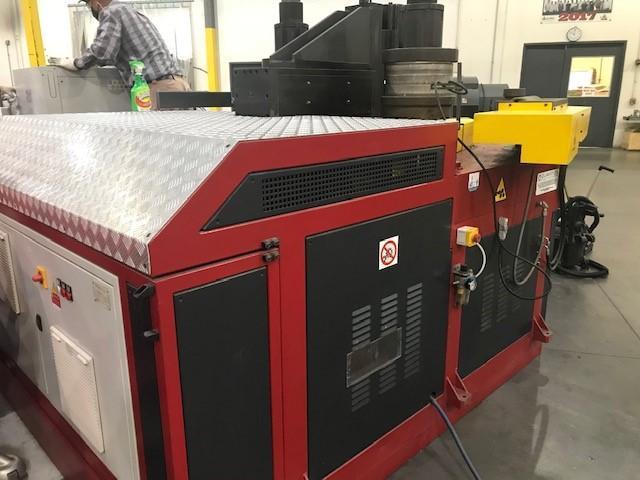

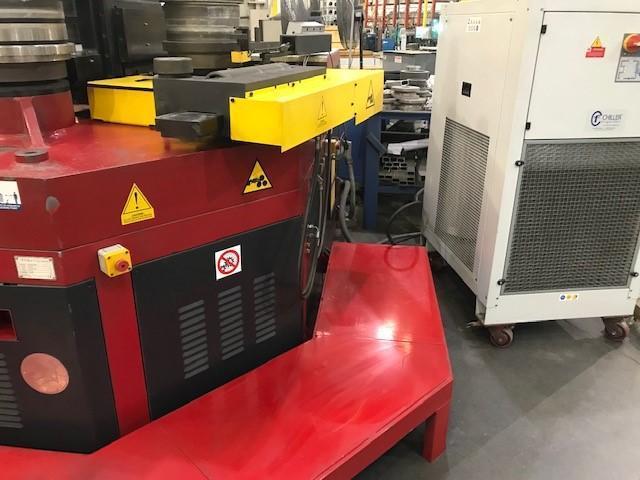

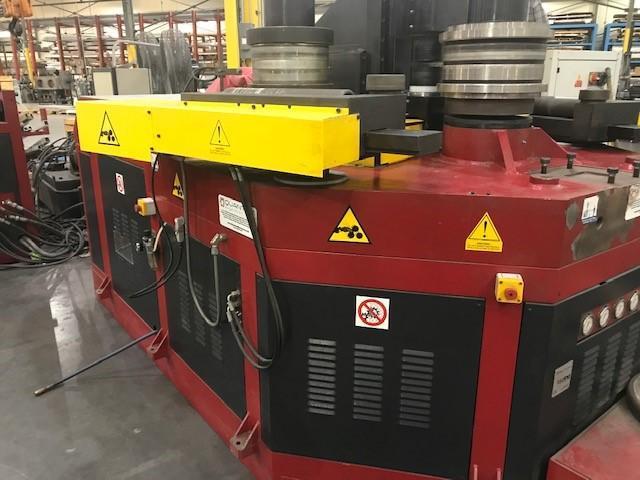

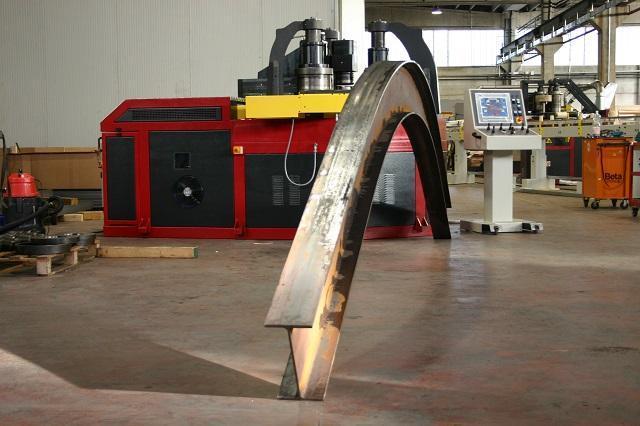

Tauring Alpha 200CNC Angle Bending Roll (2015)
Specifications (Preliminary)
Round Tube: 10.75" x 0.5" / Min. Radius: 87"
Square Tube: 10" x 10" x .40" / Min. Radius: 80"
Flat Bar (Hard Way): 10" x 2.3 / Min. Radius: 32"
Angle (Leg Out): 7.8" x 7.8" x 0.78" / Min. Radius: 78"
H Beam: IPE 330 / Min. Radius: 75" PLEASE NOTE - MINIMUM RADII SHOWN MAY REQUIRE MULTI- PASS

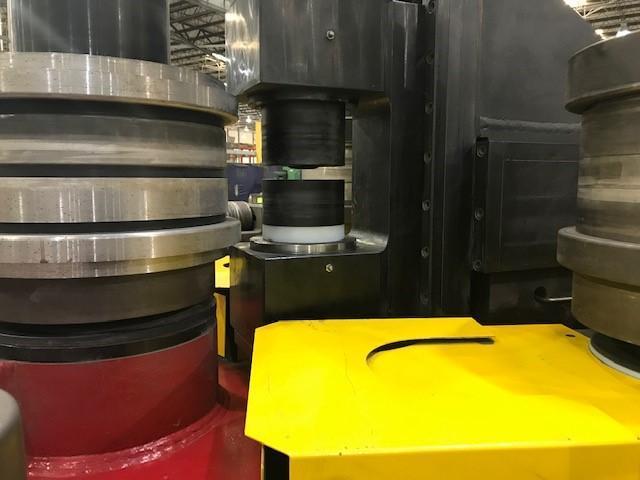

Driven Rolls: 3
Shaft Diameter: 490mm
Standard Shaft Working Length: 15.75"
Shaft Revolutions Per Minute: 7.1 R.P.M.
Main Motor Motor: 24.1 HP
Dimensions / Weight:
41"W x 61"L x 74"H / Machine Weight - 22,046 lbs.

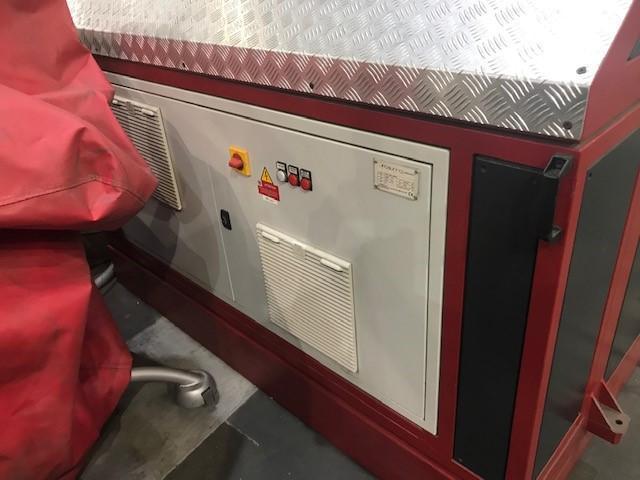

Current Electrics:
Voltage - 230 Volt/3 Phase/60Hz and 480 /3 /60Hz available
Equipped With:

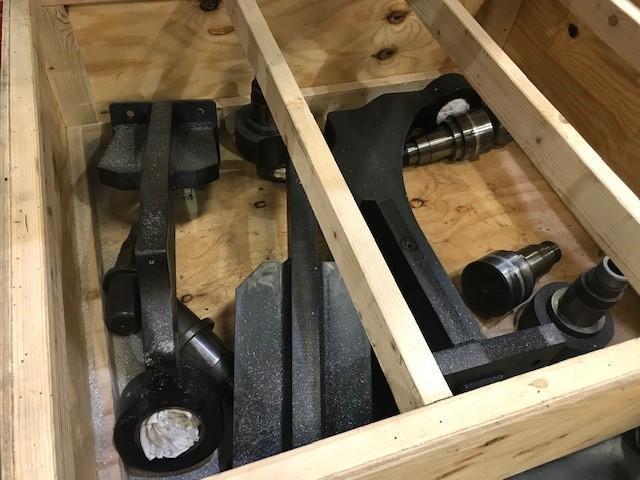

Alpha200CNCi, HE Device, Hydraulic Roll Adjustment, Universal Tool Set - 1 Set

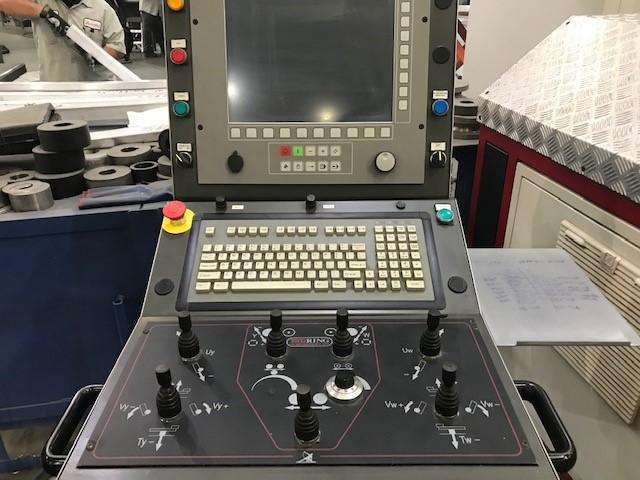

CNC Control:
Alpha200CNCi - "CNC" stands for "computerized, numerical control", "i" for "interpolation" and "PLUS" for "plus value". It is the evolution of an already astonishing product that today is even more amazing. The CNCi is an advanced numerical control Windows based able to manage two or more interpolated axes with unsurpassed progression and accuracy. The 15" touch screen can activate macro-instructions and commands by simply touching the icons presented on the screen. One of CNCi strength points is represented by its simple and intuitive software, that allows programming any types of geometrical shape - regular and irregular - by simply drawing it on the screen or importing it from a "dxf" file. The shape can then be modified by simply acting on its segments so to make them longer or shorter or clicking on the arrow to enlarge or reduce the bending curves; all tasks are recognized by the "bending program"
Call for more information:

(2015) 10" X 10" X .40" TAURING ALPHA-200CNCI CNC ANGLE BENDING ROLL. STOCK # 0744422

Download Images

Tauring Alpha 200CNC Angle Bending Roll (2015)
Specifications (Preliminary)
Round Tube: 10.75" x 0.5" / Min. Radius: 87"
Square Tube: 10" x 10" x .40" / Min. Radius: 80"
Flat Bar (Hard Way): 10" x 2.3 / Min. Radius: 32"
Angle (Leg Out): 7.8" x 7.8" x 0.78" / Min. Radius: 78"

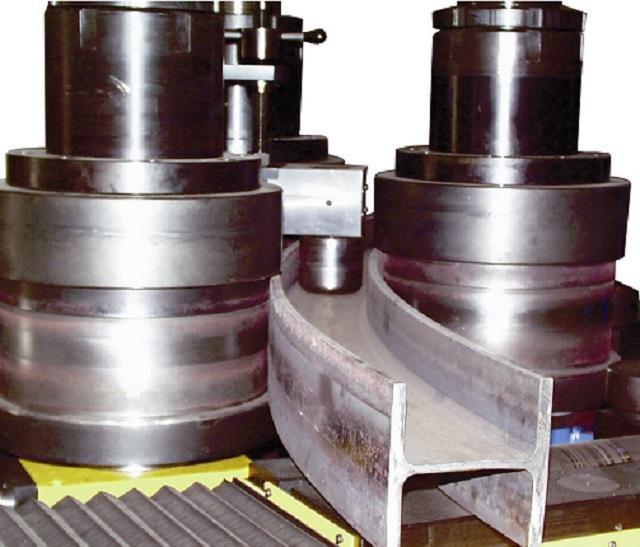

H Beam: IPE 330 / Min. Radius: 75" PLEASE NOTE - MINIMUM RADII SHOWN MAY REQUIRE MULTI- PASS

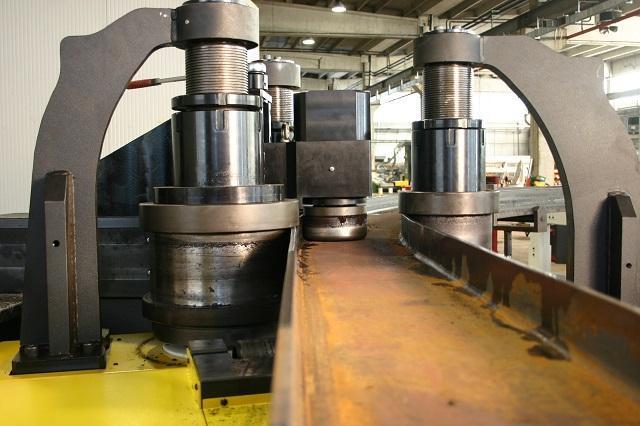

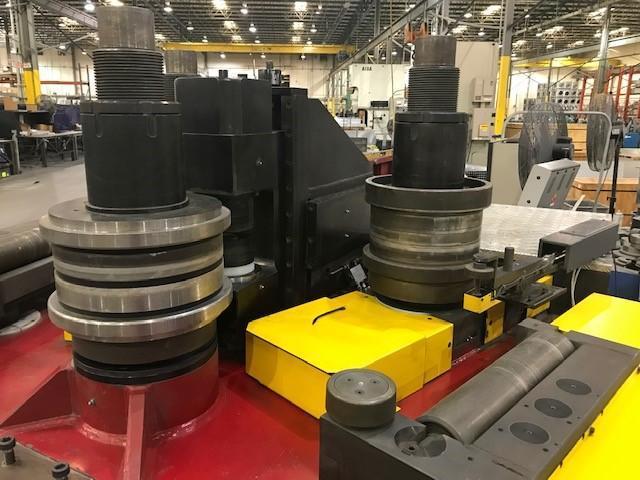

Driven Rolls: 3
Shaft Diameter: 490mm
Standard Shaft Working Length: 15.75"
Shaft Revolutions Per Minute: 7.1 R.P.M.
Main Motor Motor: 24.1 HP
Dimensions / Weight:
41"W x 61"L x 74"H / Machine Weight - 22,046 lbs.
Current Electrics:
Voltage - 230 Volt/3 Phase/60Hz and 480 /3 /60Hz available
Equipped With:

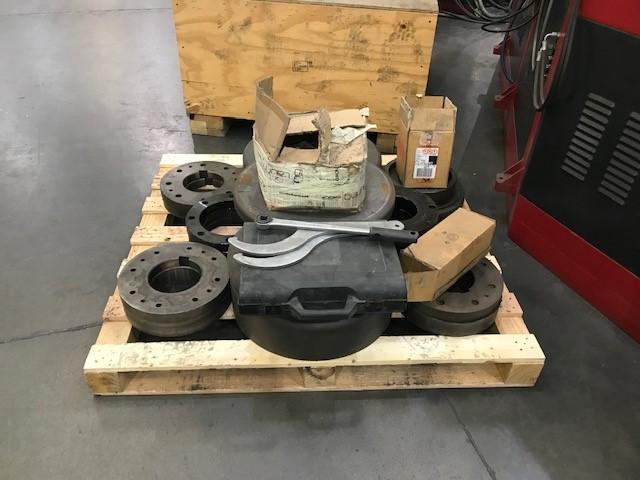

Alpha200CNCi, HE Device, Hydraulic Roll Adjustment, Universal Tool Set - 1 Set
CNC Control:
Alpha200CNCi - "CNC" stands for "computerized, numerical control", "i" for "interpolation" and "PLUS" for "plus value". It is the evolution of an already astonishing product that today is even more amazing. The CNCi is an advanced numerical control Windows based able to manage two or more interpolated axes with unsurpassed progression and accuracy. The 15" touch screen can activate macro-instructions and commands by simply touching the icons presented on the screen. One of CNCi strength points is represented by its simple and intuitive software, that allows programming any types of geometrical shape - regular and irregular - by simply drawing it on the screen or importing it from a "dxf" file. The shape can then be modified by simply acting on its segments so to make them longer or shorter or clicking on the arrow to enlarge or reduce the bending curves; all tasks are recognized by the "bending program"
Call for more information:

Specifications

Machine Type

Rolls, Angle Bending

Manufacturer

TAURING

Model

ALPHA-200CNCI

Year

2015

Condition

Used
