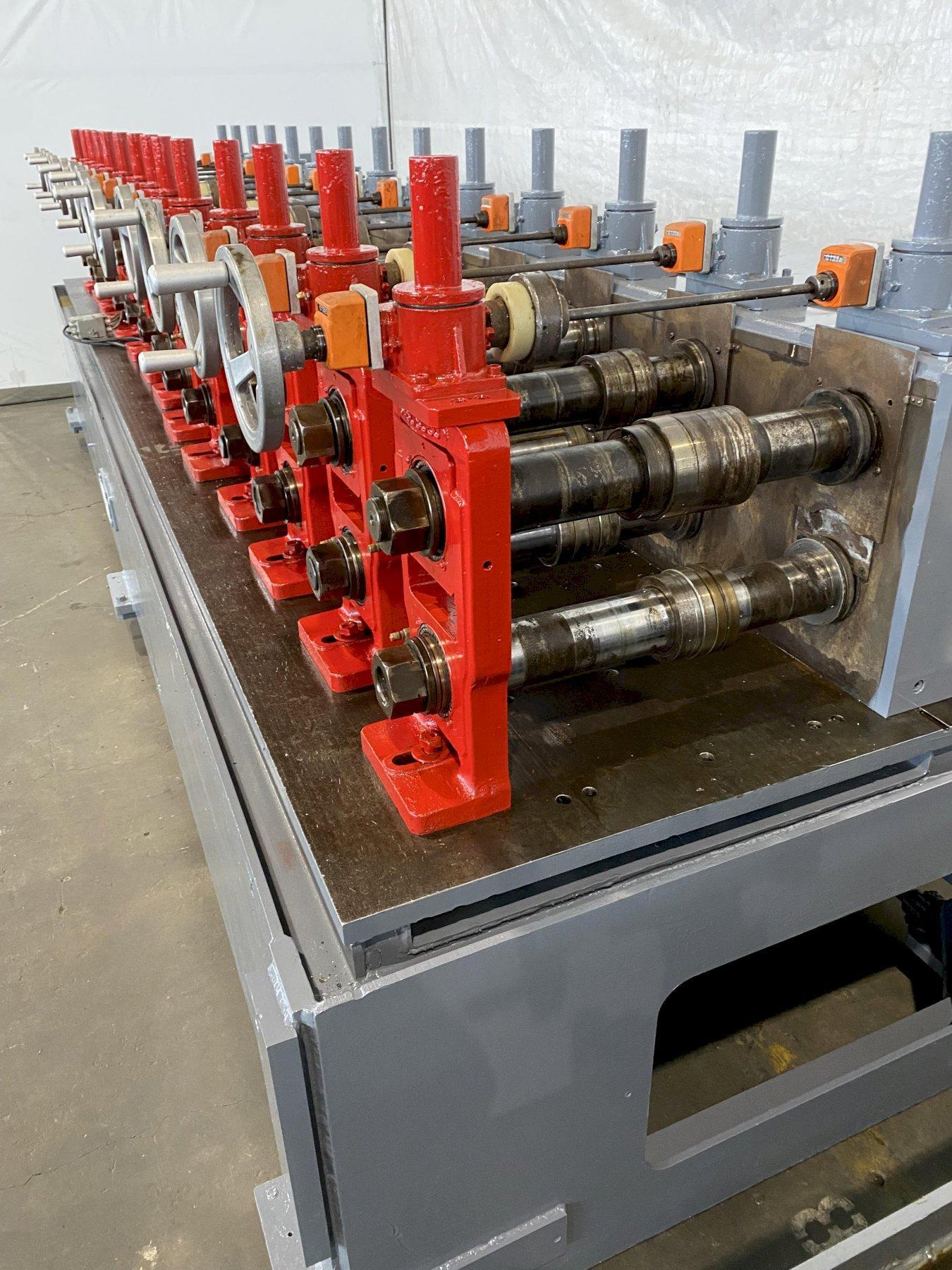

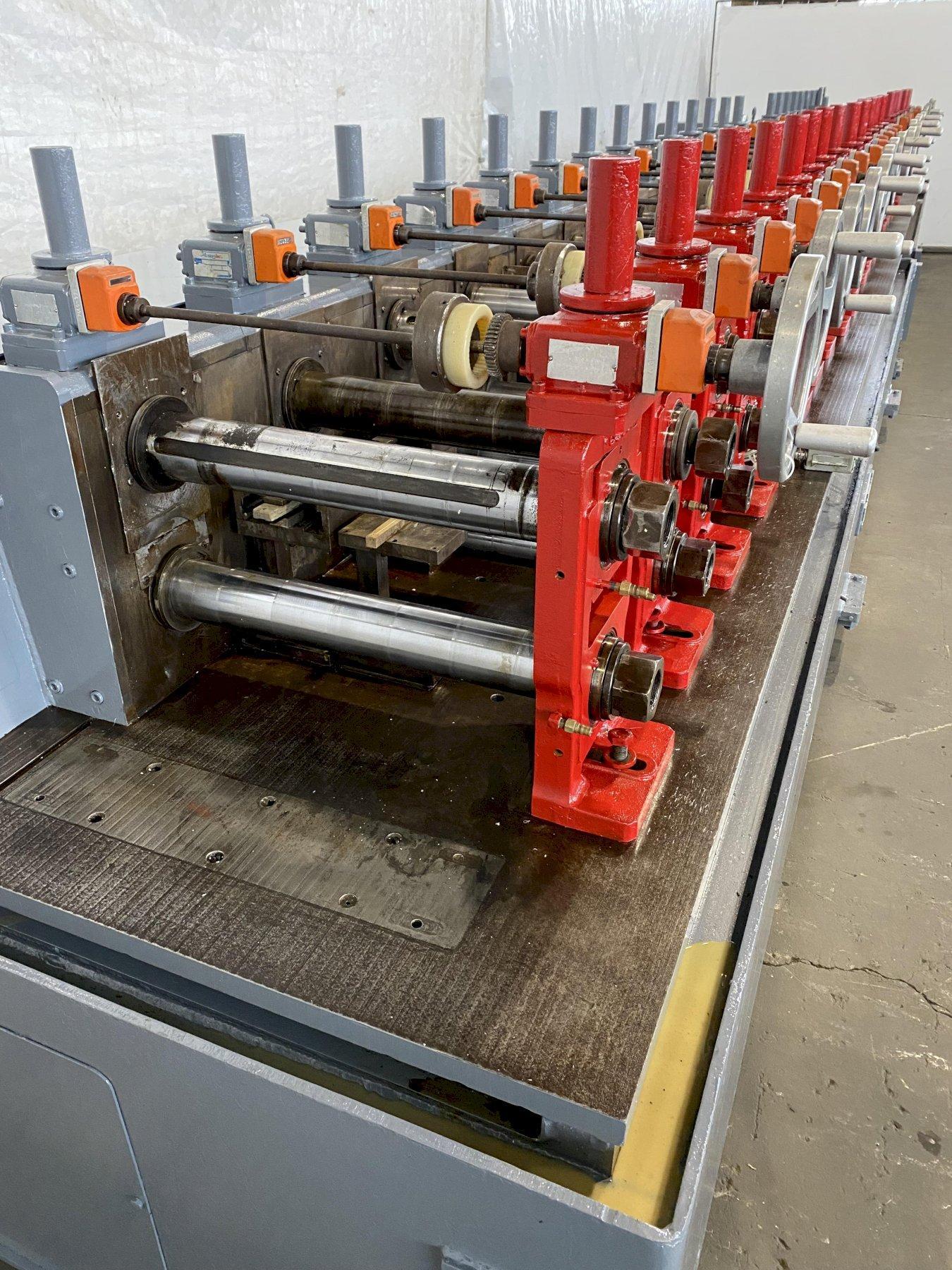

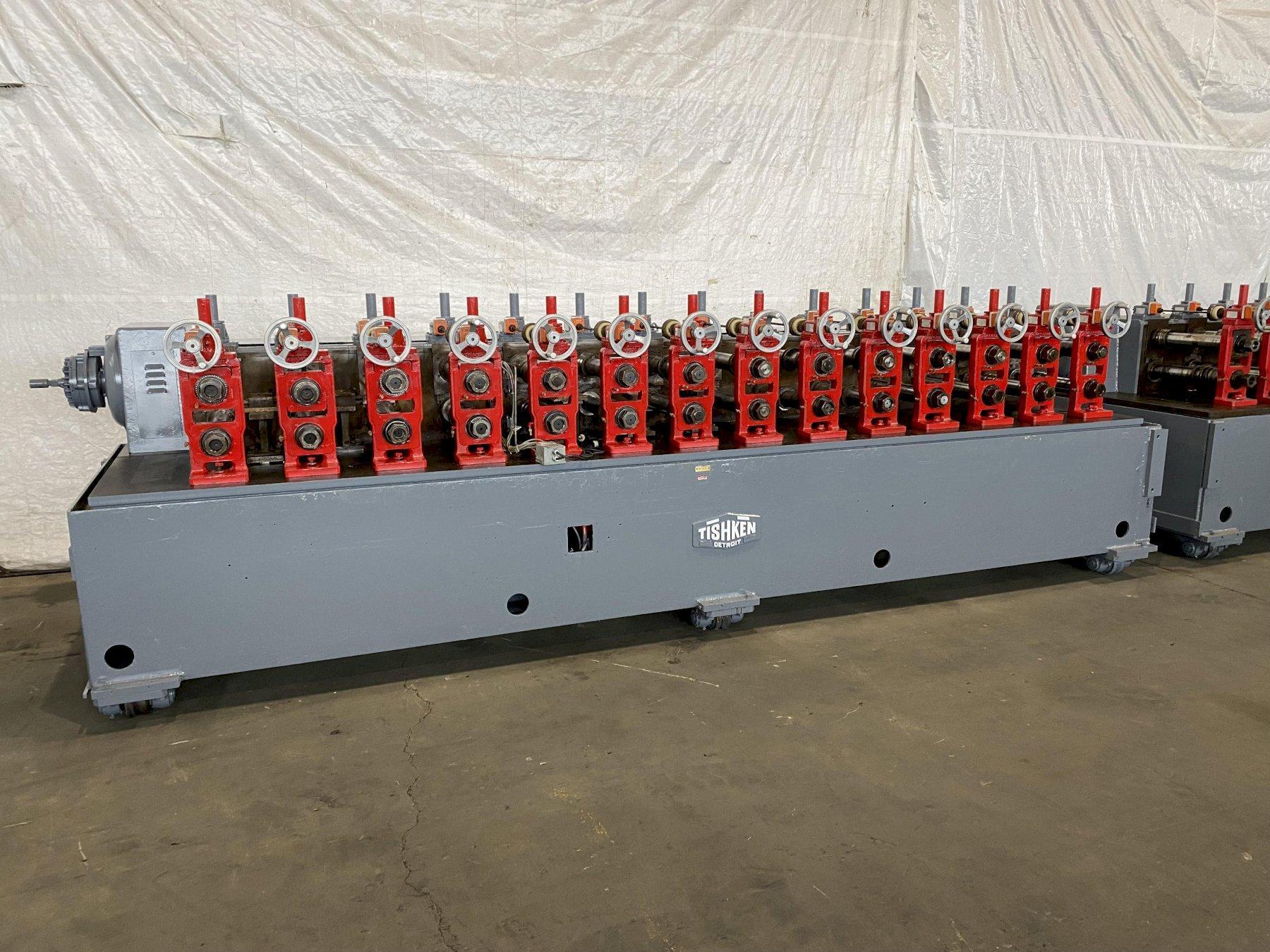

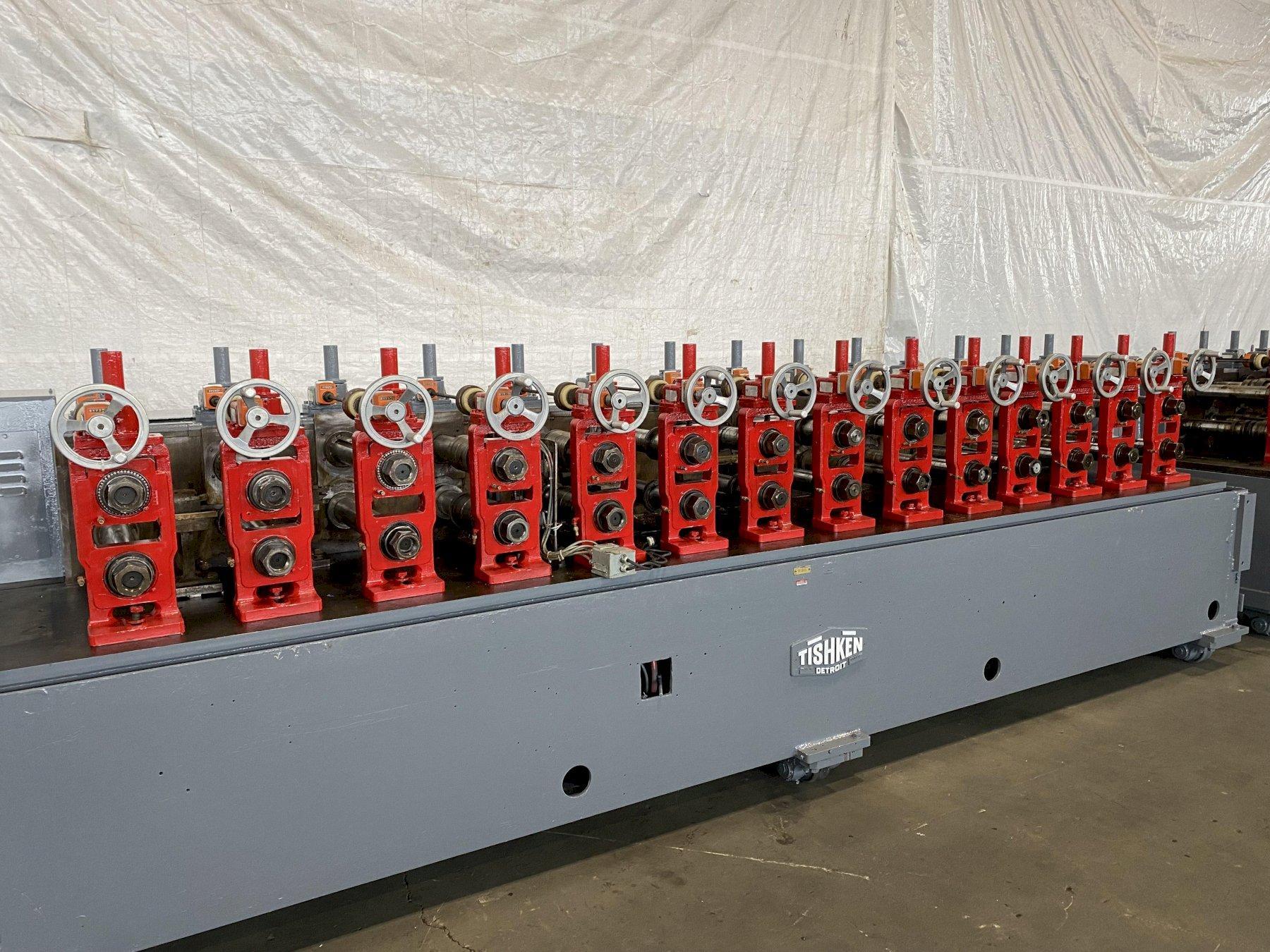

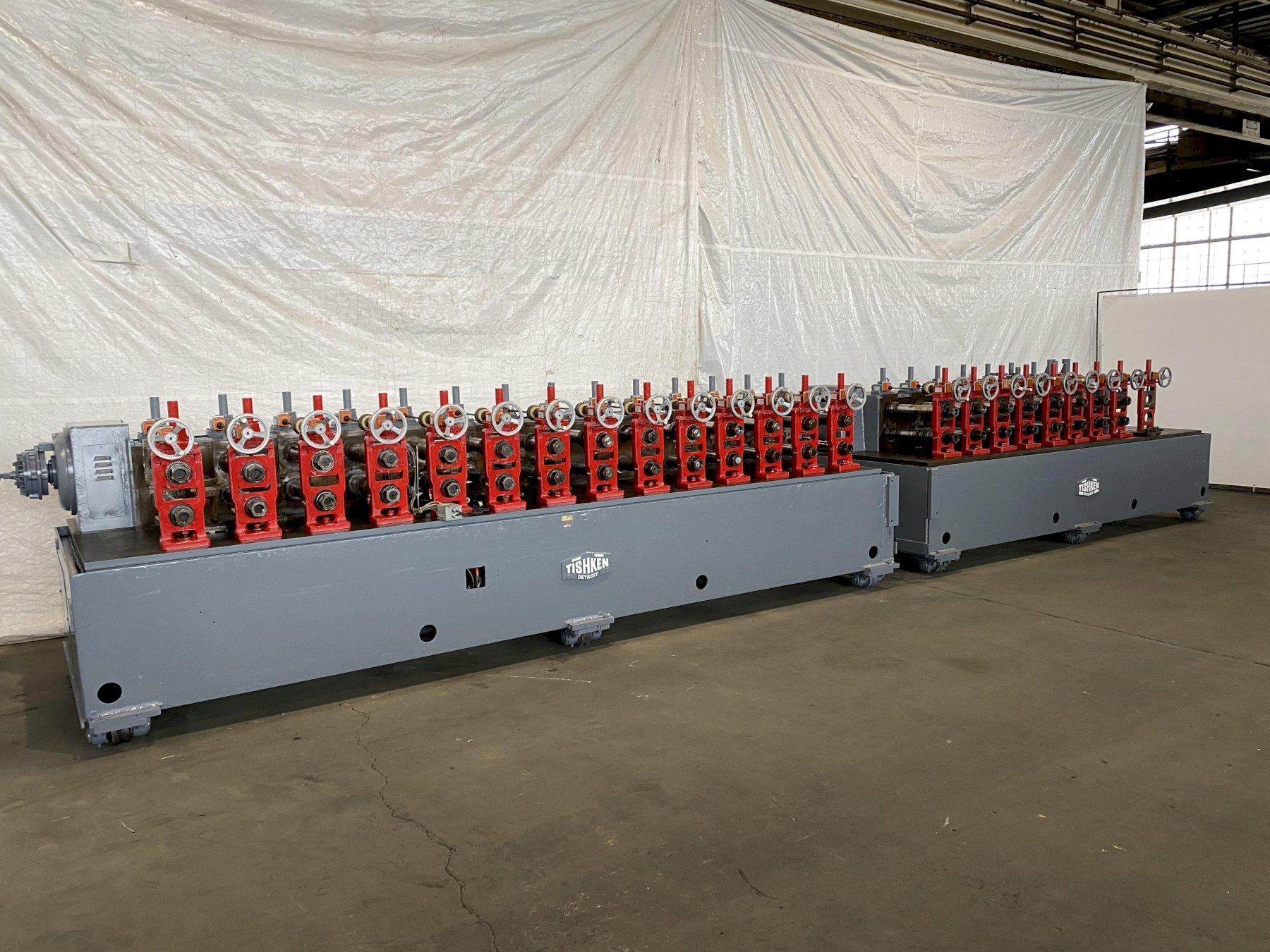

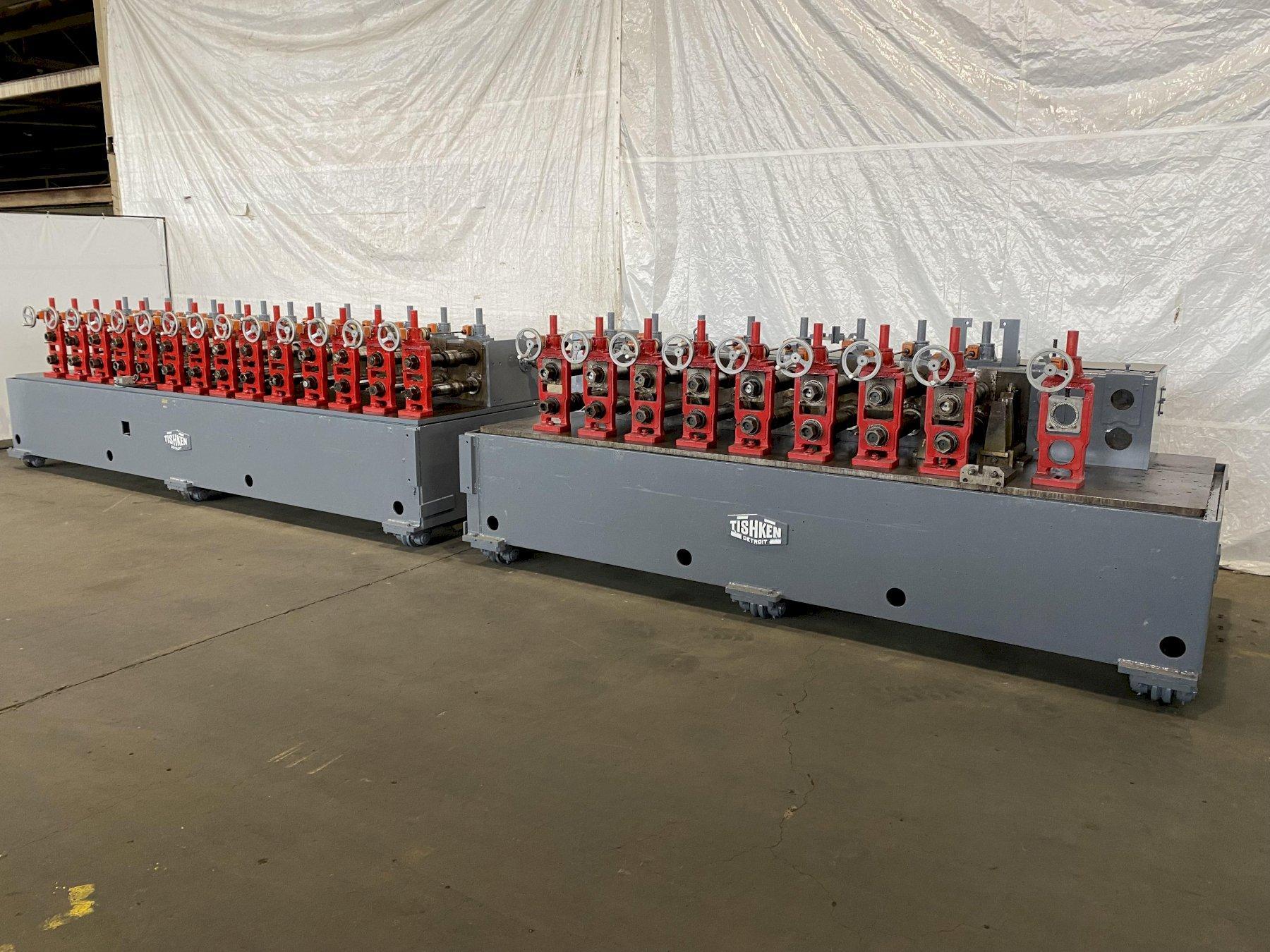

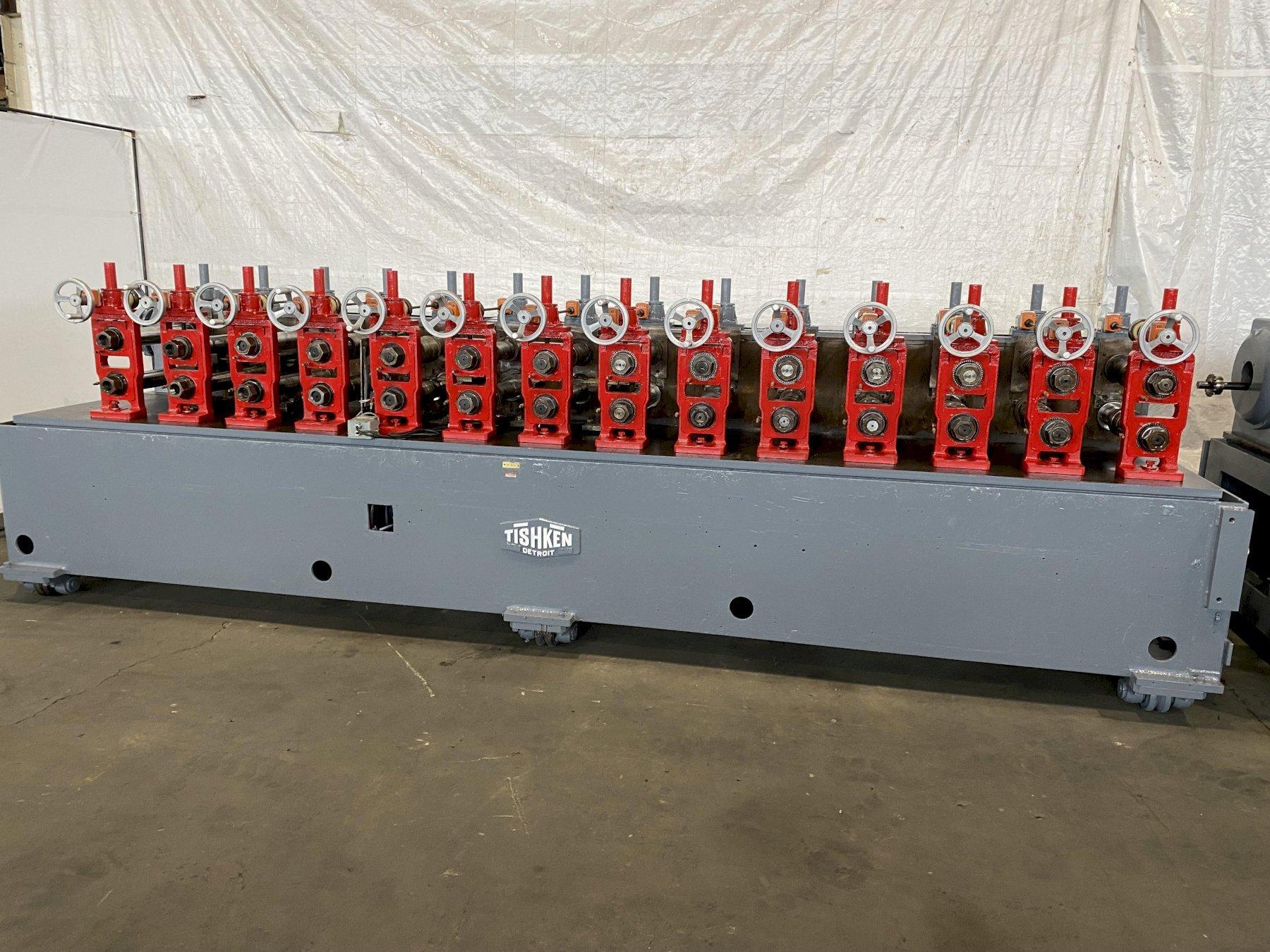

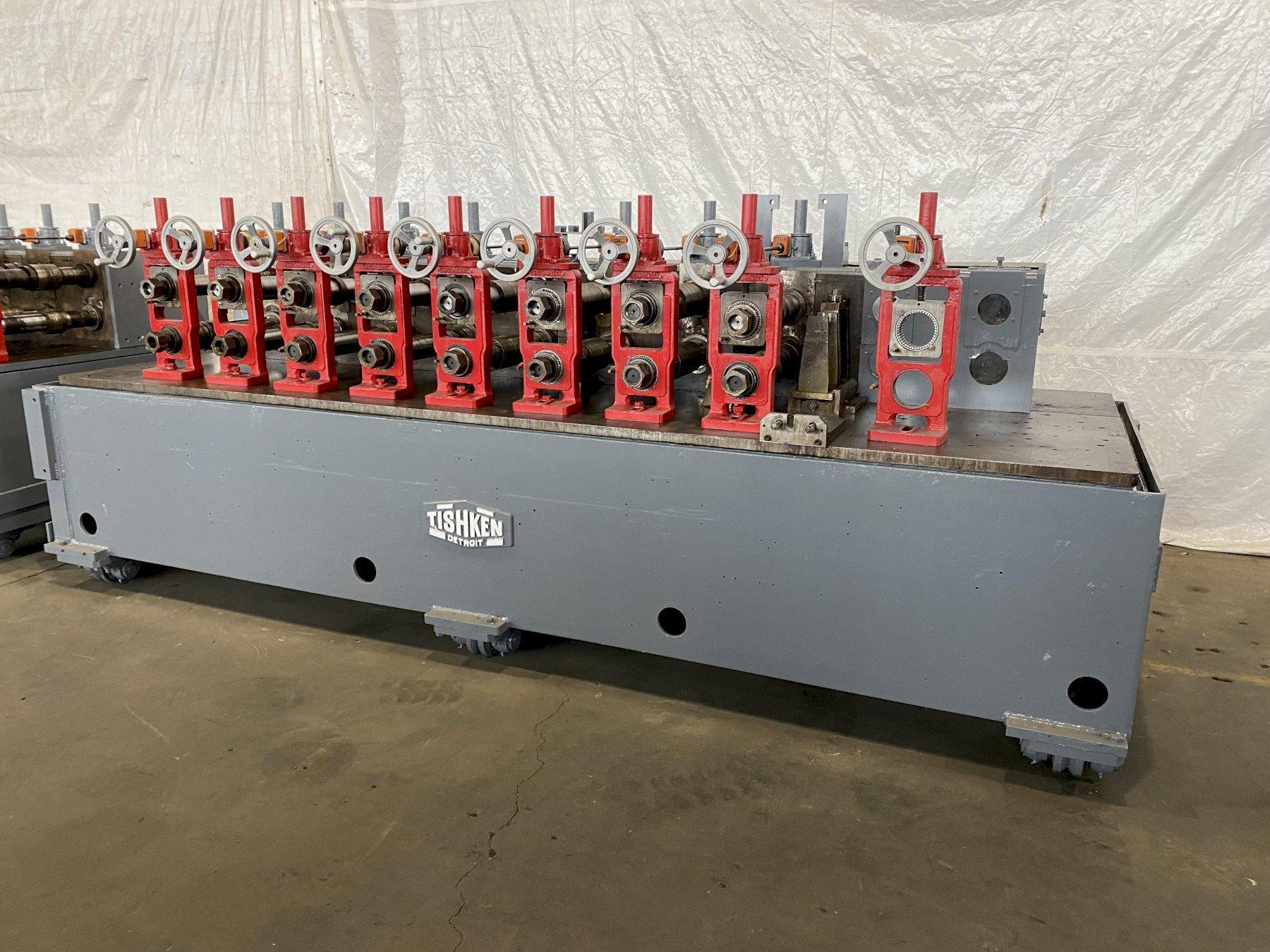

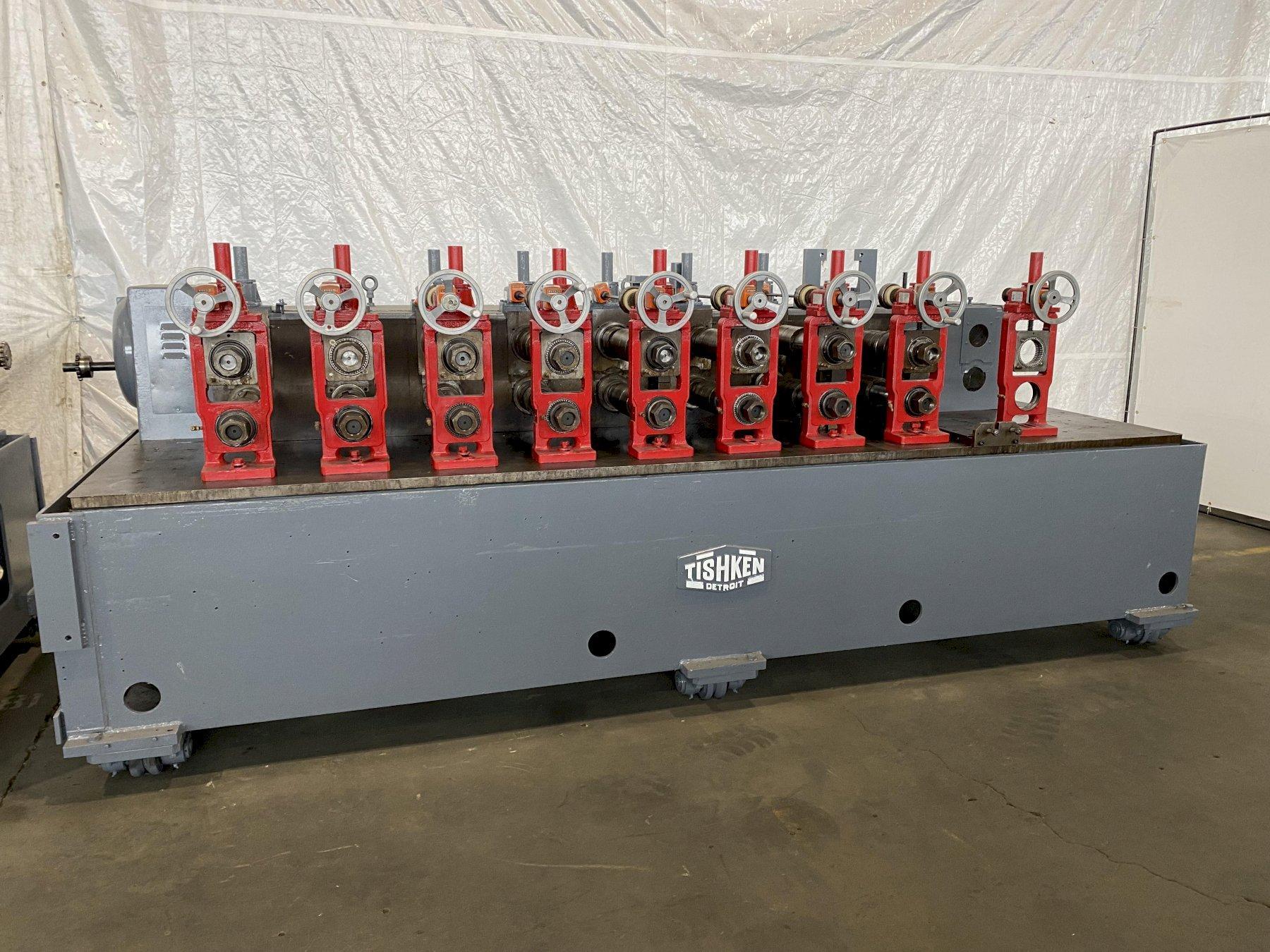

22/24 STAND X 3.5" TISHKEN MODEL #24HW-S-3-1/2 ROLLFORMER, NEW 1999. STOCK #0950821

Stock #: 0950821

Equipped With

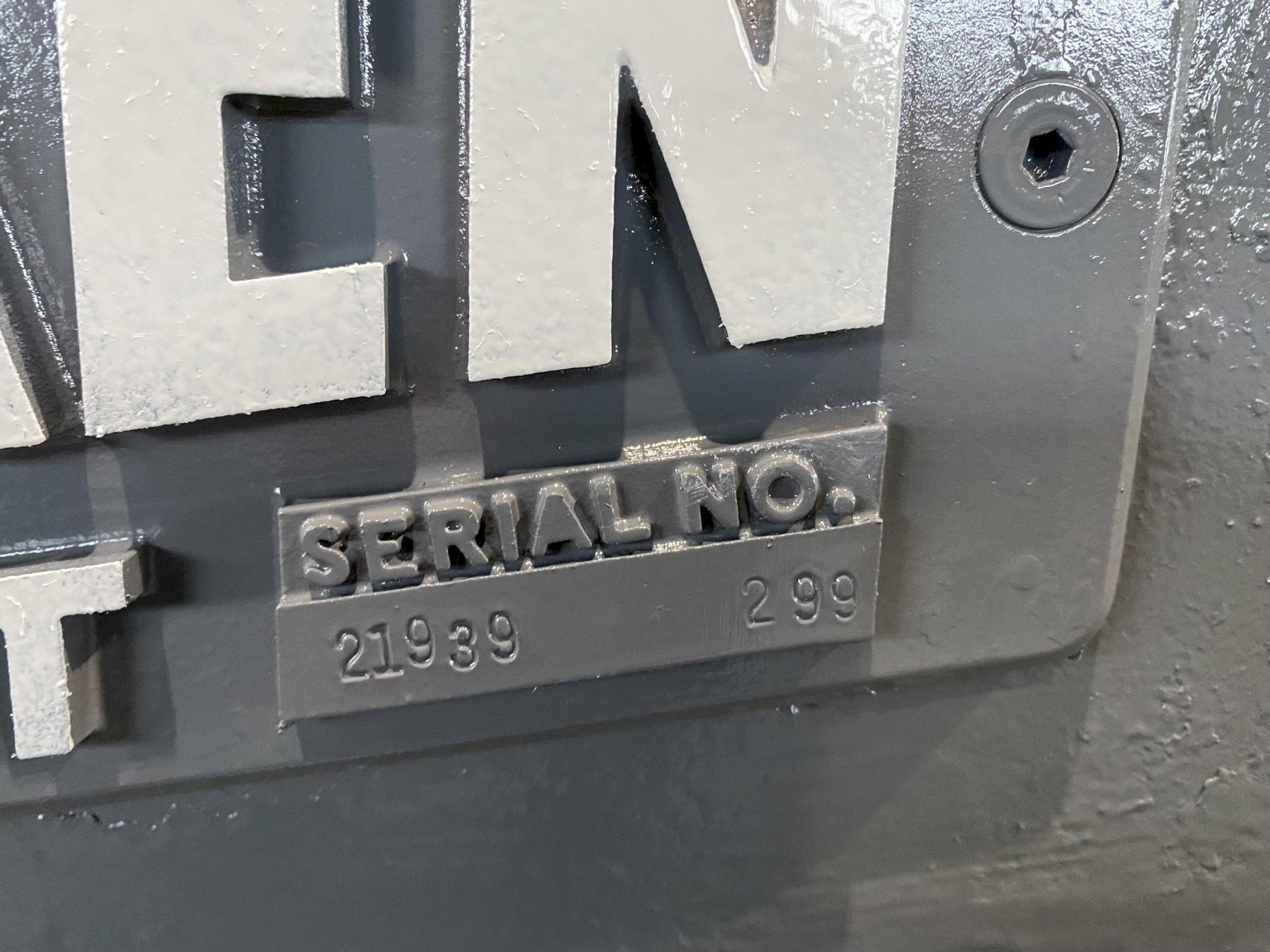

SERIAL .................... 21939-299
YEAR NEW .................. 1999

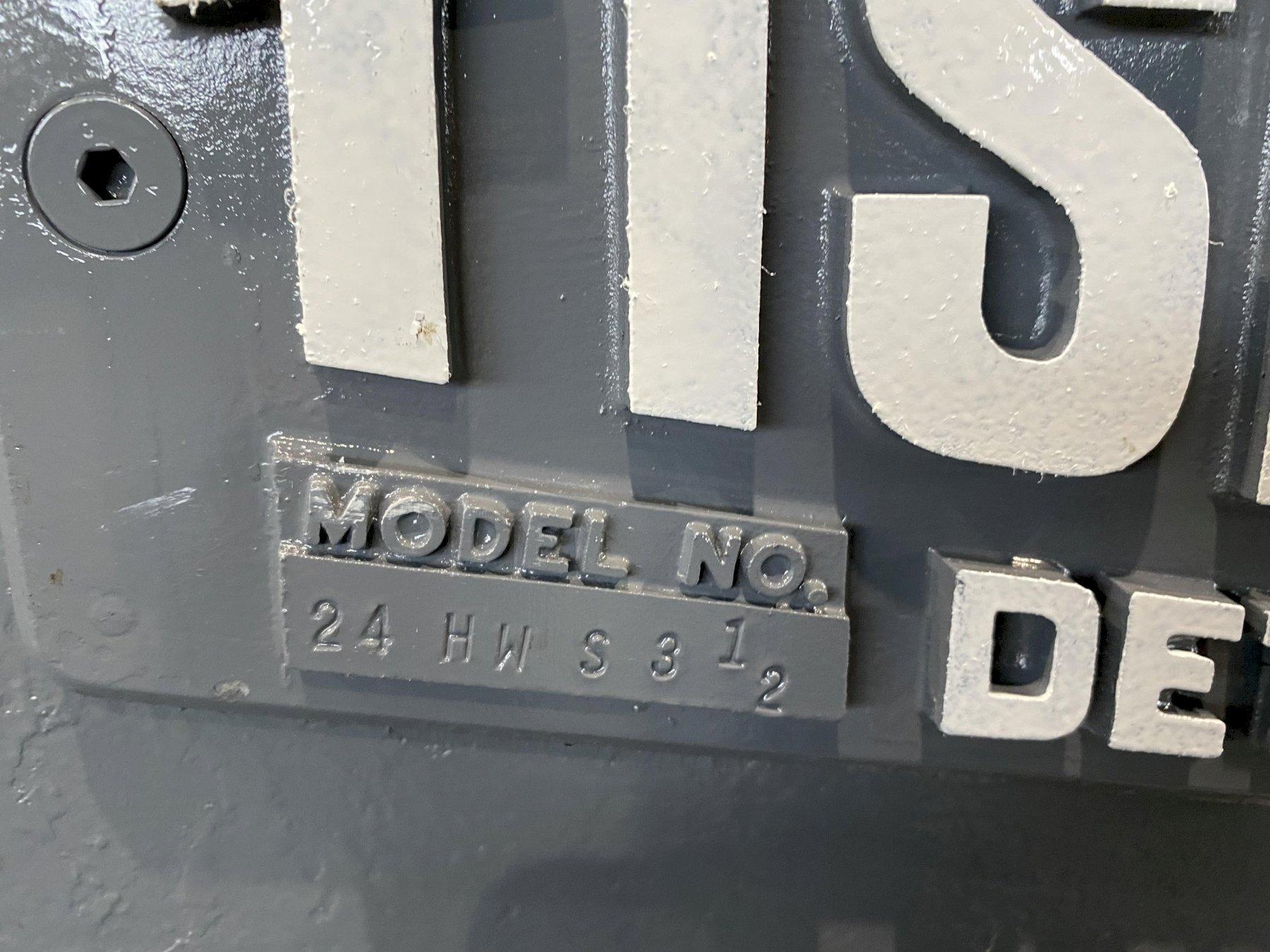

MODEL ..................... 24-HW-S-3-1/2

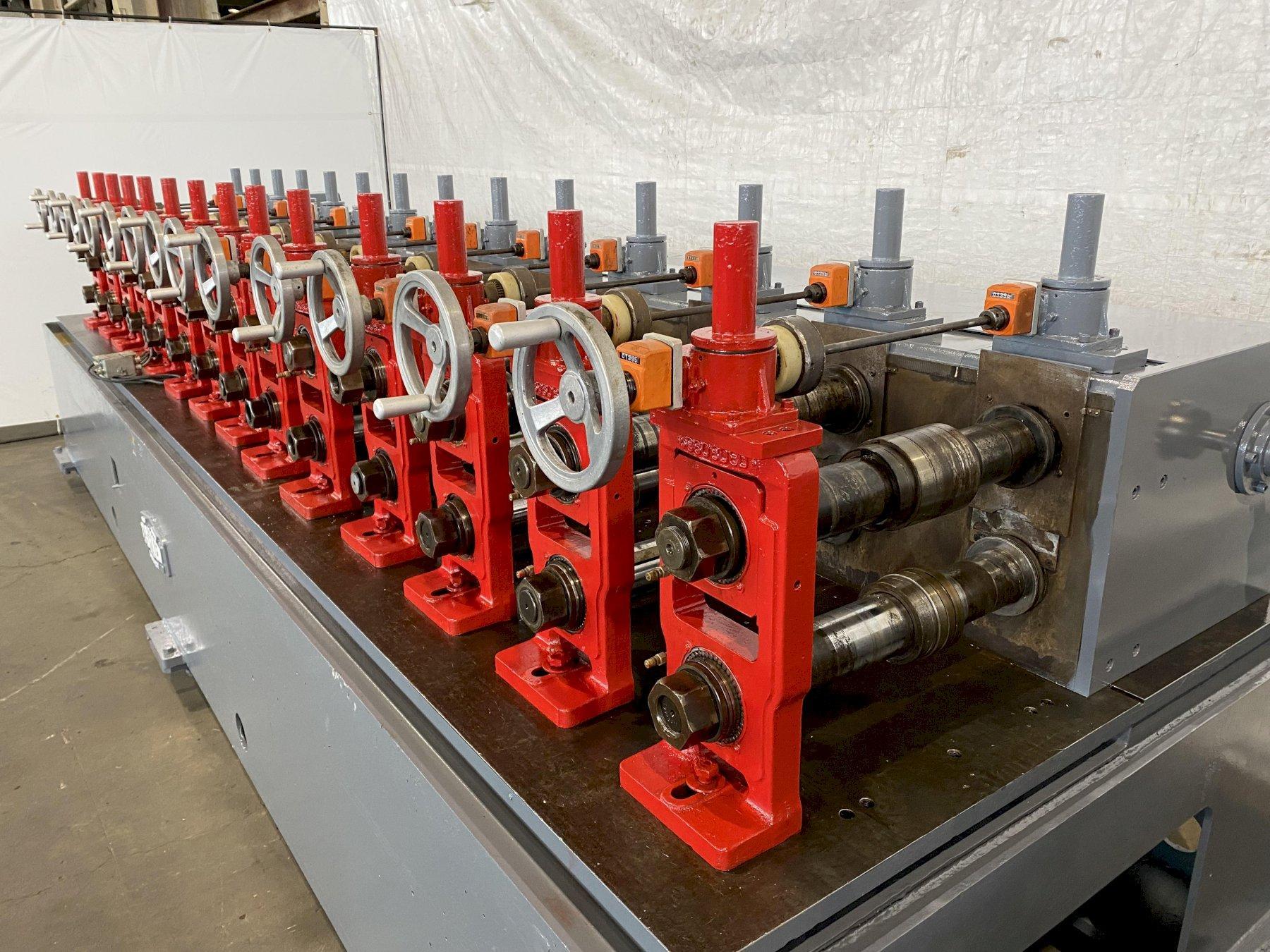

NUMBER OF STANDS .......... 22 (ON 24 STAND BASE)

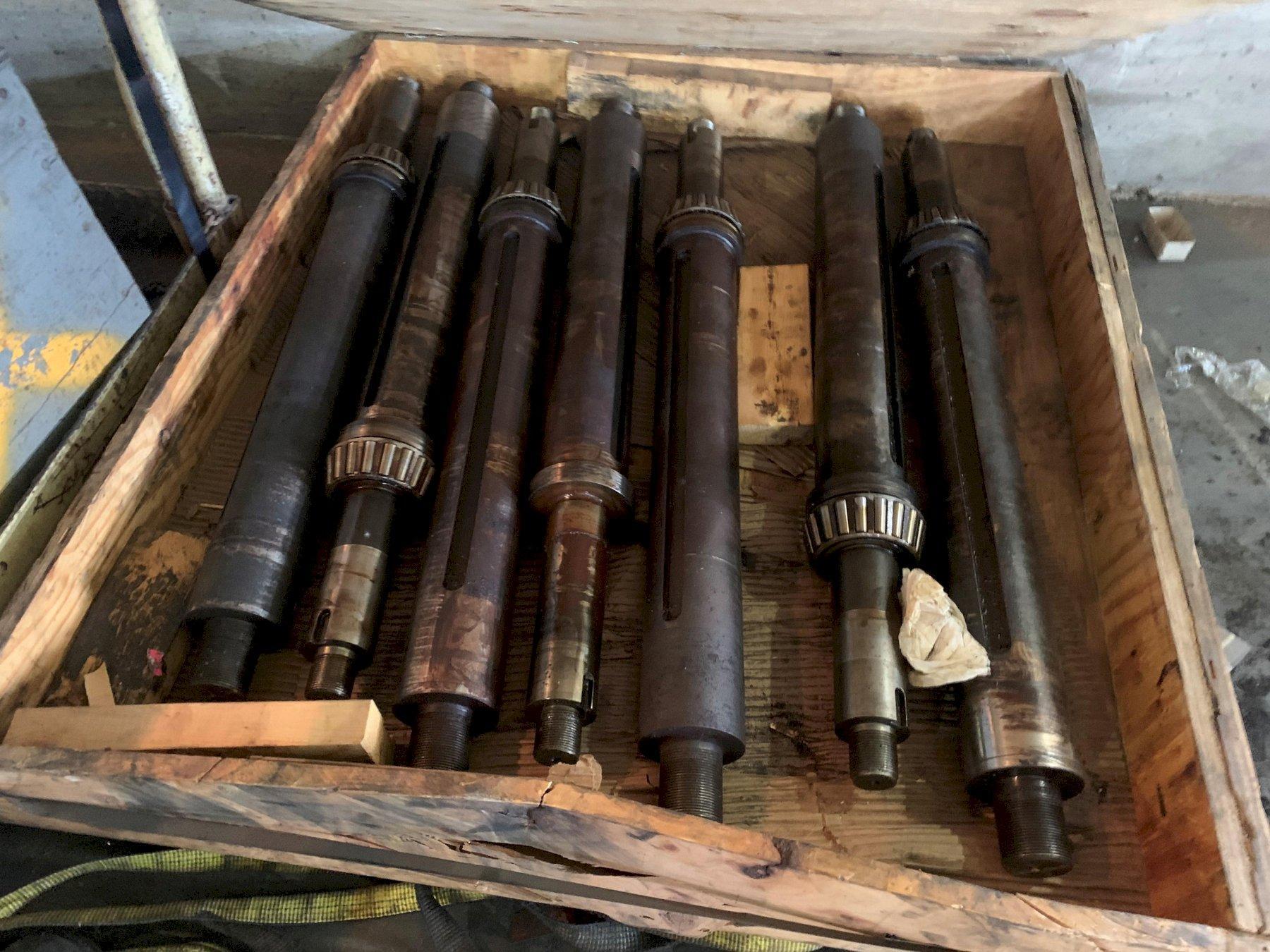

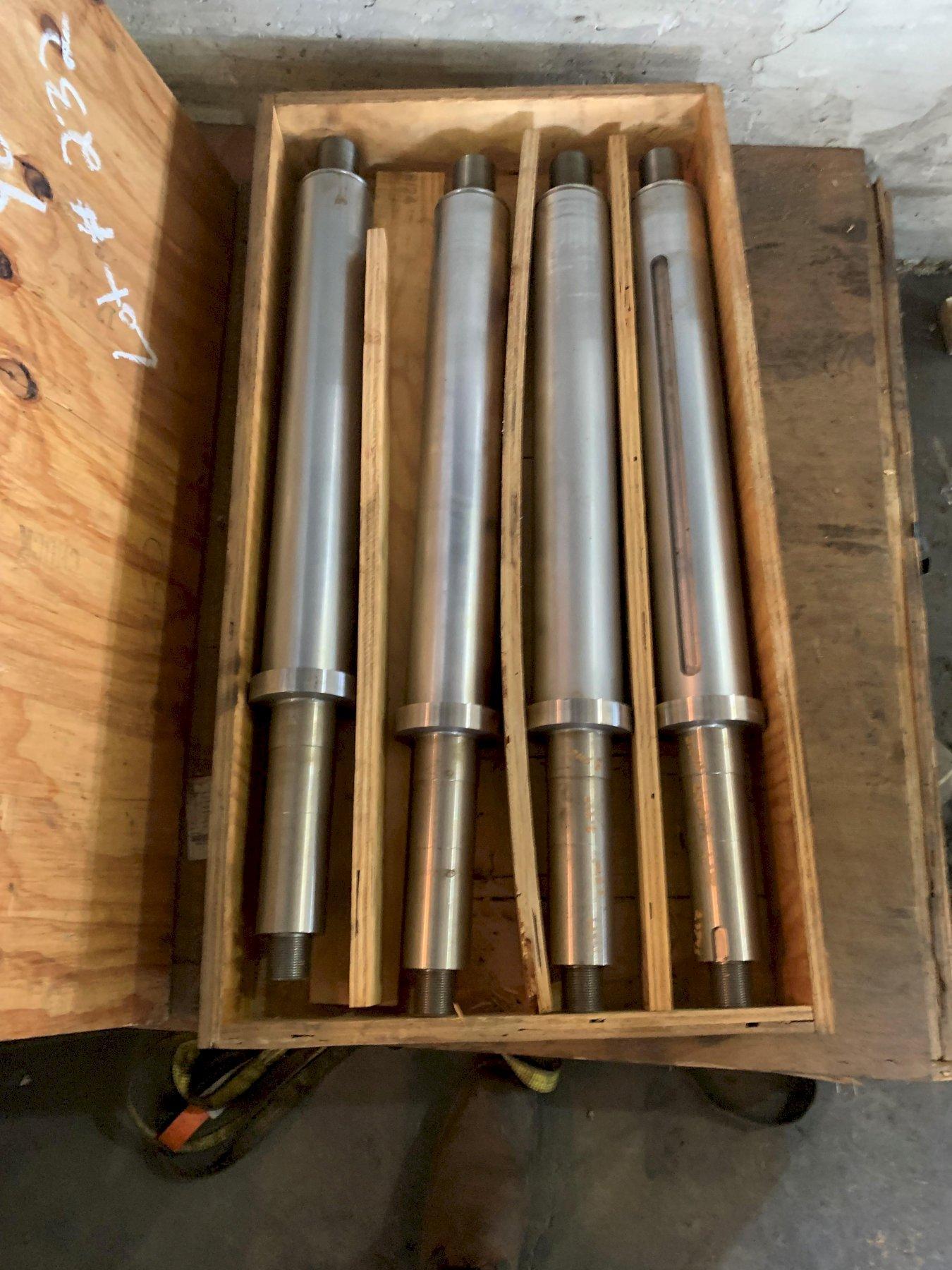

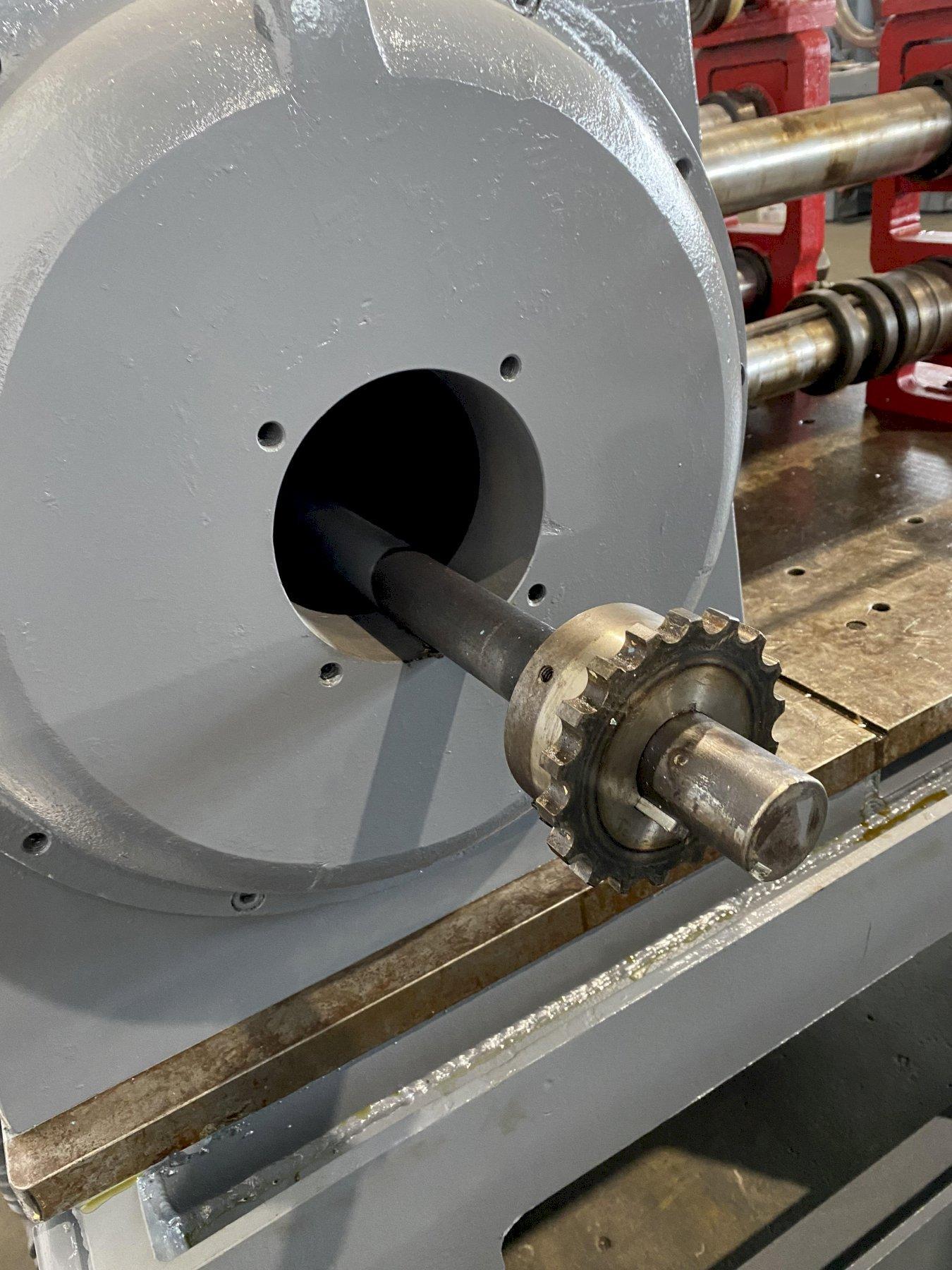

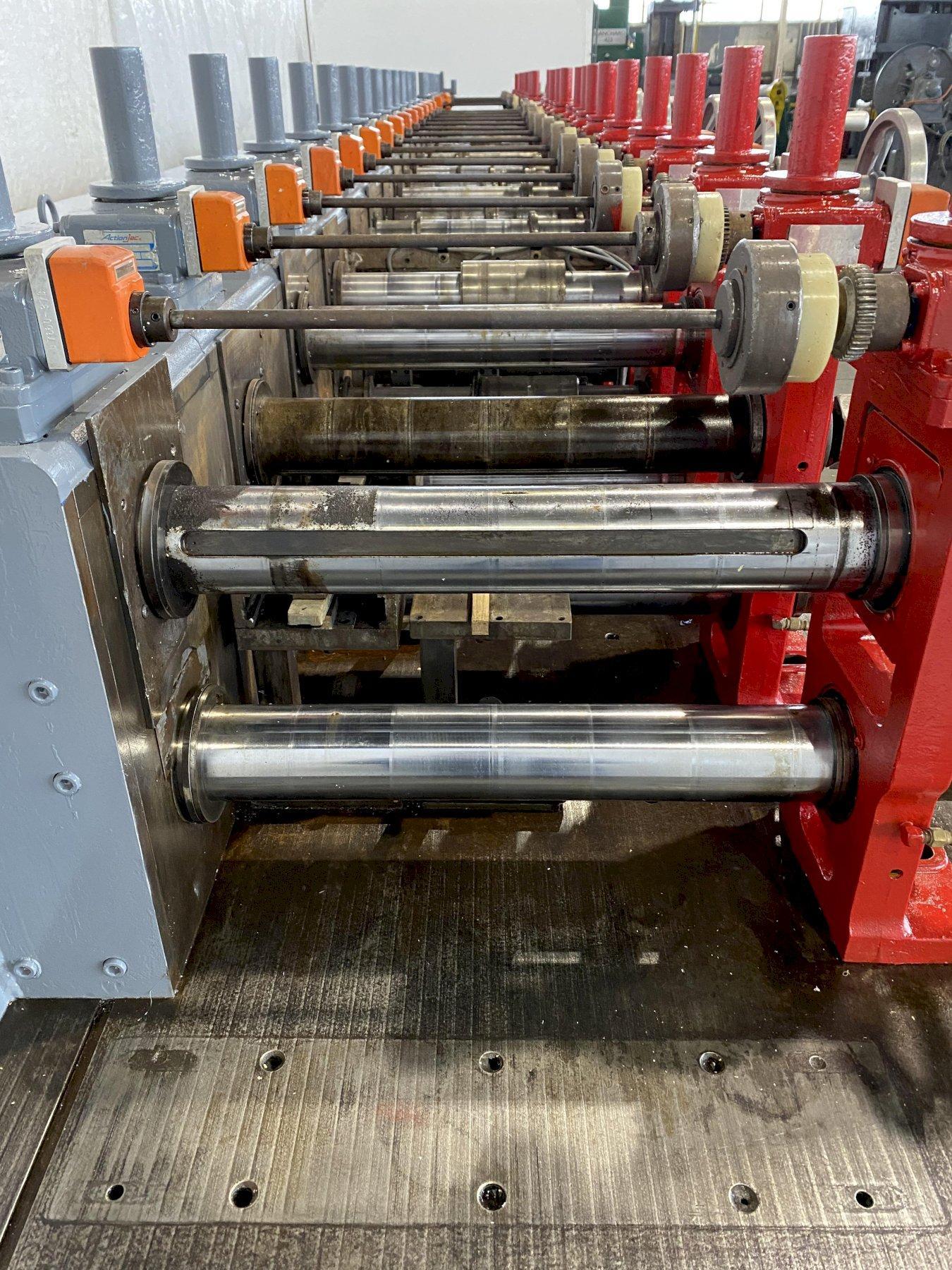

ARBOR SHARFT DIAMETER ..... 3-1/2"
ROLL SPACE ................ 21"
HORIZONTAL CENTERS ........ 14"
VERTICAL ADJUSTMENT ....... 6-1/2" TO 8-3/8"
LOWER SPINDLE TO BASE .....
GEARING ................... EQUAL
DIRECTION OF TRAVEL ....... LEFT TO RIGHT
FLOOR TO PASS LINE ........ 46"
OPERATOR CONTROLS ......... YES
OPERATIING MODES .......... FORWARD/REVERSE/JOG
CONTROLS .................. ALLEN BRADLEY PLC
CONTROLS STATION .......... YES

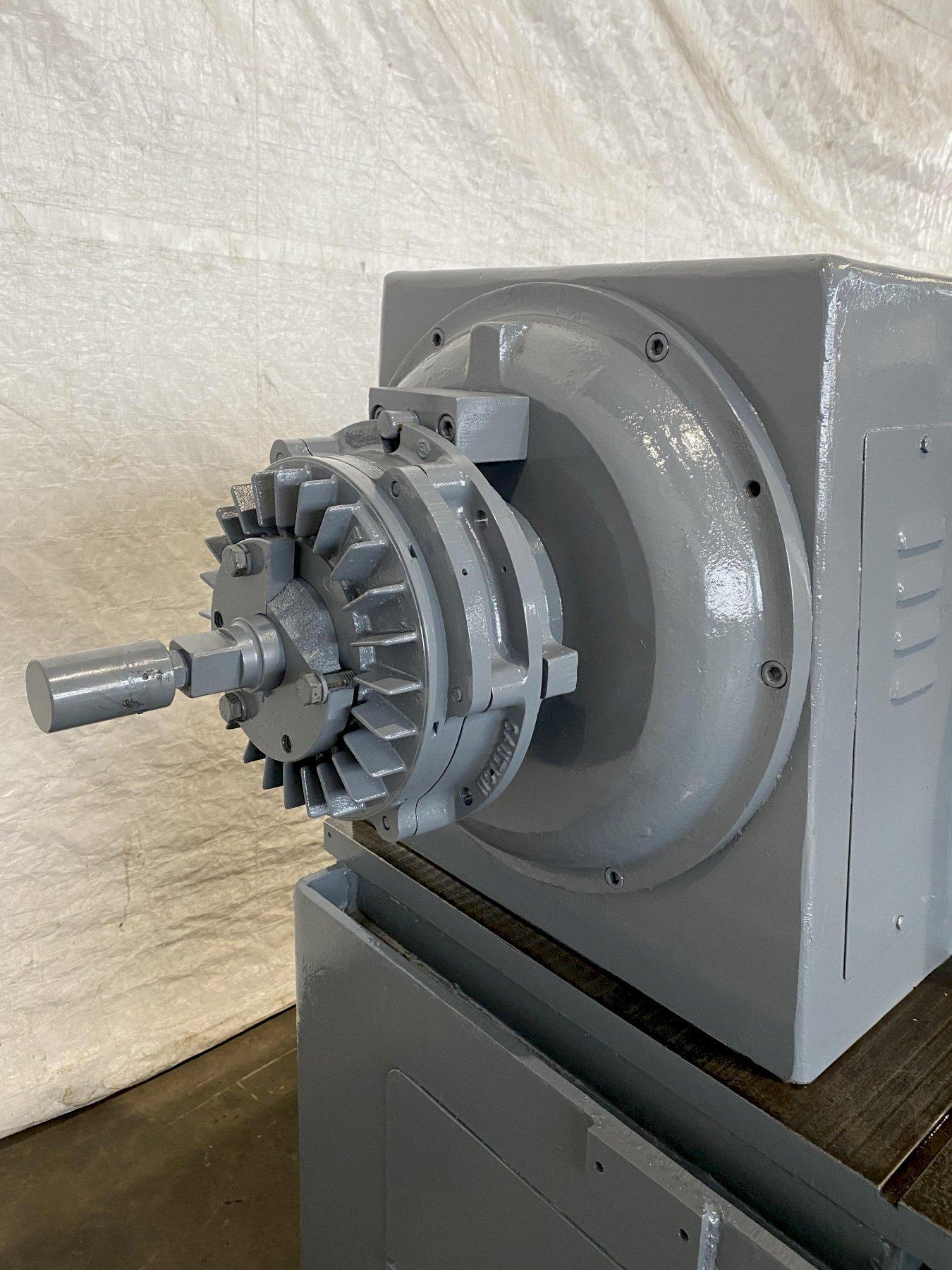

AIR CLUTCH ................ YES
ENTRY GUIDES .............. YES
EXIT STRAIGHTENER ......... YES

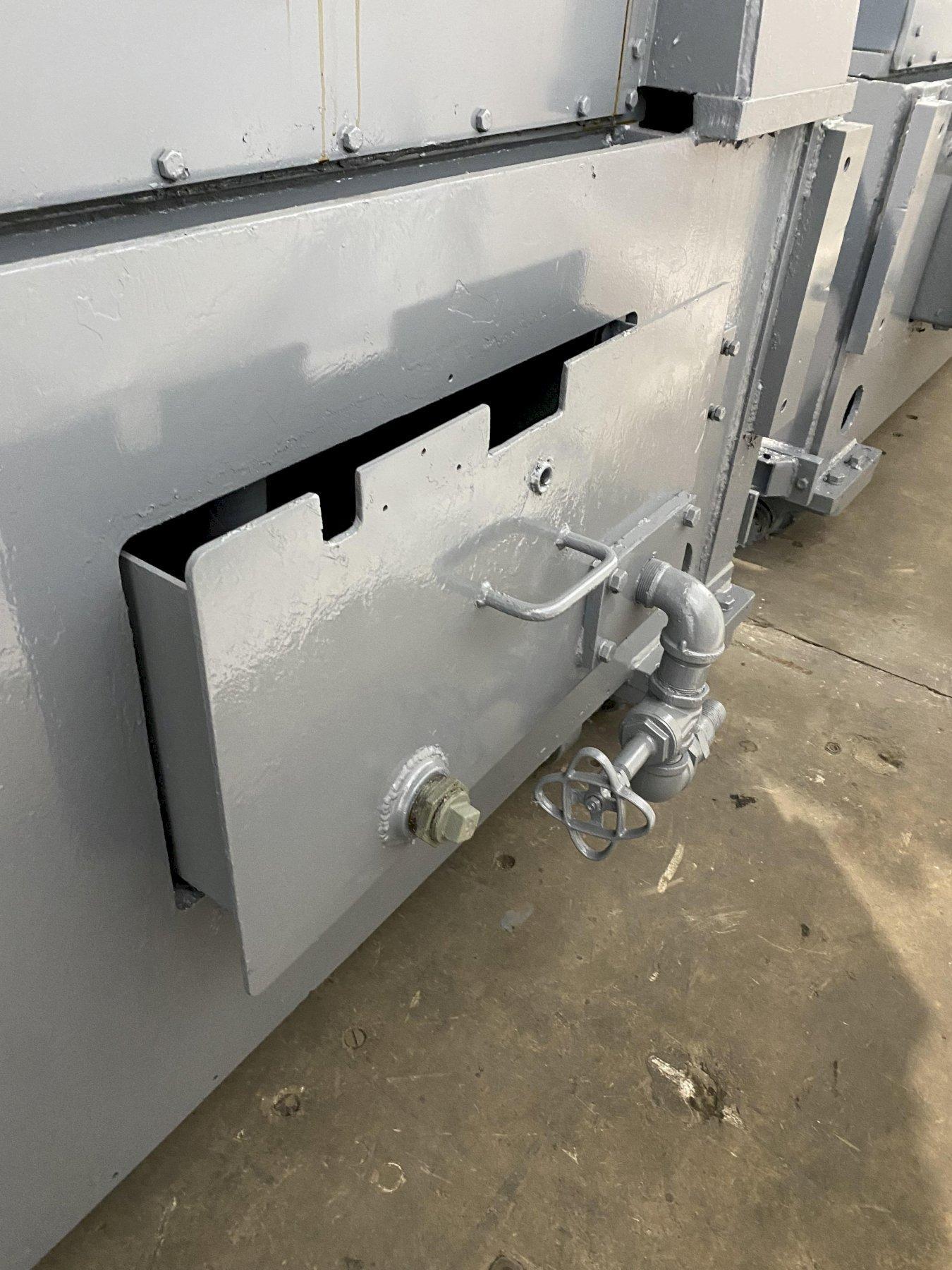

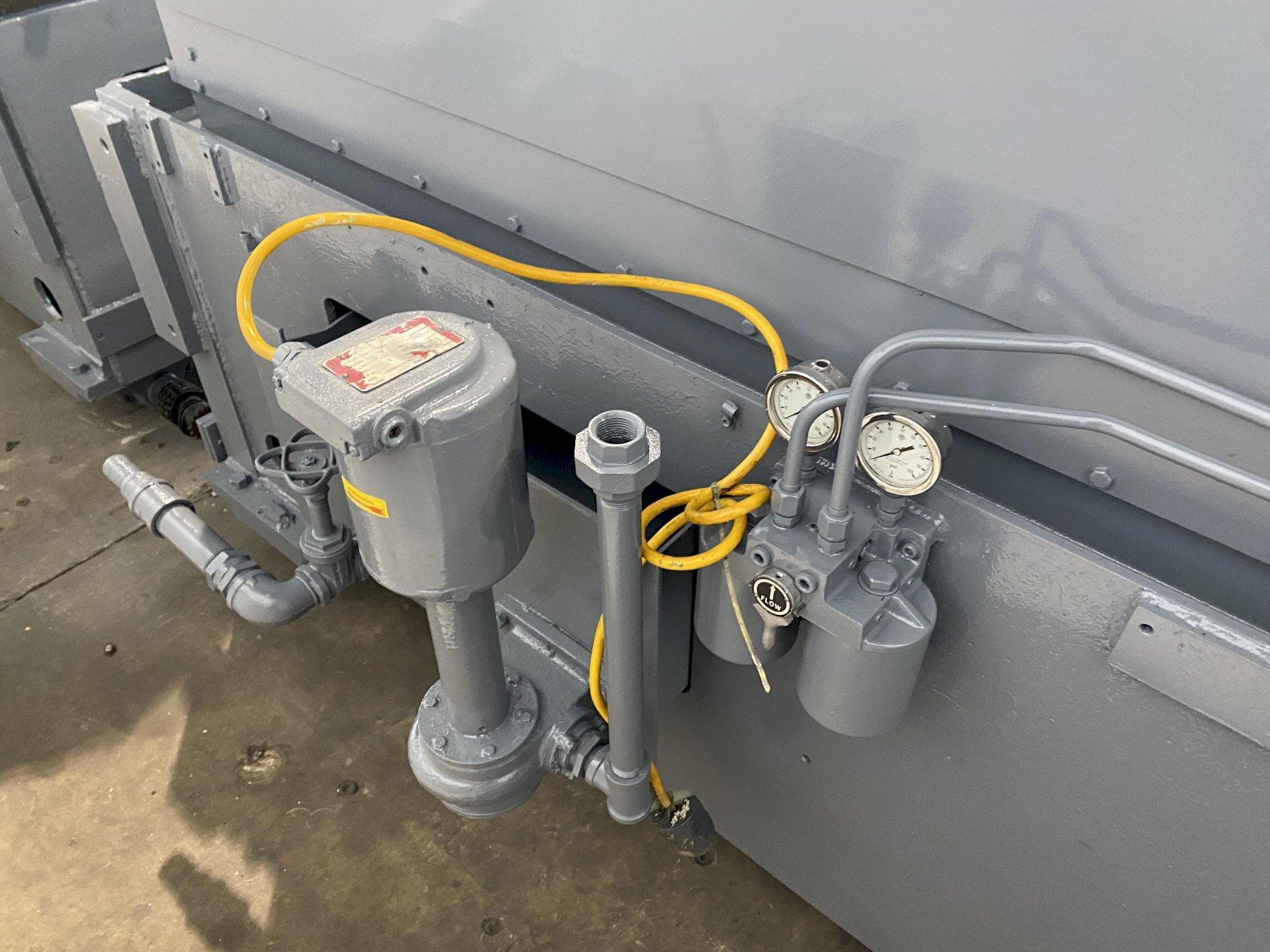

COOLANT SYSTEM ............ YES
COOLANT BLOWOFF SYSTEM .... YES
LUBRICATION / COOLANT ..... YES, TRABON

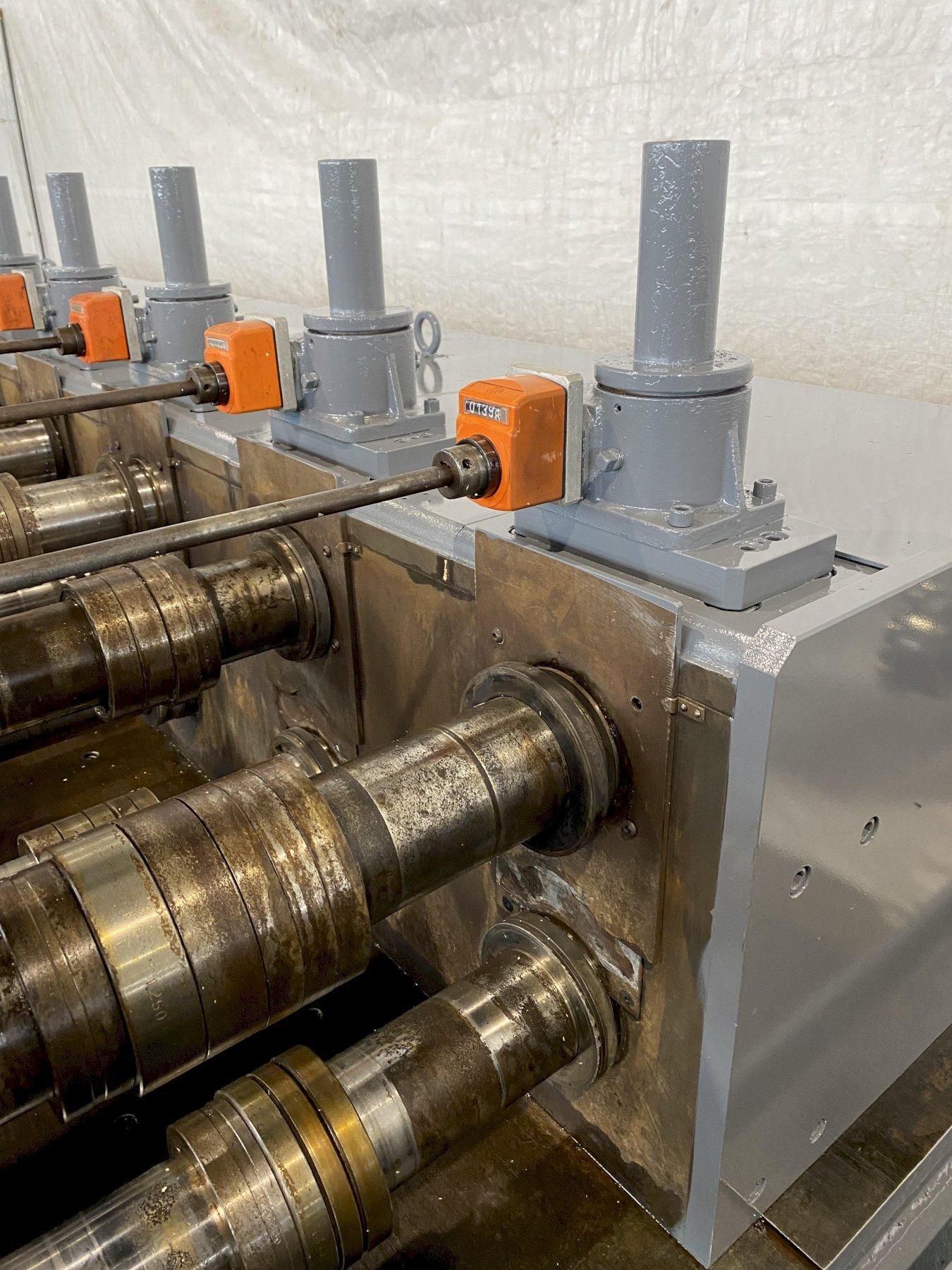

SINGLE POINT ADJUSTMENT ... YES
DIGITAL READOUTS FOR ADJ .. YES
ZERO BACKLASH FEATURE ..... YES
VARIABLE SPEED DRIVE ...... YES
E-STOP BUTTON ............. YES
MOTOR DRIVE ............... QUANTOM III

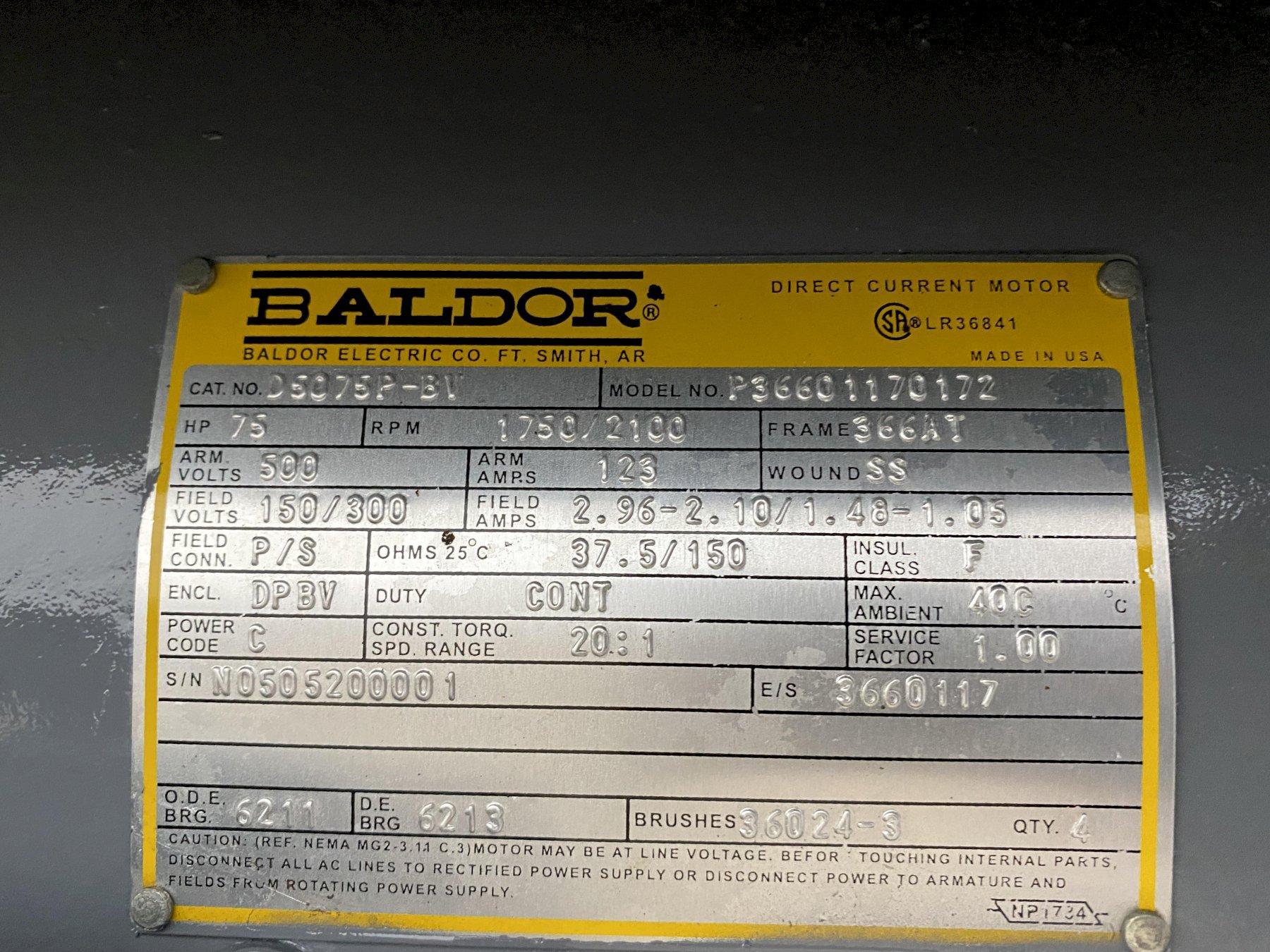

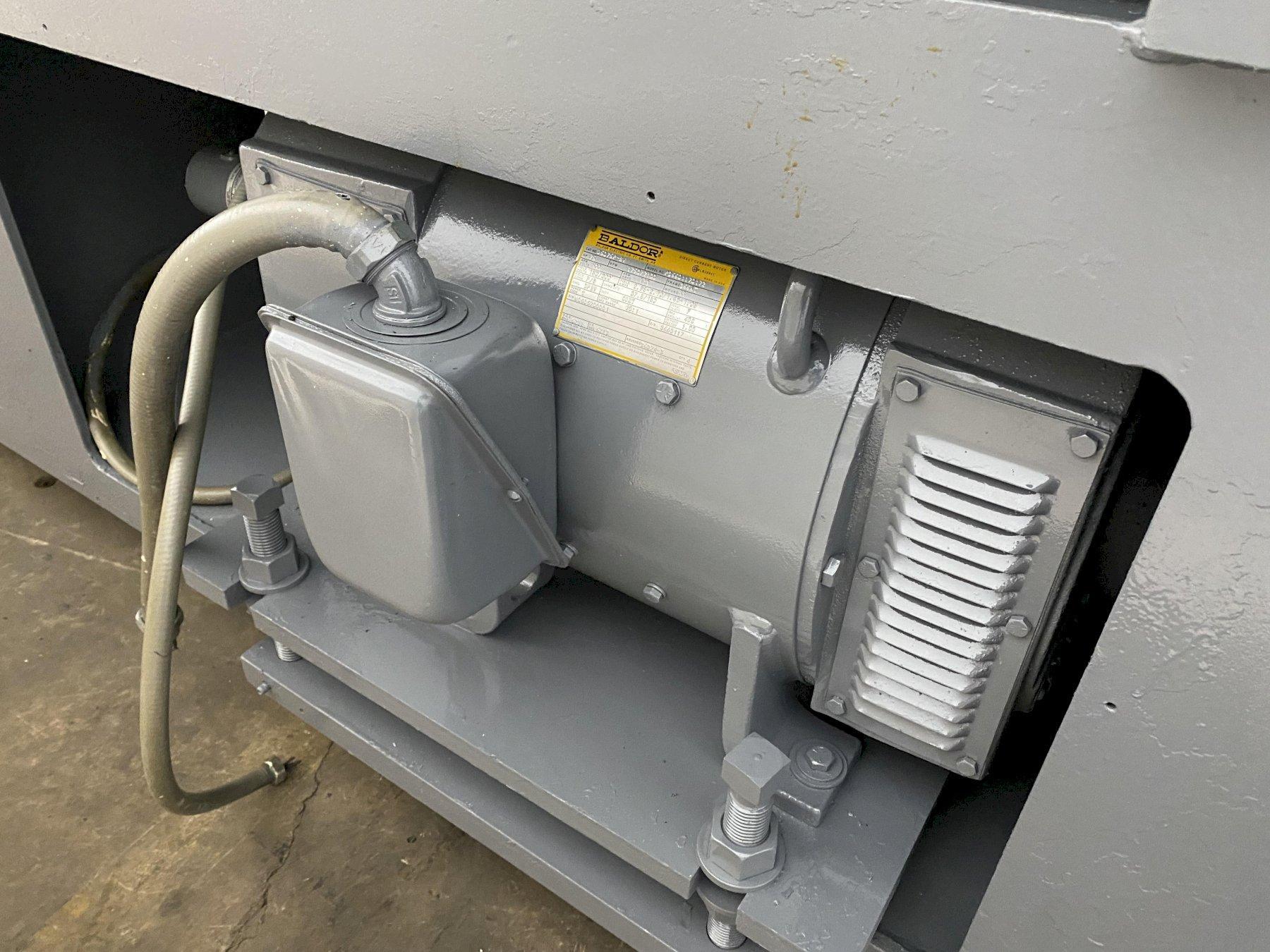

MOTOR ..................... 75 HP

22/24 STAND X 3.5" TISHKEN MODEL #24HW-S-3-1/2 ROLLFORMER, NEW 1999. STOCK #0950821

STOCK # 0950821

SERIAL .................... 21939-299
YEAR NEW .................. 1999

MODEL ..................... 24-HW-S-3-1/2
NUMBER OF STANDS .......... 22 (ON 24 STAND BASE)
ARBOR SHARFT DIAMETER ..... 3-1/2"
ROLL SPACE ................ 21"
HORIZONTAL CENTERS ........ 14"
VERTICAL ADJUSTMENT ....... 6-1/2" TO 8-3/8"
LOWER SPINDLE TO BASE .....
GEARING ................... EQUAL
DIRECTION OF TRAVEL ....... LEFT TO RIGHT
FLOOR TO PASS LINE ........ 46"
OPERATOR CONTROLS ......... YES
OPERATIING MODES .......... FORWARD/REVERSE/JOG
CONTROLS .................. ALLEN BRADLEY PLC
CONTROLS STATION .......... YES
AIR CLUTCH ................ YES
ENTRY GUIDES .............. YES
EXIT STRAIGHTENER ......... YES
COOLANT SYSTEM ............ YES
COOLANT BLOWOFF SYSTEM .... YES
LUBRICATION / COOLANT ..... YES, TRABON
SINGLE POINT ADJUSTMENT ... YES
DIGITAL READOUTS FOR ADJ .. YES
ZERO BACKLASH FEATURE ..... YES
VARIABLE SPEED DRIVE ...... YES
E-STOP BUTTON ............. YES
MOTOR DRIVE ............... QUANTOM III
MOTOR ..................... 75 HP

Specifications

Machine Type
Roll Formers
Manufacturer
TISHKEN
Model
24hw
Year
1999
Condition
Not specified
