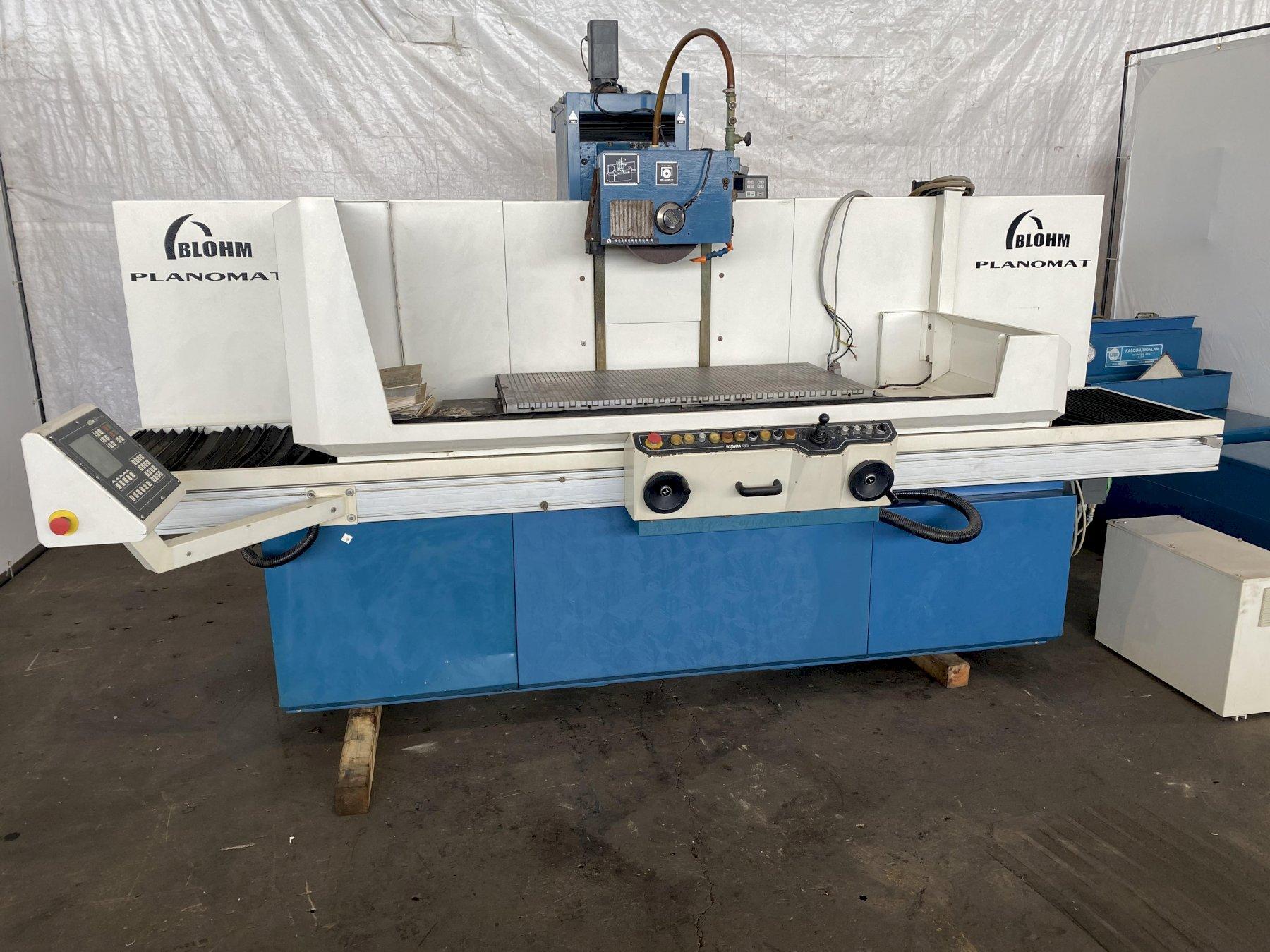

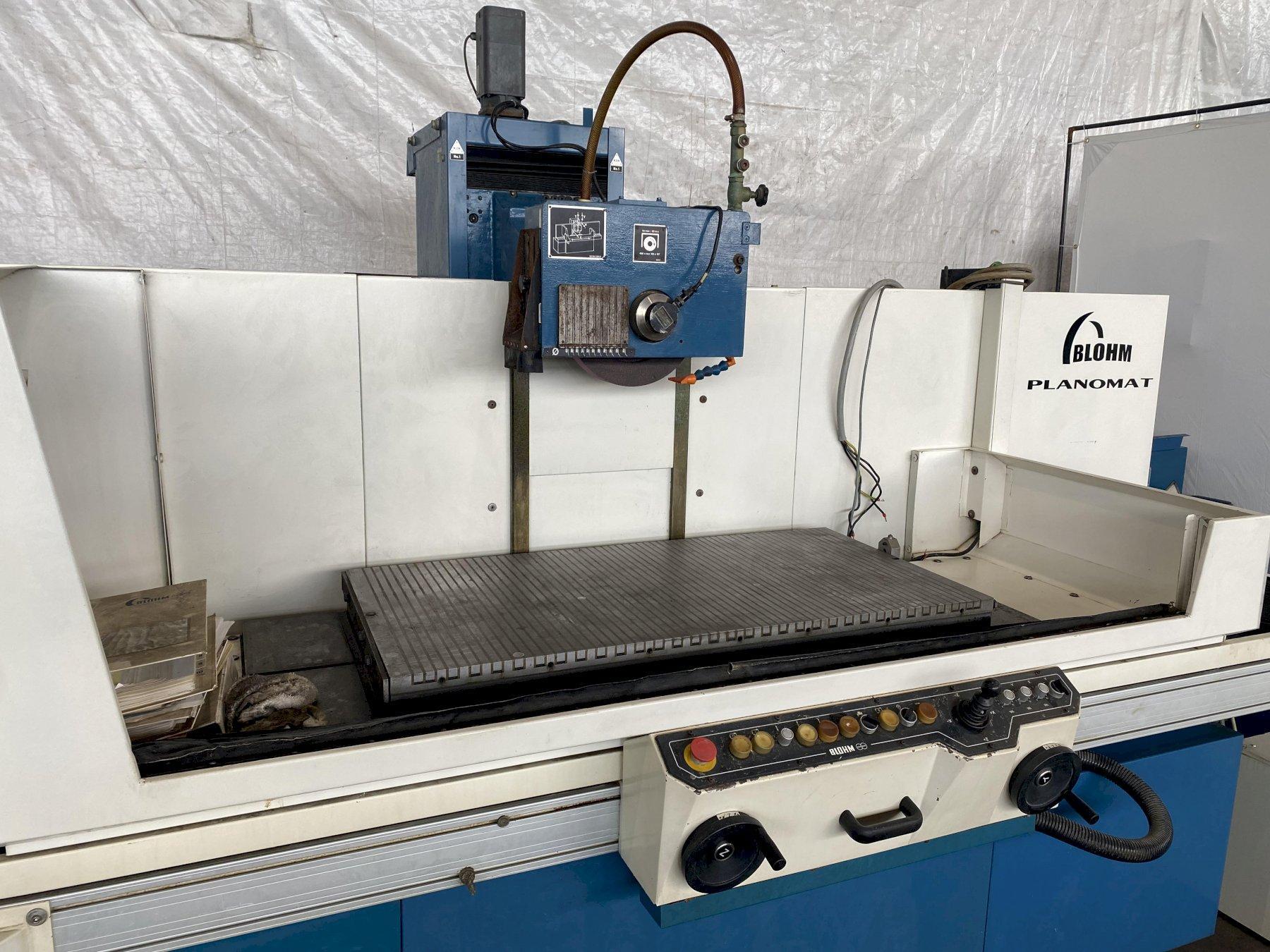

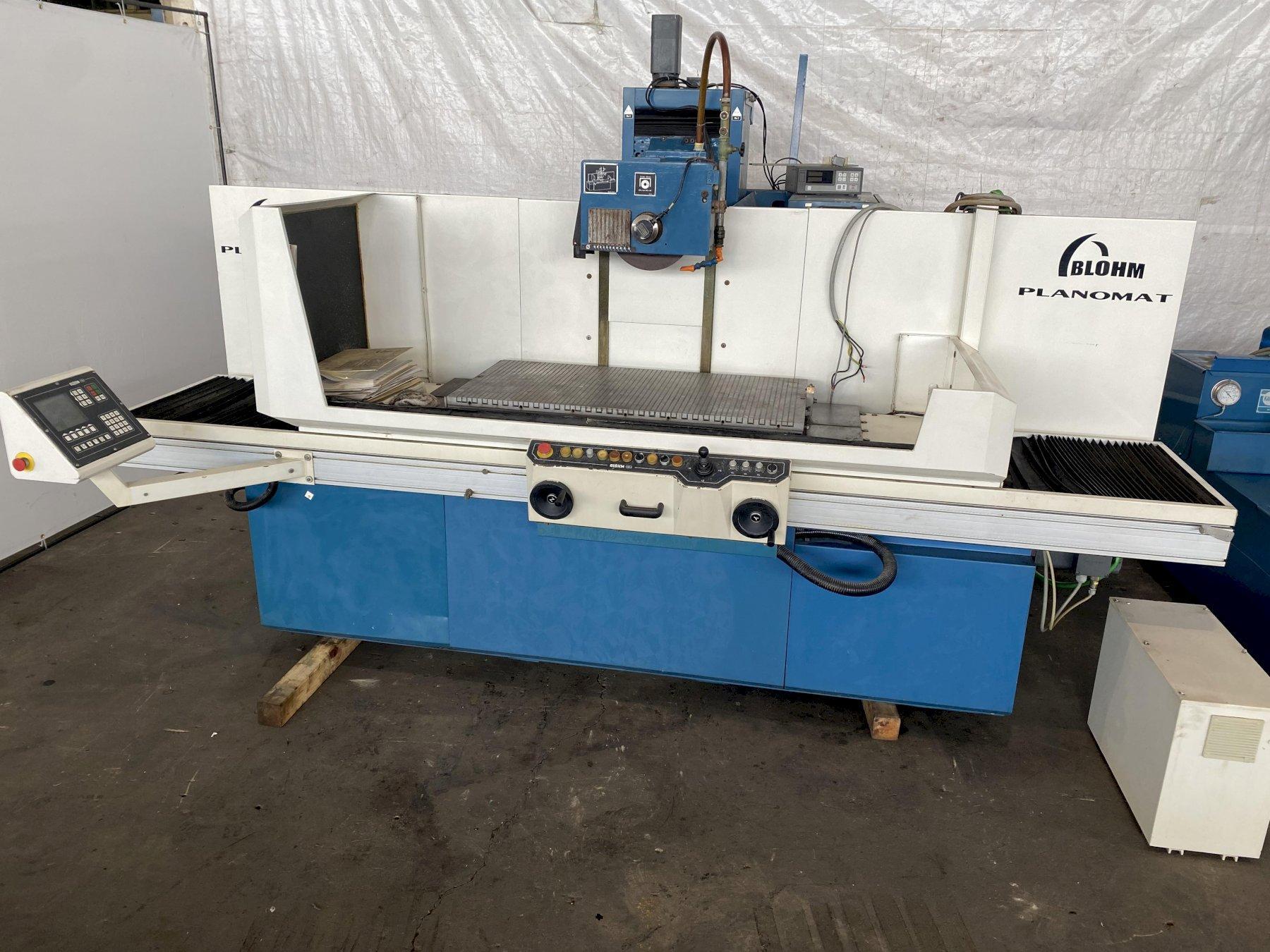

24" X 48" BLOHM PLANOMAT 612 CNC HYDRUALIC SURFACE GRINDER. STOCK # 0632322

Stock #: 0632322

Equipped With

SERIAL.............................: 14-196
MODEL..............................: 612
SPECIFICATIONS:
TABLE LENGTH.......................: 63"
TABLE WIDTH........................: 24"

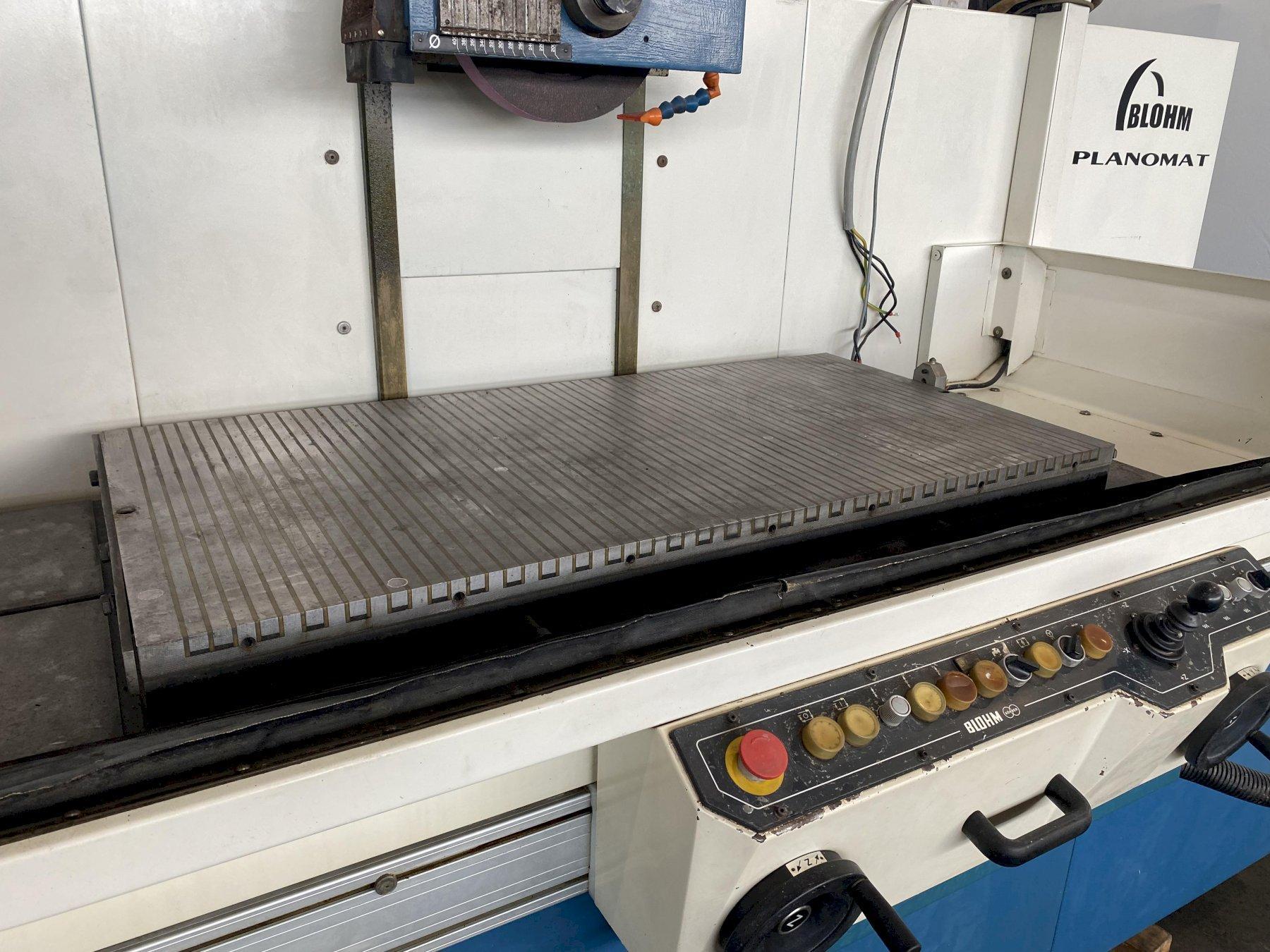

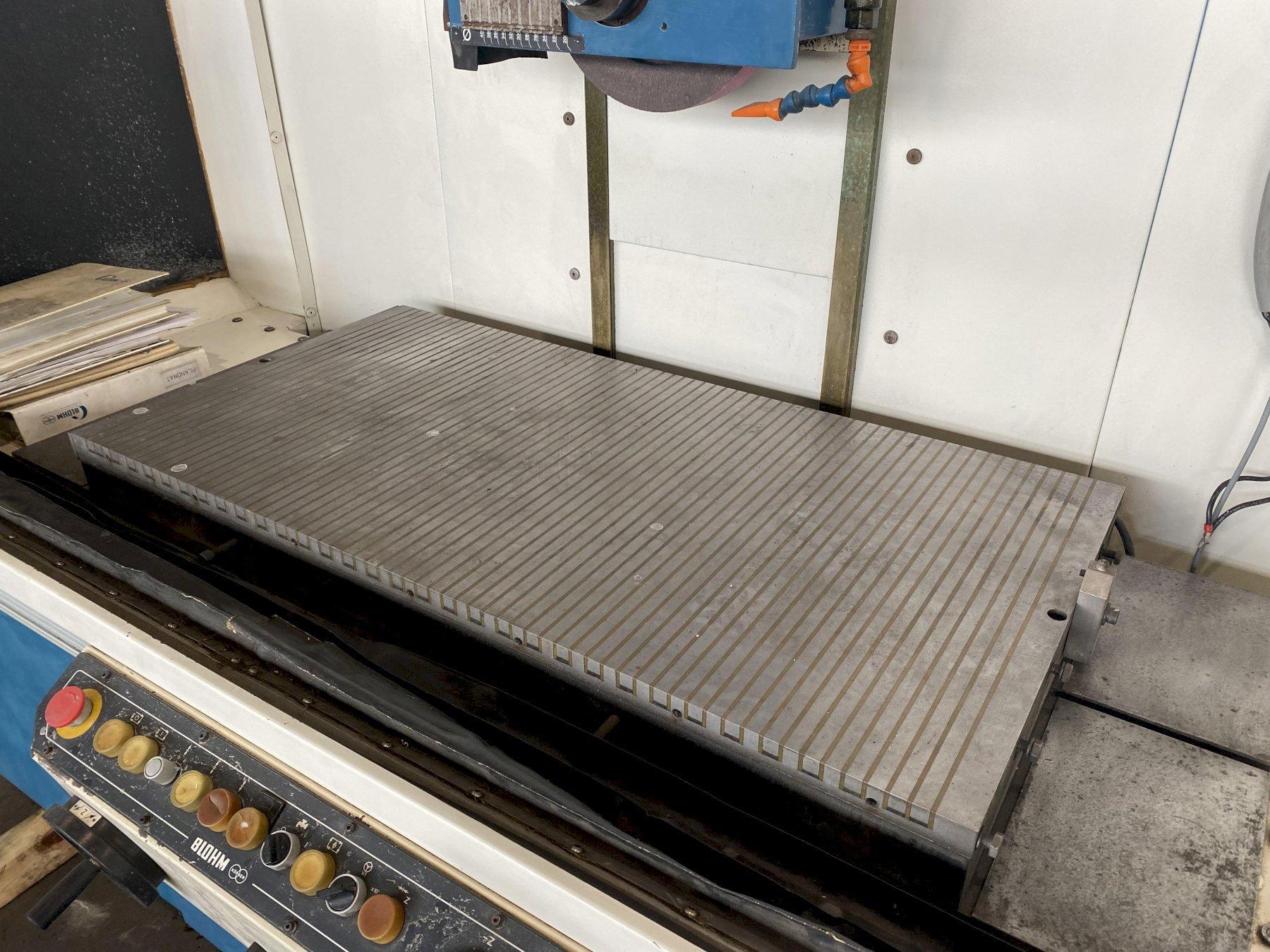

MAGNETIC TABLE LENGTH..............: 48"
MAGNETIC TABLE WIDTH...............: 24"
TABLE HEIGHT ABOVE FLOOR...........: 36"
MAX TABLE LOAD.....................: 2,200 LBS
TRAVELS:
X AXIS.............................: 51.18"
Y AXIS.............................: 21.6"
Z AXIS.............................: 21.7"
TRAVERSING SPEEDS:
X AXIS SPEED.......................: 30-30000 MM/M IN
Y AXIS SPEED.......................: 4-3750 MM/M IN
X AXIS SPEED.......................: 4-400 MM/M IN

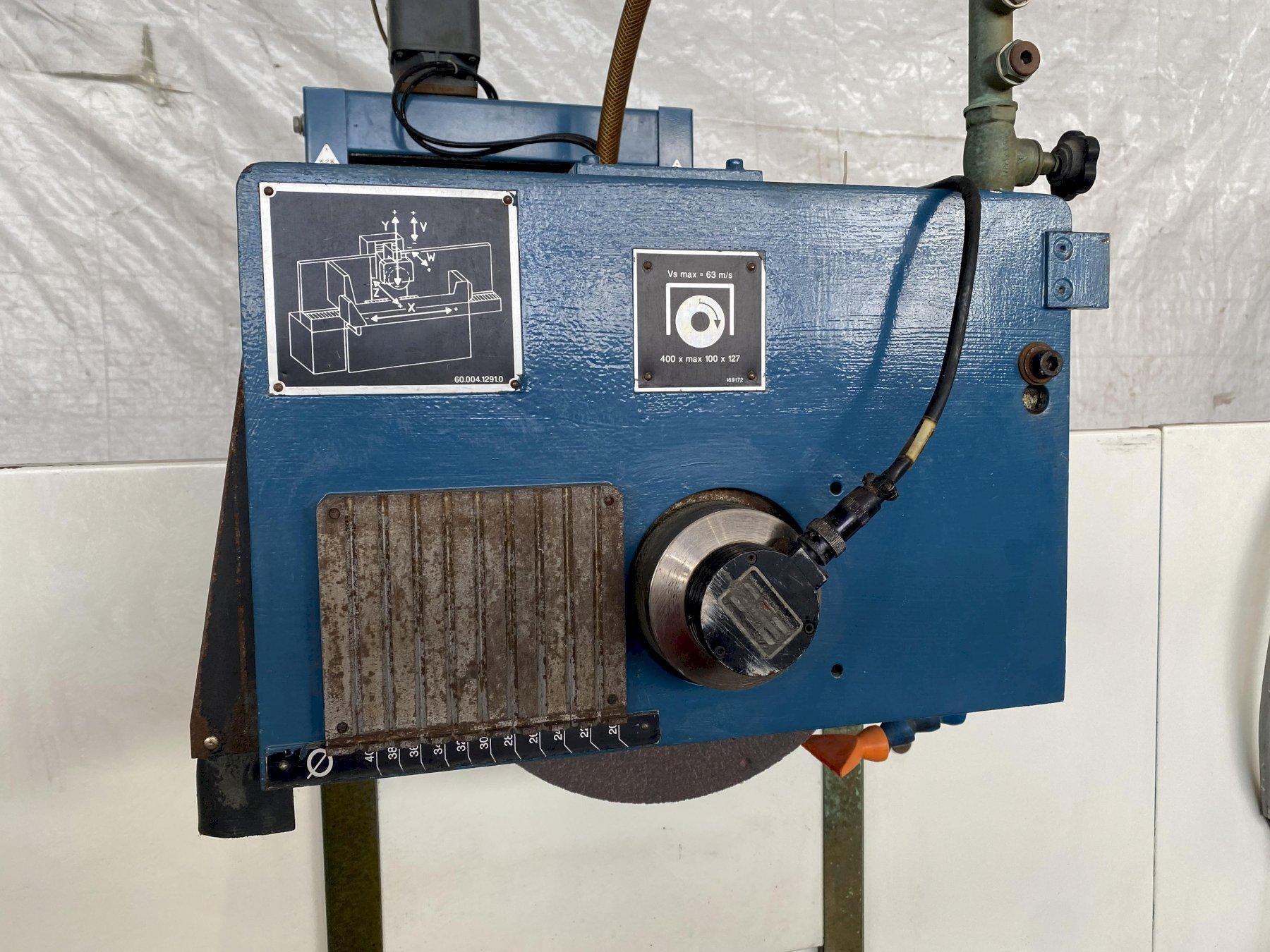

GRINDING WHEEL DIMENSION:
GRINDING WHEEL DIAMETERS...........: 7.40" - 15.74" (MIN - MAX)
GRINDING WHEEL WIDTHS..............: 1.18" - 3.14" (MIN - MAX)
STANDARD WHEEL WIDTH...............: 1.96"
GRINDING WHEEL HOLD DIAMETER.......: 5"
EQUIPPED WITH:

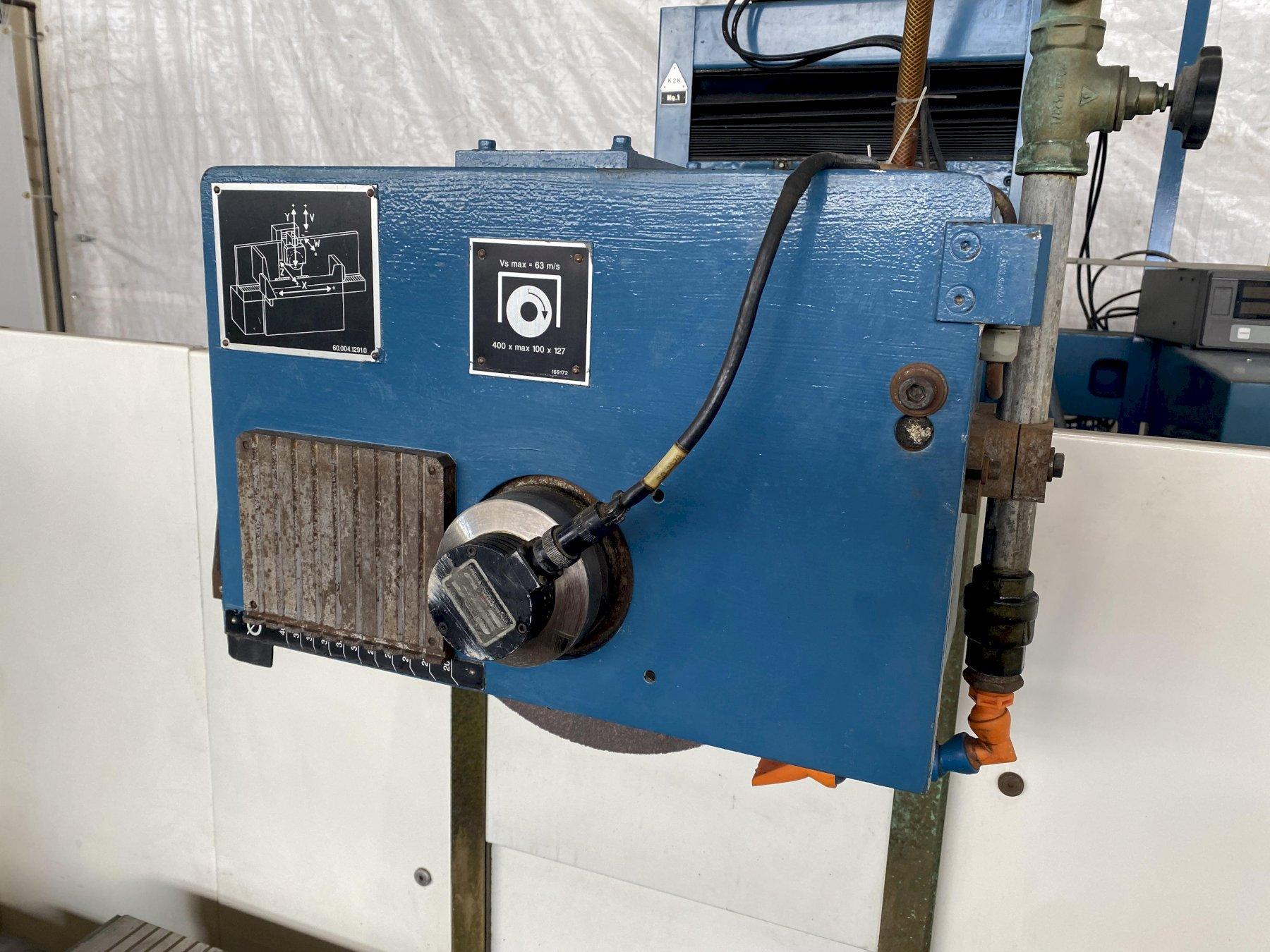

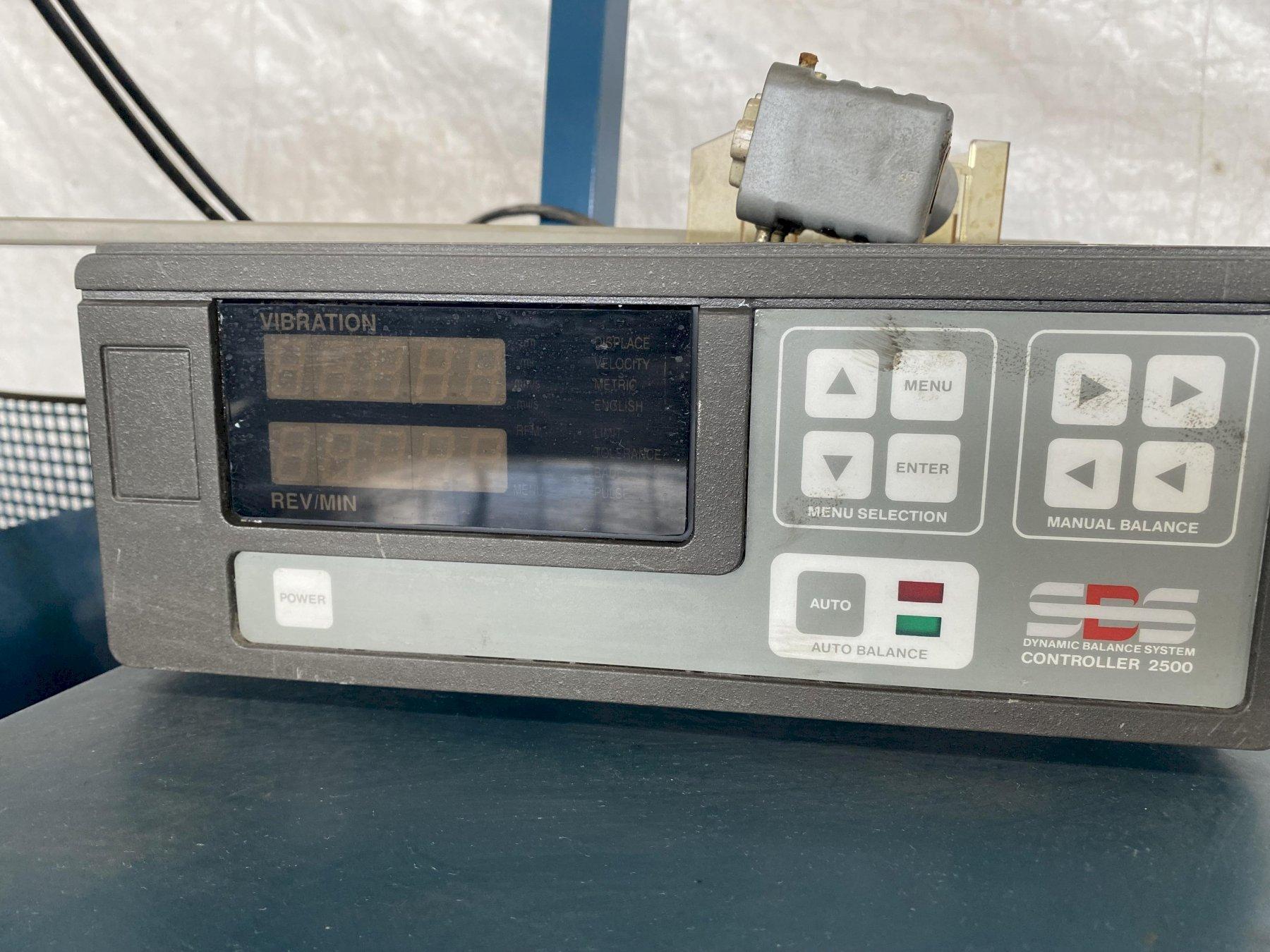

SBS DYNAMIC BALANCING SYSTEM

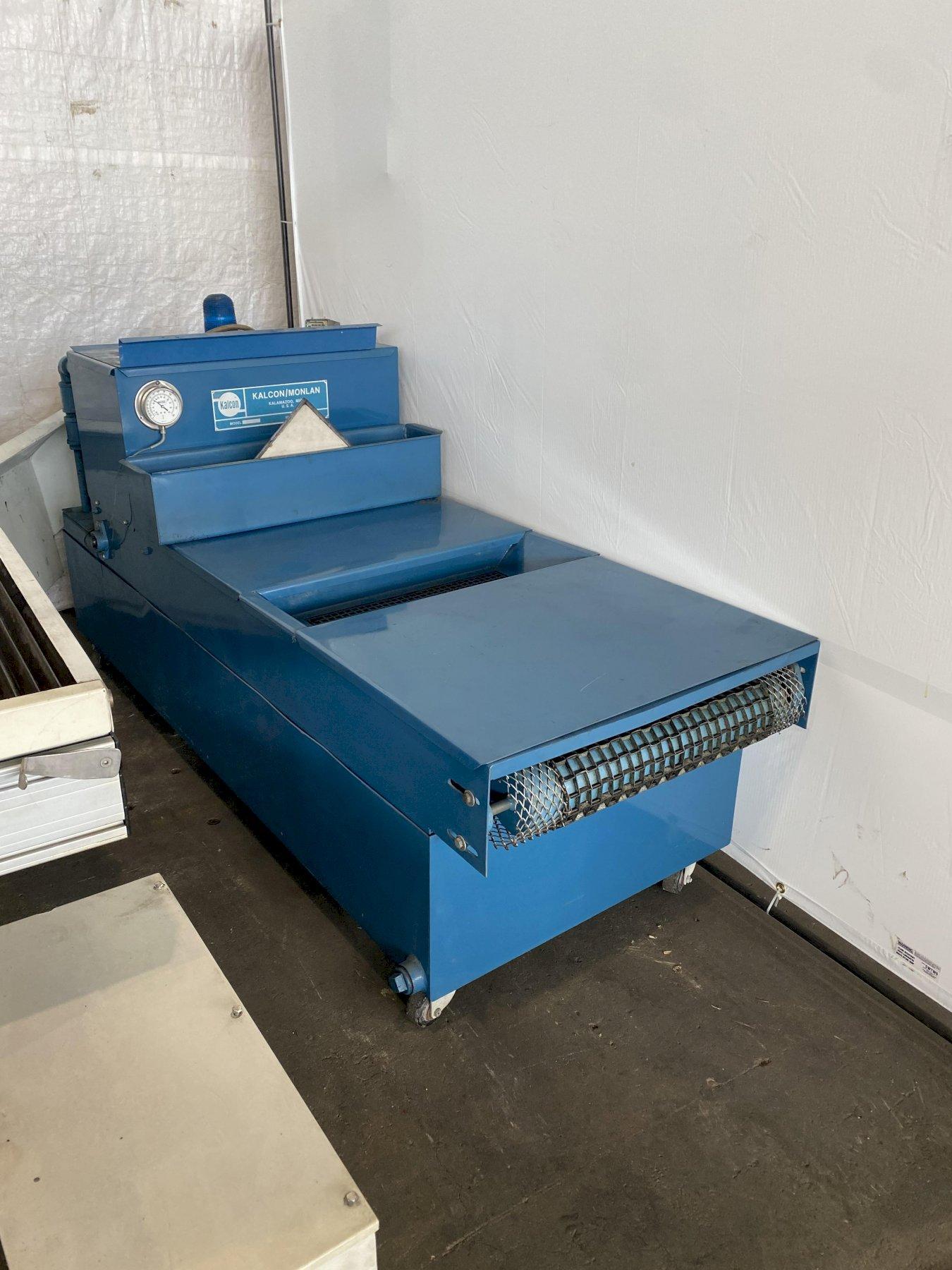

KALCON/MONLAN FILTERING SYSTEM

FLOOR SPACE REQUIRED: WIDTH X DEPTH X HEIGHT
105.18" X 77.55" X 96.45"
APPROX 11,900 LBS
