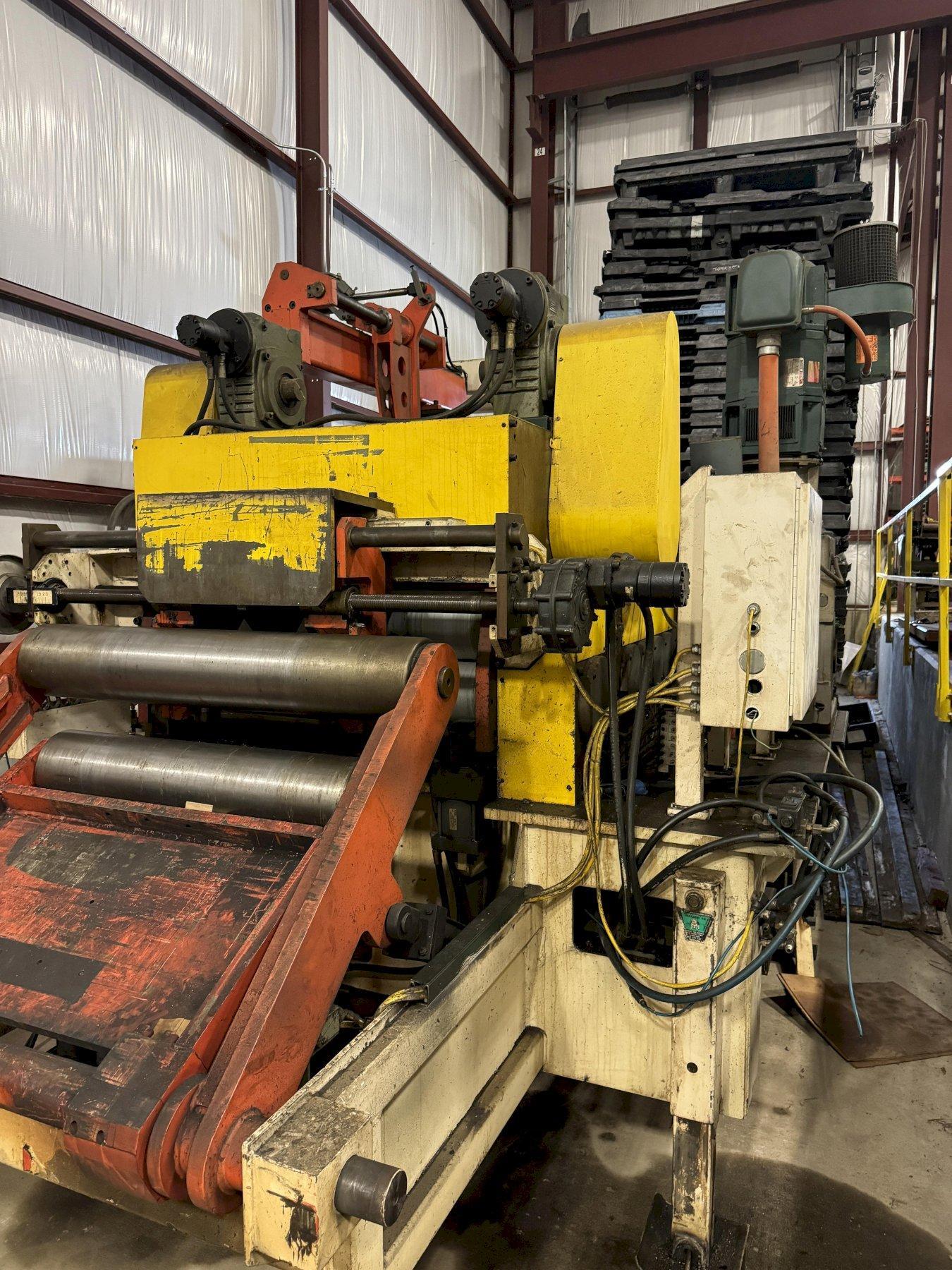

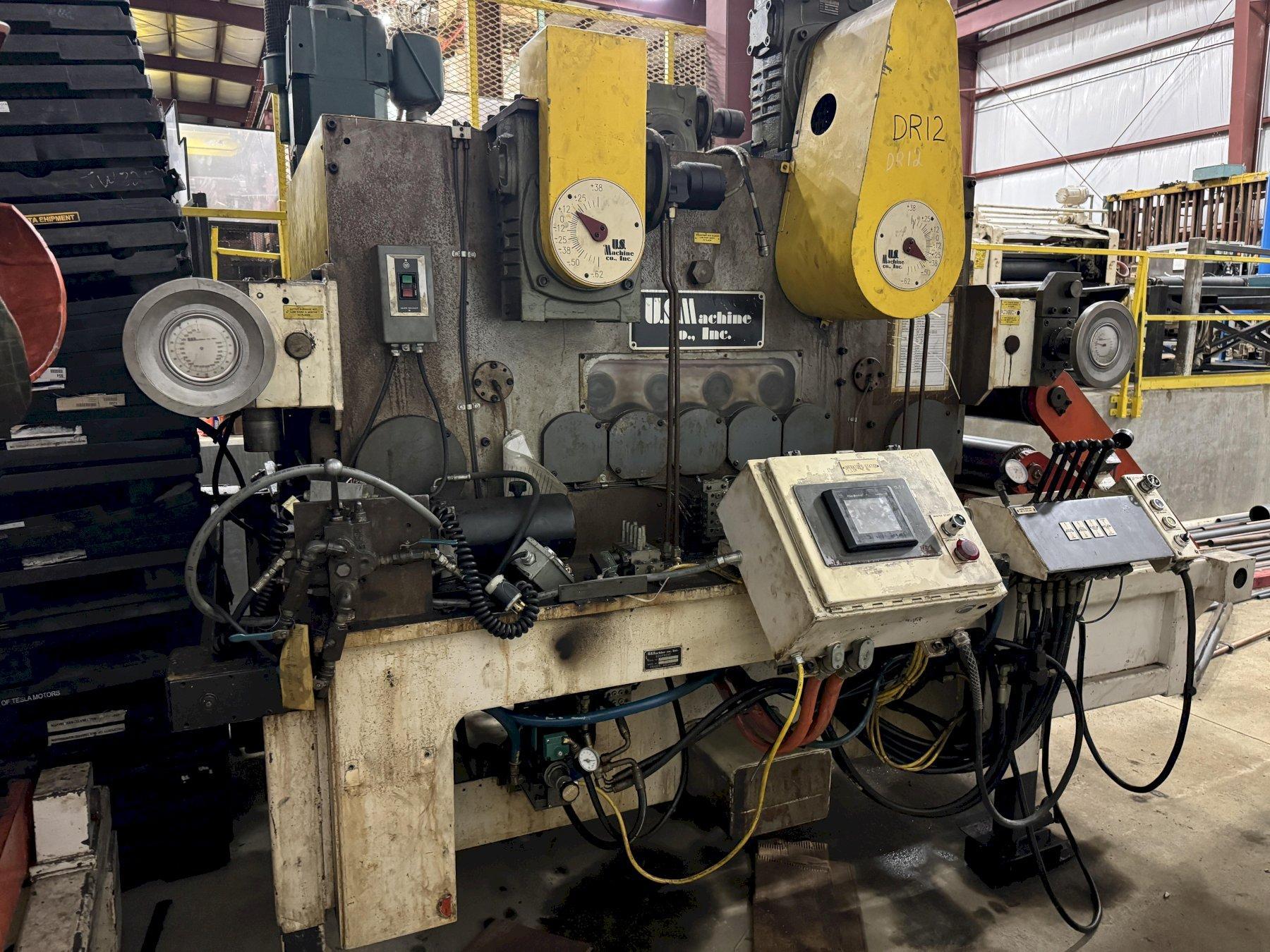

30,000 LB X 42″ X .312″ U.S. MACHINE CO M24 COIL-FEEDLINE. STOCK # 0446525

30,000 LB X 42" X .312" U.S. MACHINE CO M24 COIL-FEEDLINE. STOCK # 0446525

Stock #: 0446525

Equipped With

SPECIFICATIONS:
COIL WEIGHT......................: 30,000 LB
COIL O.D.........................: 30" MIN -72" MAX

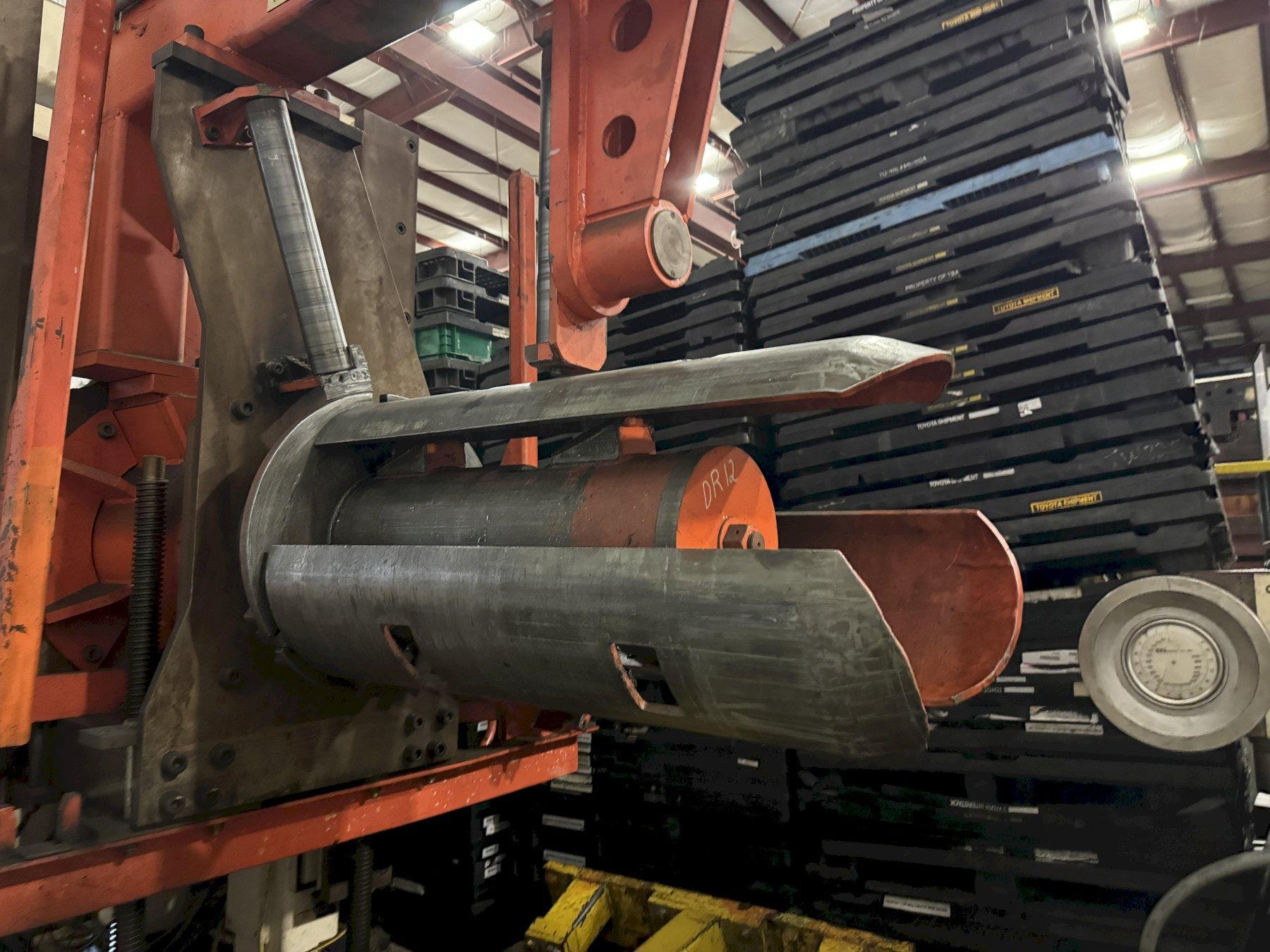

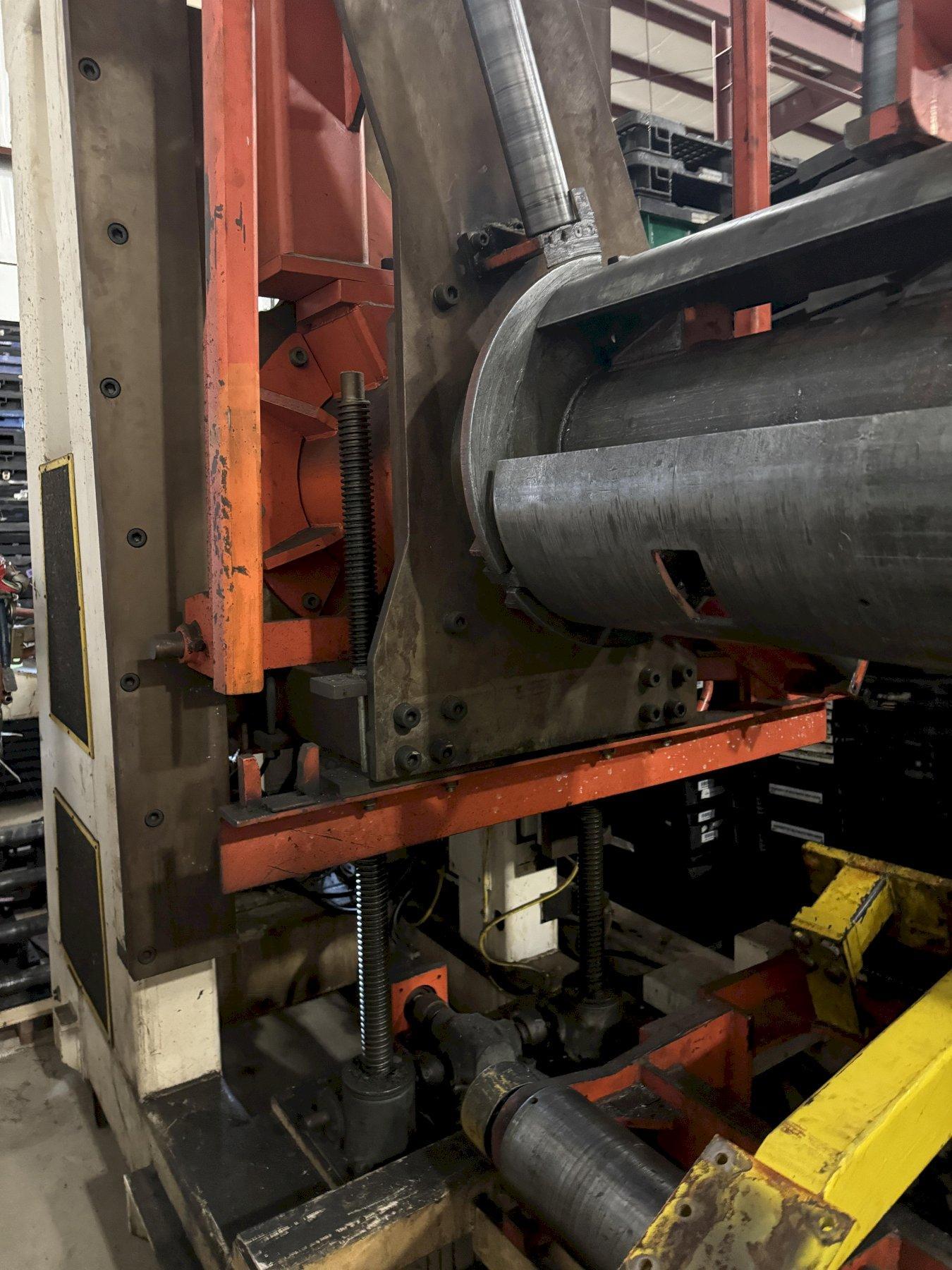

COIL I.D.........................: 20" - 24" (EXPANSION 19-1/2" - 24-1/2")
STOCK WIDTH......................: 6" MIN - 42" MAX
STOCK THICKNESS:
COLD ROLLED STEEL @ 50,000 YIELD.: .030" - .075" X 42" WIDE
HOT ROLLED STEEL @ 50,000 YIELD..: .075" - .312" X 42" WIDE
HOT ROLLED STEEL @ 50,000 YIELD..: .510" X 18" WIDE
HSLA STEEL @ 70,000 YIELD........: .38" X 30" WIDE
ACCURACY.........................: PLUS OR MINUS .010"
# OF ROLLS.......................: 9(4 OVER 5)
PASSLINE POWER ADJUSTMENT........: 48" PLUS OR MINUS 4"

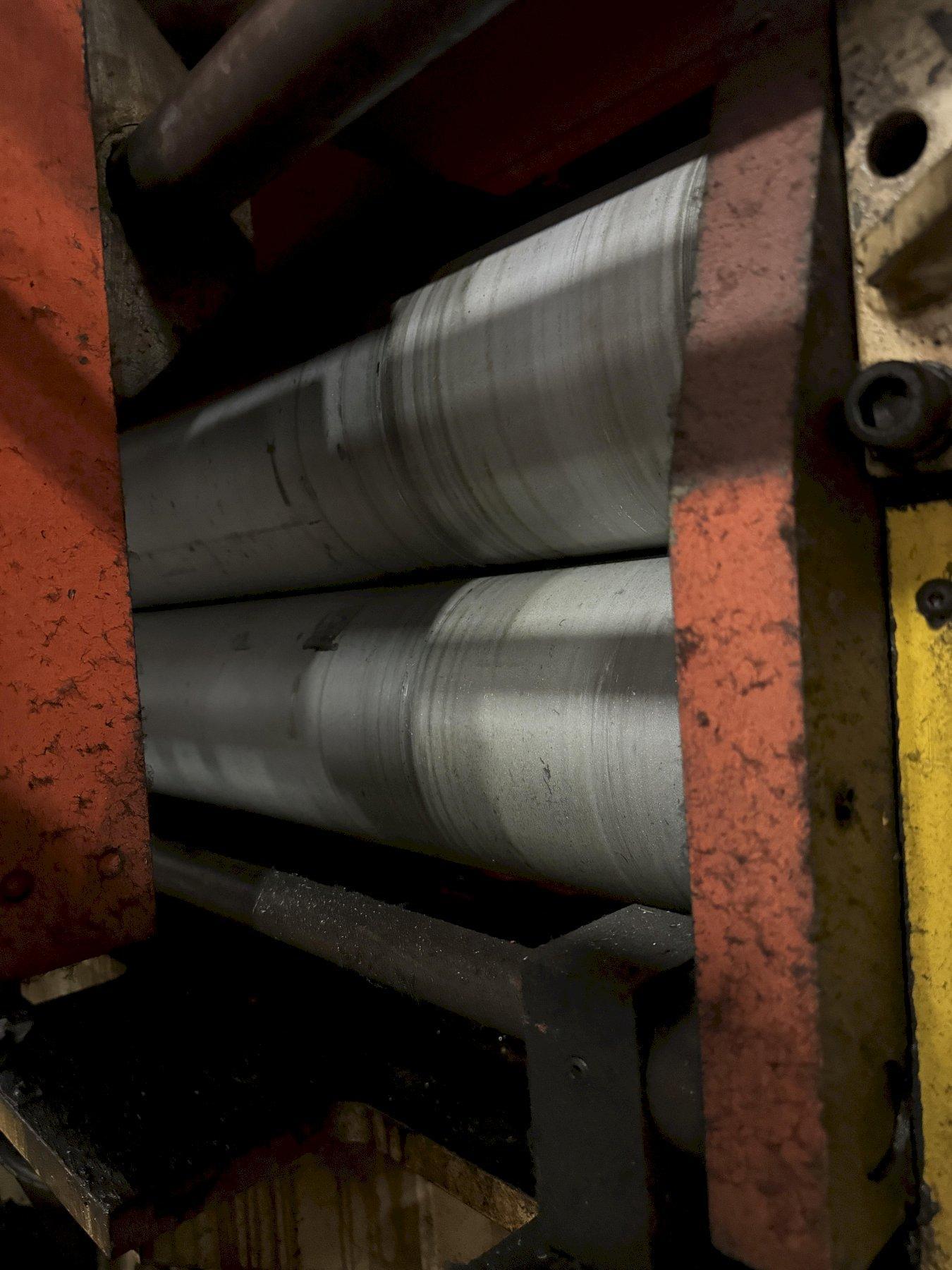

FEED ROLLS.......................: 8" DIAMETER NOMINAL(SATIN FINISHED)BACKED UP

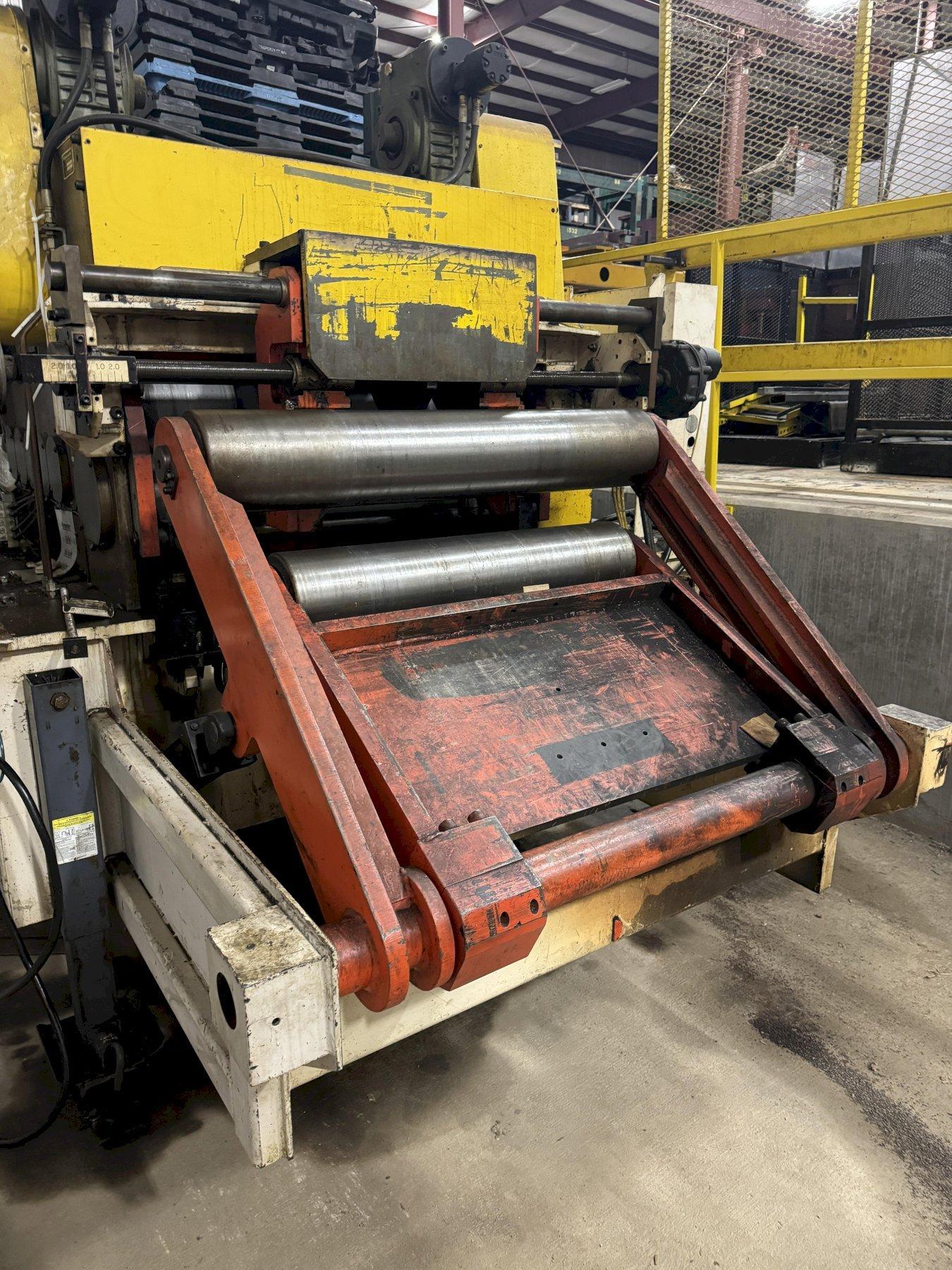

ENTRY AND EXIT PINCH ROLLS.......: YES
PINCH ROLL DIAMETER..............: 12"
SIDE GUIDE.......................: HYDRAULIC POWER ADJUSTED
POWER............................: AC VECTOR DRIVE
VOLTAGE..........................: 440 VOLT, 3 PHASE, 60 HERTZ

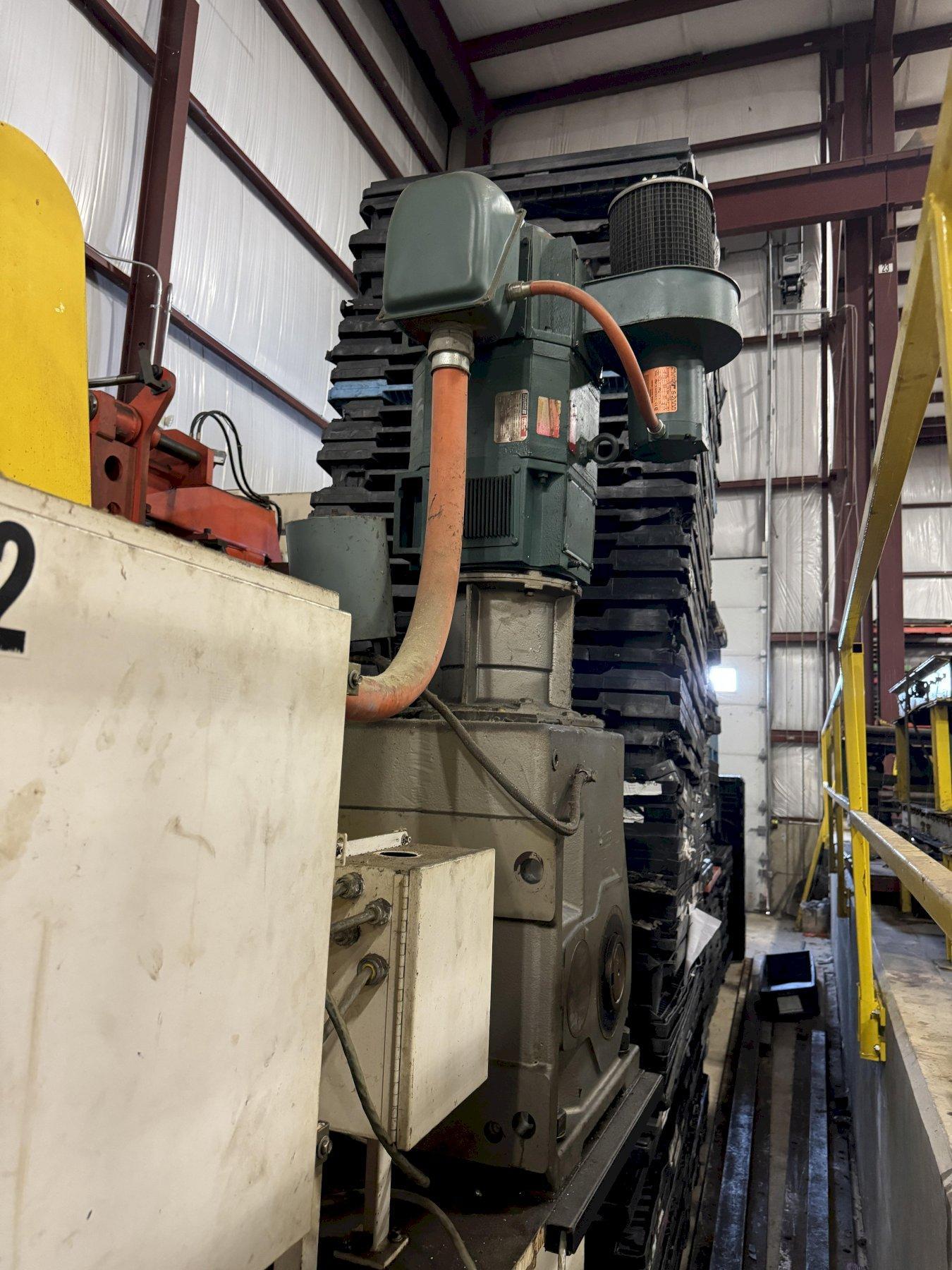

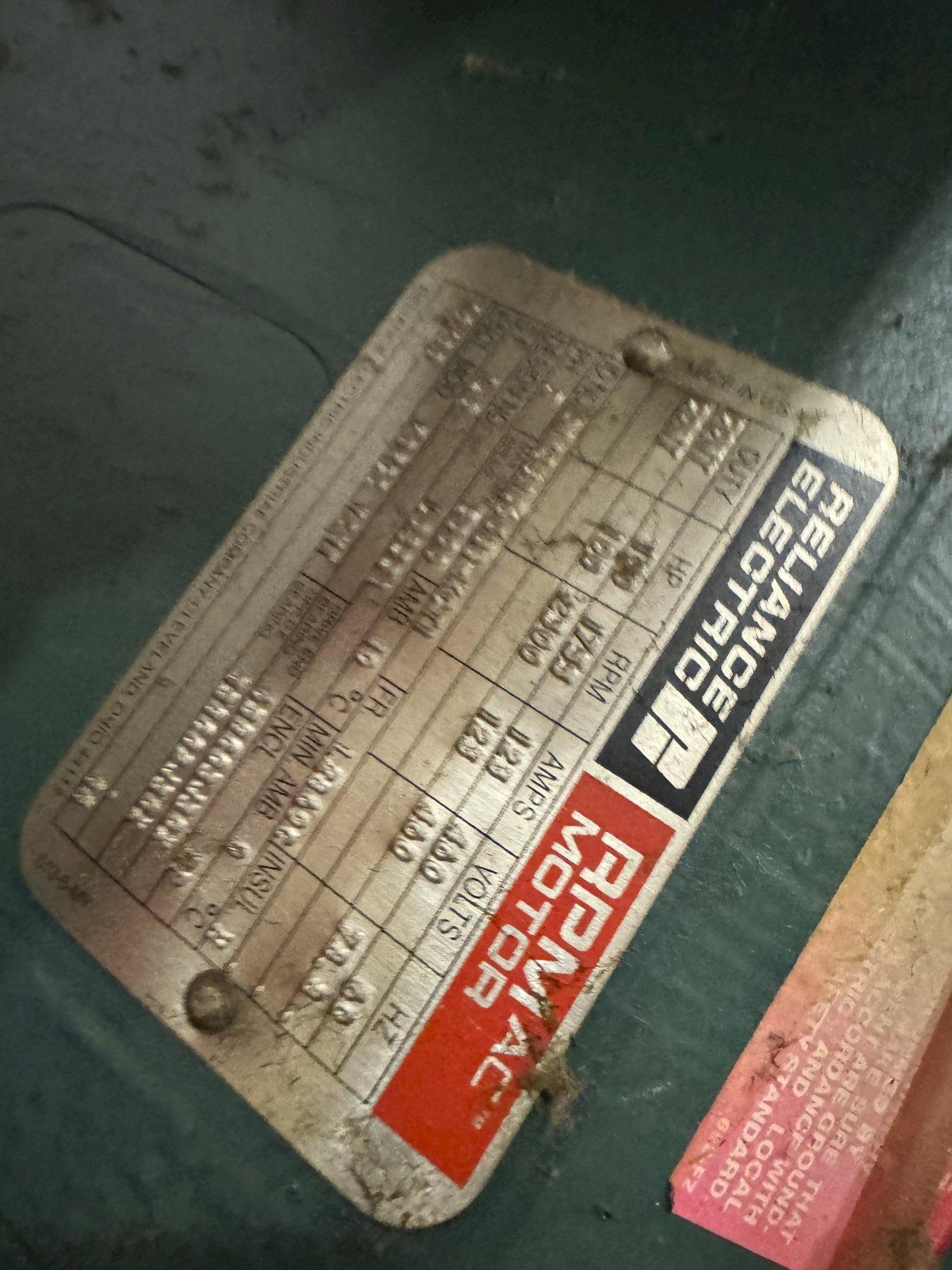

MOTOR............................: 150 HP RELIANCE ELECTRIC

30,000 LB X 42" X .312" U.S. MACHINE CO M24 COIL-FEEDLINE. STOCK # 0446525

Download Images

SPECIFICATIONS:
COIL WEIGHT......................: 30,000 LB
COIL O.D.........................: 30" MIN -72" MAX
COIL I.D.........................: 20" - 24" (EXPANSION 19-1/2" - 24-1/2")
STOCK WIDTH......................: 6" MIN - 42" MAX
STOCK THICKNESS:
COLD ROLLED STEEL @ 50,000 YIELD.: .030" - .075" X 42" WIDE
HOT ROLLED STEEL @ 50,000 YIELD..: .075" - .312" X 42" WIDE
HOT ROLLED STEEL @ 50,000 YIELD..: .510" X 18" WIDE
HSLA STEEL @ 70,000 YIELD........: .38" X 30" WIDE
ACCURACY.........................: PLUS OR MINUS .010"
# OF ROLLS.......................: 9(4 OVER 5)
PASSLINE POWER ADJUSTMENT........: 48" PLUS OR MINUS 4"
FEED ROLLS.......................: 8" DIAMETER NOMINAL(SATIN FINISHED)BACKED UP
ENTRY AND EXIT PINCH ROLLS.......: YES
PINCH ROLL DIAMETER..............: 12"
SIDE GUIDE.......................: HYDRAULIC POWER ADJUSTED
POWER............................: AC VECTOR DRIVE
VOLTAGE..........................: 440 VOLT, 3 PHASE, 60 HERTZ
MOTOR............................: 150 HP RELIANCE ELECTRIC

Specifications

Machine Type

Coil Feed Lines

Manufacturer

U.S. INDUSTRIAL

Model

M24

Year

N/A

Condition

Used
