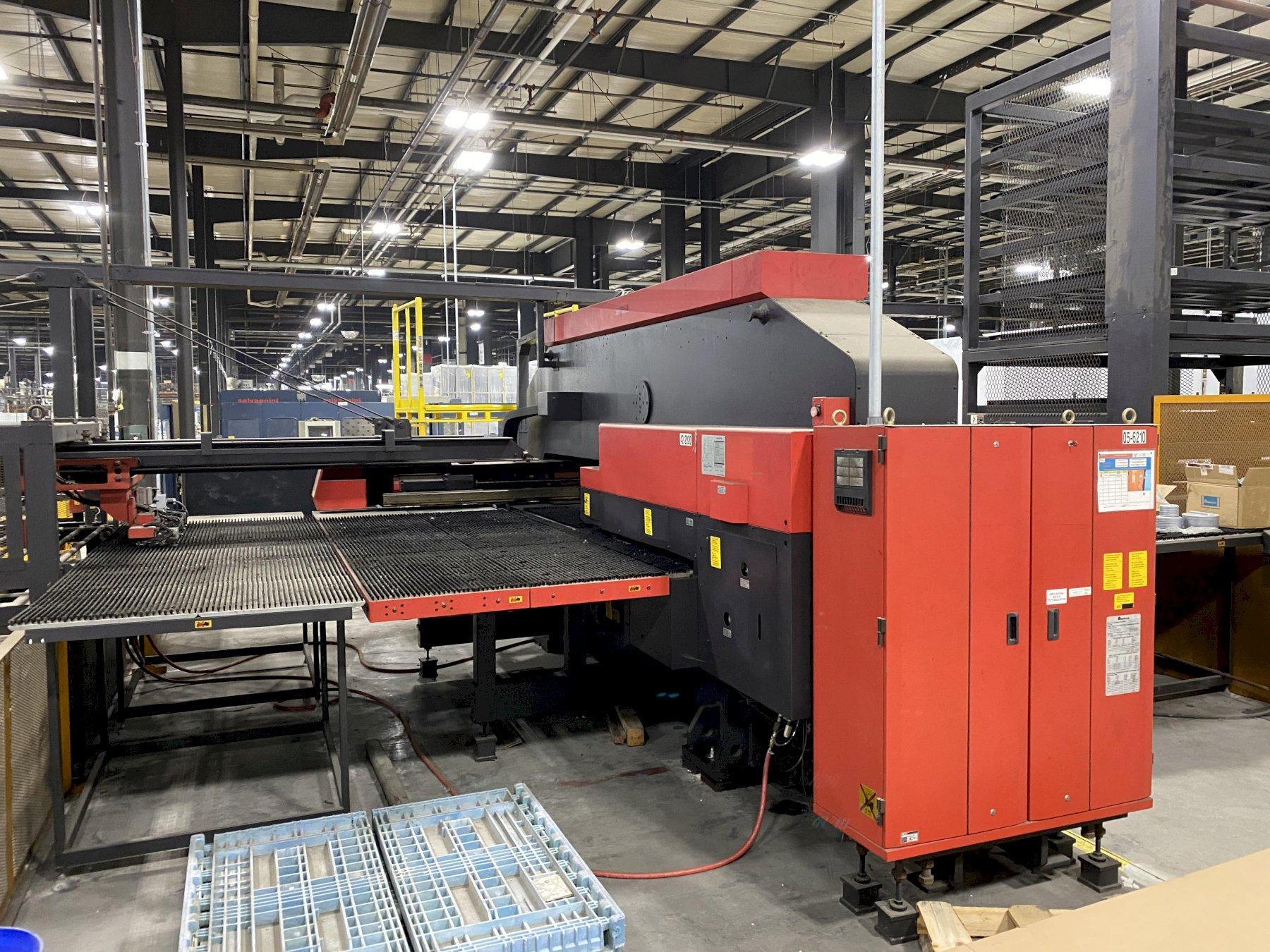

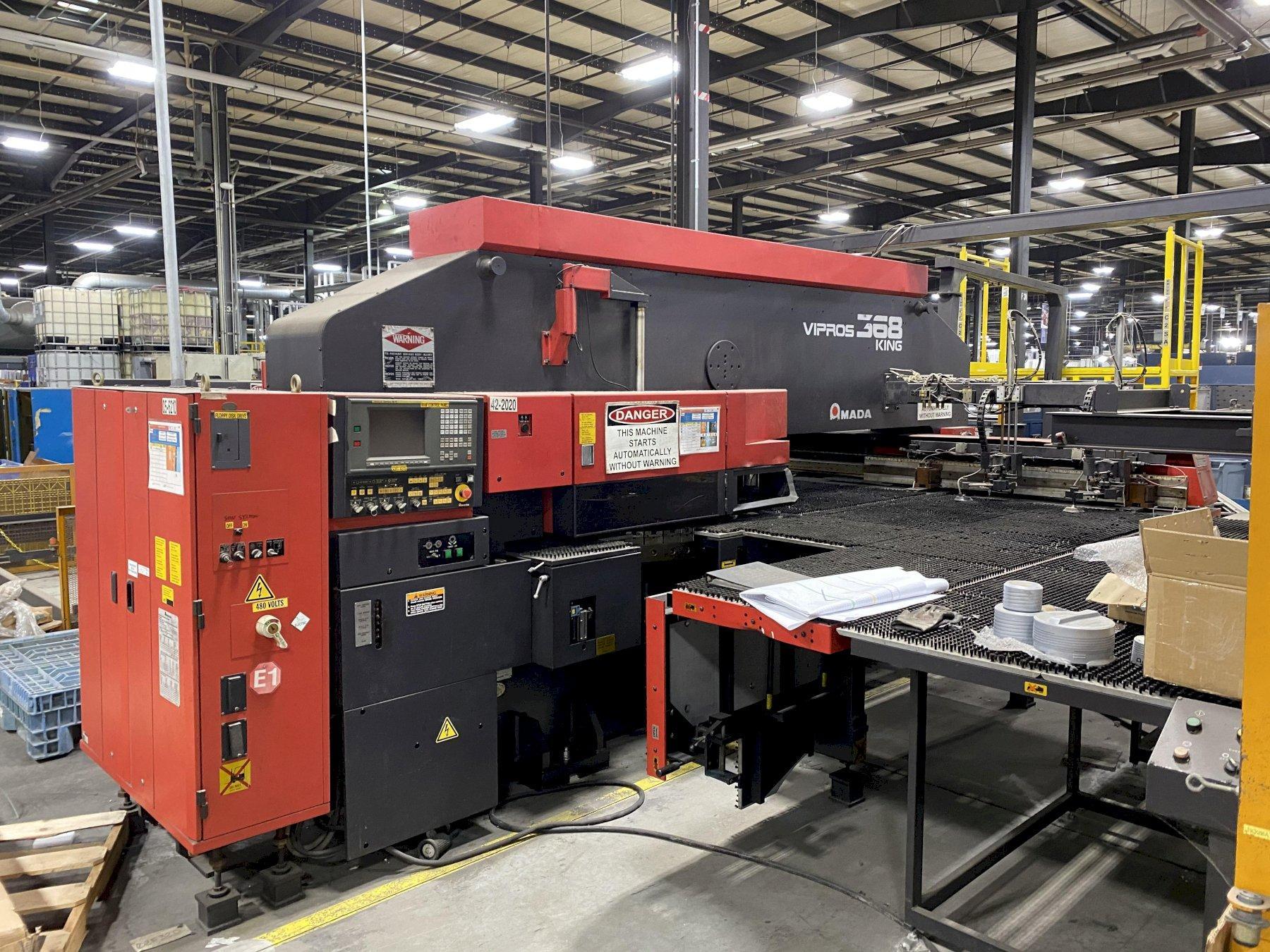

33 TON AMADA VIPROS 368 KING CNC TURRET PUNCH WITH LOADING TOWER AND UNLOADER SYSTEM. STOCK # 0848820

Stock #: 0848820

Equipped With

SPECIFICATIONS

Tonnage Capacity:................................... 33 Tons
Maximum Sheet Size:................................. 60″ (Y) x 157.50″ (X) with repositioning
Maximum Axis Travel:................................ 60″ (Y) x 78.74″ (X)
Max. Linear Table Speed:............................ 3150″ per min.
Punching Accuracy:.................................. +/-0.004″ Hole to Hole
Maximum Sheet Thickness:............................ 0.125″
Maximum Material Weight:............................ 132 lb.
Press Stroke:....................................... 1.575″
Maximum Hole Diameter:.............................. 4.5″
Turret Rotation Speed:.............................. 30 RPM
Turret Capacity:.................................... 58 Stations (4 auto-index)
Control Function:................................... X, Y, T & C
Input Method:....................................... MDI, Floppy Disk Drive, RS-232
Minimum Command Unit:............................... 0.001″ (X, Y)
Minimum Travel Unit:................................ 0.001″ (X, Y)
Control:............................................ Fanuc 18
Control Function:................................... X, Y, T & C
Input Method:....................................... MDI, Floppy Disk Drive, RS-232
Minimum Command Unit:............................... 0.001″ (X, Y)
Minimum Travel Unit:................................ 0.001″ (X, Y)
Operating Modes:.................................... Automatic, MDI & Manual
Display Modes:...................................... Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics
Interlock Displays:................................. Oil Temperature, Door Open


Equipped With:

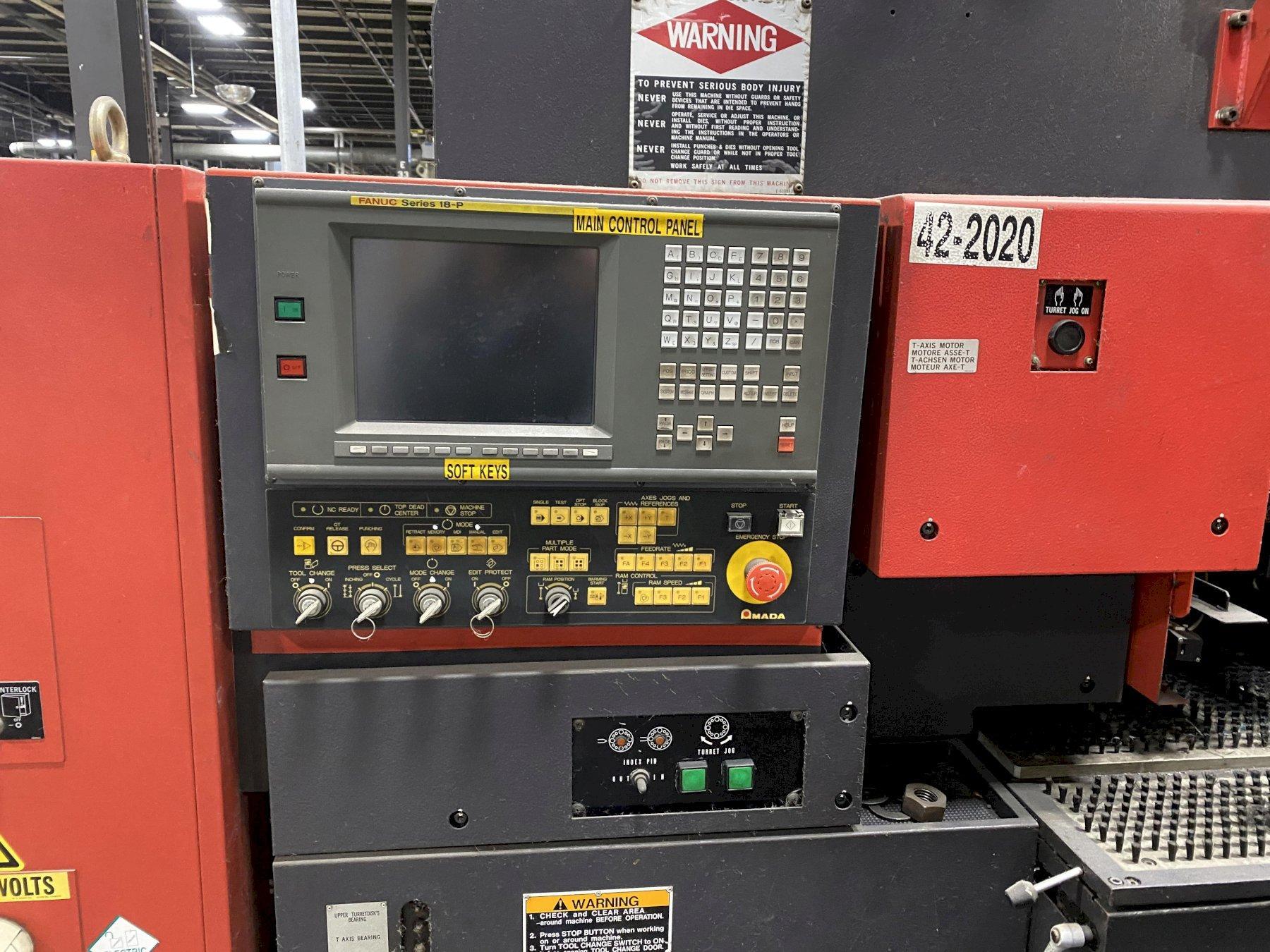

Fanuc 18P CNC Control

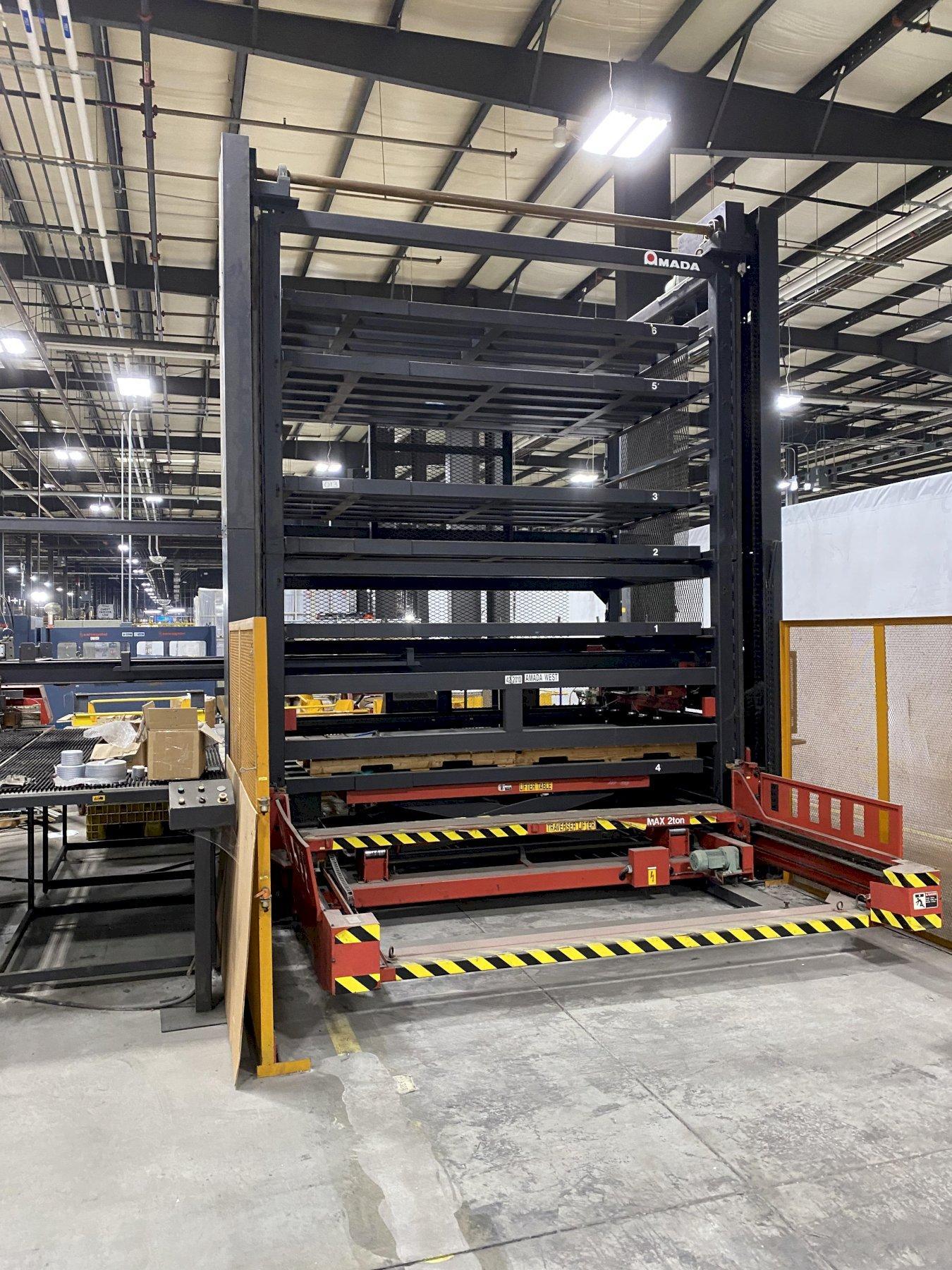

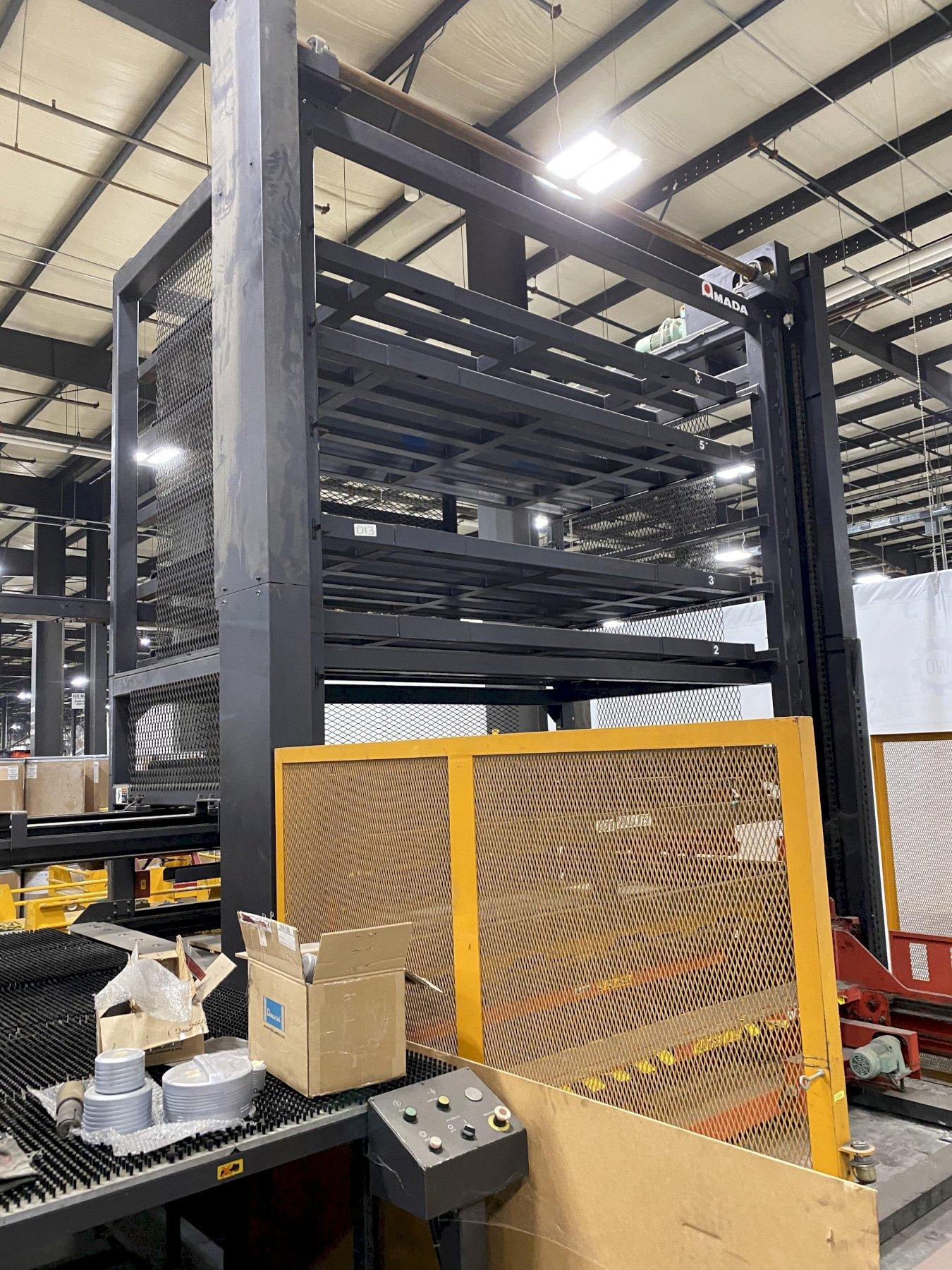

ASR 6 Automated Tower Loading System (Can remove if not wanted)

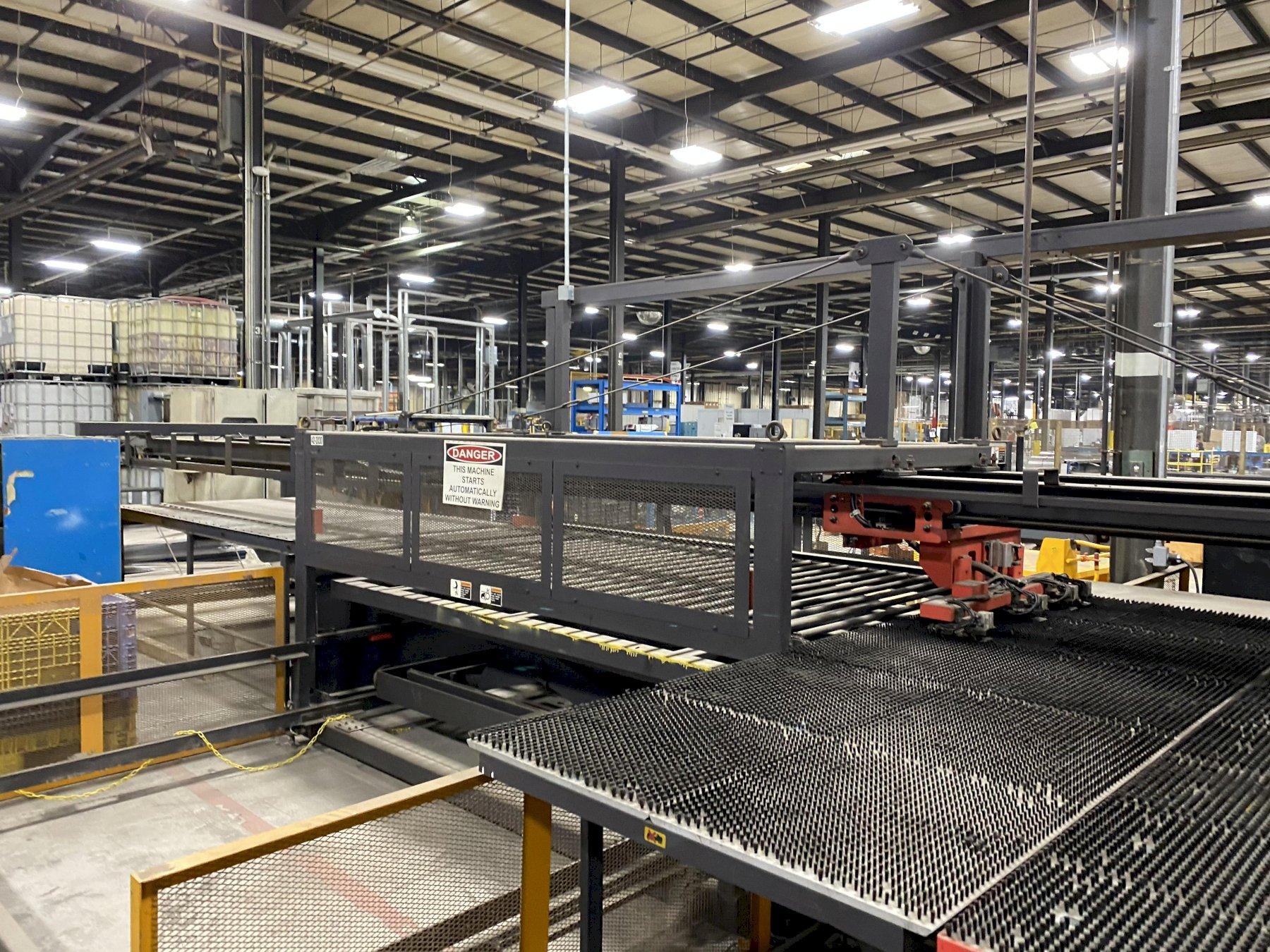

Unloading System (Can remove if not wanted)
Guide Assemblies
