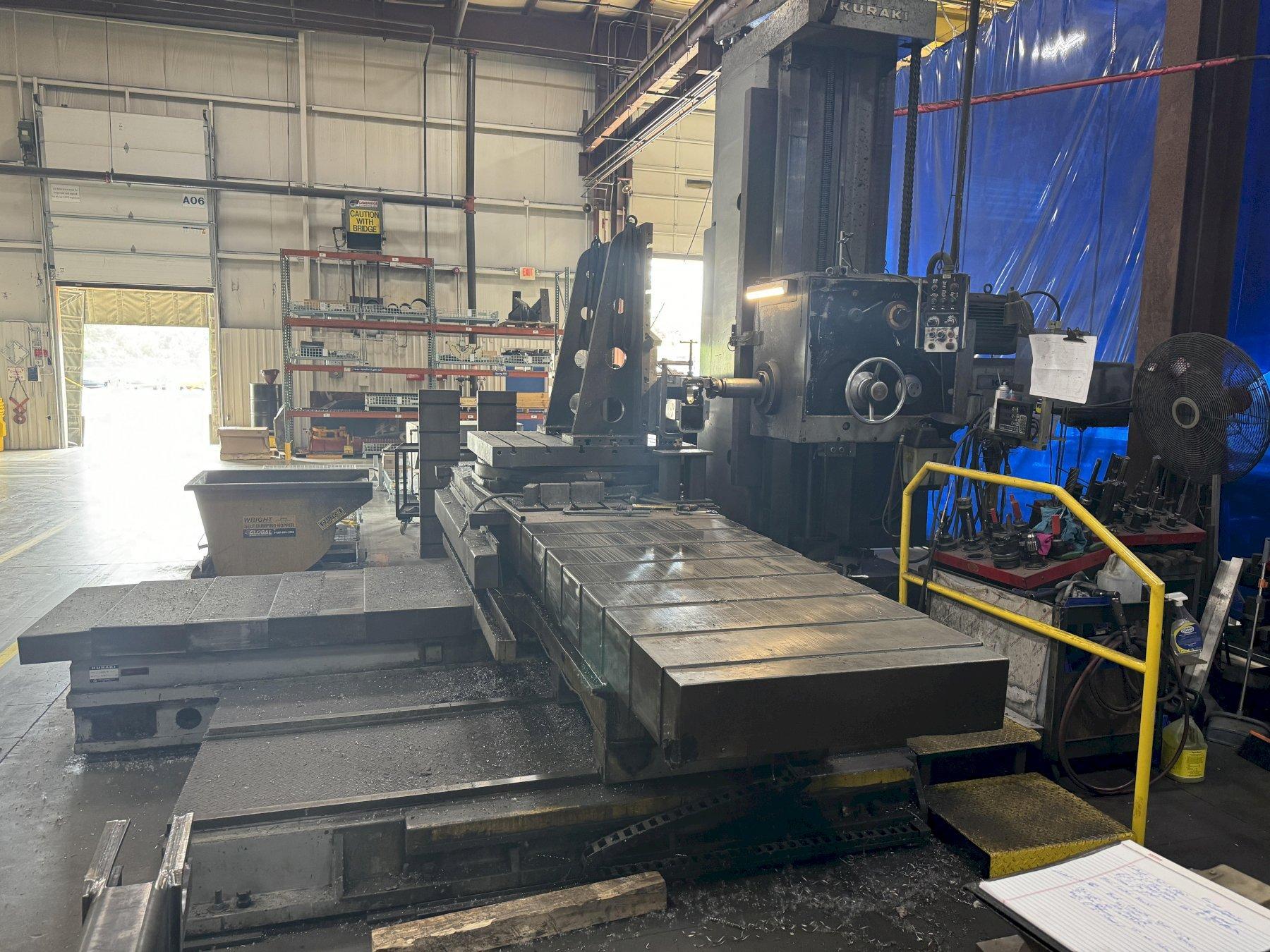

4.33" KURAKI KBT-1101P HORIZONTAL BORING MILL. STOCK # 0668625

Stock #: 0668625

Equipped With

SPINDLE DIAMETER ......................: 4.33"
TAPER IN SPINDLE ......................: CAT 50
VERTICAL TRAVEL OF HEADSTOCK Y-AXIS ...: 72.05"
TABLE CROSS TRAVEL, X-AXIS ............: 84.25"
SADDLE TRAVEL, W-AXIS .................: 59.06"
SPINDLE TRAVEL, Z-AXIS ................: 31.5"
SPINDLE SPEEDS (16) ...................: 12 - 1200 RPM
TABLE SIZE ............................: 49.21" X 78.74"
DISTANCE TO THE TOP OF TABLE ..........: 38.6"
FEEDS (PER REVOLUTION) ................: .001-0.2 IPR
FEEDS (PER MINUTE) ....................: .25-48 IPM
TABLE WEIGHT CAPACITY .................: 13,200 LBS.
RAPID TRAVERSE ........................: 100 IPM
MAIN MOTOR ............................: 20 HP
FLOOR SPACE ...........................: 229.1" X 207.5"
APPROXIMATE WEIGHT ....................: 51,920 LBS
EQUIPPED WITH..........................: SONY 3-AXIS DIGITAL READOUT
                                         PENDANT CONTROLS
                                         POWER DRAW BAR
                                         20 HP SPINDLE MOTOR
