Stock #: 0113826

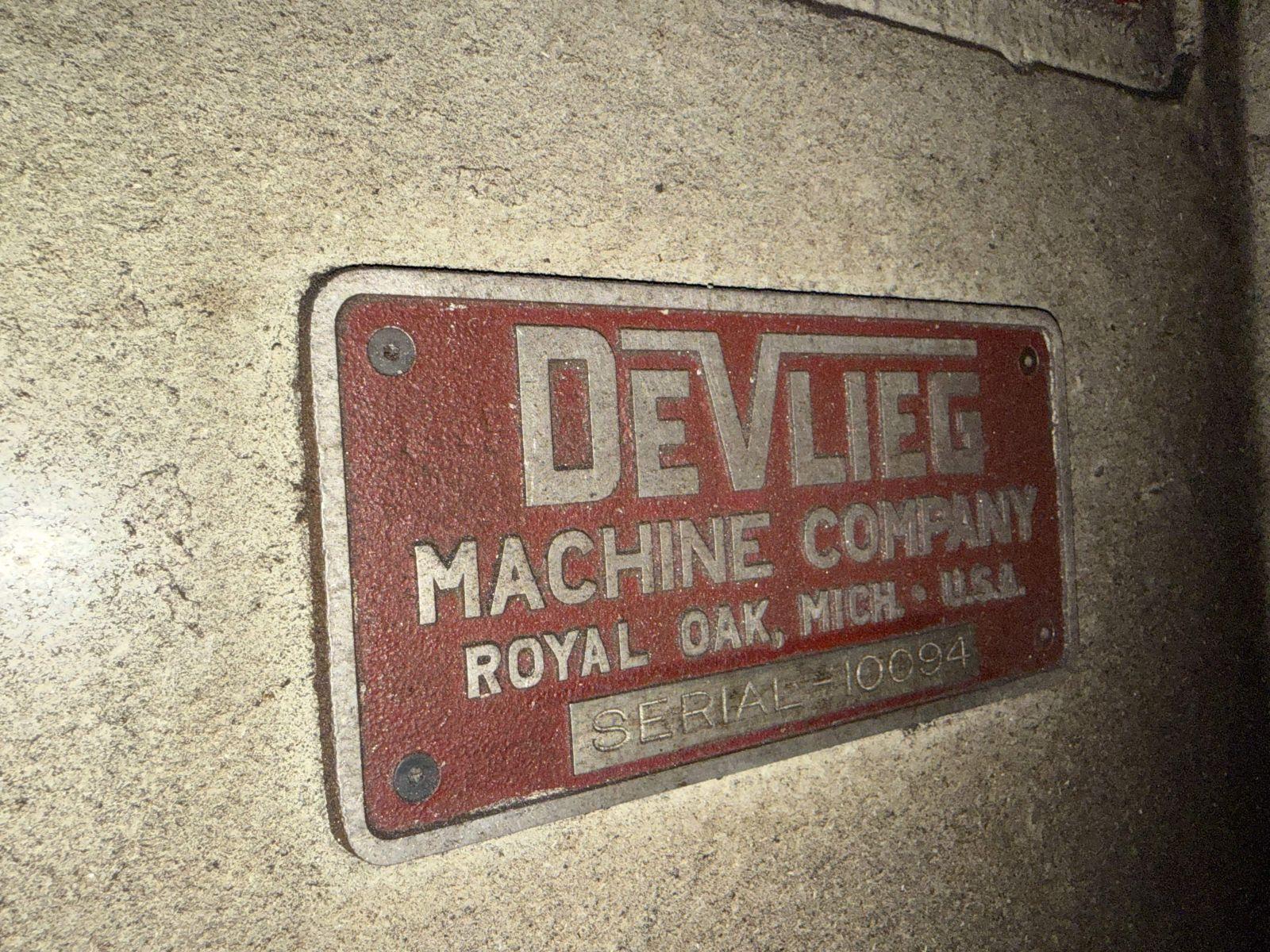

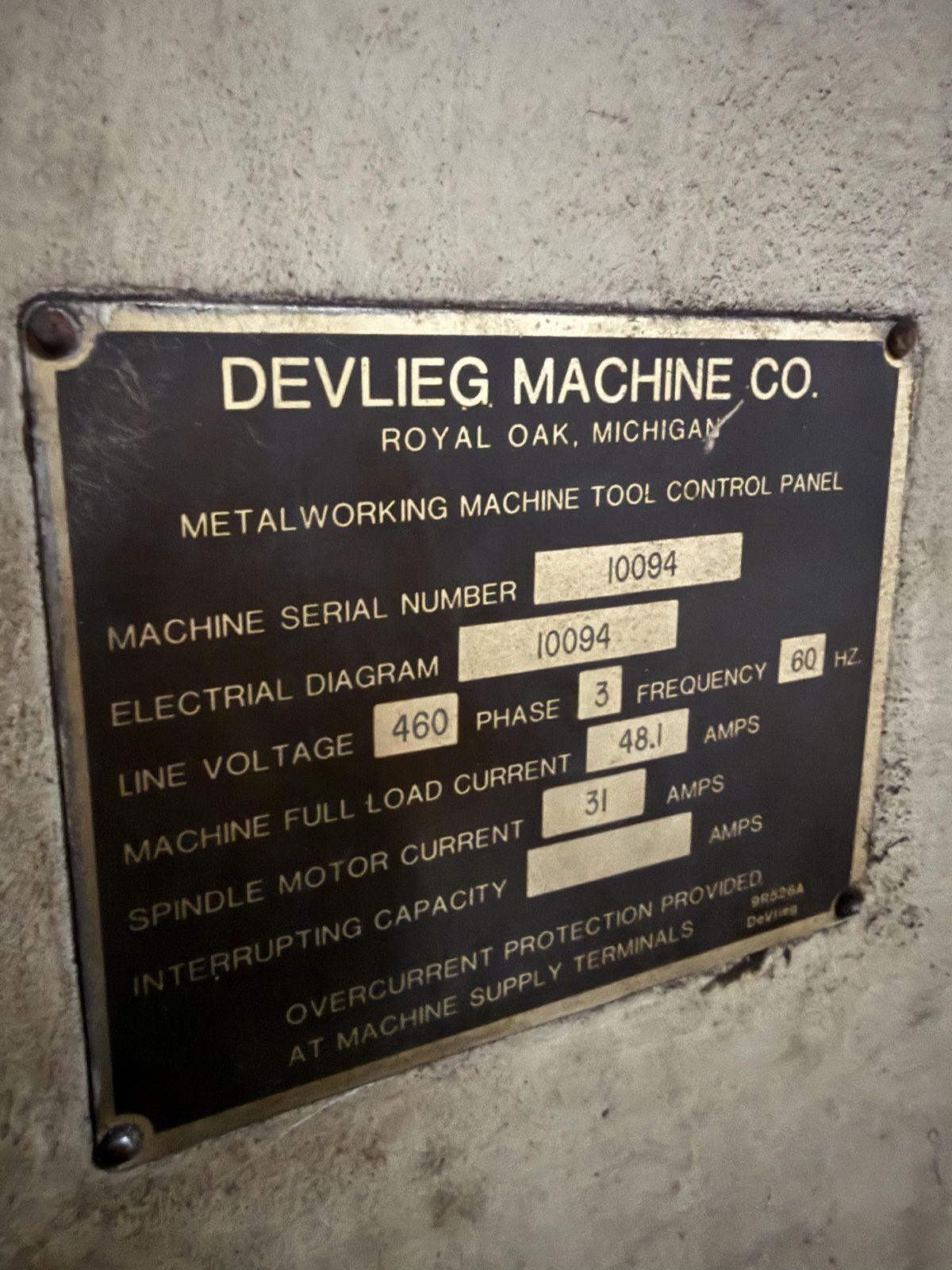

SERIAL.........................: 10094
MODEL..........................: 4K-96
SPINDLE DIAMETER...............: 4"
SPINDLE TRAVEL.................: 20"
TRAVELS:
X AXIS.........................: 96"
Y AXIS.........................: 60"
TABLE RETRACTION...............: 20"
TABLE SIZE.....................: 96" X 40"
SPINDLE TAPER..................: 50
SPINDLE SPEEDS.................: (16) 24-1450 RPM
SPINDLE BAR FEEDS..............: (8) .002 - .024 IPR
SPINDLE RAPID TRAVERSE.........: 95 IPM
MILLING FEED RATES.............: (16) .5 - 36 IPM
MILING RAPID TRAVERSE..........: 50 IPM, 150 IPM
DIGITAL READ OUT...............: YES
POWER DRAW BAR.................: YES
HP.............................: 20
STOCK # 0113826
