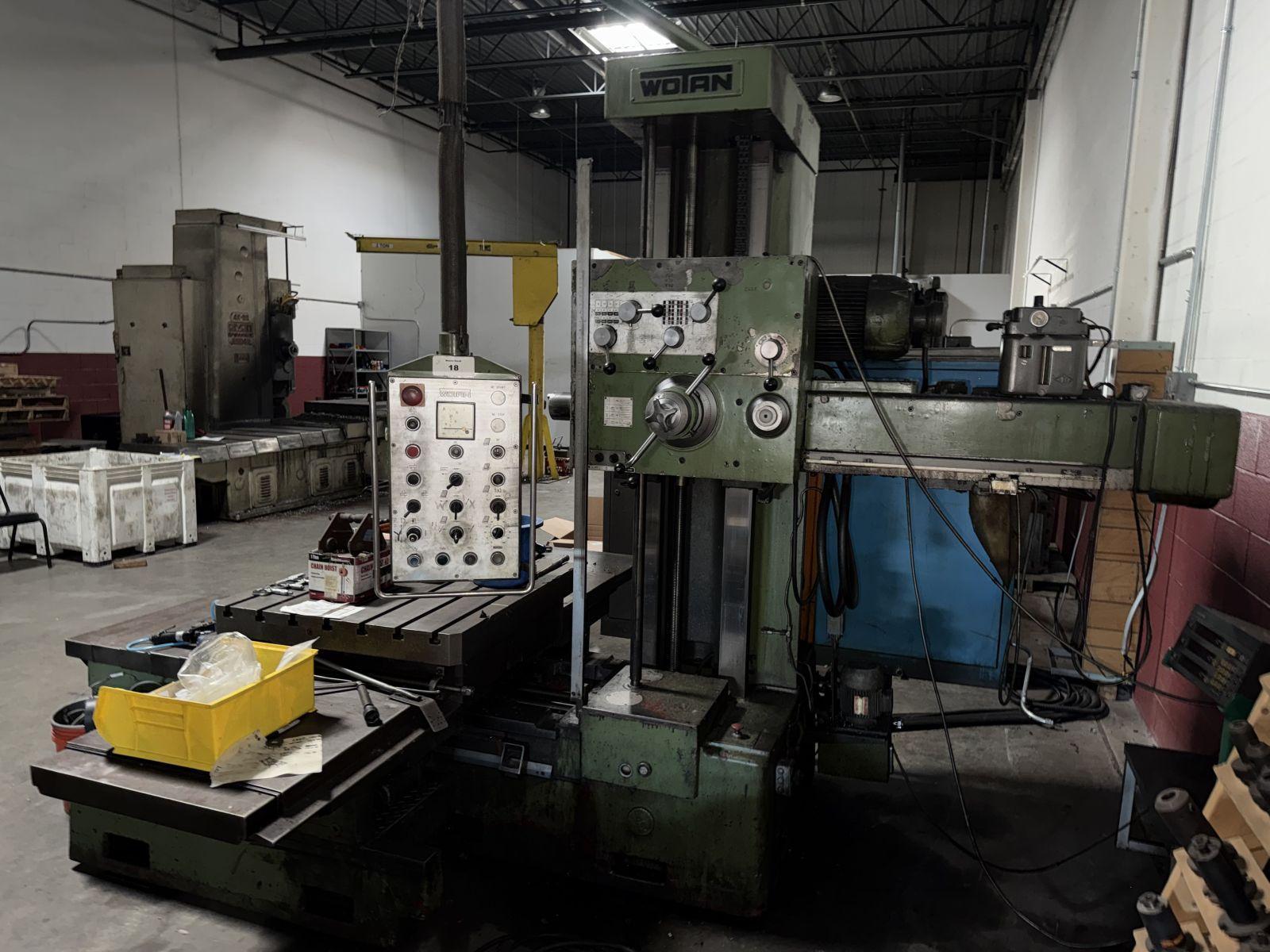

4" WOTAN B75/105M TABLE TYPE HORIZONTAL BORING MILL. STOCK # 0114026

Stock #: 0114026

Equipped With

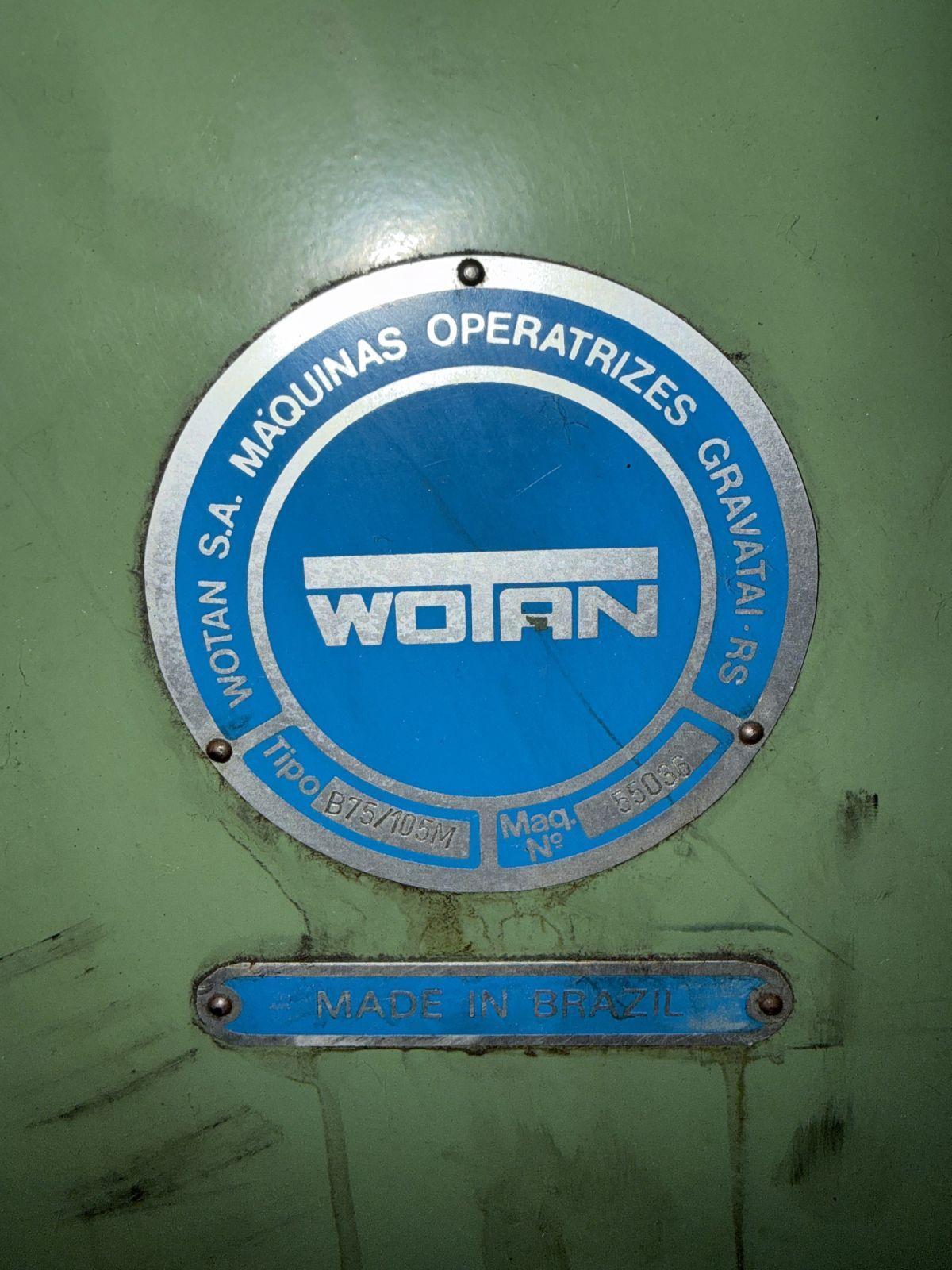

SERIAL................................ 55036
MODEL ................................ B75/105M
SPINDLE DIAMETER ..................... 4"
TOOLING TAPER ........................ #40
SPINDLE QUILL TRAVEL ................. 23.5"
BUILT IN ROTARY TABLE ................ 32" X 39"
VERTICAL HEAD TRAVEL ................. 39"
CROSS TRAVEL ......................... 48"
LONGITUDINAL SADDLE TRAVEL ........... 32"
SPINDLE SPEEDS ....................... (20) 15 TO 1,000 RPM
SPINDLE FEEDS ........................ (27) .0008 TO .333 IPR
THREADING CAPABILITY ................. 3 TO 48 TPI

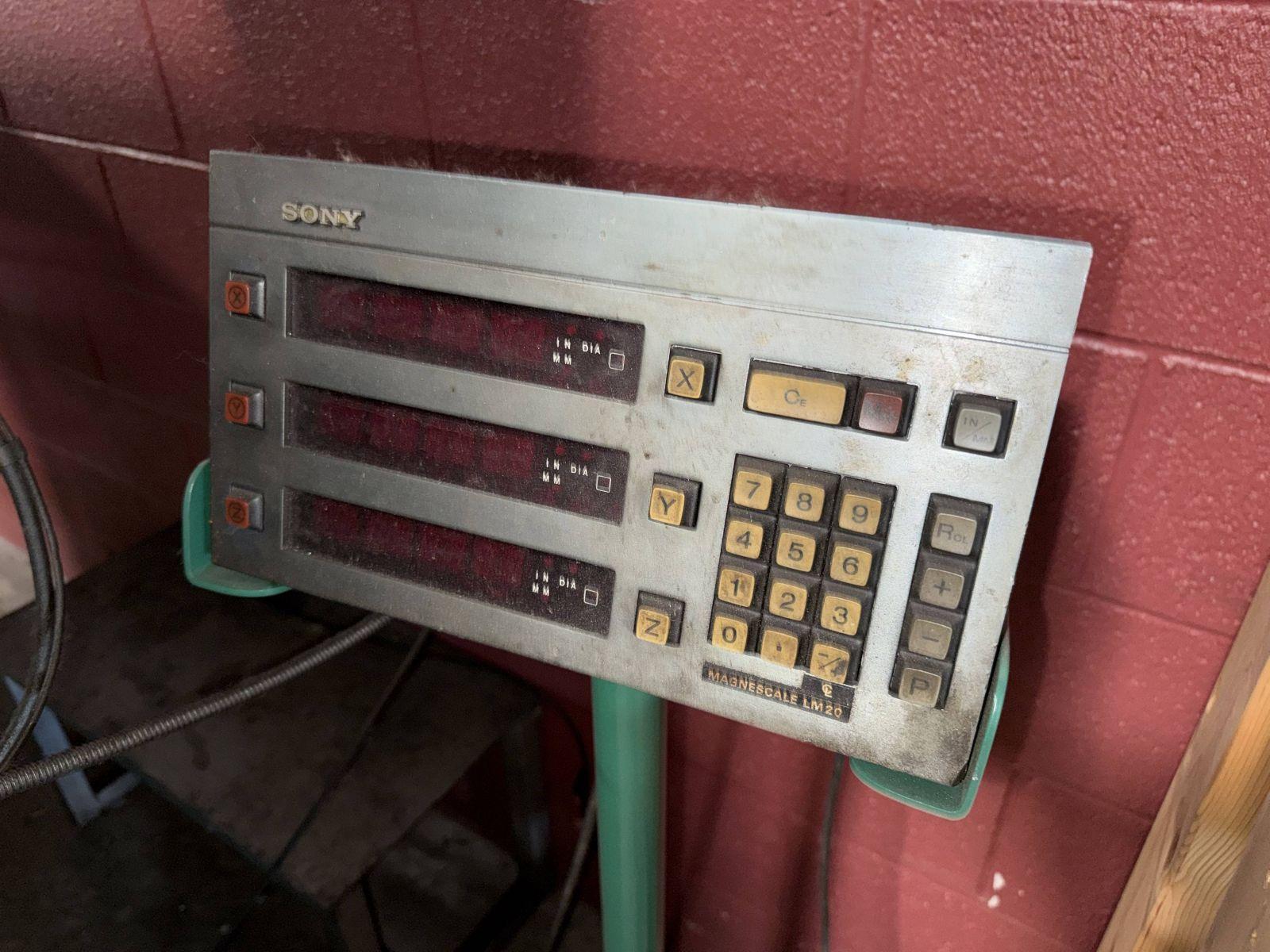

DIGITAL READ OUT ..................... YES
BED .................................. 4 WAY WITH BUILT IN OUTRIGGERS

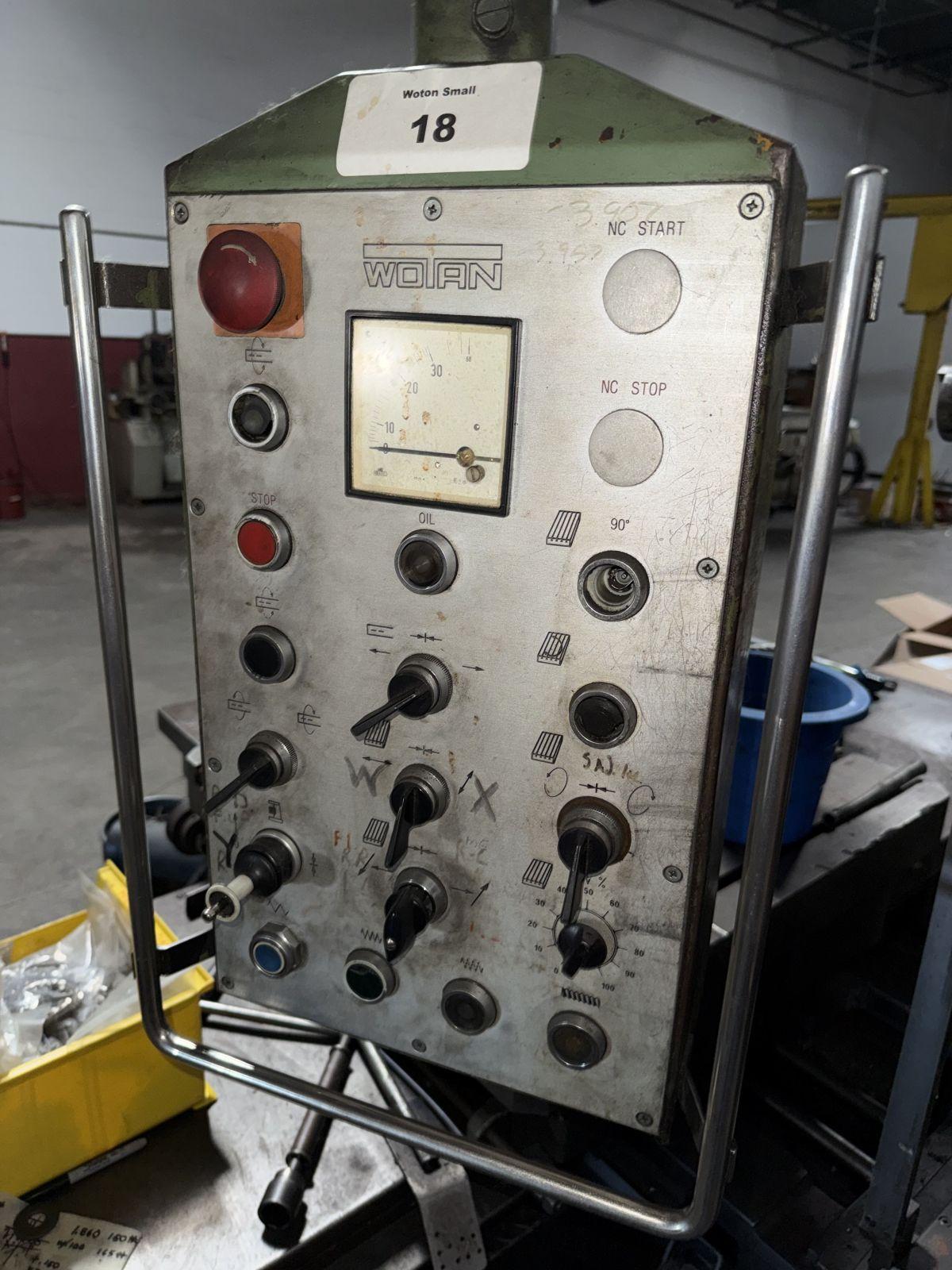

PENDANT CONTROL ...................... YES

MOTOR ................................ 10 HP
