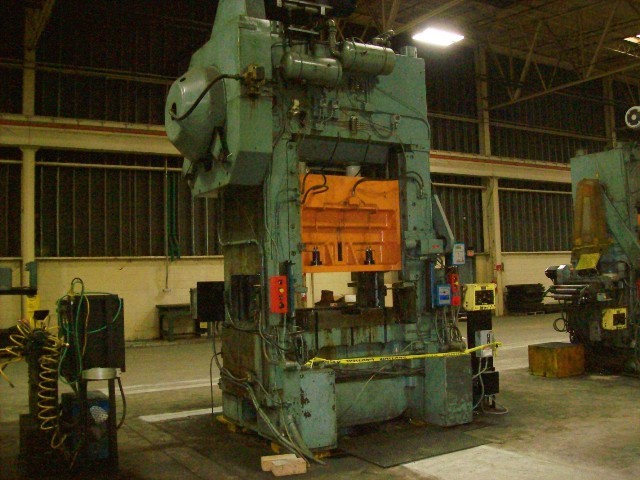

400 Ton Bliss High Speed Straight Side Press

Stock #: 2402116

Equipped With

SPECIFICATIONS:

400 Ton Bliss High Speed Straight Side Press
Model #HP2-400-48-36
Serial #H61922
Tie rod frame
Stroke 1 1/2"
Strokes per minute 75 - 150
Bed 36" x 62"
Slide 36" x 54"
Shut height 24" to bed
Bolster plate 7 1/2" thick
Slide adjustment 4", motorized
Air clutch & brake
Air counterbalances
Window in uprights 32" wide

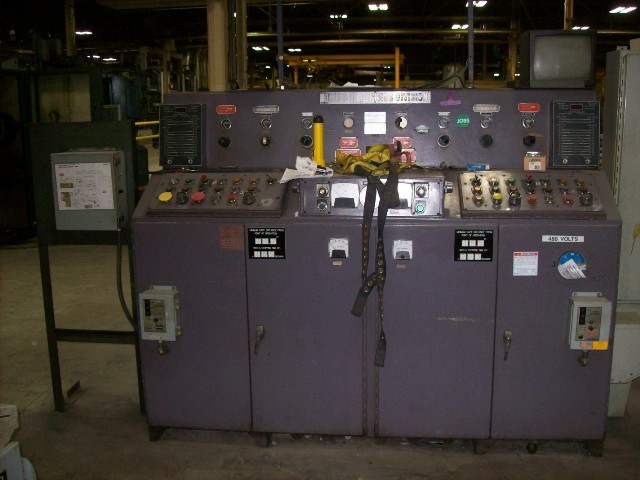

Motor & control
Floor standing




400 Ton Bliss High Speed Straight Side Press

STOCK # 2402116

Specifications

View All Details
Machine Type
Presses, High Speed Production
Manufacturer
BLISS
Model
HP2-400-48-36
Year
1970
Condition
Used
Equipped With
SPECIFICATIONS:

400 Ton Bliss High Speed Straight Side Press
Model #HP2-400-48-36
Serial #H61922
Tie rod frame
Stroke 1 1/2"
Strokes per minute 75 - 150
Bed 36" x 62"
Slide 36" x 54"
Shut height 24" to bed
Bolster plate 7 1/2" thick
Slide adjustment 4", motorized
Air clutch & brake
Air counterbalances
Window in uprights 32" wide
Motor & control
Floor standing
