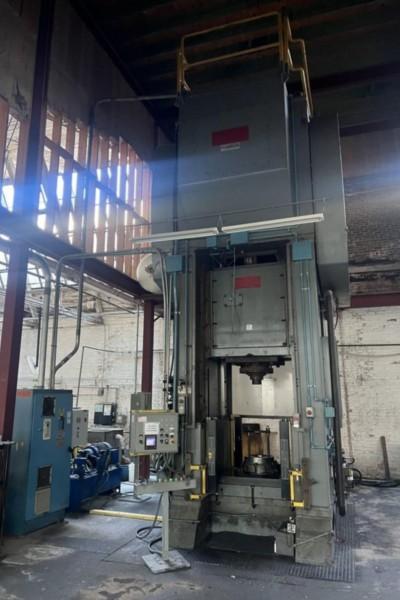

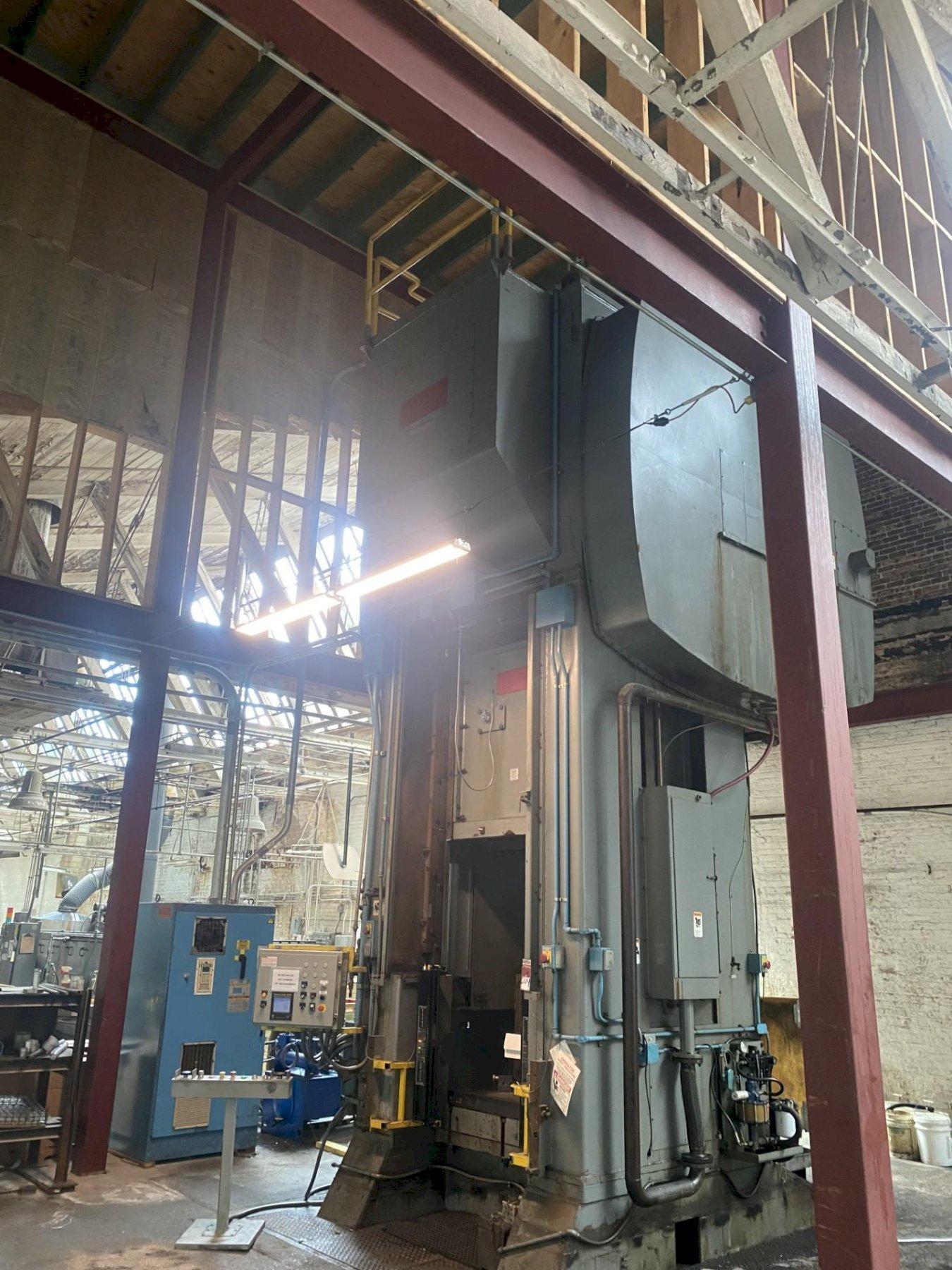

400 TON BLISS/MINSTER SL1-400-48-42 STRAIGHT SIDE LINK DRIVE PRESS. STOCK # 1056622

Stock #: 1056622

Equipped With

SERIAL..............................: B1-30145-1
MODEL...............................: SL1-400-48-42
TONNAGE.............................: 400 TON
TONNAGE @ 4" UP.....................: 350 TON
TONNAGE @ 1" UP.....................: 400 TON

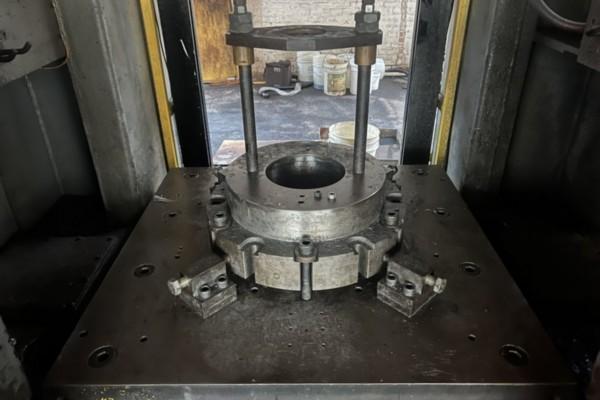

BED SIZE............................: 48" X 42"
RAM SIZE............................: 48" X 32"
STROKE..............................: 28"
SHUT-HEIGHT.........................: 54"
WORK STROKE.........................: 4"
ADJUSTMENT..........................: 10"
SPM.................................: 14 - 20
SLIDE VELOCITY......................: 50 FPM @ 4" UP
MAIN MOTOR..........................: 200 HP, 1200 RPM
SLIDE ADJUSTMENT MOTOR..............: 5 HP, 1800 RPM

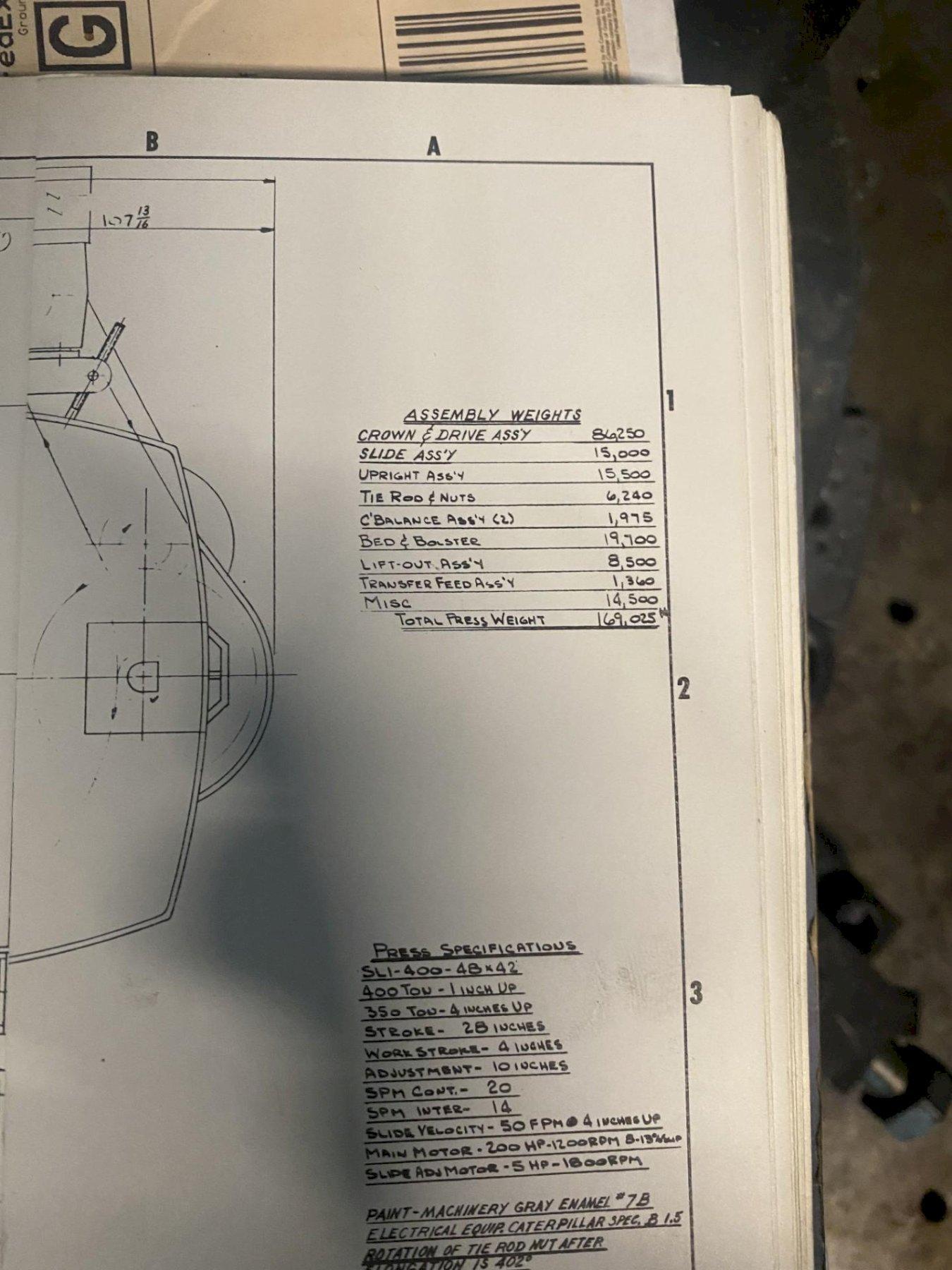

- TOTAL PRESS WEIGHT: 169,000 LBS
- OVERAL HEIGHT FROM FLOOR: 26'
- DISTANCE TO BOTTOM OF EQUIPMENT: 101"
- OVERALL WIDTH: 136"
INCLUDES:

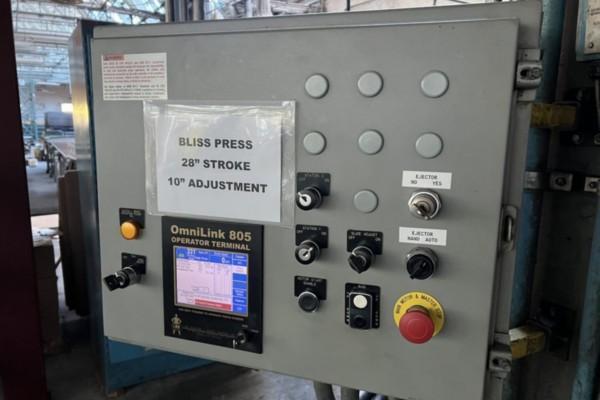

- OMNI LINK 805 OPERATOR CONTROLS
- OPERATORS STANDS
- 30 HP HYDRAULIC POWER SUPPLY
- AIR COUNTER BALANCE TANK


Precision and Control: The single-crank design ensures consistent performance, crucial for high-precision tasks like deep drawing.

Versatility: Suitable for a wide range of applications from automotive manufacturing to military-grade production (developing shells and casings).

Durability and Reliability: Built to last with American engineering and military-grade specifications.
Advanced Features: Includes OMNI LINK 805 operator controls, an operator's stand, a 30HP hydraulic power supply and an air counter-balance tank for enhanced usability and safety.
