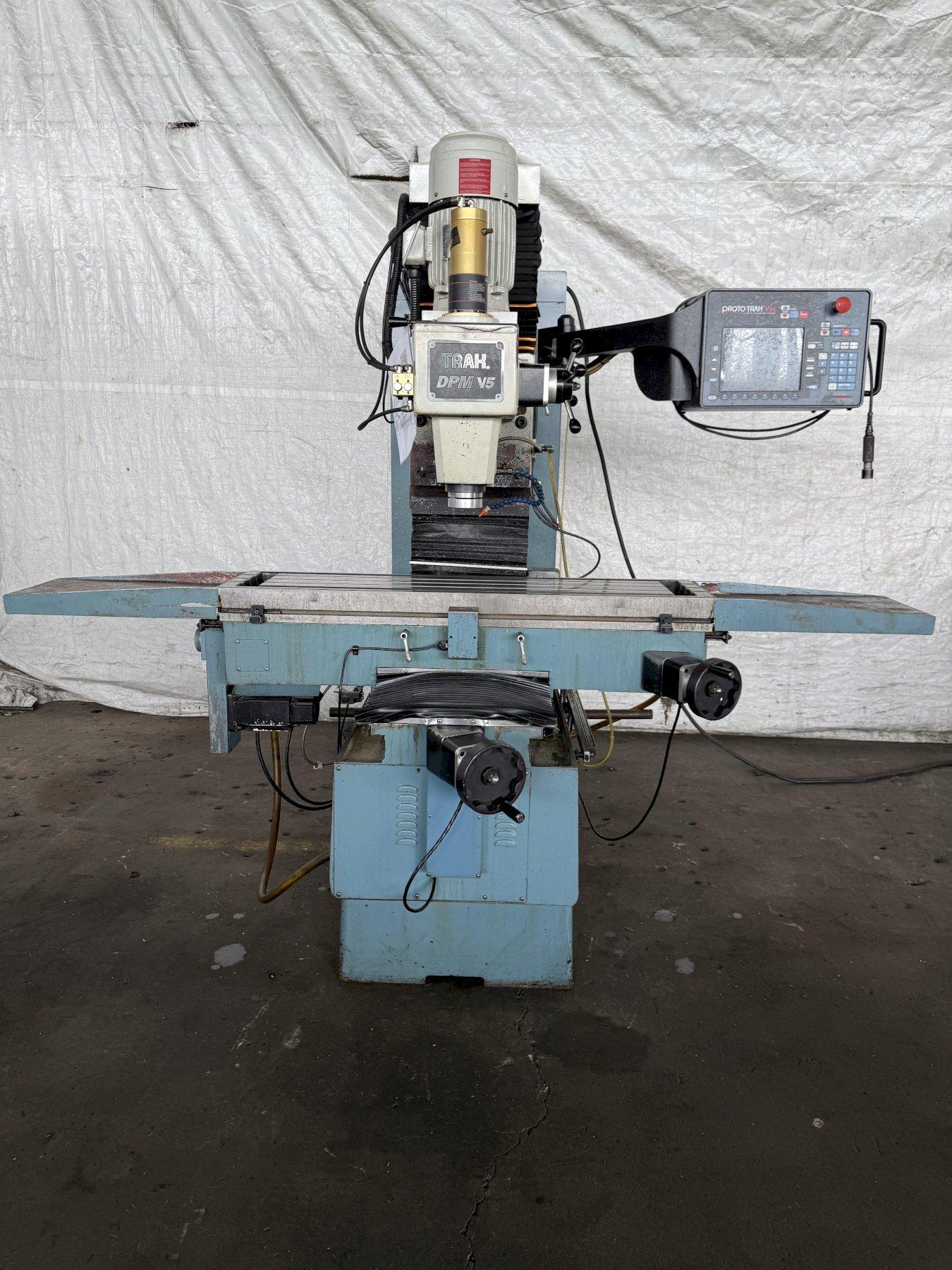

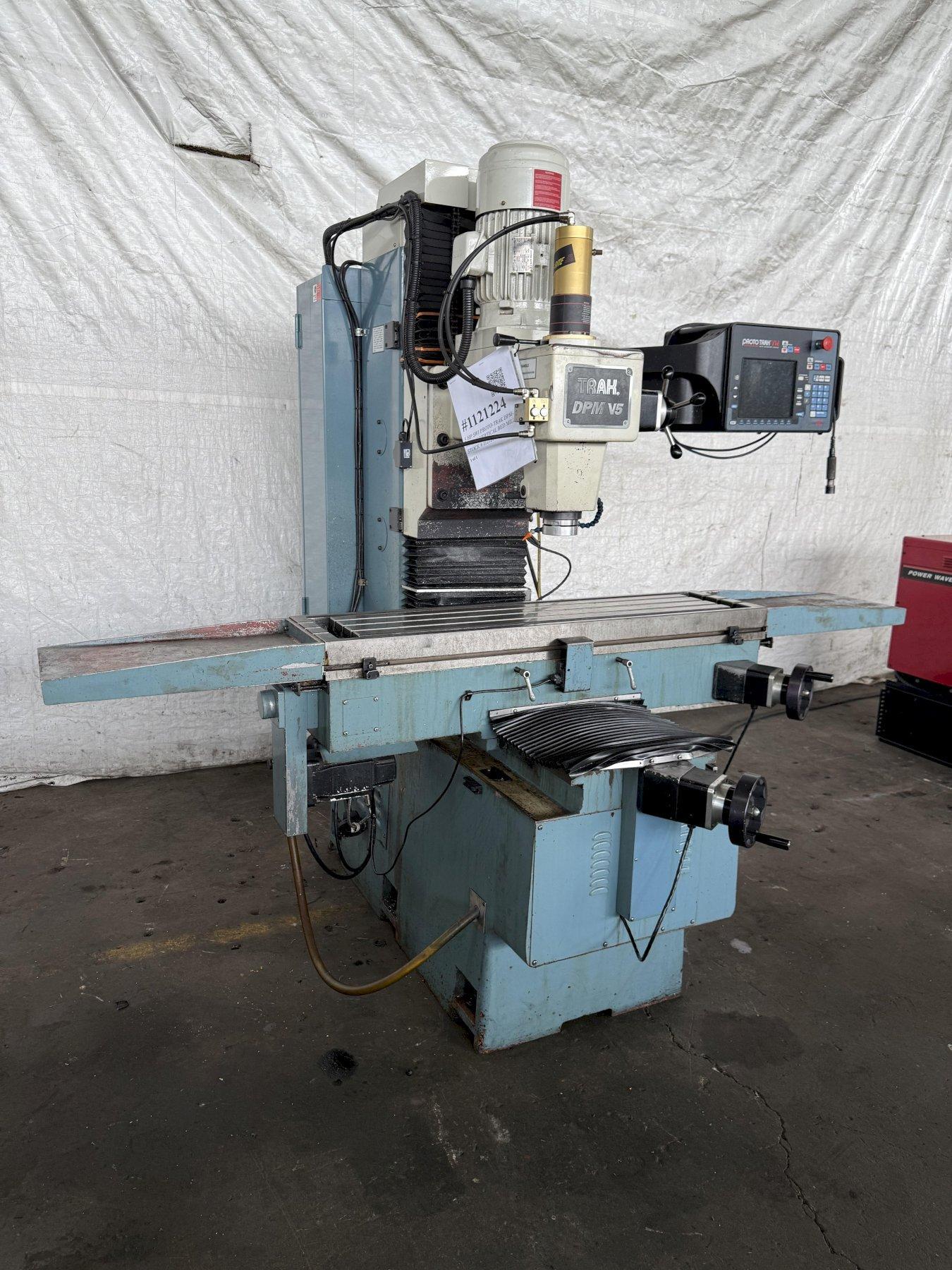

5 HP SWI PROTO-TRAK DPM-V5 CNC VERTICAL BED MILL. STOCK # 1121224

Stock #: 1121224

Equipped With

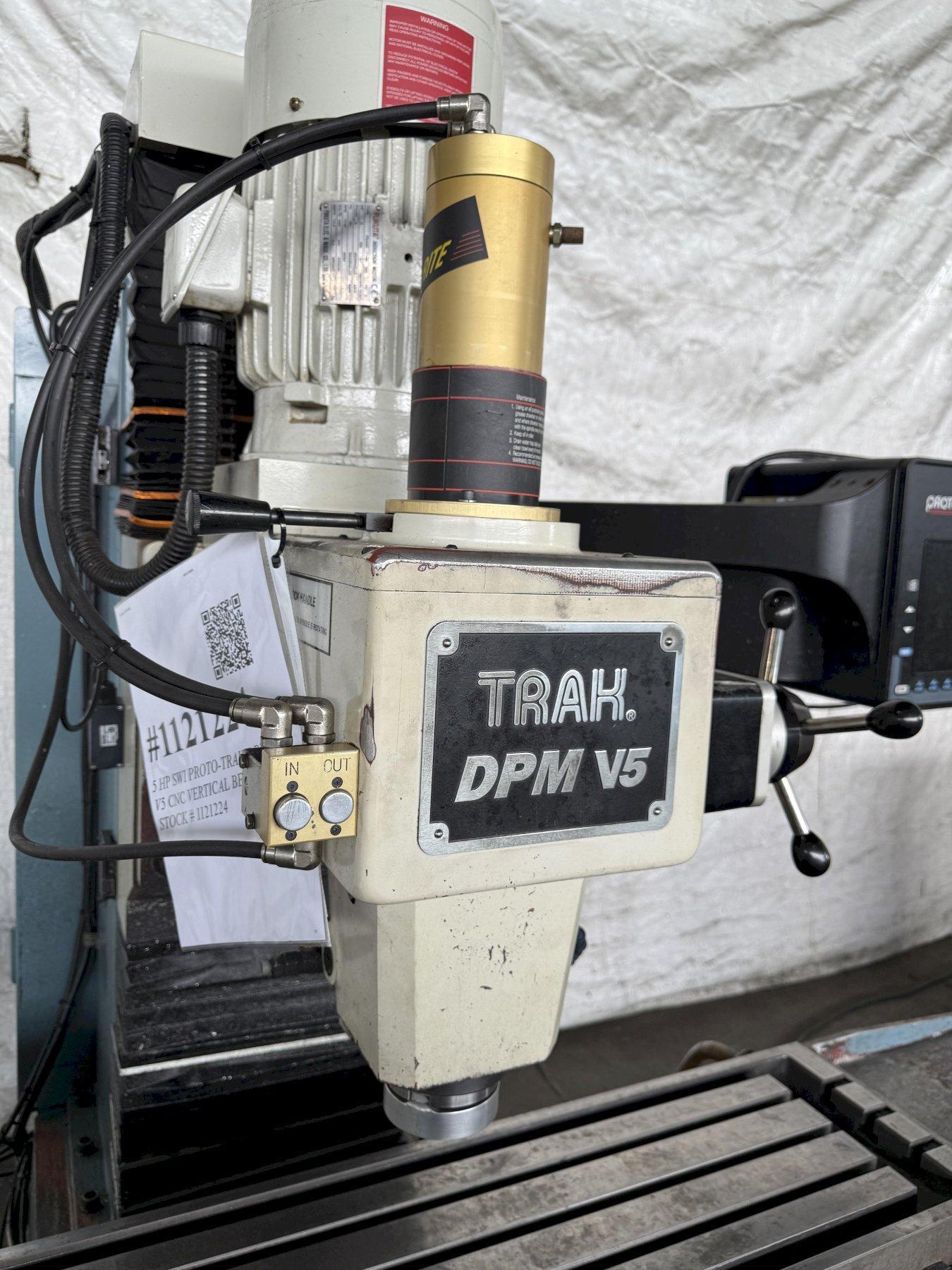

MODEL...............................: DPM-V5

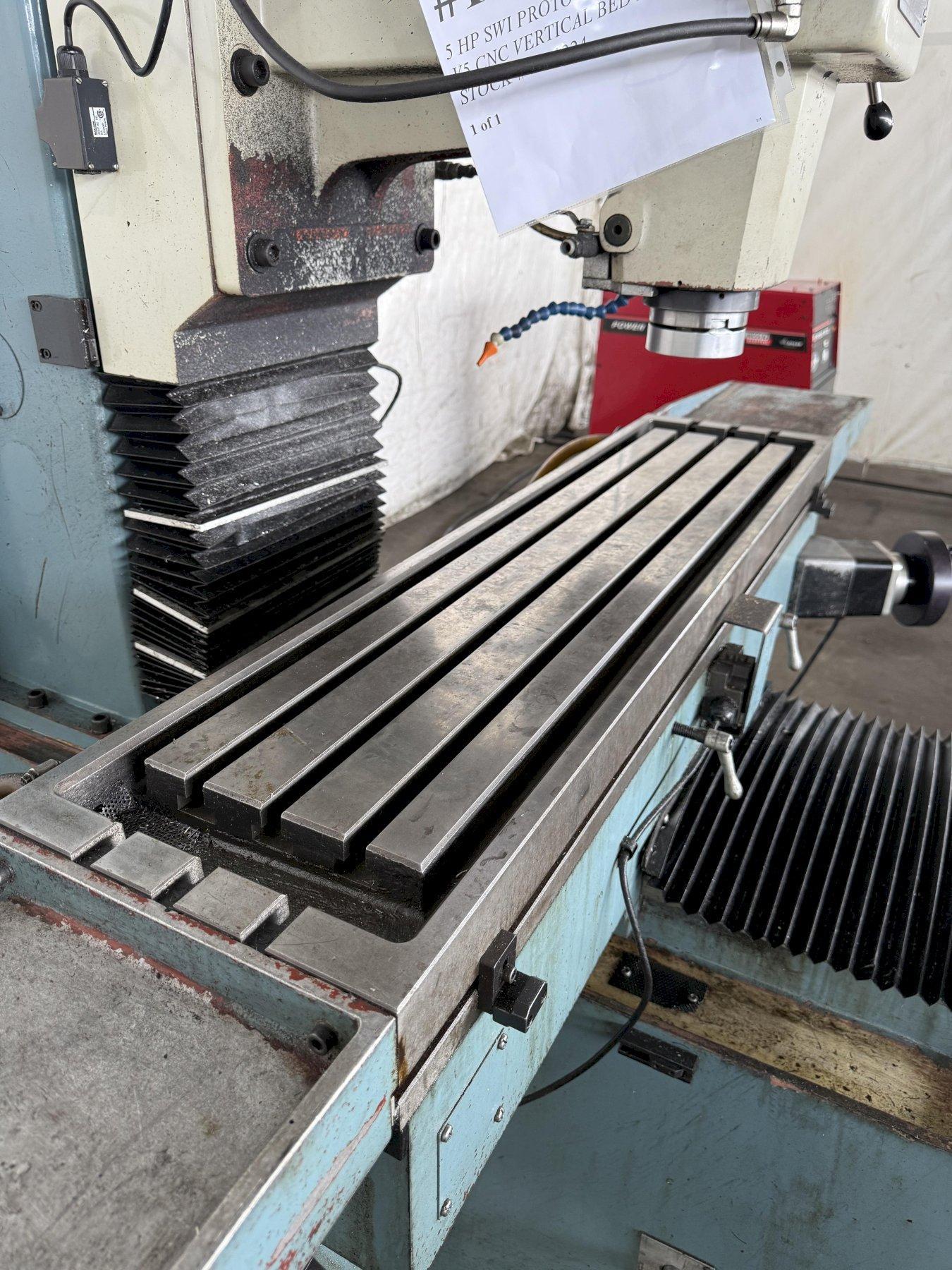

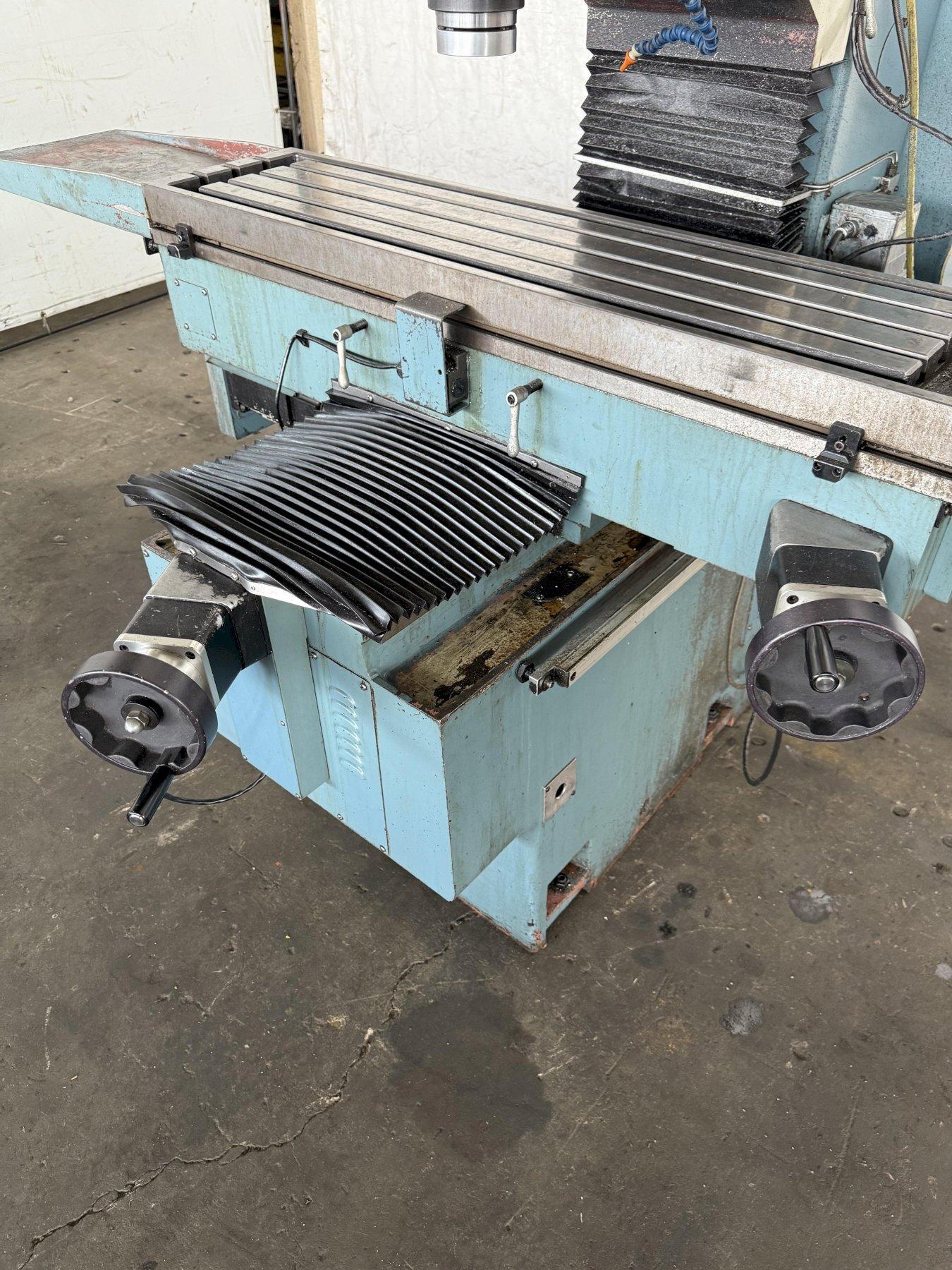

TABLE SIZE..........................: 50" X 12"
TRAVELS:
X...................................: 40"
Y...................................: 20"
Z...................................: 23.5"

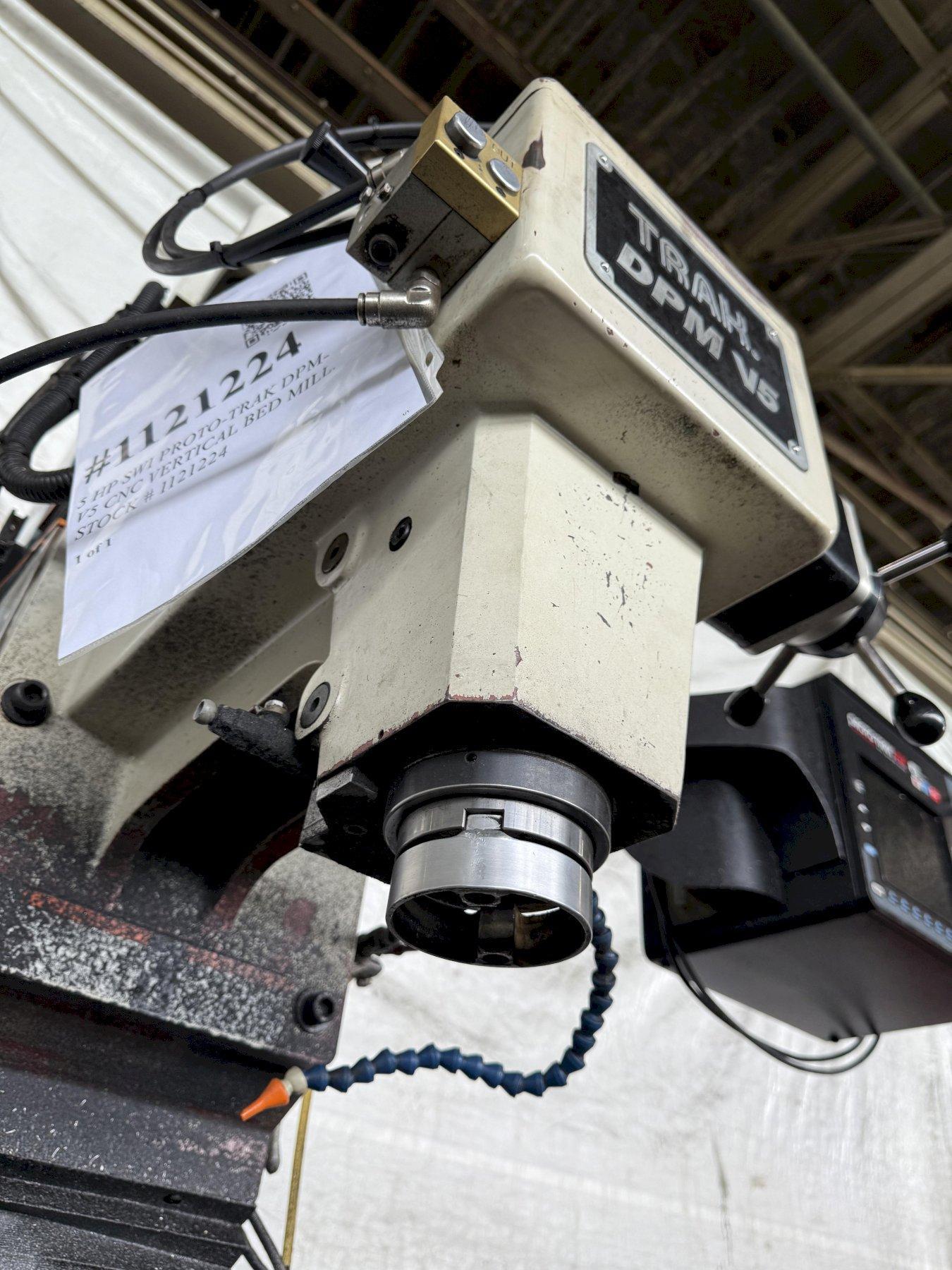

SPINDLE TAPER.......................: NMTB 40
SPINDLE QUILL TRAVEL................: 5"

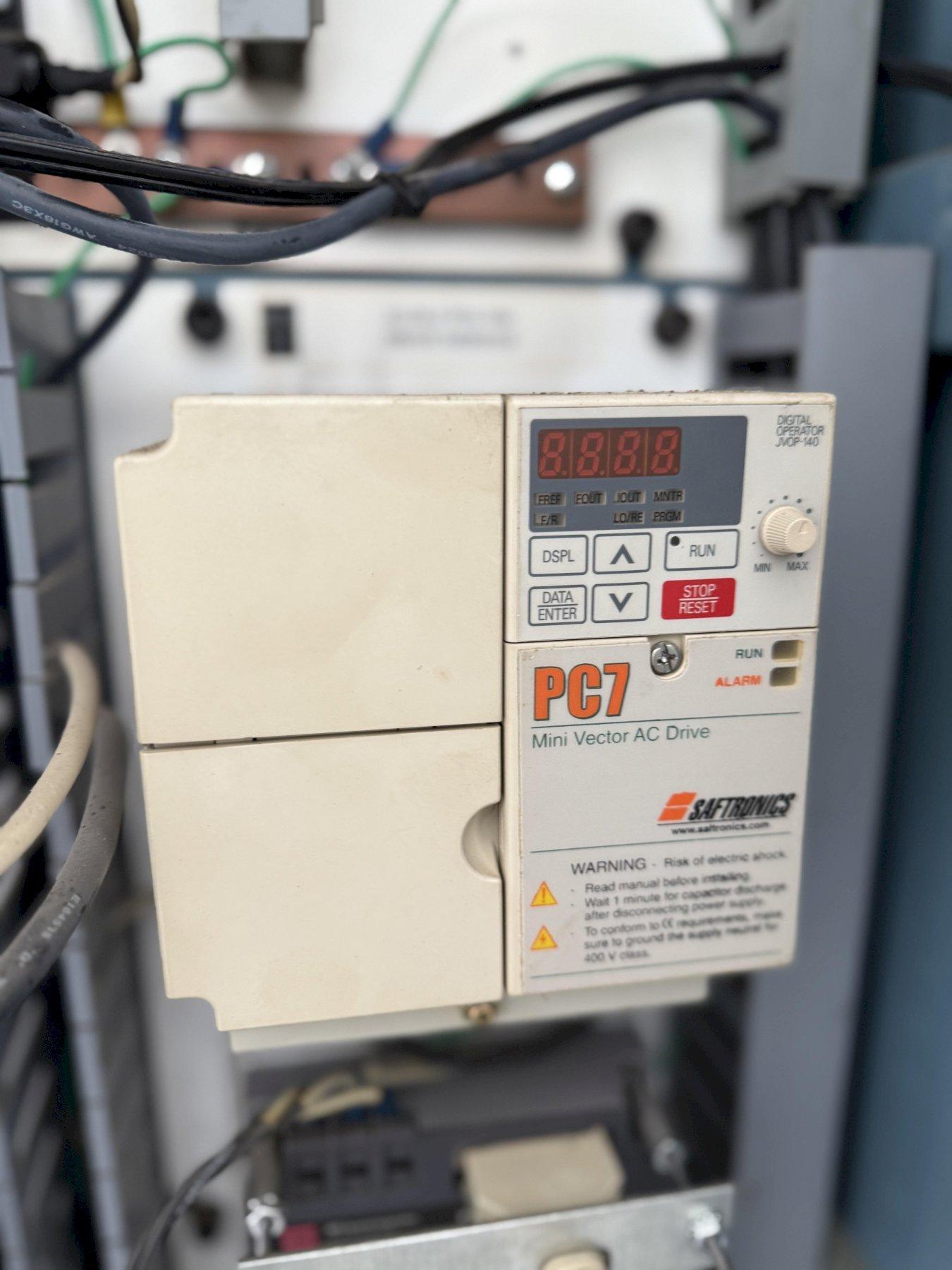

SPINDLE SPEED RANGE.................: (A/C VARIABLE) 160- 4,000 RPM
SPINDLE NOSE TO TABLE...............: 0 - 23.5"
HEAD SWIVEL LEFT & RIGHT............: 90 DEGREES

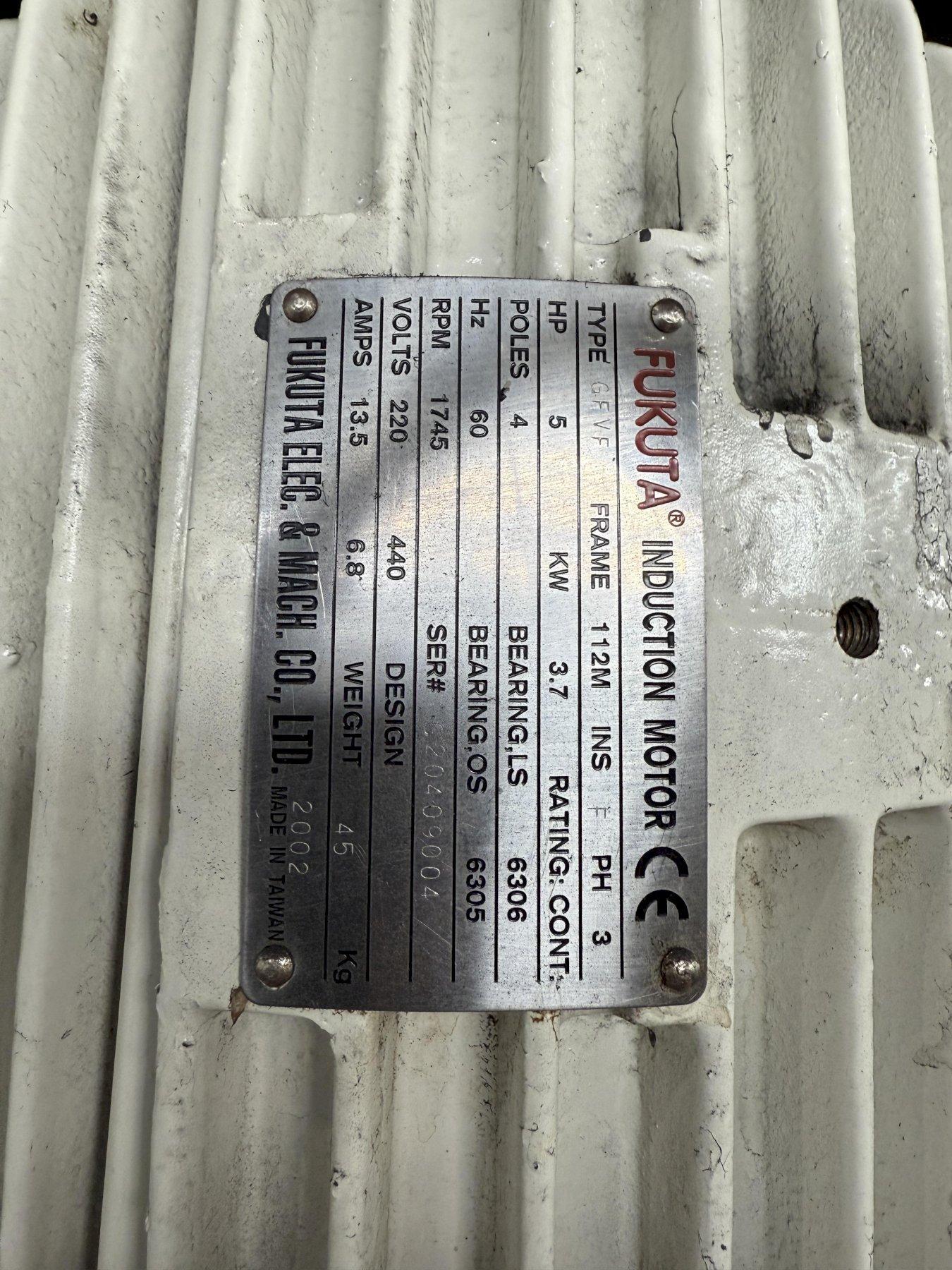

SPINDLE MOTOR.......................: 5 HP
MAXIMUM WEIGHT OF WORKPIECE.........: 1,760 LBS
EQUIPPED WITH:

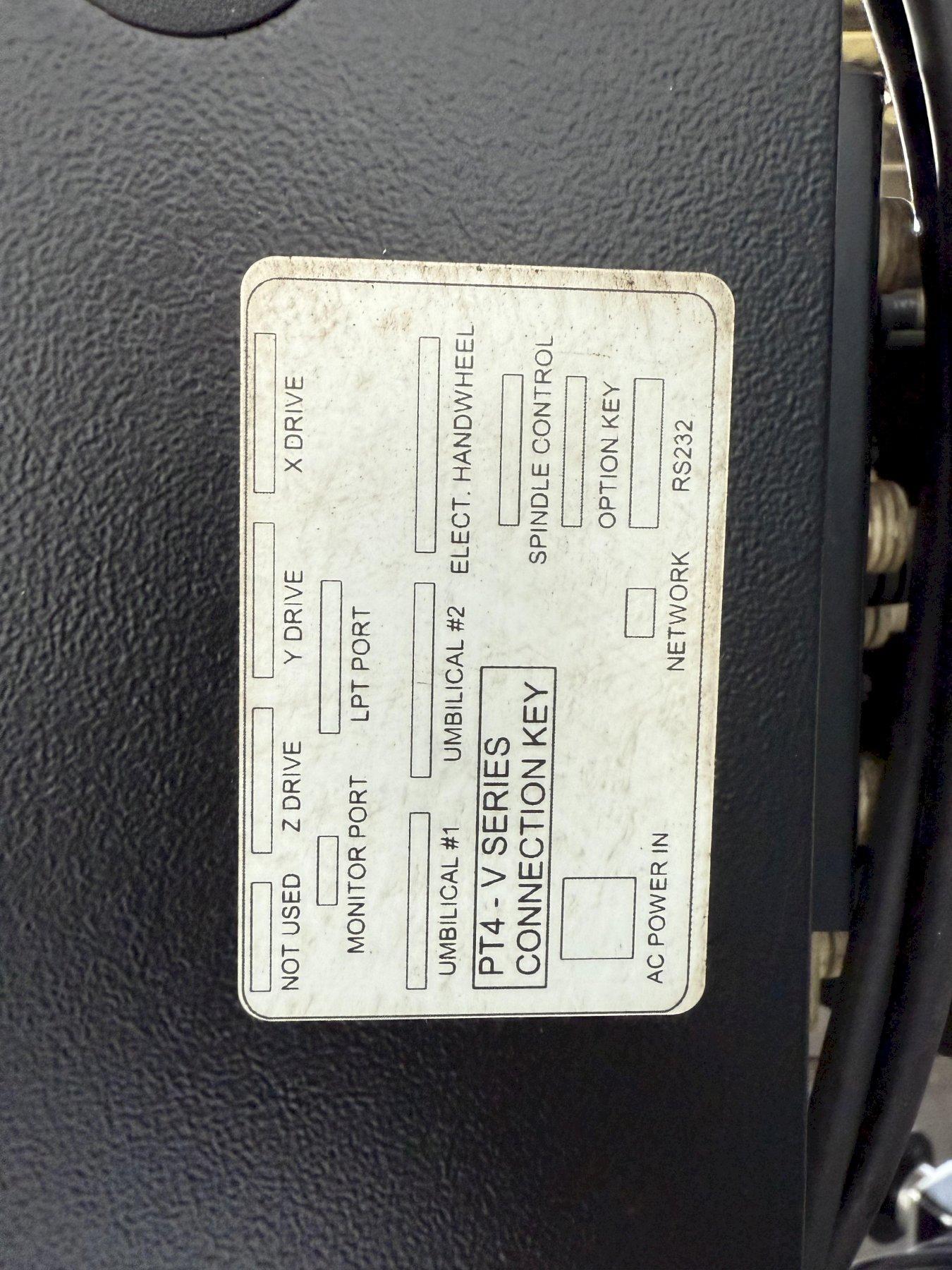

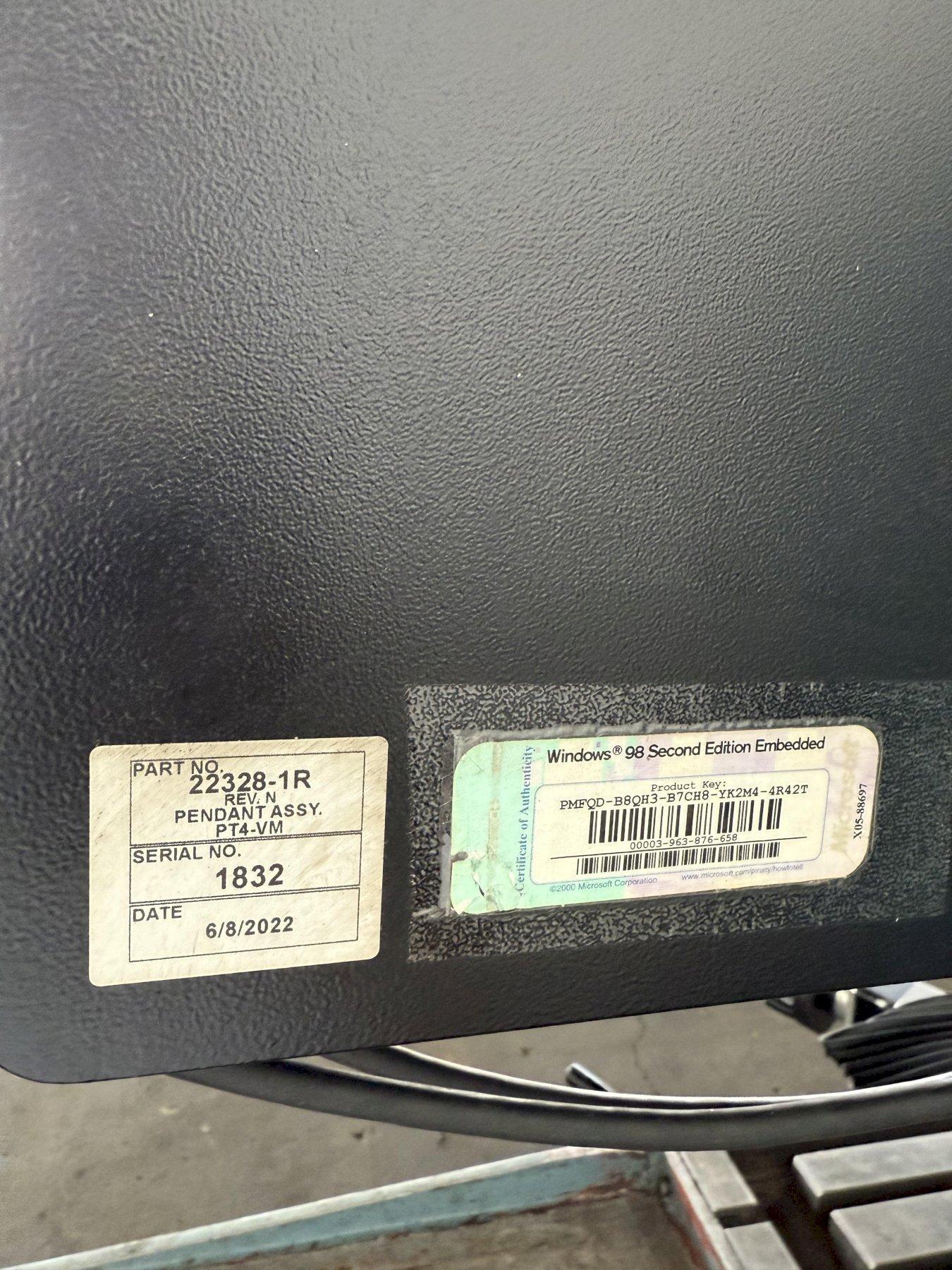

PROTO TRAK VM CONTROL. new in 2017
POWER DRAW BAR

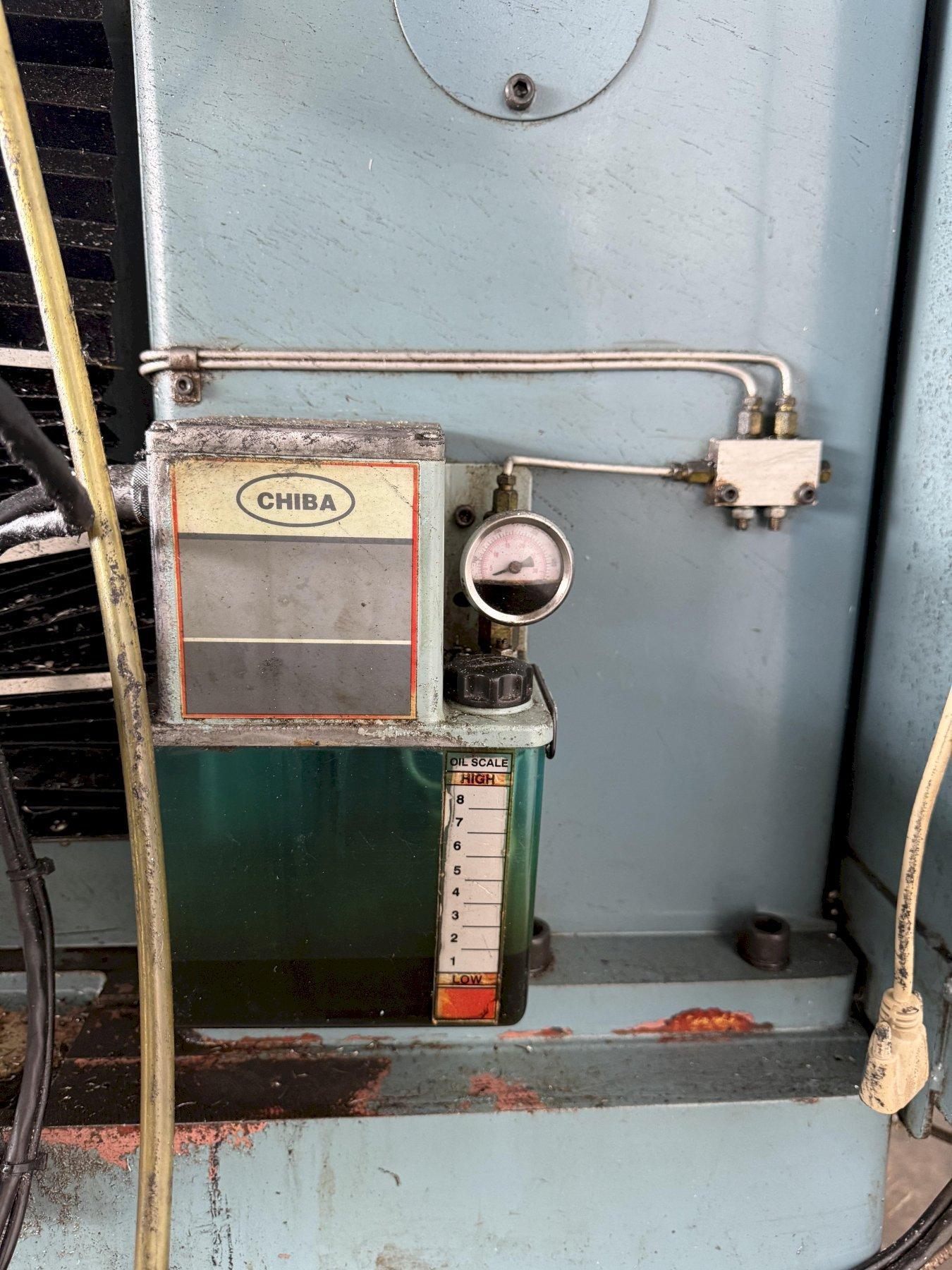

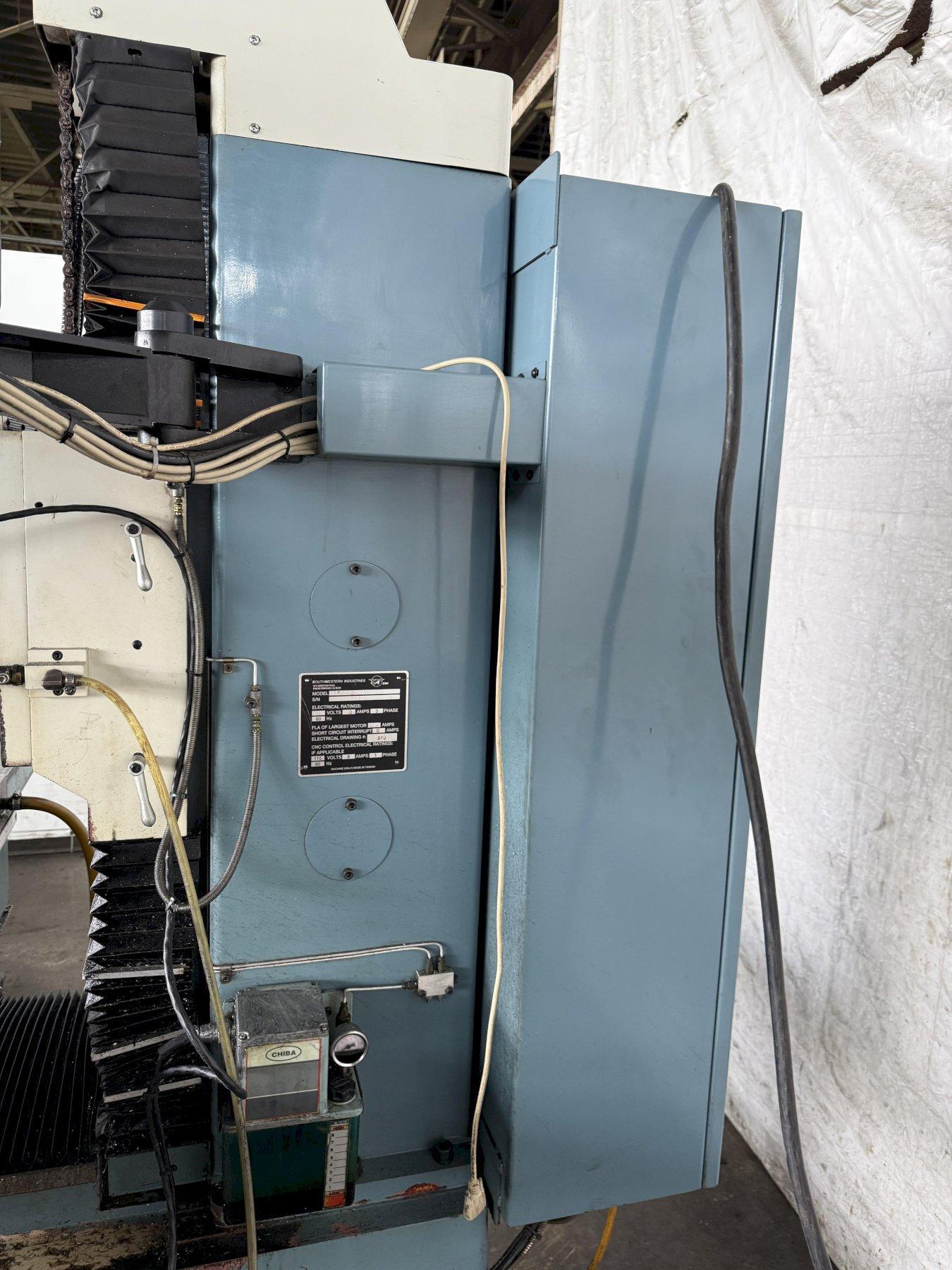

AUTO LUBE
