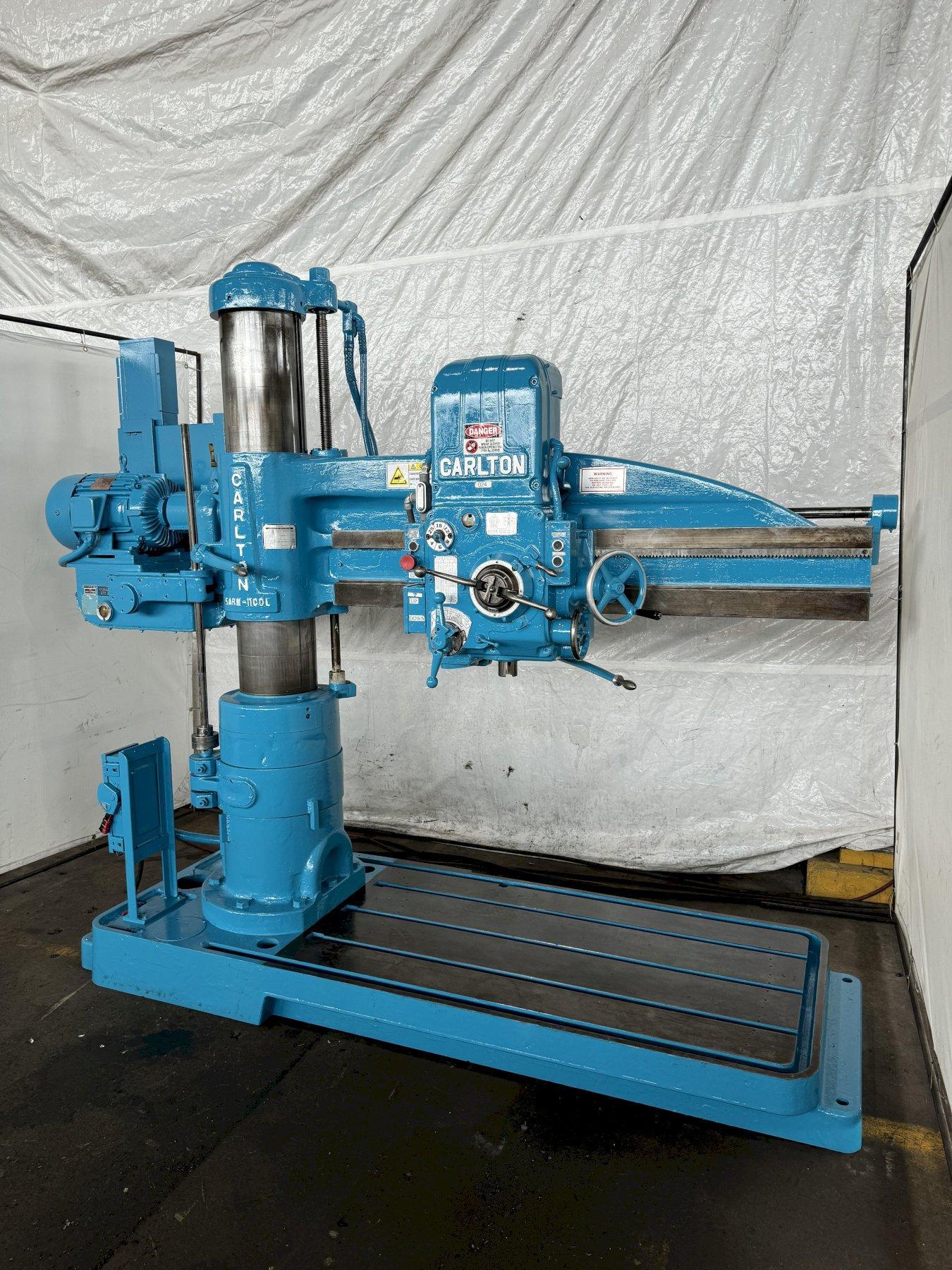

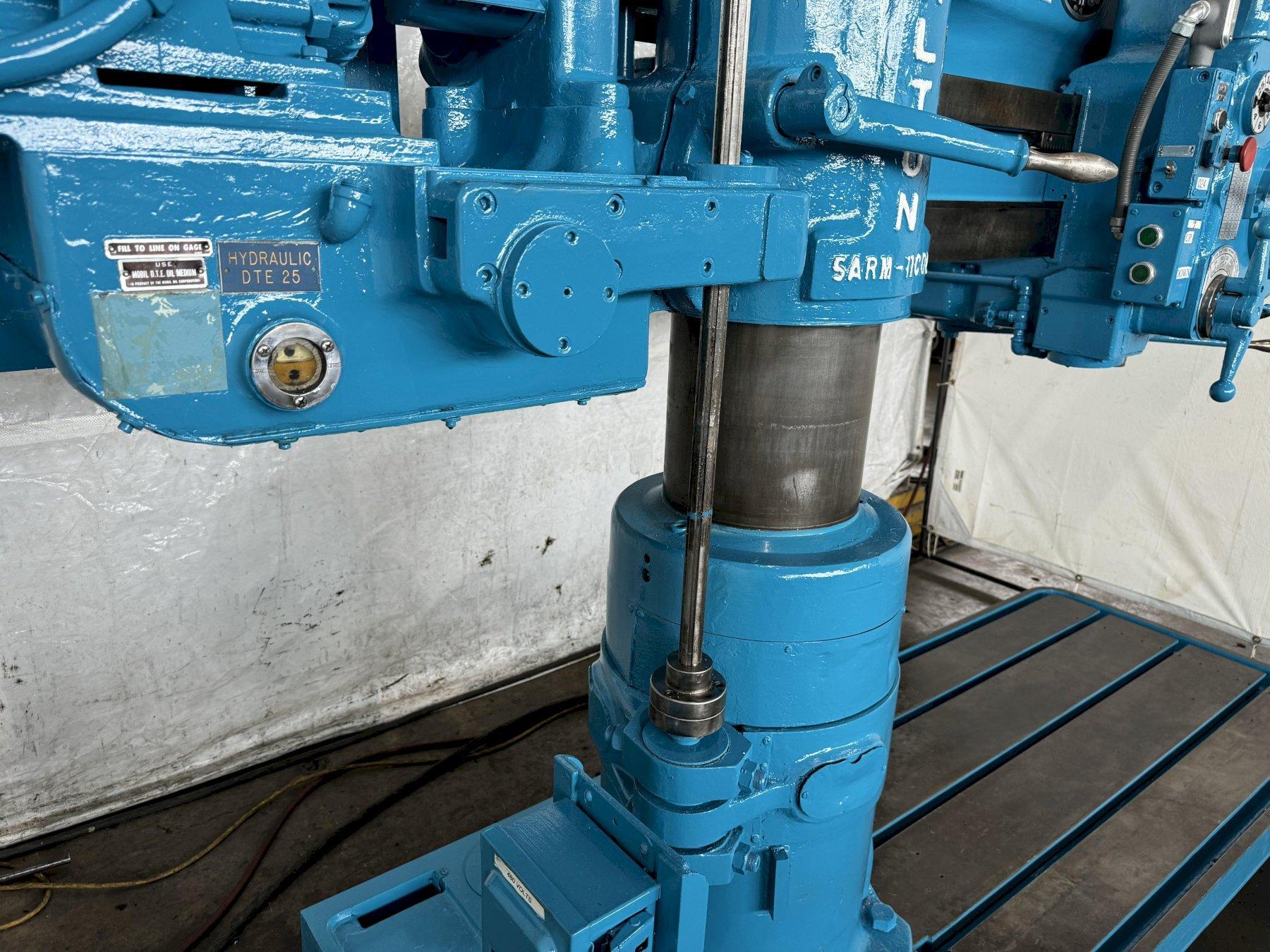

5' X 11" CARLTON NATCO 1A RADIAL ARM DRILL. STOCK # 0893724

Stock #: 0893724

Equipped With

SERIAL ............................ 4419
MODEL ............................. 1A
ARM LENGTH ........................ 5'

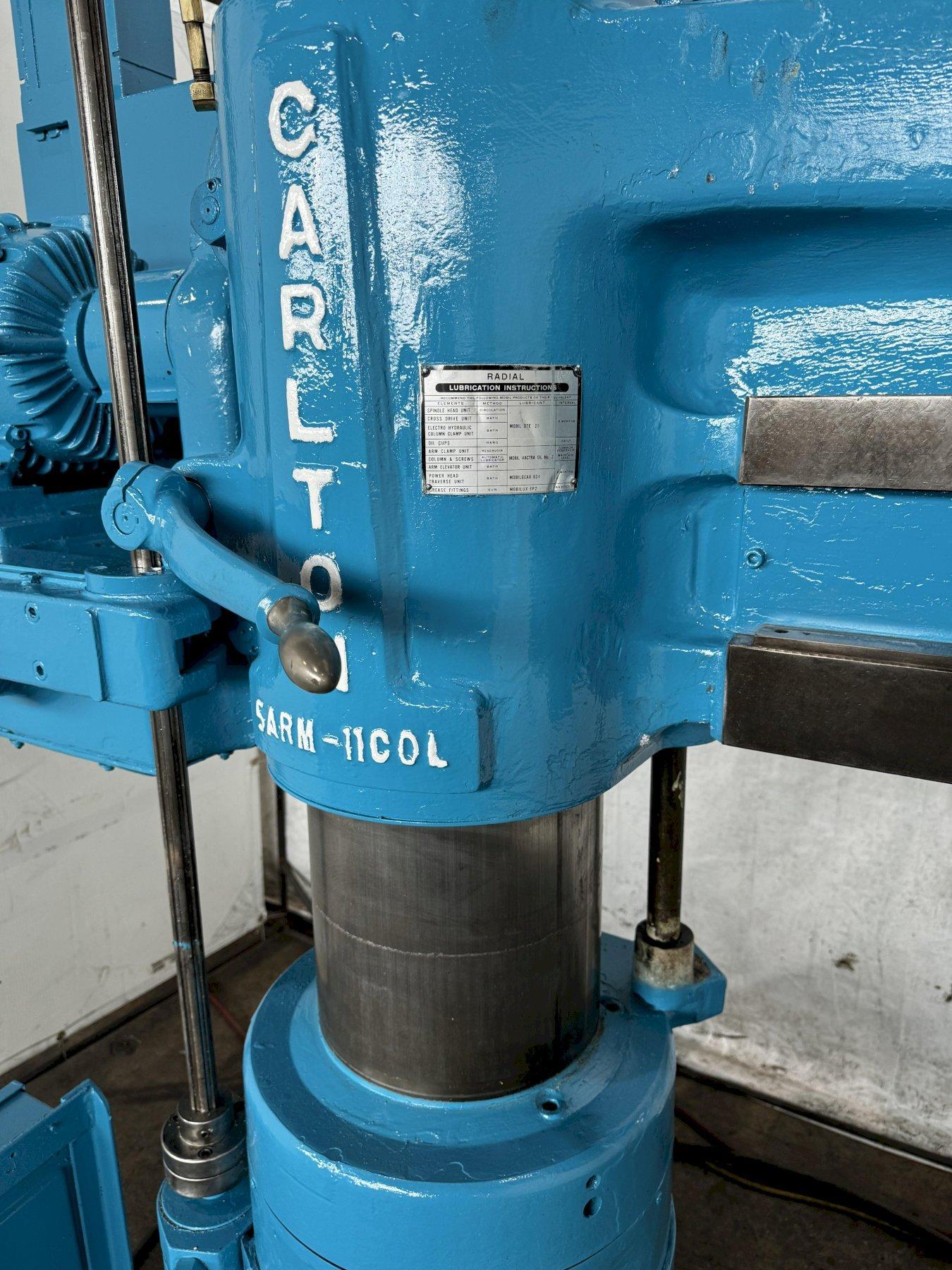

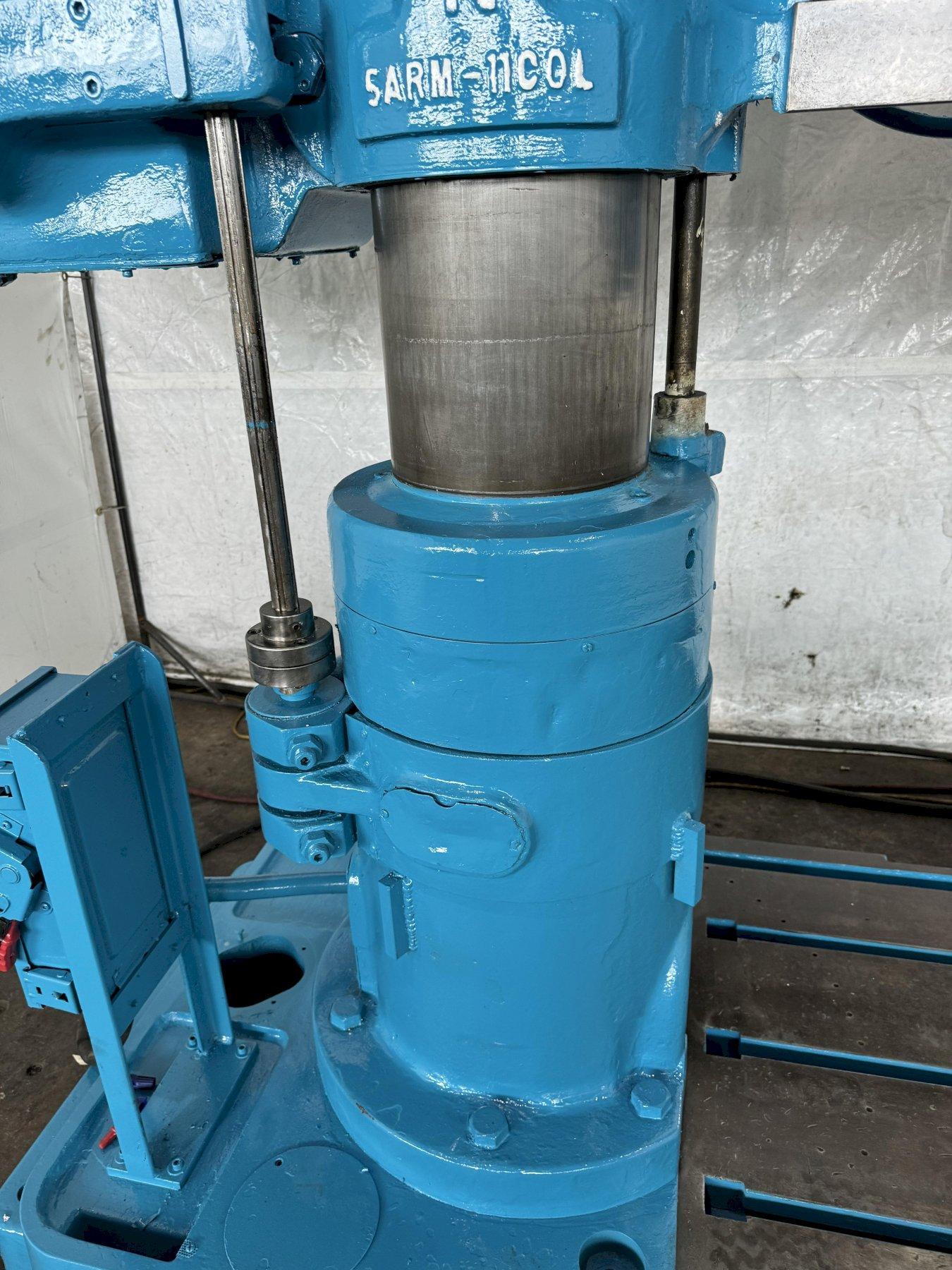

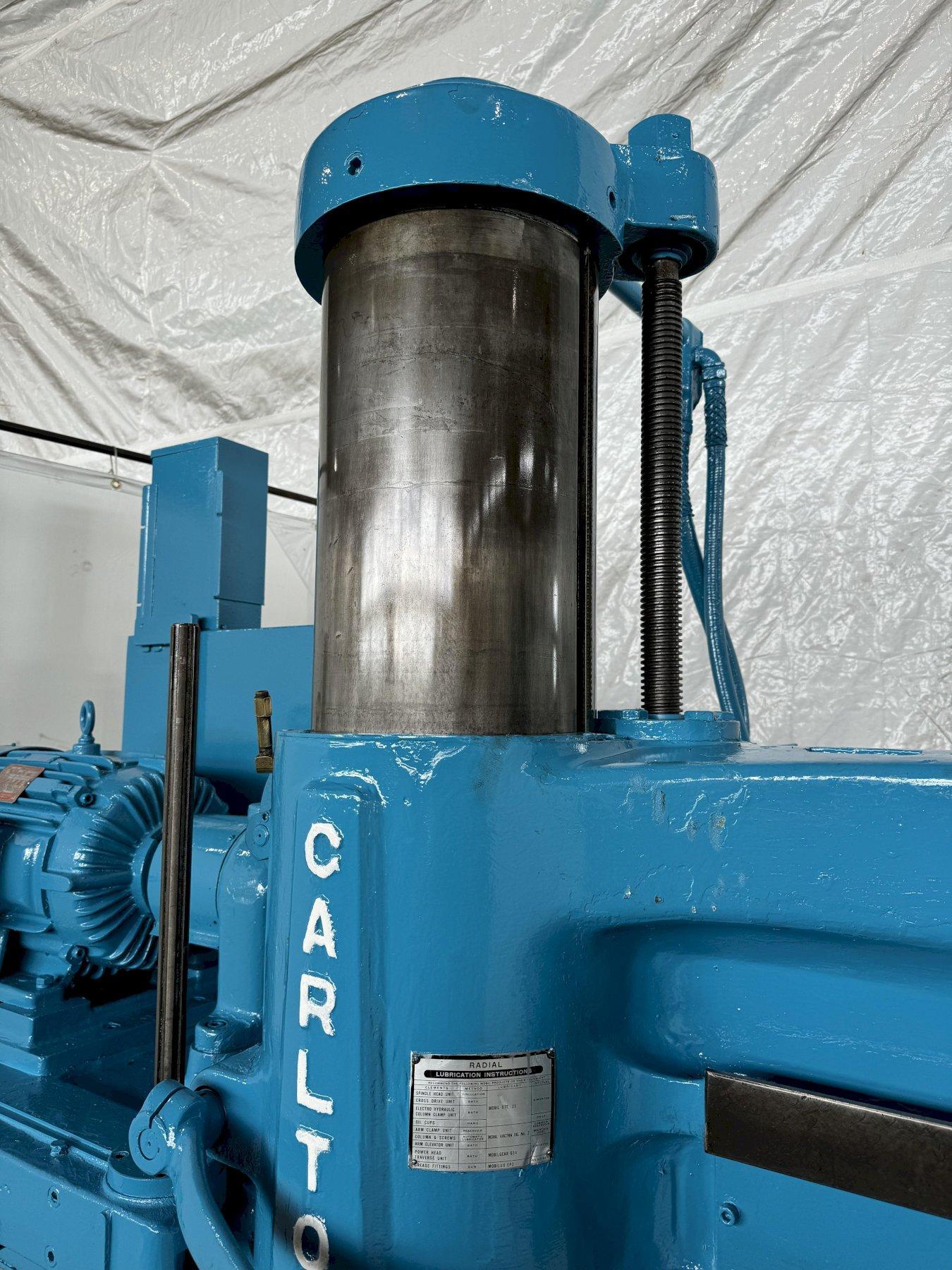

COLUMN DIAMETER ................... 11"
SPINDLE SPEEDS .................... 40 TO 1500 RPM
FEEDS ............................. (6).006- .025"
DIAMETER OF SPINDLE ............... 2-1/2"
SPINDLE TAPER ..................... #4
SPINDLE TRAVEL .................... 12"
AREA OF BASE ...................... 36" X 66" X 8-1/4"
WORKING SURFACE OF BASE............ 3' X 5'6"
COLUMN TO SPINDLE ................. 9" TO 60"
SPINDLE TO BASE ................... 14-3/4" TO 4'7"
POWER ELEVATION ................... YES

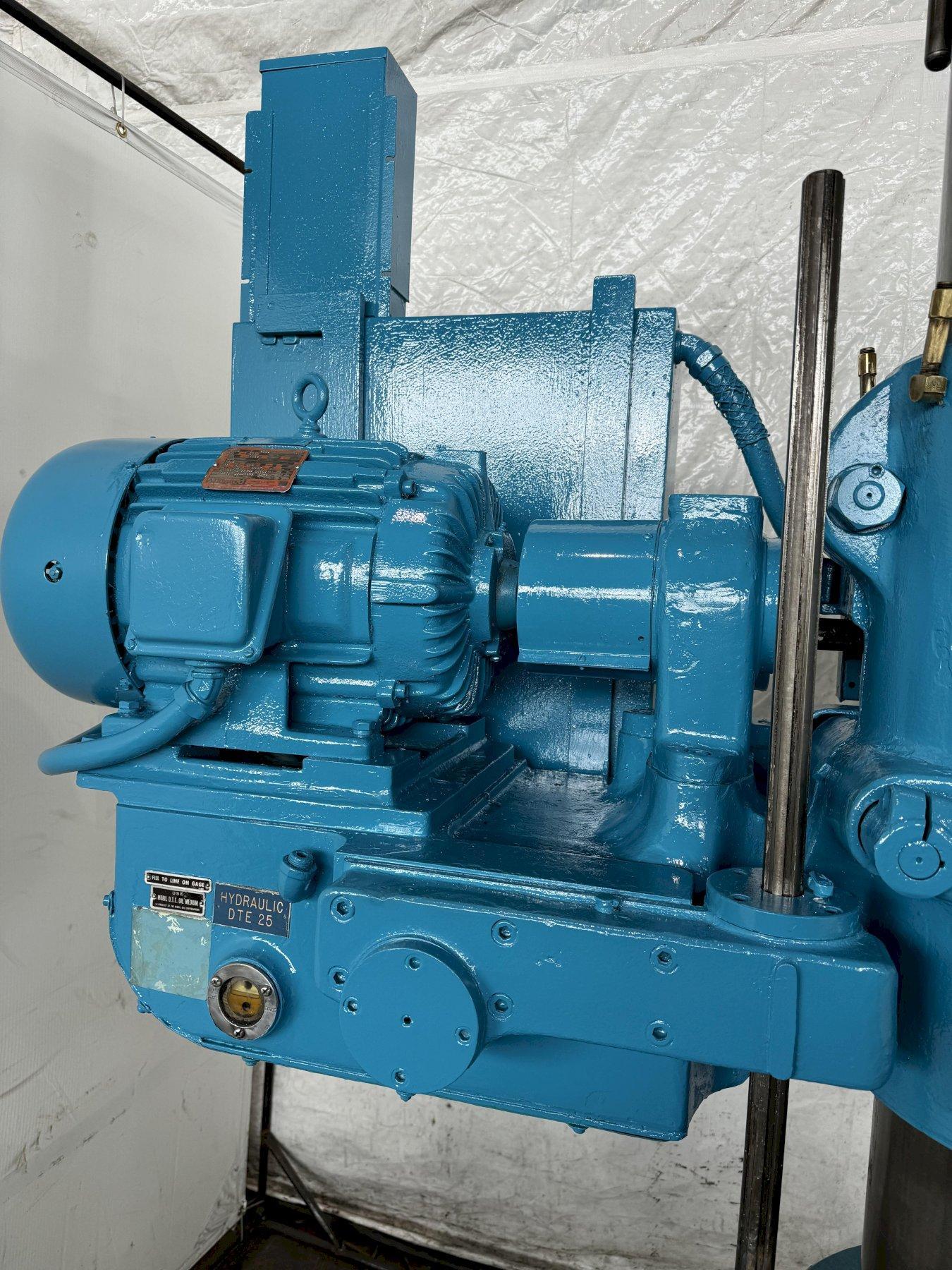

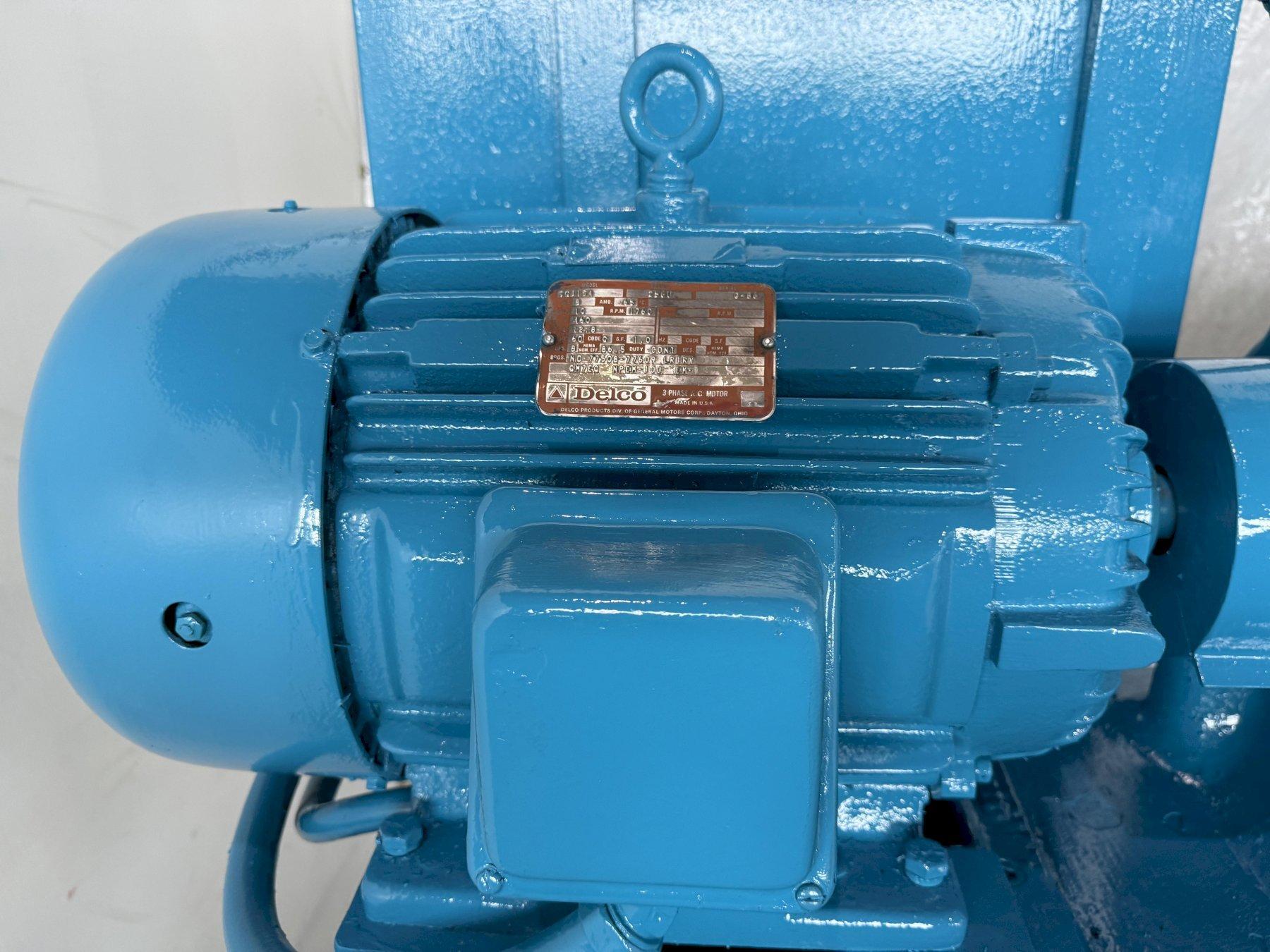

SPINDLE MOTOR ..................... 5 HP

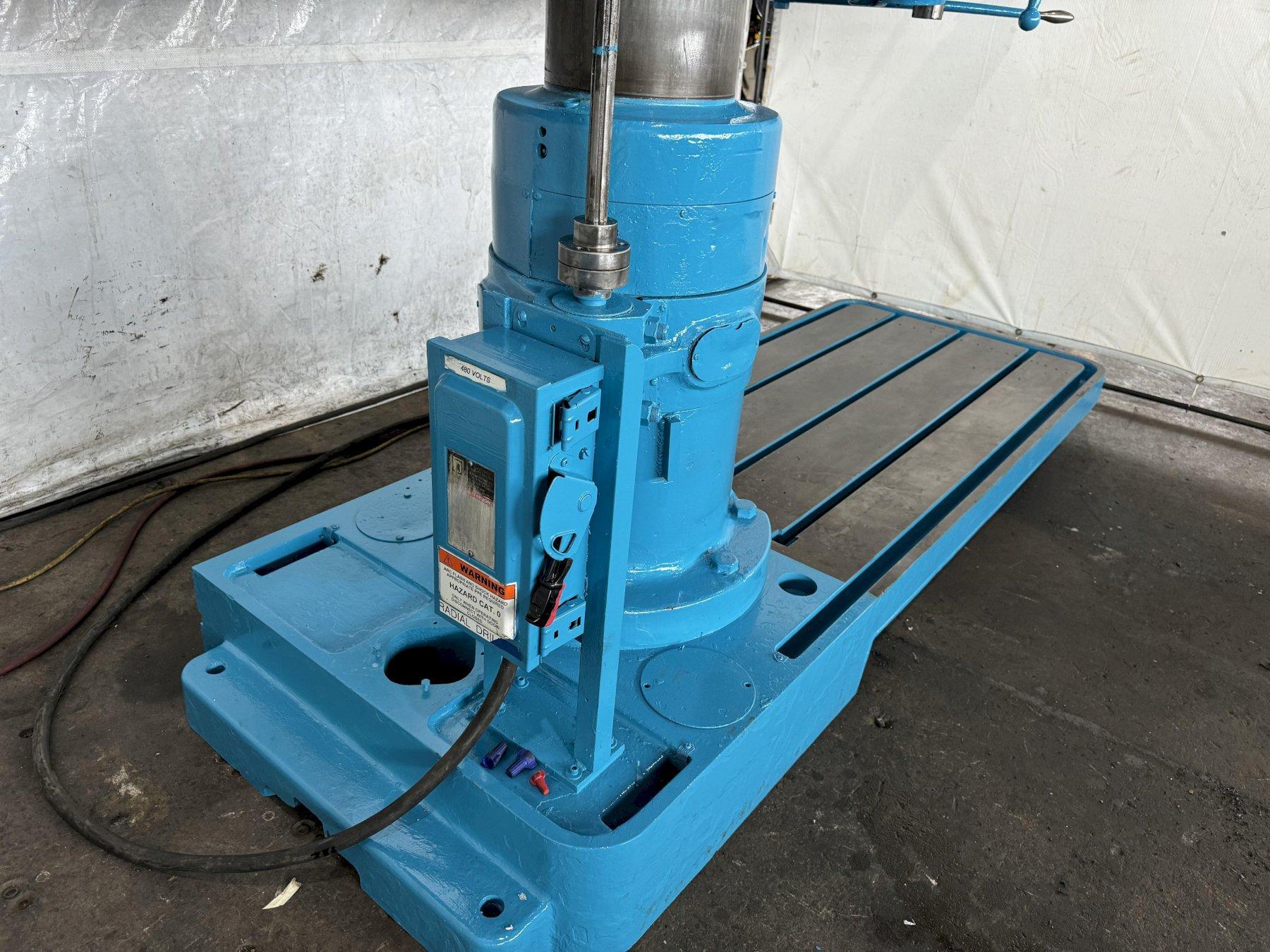

L-BASE DESIGN
