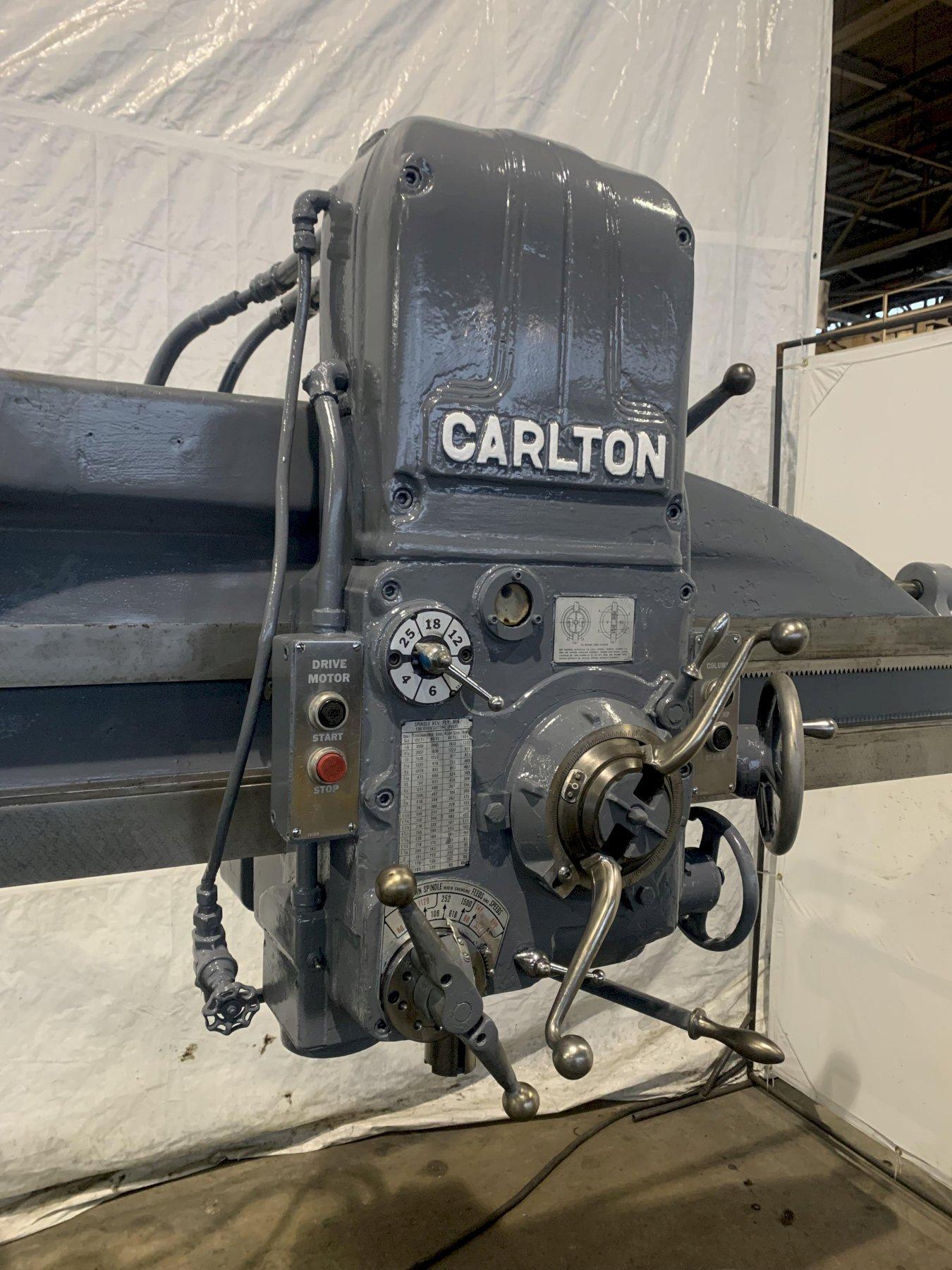

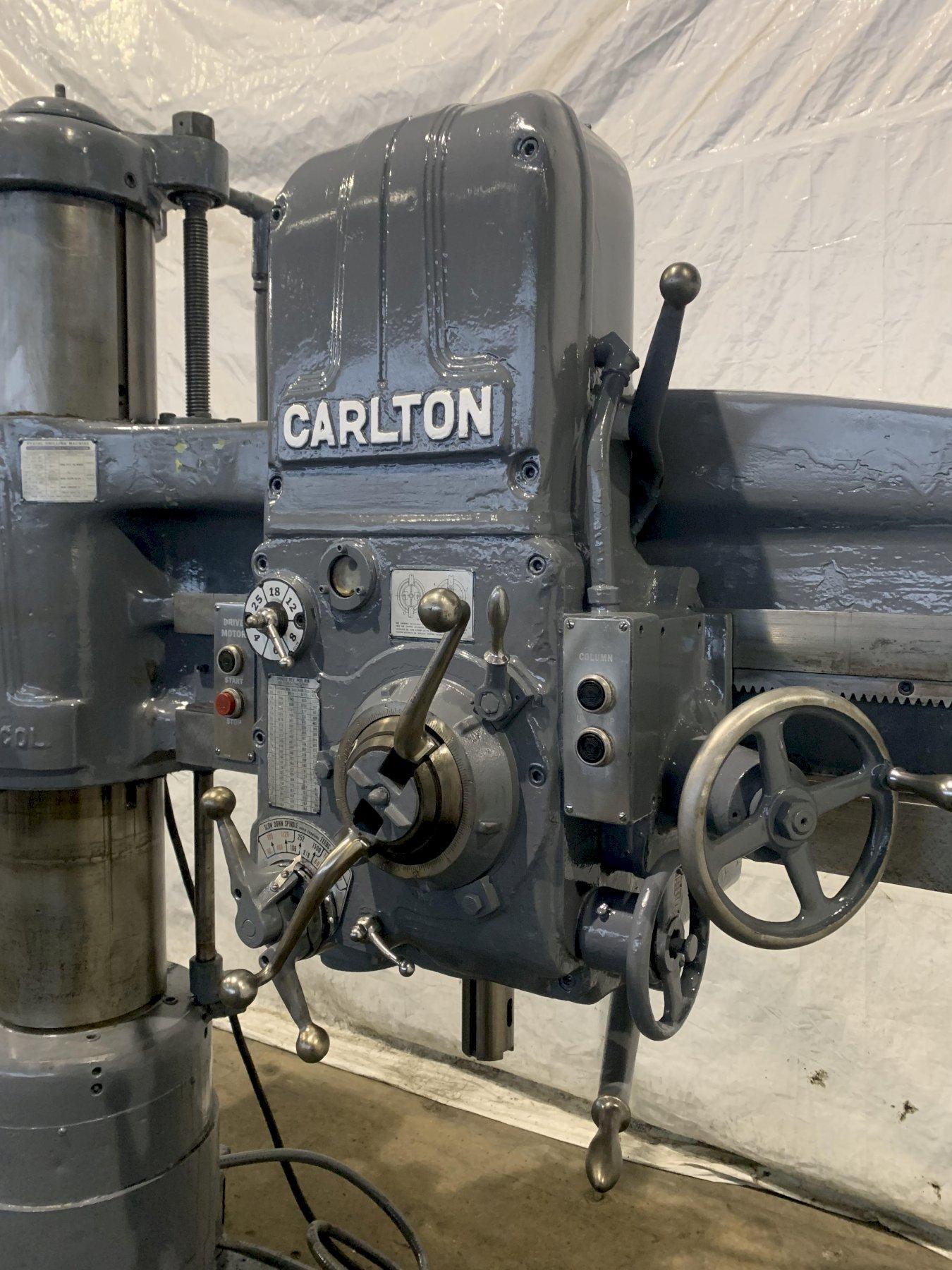

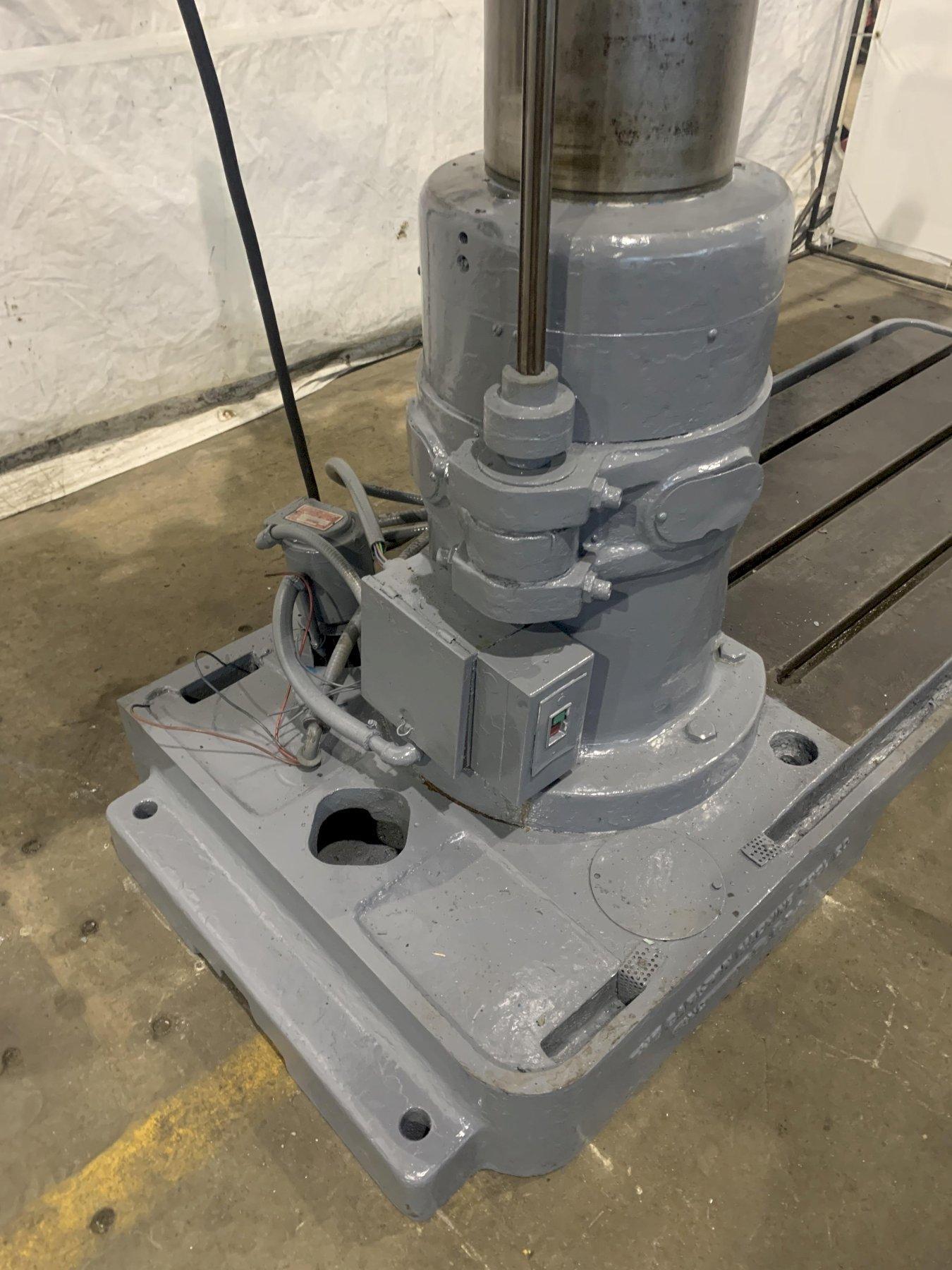

5' X 11" CARLTON 1A RADIAL ARM DRILL. STOCK # 1273223

Stock #: 1273223

Equipped With

SERIAL ............................ 1A-
MODEL ............................. 1A
SIZE .............................. 5' X 11"

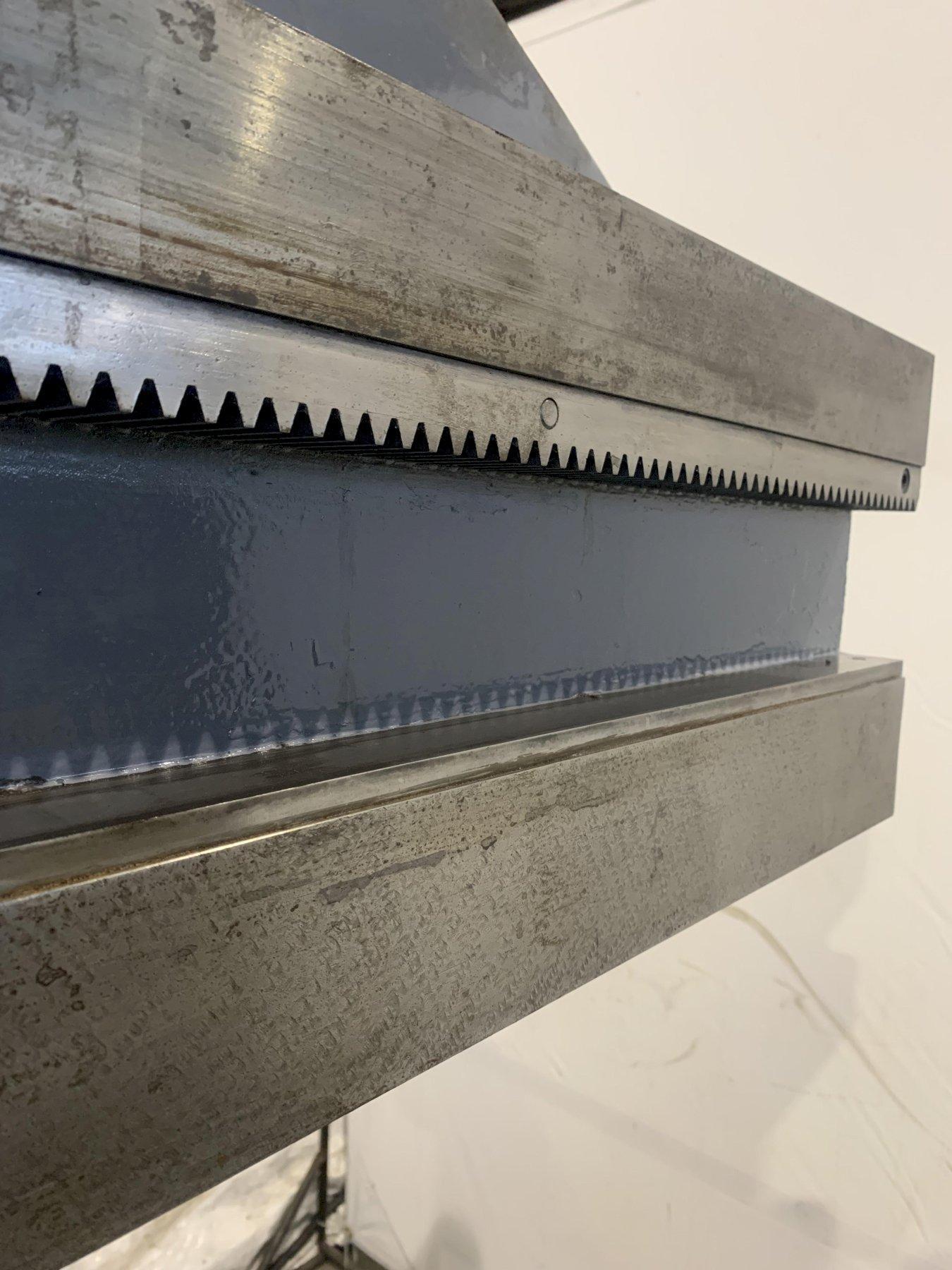

ARM LENGTH ........................ 5'

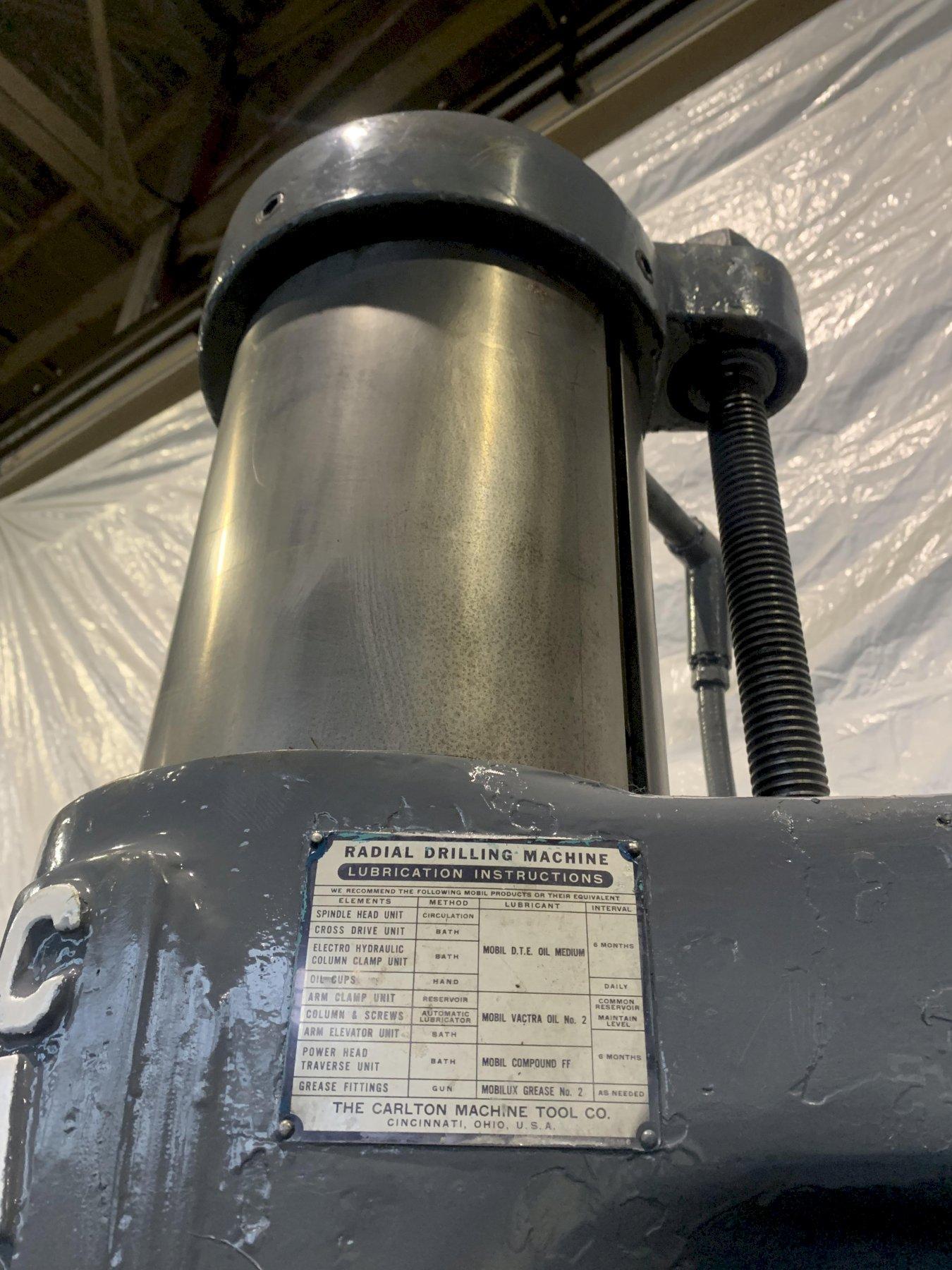

COLUMN DIAMETER ................... 11"
SPINDLE SPEEDS .................... 20-1200 RPM
FEEDS ............................. (6) .006" - .025"
DIAMETER OF SPINDLE ............... 2-1/2"
SPINDLE TAPER ..................... #4 MT
SPINDLE TRAVEL .................... 12"

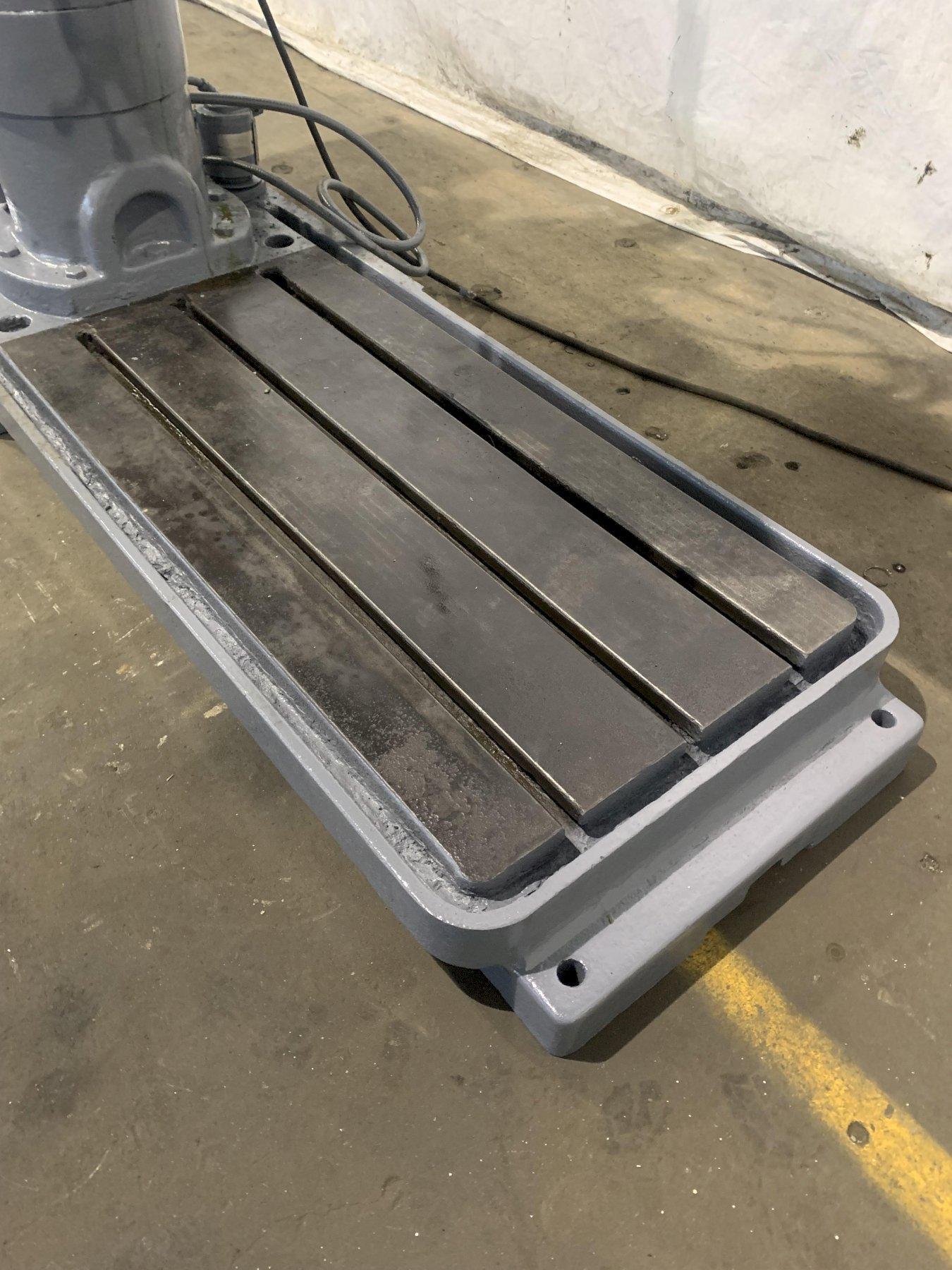

AREA OF BASE ...................... 53" X 31"
COLUMN TO SPINDLE ................. 9" TO 48"
SPINDLE TO BASE ................... 14" TO 53"
POWER ELEVATION ................... YES

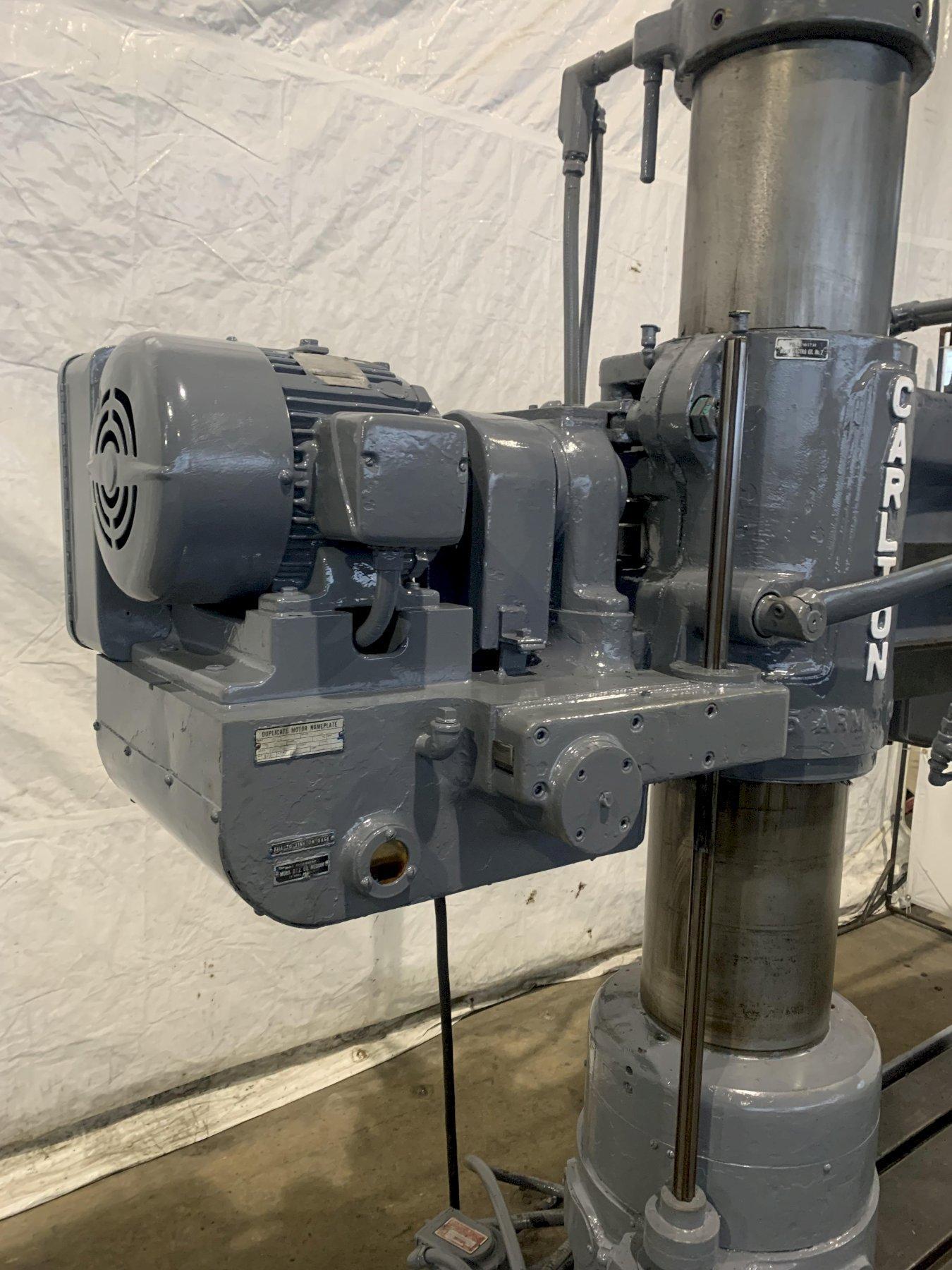

SPINDLE MOTOR ..................... 7.5 HORSEPOWER
