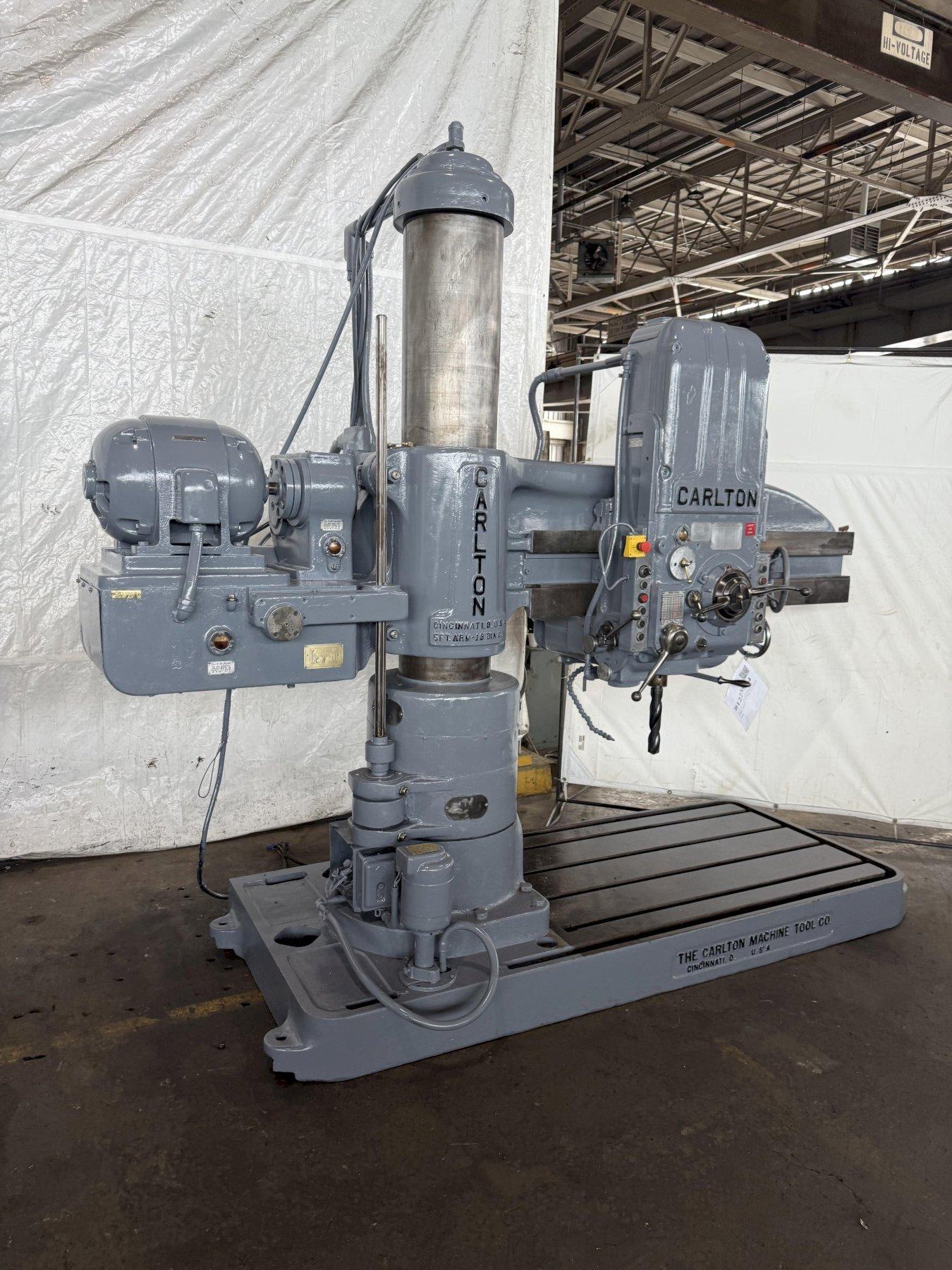

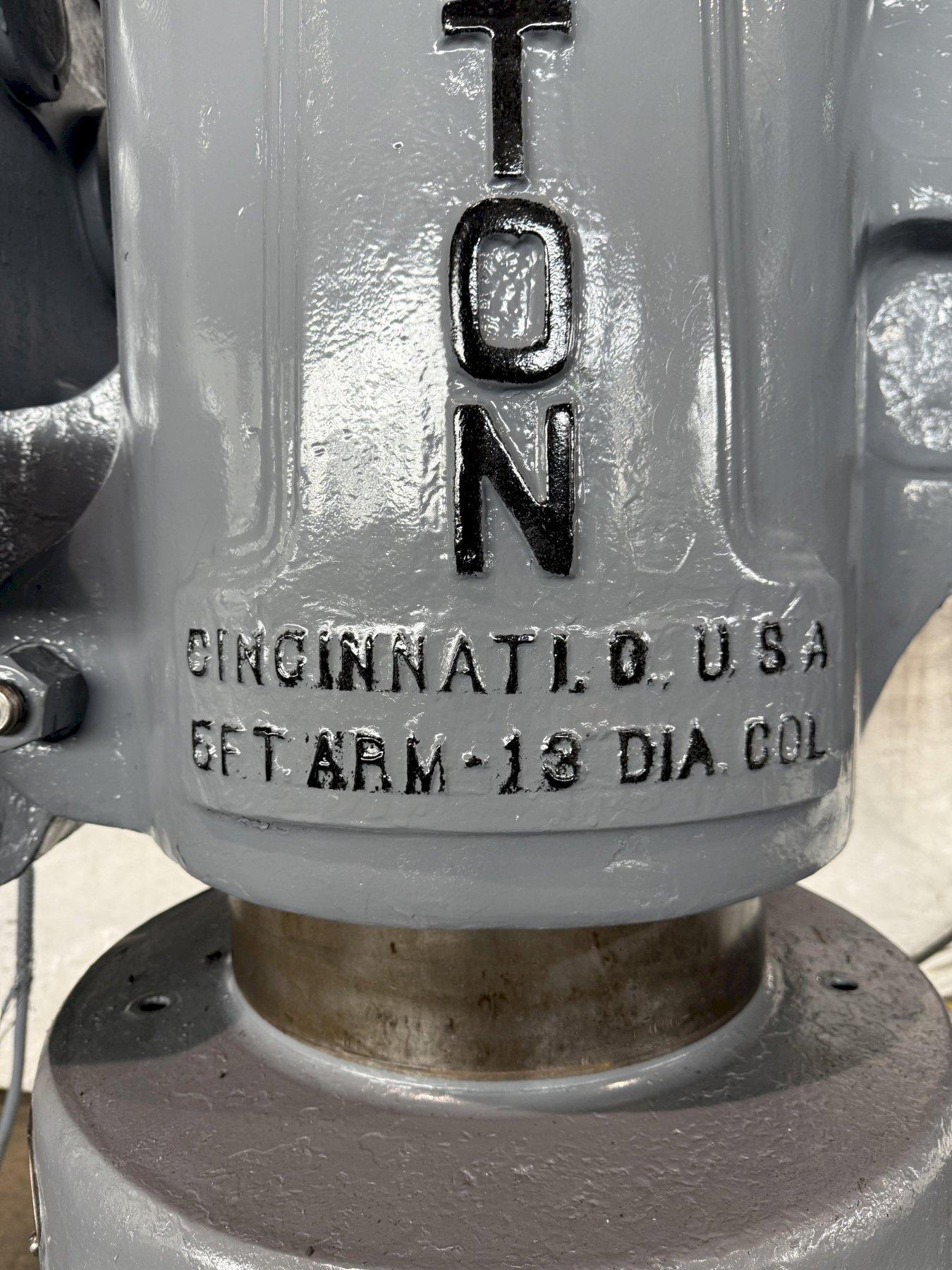

5' X 13" CARLTON 3A RADIAL ARM DRILL. STOCK # 1225924.

Stock #: 1225924

Equipped With

SERIAL............................ 3883
MODEL ............................ 3A

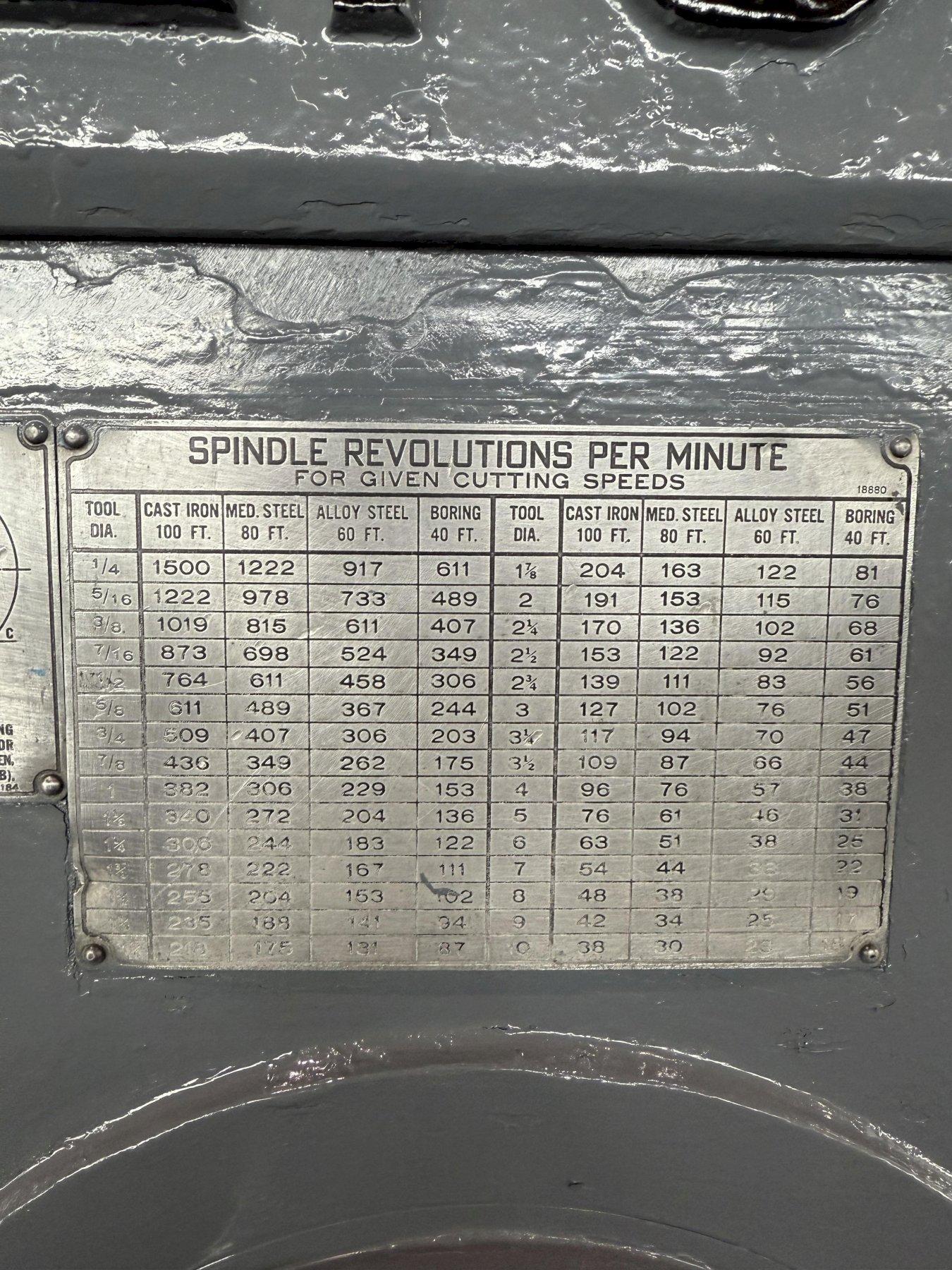

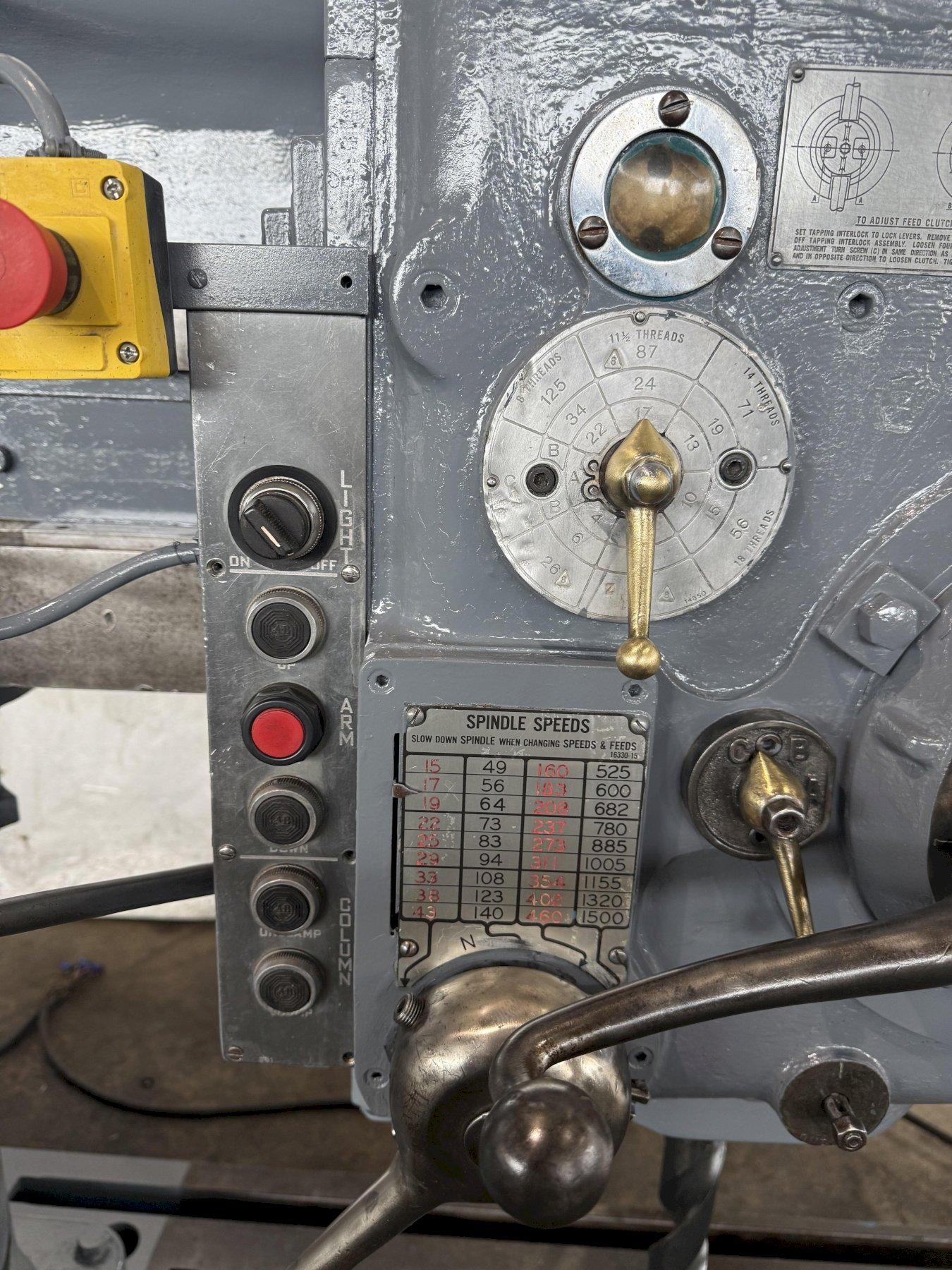

SPINDLE SPEEDS ................... (36) 10 TO 1000 RPM
FEEDS ............................ (18) .004 TO .125 IPR
TAP LEADS ........................ 8 - 11-1/2 - 14 - 18 TPI
TAPER IN SPINDLE ................. #5 MT
DIAMETER OF SPINDLE .............. 3"
SPINDLE TRAVEL ................... 18"

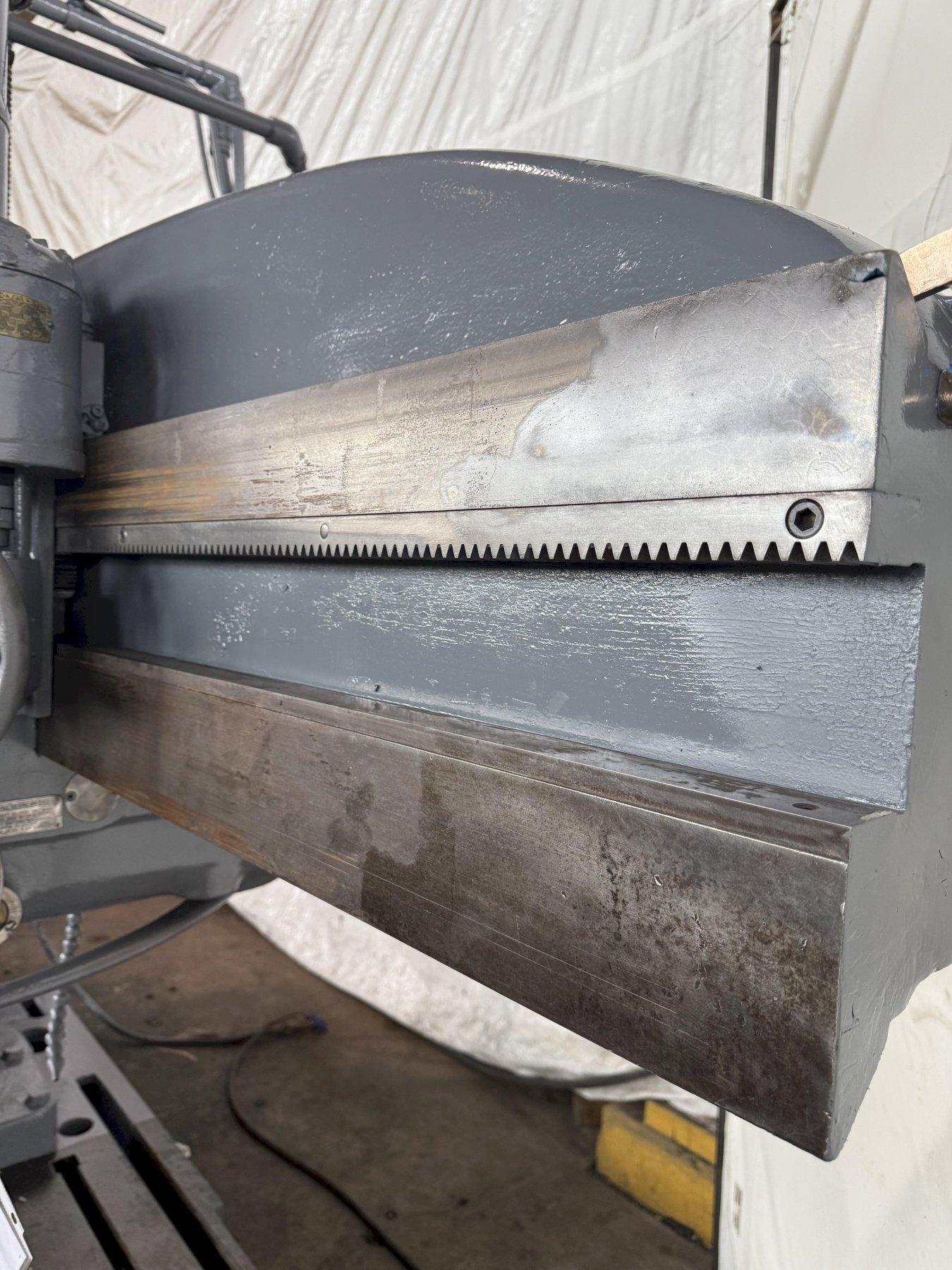

DISTANCE SPINDLE TO COLUMN ....... 15" MIN. / 60" MAX.
SPINDLE TO FLOOR ................. 83"

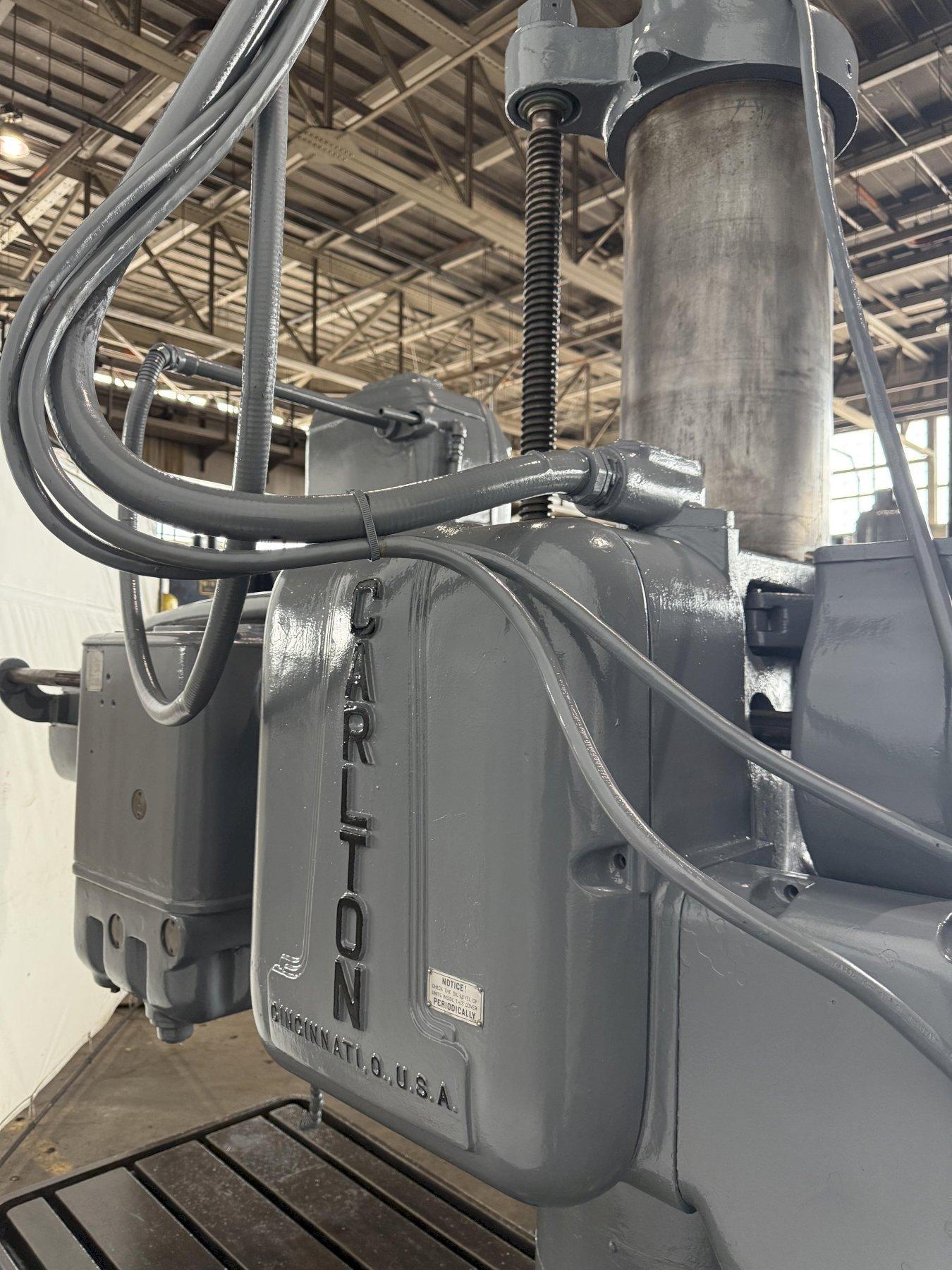

POWER ARM ELEVATION .............. YES

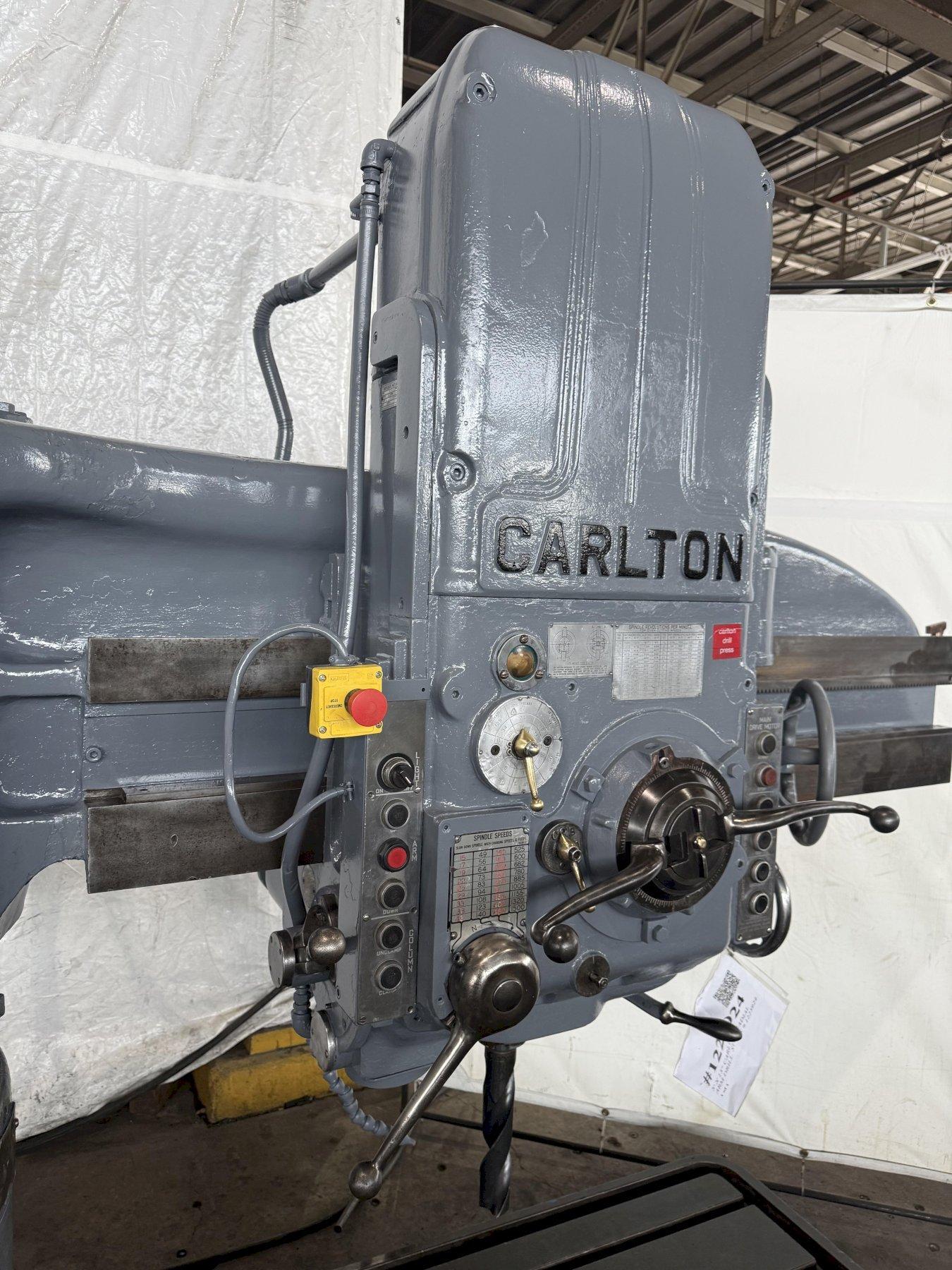

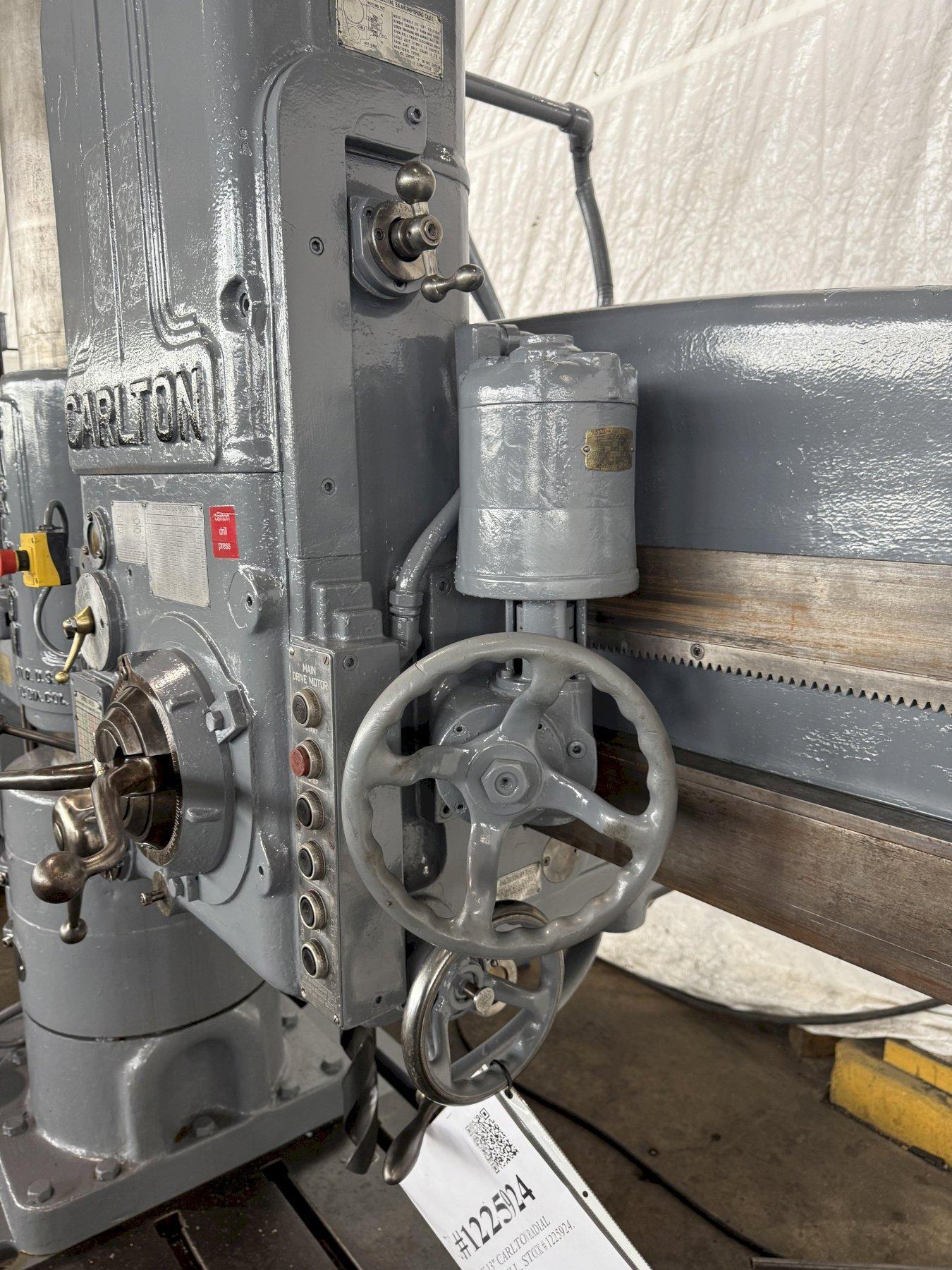

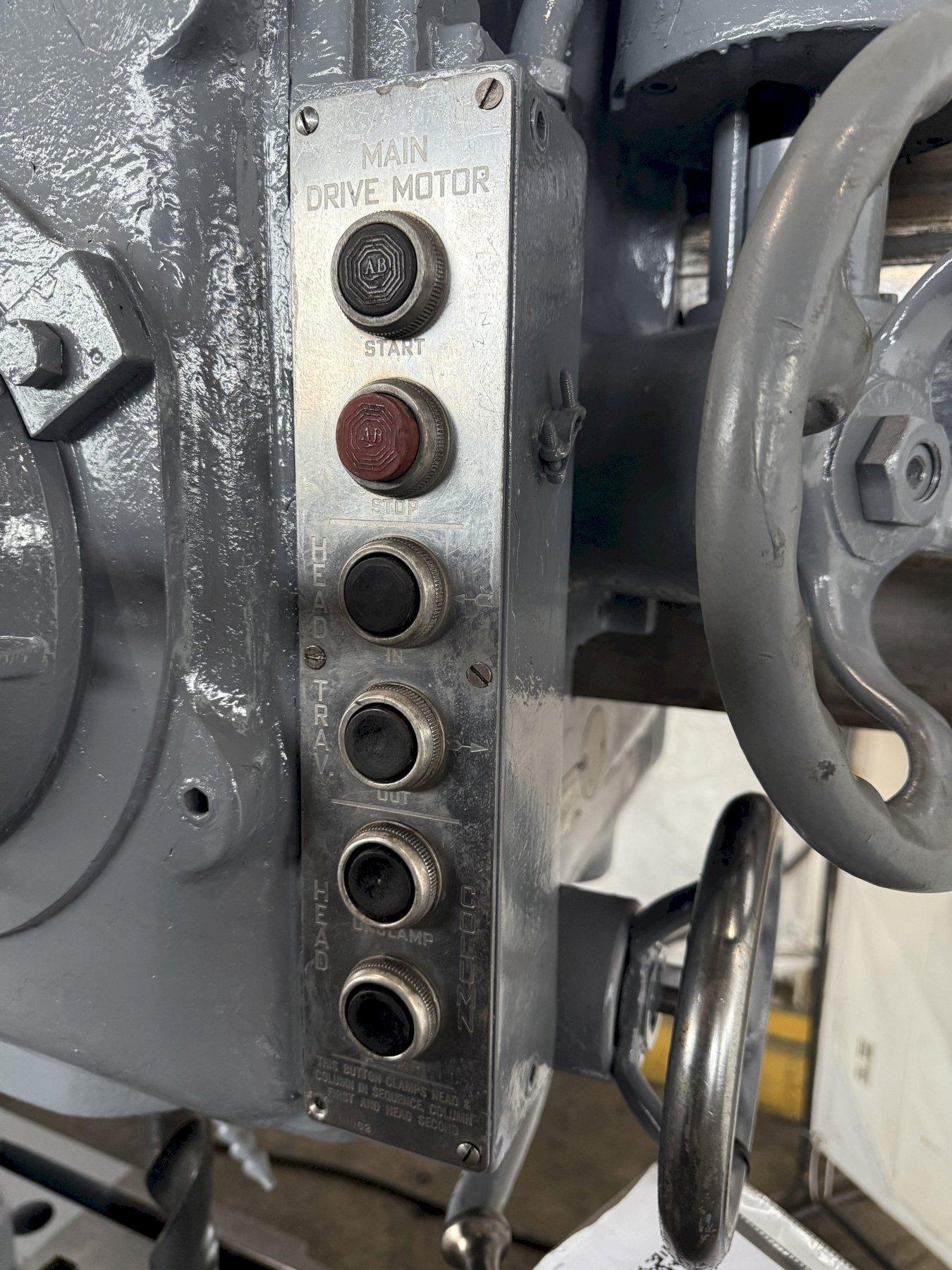

HEAD TRAVERSE .................... POWERED
HEAD CLAMPING .................... POWERED

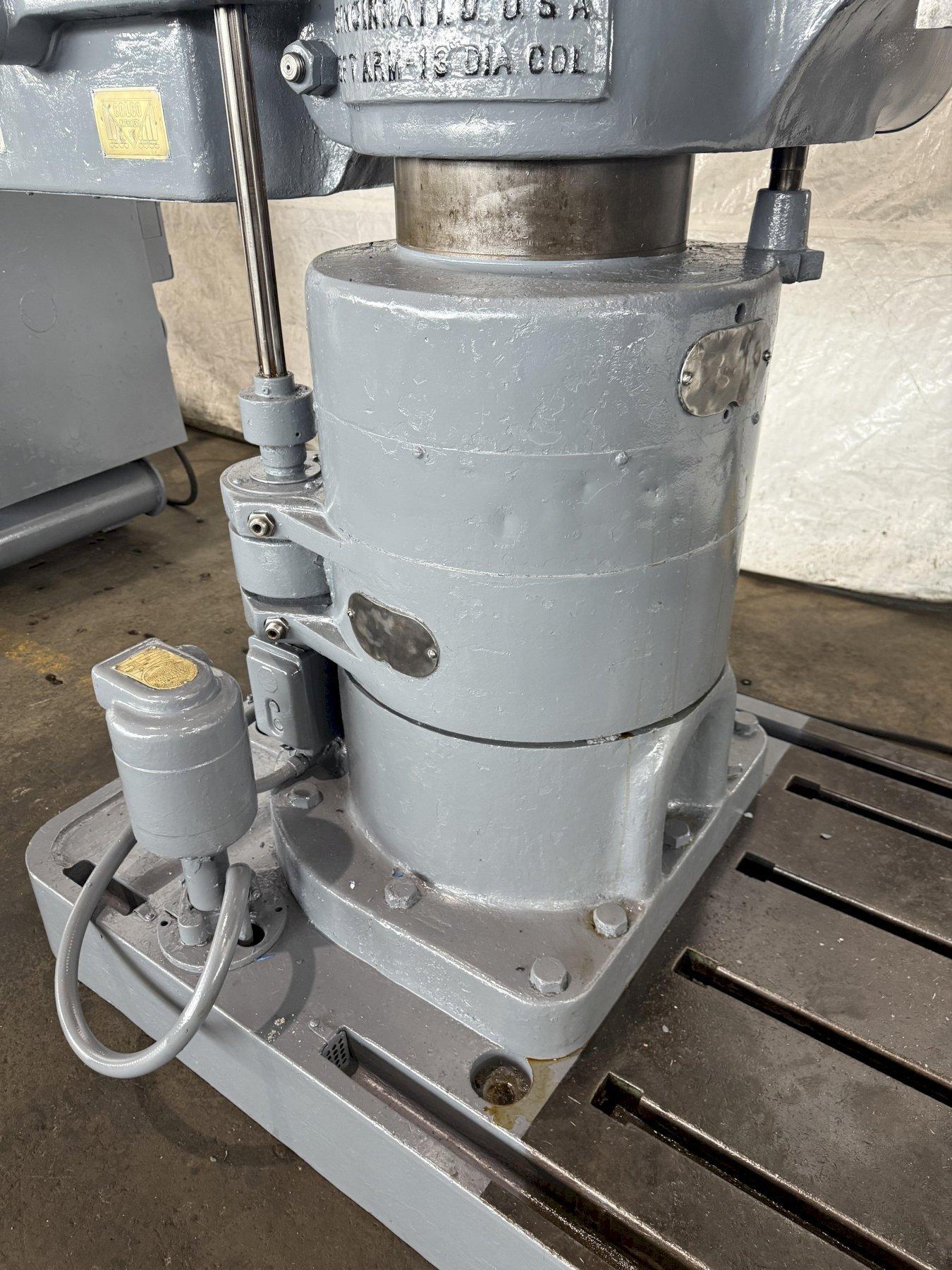

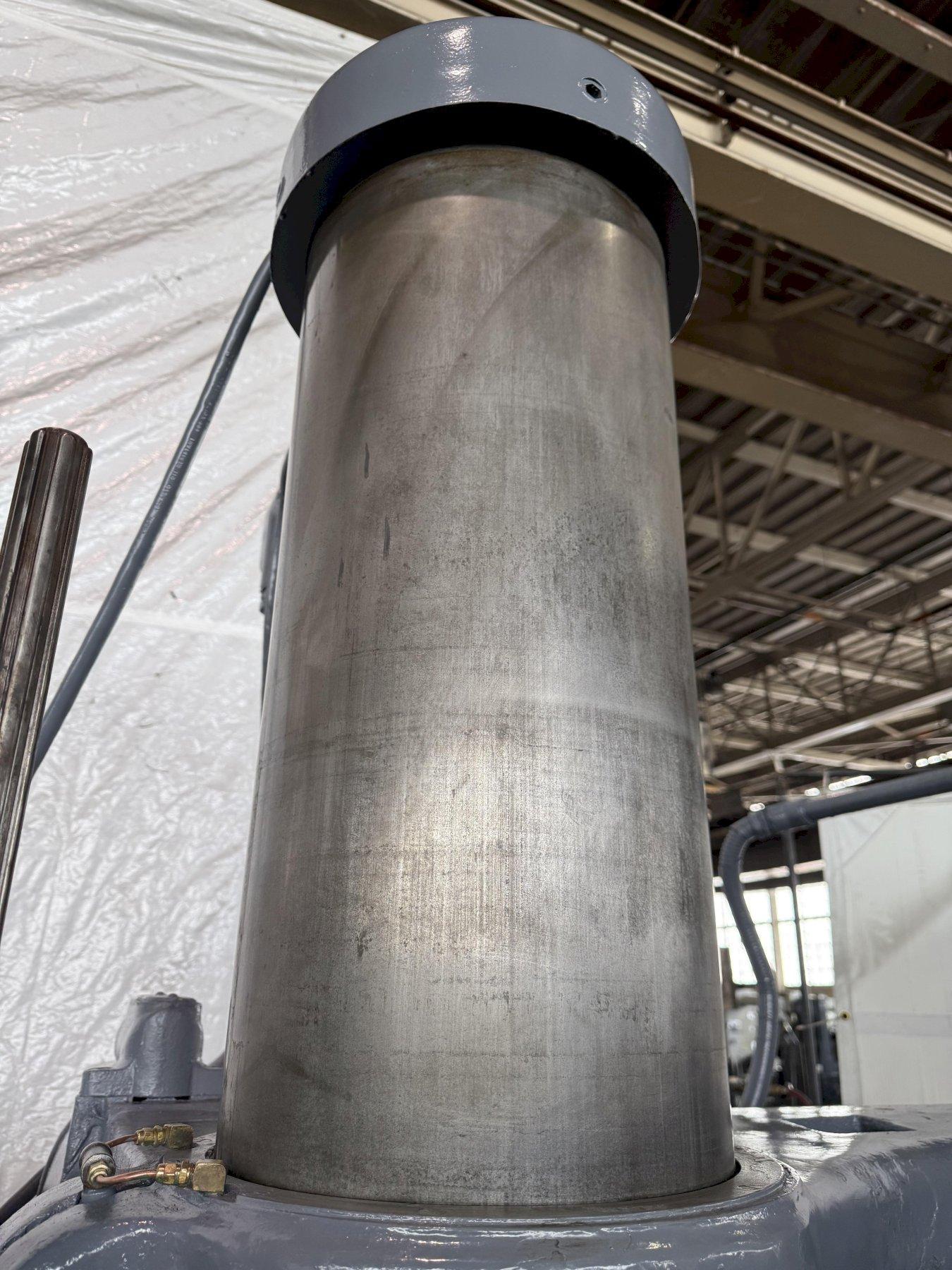

COLUMN CLAMPING .................. POWERED

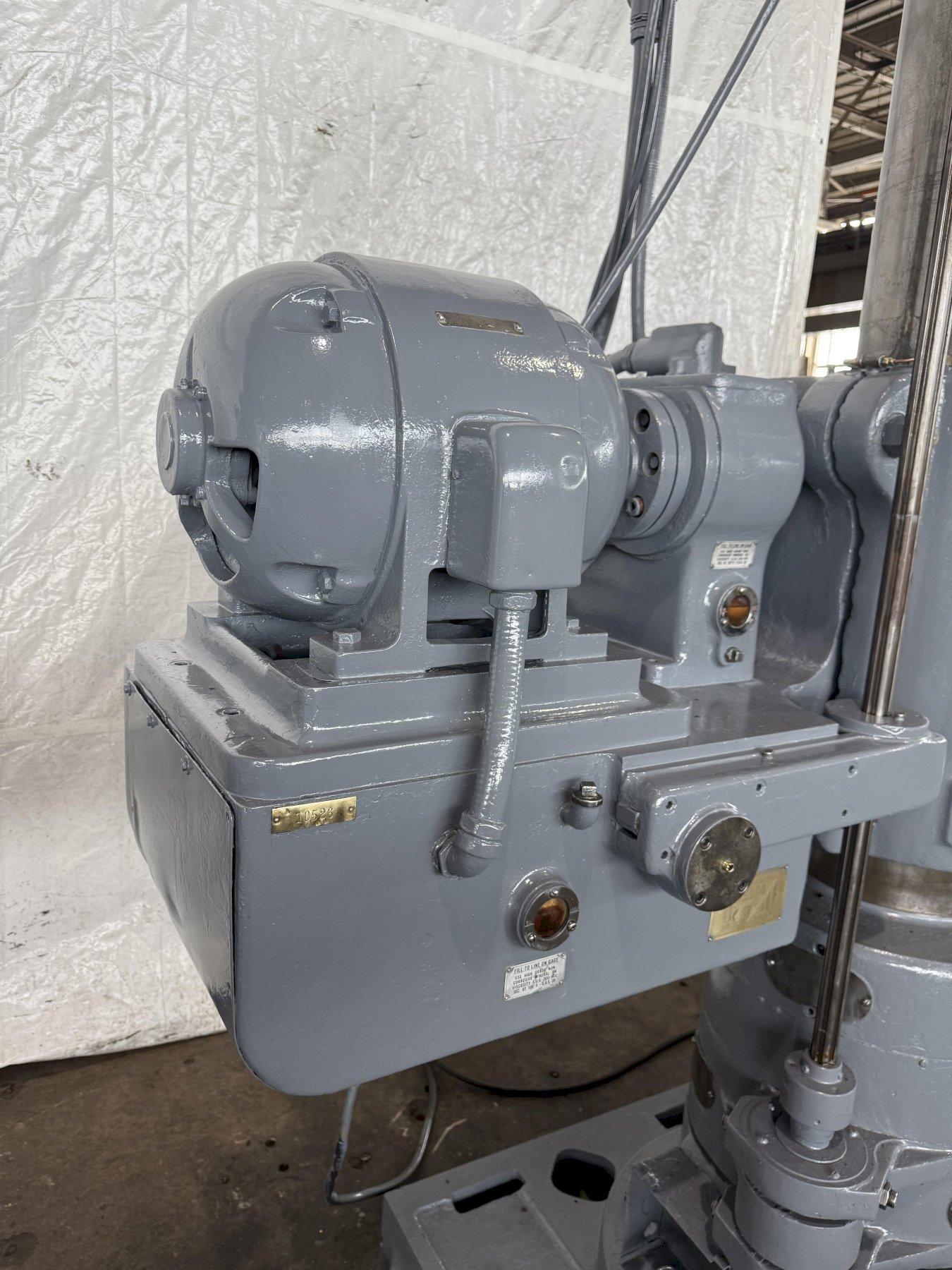

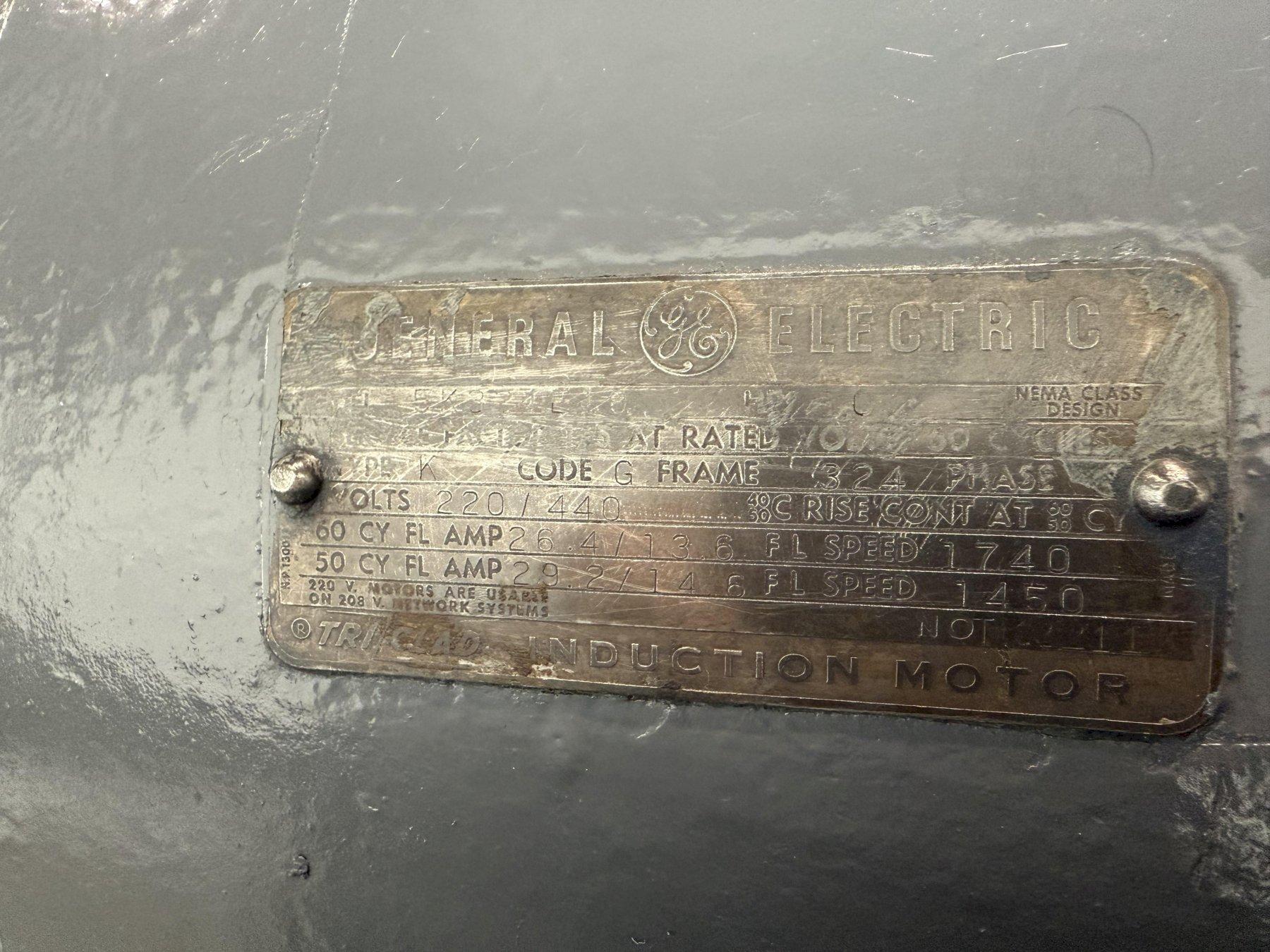

HORSEPOWER SPINDLE DRIVE MOTOR ... 10
