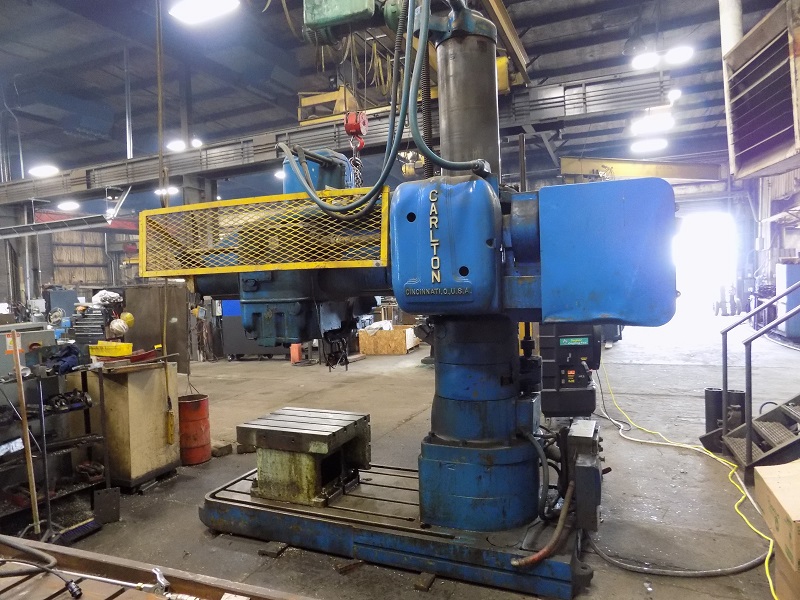

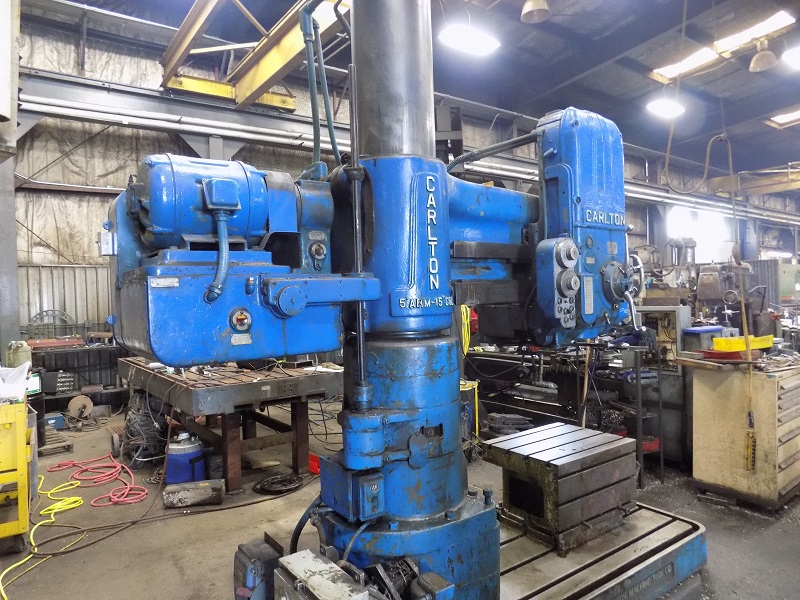

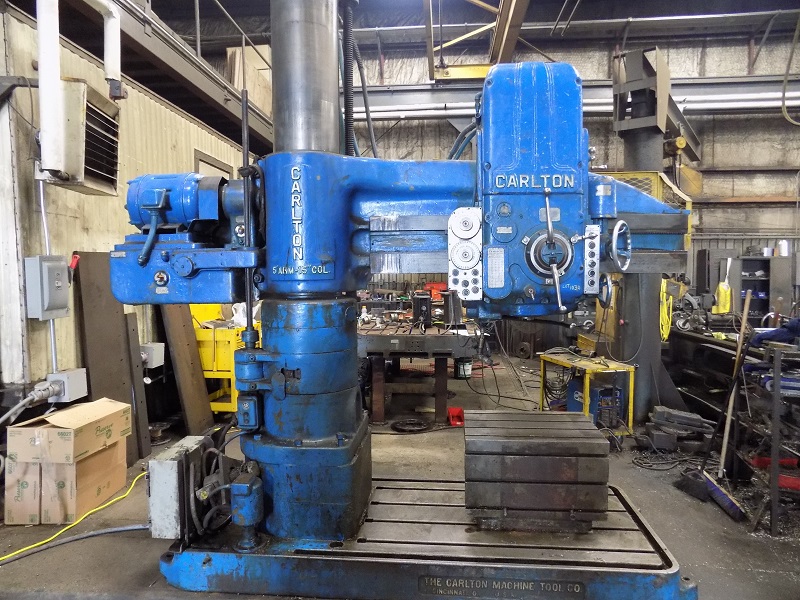

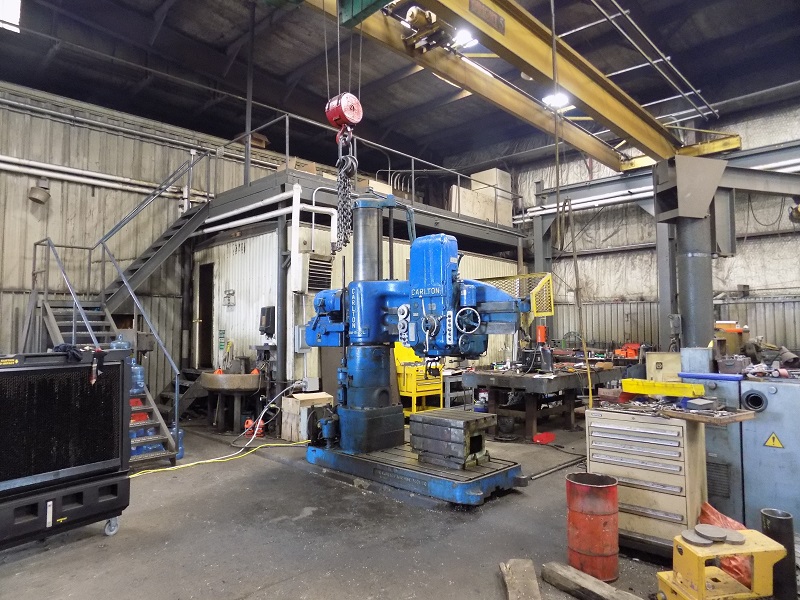

5' x 15" Carlton Radial Arm Drill

Stock #: 1902518

Equipped With

SPECIFICATIONS:





 MODEL ........................ 3A

 AREA OF BASE ................. 65' X 42"

 SPINDLE SPEEDS ............... (36) 15 TO 1500 RPM

 SPINDLE FEEDS ................ (18) .004 TO .125

 TAP LEADS .................... 8, 11-1/2, 14, 18 TPI

 DIAMETER OF SPINDLE .......... 3-3/16"

 TAPER IN SPINDLE ............. #5 MT

 DISTANCE SPINDLE TO BASE ..... 10-1/2" MIN, 66" MAX

 DISTANCE SPINDLE TO COLUMN ... 15" MIN, 60" MAX

 POWER ARM ELEVATION .......... YES

 POWER COLUMN CLAMPING ........ YES

 POWER HEAD CLAMPING .......... YES

 POWER ARM ELEVATION .......... YES

 COOLANT ...................... YES

 MAIN MOTOR ................... 20 HORSEPOWER
