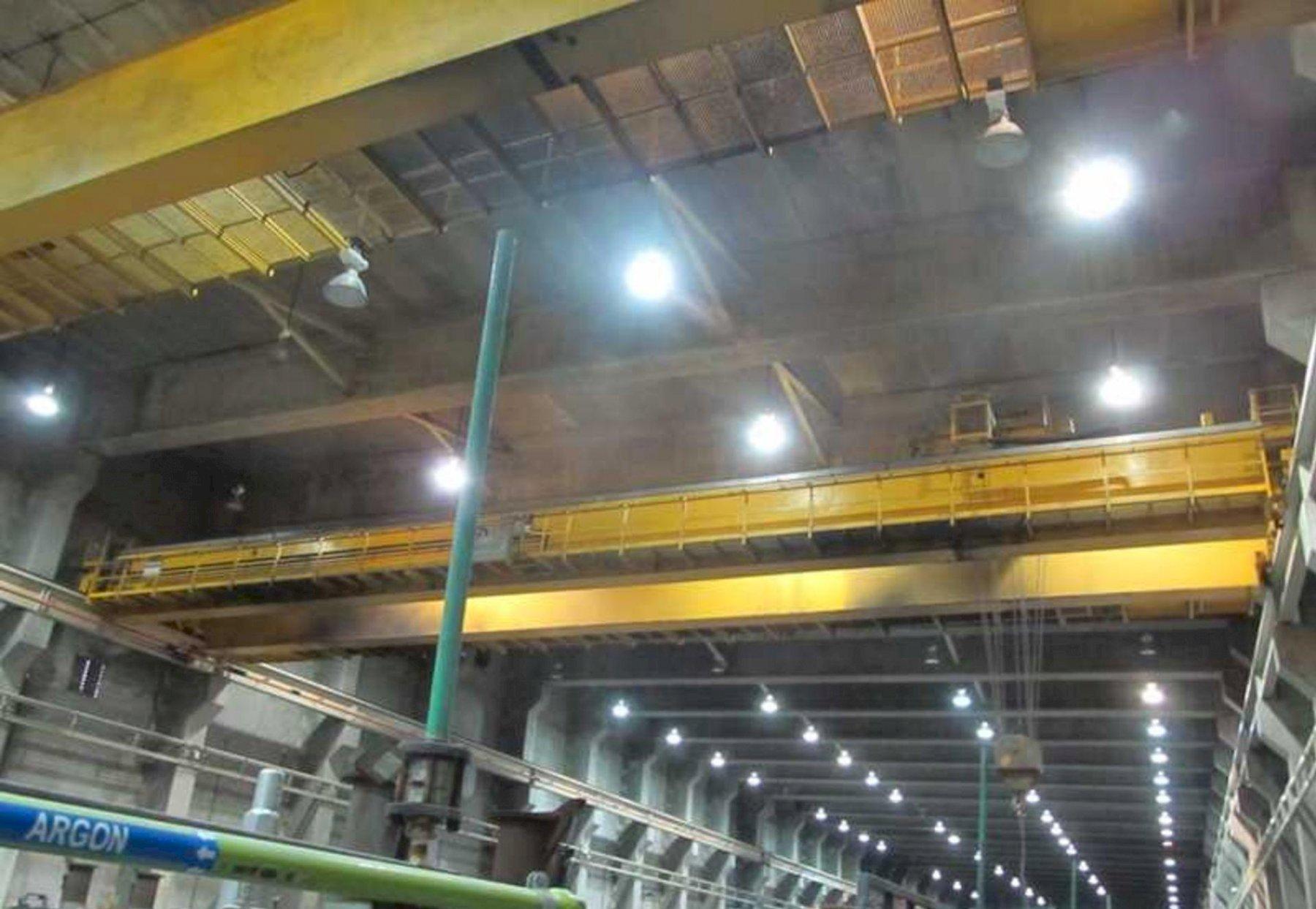

50 TON X 108' ACE "CLASS E" DOUBLE GIRDER OVERHEAD BRIDGE CRANE. STOCK # 0630122

Stock #: 0630122

Equipped With

CAPACITY ............ 50 TON
CMAA CLASS .......... E
SPAN ................ 107' 6"
HEAD ROOM HEIGHT .... 5' 3-1/2"
OVERALL WIDTH ....... 25' 3"

BRIDGE:
NUMBER OF WHEELS .... 8
END TRUCK DRIVES .... YES
END TRUCK MOTORS .... (2) 30 HP
RAIL SIZE ........... 135# ASCE

HOIST:
CAPACITY ............ 50 TON
LIFT HEIGHT ......... 56' 4"
HOOK HEIGHT ......... 55' 4"
SPEED ............... 43 FPM
MOTOR ............... 150 HP
WIRE ROPE ........... 7/8" DIAMETER

TROLLEY:
SPEED ............... 100 FPM
MOTOR ............... 10 HP
