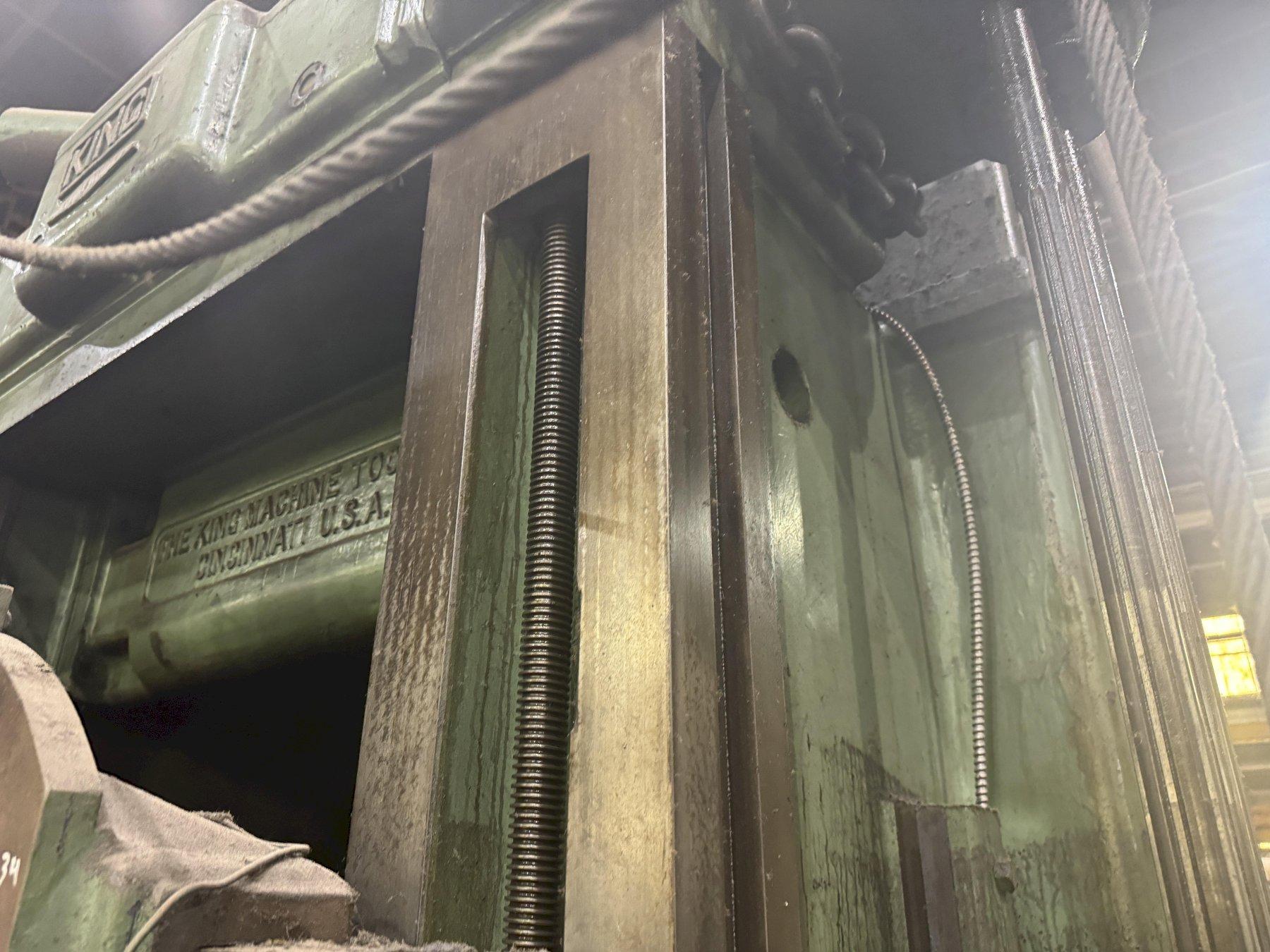

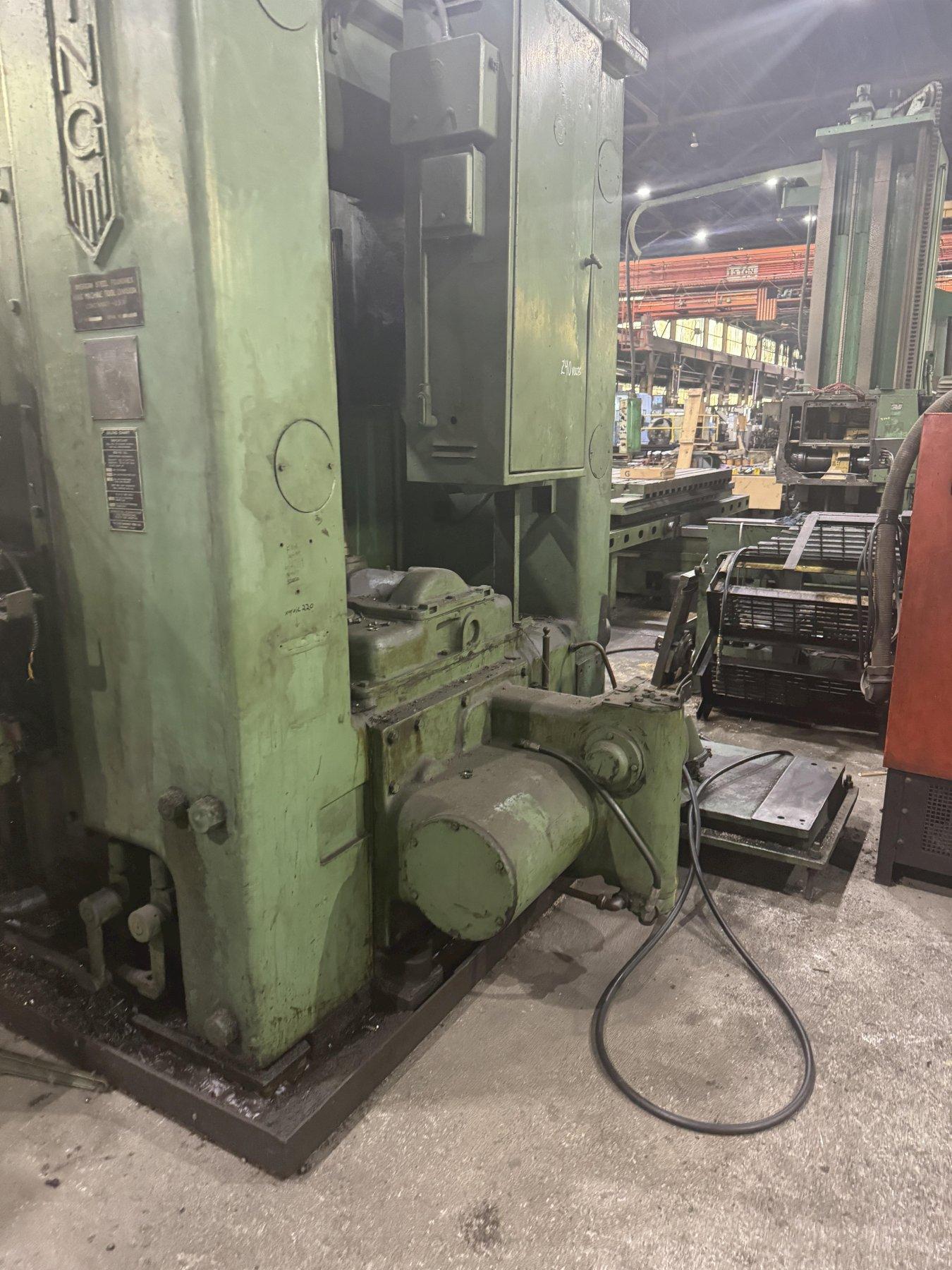

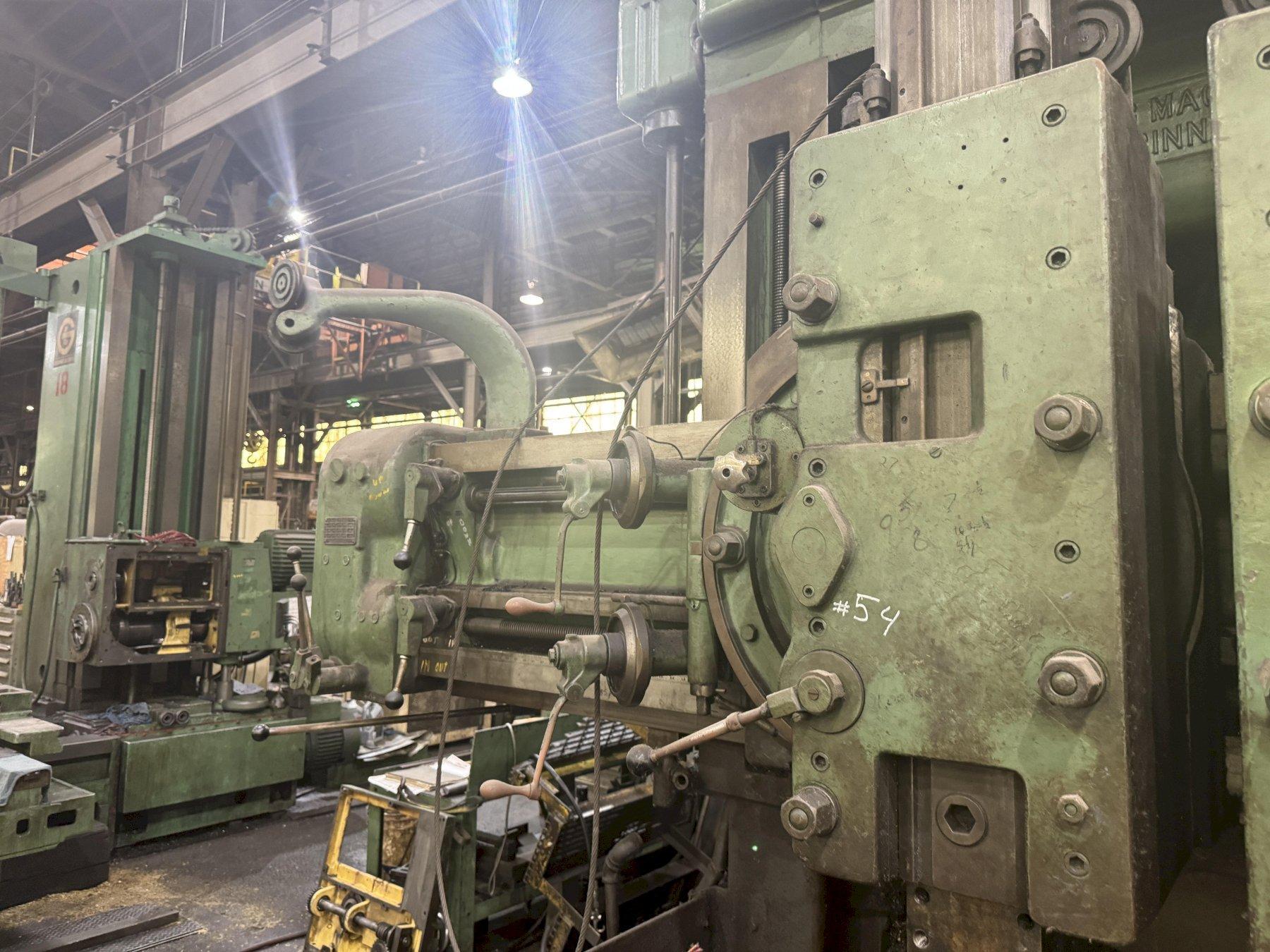

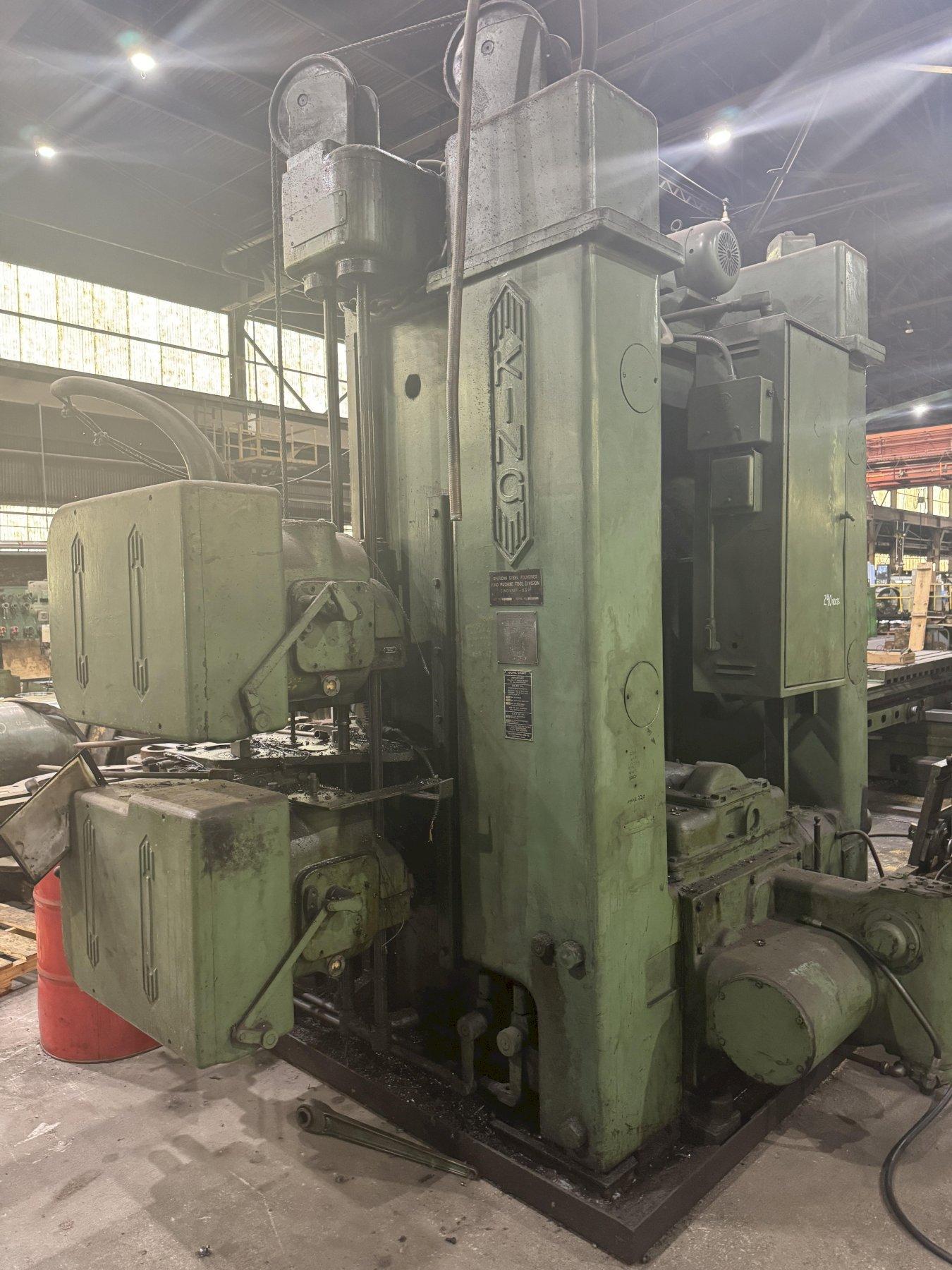

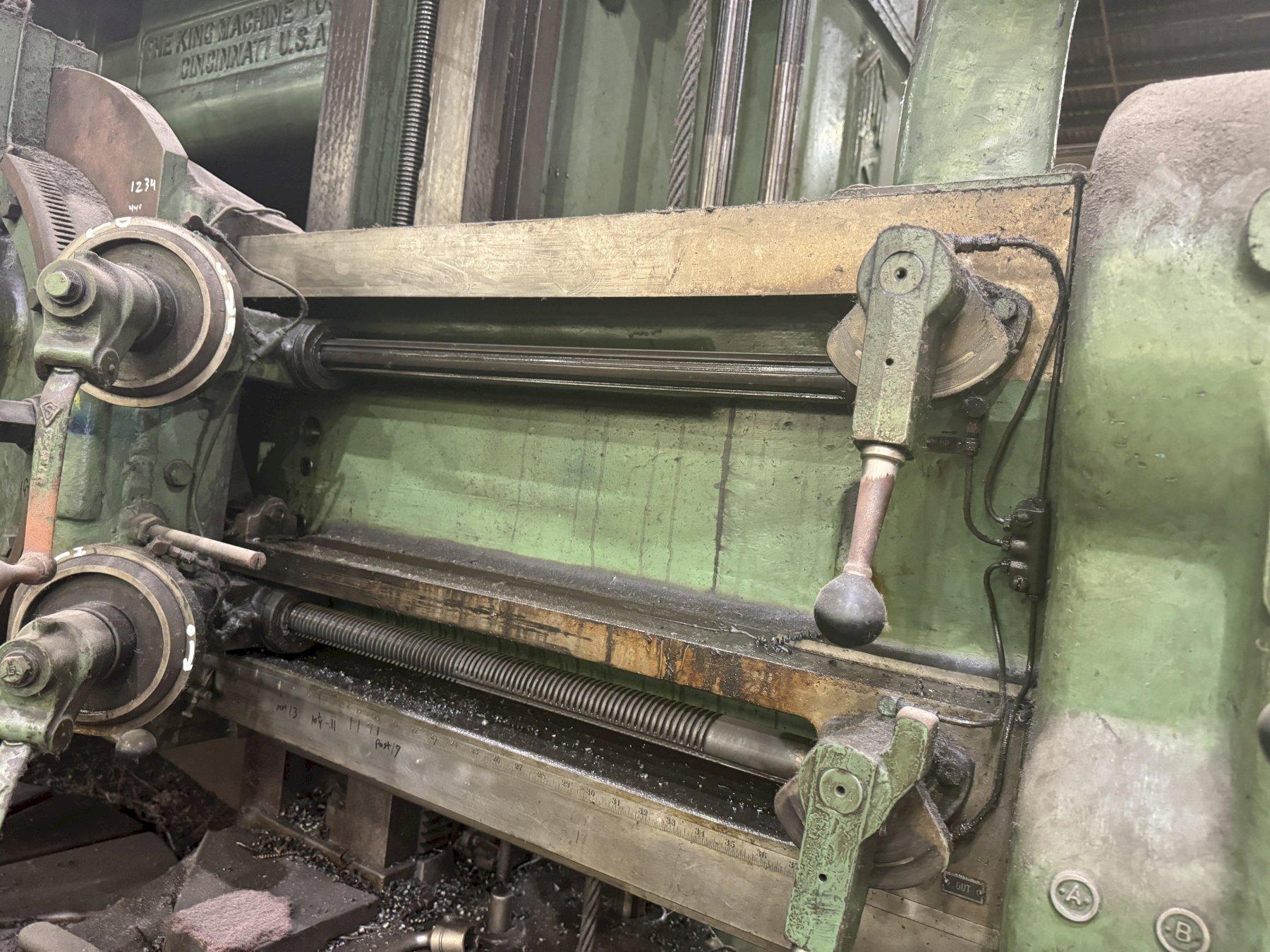

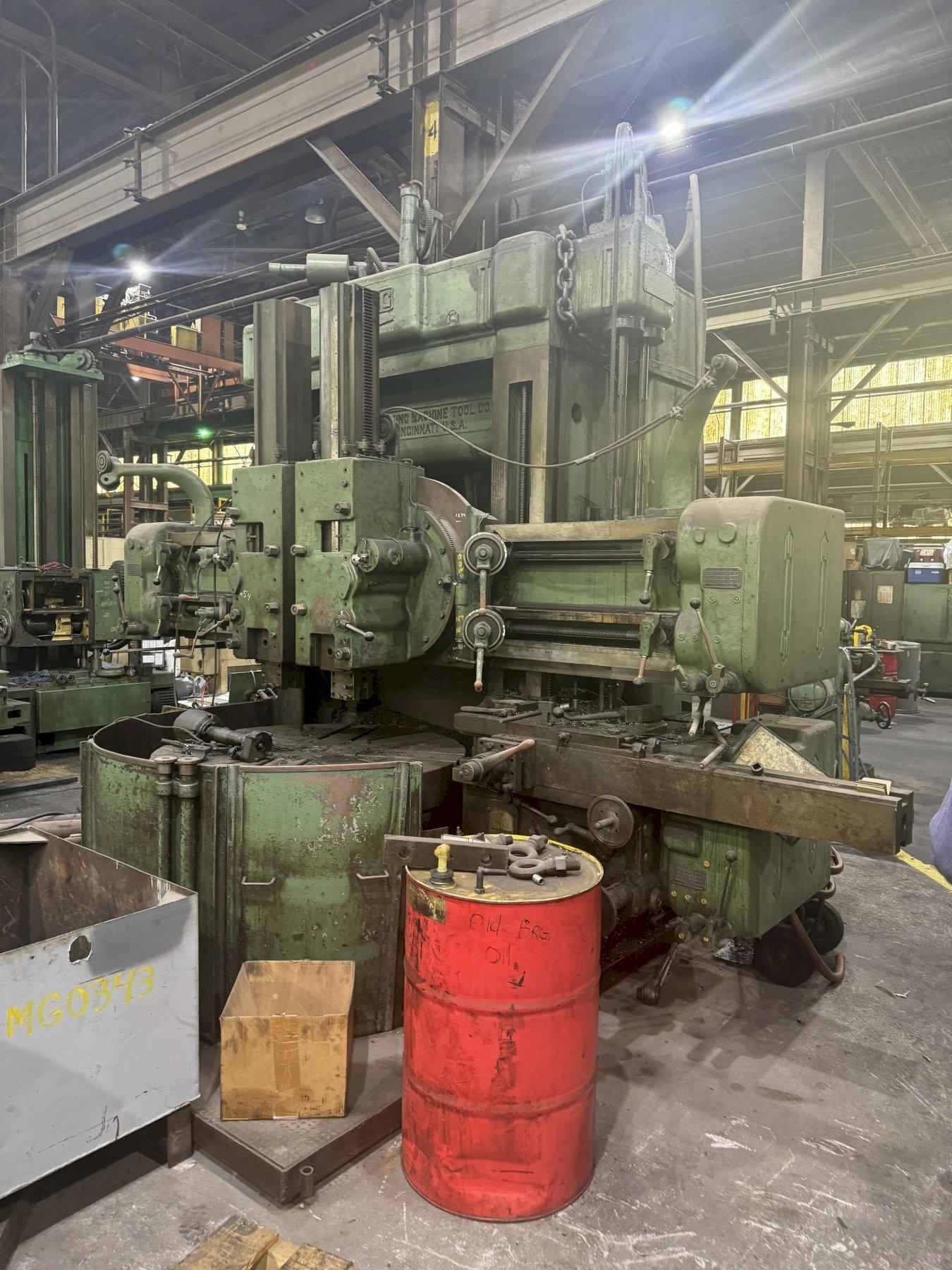

52" KING VERTICAL TURNING & BORING MACHINE. STOCK # 0667625

Stock #: 0667625

Equipped With

SPECIFICATIONS:
TABLE DIAMETER.................... 52"
MAX. SWING........................ 60"
MAX. HEIGHT UNDER RAIL............ 36"
MAIN MOTOR........................ 40 HP
RAM STROKE........................ 30"
TURRET STROKE..................... 30"
TABLE SPEEDS (16)................. 4.84 - 151 RPM
THREADING......................... 2 - 18 TPI
FEEDS (12)........................ 0.003 - 0.125
CROSS FEEDS....................... 0.010 - 0.500
APPROX. WORKING HEIGHT............ 13'
APPROX. FLOORSPACE REQUIRED....... 14' W x 11' D
APPROX. SHIPPING DIMENSIONS....... 11' L x 12.5' W x 126" H

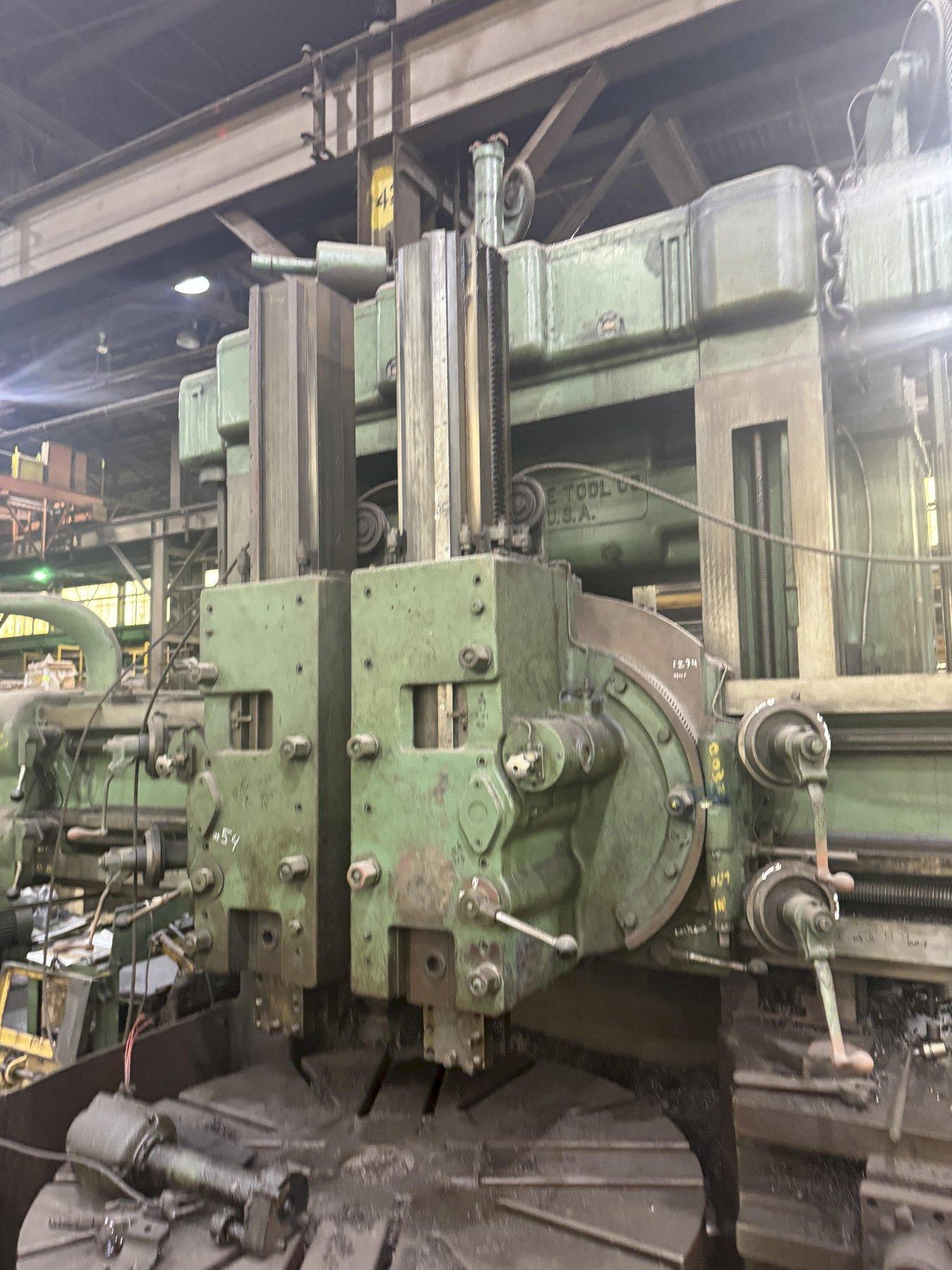

2-SWIVELING RAMS

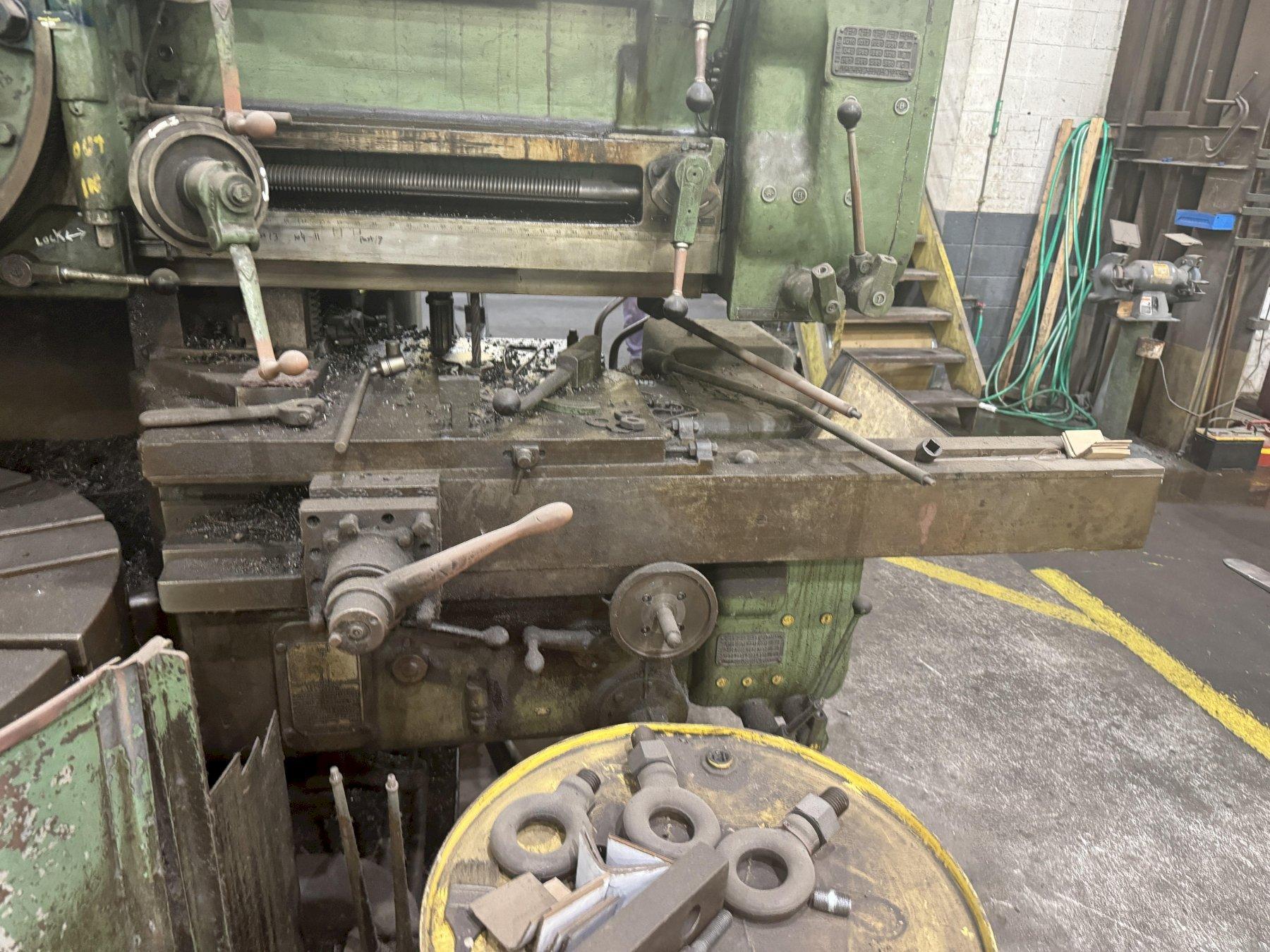

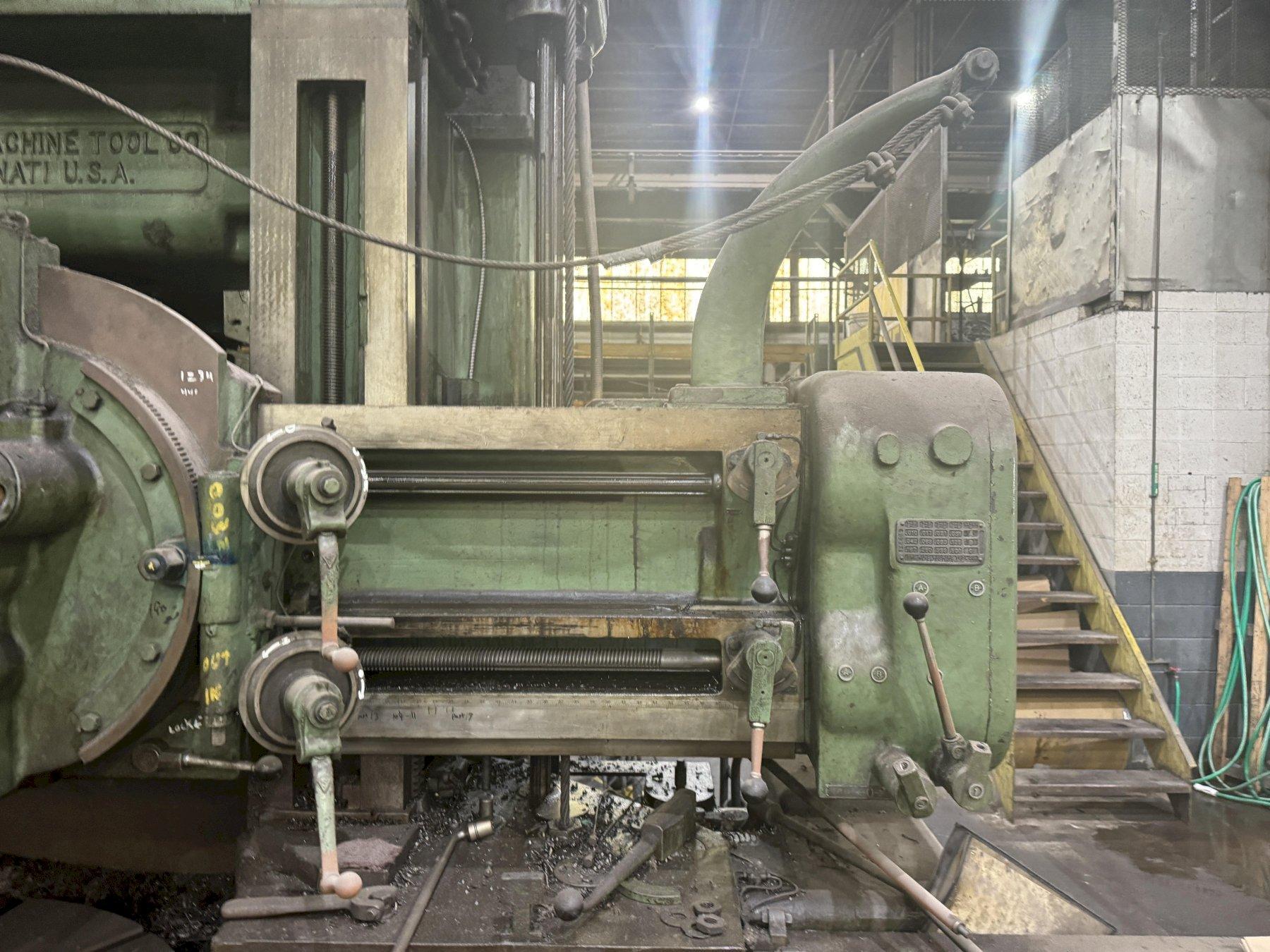

RIGHT HAND SIDE HEAD
PENDANT CONTROLS

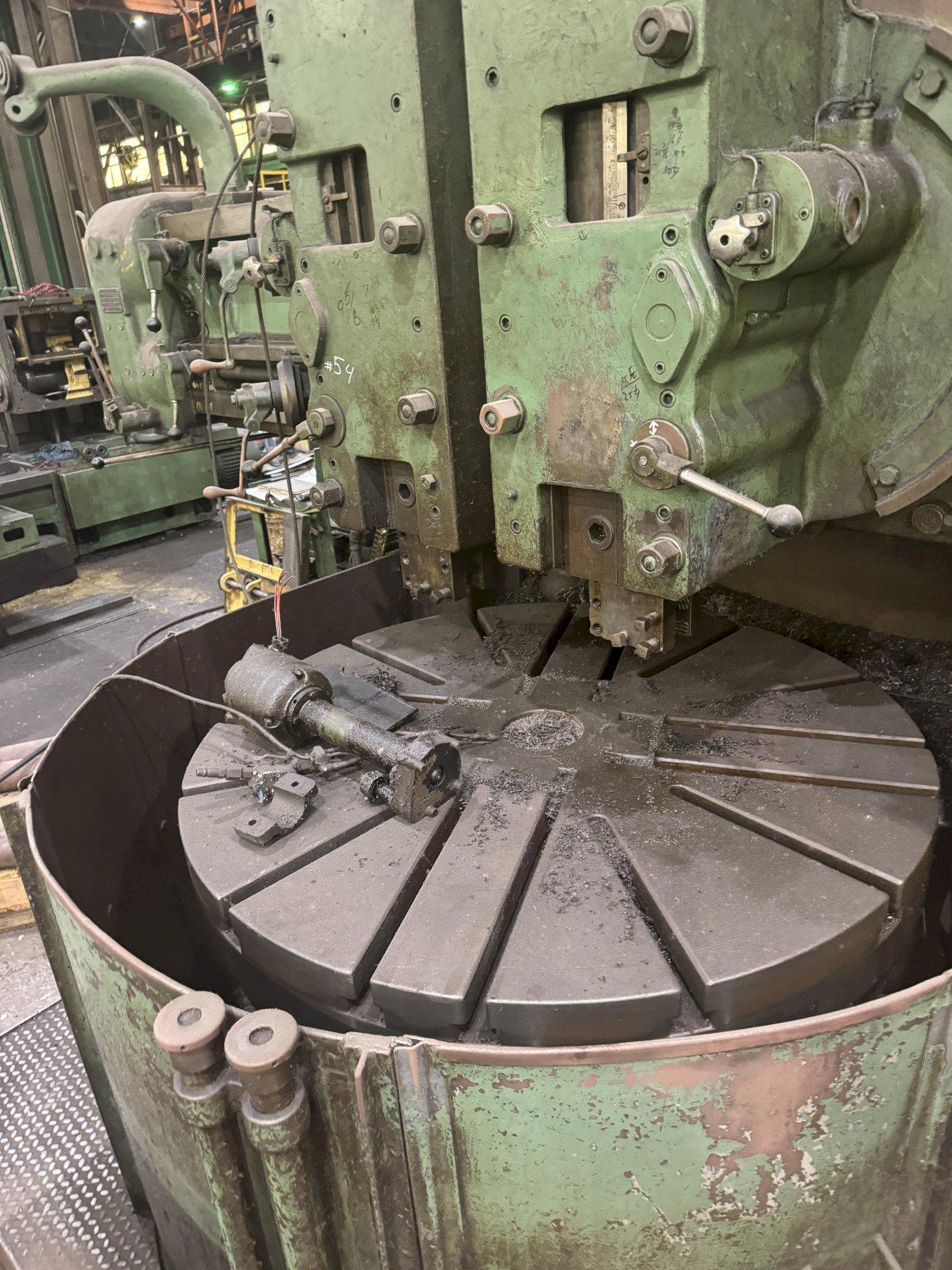

52" FACE PLATE
(4) HEAVY DUTY FACE PLATE STYLE CHUCK JAWS
LEFT HAND SWIVELING RAM
RIGHT HAND SWIVELING TURRET HEAD
SIDE HEAD
RAPID TRAVERSE
POWER CLAMPING
40 HP AC 440V 3-PHASE 60 CYCLE
