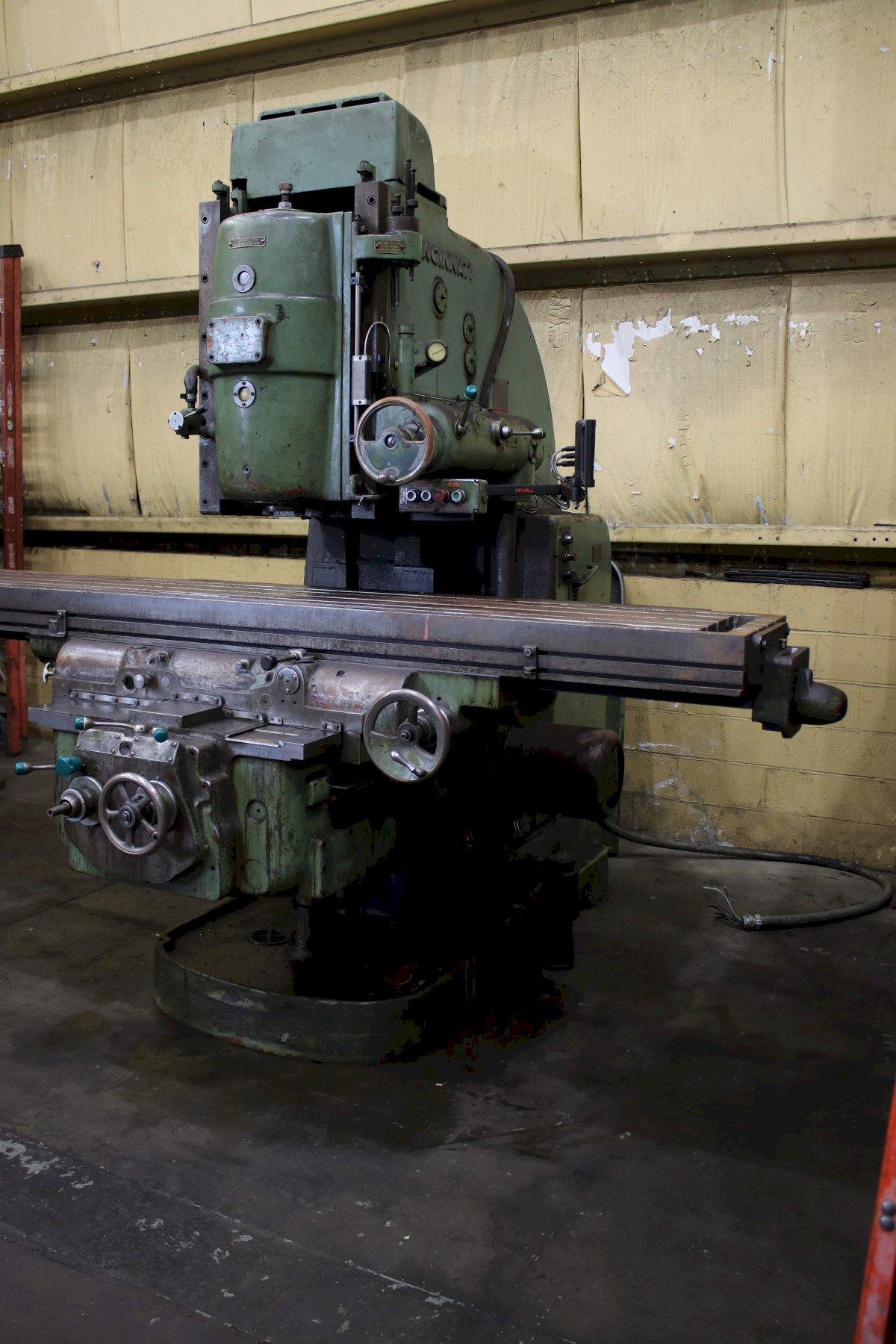

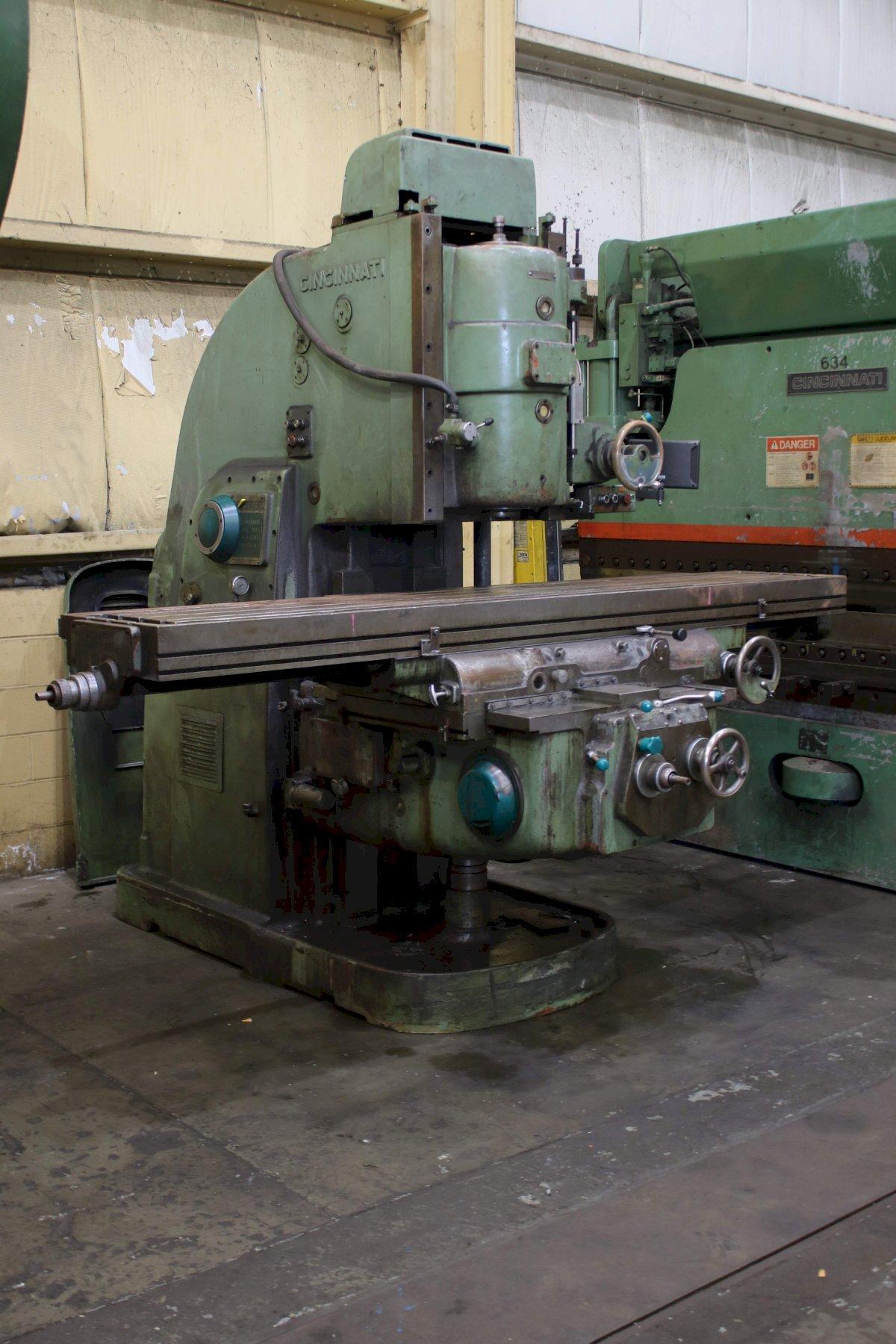

#6 CINCINNATI VERTICAL MILL. STOCK # 1162921

Stock #: 1162921

Equipped With

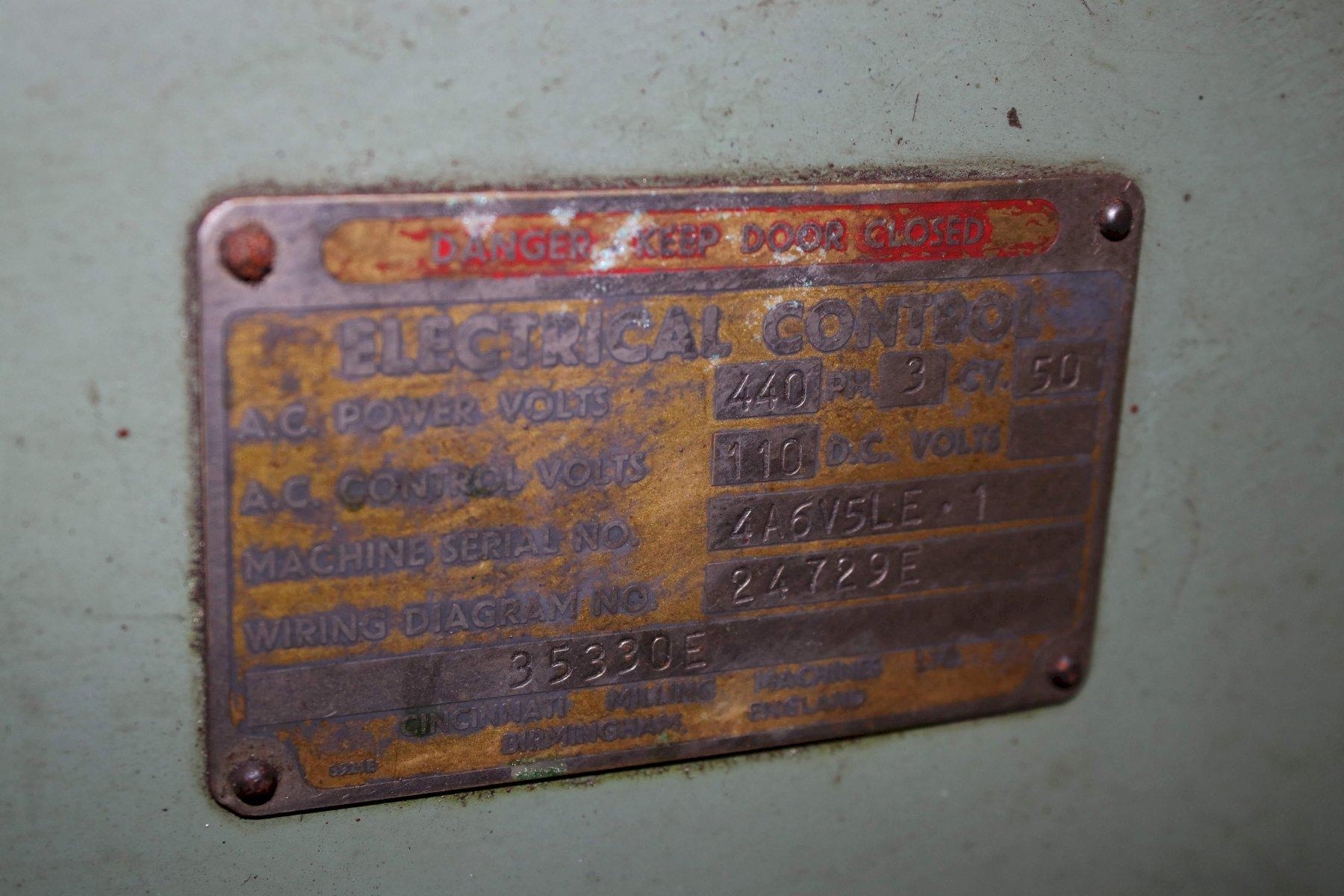

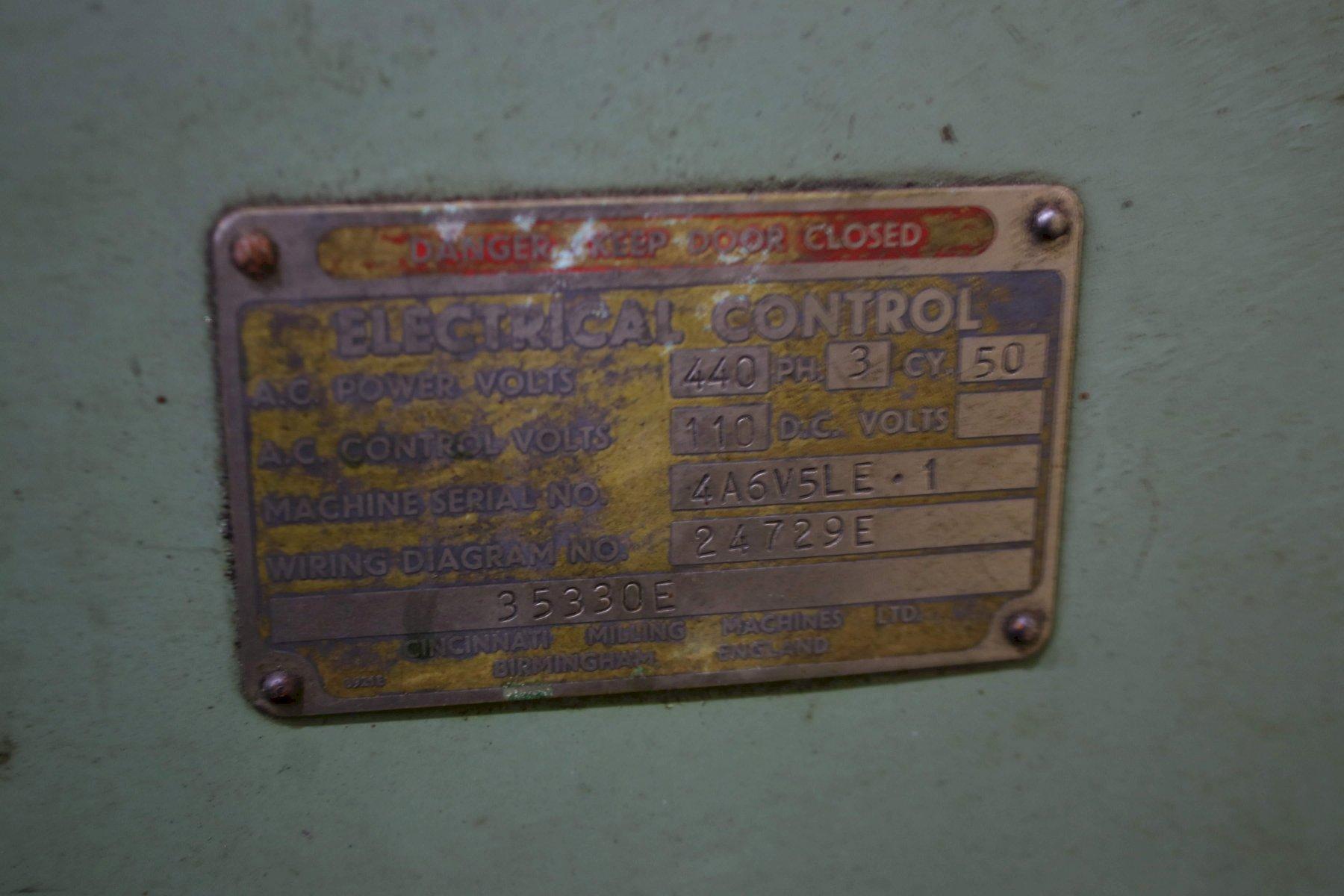

SERIAL ............................ 4A6 V5LE1
MODEL ............................. 640 20 V

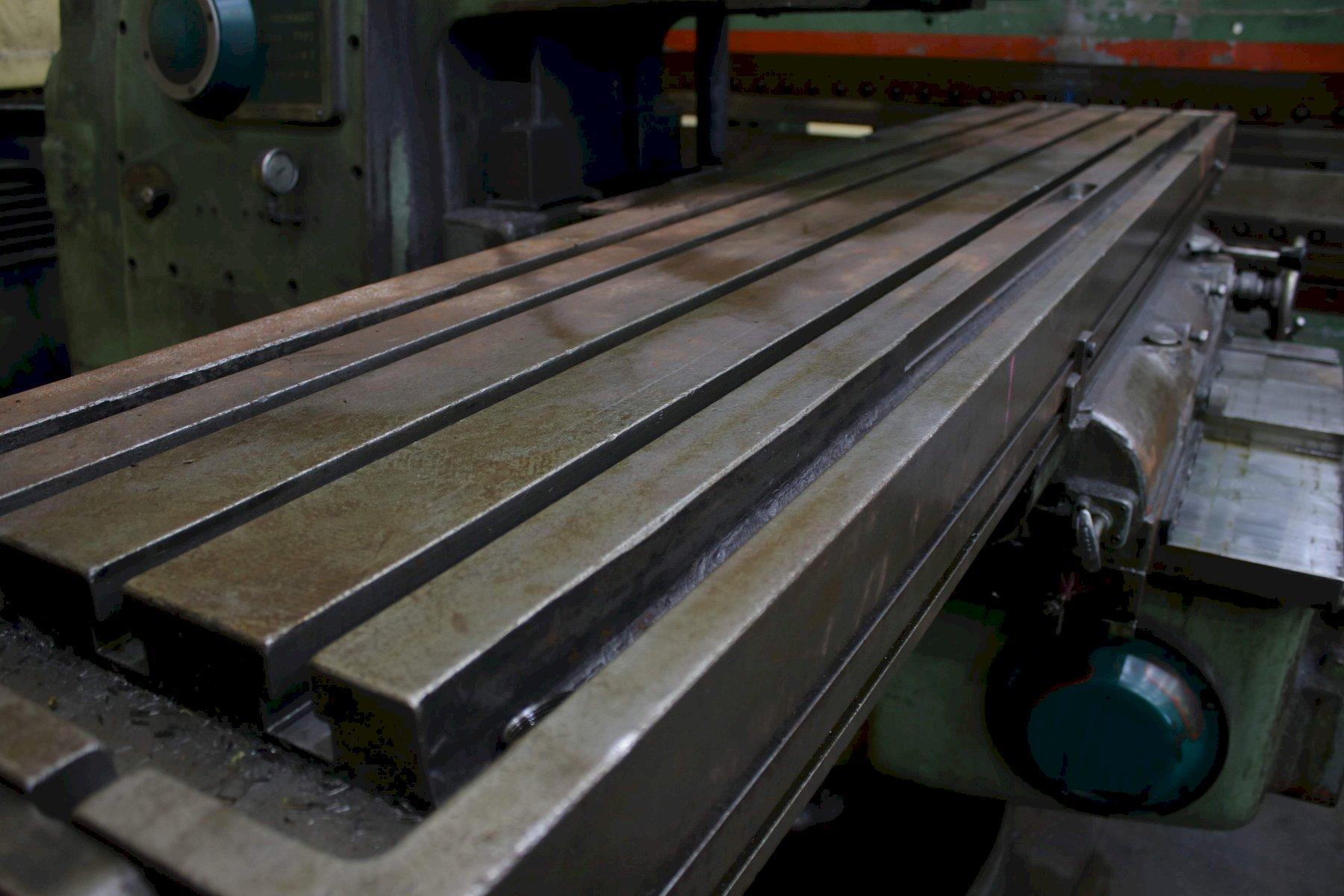

AREA OF TABLE ..................... 104" X 20"
SPINDLE SPEEDS .................... (24) 14 TO 1400 RPM
LONGITUDINAL & CROSS FEEDS ........ (32) 1/4 TO 60 IPM
VERTICAL HEAD FEEDS ............... (32) 1/16 TO 15 IPM
LONGITUDINAL TRAVEL ............... 60"
CROSS TRAVEL ...................... 18"
VERTICAL KNEE TRAVEL .............. 16"
VERTICAL HEAD TRAVEL .............. 8"
TOP OF TABLE TO FACE OF SPINDLE ... 0" TO 22"
TAPER IN SPINDLE .................. #50 NS
RAPID TRAVERSE .................... 150 IPM

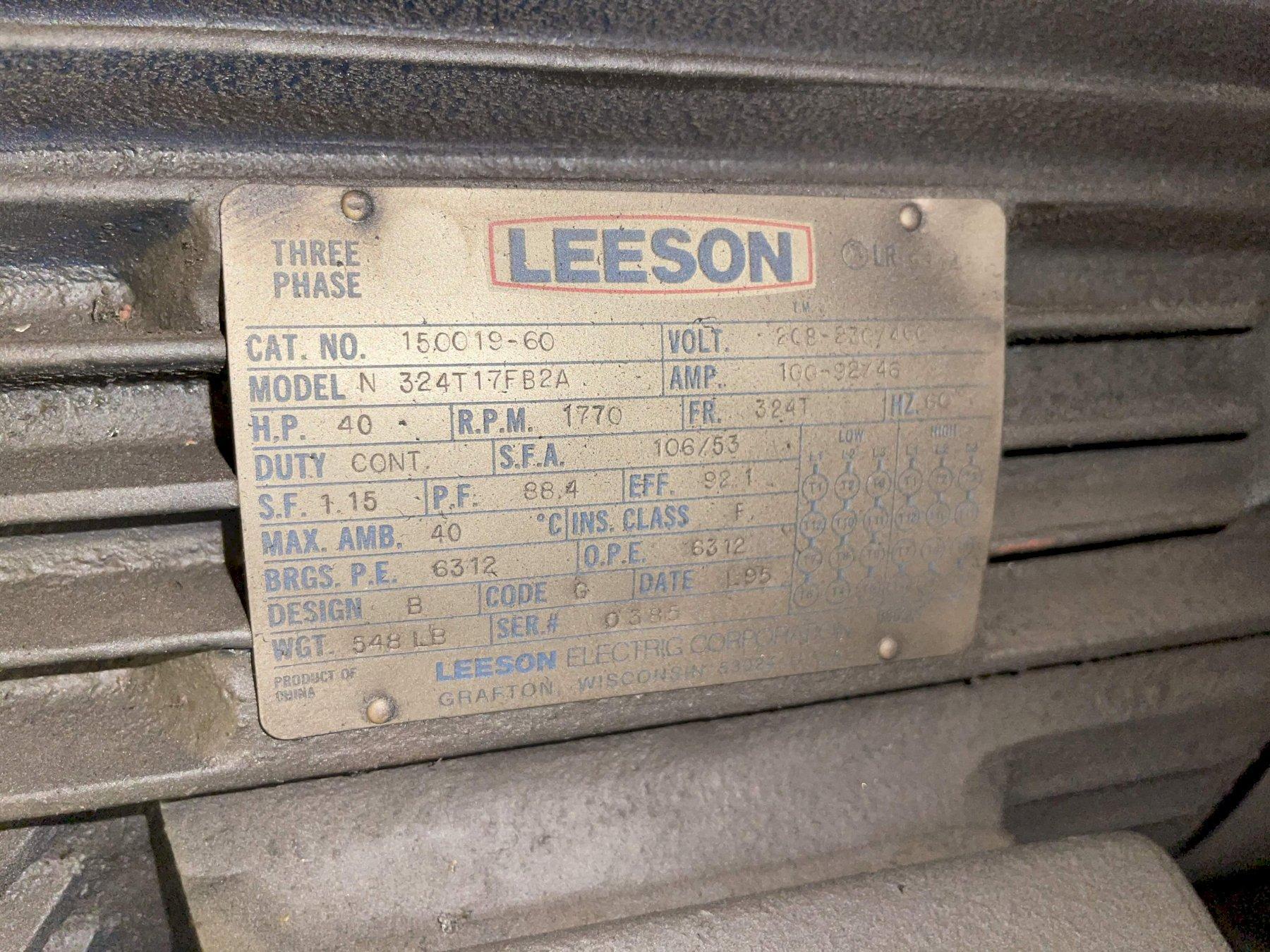

MOTOR ............................. 40 HORSEPOWER
