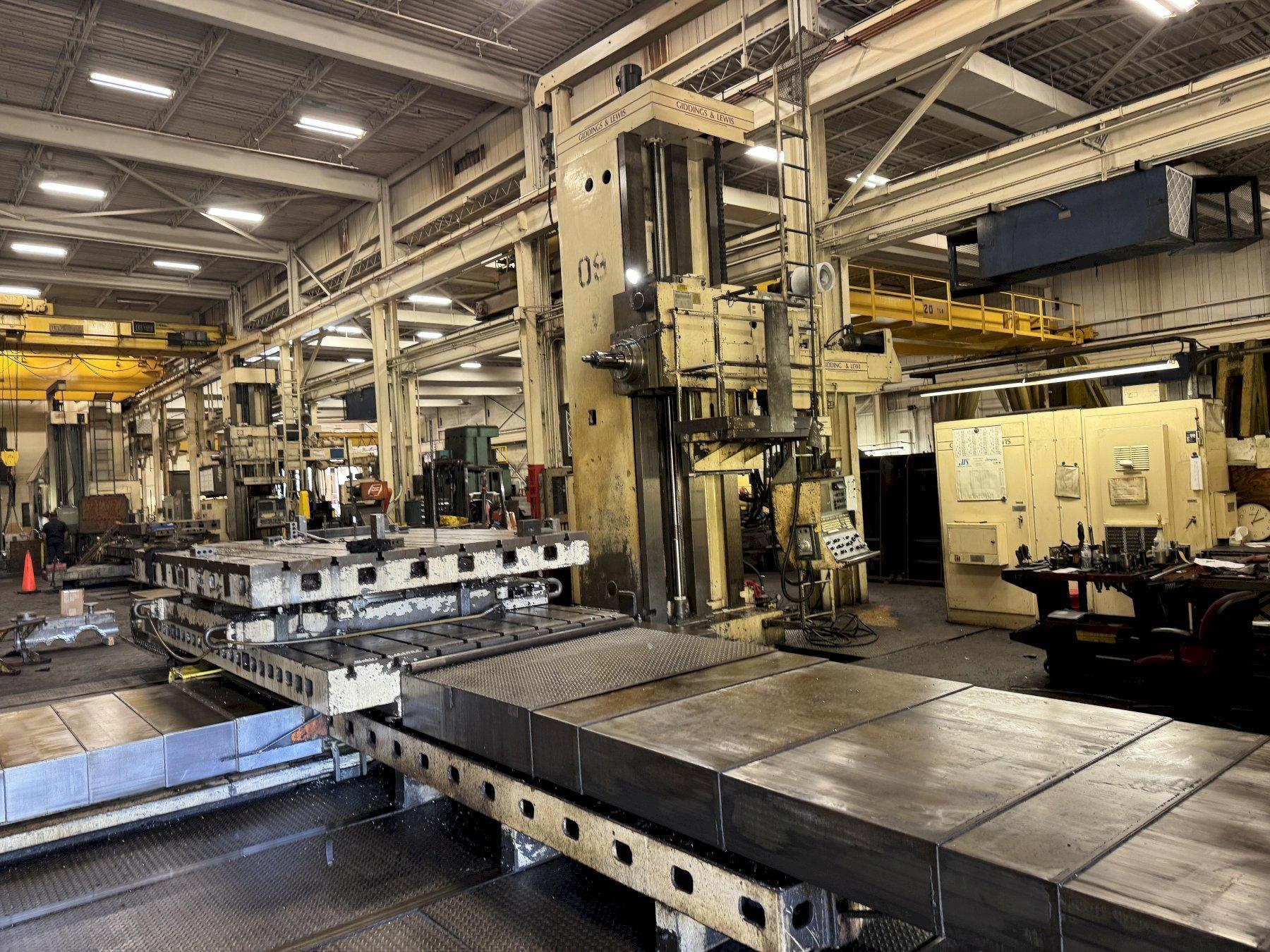

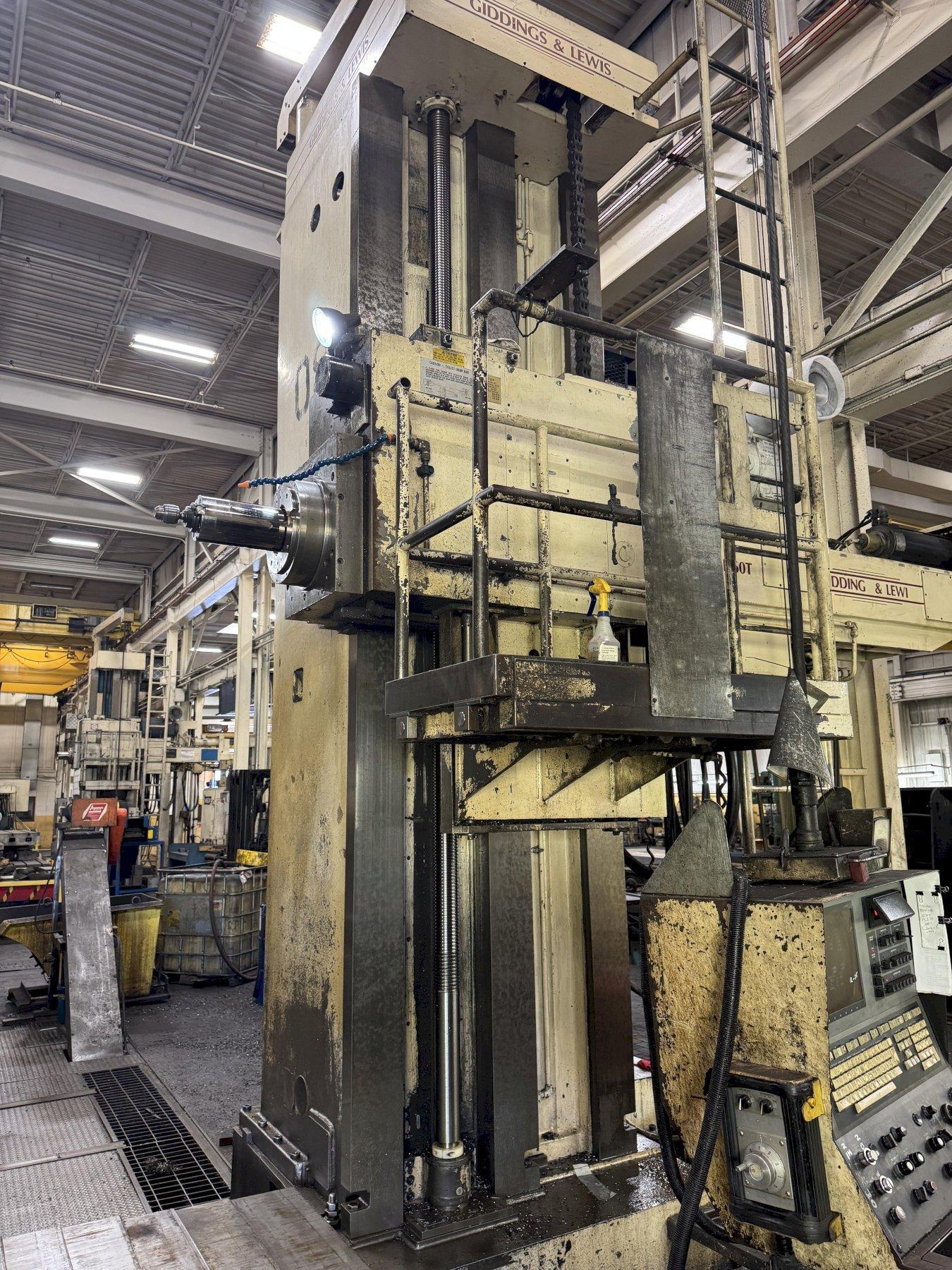

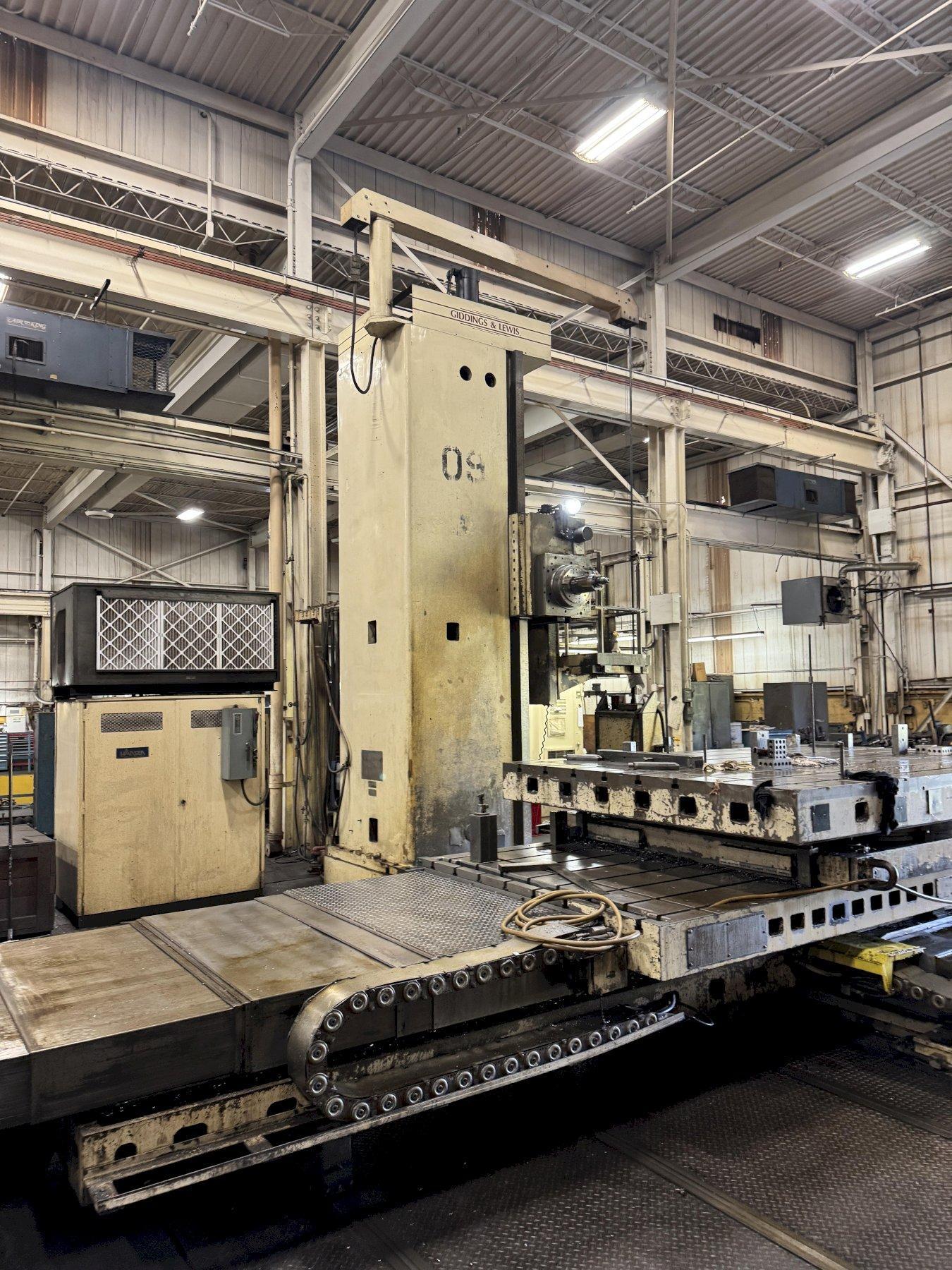

Stock #: 1002025
SERIAL............................: 460-33-91

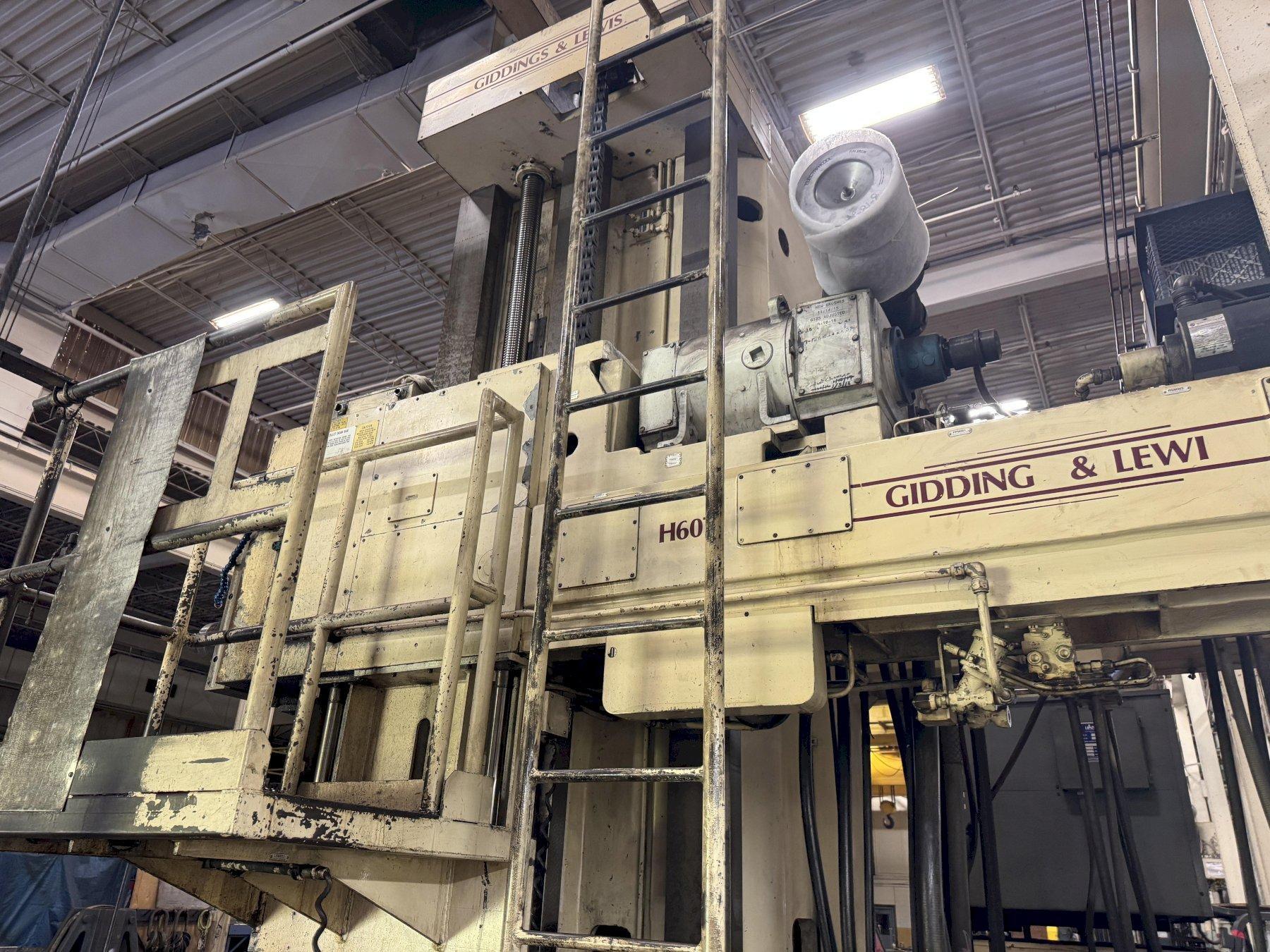

MODEL.............................: H60-T

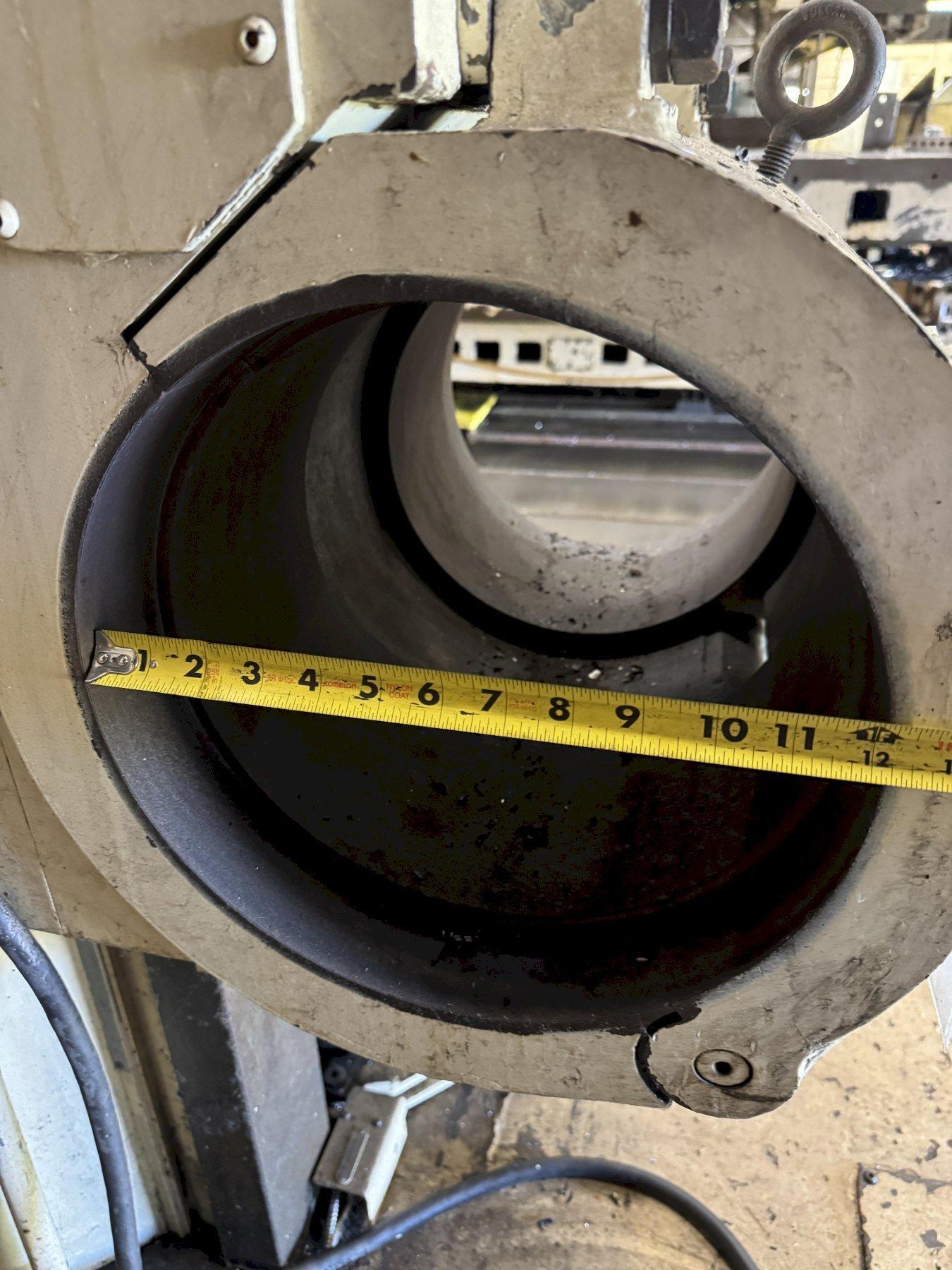

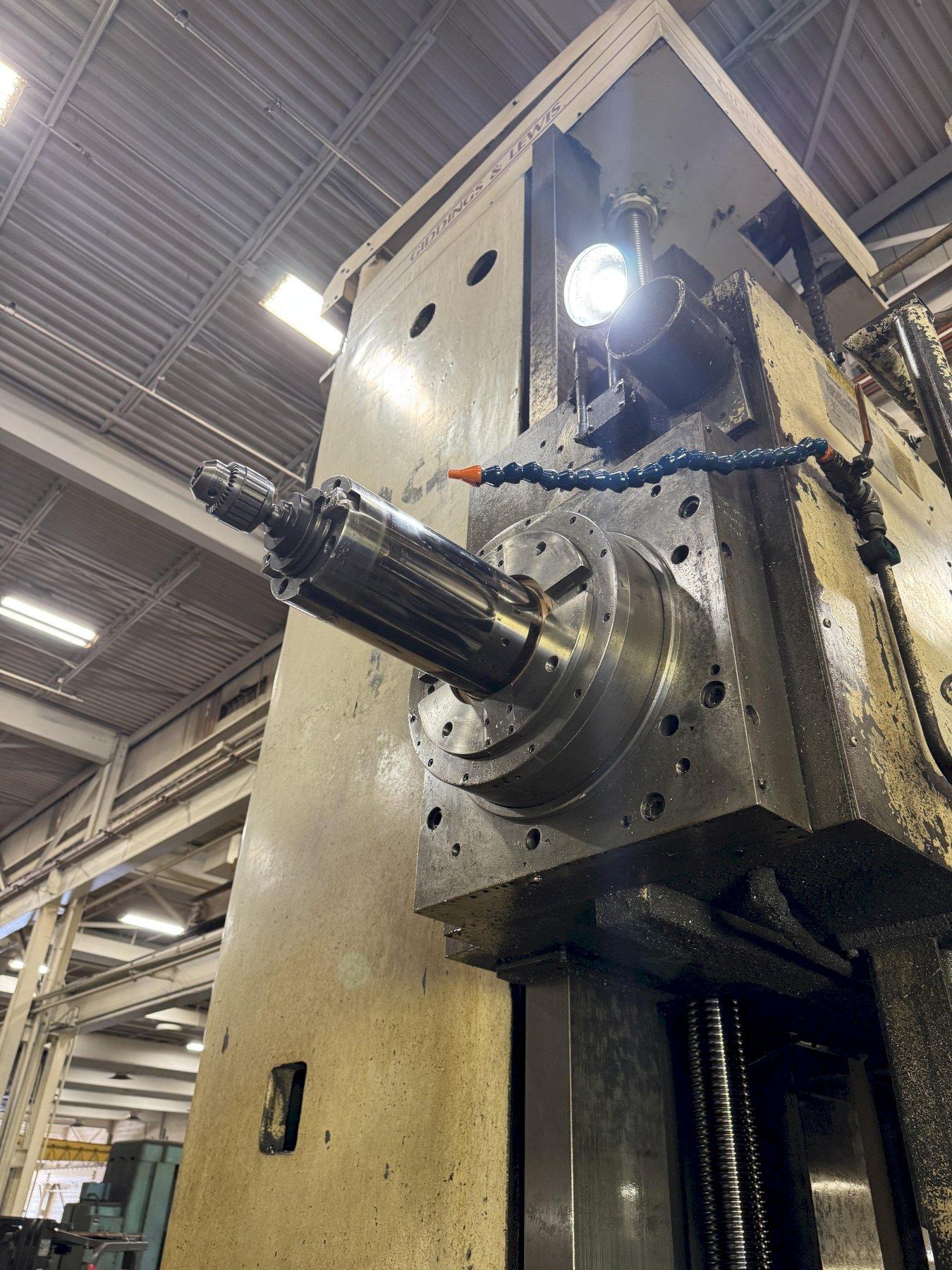

SPINDLE SIZE......................: 6"
TRAVELS:
X AXIS...........................: 168"
Y AXIS...........................: 120"
Z AXIS...........................: 144" W/ TAILSTOCK (WITHOUT TAILSTOCK 168")
W AXIS...........................: 60"
TABLE SIZE.......................: 168" X 72"
SPINDLE SPEEDS...................: 0 - 1836 RPMS "VARIALBE"
FEEDS............................: 0 - 75 IPM "VARIABLE"
TAPER............................: 50

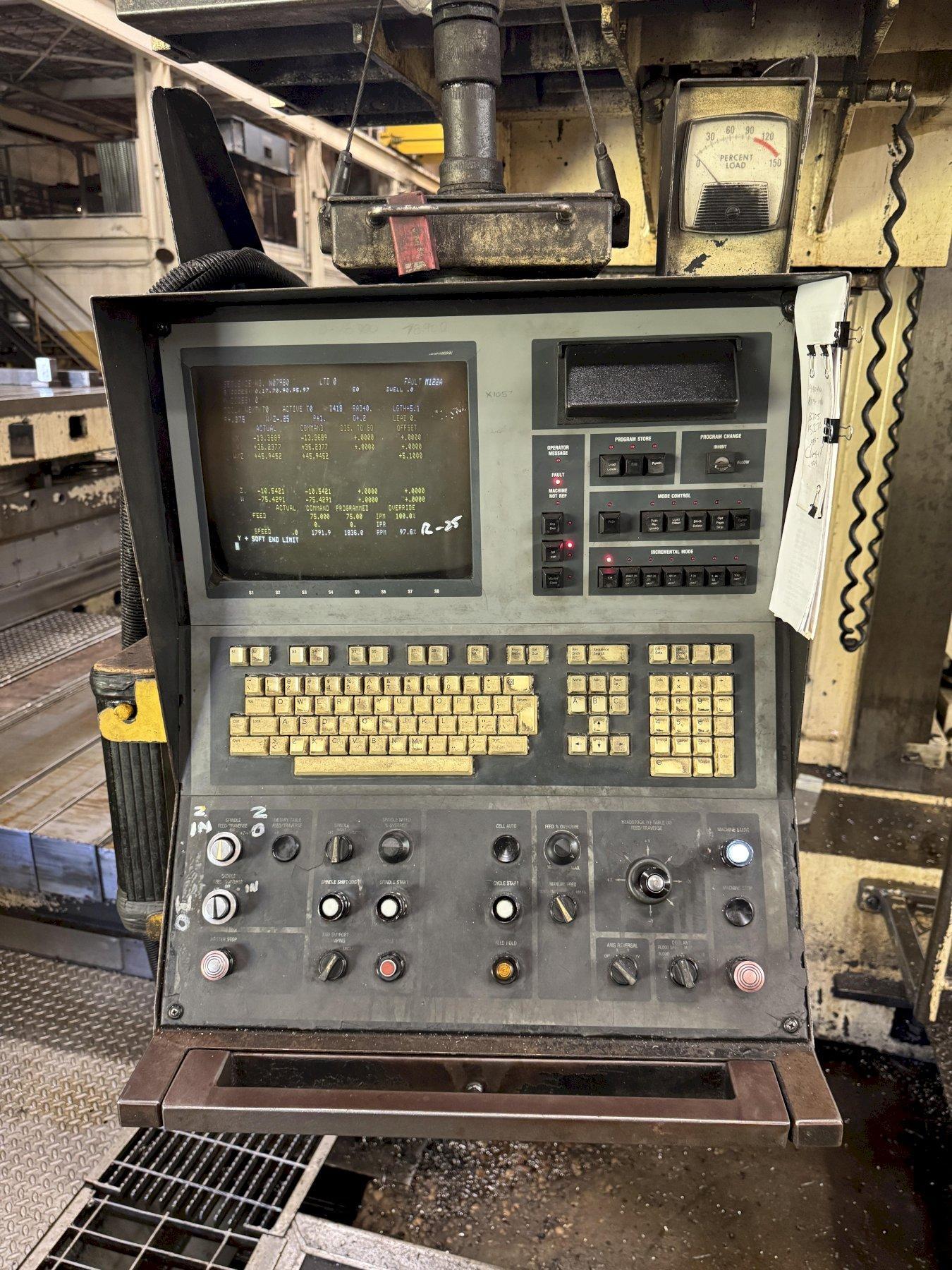

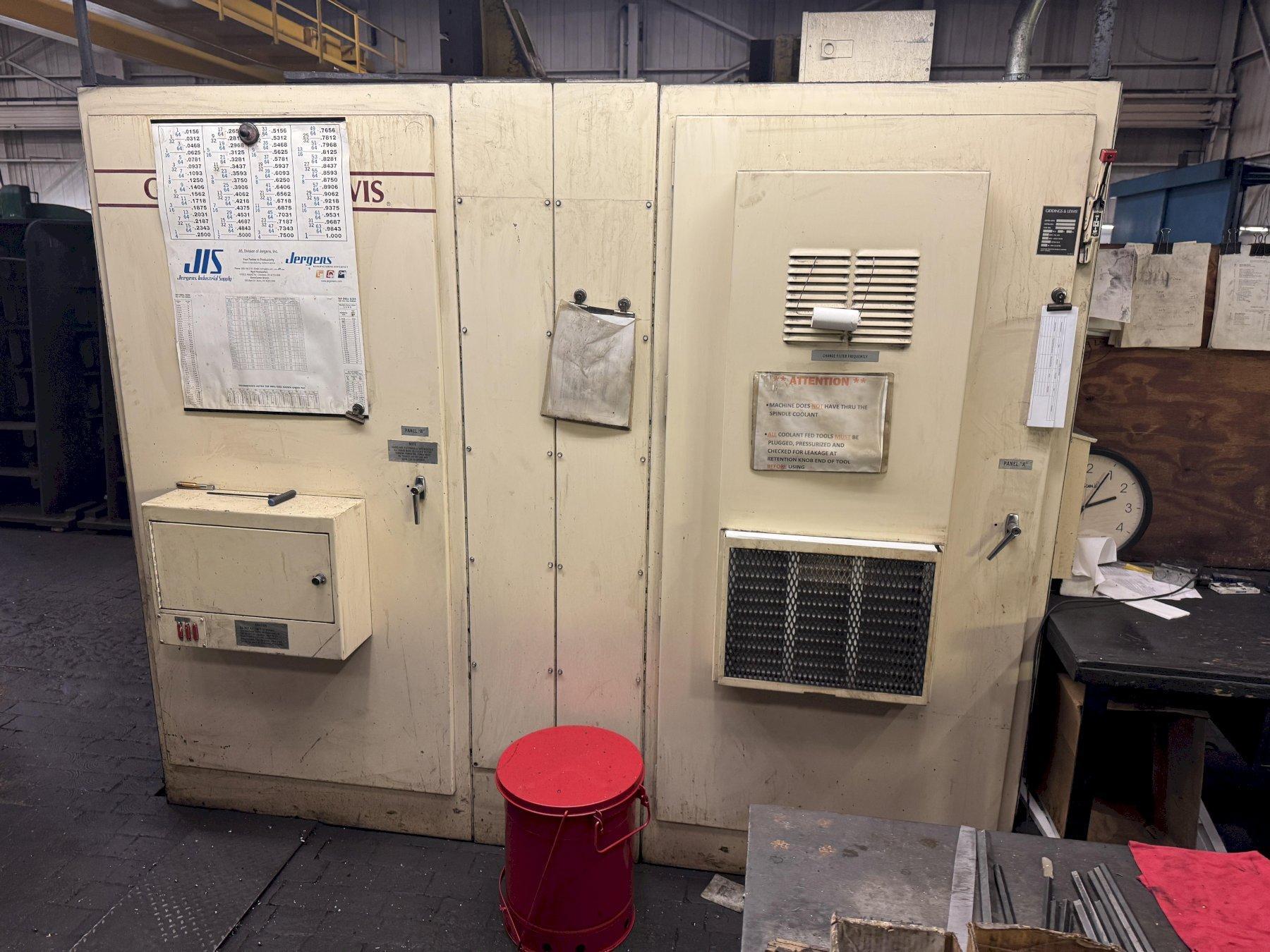

CONTROL..........................: G&L 8000
TRIPLE OUTRIGGER.................: YES

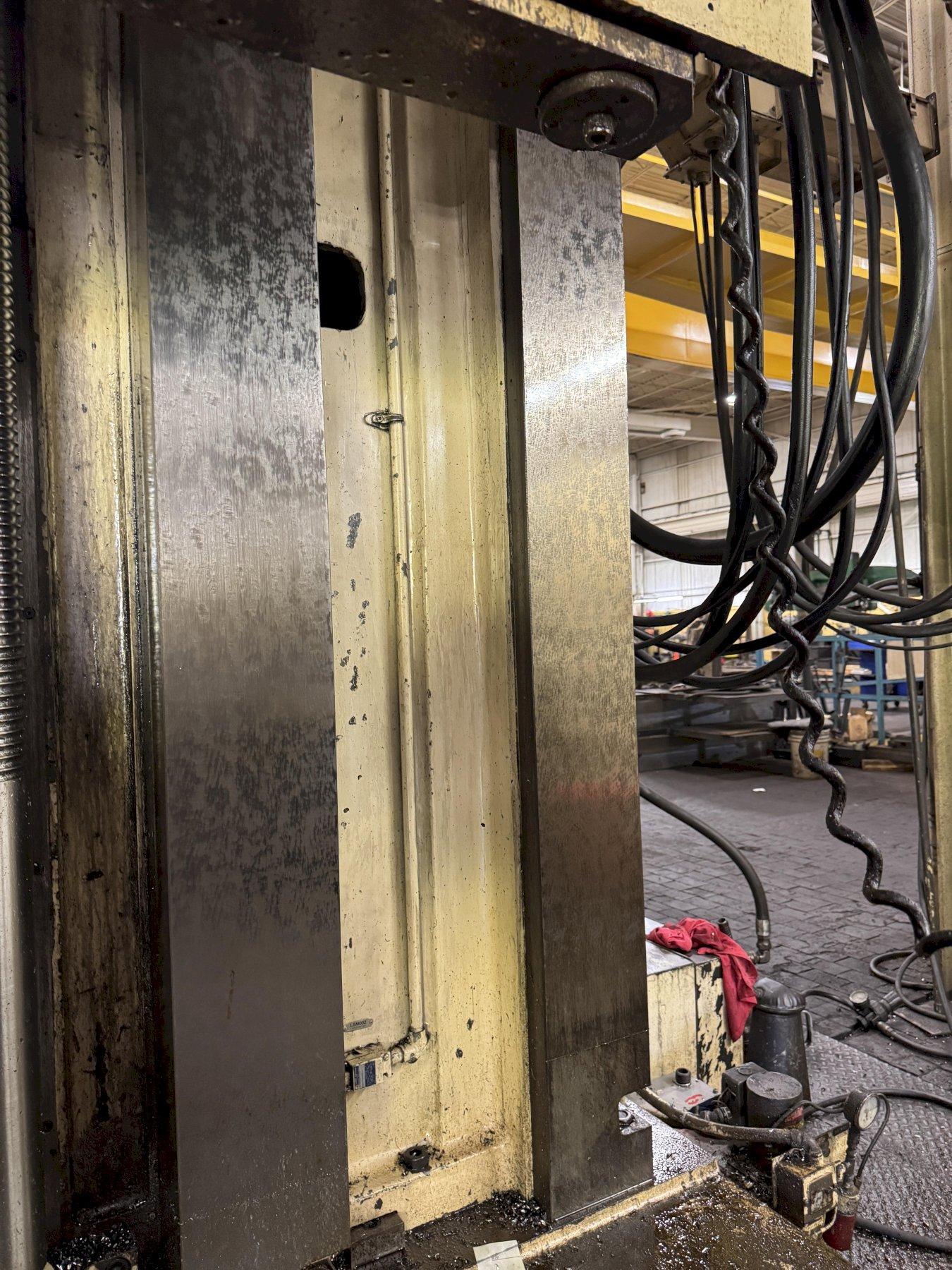

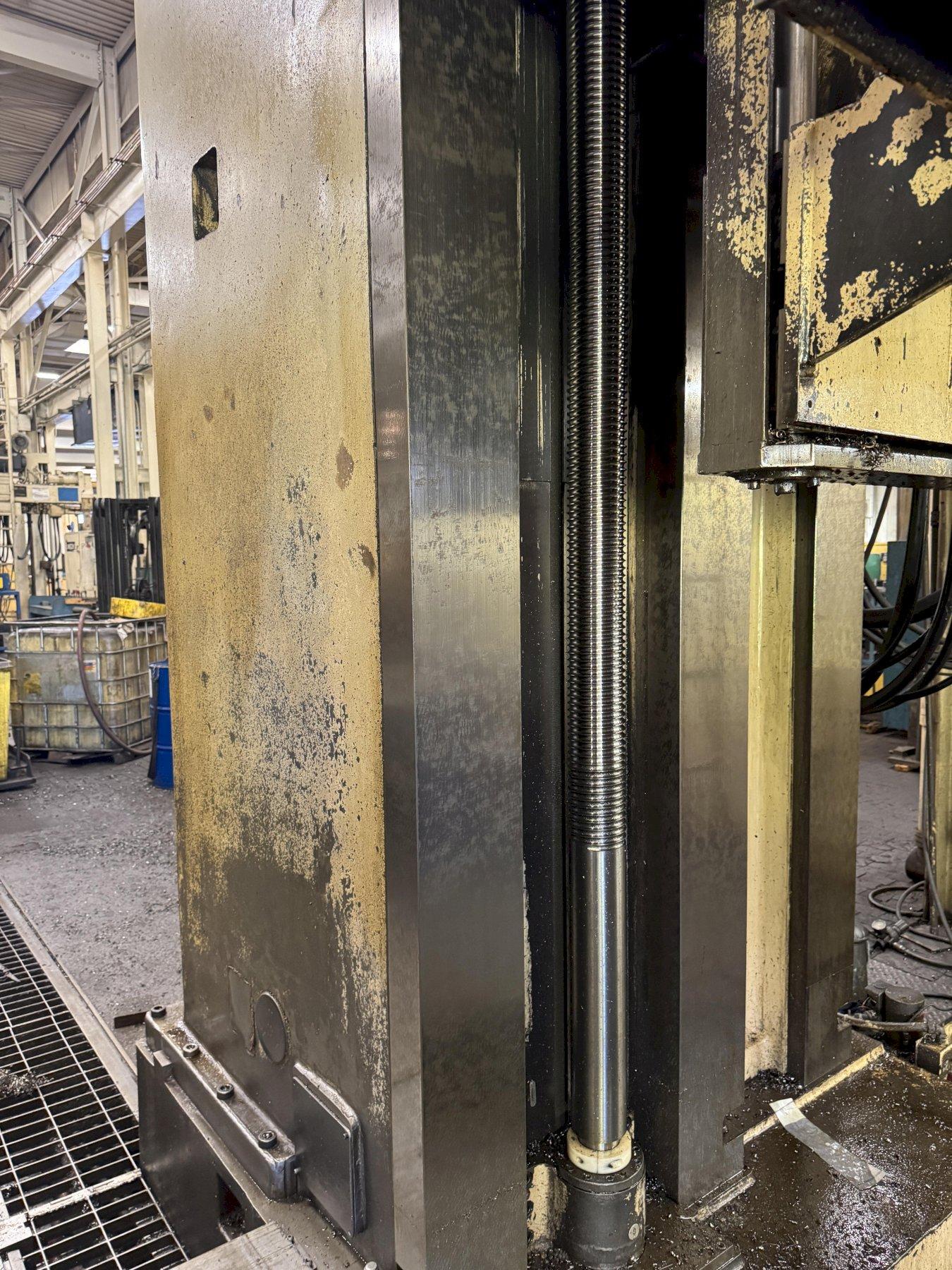

TRI WAYS ON COLUMN...............: YES

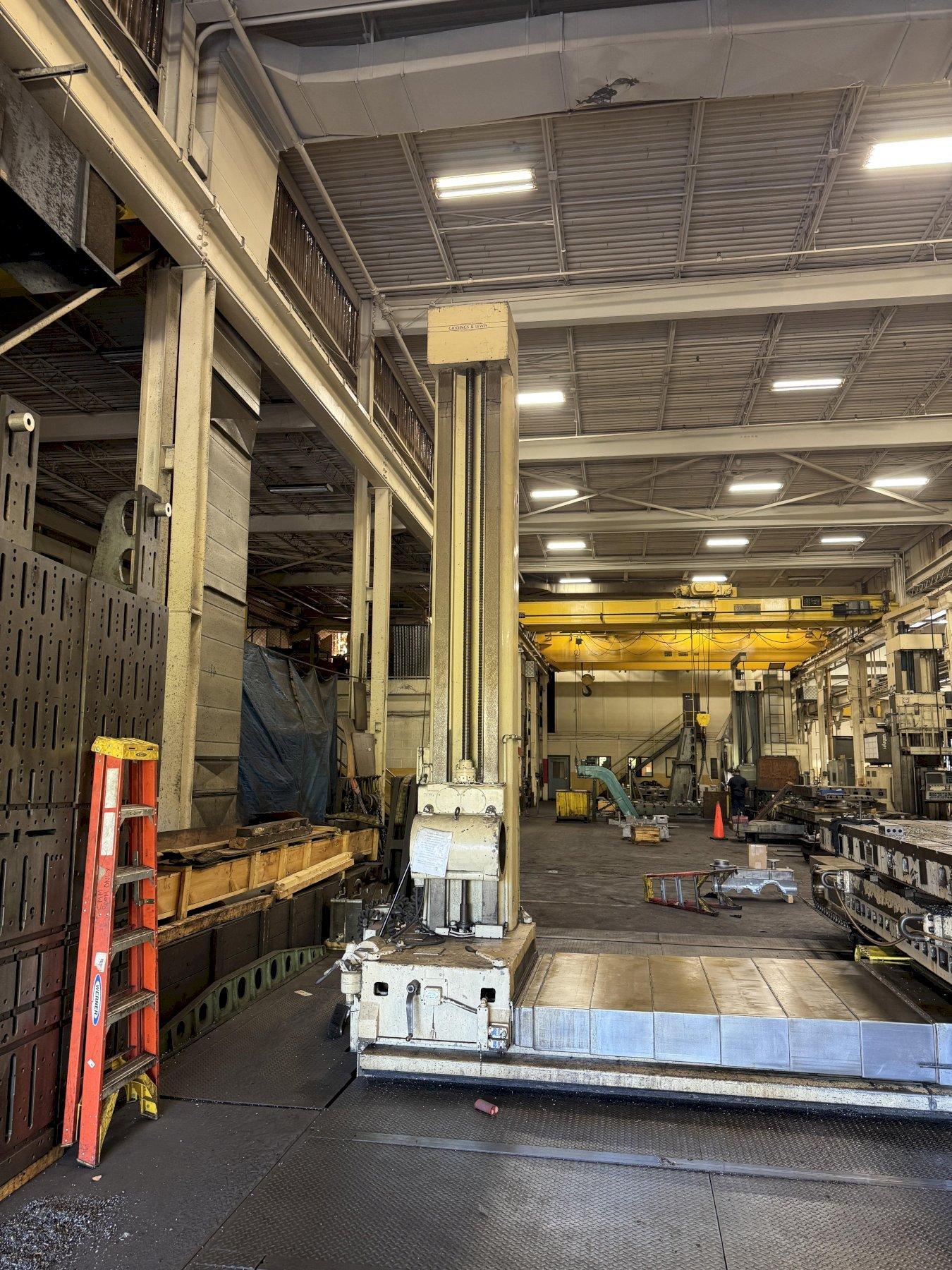

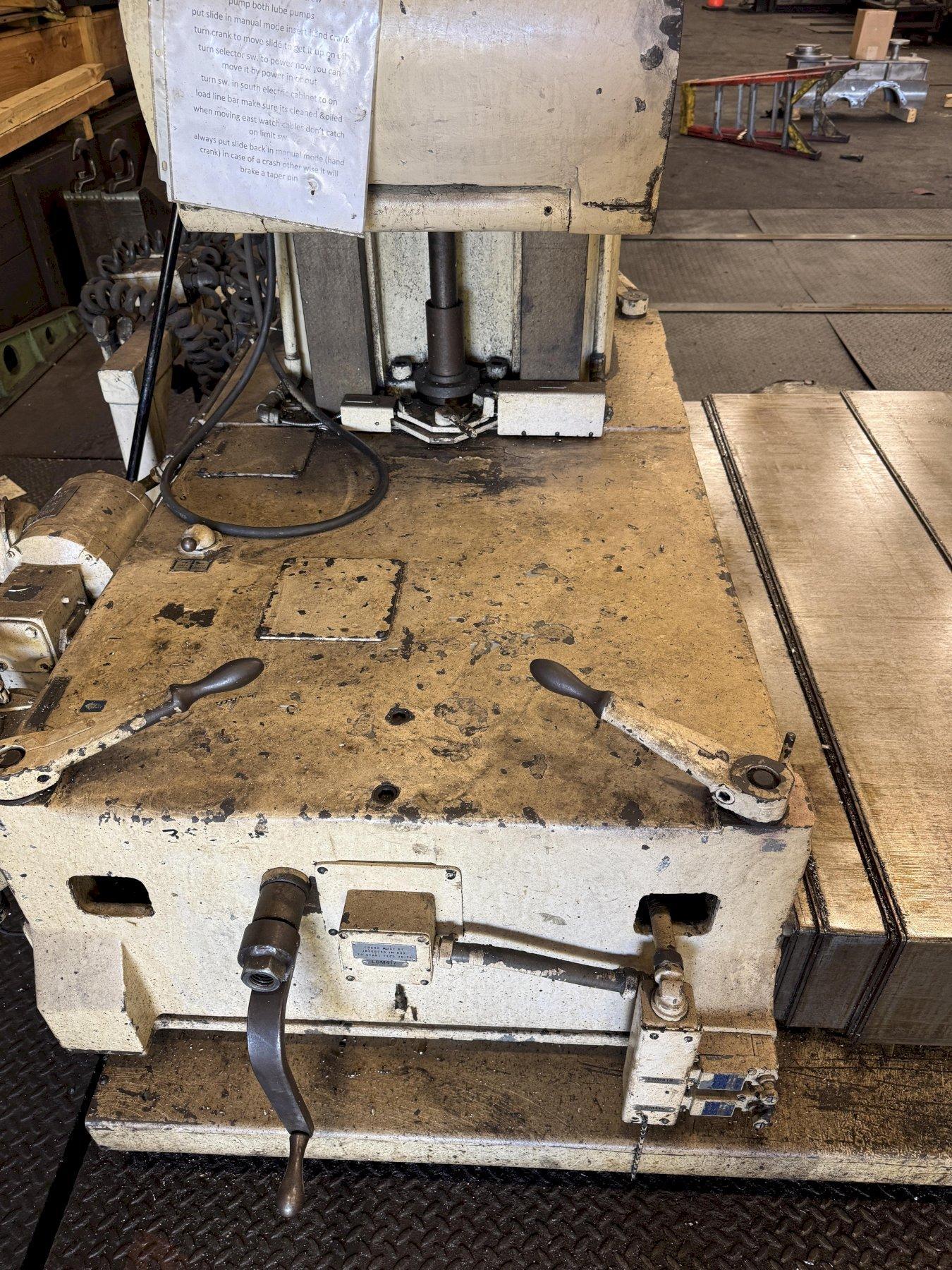

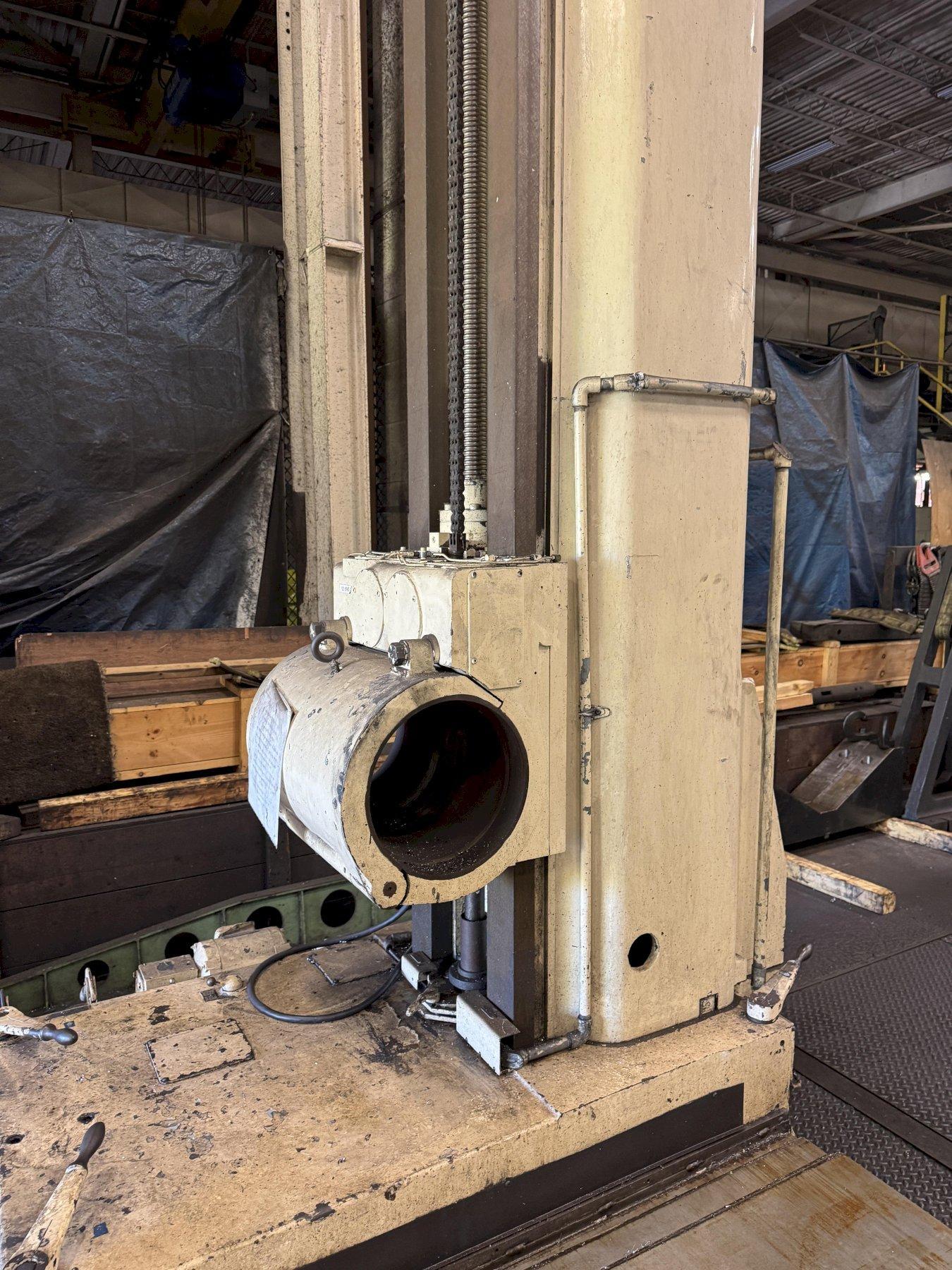

TABLE WAY MOUNTED TAILSTOCK......: YES
TRAVELS OF TAIL STOCK
VERTICAL.........................: 120"
HORIZONTAL.......................: 96

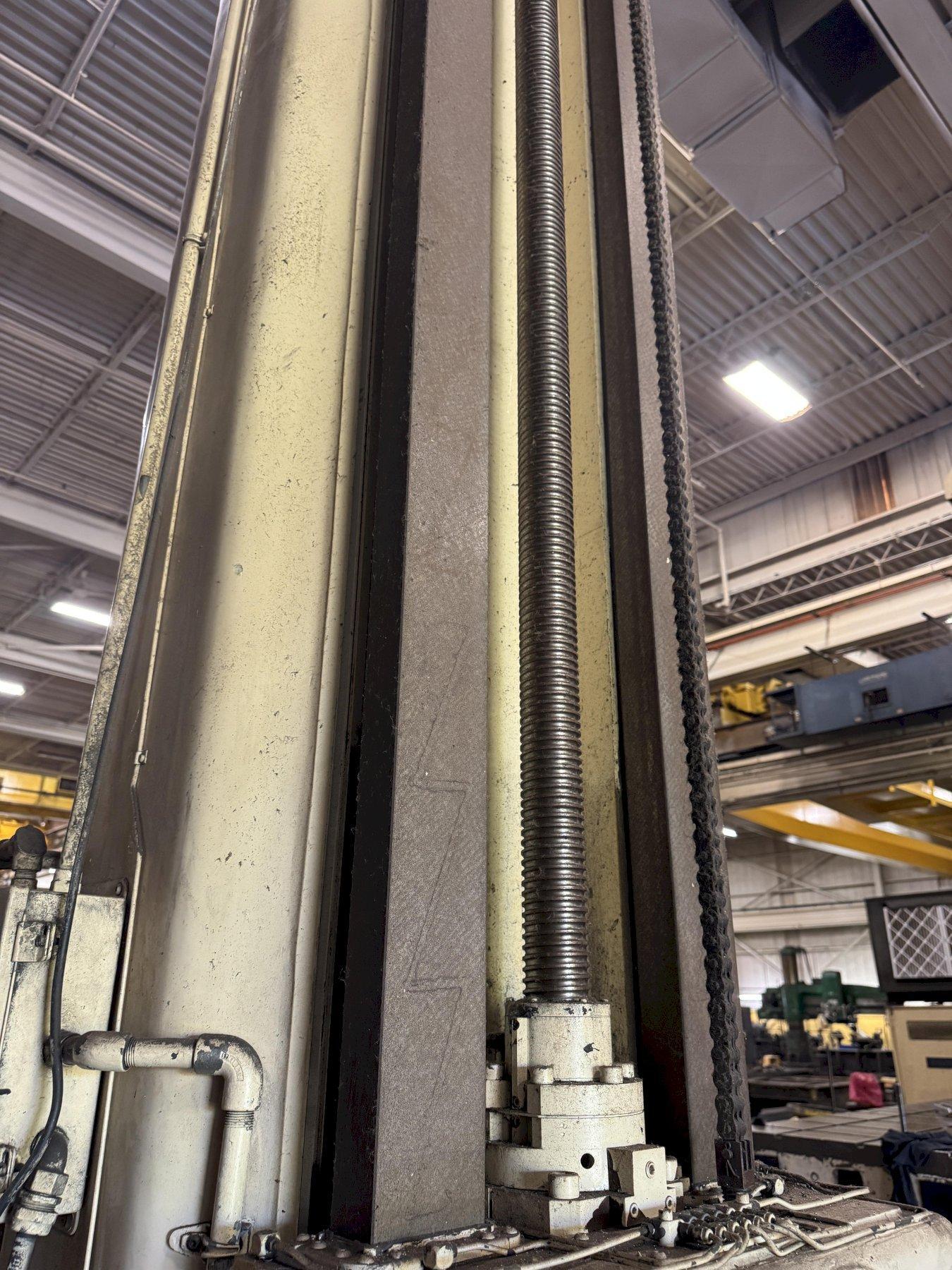

BALL SCREW DRIVEN X AND Y........: YES

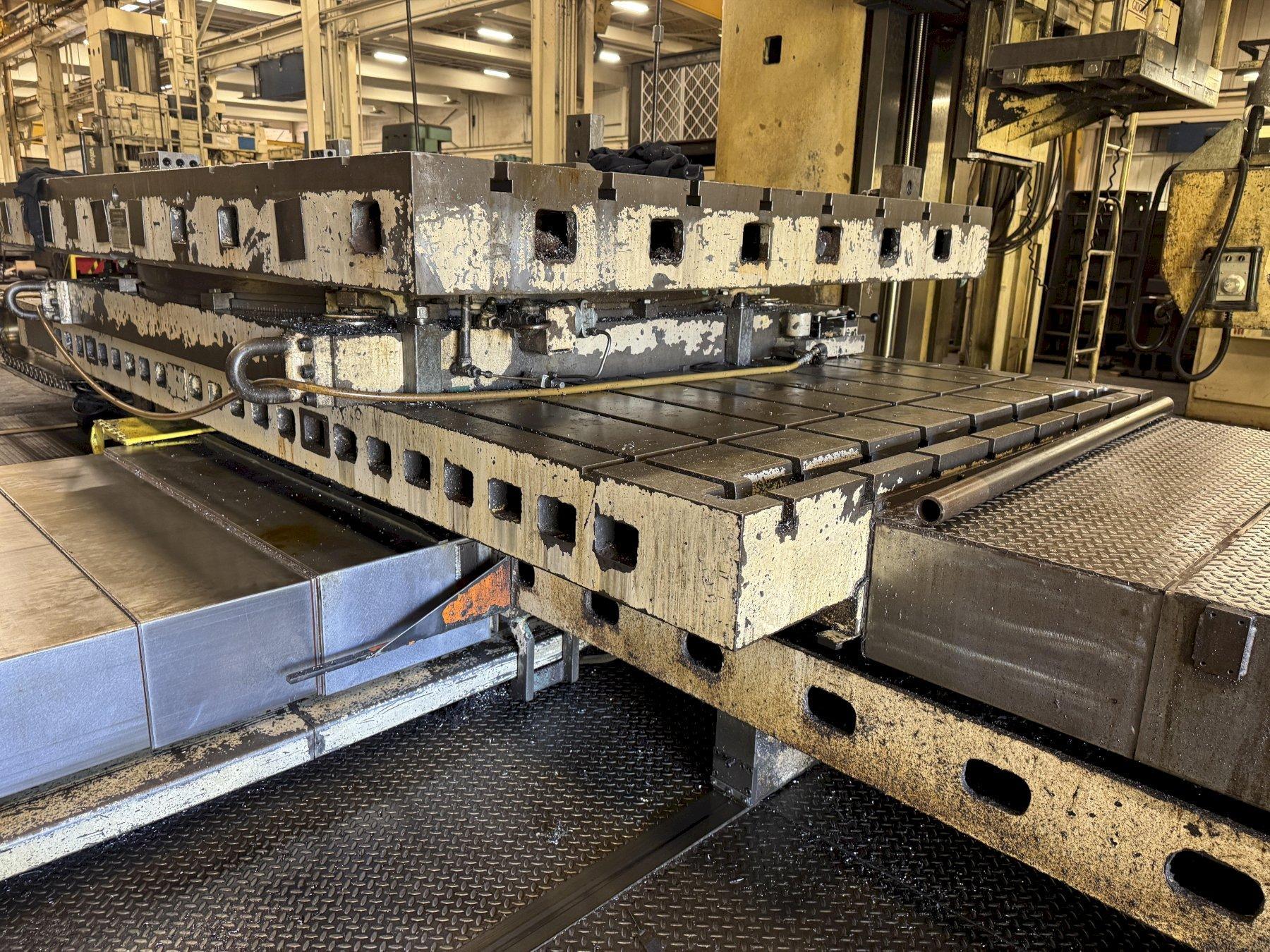

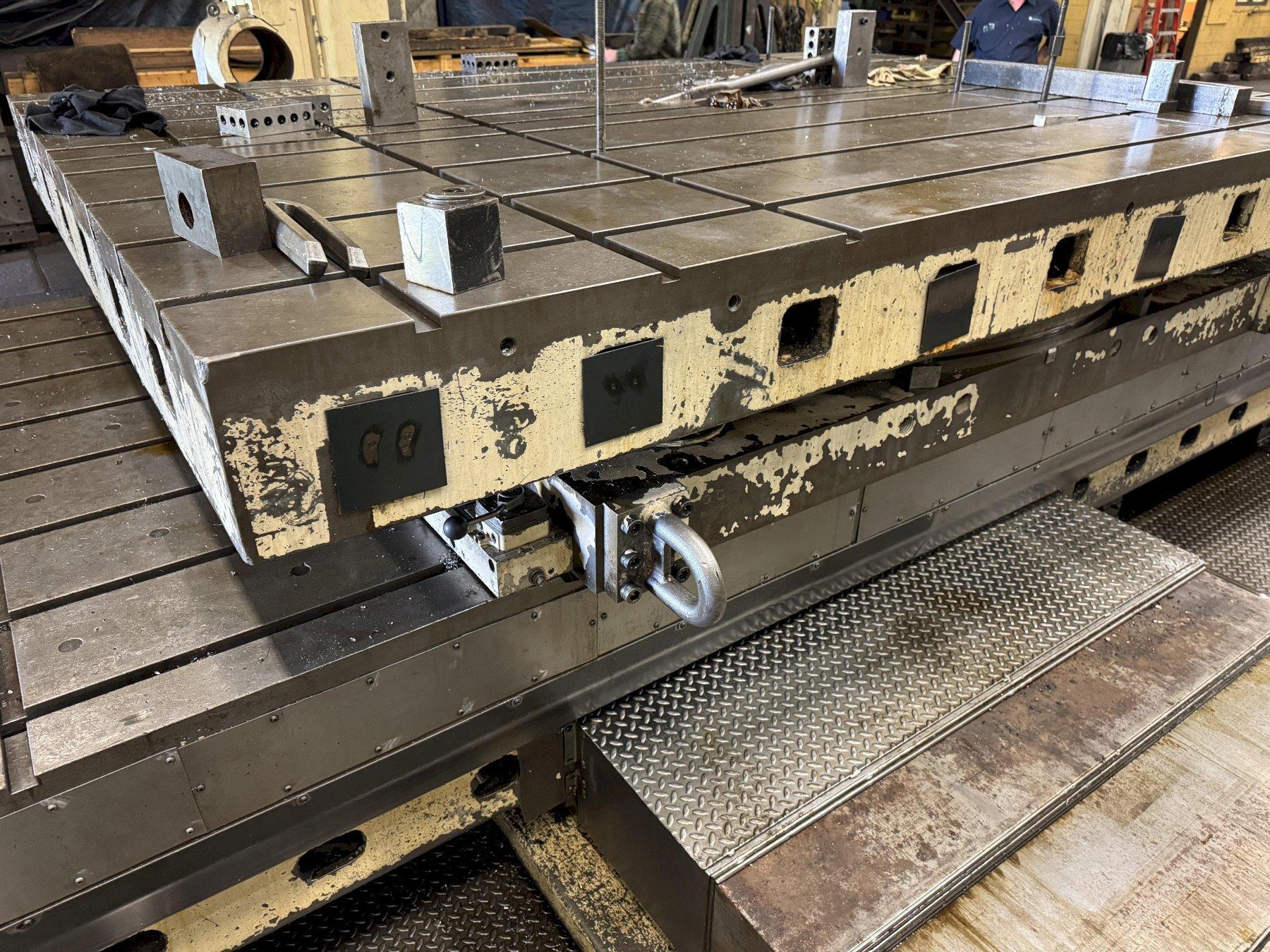

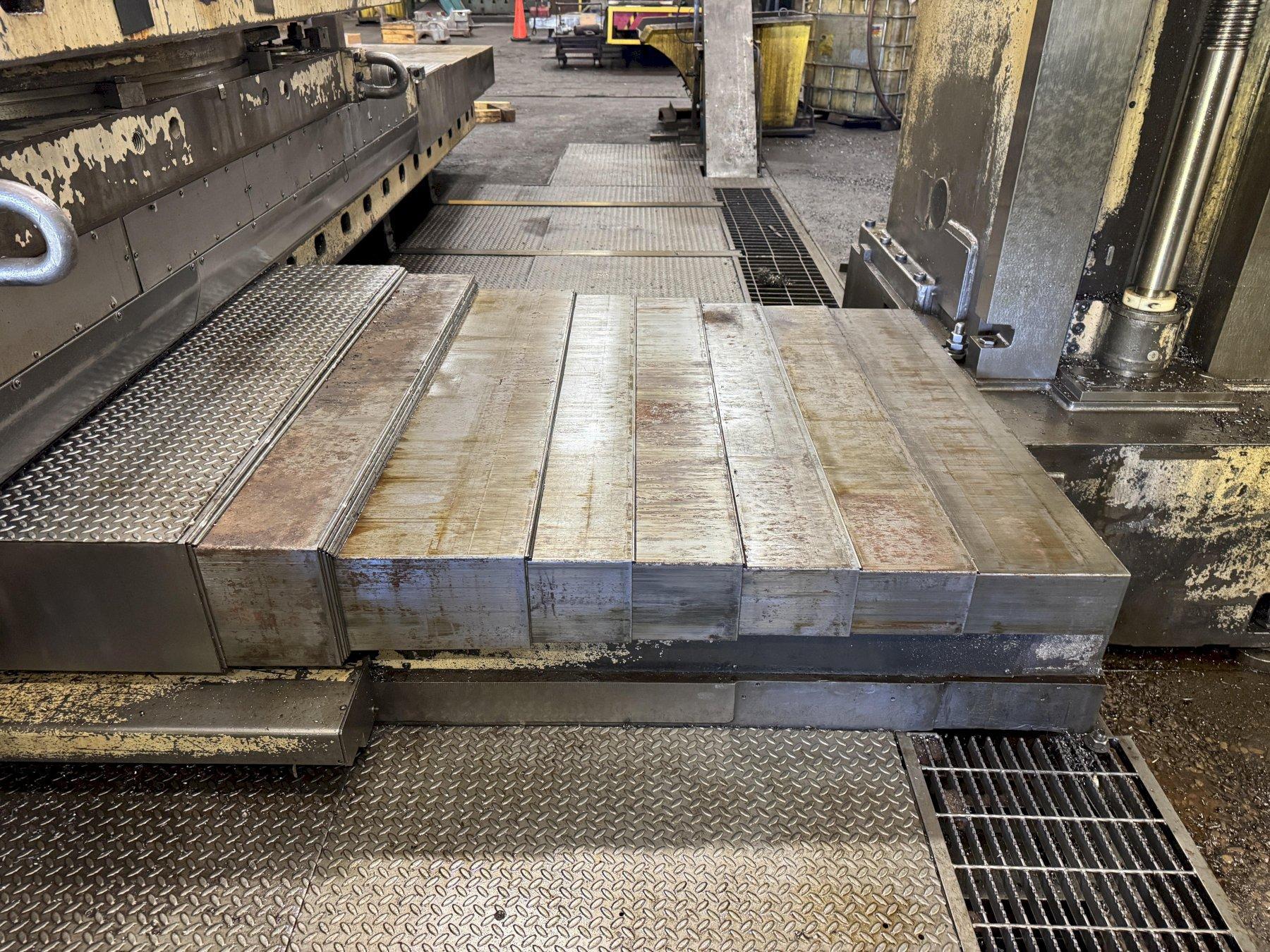

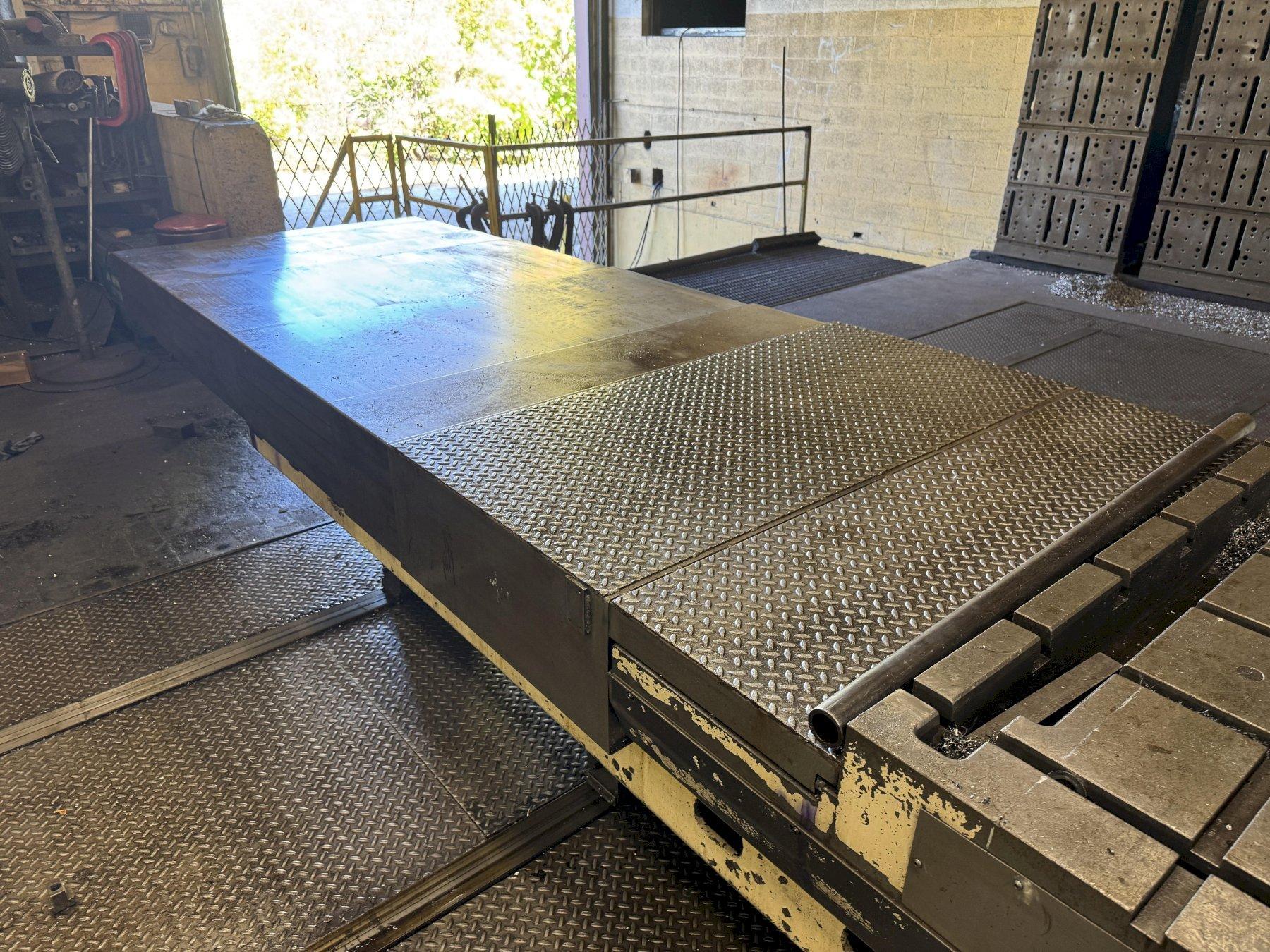

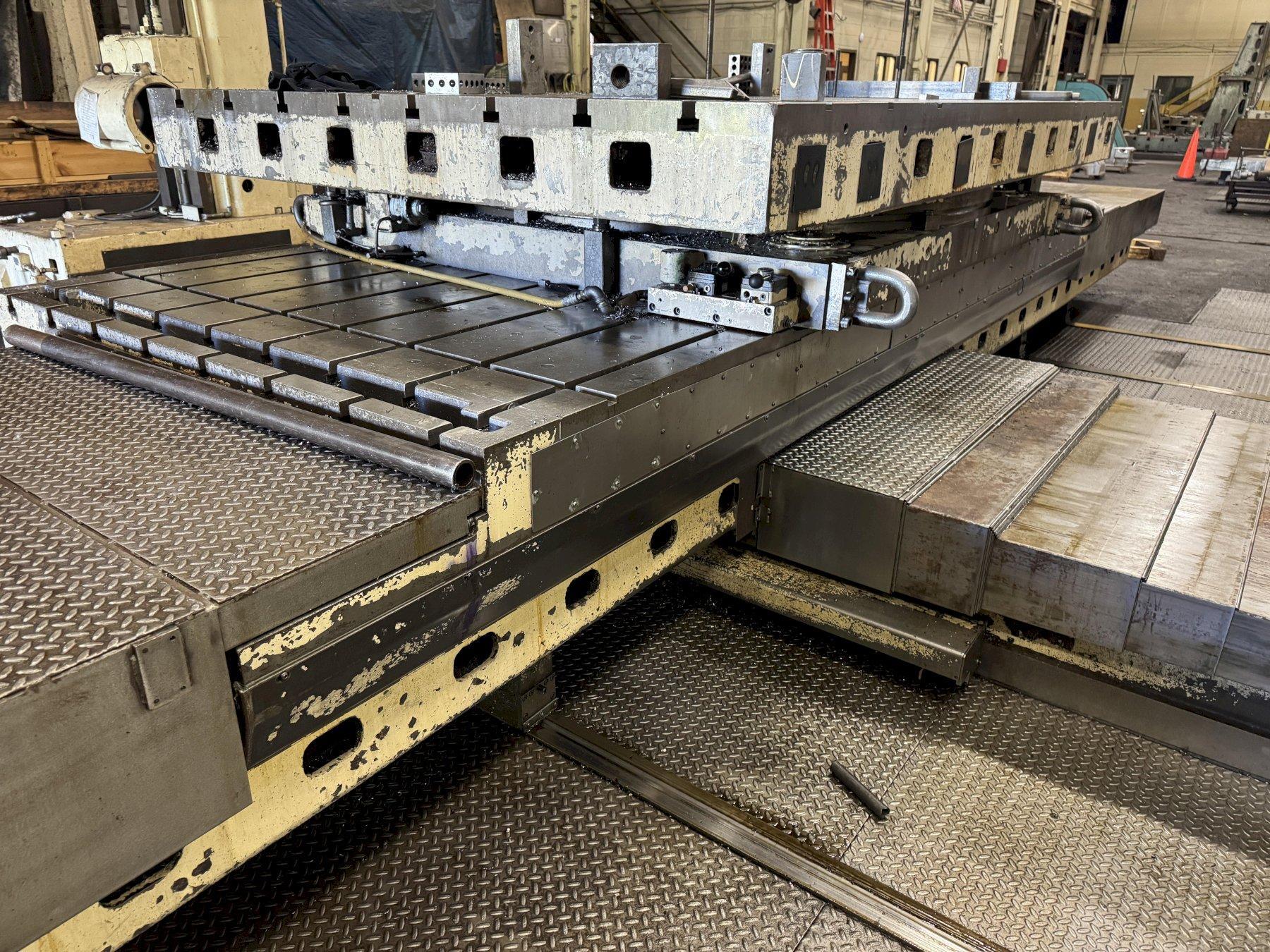

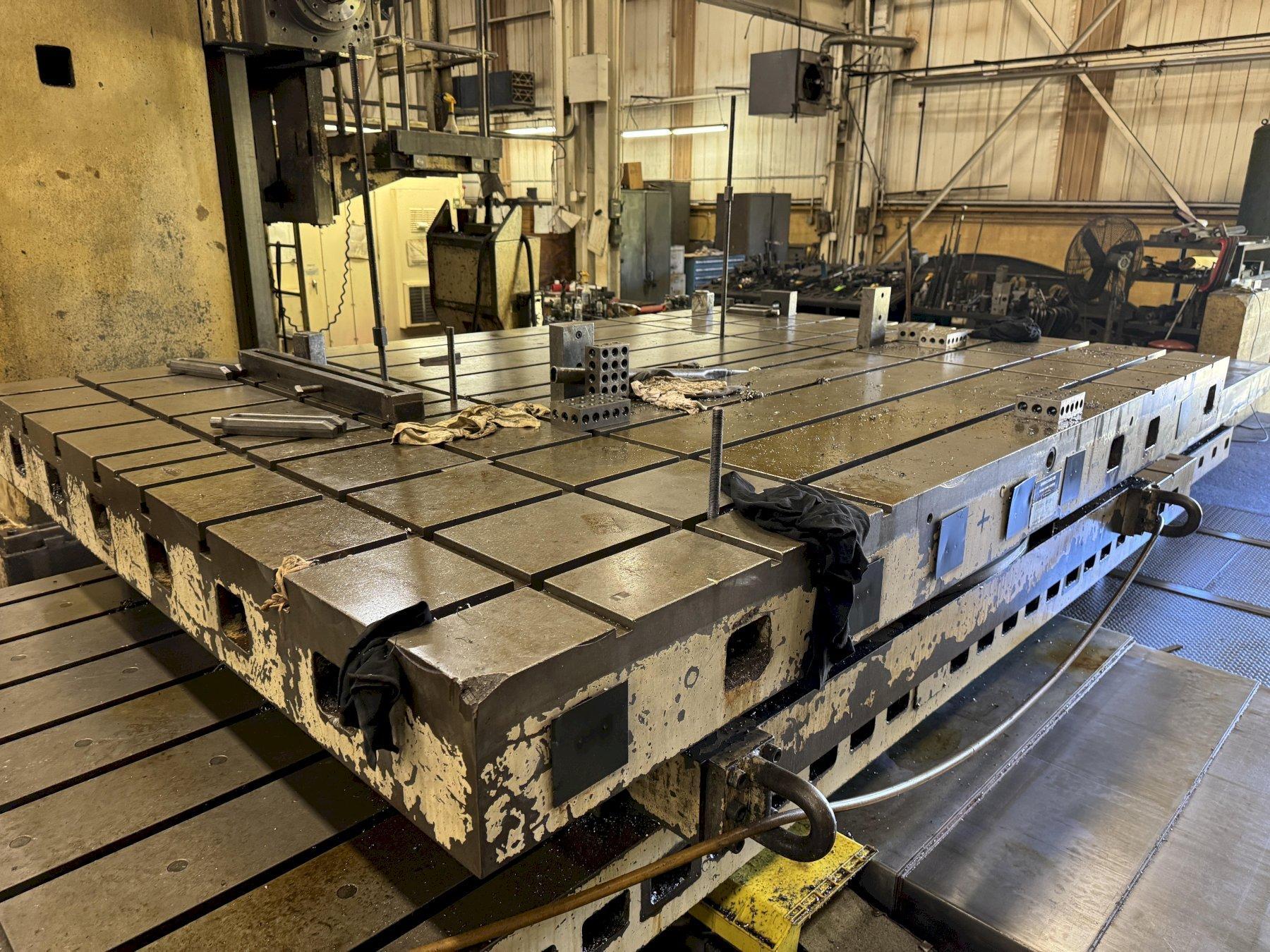

G&L ROTARY TABLE:
SERIAL...........................: 040-2080-91
TABLE SIZE.......................: 120" L-R X 72" F-B
STOCK # 1002025
SERIAL............................: 460-33-91
MODEL.............................: H60-T
SPINDLE SIZE......................: 6"
TRAVELS:
X AXIS...........................: 168"
Y AXIS...........................: 120"
Z AXIS...........................: 144" W/ TAILSTOCK (WITHOUT TAILSTOCK 168")
W AXIS...........................: 60"
TABLE SIZE.......................: 168" X 72"
SPINDLE SPEEDS...................: 0 - 1836 RPMS "VARIALBE"
FEEDS............................: 0 - 75 IPM "VARIABLE"
TAPER............................: 50
CONTROL..........................: G&L 8000
TRIPLE OUTRIGGER.................: YES
TRI WAYS ON COLUMN...............: YES
TABLE WAY MOUNTED TAILSTOCK......: YES
TRAVELS OF TAIL STOCK
VERTICAL.........................: 120"
HORIZONTAL.......................: 96
BALL SCREW DRIVEN X AND Y........: YES
G&L ROTARY TABLE:
SERIAL...........................: 040-2080-91
TABLE SIZE.......................: 120" L-R X 72" F-B
