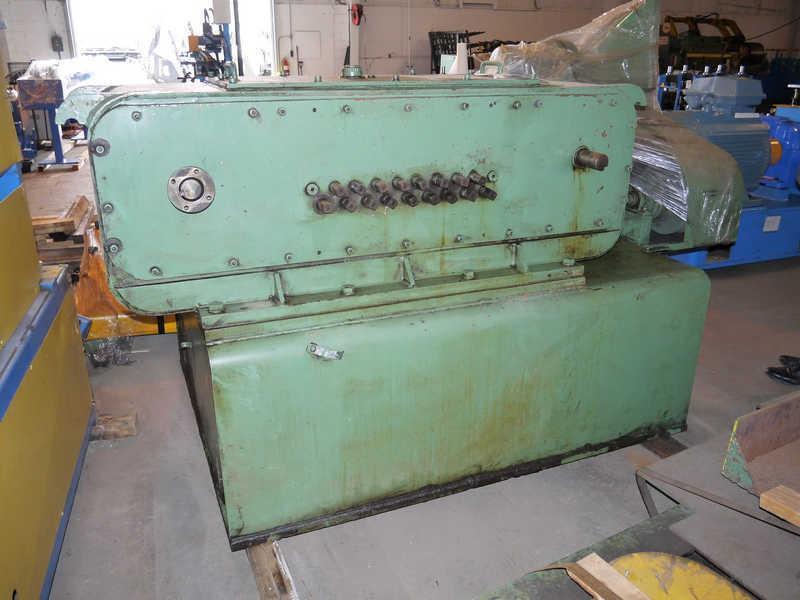

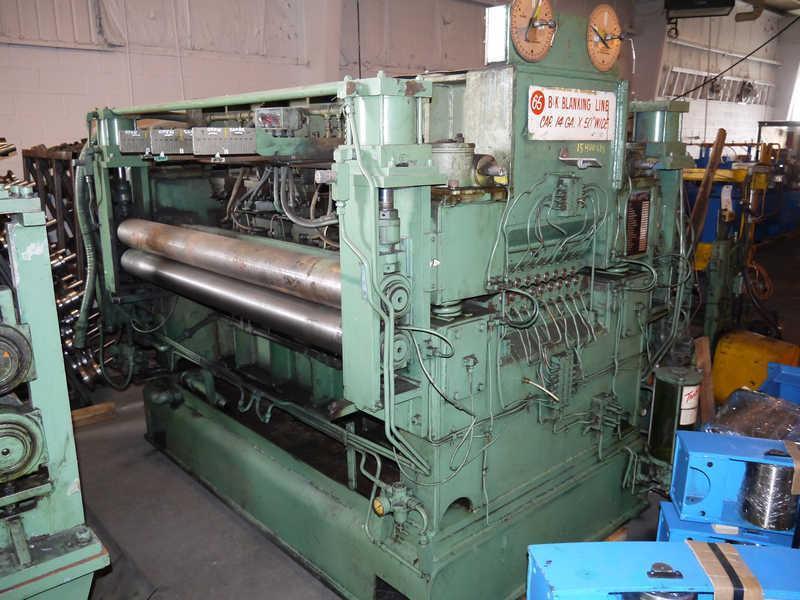

60" x 0.075" B&K Precision Leveler

Stock #: 2299319

Equipped With

-Model:  1.5 - 1766192
-Capacity:  60" x 0.015" to 0.075"
-Number of Work Rolls:  17, 8 over 9
-Diameter of Work Rolls:  1.50"
-Width of Rolls:  66"

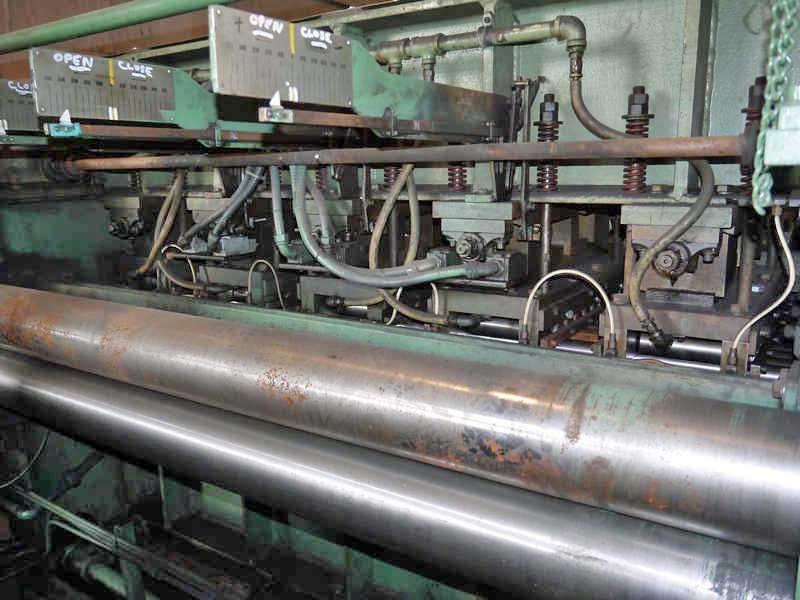

-Backup Rolls:  5 Flights Top and Bottom

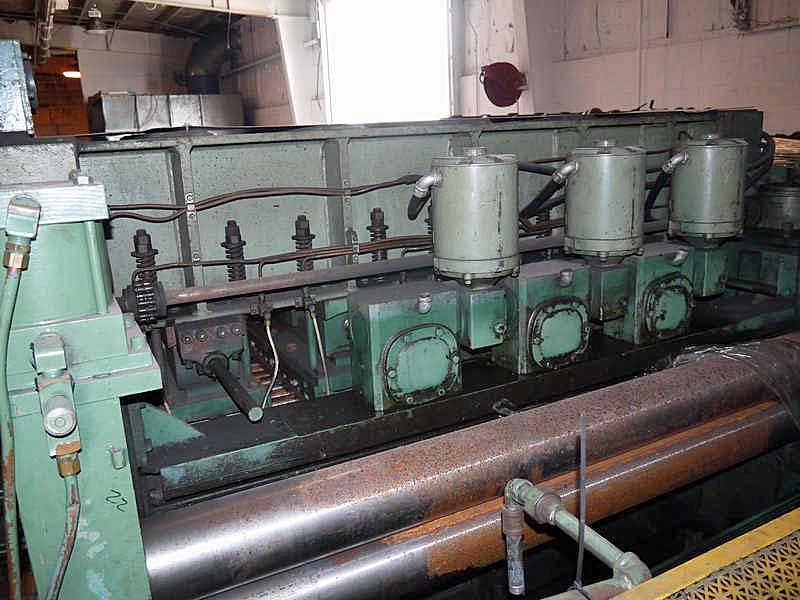

  3 Middle Flights - Motorized Adjustment
  5 Bottom Flights - Fixed
-Entry and Exit Driven Pinch Rolls
-Pinch Roll Diameter:  6"
-Main Drive Motor:  50 HP DC, 1800 RPM

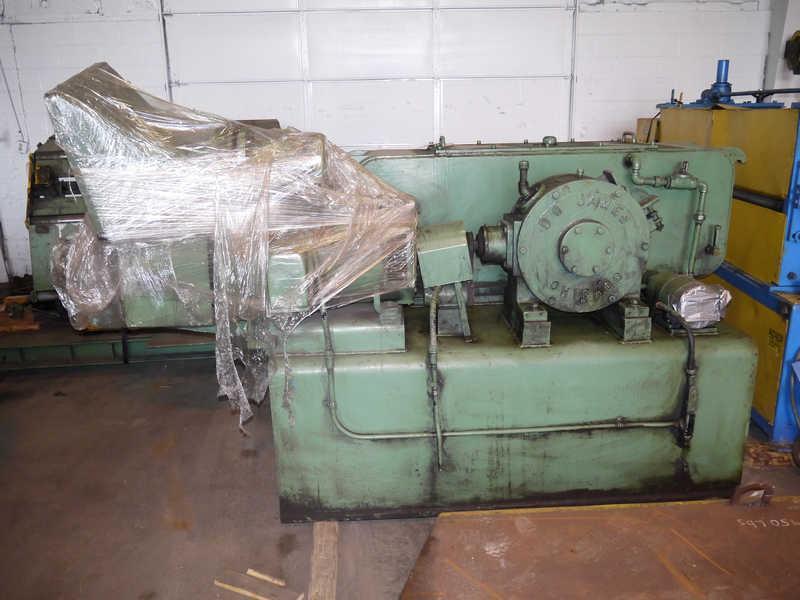

-D.O. James Reducer w/4.5:1 ratio
-Line Speed: 150 FPM Max. approx.
-Line Direction: Right to Left
