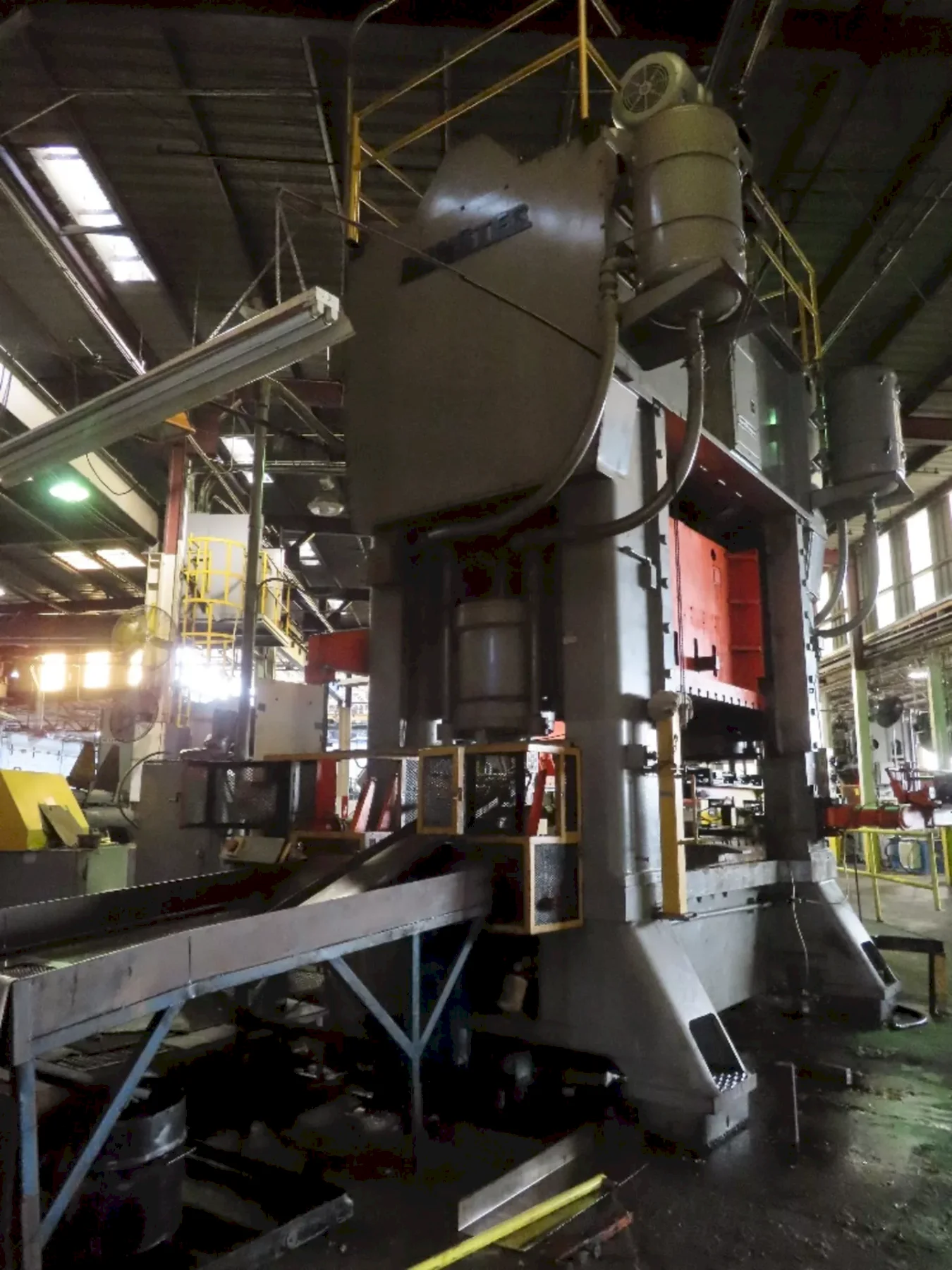

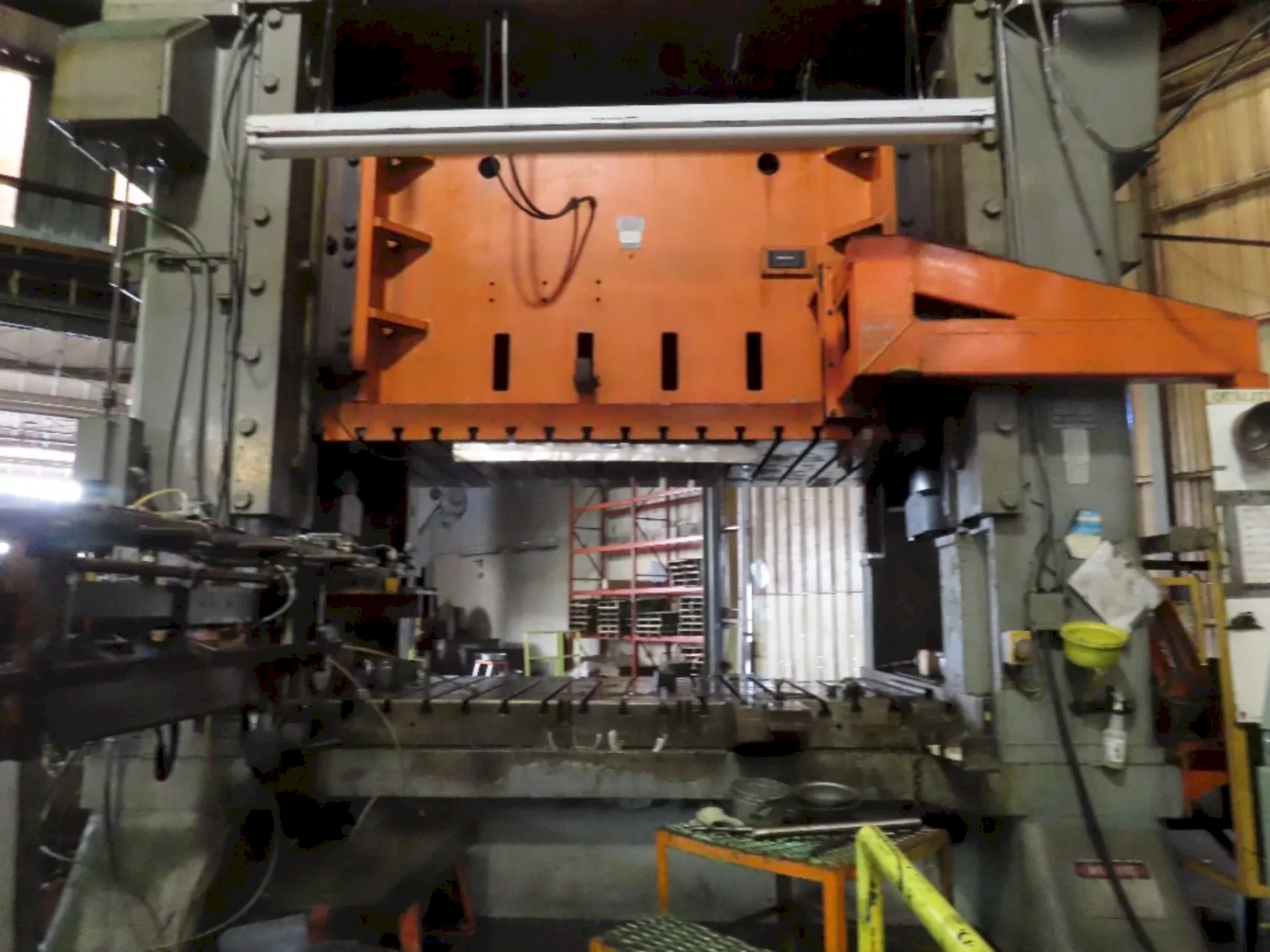

600 TON MINSTER E2-600-96-54 HEVI-STAMPER STRAIGHT SIDE DOUBLE CRANK PRESS. STOCK # 0325826

Stock #: 0325826

Equipped With

MODEL...........................: E2-600-96-54
TONNAGE.........................: 600
STROKE..........................: 16"
SLIDE ADJUSTMENT................: 6"
SHUT HEIGHT ON BOLSTER..........: 32"
SHUT HEIGHT ON BED..............: 39"
THICKNESS OF BOLSTER PLATE......: 7"
AREA OF SLIDE...................: 96" L-R X 54" F-B
AREA OF BED.....................: 96" L-R X 54" F-B
DISTANCE FLOOR TO TOP OF BED....: 40"
STROKES PER MINUTE..............: 0 - 45
MOTOR HP AND SPEED..............: 75-1800 RPM
APPROXIMATE WEIGHT..............: 183,000 LBS
WINTRISS DIPRO 1500
AUTOSET 1500
