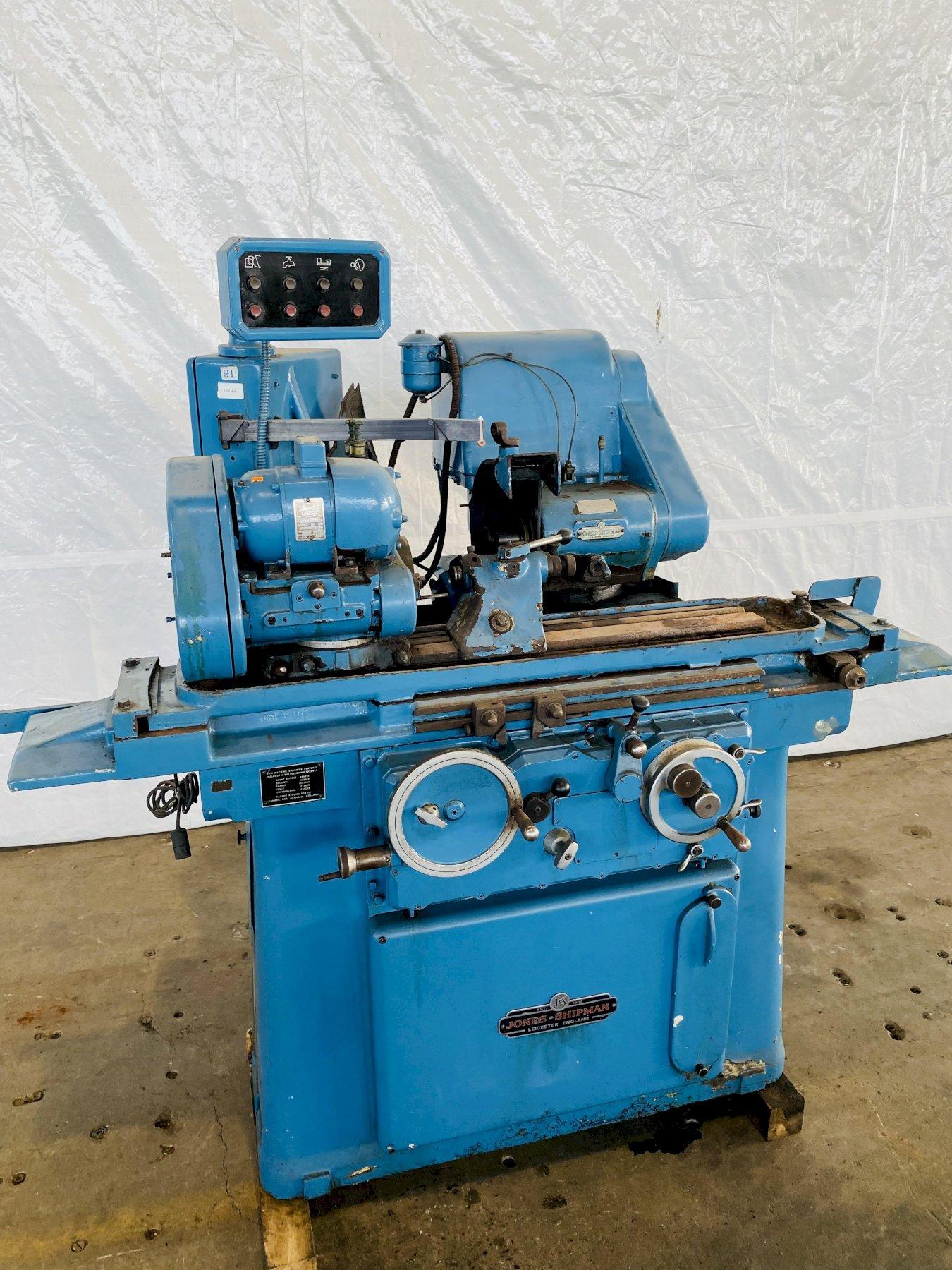

10" X 18" JONES & SHIPMAN MODEL 1310 O.D. GRINDER. STOCK # 1061221

Stock #: 1061221

Equipped With

Maximum Diameter Ground with New Wheel: 10"
Maximum Grinding Length between Centers: 18"
Height from table top to centers: 4"
Adjustment of table: 20 dg.
Hydraulic Pump Motor: 0.55 kW
Table Traverse Rates, infinitely variable, per min.: 3"-144"
Feed range at reversal of table: 0.0002"-0.0012"
Reduction in diameter: 50, 75, 110
Workhead Motor: 0.55 kW
Overall Height: 69"
Weight: 4500 lbs.
Standard grinding wheel: 14" x 1 1/2" x 5"
Wheel Speeds, 2: 1660, 1950 rpm
Wheelhead Motor: 4 kW
Cross Traverse of Wheelhead: 7 1/16"



10" X 18" JONES & SHIPMAN MODEL 1310 O.D. GRINDER. STOCK # 1061221

STOCK # 1061221

Maximum Diameter Ground with New Wheel: 10"
Maximum Grinding Length between Centers: 18"
Height from table top to centers: 4"
Adjustment of table: 20 dg.
Hydraulic Pump Motor: 0.55 kW
Table Traverse Rates, infinitely variable, per min.: 3"-144"
Feed range at reversal of table: 0.0002"-0.0012"
Reduction in diameter: 50, 75, 110
Workhead Motor: 0.55 kW
Overall Height: 69"
Weight: 4500 lbs.
Standard grinding wheel: 14" x 1 1/2" x 5"
Wheel Speeds, 2: 1660, 1950 rpm
Wheelhead Motor: 4 kW
Cross Traverse of Wheelhead: 7 1/16"



Specifications

Machine Type
Grinders, Cylindrical, Universal
Manufacturer
JONES & SHIPMAN
Model
1310
Year
N/A
Condition
Used
