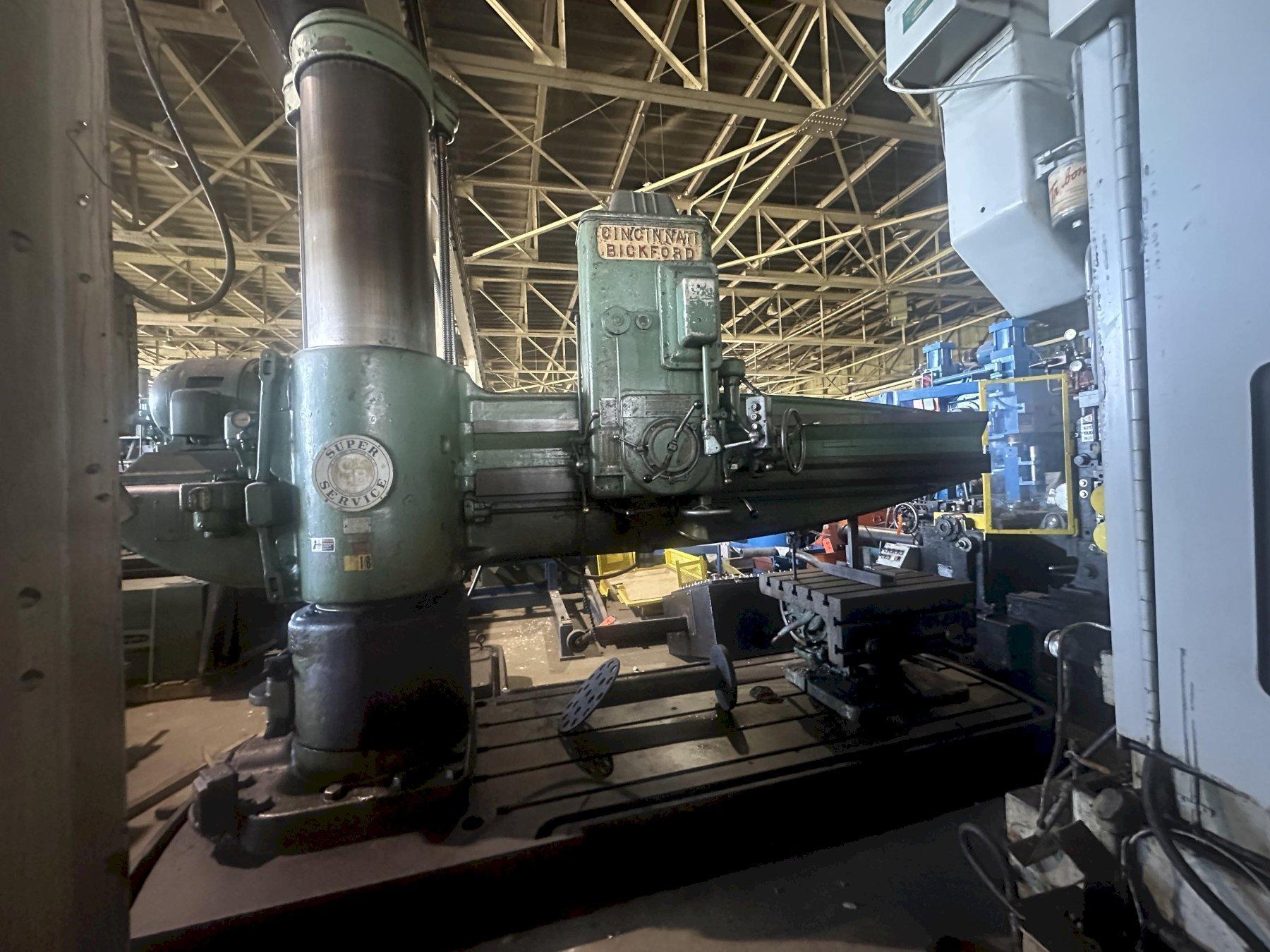

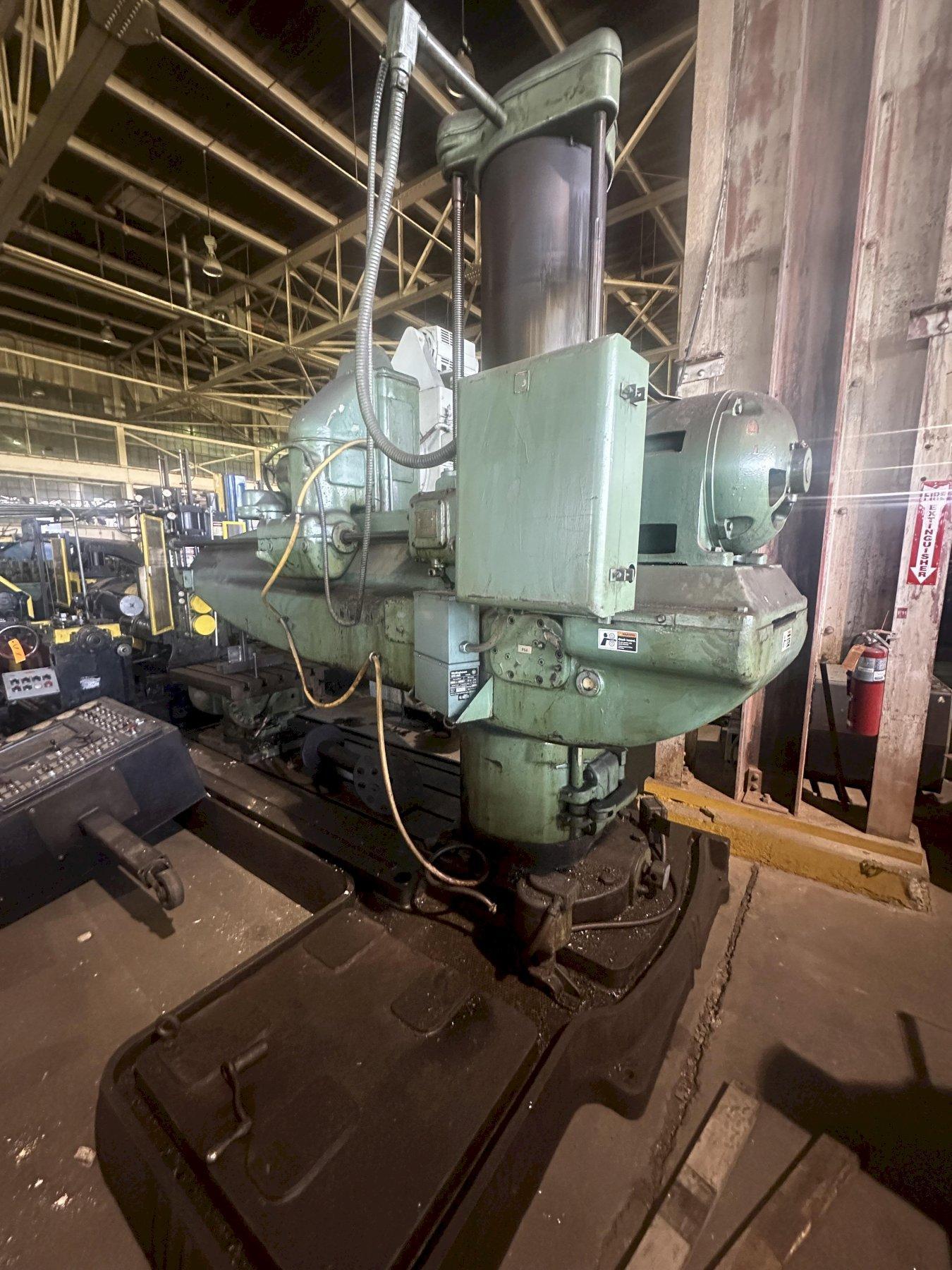

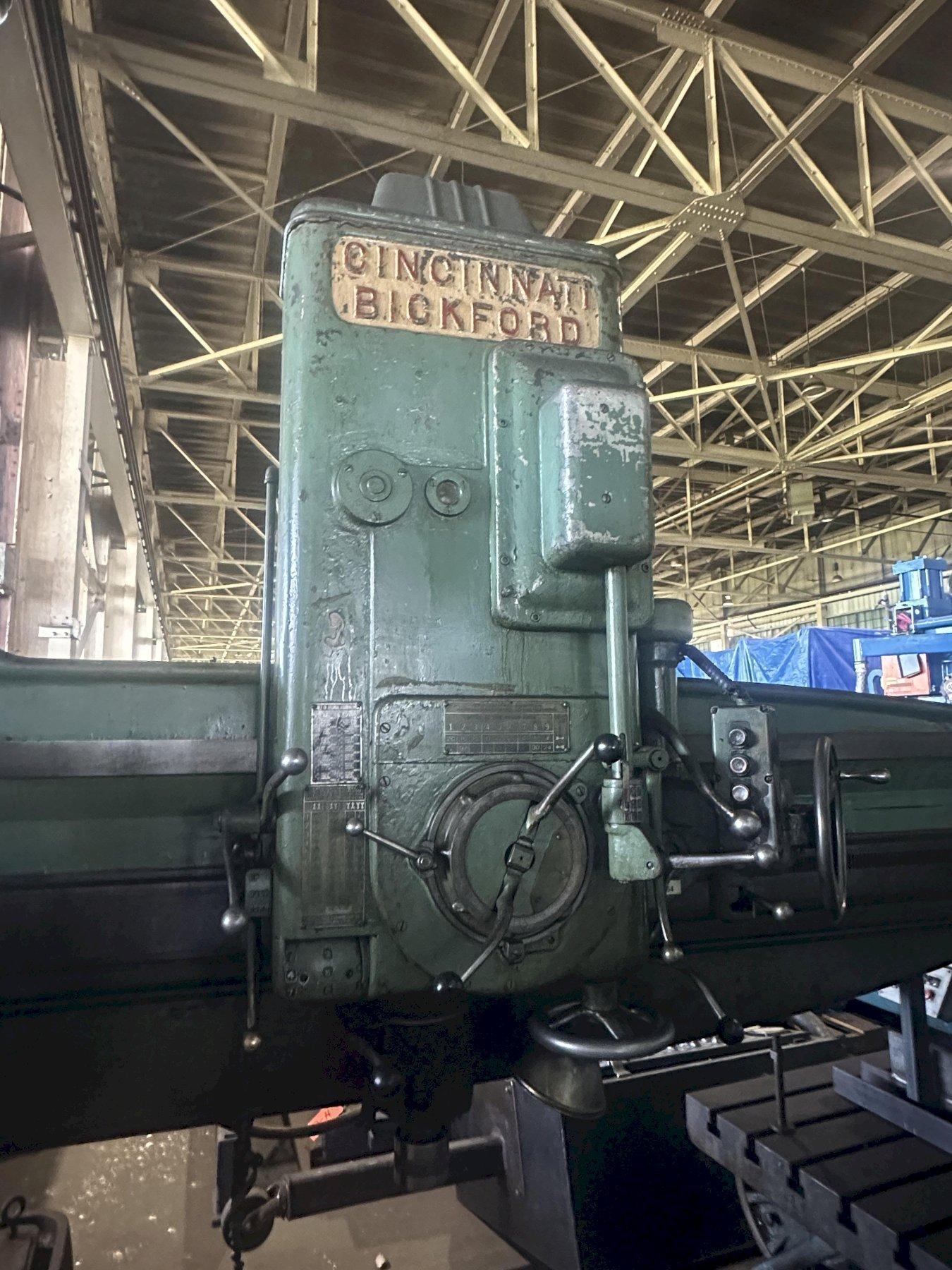

8' X 19" CINCINNATI BICKFORD RADIAL DRILL. STOCK # 036326

Stock #: 0326326

Equipped With

SERIAL ........................ 6E-860
CAPACITY ...................... 8' X 19"
ARM LENGTH .................... 96"

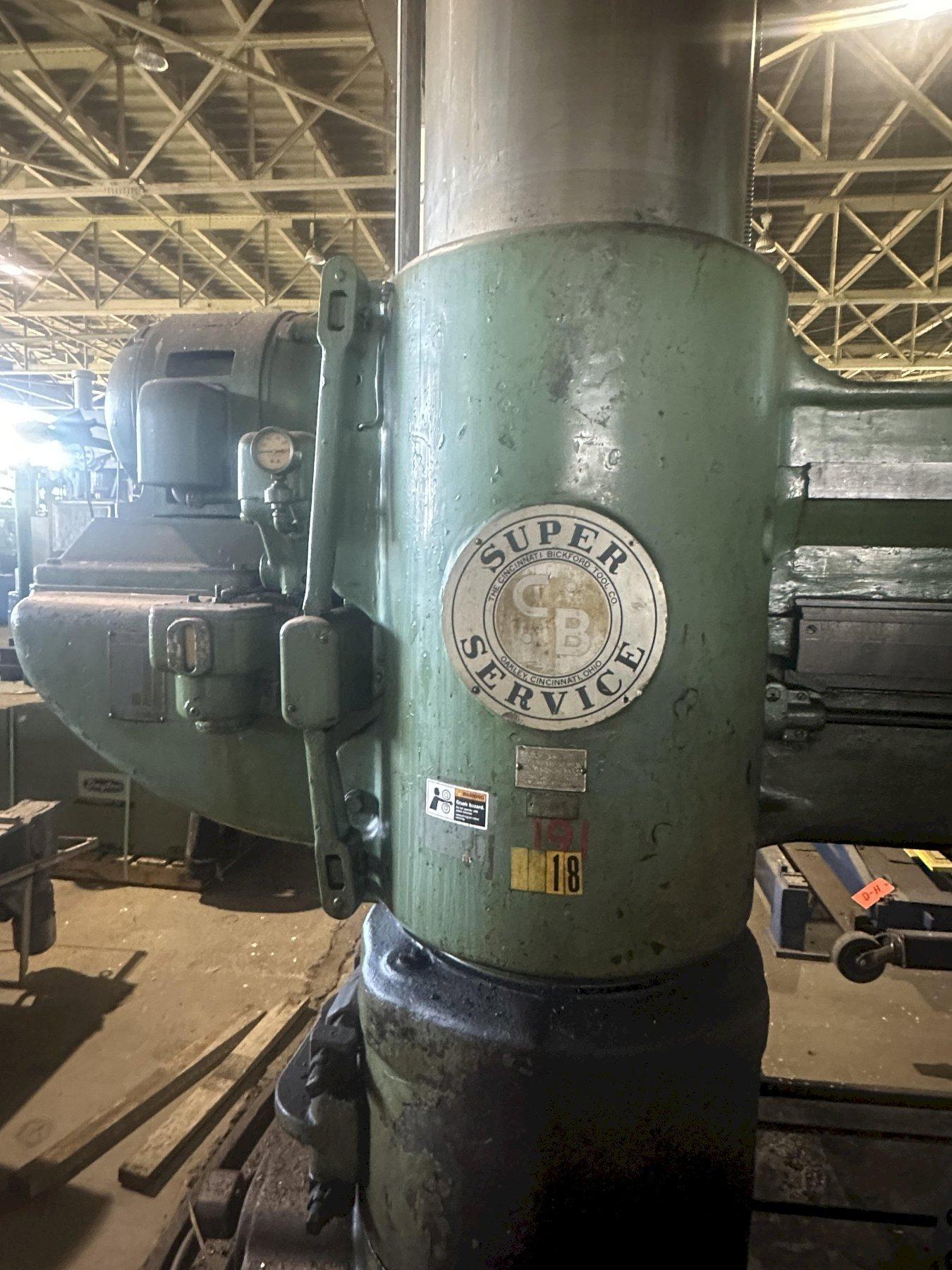

COLUMN DIAMETER ............... 19"
AREA OF BASE .................. 100" X 50"

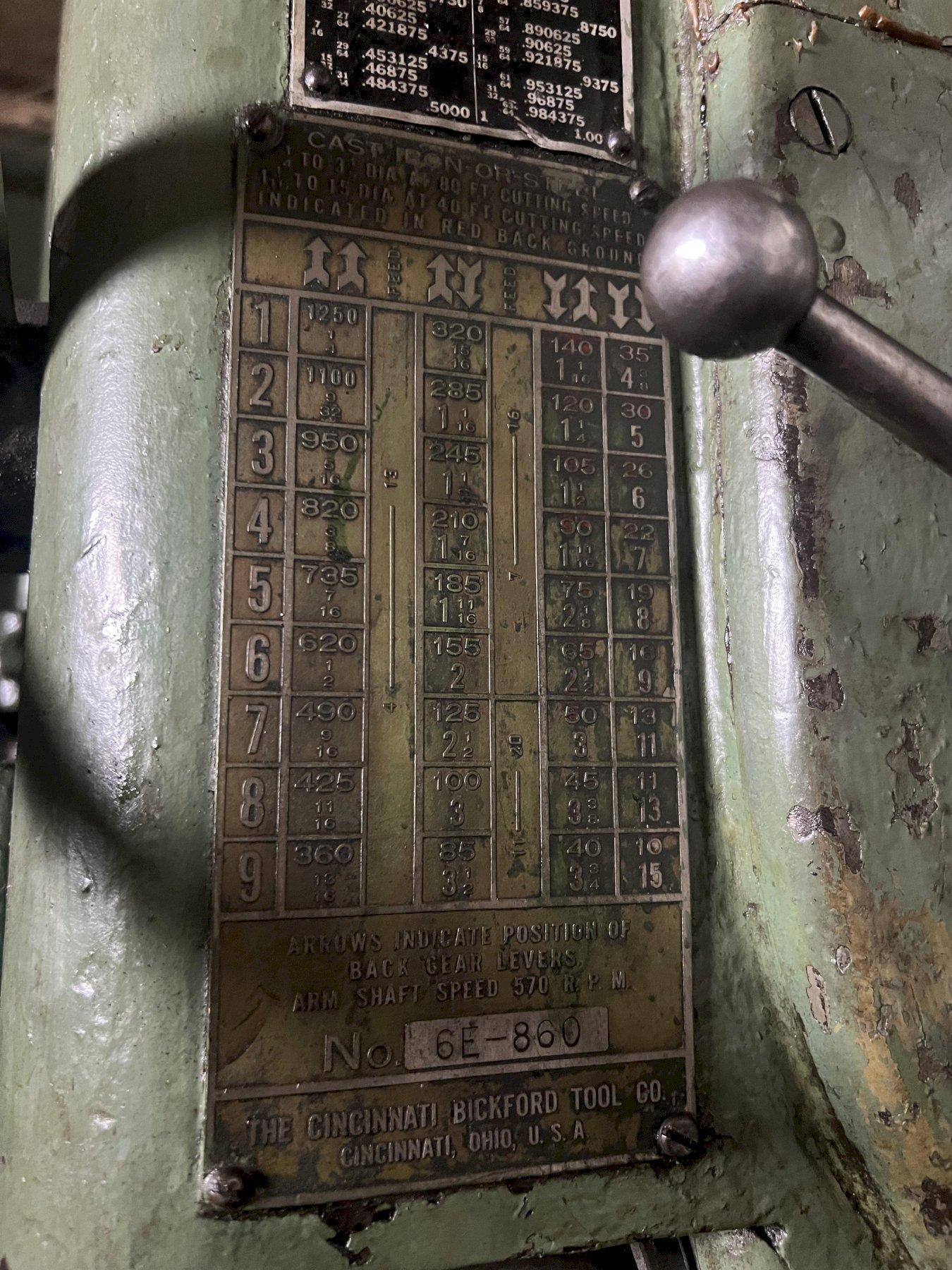

SPINDLE SPEEDS ................ (36) 14 TO 1500 RPM

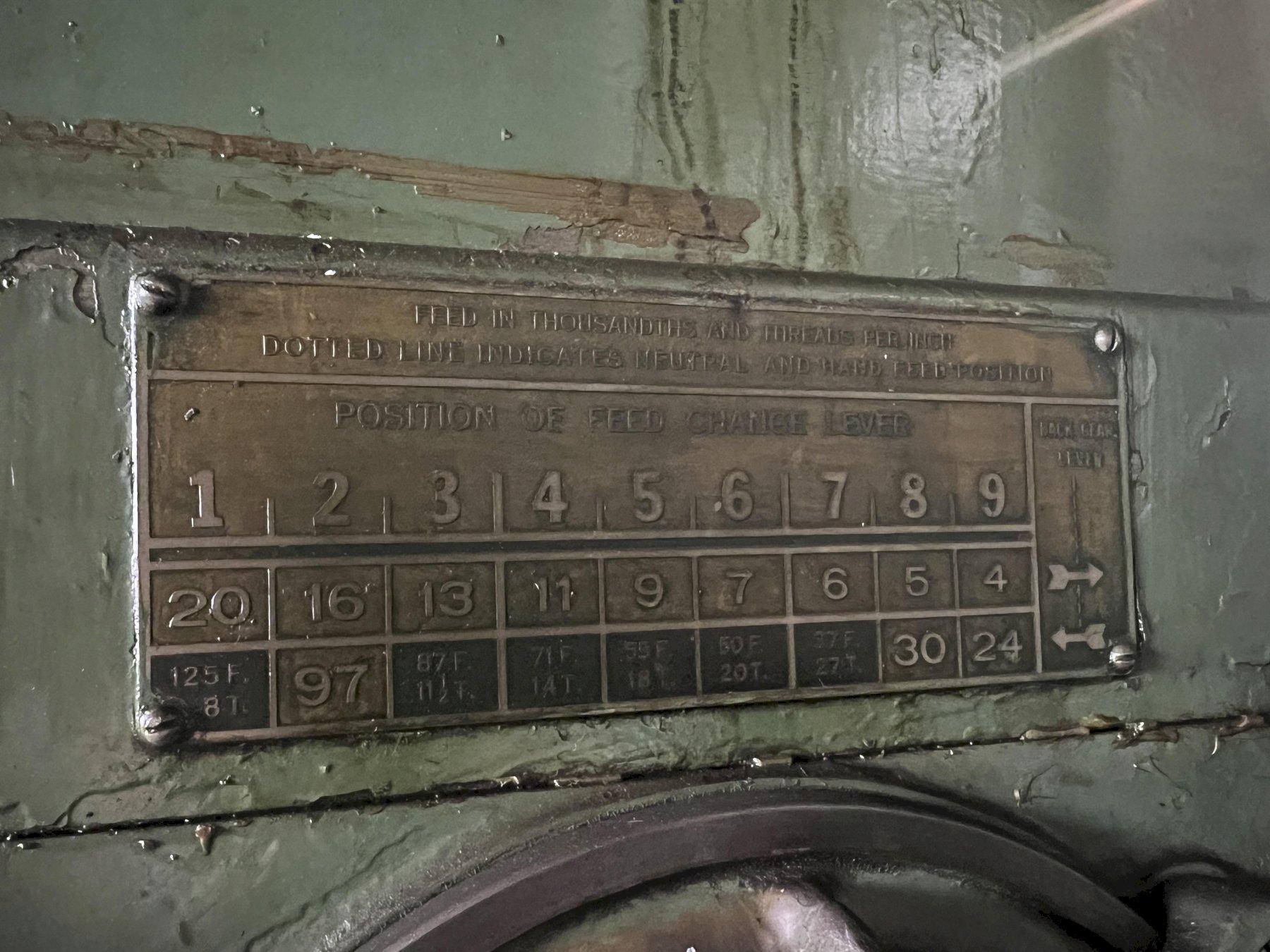

FEEDS ......................... (18) .006 TO .125 IPR
TAP LEADS ..................... 8, 11-1/2, 14 TPI
SPINDLE TRAVEL ................ 20"

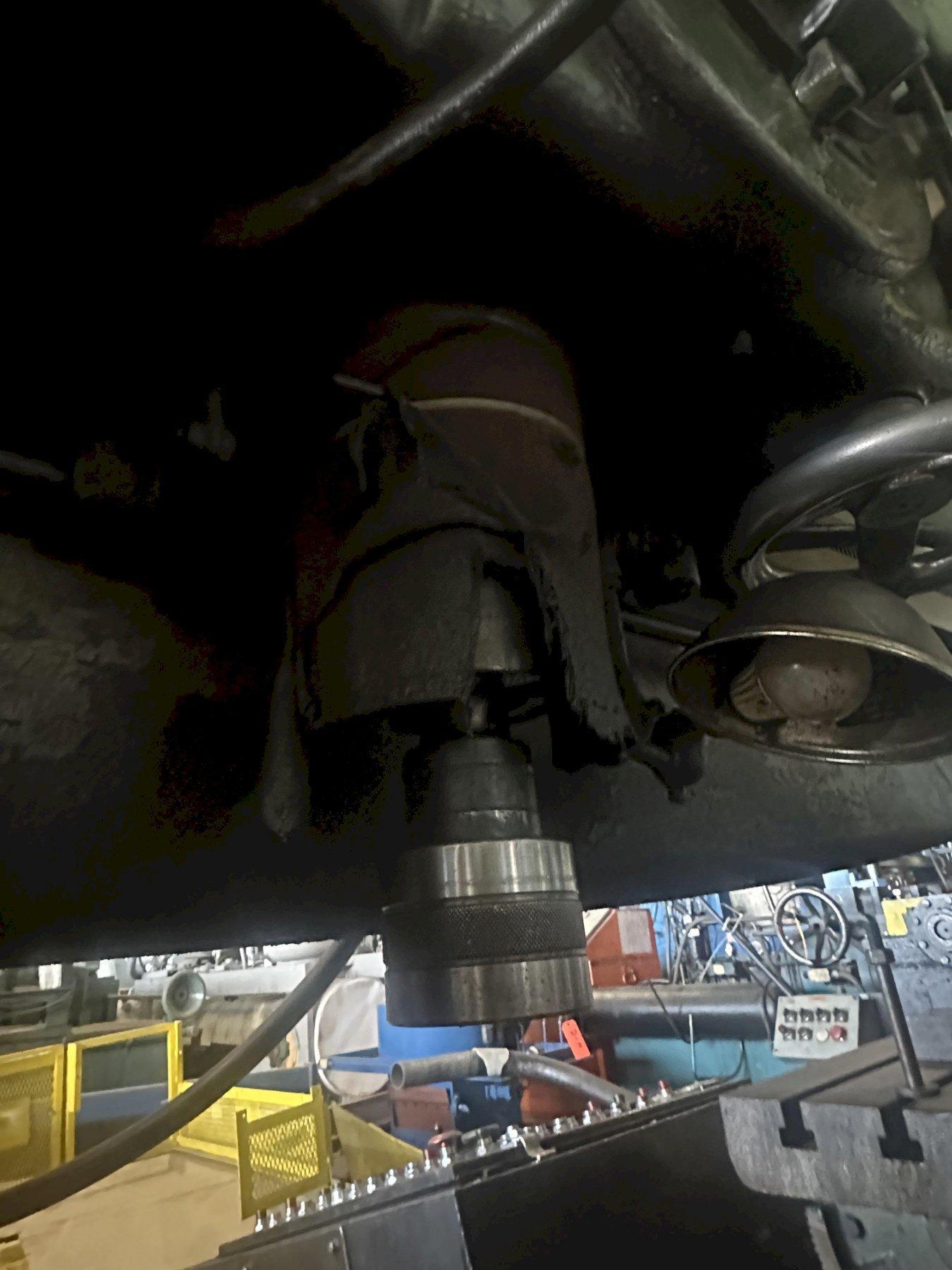

DIAMETER OF SPINDLE ........... 4"
TAPER IN SPINDLE .............. #6MT
DISTANCE SPINDLE TO BASE ...... 34" TO 78"
DISTANCE SPINDLE TO COLUMN .... 12" TO 96"
TRAVEL OF ARM ON COLUMN ....... 72"
TRAVEL OF HEAD ON ARM ......... 42"
COOLANT ....................... YES

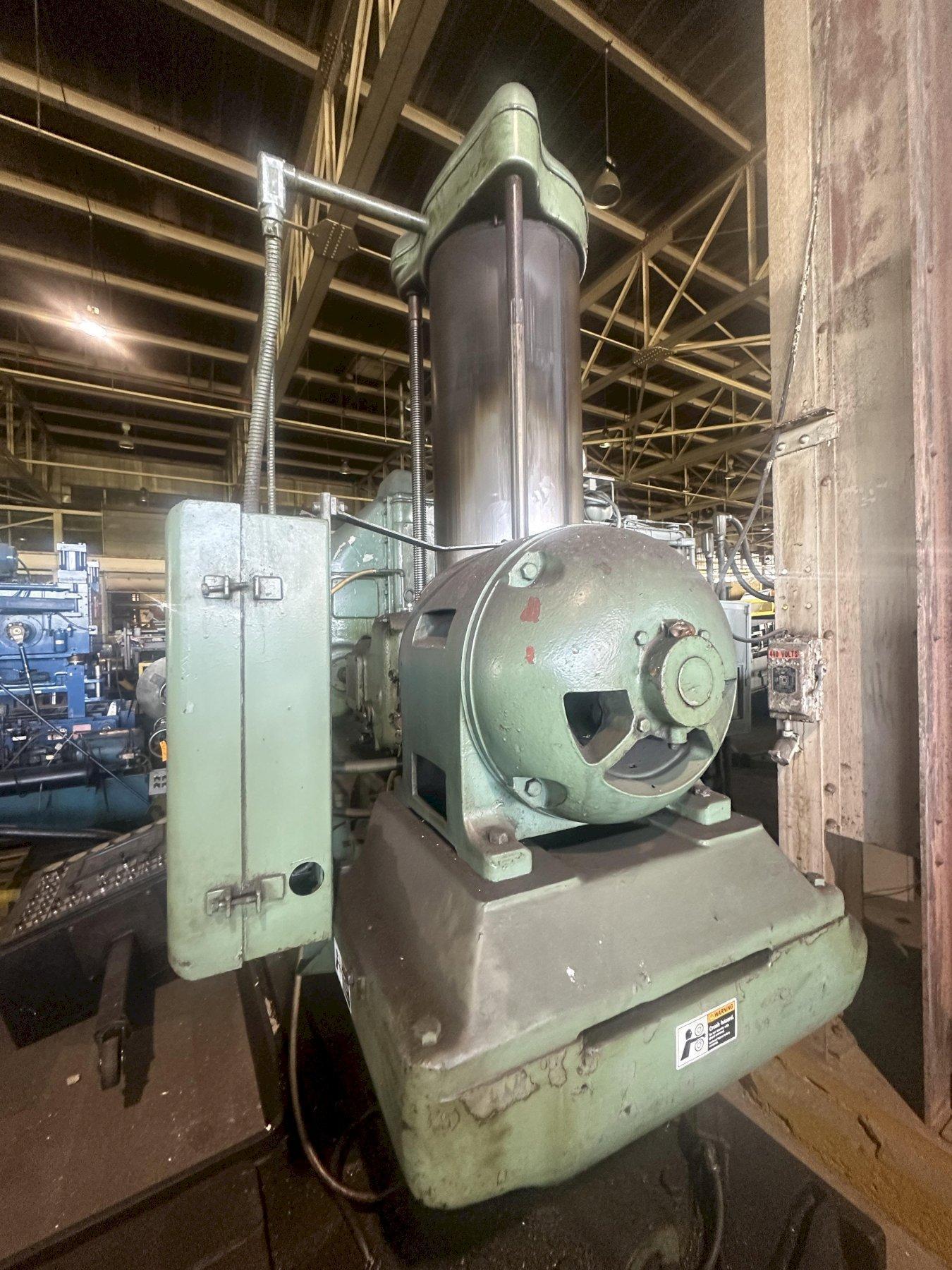

MAIN MOTOR .................... 20 HP
