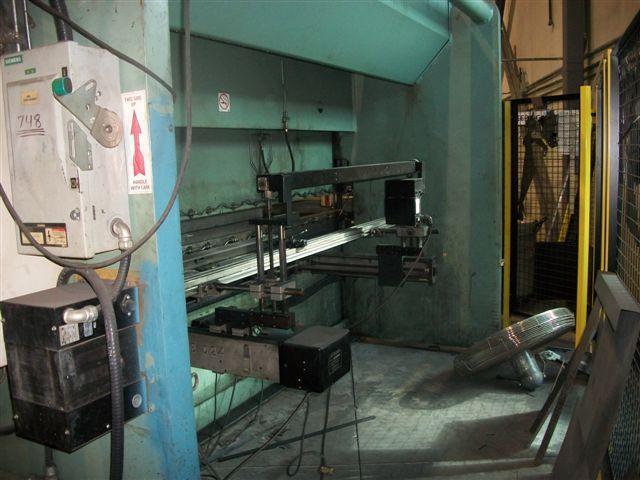

All Steel CNC Hydraulic Press Brake, 3 AXIS, 12′ X 230 Ton Capacity

Stock #: 1302620

Equipped With

Machine Specifications:

EQUIPPED WITH:

- 3-AXIS AUTOMEC CNC 300 CONTROLS, Y, X & R​

- Shadow V Light Curtains 12”​

- 2 Ram Blocks​

- Side Guarding​

- Hydraulic Clamping on Ram​

- Lower Die Block with Hydraulic Clamping​

MODEL: 230-12​

CAPACITY: 12' X 230 TON​

SERIAL #: MB-245​

OVERALL BENDING LENGTH: 144"​

STROKE LENGTH: VARIABLE 0-9" APPROX.​

OPEN HEIGHT: 19"​

THROAT HEIGHT: 22" HEIGHT X 8" THROAT DEPTH​

WIDTH OF TABLE: 7"​

SPEED-PRESSING: .17-.4 IN/SEC APPROX.​

SPEED-APPROACH: 1.9 IN/SEC APPROX.​

MAX. TRAVEL OF BACK GAUGE: 24"​

DISTANCE FLOOR TO TOP OF BED: 34"​

MOTOR: 25 HP​

WEIGHT: 42,000 LBS (approx)​

DIMENSIONS (LxWxH): 168" X 75" X 102"​

FOB POINT: MISSISSAUGA, ON​

CONDITION: PRE-OWNED


All Steel CNC Hydraulic Press Brake, 3 AXIS, 12′ X 230 Ton Capacity

STOCK # 1302620

Specifications

View All Details
Machine Type
Brakes, Press
Manufacturer
N/A
Model
230-12
Year
N/A
Condition
Excellent
Equipped With
Machine Specifications:

EQUIPPED WITH:

- 3-AXIS AUTOMEC CNC 300 CONTROLS, Y, X & R​

- Shadow V Light Curtains 12”​

- 2 Ram Blocks​

- Side Guarding​

- Hydraulic Clamping on Ram​

- Lower Die Block with Hydraulic Clamping​

MODEL: 230-12​

CAPACITY: 12' X 230 TON​

SERIAL #: MB-245​

OVERALL BENDING LENGTH: 144"​

STROKE LENGTH: VARIABLE 0-9" APPROX.​

OPEN HEIGHT: 19"​

THROAT HEIGHT: 22" HEIGHT X 8" THROAT DEPTH​

WIDTH OF TABLE: 7"​

SPEED-PRESSING: .17-.4 IN/SEC APPROX.​

SPEED-APPROACH: 1.9 IN/SEC APPROX.​

MAX. TRAVEL OF BACK GAUGE: 24"​

DISTANCE FLOOR TO TOP OF BED: 34"​

MOTOR: 25 HP​

WEIGHT: 42,000 LBS (approx)​

DIMENSIONS (LxWxH): 168" X 75" X 102"​

FOB POINT: MISSISSAUGA, ON​

CONDITION: PRE-OWNED
