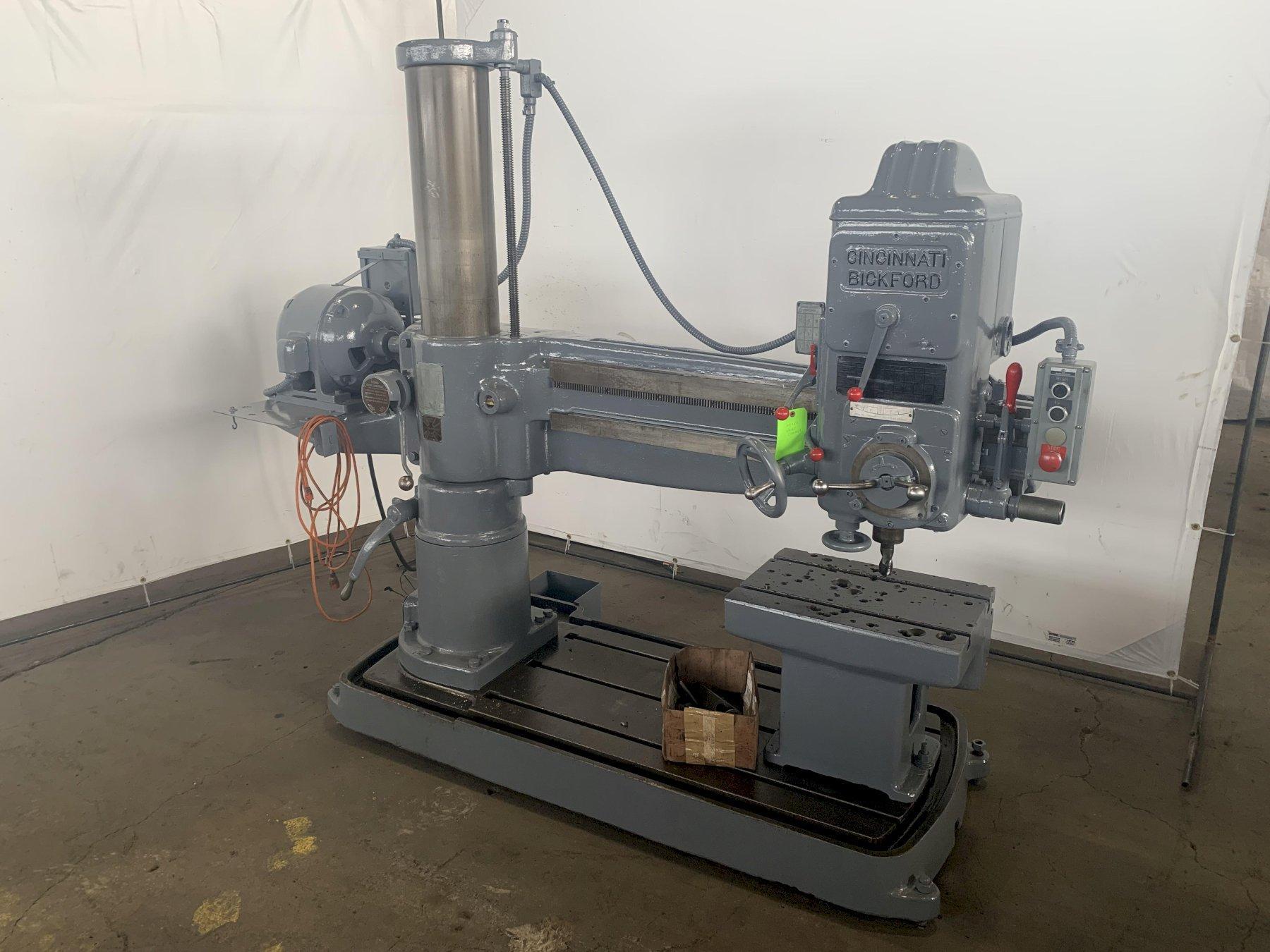

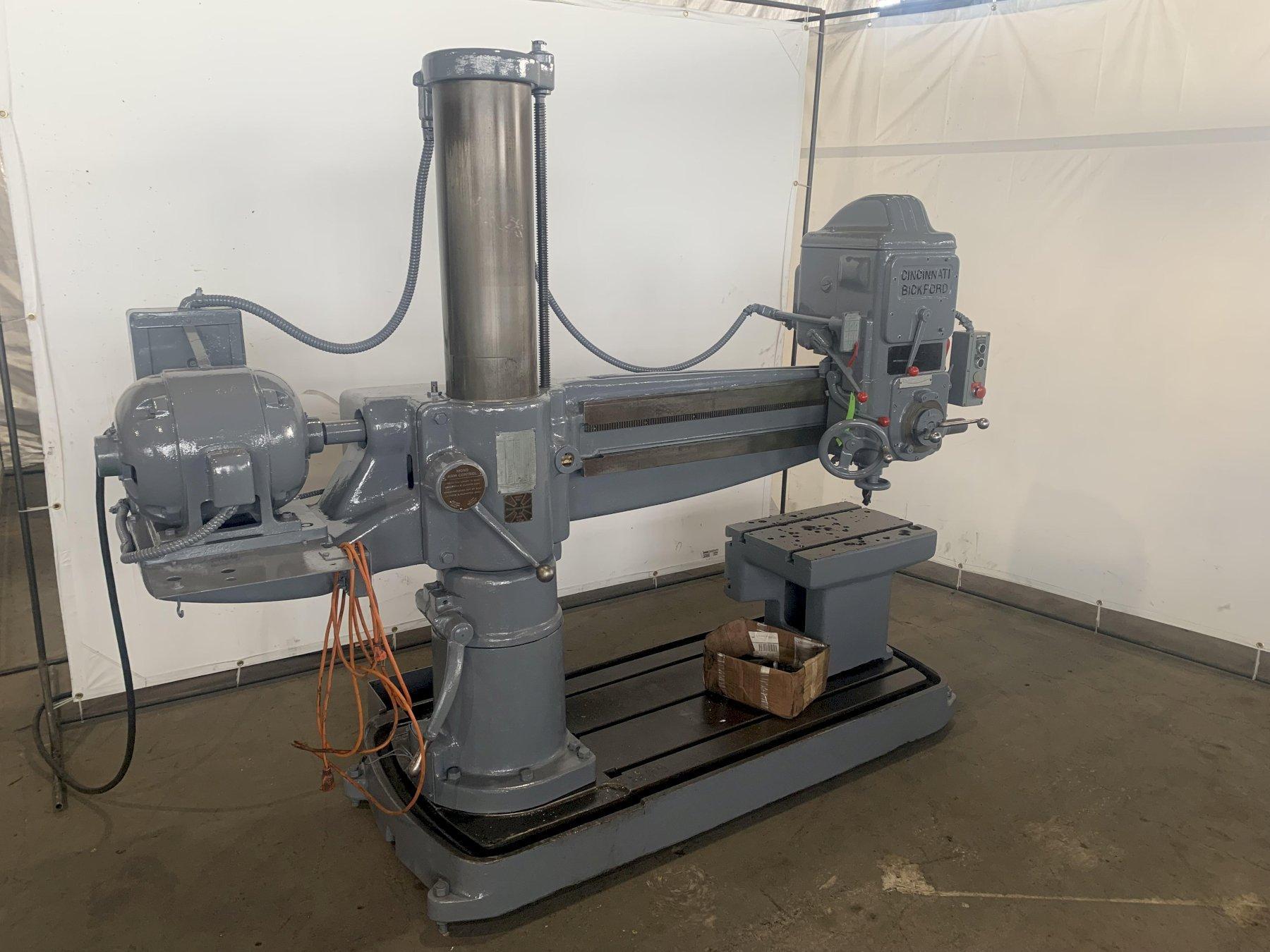

4' X 9" CINCINNATI-BICKFORD RADIAL ARM DRILL.STOCK # 0311023

Stock #: 0311023

Equipped With

SERIAL ............................. 1R 3394

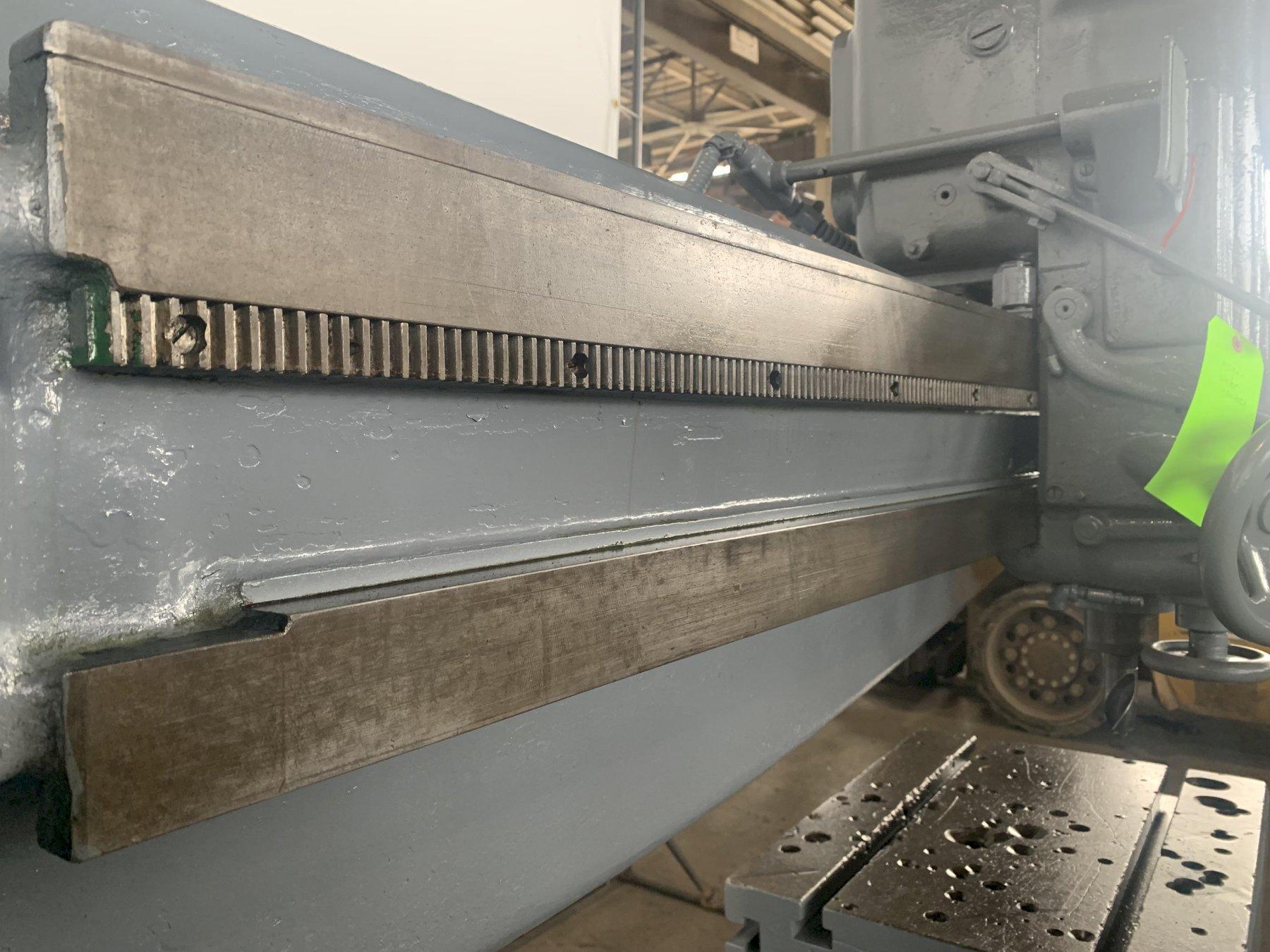

ARM LENGTH ......................... 4'

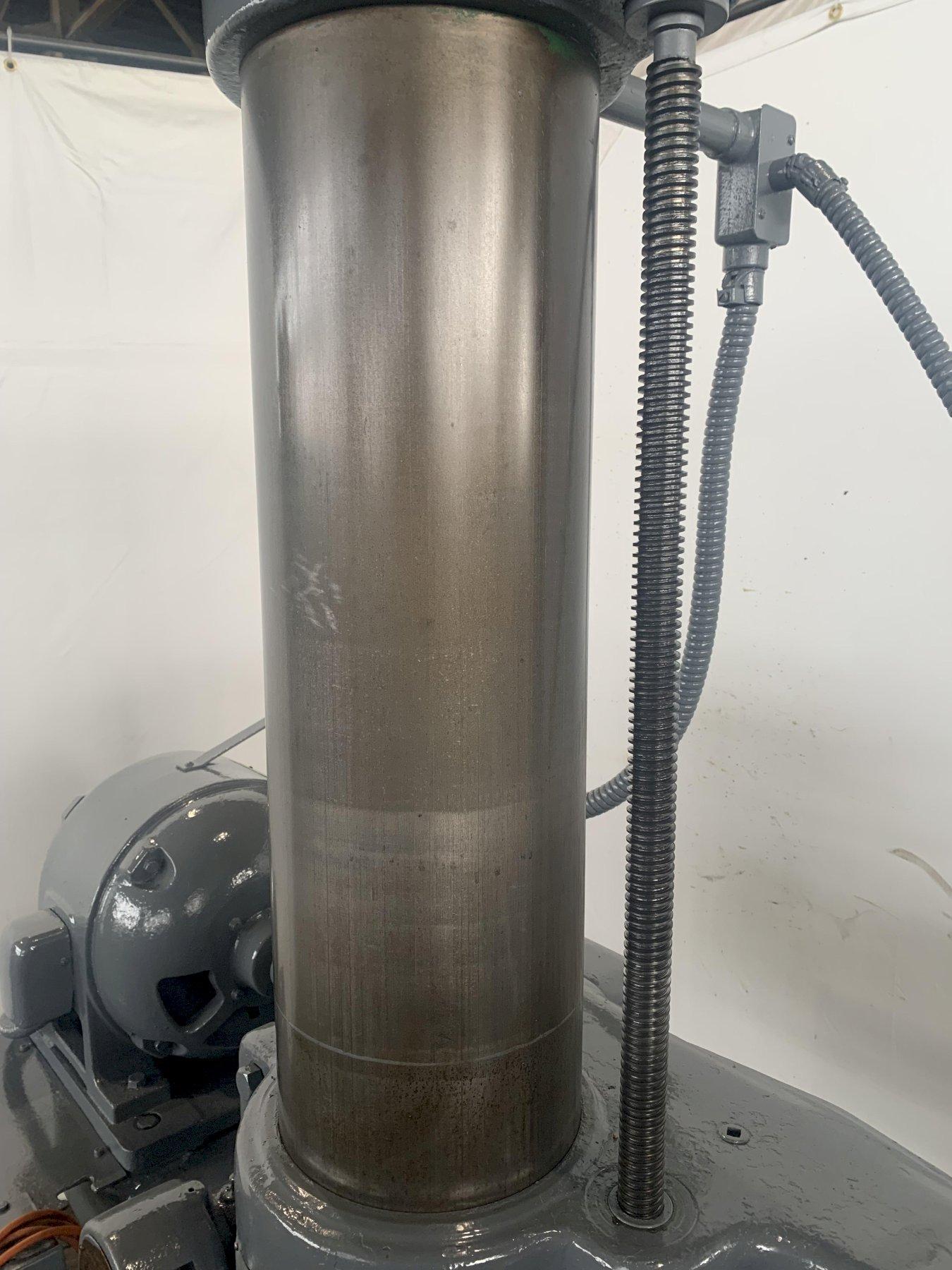

COLUMN DIAMETER .................... 9"
DUAL BASE .......................... YES
AREA OF EACH BASE .................. 30" X 48"
HEAD RADIUS, MINIMUM/MAXIMUM ....... 16.5" TO 43"
SPINDLE TO BASE, MINIMUM/MAXIMUM ... 15.75" TO 53"
VERTICAL TRAVEL OF ARM ............. 27.25"
SPINDLE TRAVEL ..................... 10"
HORIZONTAL HEAD TRAVEL ............. 36.5"

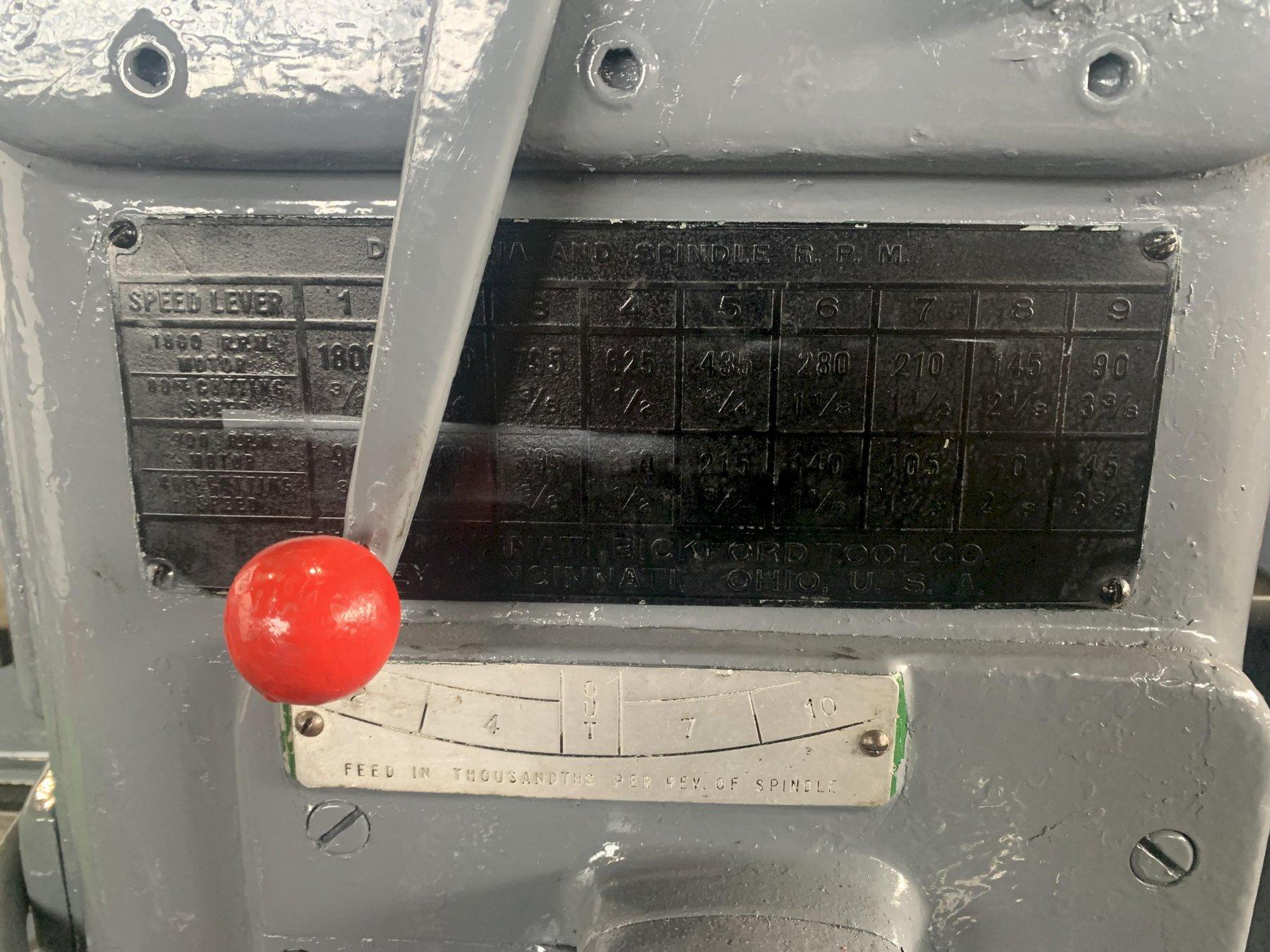

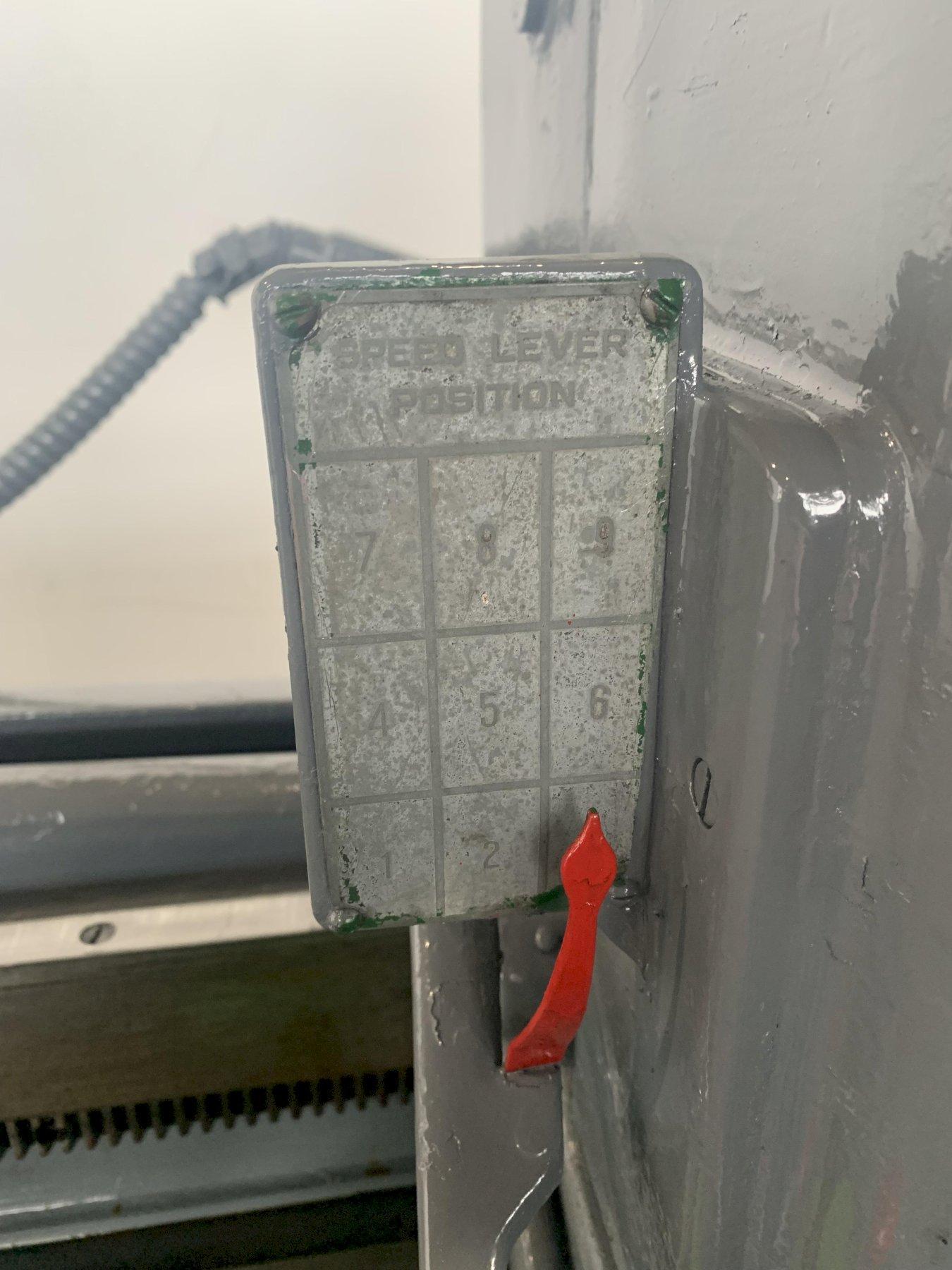

SPINDLE SPEEDS ..................... (9) 220 TO 2000 RPM
SPINDLE FEEDS ...................... (4) .004-.020 IPR
POWER ELEVATION .................... YES

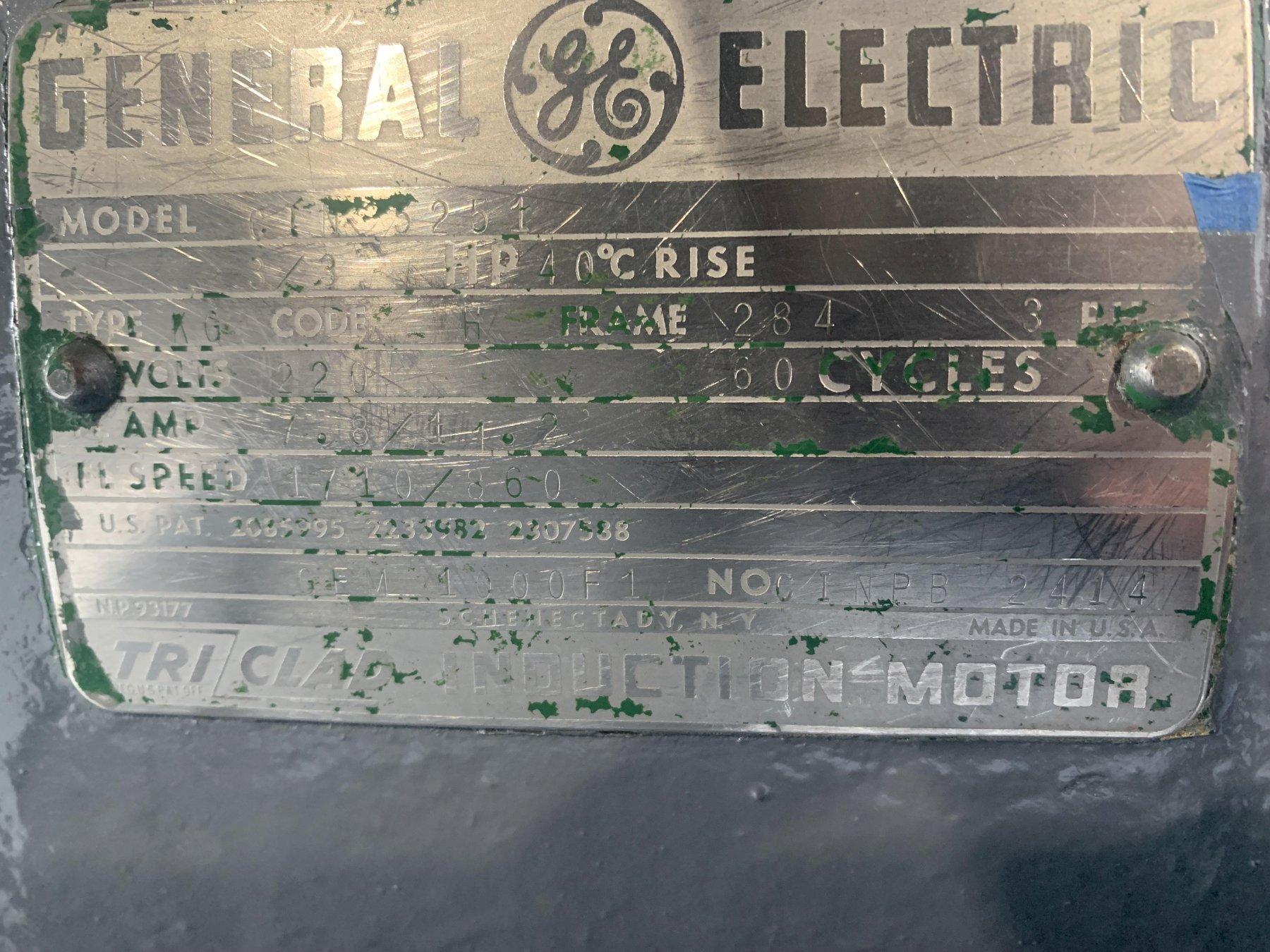

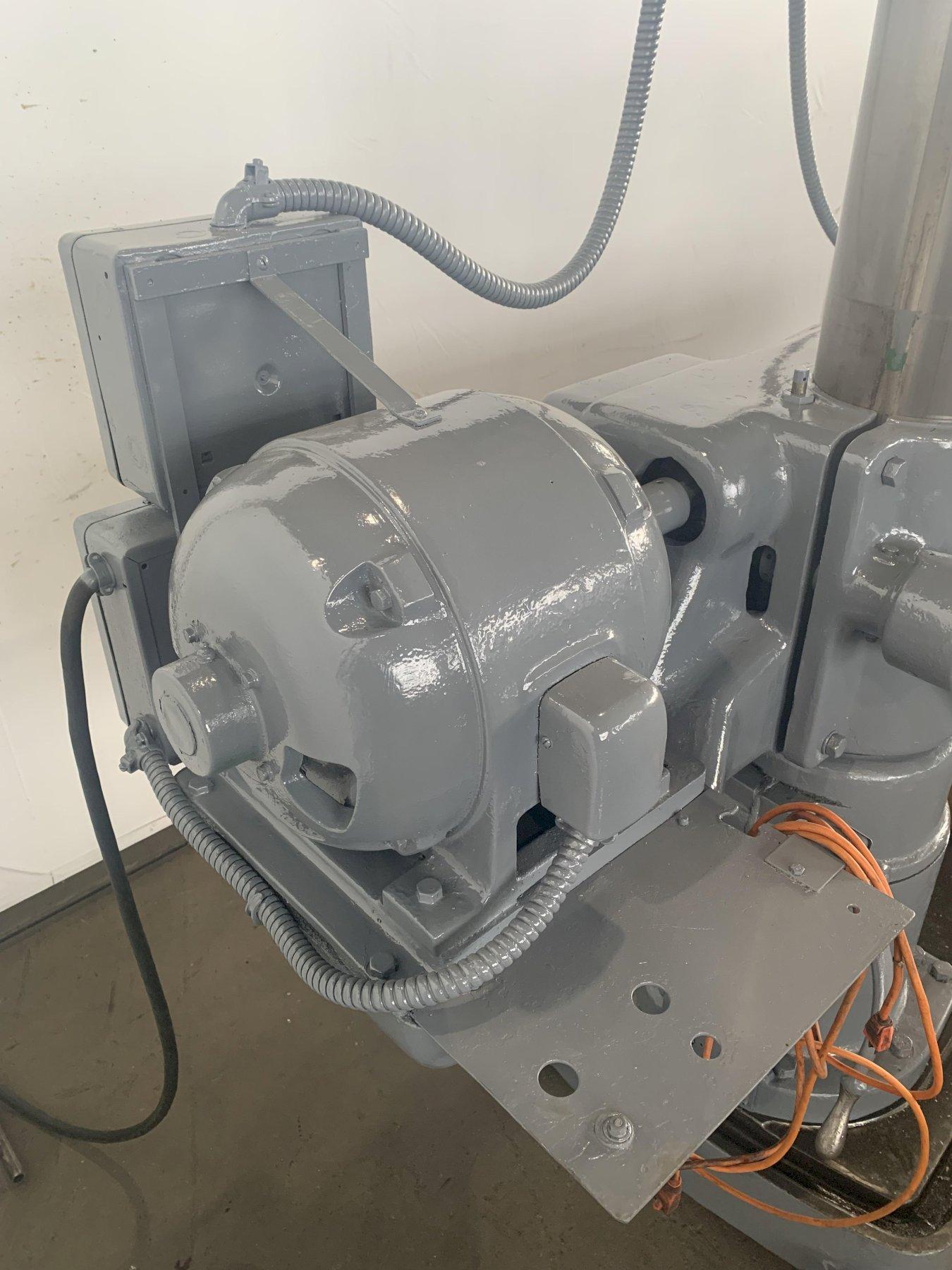

SPINDLE MOTOR ...................... 3 HORSEPOWER

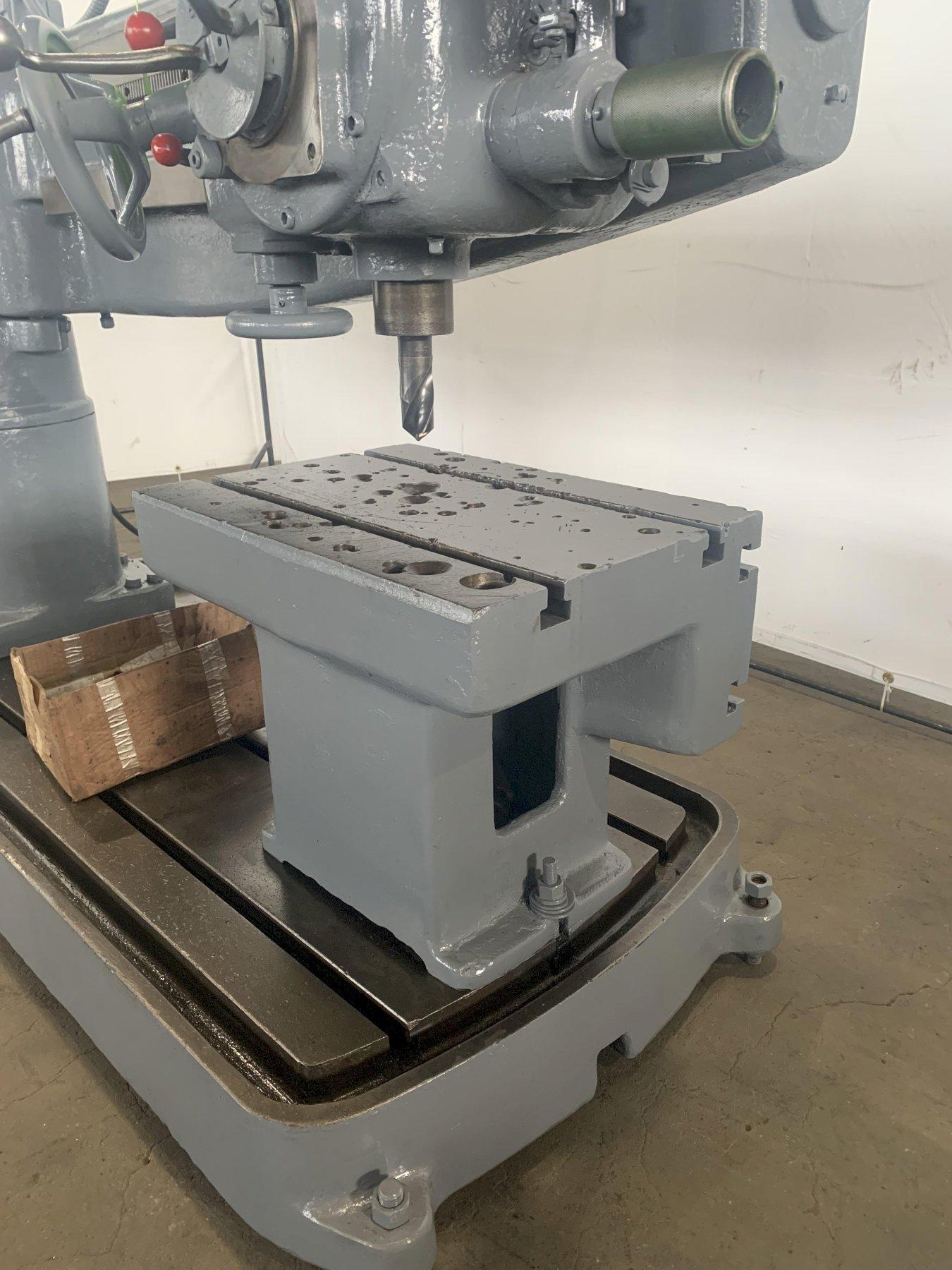

BOX TABLE........................... 22" X 16" X 10"
