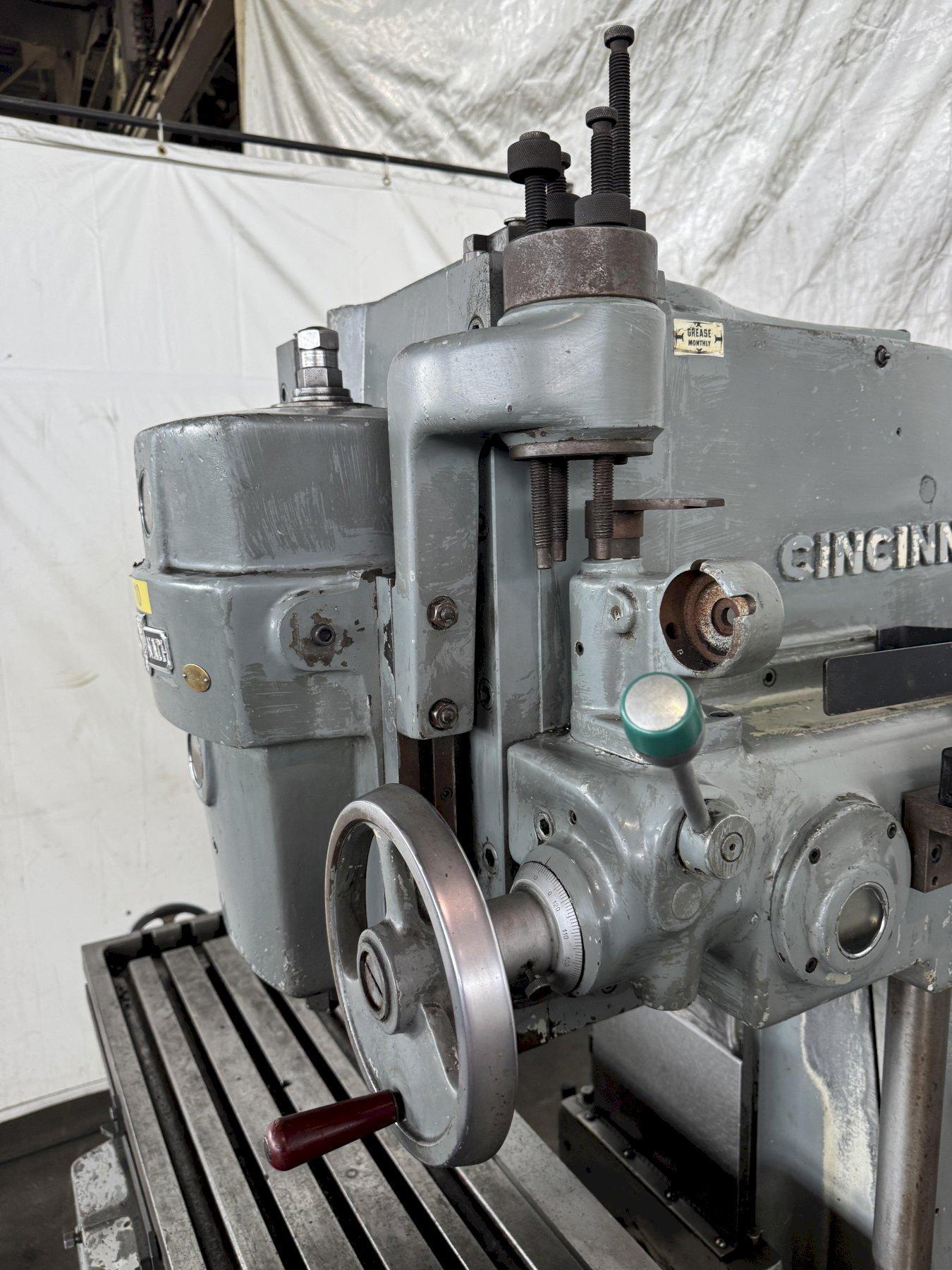

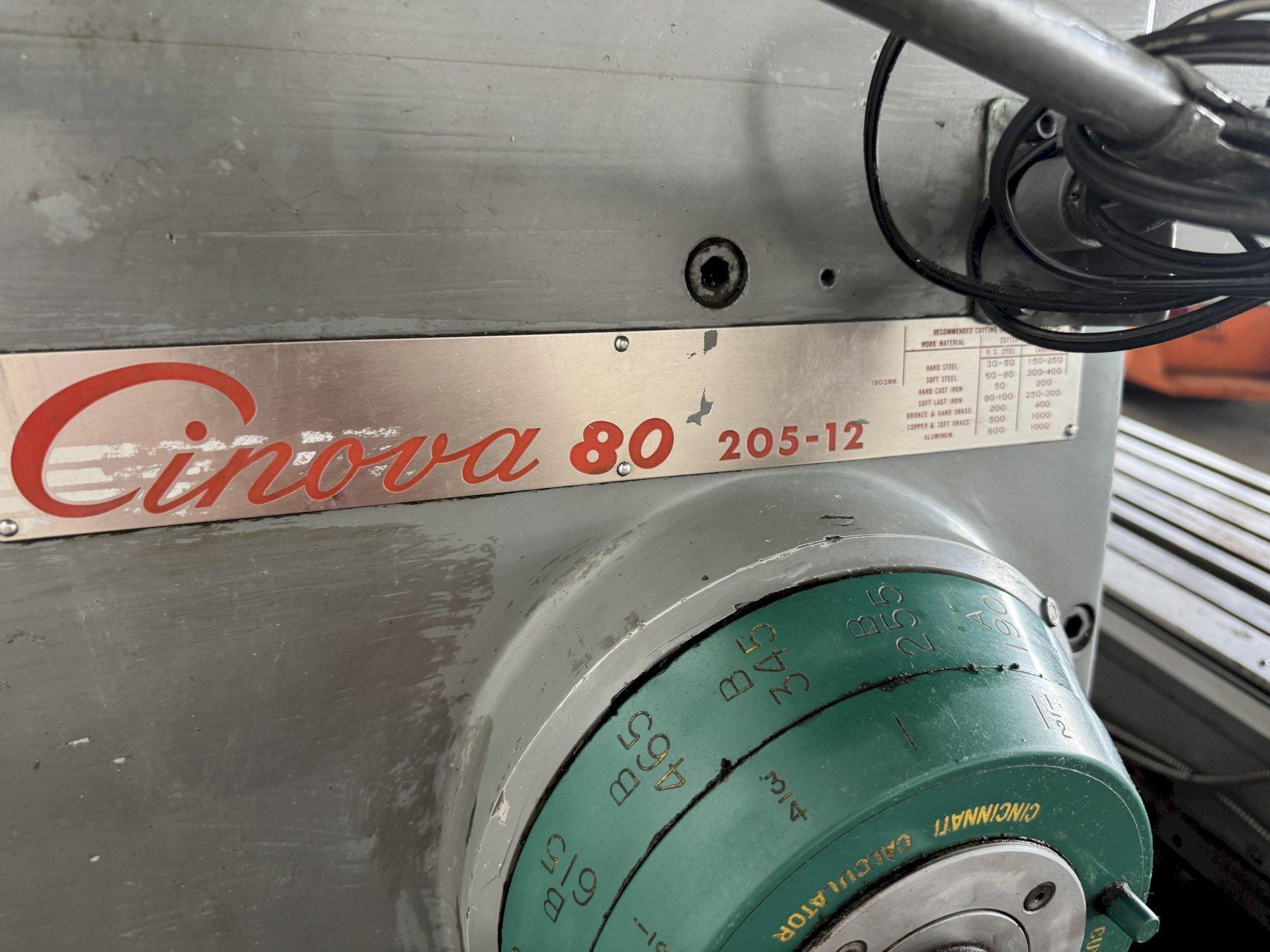

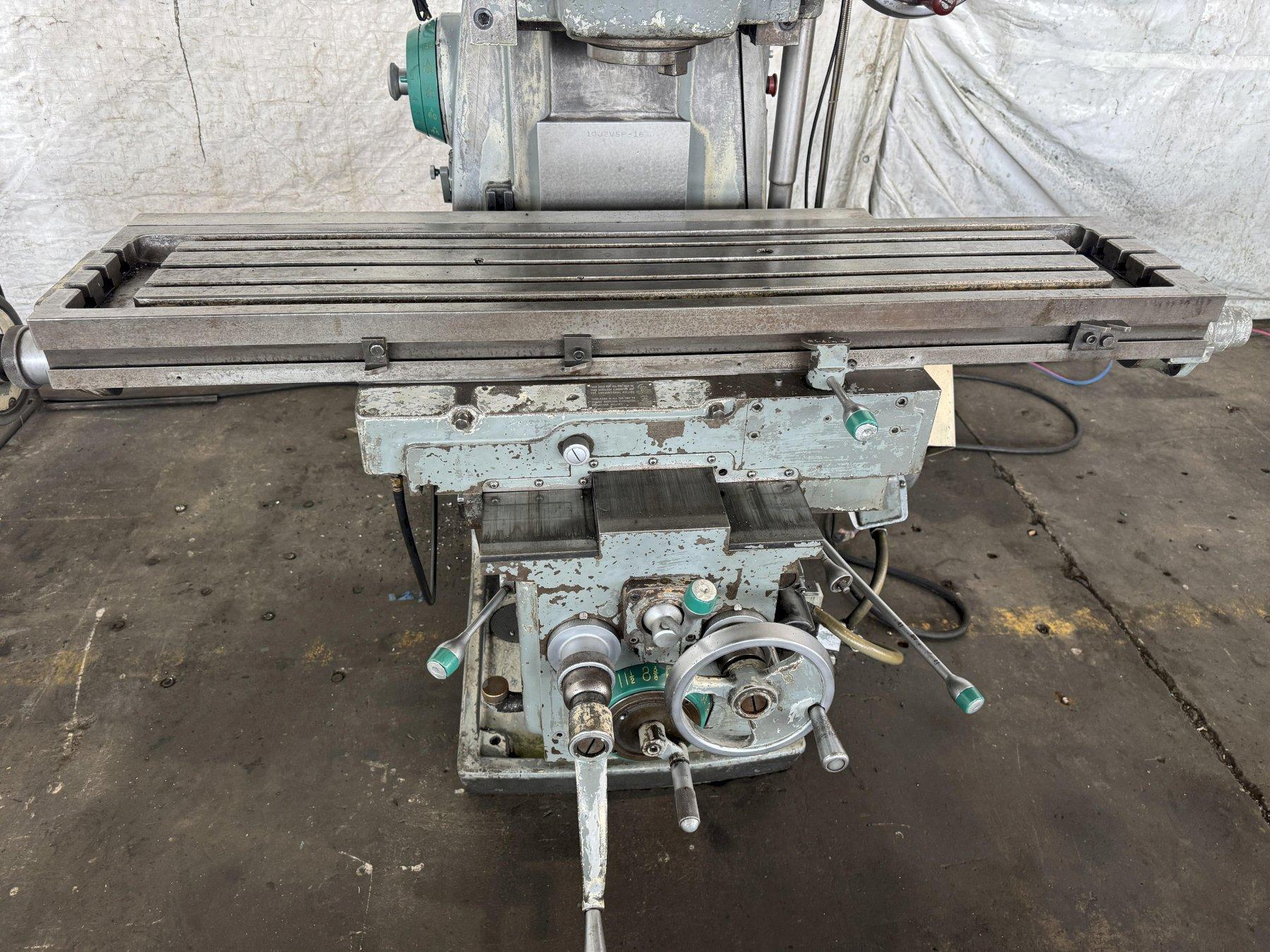

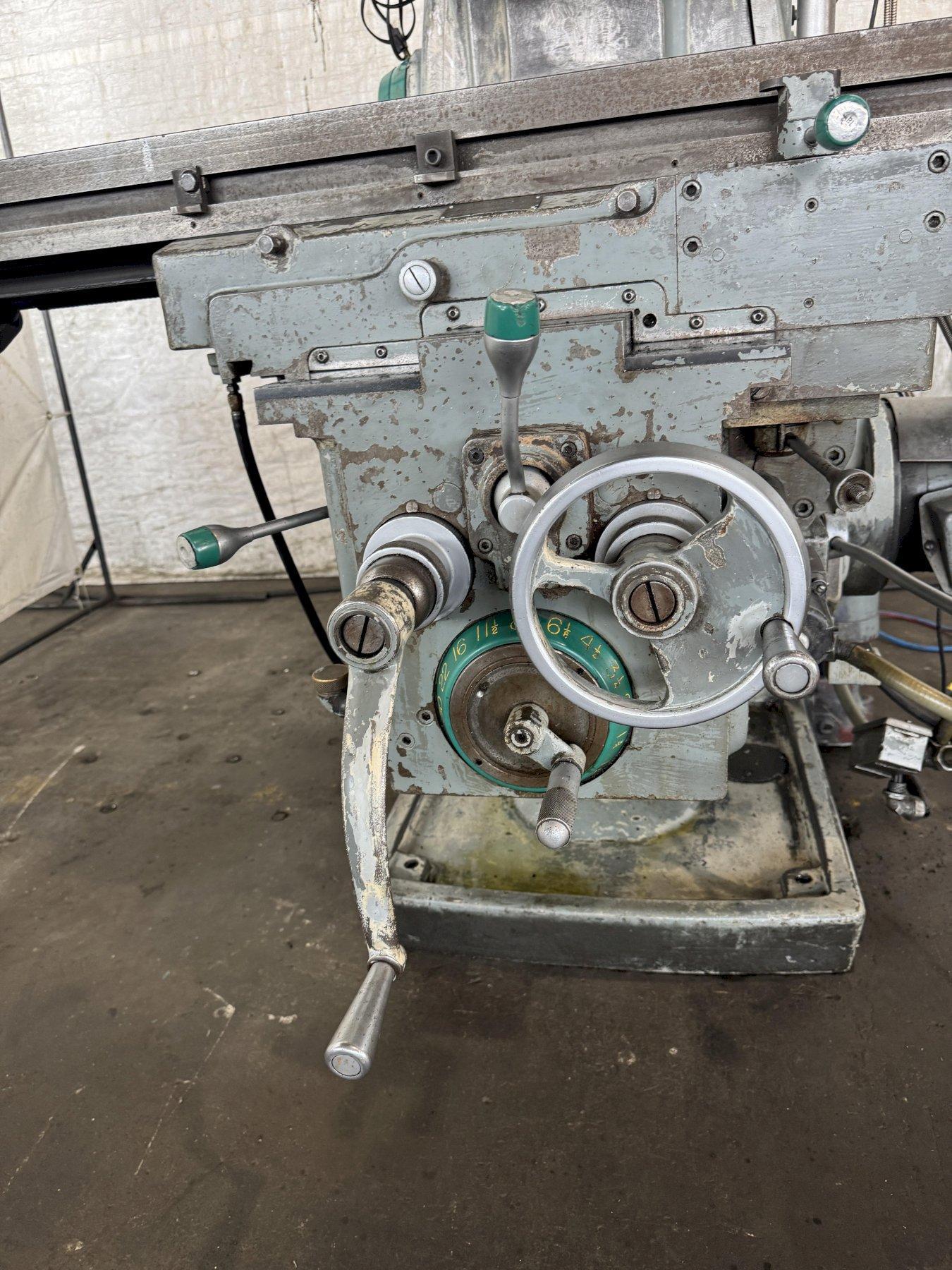

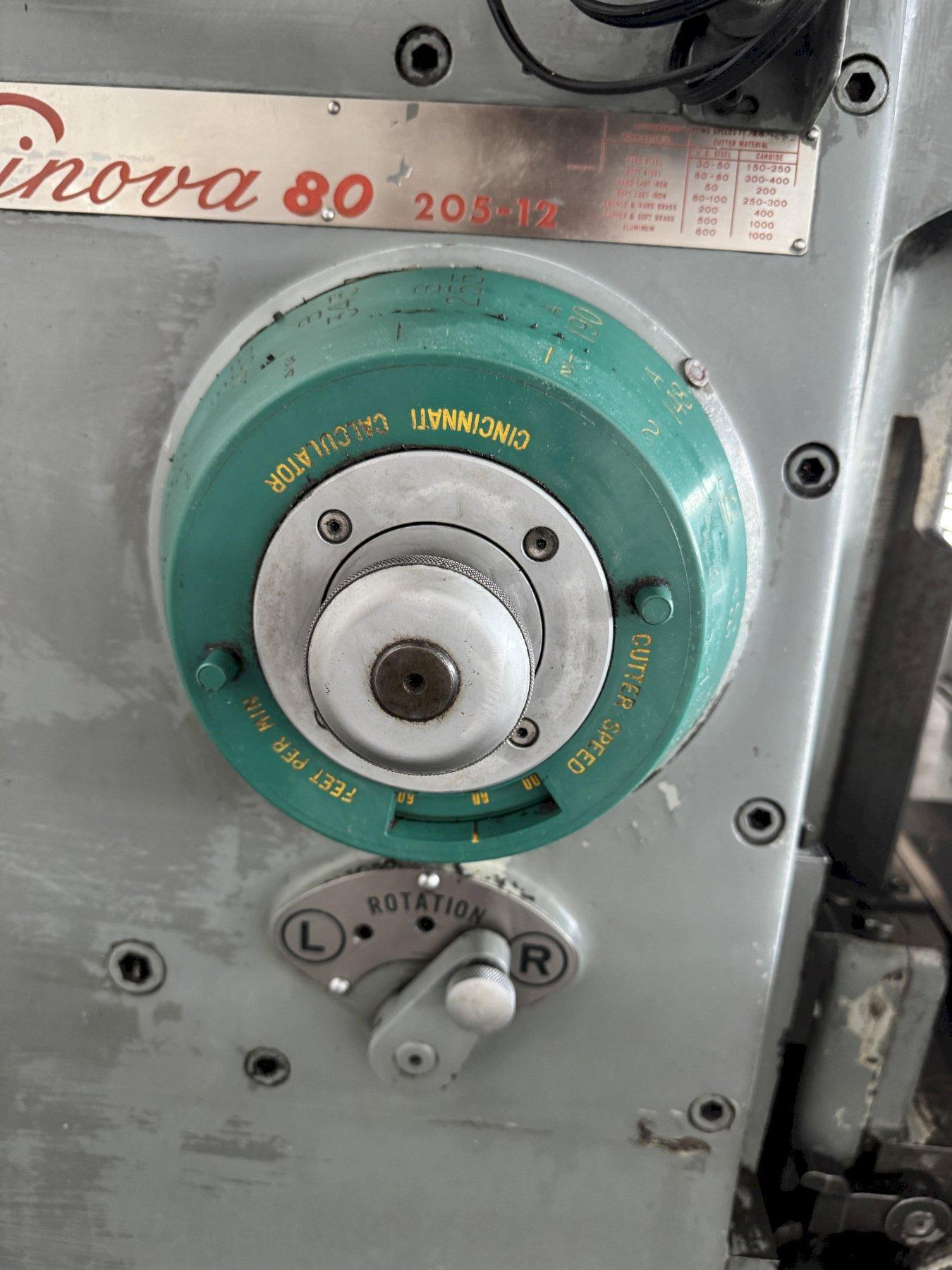

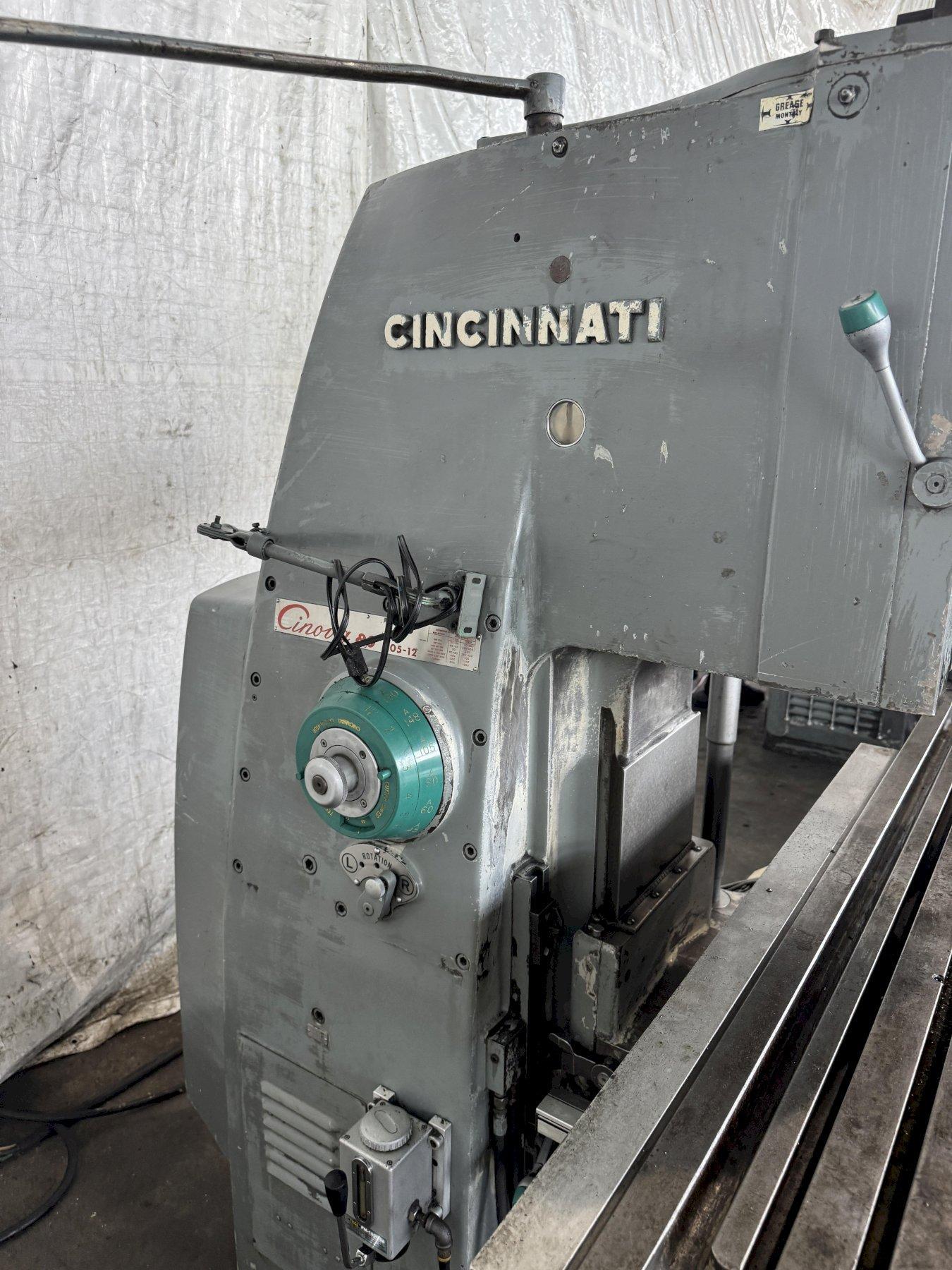

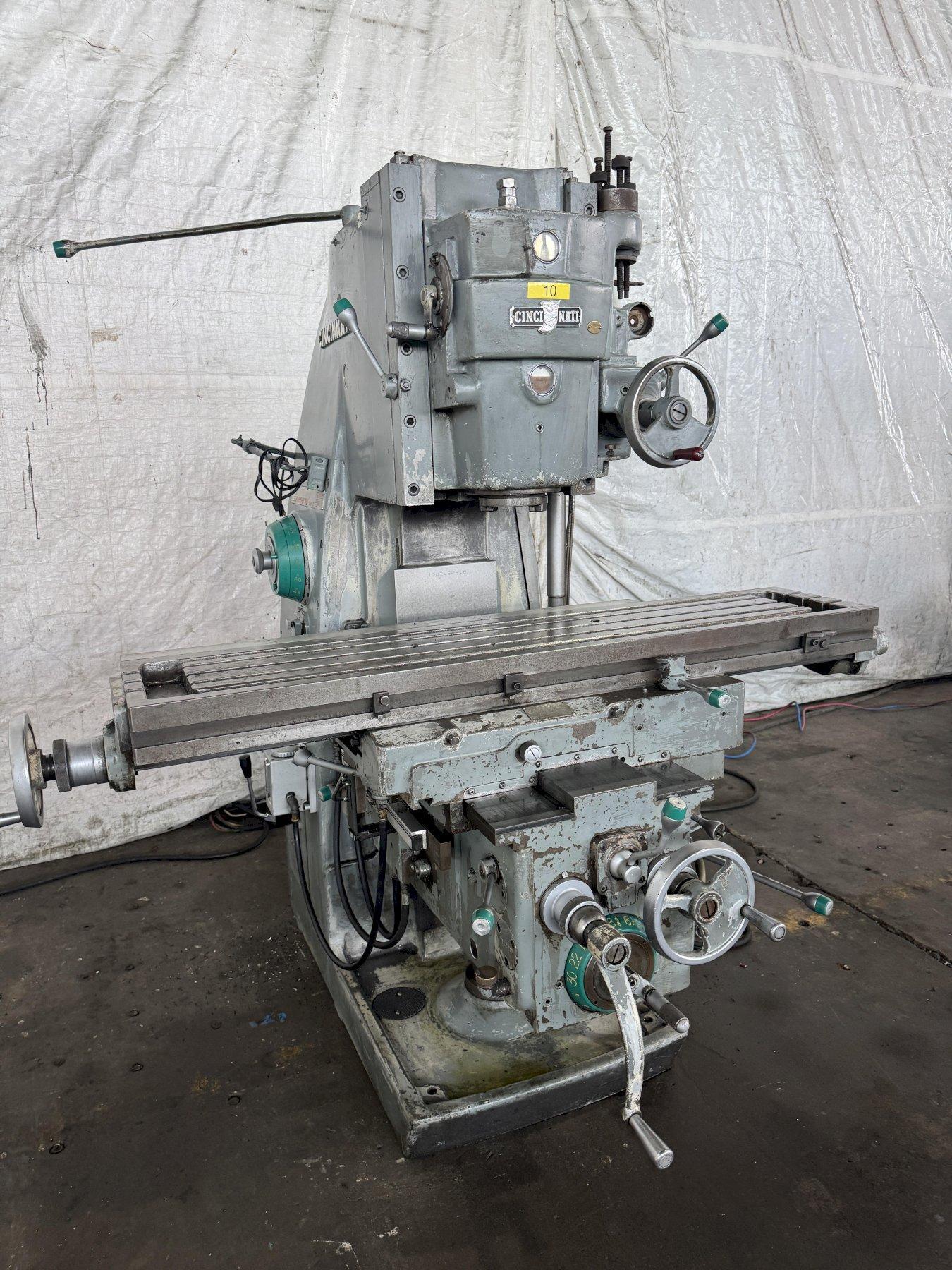

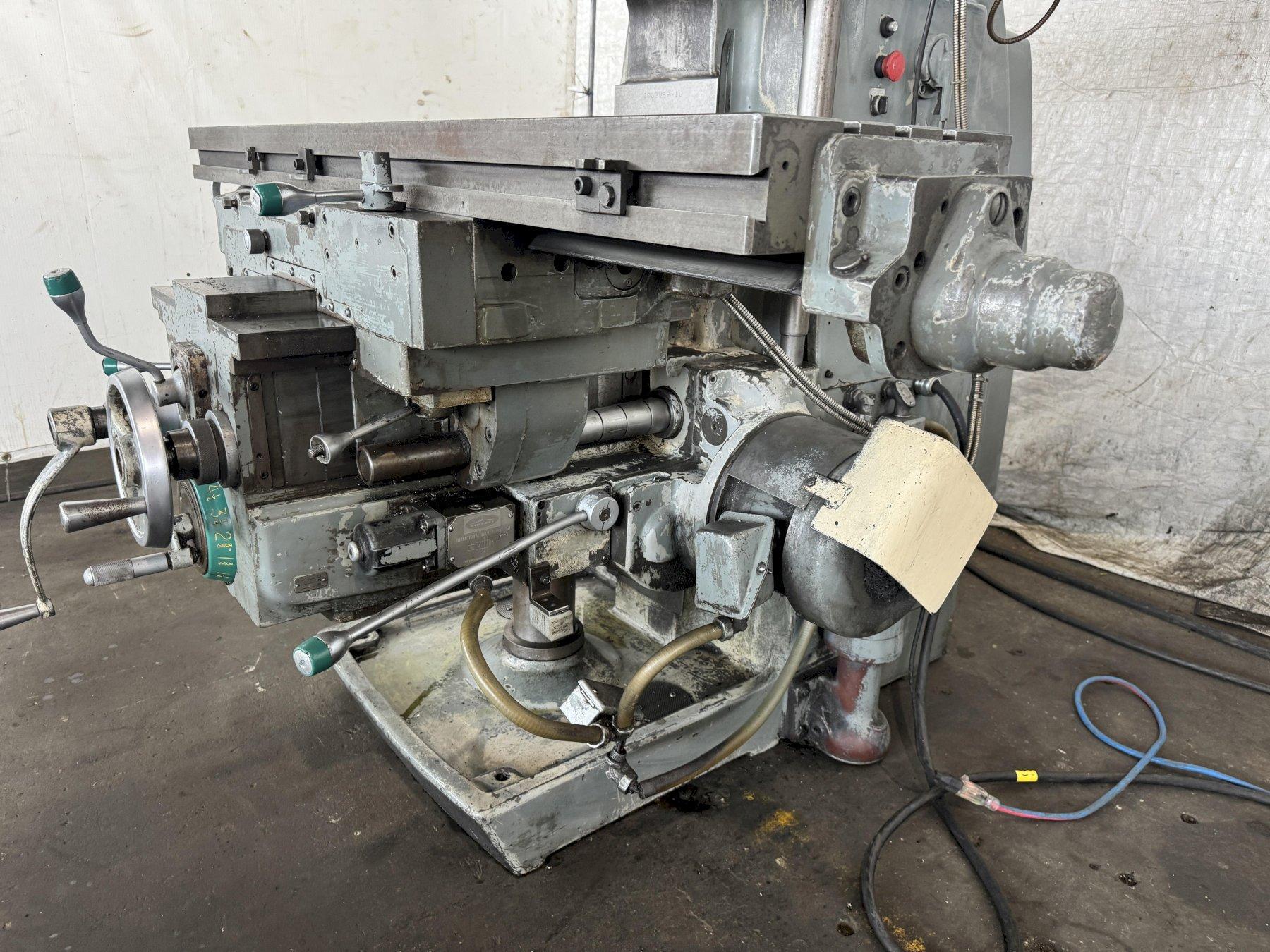

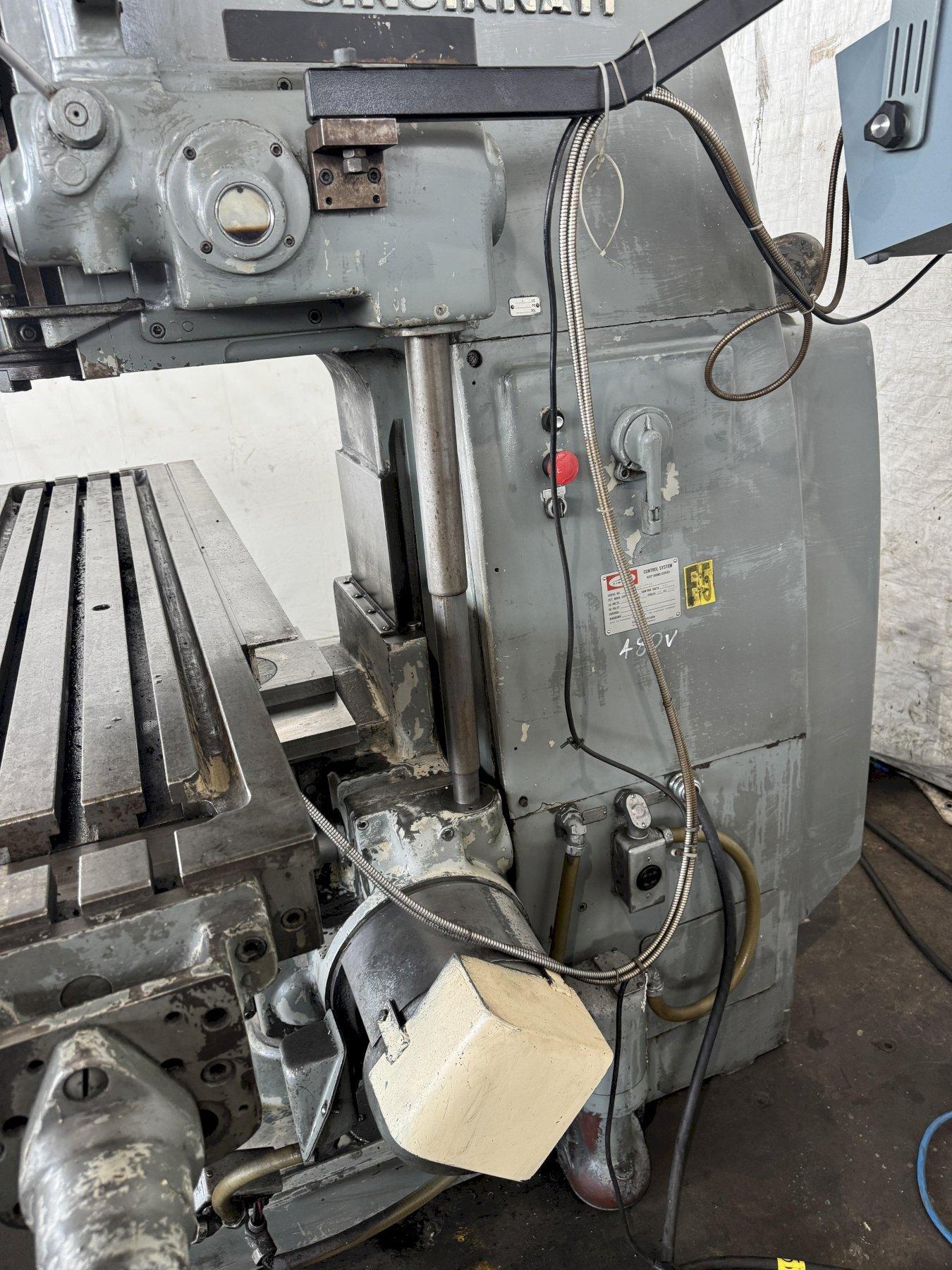

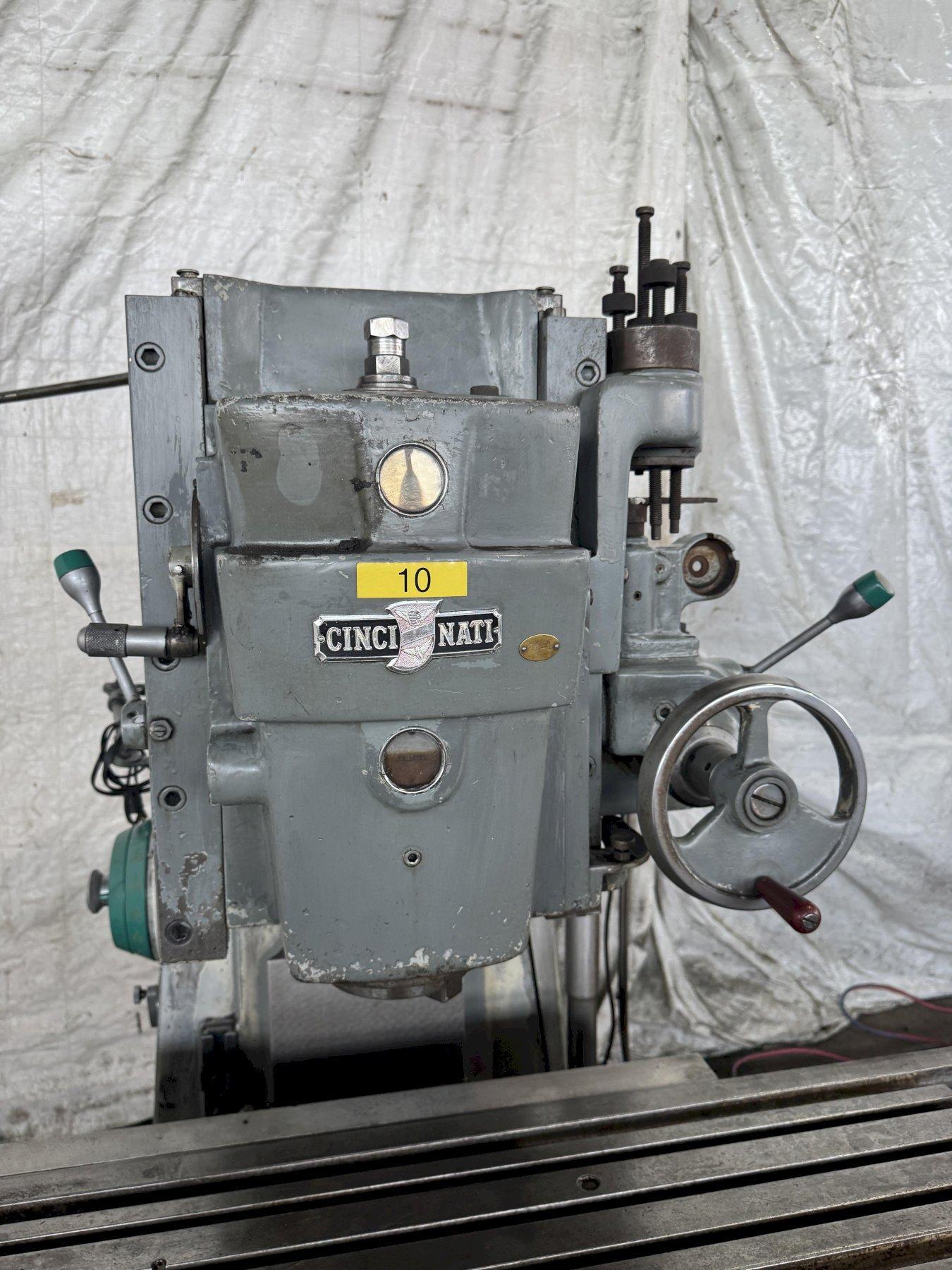

CINCINNATI CINOVA 80 MODEL 205-12 VERTICAL MILLING MACHINE. STOCK # 0554025.

Stock #: 0554025

Equipped With

TABLE LENGTH............................: 56-1/2"
TABLE WIDTH.............................: 12"
TABLE LONGITUDINAL TRAVEL [X-AXIS]......: 28"
SADDLE CROSS TRAVEL [Y-AXIS]............: 10"
KNEE VERTICAL TRAVEL [Z-AXIS]...........: 14"
SPINDLE-HEAD VERTICAL TRAVEL [Z-AXIS]...: 4"
MAXIMUM DISTANCE SPINDLE-NOSE TO TABLE..: 18"
SPINDLE-NOSE DIAMETER...................: 5.06"
SPINDLE TAPER...........................: #50 NSTD
[24] SPINDLE SPEEDS RANGE ..............: 25 TO 2000 RPM
[24] LONGITUDINAL AND CROSS FEEDS.......: 1/4 TO 30 IPM
[24] VERTICAL HEAD FEEDS RANGE..........: 1/8 TO 15 IPM
POWER RAPID TRAVERSE LONG & CROSS.......: 150 IPM
POWER RAPID TRAVERSE VERTICAL...........: 75 IPM
SPINDLE MOTOR HORSEPOWER................: 5
FEED MOTOR HORSEPOWER...................: 1.25
VOLTAGES................................: 220/440
PHASE...................................: 3
HERTZ...................................: 60
FLOOR SPACE FOOTPRINT...................: 8'1" X 7'4"
OVERALL HEIGHT..........................: 7'2"
APPROX. TOTAL WEIGHT....................: 5,600 LBS

CINCINNATI CINOVA 80 MODEL 205-12 VERTICAL MILLING MACHINE. STOCK # 0554025.

Download Images

TABLE LENGTH............................: 56-1/2"
TABLE WIDTH.............................: 12"

TABLE LONGITUDINAL TRAVEL [X-AXIS]......: 28"

SADDLE CROSS TRAVEL [Y-AXIS]............: 10"

KNEE VERTICAL TRAVEL [Z-AXIS]...........: 14"

SPINDLE-HEAD VERTICAL TRAVEL [Z-AXIS]...: 4"

MAXIMUM DISTANCE SPINDLE-NOSE TO TABLE..: 18"

SPINDLE-NOSE DIAMETER...................: 5.06"

SPINDLE TAPER...........................: #50 NSTD
[24] SPINDLE SPEEDS RANGE ..............: 25 TO 2000 RPM

[24] LONGITUDINAL AND CROSS FEEDS.......: 1/4 TO 30 IPM

[24] VERTICAL HEAD FEEDS RANGE..........: 1/8 TO 15 IPM

POWER RAPID TRAVERSE LONG & CROSS.......: 150 IPM

POWER RAPID TRAVERSE VERTICAL...........: 75 IPM

SPINDLE MOTOR HORSEPOWER................: 5

FEED MOTOR HORSEPOWER...................: 1.25
VOLTAGES................................: 220/440
PHASE...................................: 3
HERTZ...................................: 60

FLOOR SPACE FOOTPRINT...................: 8'1" X 7'4"

OVERALL HEIGHT..........................: 7'2"

APPROX. TOTAL WEIGHT....................: 5,600 LBS

Specifications

Machine Type

Millers, Vertical

Manufacturer

CINCINNATI

Model

205-12

Year

N/A

Condition

Used
